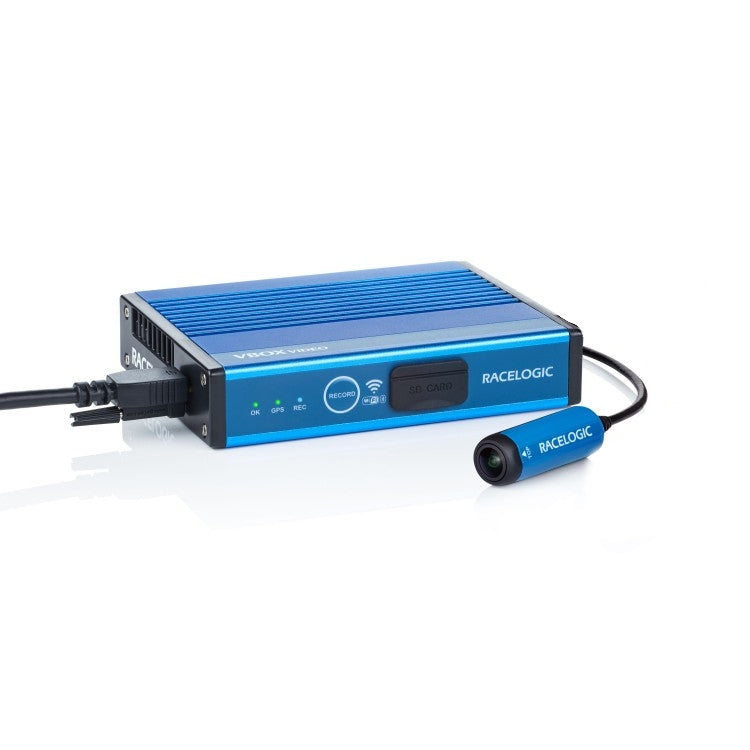

RACELOGIC RLVBVDHD2H-1 VBOX Video HD2 with HDMI output - 1 Camera System

Features

• Dual Camera 1080p system
• 25 Hz GPS data logging
• HDMI video output
• Records to SD card or USB
• Predictive Lap Timing (with OLED display)
• Real-time, high-definition graphic overlay
• MP4 video & audio recording
• Compatible with AiM dashboards or loggers
• VideoSplit - simple to use video editing software to help you share laps and data with friends and on social media
• Internal power backup for reliable recording
• Powerful data analysis software
• Up to 80 CAN channel inputs
• USB 2.0 host interface (for recording to USB flash drive)
• Camera preview over Wi-Fi
• Bluetooth LE connectivity
• Built-in track database
• Compatible with MoTeC

Package Contents

• HD2 Logger with HDMI
• 1 Cameras
• Microphone
• 2 Suction mounts
• 2 Camera clamps
• In car power supply
• Antenna
• 32 GB SD card
• HDMI cable (0.9 m) with locking screws

Quality Settings & Log Rates

• Low - 3.5 GB/hr
• Medium (default) - 5.4 GB/hr
• High - 7 GB/hr

This VBOX Video HD2 system has an HDMI video output allowing you to stream real-time video and audio to an HDMI compatible monitor, recorder or streaming device.

VBOX HD2 HDMI can be used to give live coverage of motorsport events for TV or social media, provide race teams with the ability to give instant driver feedback, or can act as a rearview camera. It comes with an HDMI port and locking pin to make sure our custom cable has a secure connection.

VBOX Video HD2 features 1080p 30fps video, real-time synchronised video/data with graphical overlay, Bluetooth and Wi-Fi connectivity. The internal 25 Hz GPS engine recognises the racetrack you are driving and automatically configures the track map and lap timing. Automatic recording, a pre-record buffer and internal power backup ensure that you capture absolutely all the race action. Video can be recorded at thirty frames per second to SD card or USB flash drive.

Graphics are overlaid in real time – also in high definition. With the high resolution afforded by the 1080p 30fps output, this gives the user great scope for fantastic dashboard and gauge layouts. The graphics are fully customisable, but several default scenes are available.

To aid in setting up the cameras, an app for Android and iOS devices connects via the VBOX Video’s inbuilt Wi-Fi to aid in getting the view just right, with real time camera output being displayed on the mobile device’s screen. The app also features some elements of the system setup for absolute convenience.

Remote start/stop logging is taken care of via a Bluetooth unit that can be conveniently mounted next to the driver.

VBOX Video HD2 represents the very latest in cutting edge technology within the VBOX Motorsport range, giving you a competitive advantage no matter what level of motorsport you compete in.
