RACELOGIC RLVBTTMS-M VBOX Motorsport Tyre Temperature Monitoring System (including VBOX Touch Motorsport 10Hz System with Tyr
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
RACELOGIC RLVBTTMS-M VBOX Motorsport Tyre Temperature Monitoring System (including VBOX Touch Motorsport 10Hz System with Tyr
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

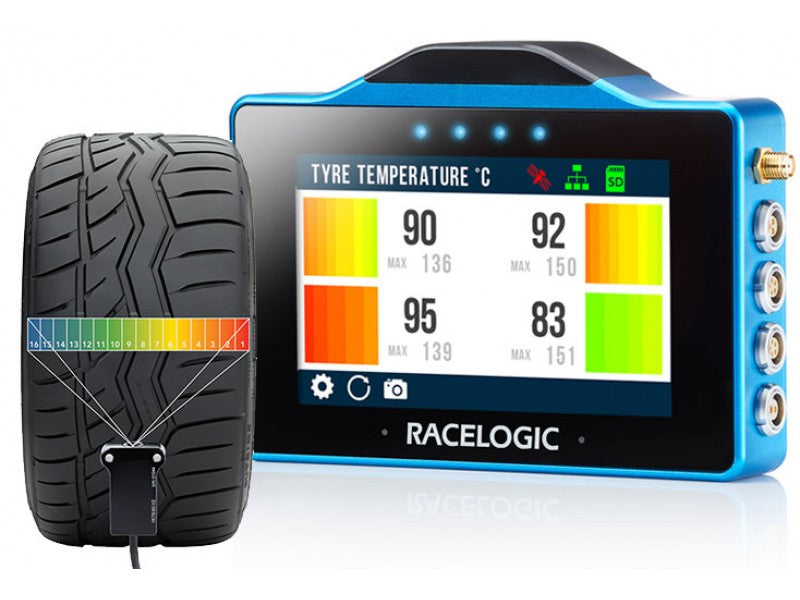

The RACELOGIC Tyre Temperature Monitoring System has been specifically designed to measure, log and display surface temperature of a tyre, providing invaluable information to the driver whilst on track. The display offers a visual representation of the whole surface temperature for all four tyres via 64 individual heat maps, as well as live temperature and maximum temperature values.
Each sensor has a field of view of 120° and can measure up to 16 temperature points on an object with surface temperatures ranging from -20° C to 300° C. Please see the datasheet and configuration guide for more information.
Please note, that a CAN Gateway is required to log data from the tyre temperature sensors and a vehicle CAN bus at the same time. If you have any questions, please email vbox@racelogic.co.uk.
TTMS Case Study
Porsche Carrera Cup GB evaluated tyre performance at a high degradation circuit using the VBOX Tyre Temperature Monitoring System working alongside Michelin to provide safe parameters to the competitors.
VBOX Motorsport Tyre Temperature Monitoring System
RLVBTOUCH-M VBOX Touch Motorsport System

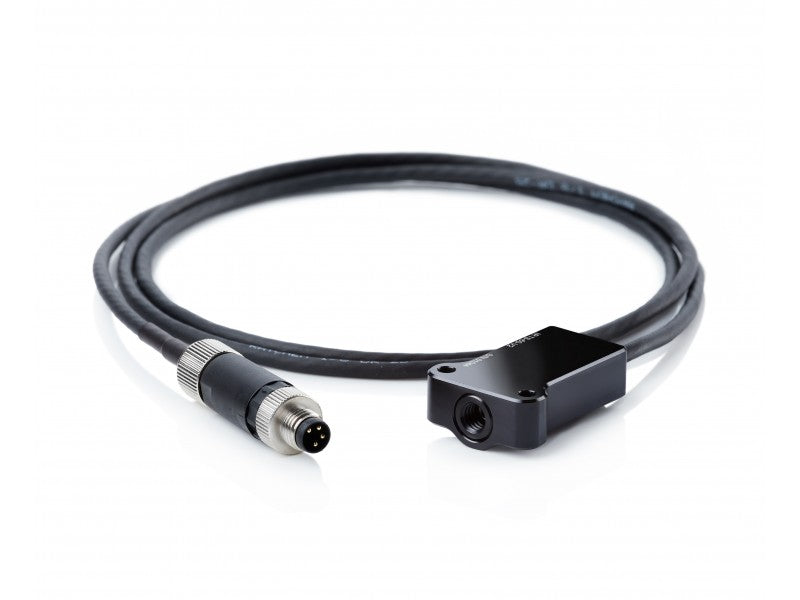

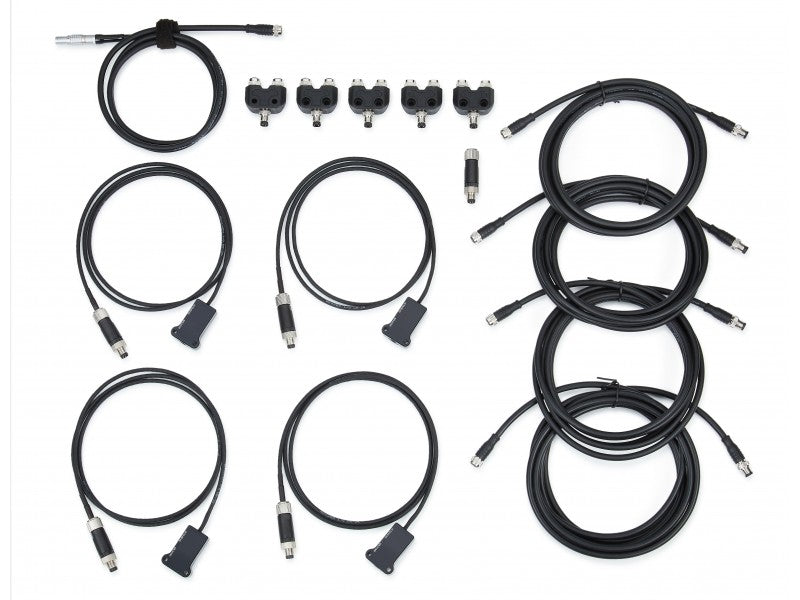

RLACS272-120 Tyre Temperature Monitoring Sensors & Wiring Loom (120 FOV)
RLACS272-120 Tyre Temperature Monitoring Sensors & Wiring Loom (120 FOV)
RLACS272-60 Tyre Temperature Monitoring Sensors & Wiring Loom (60 FOV)
