RACELOGIC RLACS329 1080p Camera for VBOX Video HD2
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
RACELOGIC RLACS329 1080p Camera for VBOX Video HD2
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

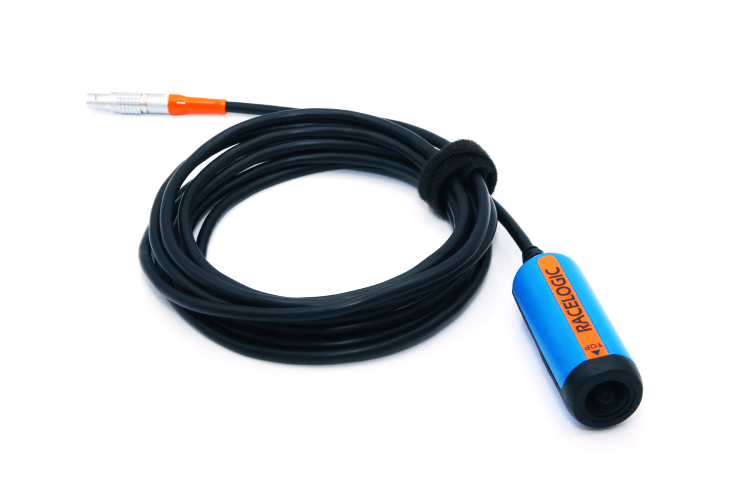

This is a 1080p camera for VBOX Video HD2. It features a LEMO connector and comes with a 3 m cable as standard.
Note: This camera does not work with the Video VBOX Lite, Video VBOX Waterproof or Video VBOX Pro.
Technical Specification
| Image sensor | 1/3.2" 13 Mega Pixel CMOS |
| Recording Mode | 1080p30 |
| Aperture | F3.0 |
| Synchronising system | Internal, rolling shutter |
| Scanning system | Progressive scan 1080p |
| Video output | Racelogic proprietary LVDS |
| Dynamic range | 69 dB |
| Gain control | x1 to x7.75 Analogue, x1 to x7.98 Digital |
| Shutter speed | 1/30 ~ 1/33333 seconds |
| White balance | Automatic (AWB) |
| Field of View | Horizontal Field of View (HFOV) = 119° |
| Vertical Field of View (VFOV) = 68° | |
| Display Field of View (DFOV) = 135° | |
| Operating voltage | 4.5 V DC |
| Operating current | 350 mA max |
| Operating temperature | - 30°C to + 70°C |

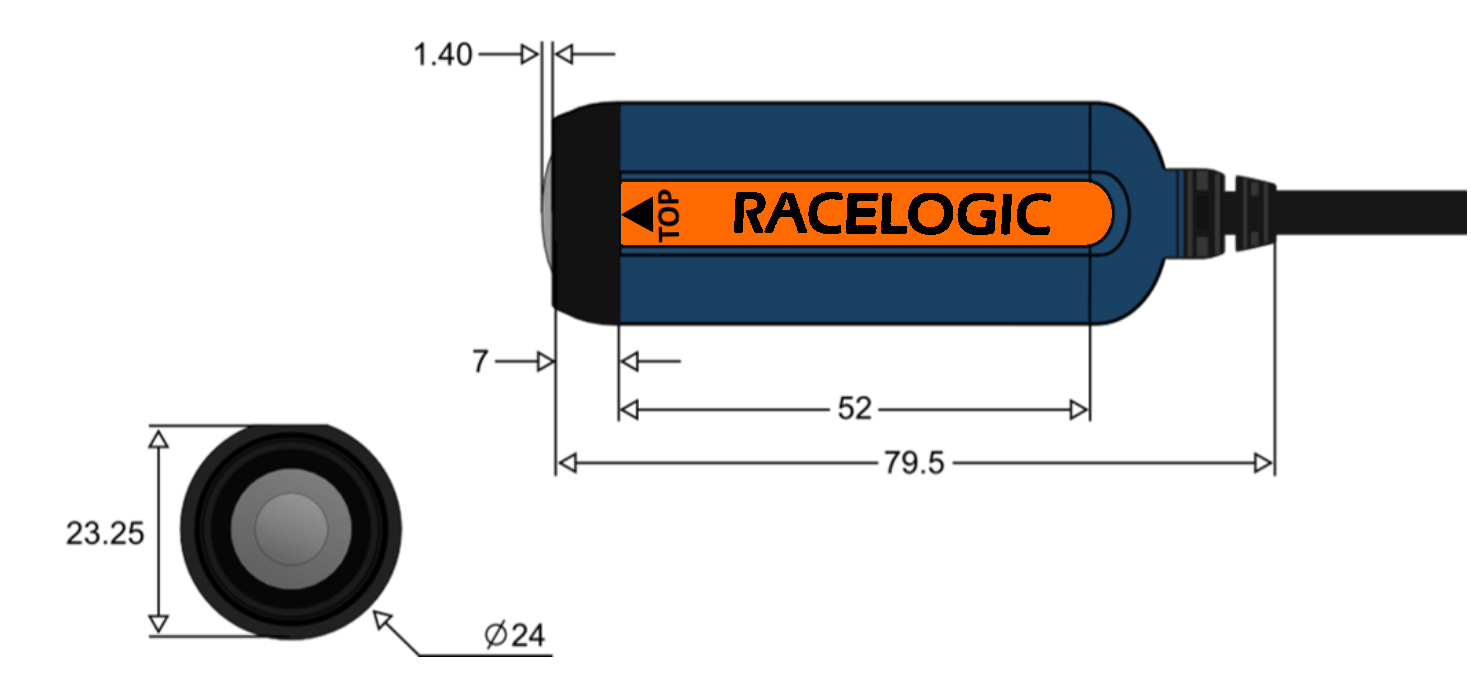

| Camera Dimensions | 24 mm (D) x 81 mm (L) |
| Camera Weight | 135 g |
| IP rating | IP65 |
