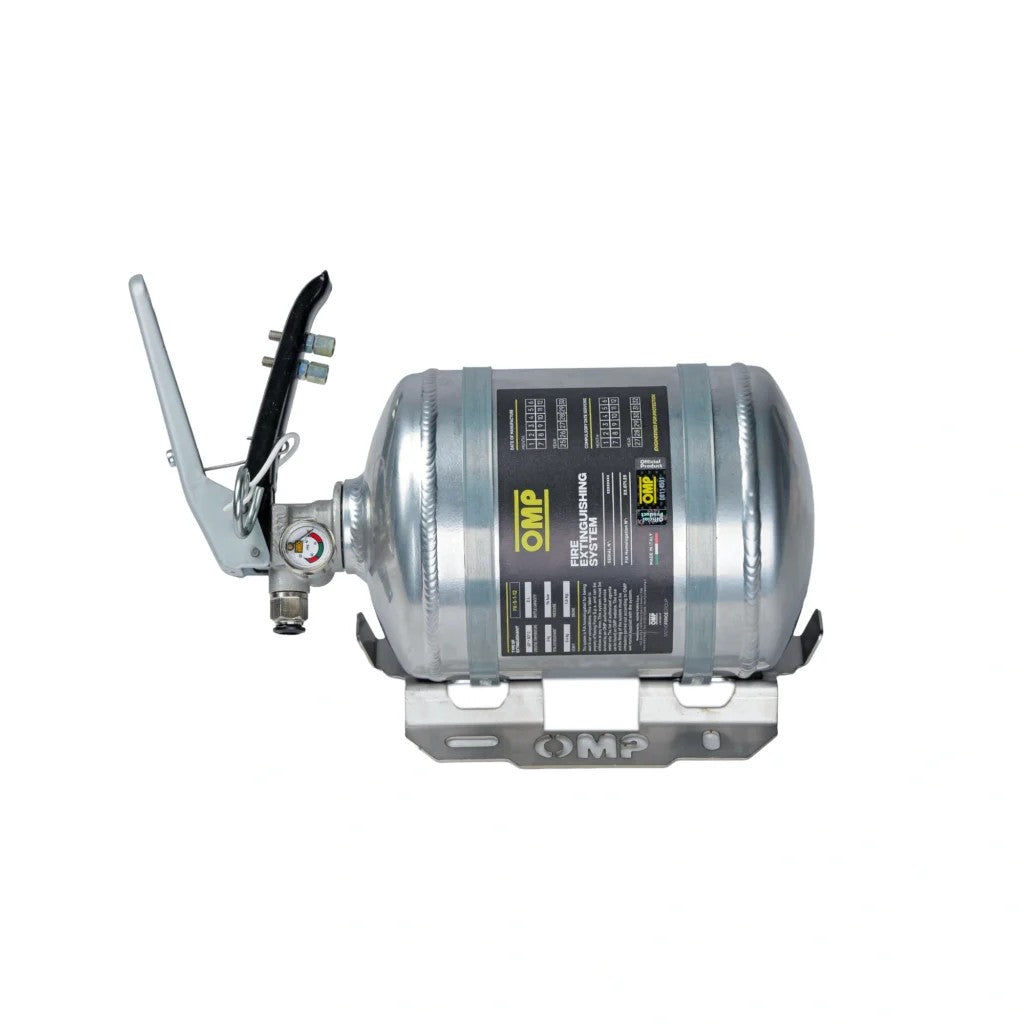

OMP CM0-SAL6-A01 Extinguishing Sytem CMSAL 6, Manual, Saloon, Alluminium (2Kg)

Description OMP CM0-SAL6-A01 Extinguishing Sytem CMSAL 6, Manual, Saloon, Alluminium (2Kg)

The OMP system is a mechanically activated fire extinguishing solution designed for recreational vehicles that require compactness and high extinguishing efficiency.

Technical specifications

• Fire extinguishing agent: FK-5-1-12
• Mechanical activation
• Aluminum cylinder with a diameter of 130 mm
• Cylinder length: 199 mm
• Total length: 292 mm
• Weight: 2.95 kg
• Complete mounting kit

Components

• 2× 8 mm aluminum tubes (CD0-0323-A01)
• 1× 6 mm aluminum tube (CD0-0323-B01)
• 2× Protective covers 10 mm (CD0-0324-A01)
• 1× Protective cover 8 mm (CD0-0324-A03)
• 7× Nozzles — 5 for the engine, 2 for the cockpit (CD0-0393-A01)
• 3× T-connectors 8 mm (CD0-0392-A02)
• 1× T-connection 6 mm (CD0-0392-A03)
• 2× 90-degree 8 mm connection (CD0-0391-A02)
• 1× 90-degree 6 mm connector (CD0-0391-A03)
• 1× 6–8 mm adapter (CD0-0399)
• 2× T-connectors 8 mm (CD0-0390-B01)
• 1× Bracket and clamps (CD0-0561)
• 1× Activation cable 3.2 m (CD0-0335)
• 1× 2 m activation cable (CD0-0336)
• 2× Stickers (XMC-855)
