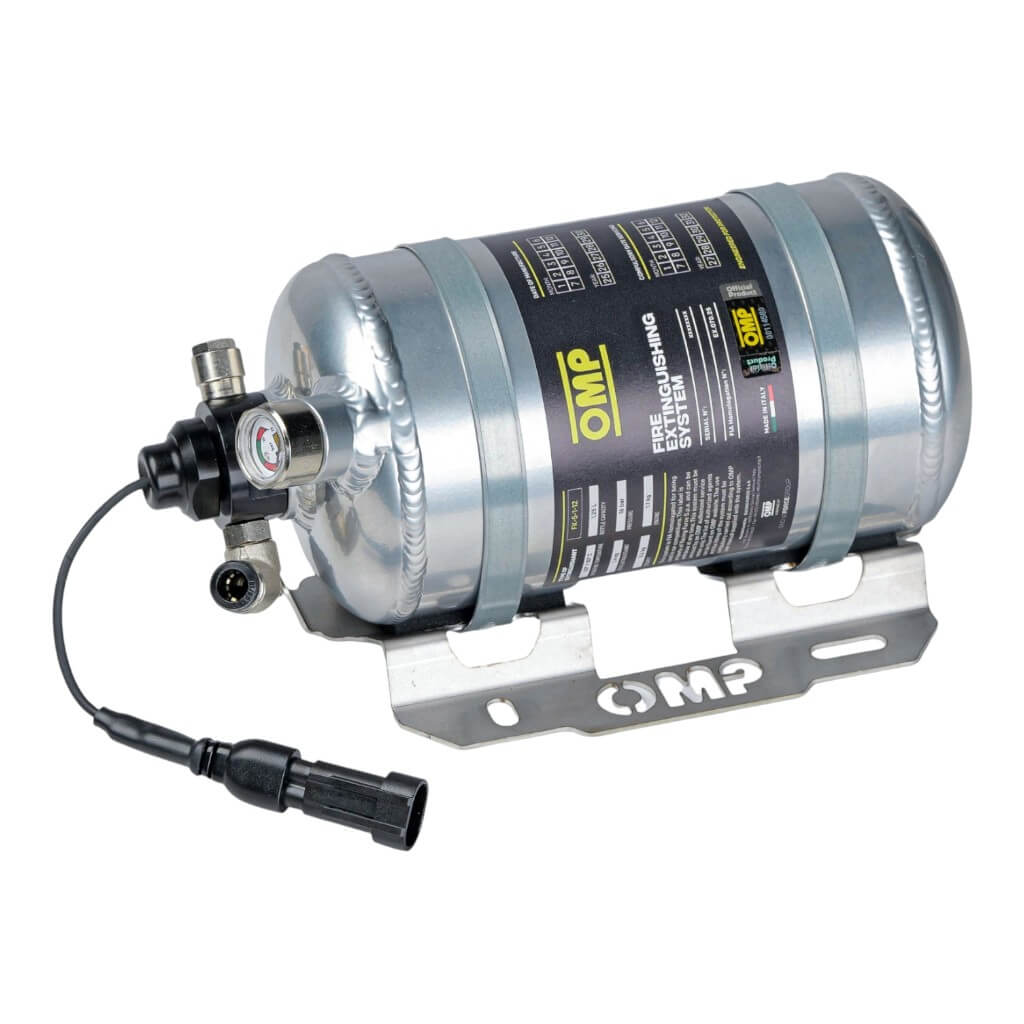

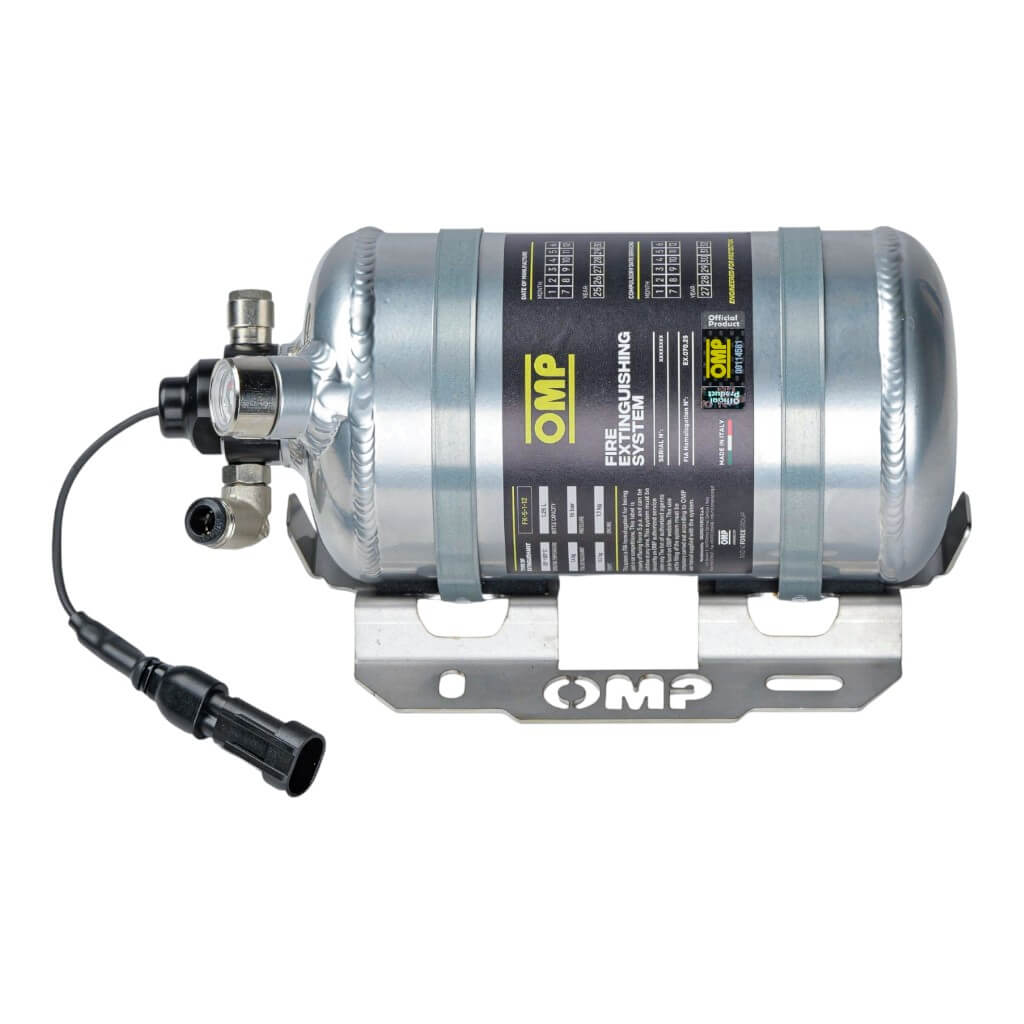

OMP CE0-FAL6-A01 Extinguishing Sytem Cefal 6, Elettrically, Formula, Alluminium

Description OMP CE0-FAL6-A01 Extinguishing Sytem Cefal 6, Elettrically, Formula, Alluminium

The OMP fire extinguishing system is designed for formula cars, where minimal dimensions and weight are critical.

Technical specifications

• Fire extinguishing agent: FK-5-1-12
• Cylinder length: 197 mm
• Total length: 230 mm
• Weight: 2.05 kg
• Electrical activation
• Aluminum cylinder with a diameter of 100 mm
• Complete mounting kit

Components

• 2× 8 mm aluminum tubes (CD0-0323-A01)
• 1× 6 mm aluminum tube (CD0-0323-B01)
• 2× Protective covers 10 mm (CD0-0324-A01)
• 1× Protective cover 8 mm (CD0-0324-A03)
• 6× Nozzles — 5 for the engine, 1 for the cockpit (CD0-0393-A01)
• 3× T-connectors 8 mm (CD0-0392-A02)
• 2× 90-degree 8 mm connectors (CD0-0391-A02)
• 1× 90-degree 6 mm connection (CD0-0391-A03)
• 1× 6–8 mm adapter (CD0-0399)
• 2× T-connectors 8 mm (CD0-0390-B01)
• 1× Control unit (CD0-0398)
• 1× Control unit wiring (XMC-398-CAV)
• 1× Solenoid valve wiring (XMC-363-E-CAV)
• 1× Activation button (CD0-0432-A01)
• 1× Button protection (CD0-0441)
• 1× Bracket and clamps (CD0-0561)
• 2× Stickers (XMC-855)
