MISHIMOTO MMTMIC-WRX-01SLRD SUBARU WRX/STI Performance Top-Mount Intercooler Kit, Silver Intercooler

Description MISHIMOTO MMTMIC-WRX-01SLRD SUBARU WRX/STI Performance Top-Mount Intercooler Kit, Silver Intercooler

A top-mount intercooler upgrade is an effective way to provide a flat-four engine with a cooler charge of air. A cool, dense air charge can allow for more aggressive tuning and increased power. The Mishimoto Subaru WRX and STI TMIC Kit offers a unique solution for upgrading the charge air system.

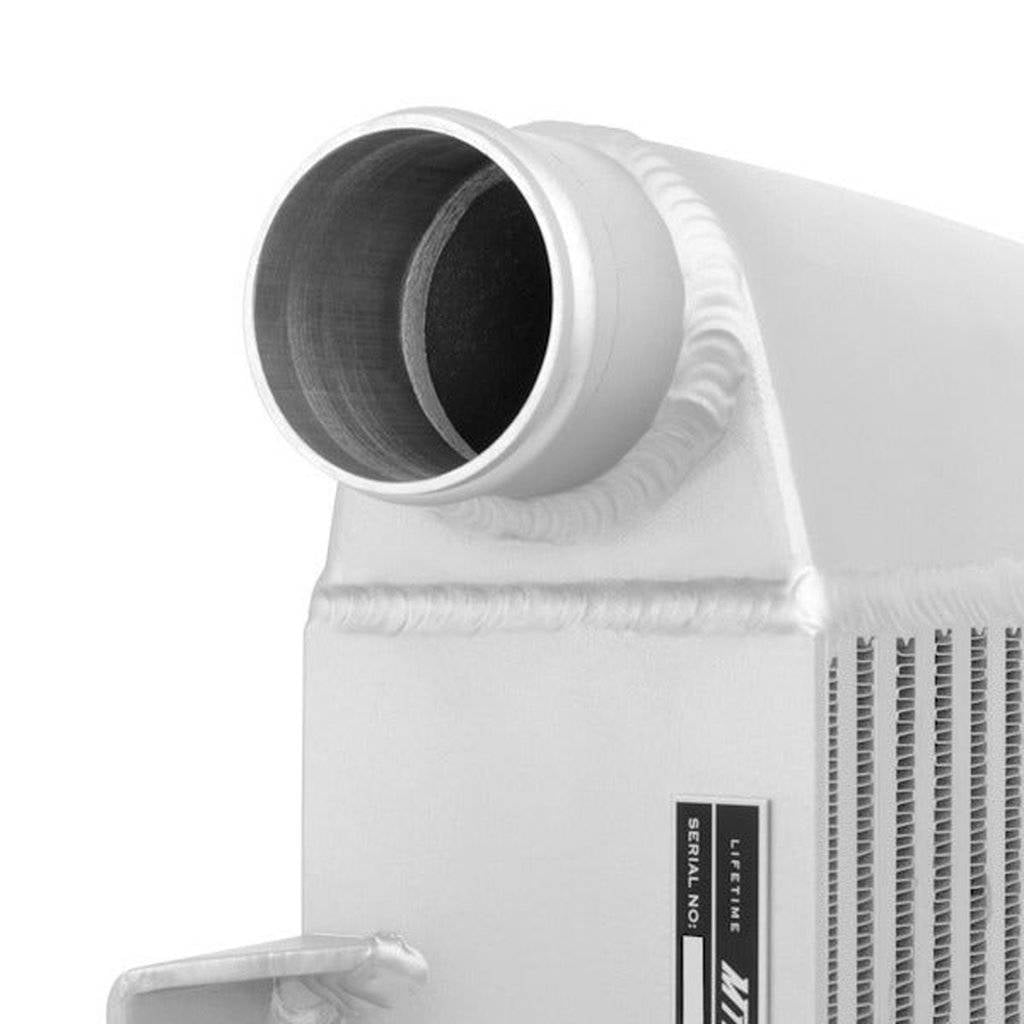

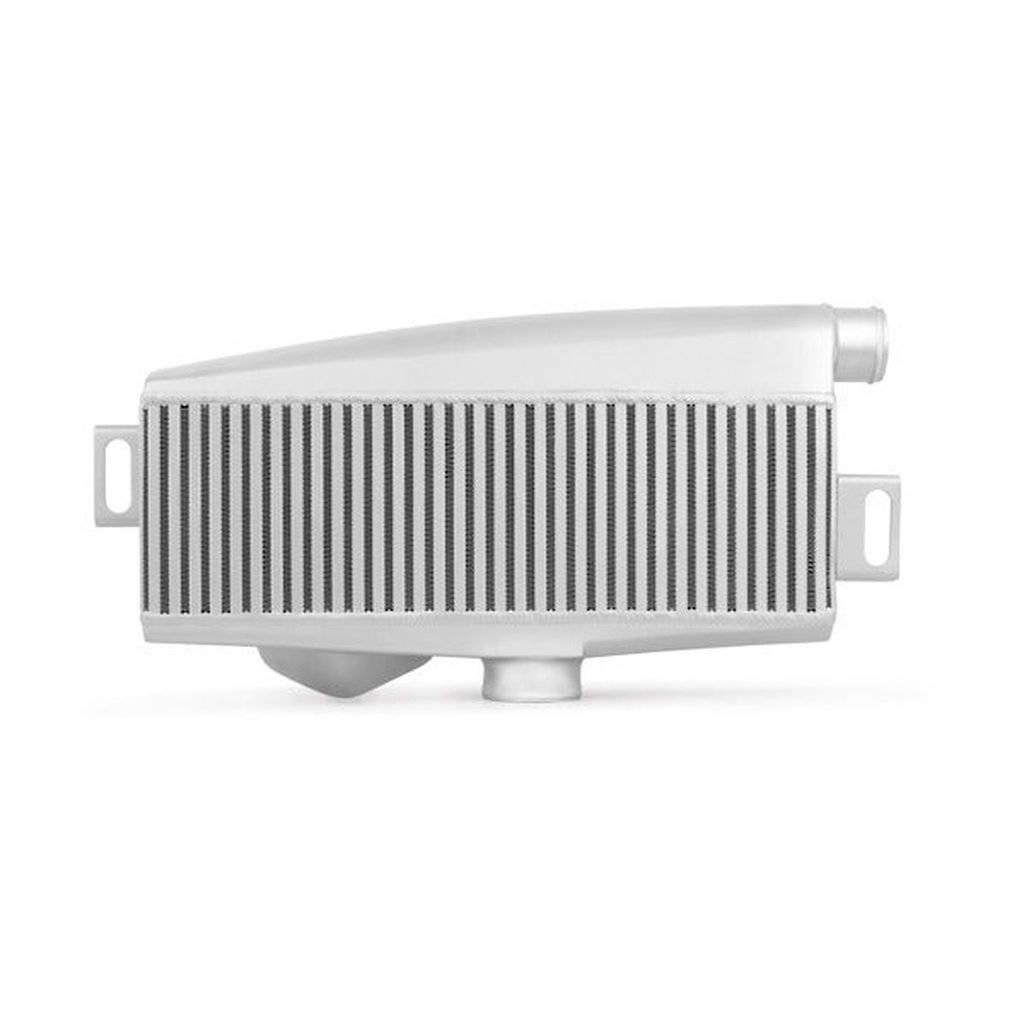

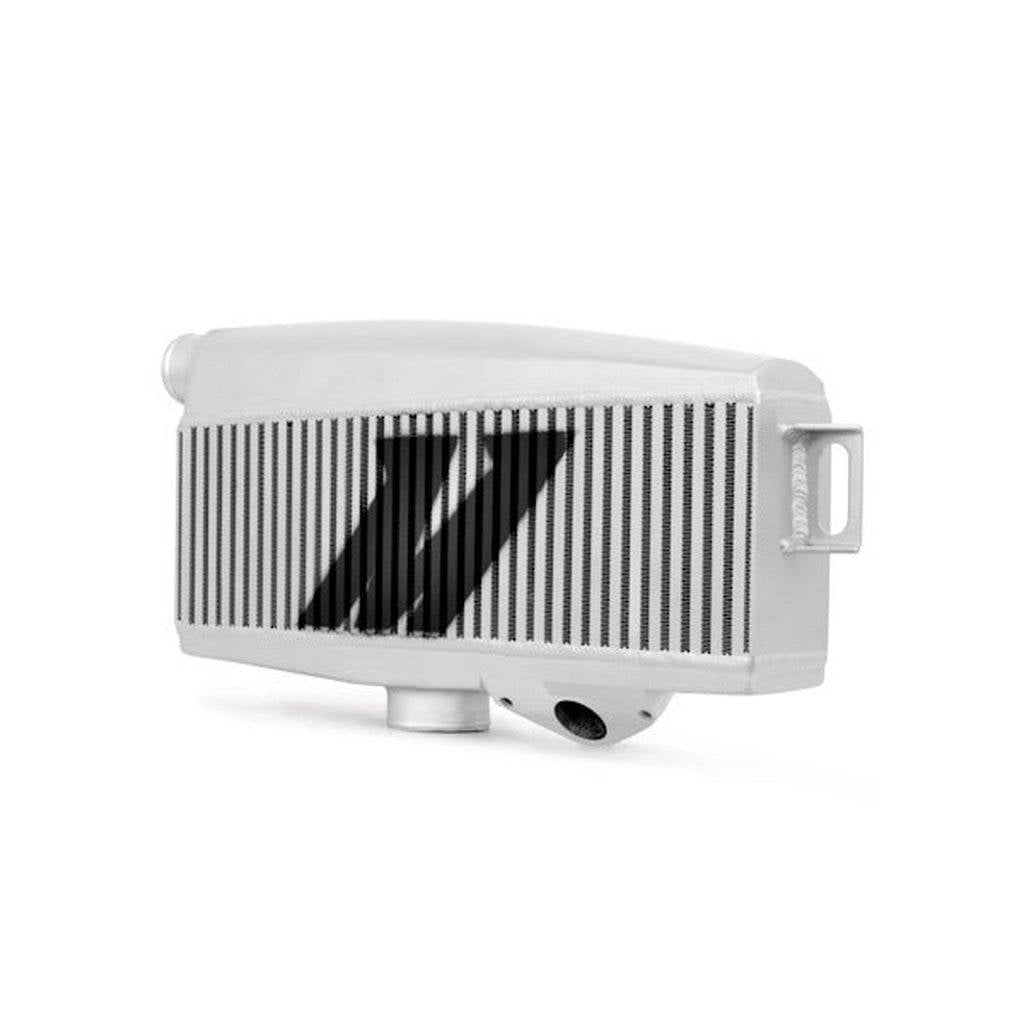

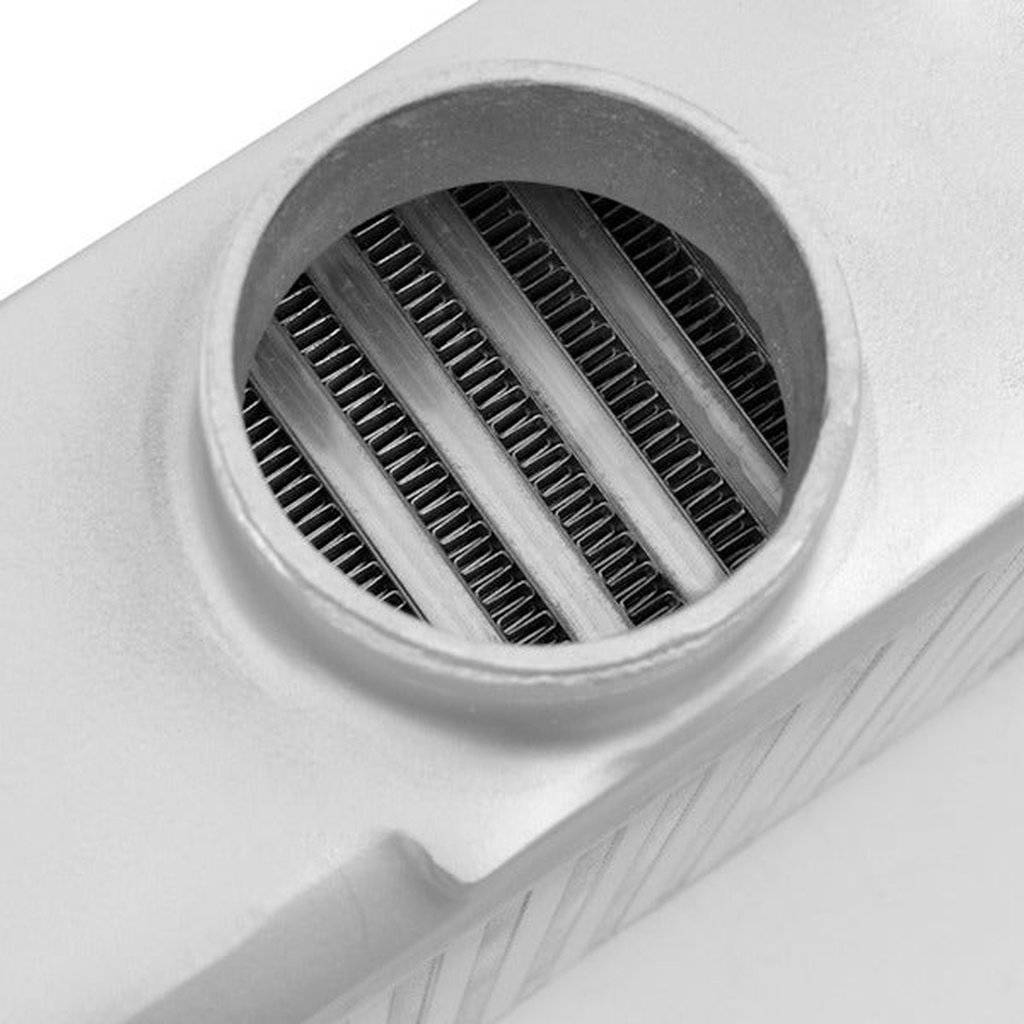

This top-mount intercooler kit features a single entry inlet compared to the stock Y-pipe setup. The unique tank design delivers maximum airflow and superior air dispersion through the core, resulting in optimal AIT reduction. The high-efficiency bar-and-plate core increases volume and improves heat transfer. The kit is fully bolt-on and requires no modifications to the vehicle.

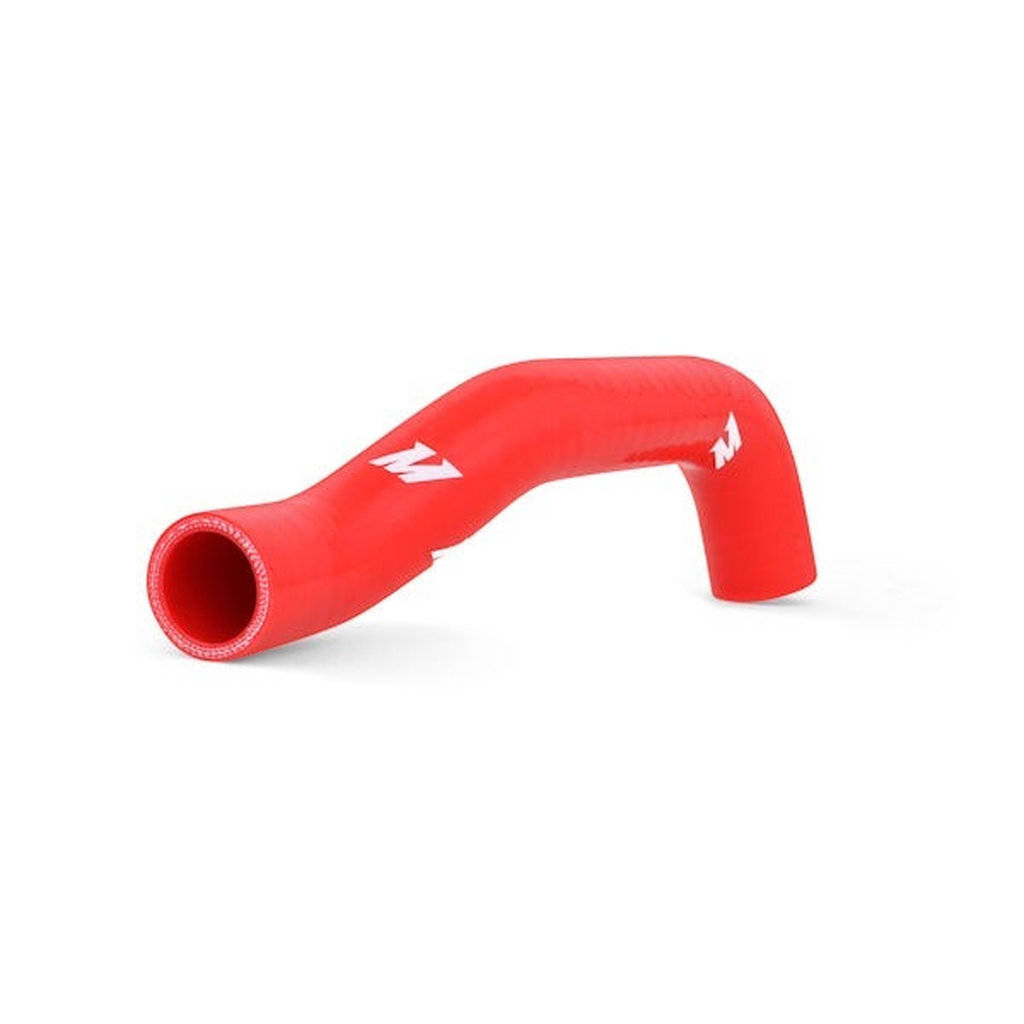

The Mishimoto top-mount intercooler kit includes silicone bypass hoses for both WRX and STI, a silicone crankcase ventilation hose, a bypass valve gasket, a silicone throttle body hose, and all necessary T-bolt clamps and hardware for installation. This kit has undergone rigorous testing on both stock and modified vehicles, demonstrating increased power and reduced air intake temperatures. On a 305 hp test vehicle running 20-22 psi of boost, this intercooler provided a 14 hp increase and a 30°F drop in AITs compared to the stock STI TMIC. The intercooler supports vehicles with up to 350 hp and is available in Stealth Black or Sleek Silver finishes.

Note: This kit is rated for approximately 350 whp, or 25 PSI of turbo boost. Exceeding these horsepower or pressure limits may require a larger front-mount intercooler.

Note: This intercooler kit will not fit RHD vehicles.

• Single entry inlet design for maximum airflow and air dispersion
• High-efficiency bar-and-plate core for improved heat transfer
• Fully bolt-on installation with no vehicle modifications required
• Tested to increase power and reduce air intake temperatures

Specifications:

• Engine Codes: EJ20, EJ25
• Chassis Codes: GD6, GG6
• Overall Length (in): 22.25
• Overall Height (in): 11.25
• Overall Width (in): 3.625
• Core Thickness (in): 3.5
• Core Length (in): 19
• Core Height (in): 6
• Inlet (in): 2.5
• Outlet (in): 2.75

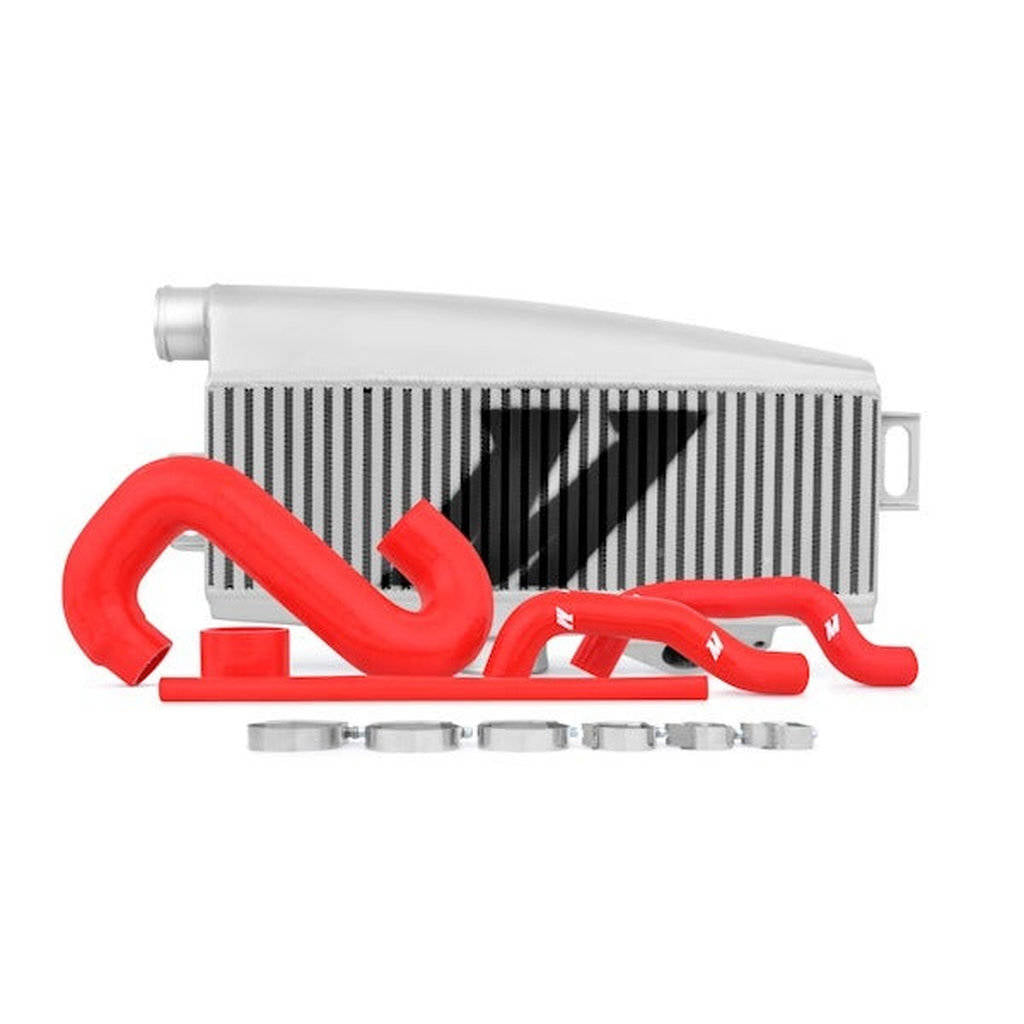

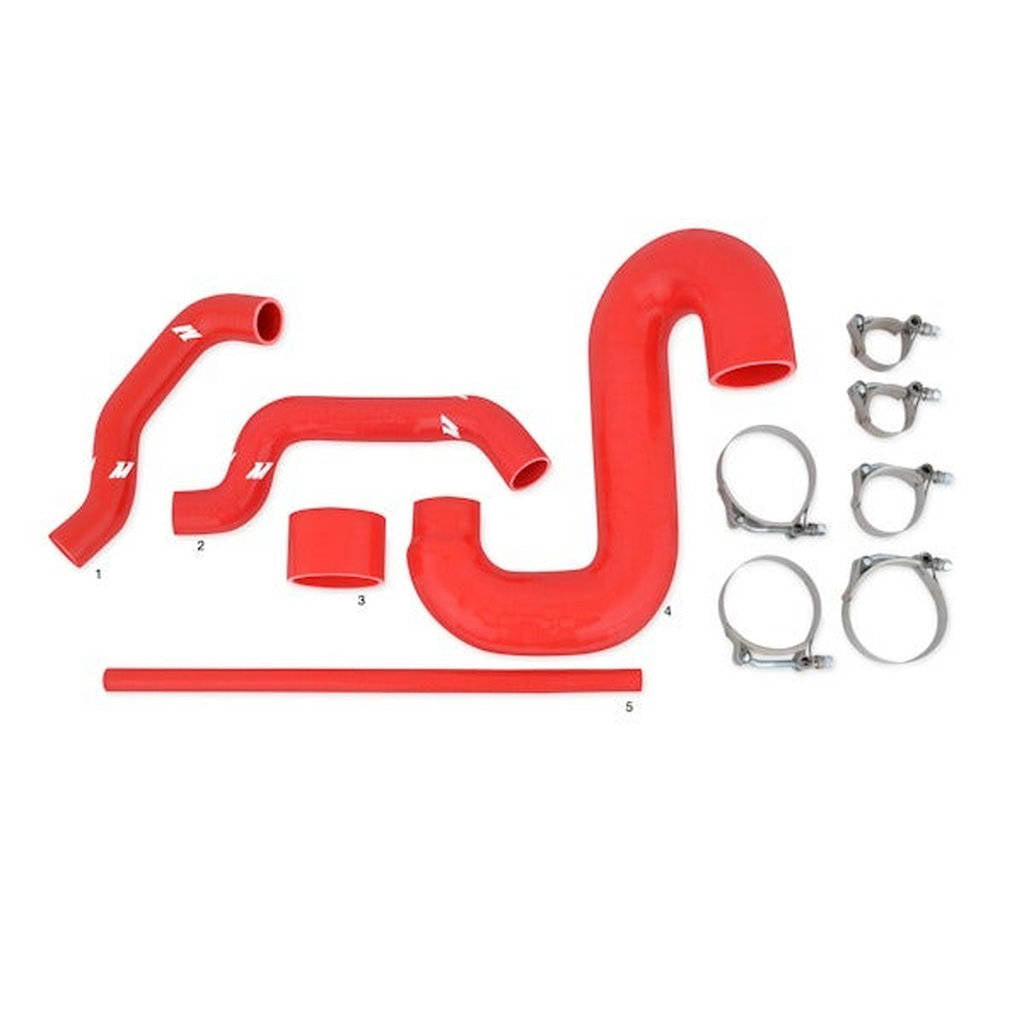

Kit comes with::

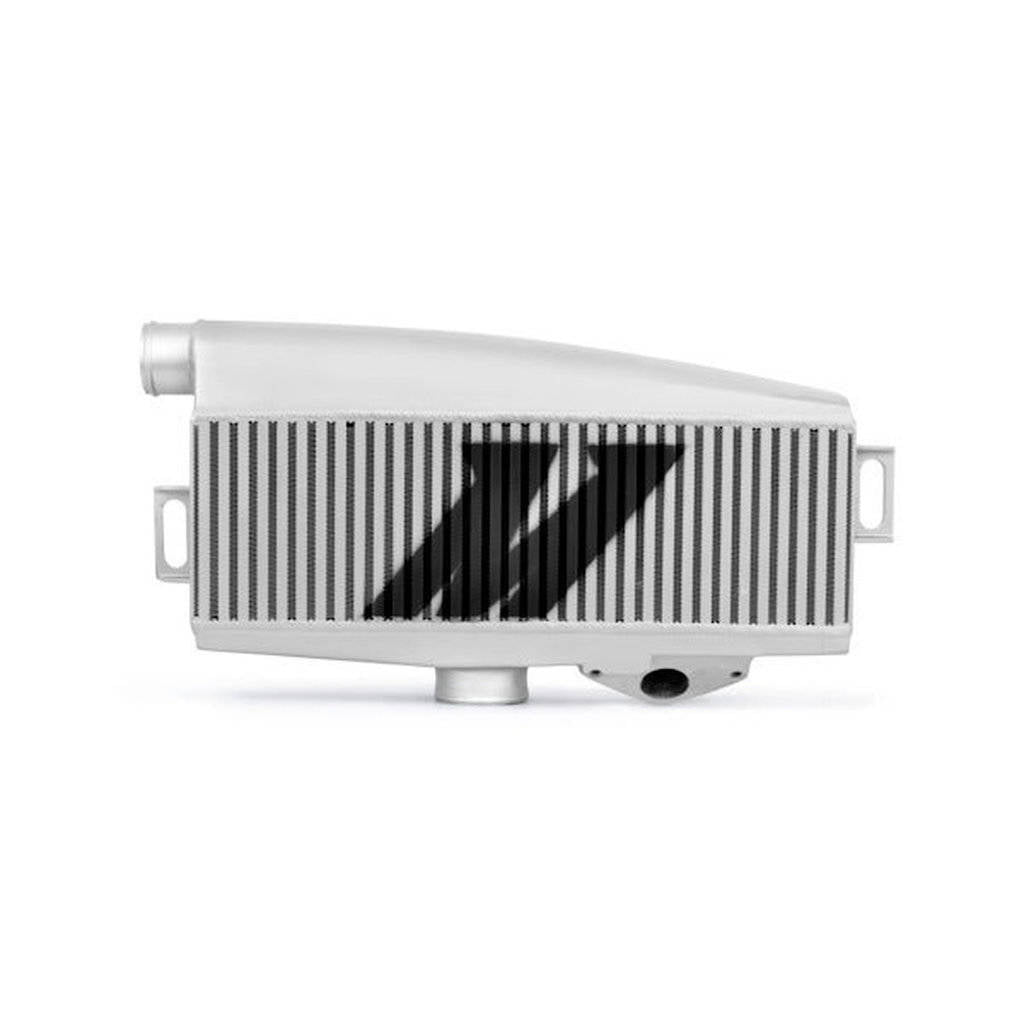

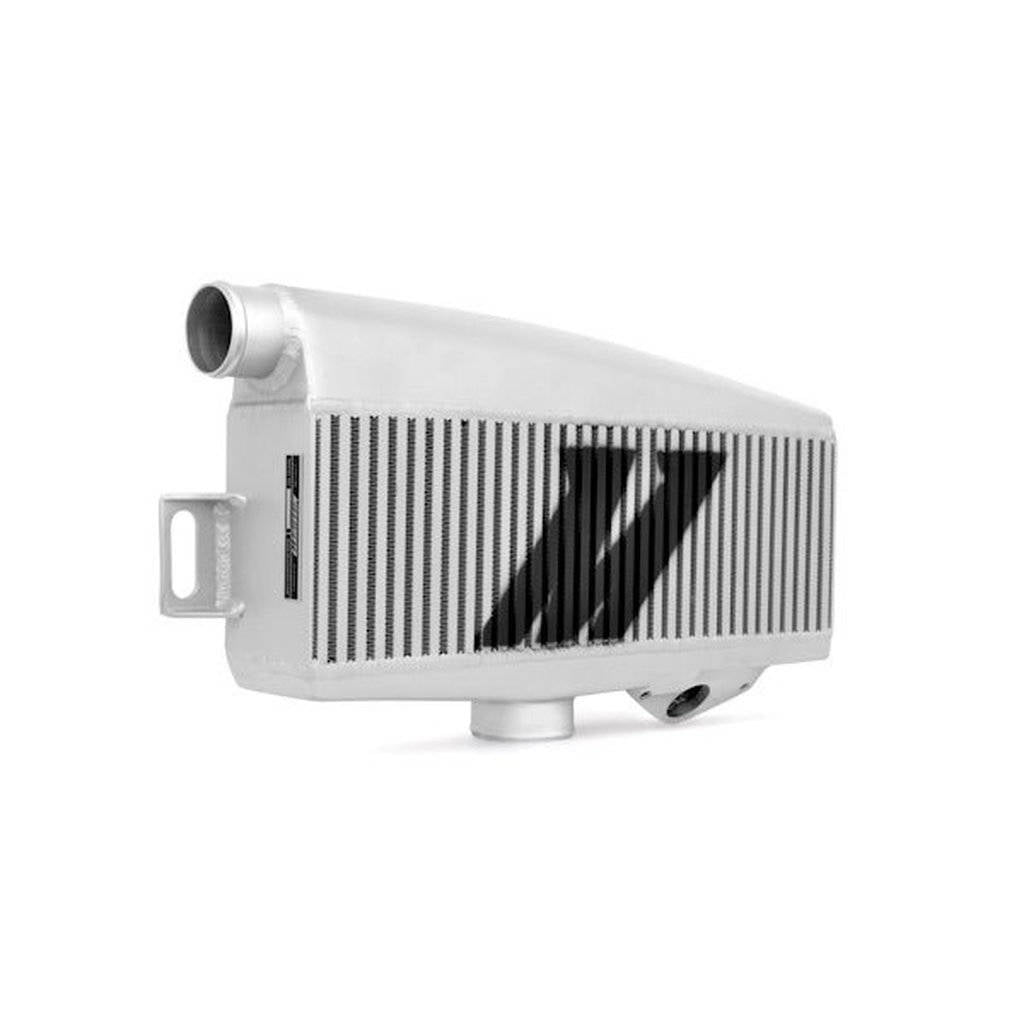

• Bar-and-Plate Intercooler
• Five silicone hoses and couplers
• High-temp silicone hose

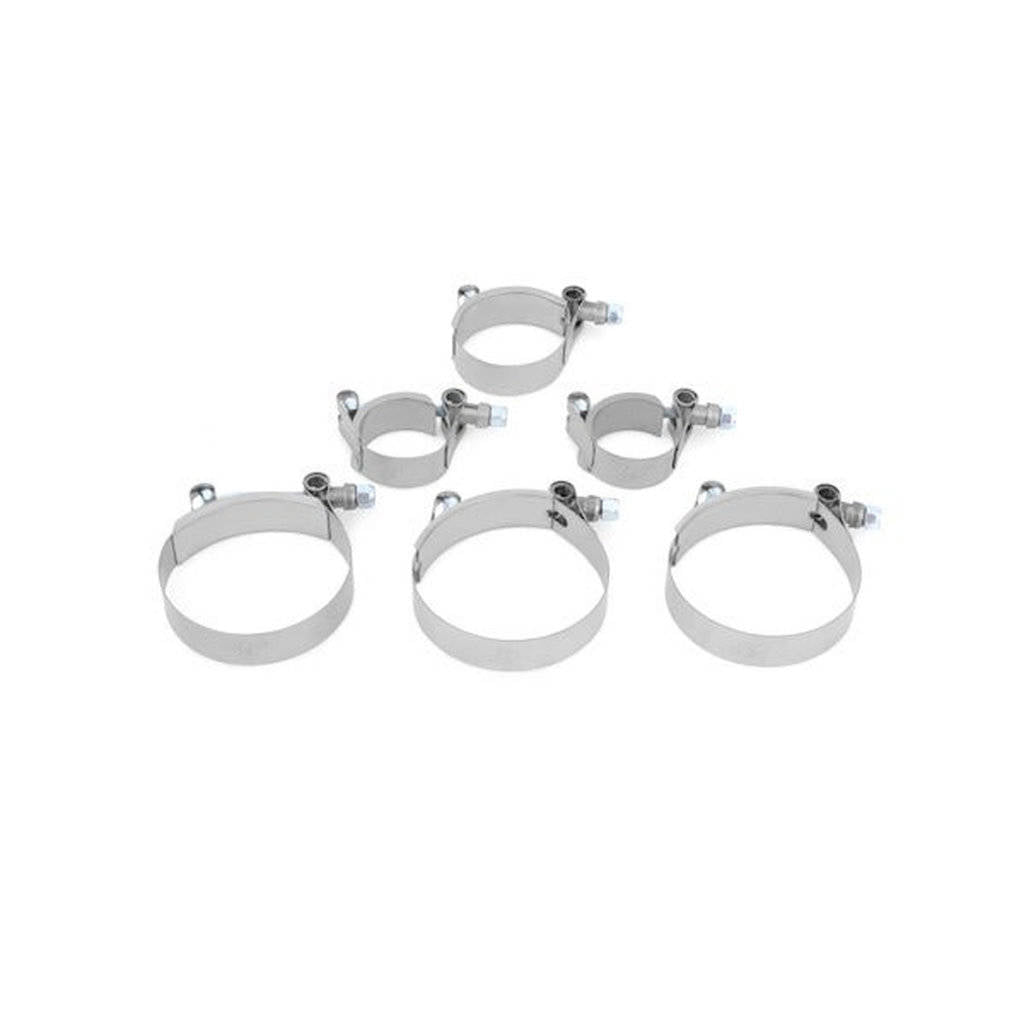

• Two 3-in T-bolt clamps
• 2.75-in T-bolt clamp
• 2.25-in T-bolt clamp

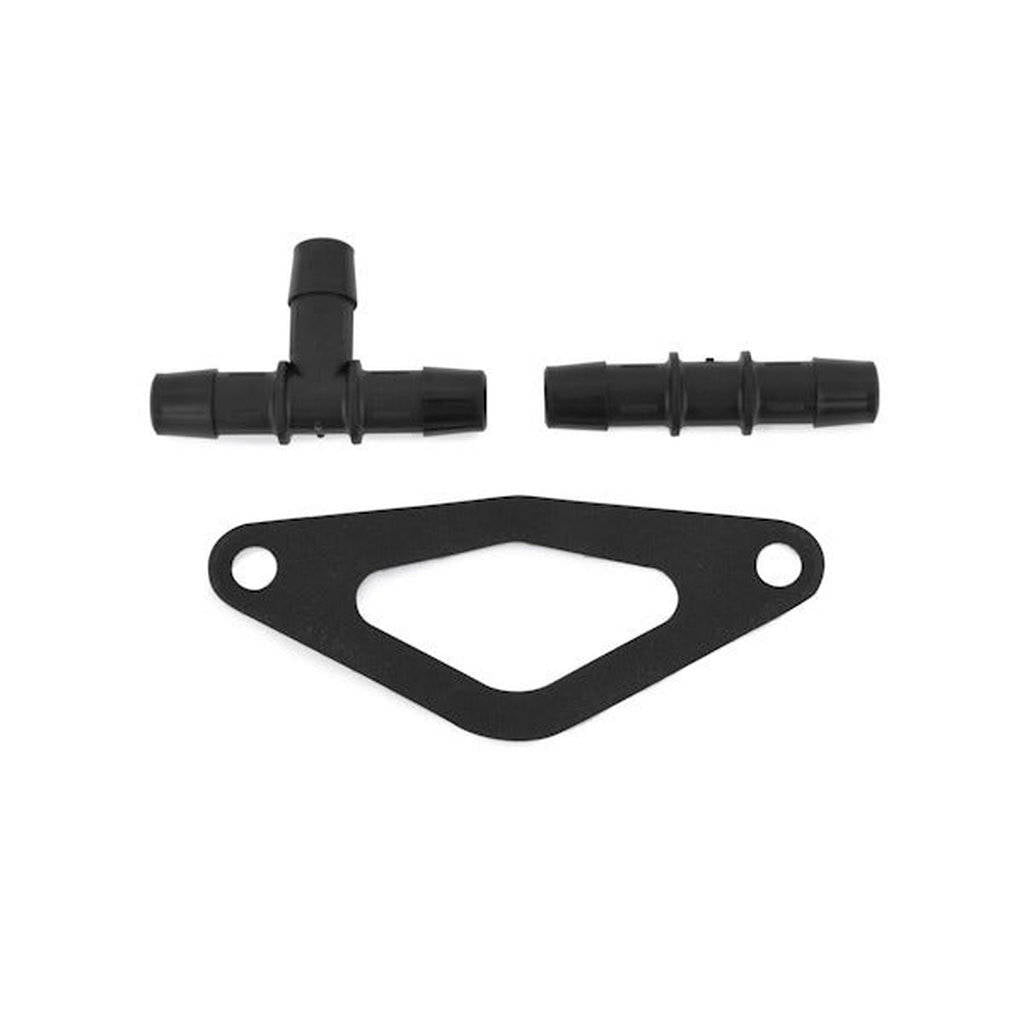

• Bypass valve gasket
• Black nylon hose fitting, 3/4-in I.D.
• Black nylon tee hose fitting, 3/4-in I.D.
• WRX specific BPV hose
• STI specific BPV hose
• Intercooler to throttle body coupler
• PCV hose

Vehicle Compatibility:

• Saab 9-2X H4 (2.0L) 2005
• Saab 9-2X H4 (2.5L) 2006
• Subaru WRX H4 (2.0) 2002-2005
• Subaru WRX H4 (2.5) 2006-2007
• Subaru WRX STI H4 (2.5) 2004-2007
