MISHIMOTO MMTC-T1-19 Transmission Cooler, Silver for CHEVROLET Silverado 1500 2019-2021

Description MISHIMOTO MMTC-T1-19 Transmission Cooler, Silver for CHEVROLET Silverado 1500 2019-2021

Heat is a major enemy of any transmission. Whether the 2021 Chevrolet Silverado 1500 is a dedicated tow vehicle, hardworking fleet truck, or daily driver with a liking for the drag strip, the transmission needs to run cool.

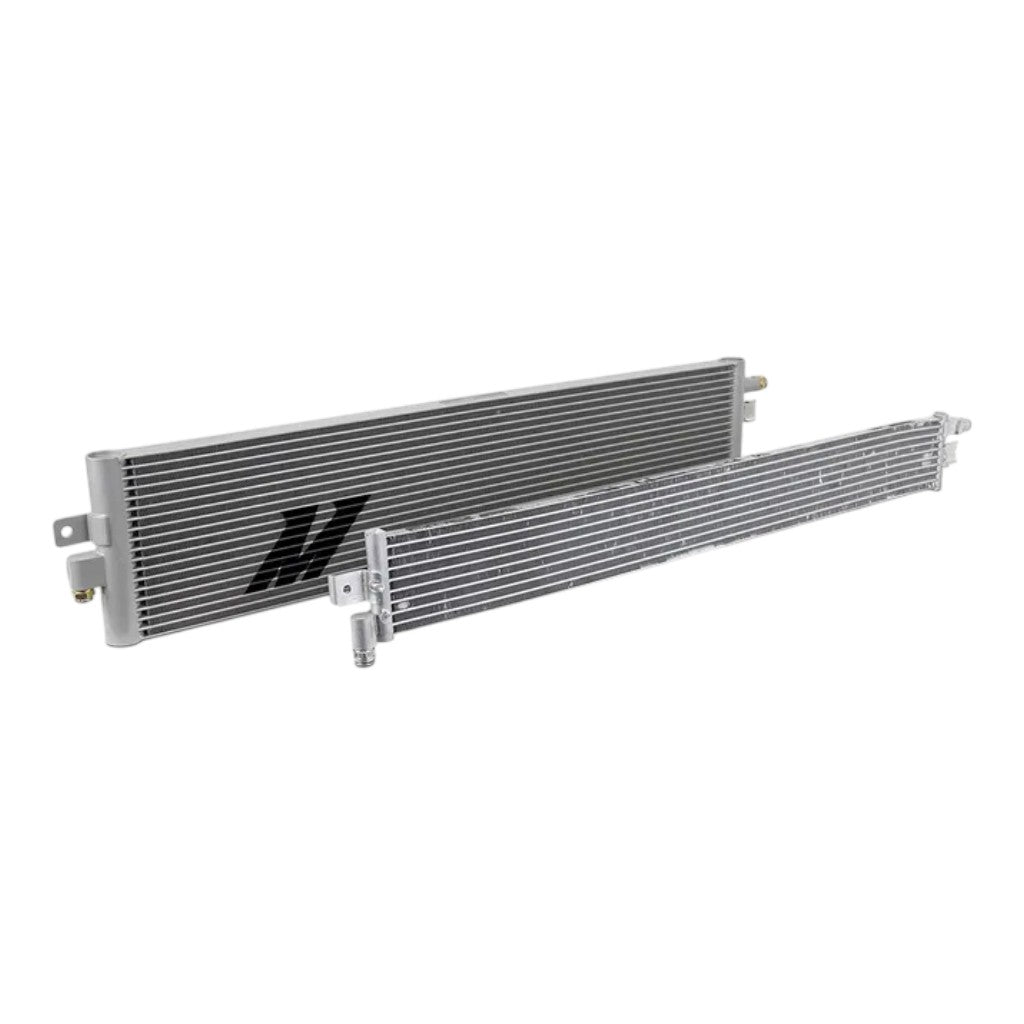

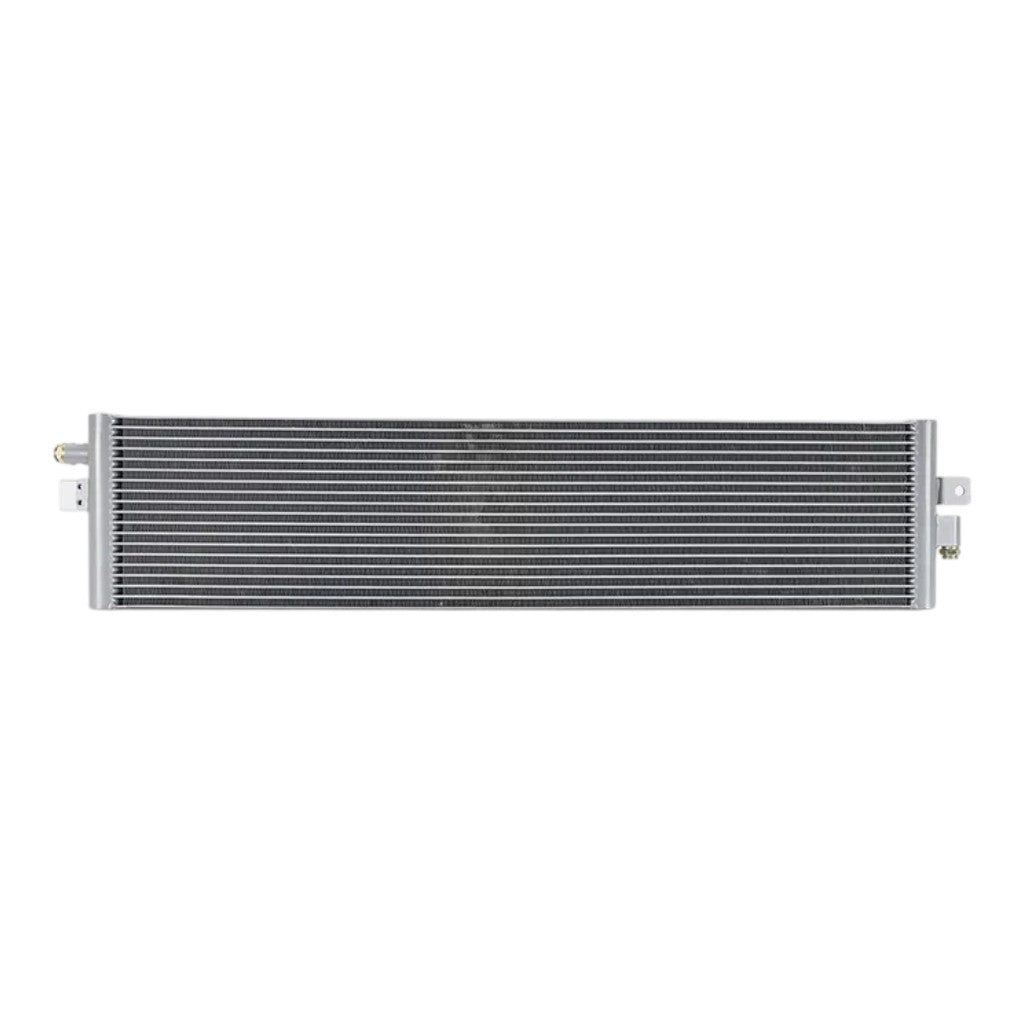

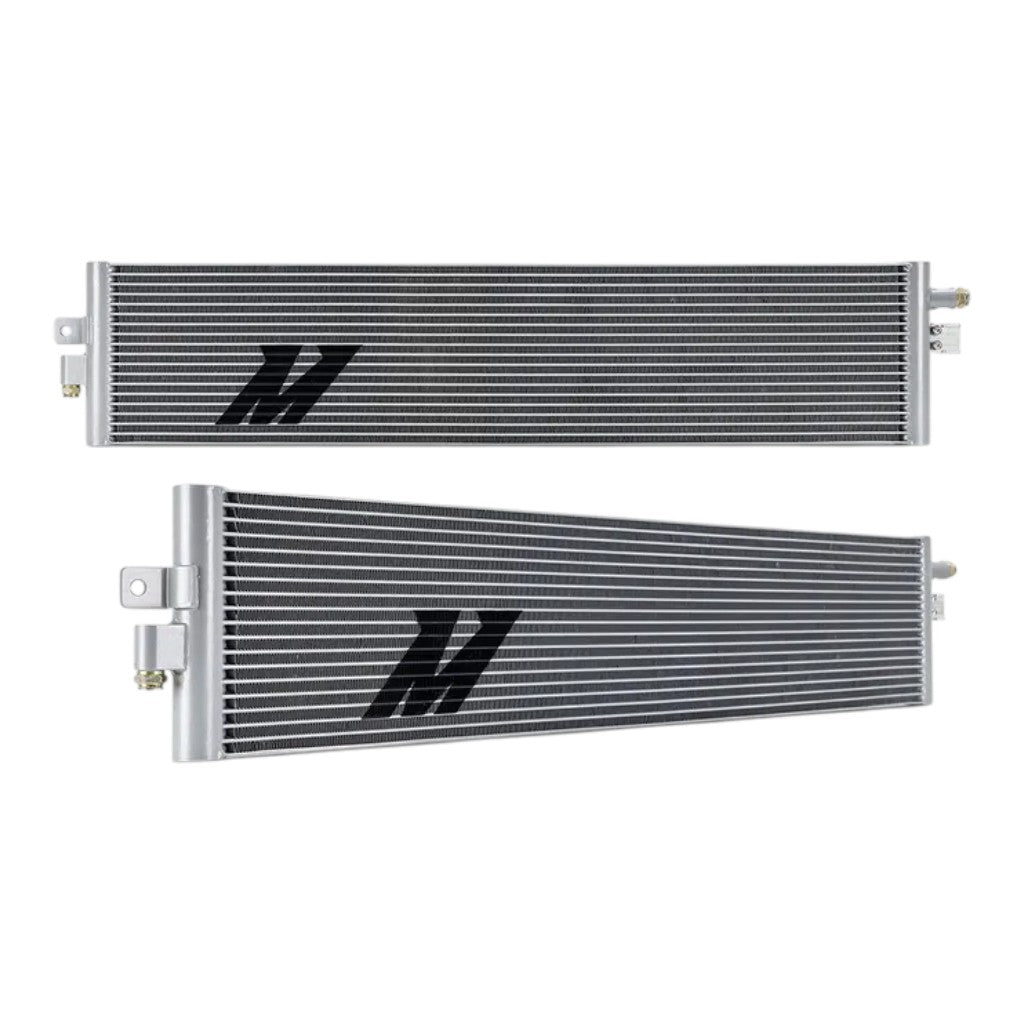

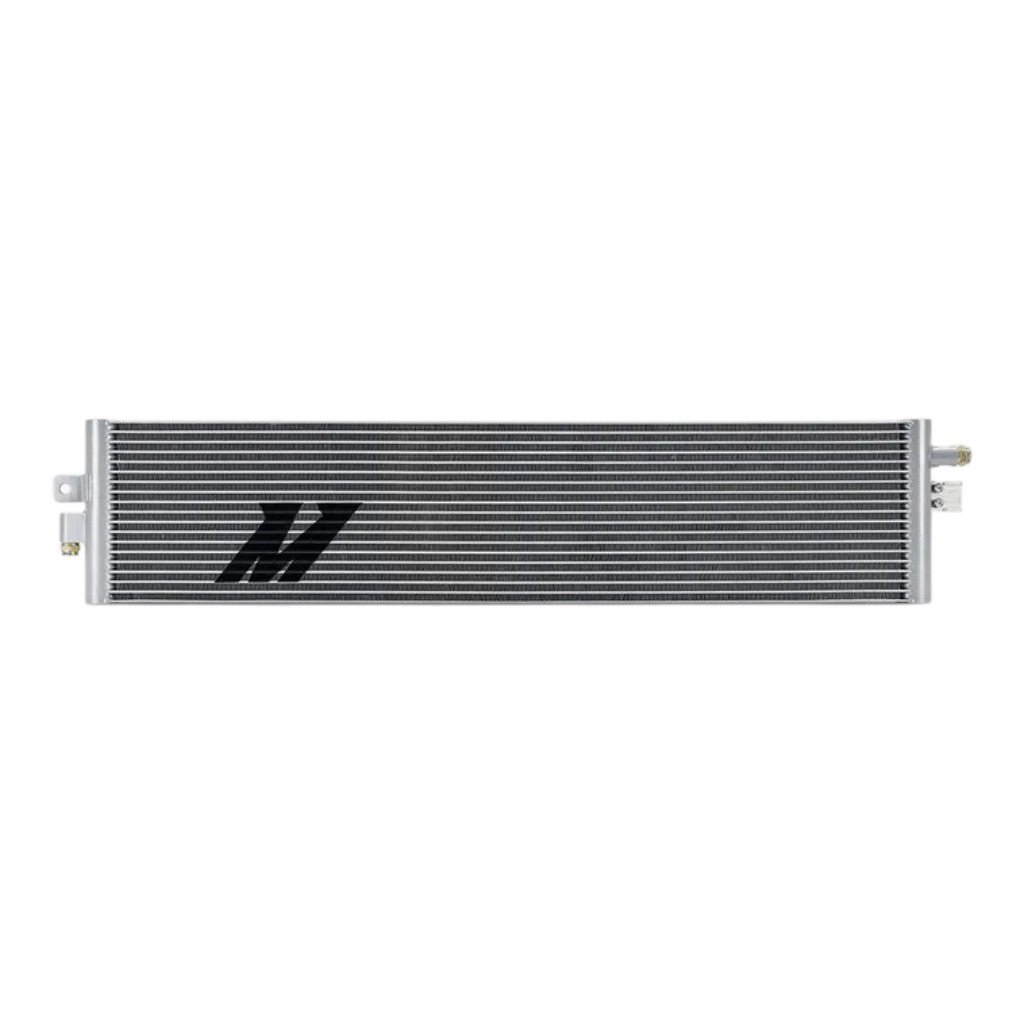

Mishimoto has developed a Direct fit transmission cooler for the 2021 Chevrolet Silverado 1500. It utilizes a tube-and-fin design for improved efficiency and heat dissipation and is significantly larger than the stock core.

The included CNC-machined adapters connect directly to the stock transmission cooler lines for leak-free cooling. Direct fit brackets and tailor-made hoses make installation easy. This transmission cooler is backed by a Lifetime Warranty.

Note: This product will not fit 2024+ Silverado/Sierra 1500 models equipped with the 2.7L I4 L3B Turbomax engine and 2nd generation Hydra-Matic 8L80 transmission.

Note: For 2019 model year trucks, double-check engine and transmission codes before purchasing.

• Tube-and-fin design for improved efficiency and heat dissipation
• 266% greater core volume than the stock transmission cooler
• 322% greater fin surface area than the stock transmission cooler
• CNC-machined adapters connect directly to the stock transmission cooler lines

Specifications:

• Inlet: 9/16"" - 18 (-6 ORB)
• Outlet: 9/16"" - 18 (-6 ORB)
• Core Construction: Tube-and-Fin
• Rows: 17
• Core Length: 32.68 in.
• Core Height: 7.13 in.
• Core Thickness: 1.26 in.
• Overall Height: 7.28 in.
• Overall Length: 36.88 in.
• Overall Width: 1.5 in.
• Engine Codes: LV3, L82, L84, L87, LM2, L3D
• Chassis Codes: T1
• Transmission Codes: 8L90, 10L80
• Fluid Capacity: 1.0 qt. total cooler capacity including lines where applicable
