MISHIMOTO MMTC-K2-14 CHEVROLETSilverado 1500 V8 Transmission Cooler, 2014+

Description MISHIMOTO MMTC-K2-14 CHEVROLETSilverado 1500 V8 Transmission Cooler, 2014+

Heat is a major threat to transmission longevity. For 2014-2019 Chevy Silverado and GMC Sierra 1500 V8 trucks, maintaining optimal transmission temperature is essential, whether used for towing, fleet work, or daily driving.

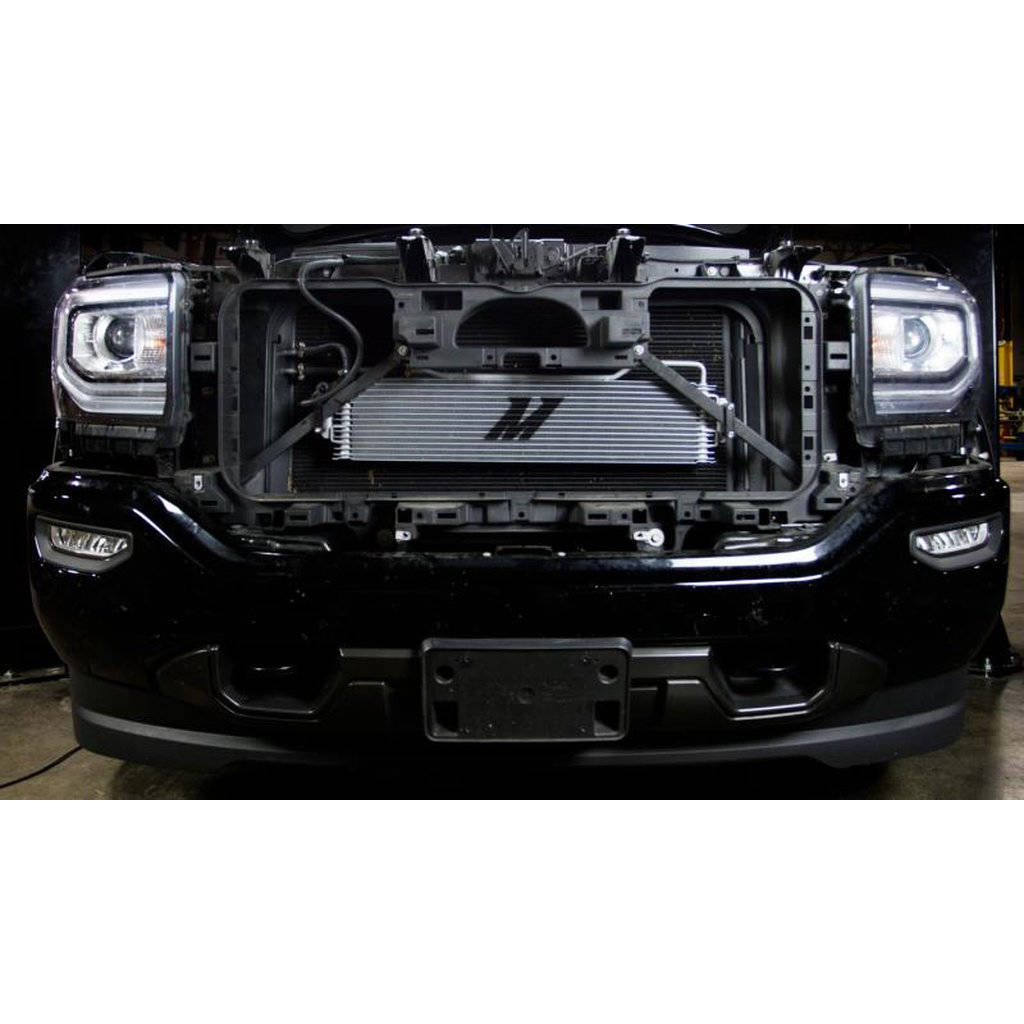

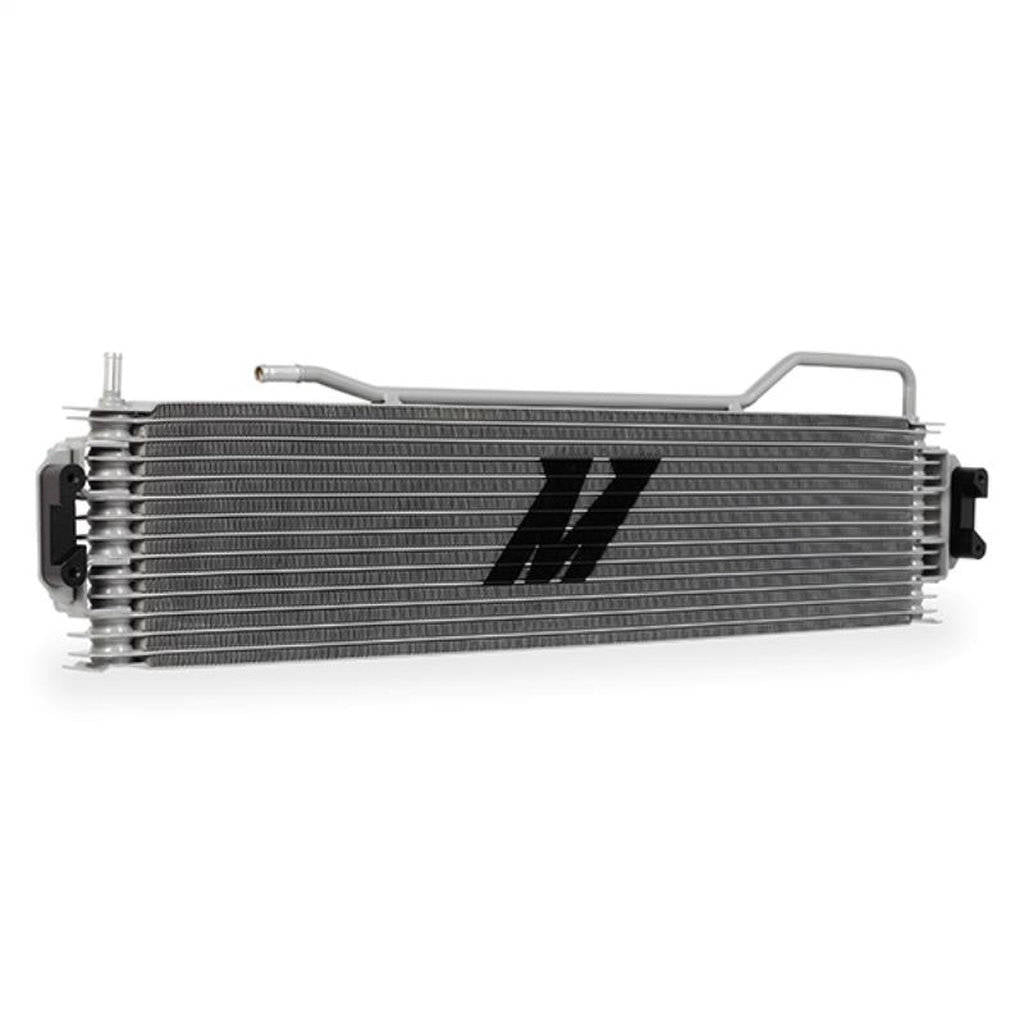

The Mishimoto transmission cooler features a stacked-plate design for enhanced durability and effective cooling. It mounts inline with the factory system, increasing fluid capacity by 0.65 quarts and providing over 3,000 square-inches of surface area for improved cooling performance. The kit includes adapter lines for direct connection to the stock system, a relocation bracket for the ambient air temperature sensor, CNC-machined mounting brackets, and high-grade hoses for straightforward installation. A thermal bypass valve delete is also provided, allowing continuous fluid flow to the cooler, which is beneficial in hot climates.

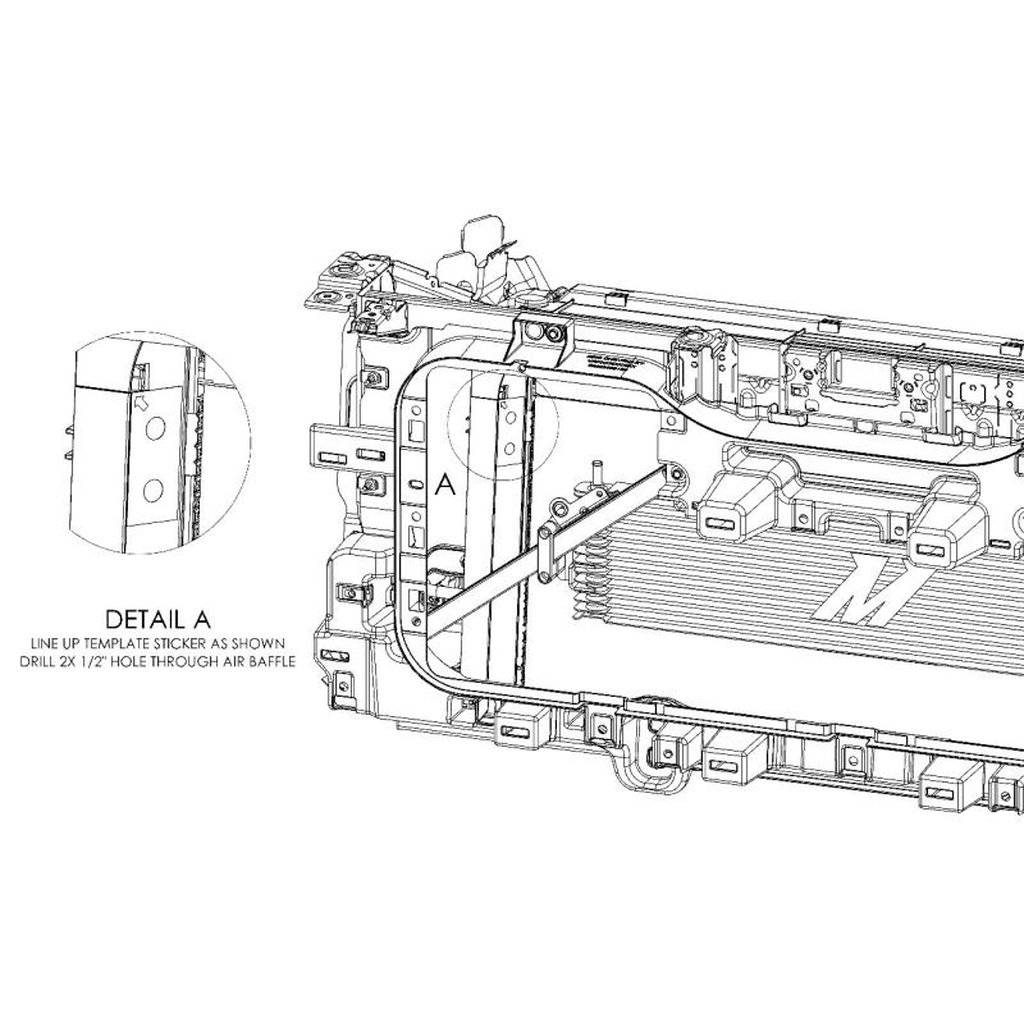

Note: Minor drilling is required to install the adapter lines for this cooler. Please see the included drilling template and installation instructions for a detailed guide.

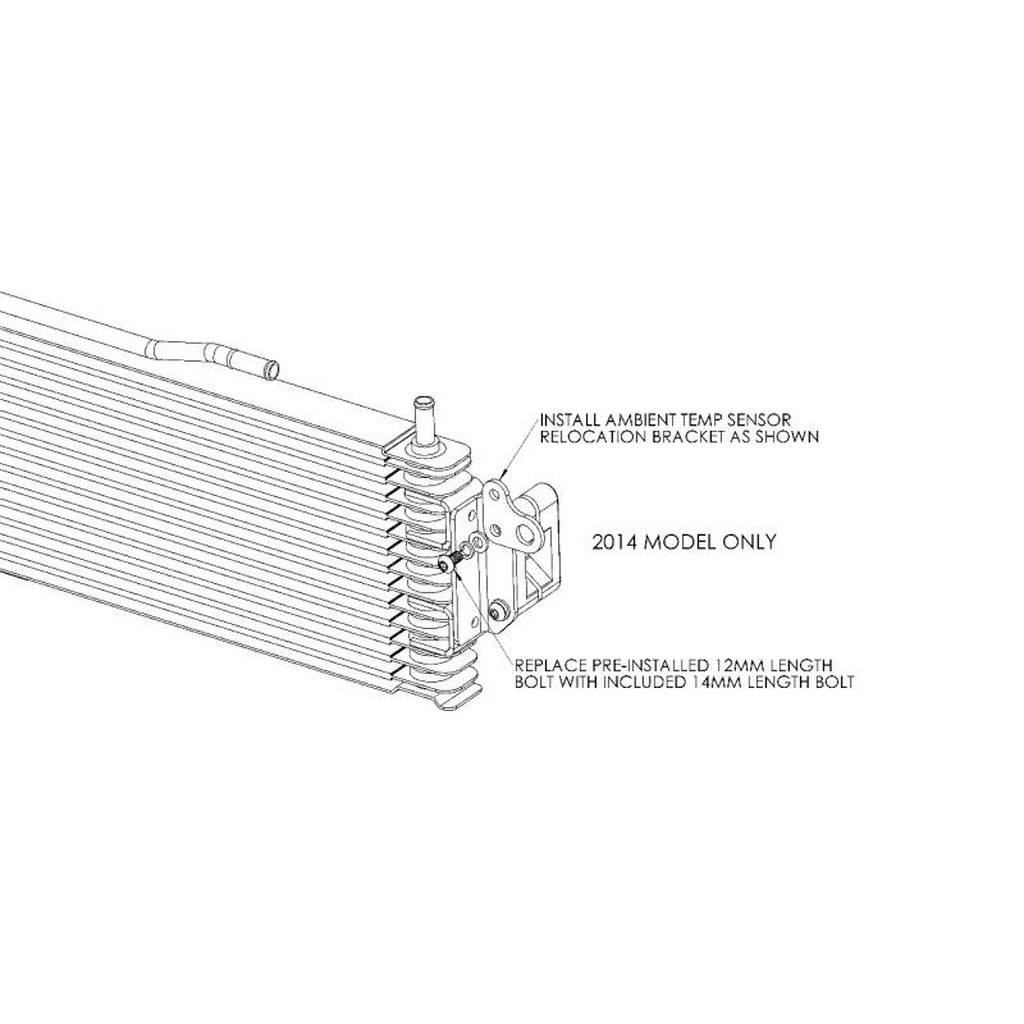

Note: 2014 model year vehicles require relocation of the ambient air temperature sensor. Please see the included installation note card for detailed instructions.

Note: For 2019 model year trucks, double check engine and transmission codes before purchasing.

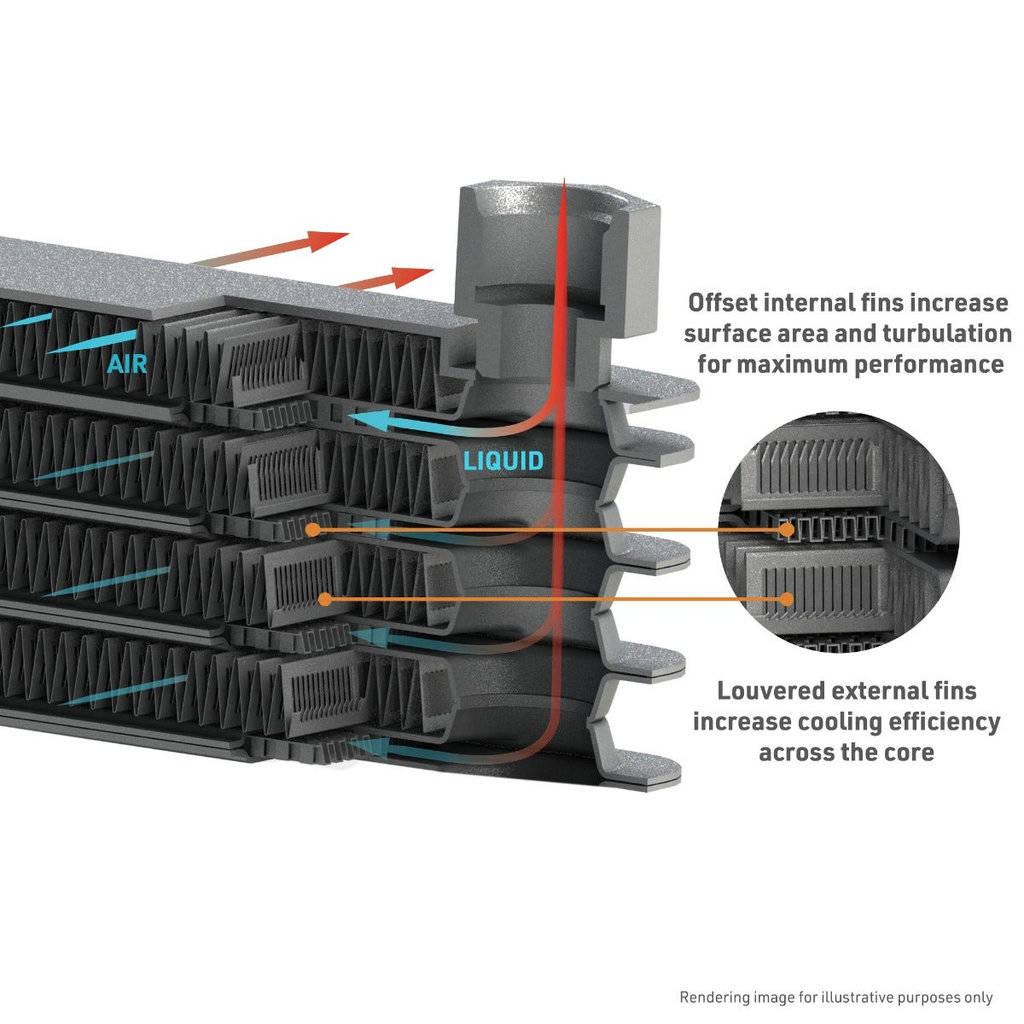

• Stacked-plate design maximizes durability and cooling efficiency
• Increases transmission fluid capacity by 0.65 quarts
• Includes adapter lines and relocation bracket for easy installation

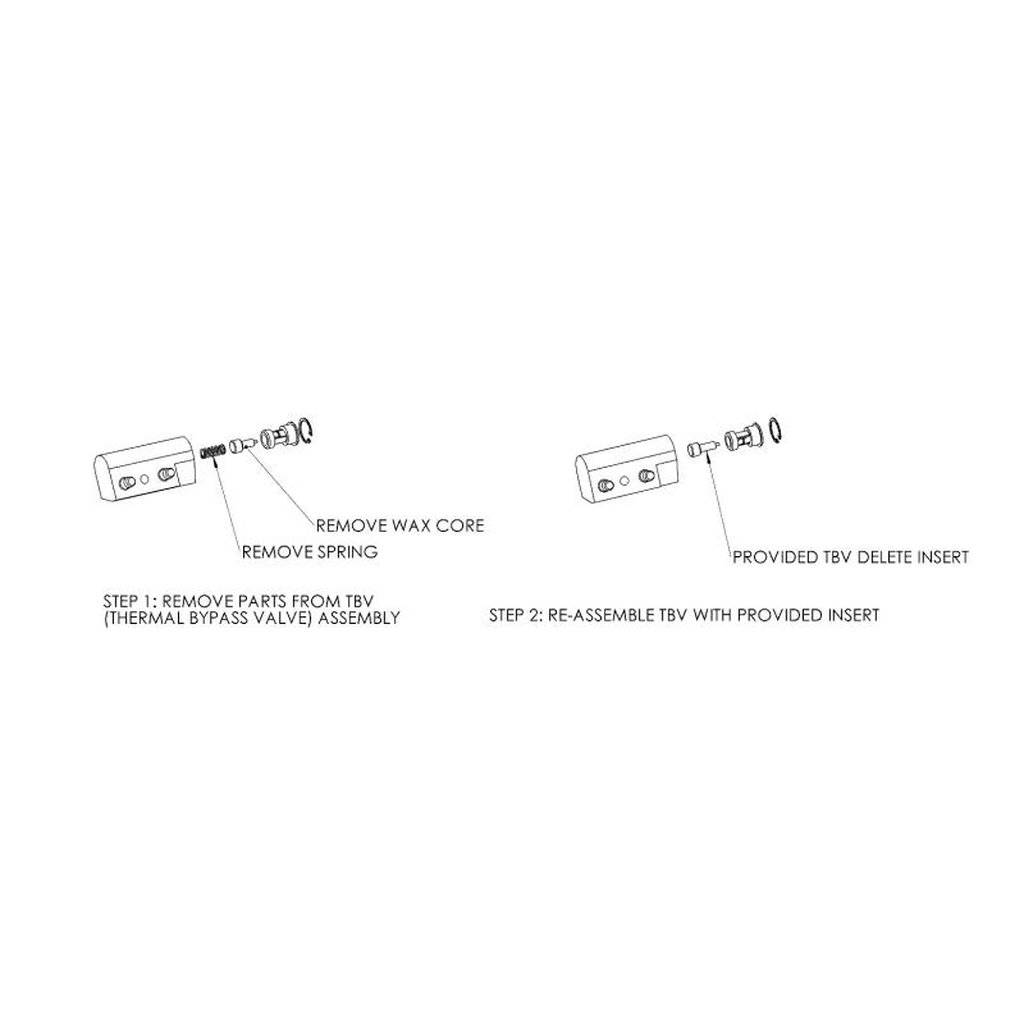

• Thermal bypass valve delete allows fluid flow to the cooler at all times

Specifications:

• Rows: 14
• Core Length (in): 27
• Core Height (in): 6
• Core Thickness (in): 1.25
• Engine Codes: LV3, L83, L8B, L86
• Chassis Codes: K2
• Transmission Codes: 6L90, 8L90
• Fluid Capacity (qts): 0.65

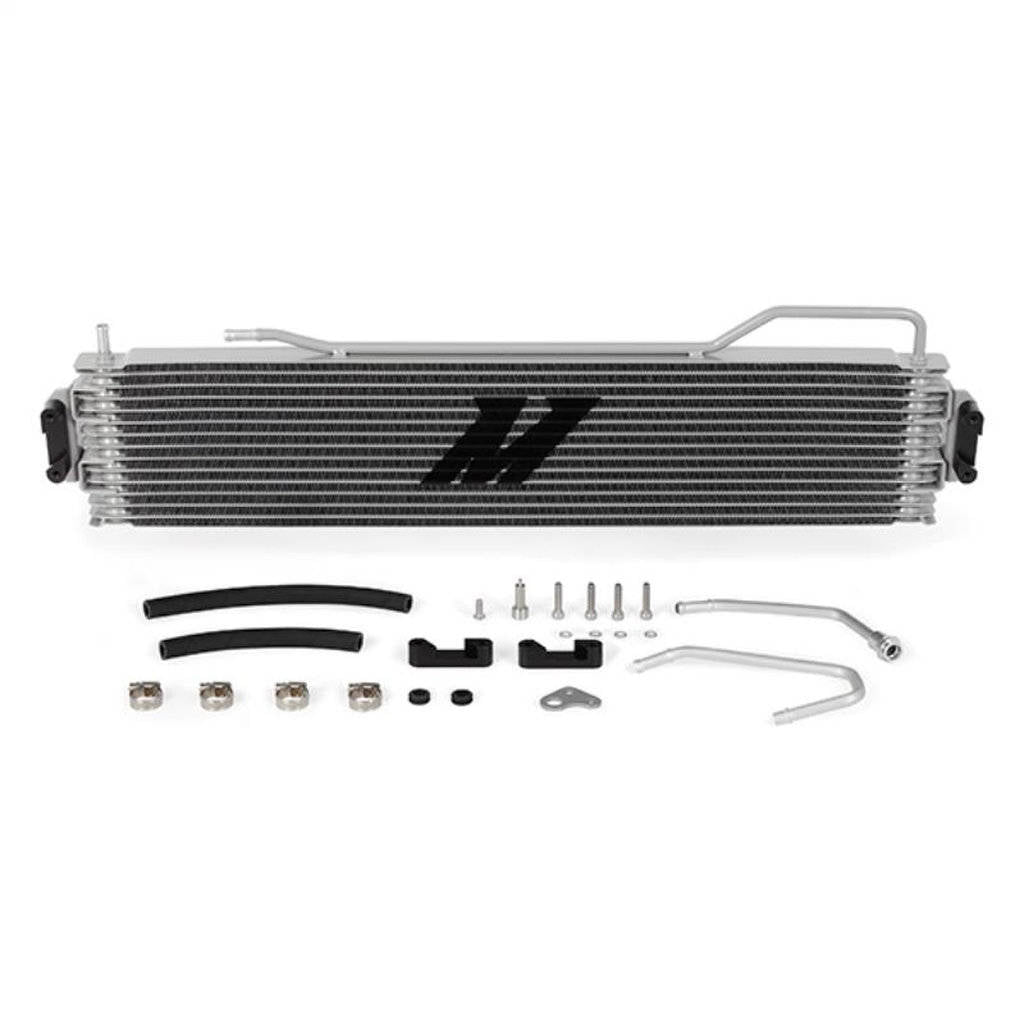

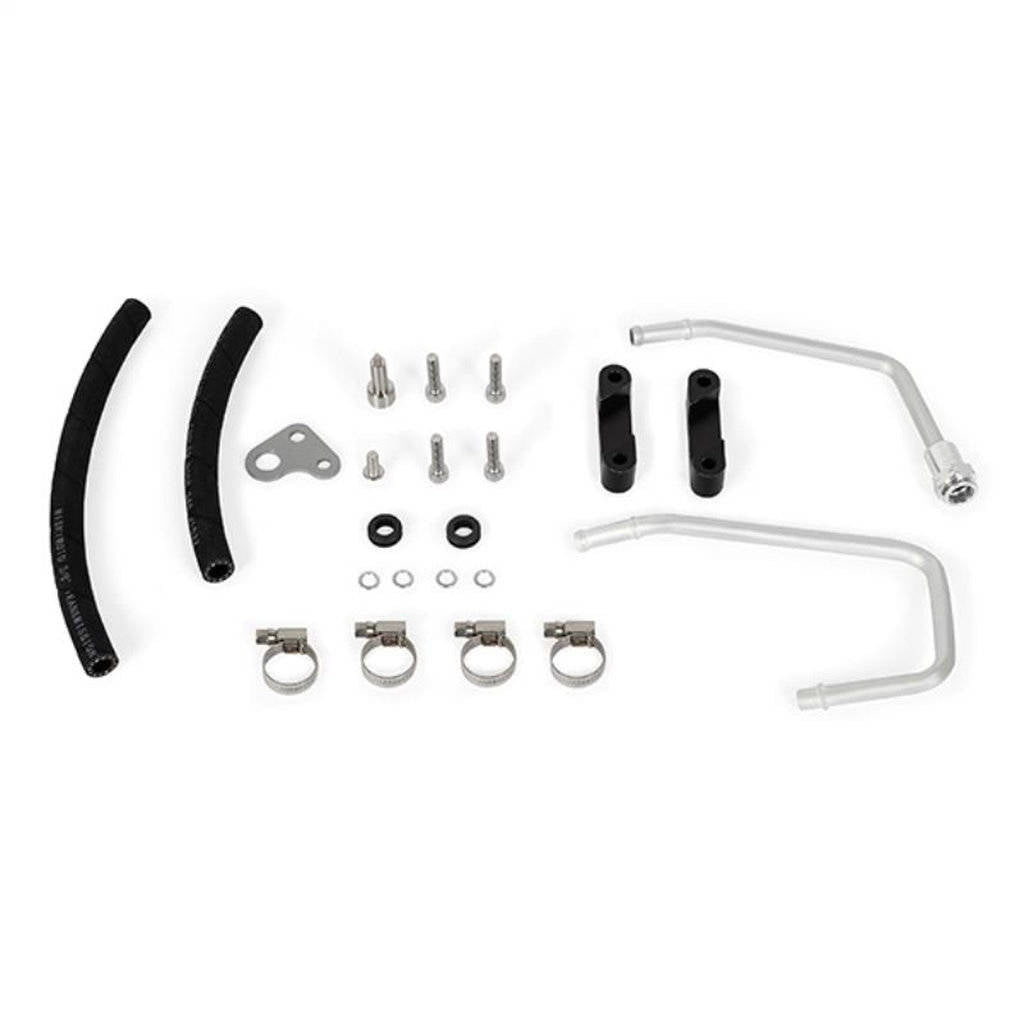

Kit comes with::

• Mishimoto Stacked-Plate Transmission Cooler
• High-Pressure Transmission Cooler Lines
• High-Strength Aluminum Transmission Cooler Adapter Lines
• Pre-Installed CNC-Machined Aluminum Mounting Brackets
• CNC-Machined Aluminum Mounting Brackets
• Removable Thermal Bypass Valve Delete
• Ambient Air Temperature Sensor Relocation Bracket
• Stick-On Drilling Template
• Installation Note Card
• Mounting Hardware

Vehicle Compatibility:

• Cadillac Escalade 6.2L V8 2017-2019
• Cadillac Escalade ESV 6.2L V8 2017-2019
• Chevrolet Silverado 1500 4.3L V6 2014-2018
• Chevrolet Suburban 5.3L V8 2017-2019
• Chevrolet Suburban 6.2L V8 2019
• Chevrolet Tahoe 5.3L V8 2017-2019
• Chevrolet Tahoe 6.2L V8 2018-2019
• GMC Sierra 1500 4.3L V6 2014-2018
• GMC Yukon 5.3L V8 2017-2019
• GMC Yukon 6.2L V8 2017-2019
• GMC Yukon XL 5.3L V8 2017-2019
• GMC Yukon XL 6.2L V8 2017-2019
