MISHIMOTO MMTC-F2D-03SL LS1/LS2 Front-Sump Oil Cooler Adapter

Description MISHIMOTO MMTC-F2D-03SL LS1/LS2 Front-Sump Oil Cooler Adapter

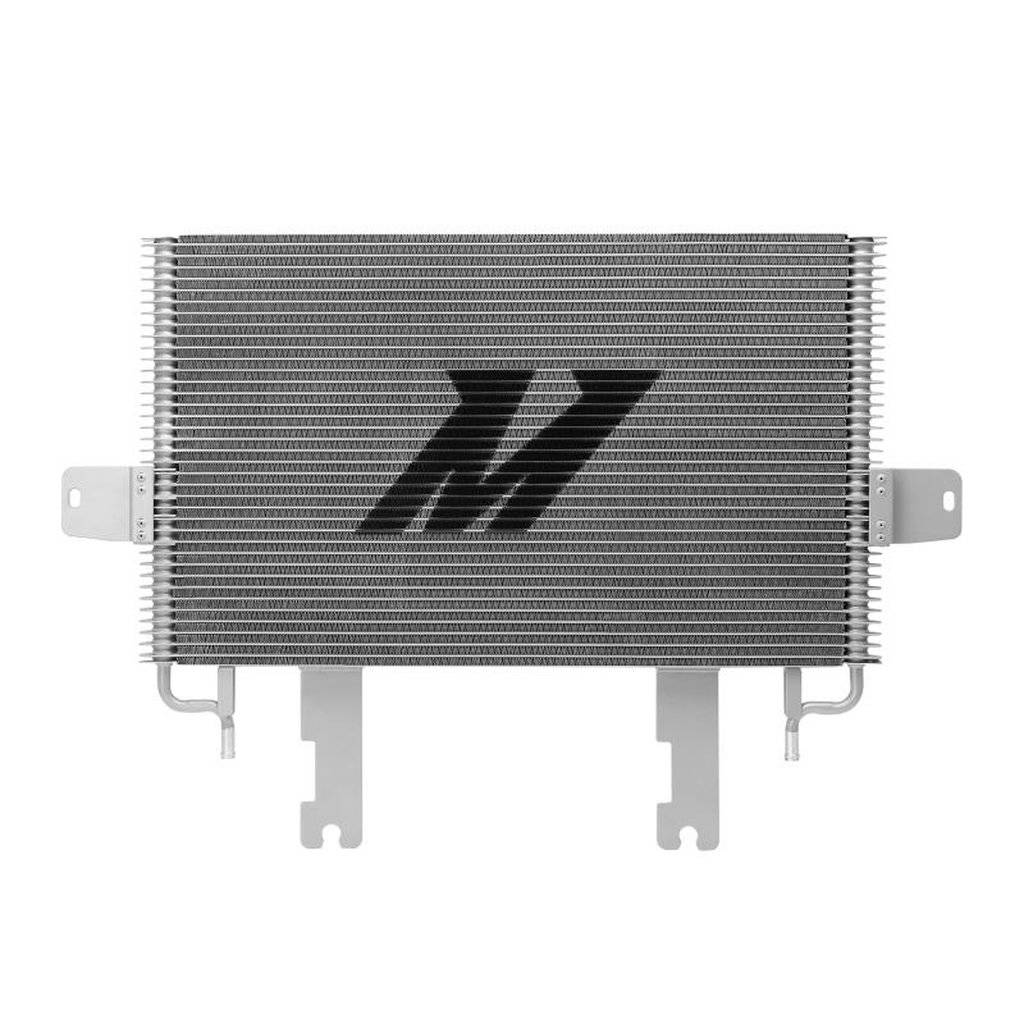

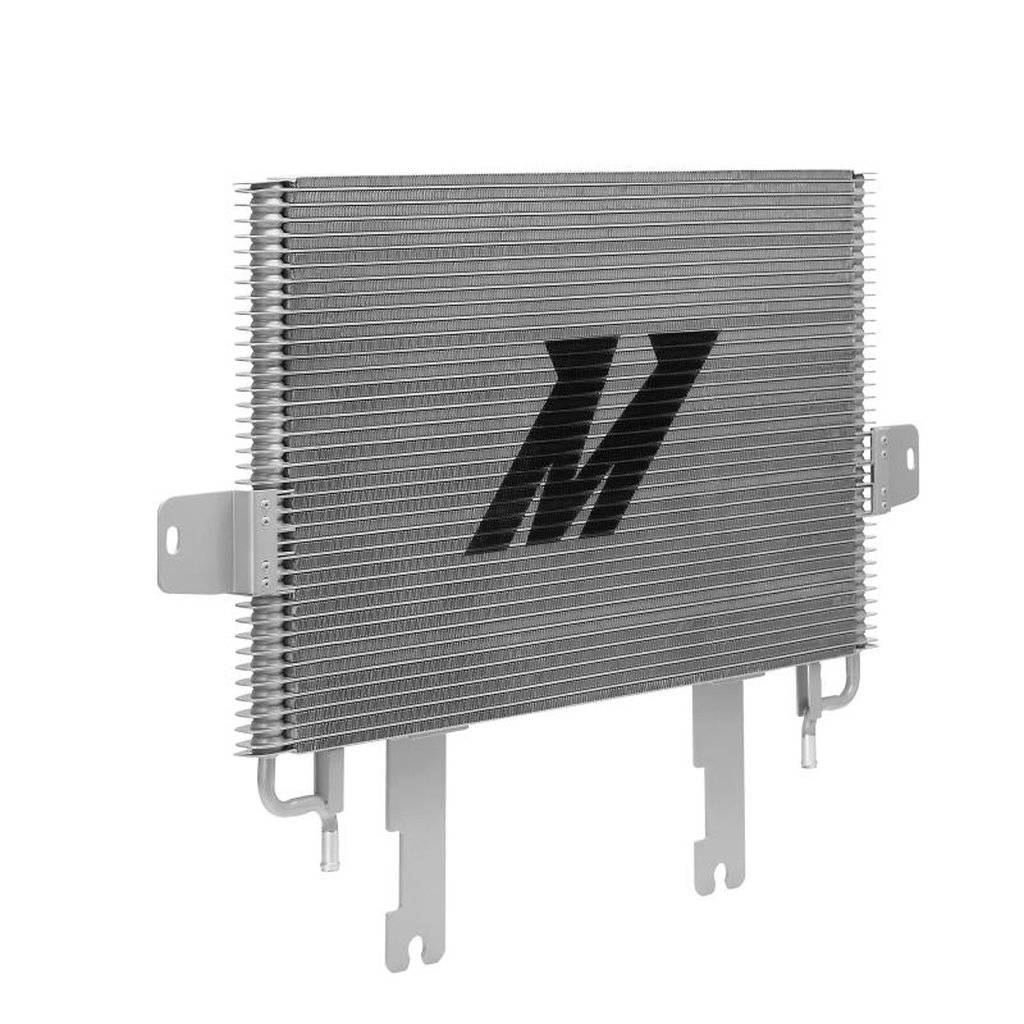

Heavy loads are manageable with a 2003-2007 6.0L Powerstroke equipped with the Mishimoto 6.0 transmission cooler. This cooler is the latest addition to Mishimoto's 6.0 Powerstroke performance parts lineup. While the stock 6.0 Powerstroke transmission cooler provides adequate temperature control, increased loads can raise transmission temperatures.

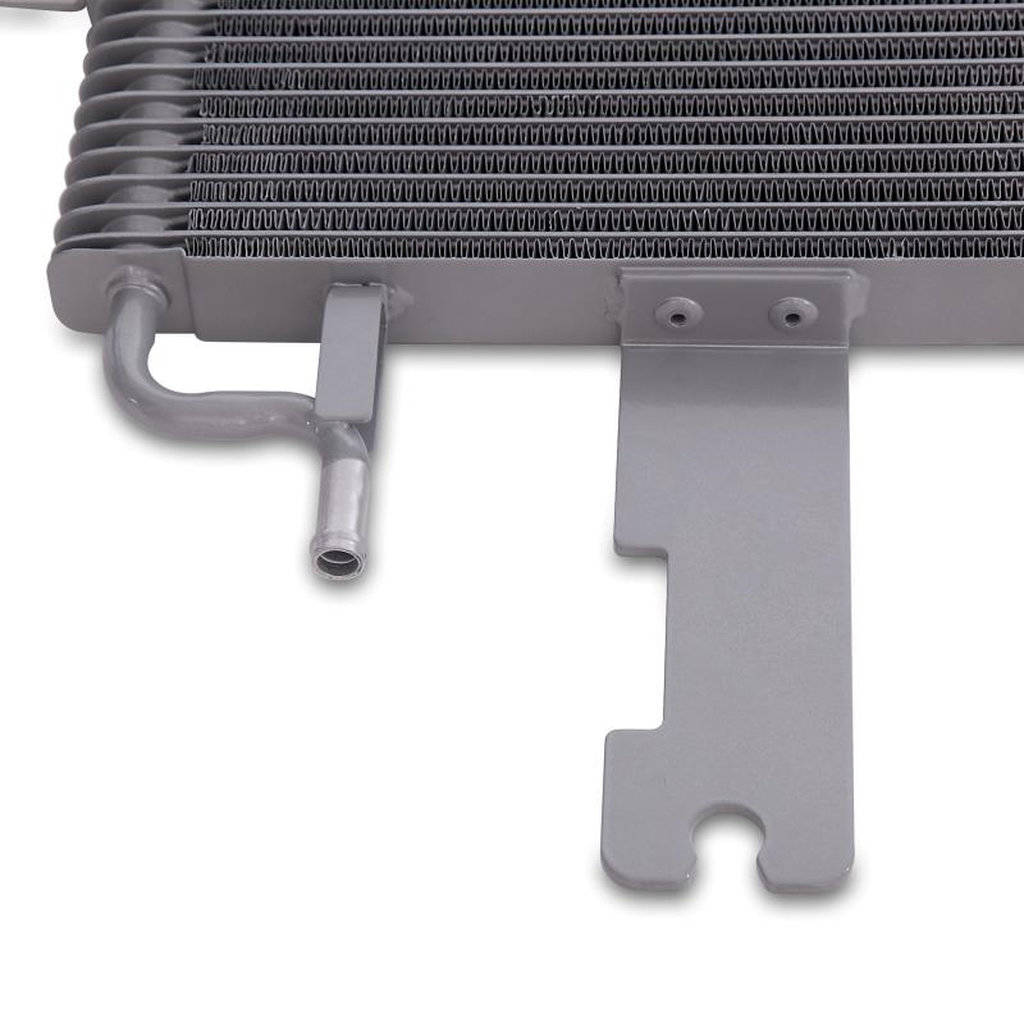

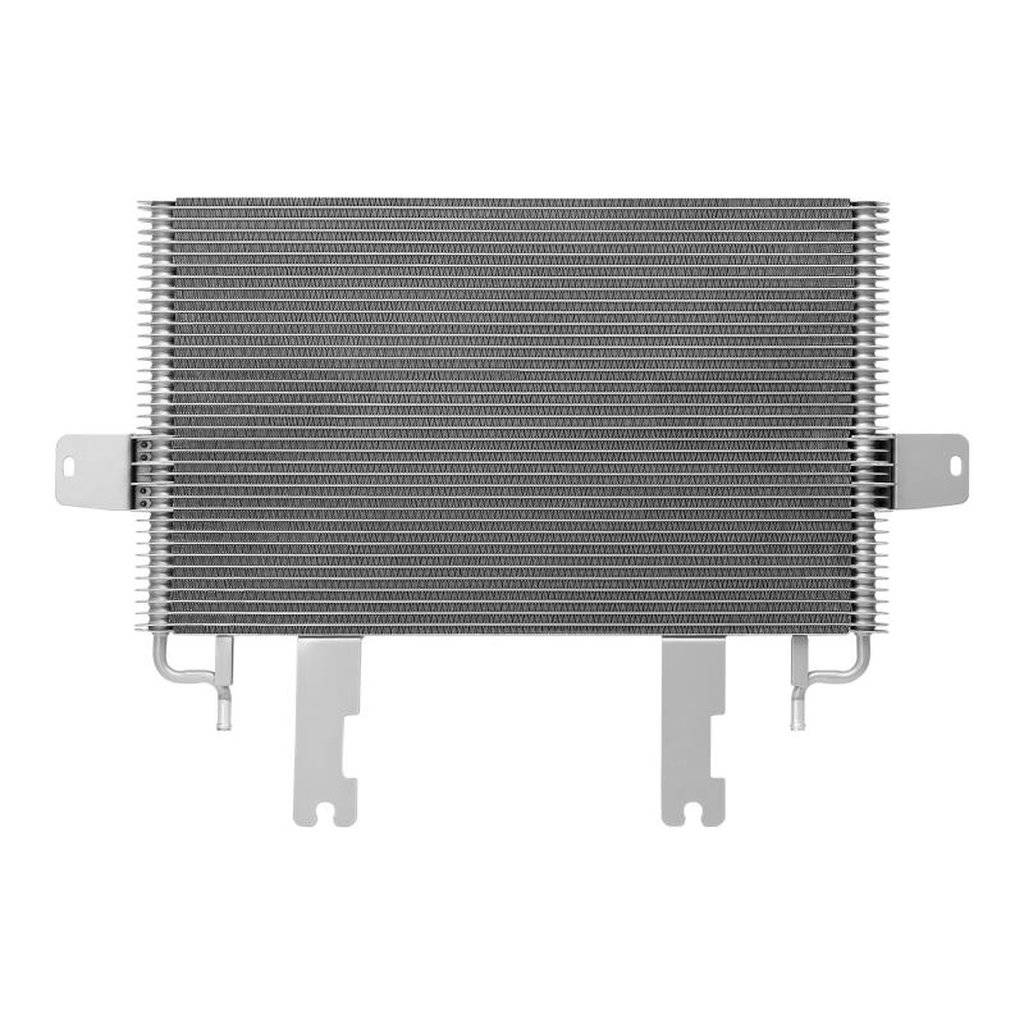

The 37-row Mishimoto stacked plate cooler offers a larger surface area compared to both stock coolers. Core volume is increased by 21 percent, and fluid capacity is increased by 1/3 quart. The increased size of this transmission cooler delivers a proven 10+°F drop in transmission fluid temperature. No modifications are necessary for installation.

Note: Will not work with vehicles that came equipped with a high mounted power steering cooler. These vehicles will need to relocate the power steering cooler to the lower mounting location.

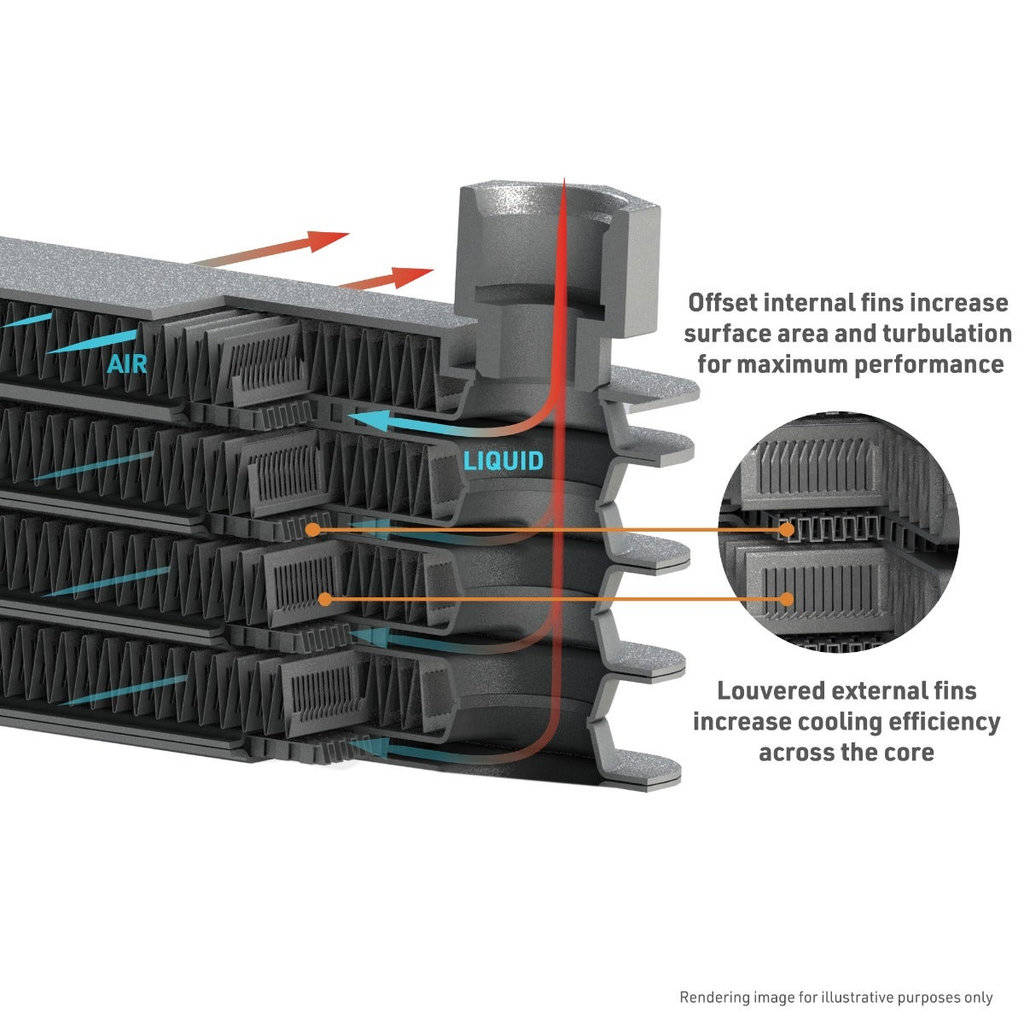

• 37-row stacked plate design for increased surface area
• Core volume increased by 21 percent over stock
• Provides a 10+°F drop in transmission fluid temperature
• No modifications required for installation

Specifications:

• Rows: 37
• Core Length (in): 25.25
• Core Height (in): 16.13

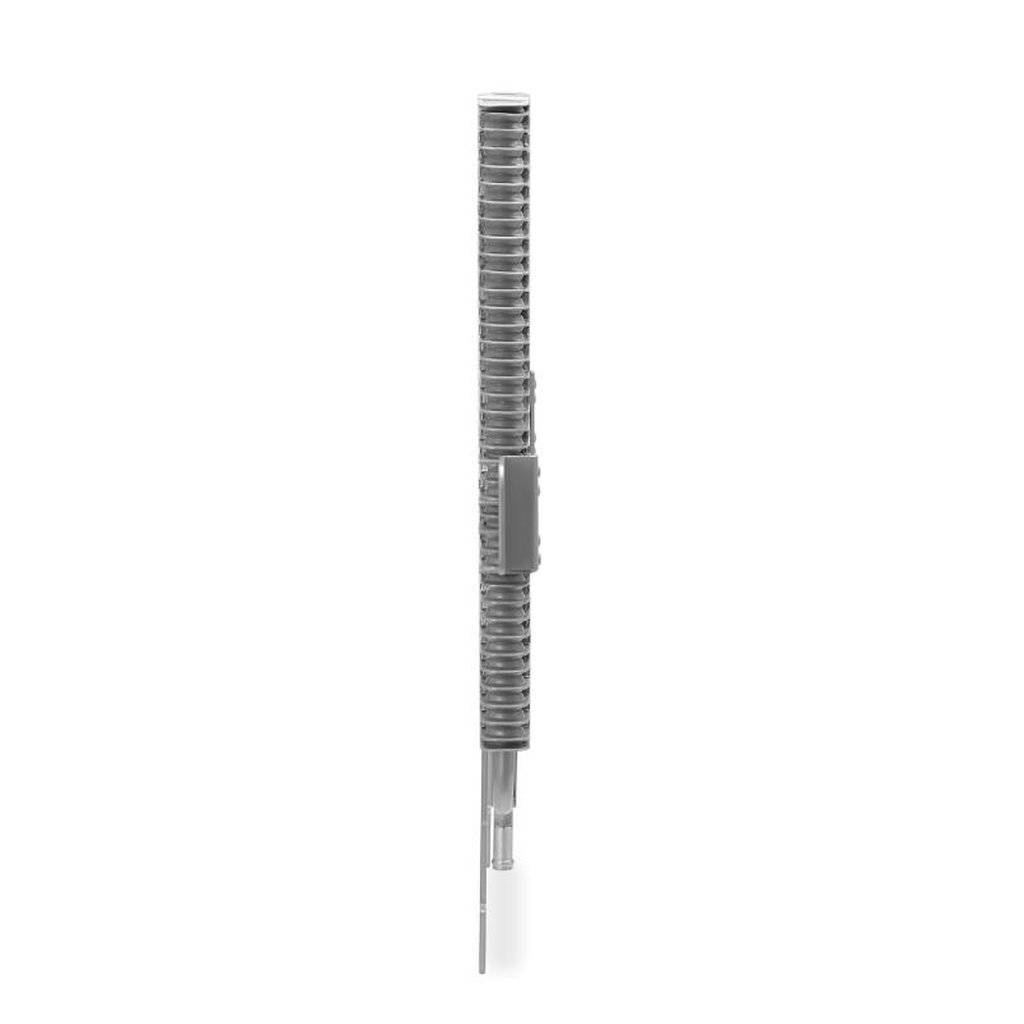

• Core Thickness (in): 1.25
• Overall Height (in): 23.5
• Overall Length (in): 34
• Overall Width (in): 1.34
• Engine Codes: 6.0L Powerstroke
• Transmission Codes: 5R110, 5R110W

Kit comes with::

• Mishimoto Stacked-Plate Transmission Cooler
• Mounting Hardware

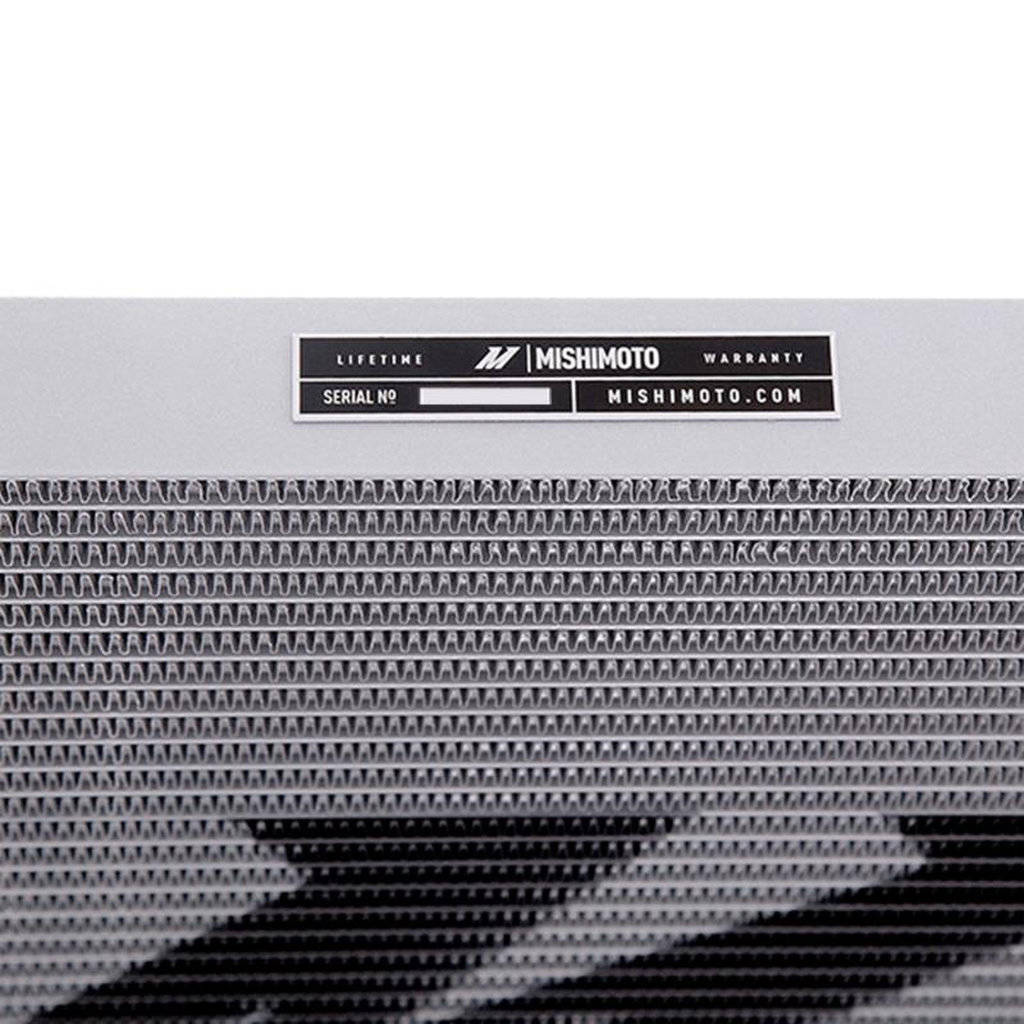

• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2003-2007 Ford F-250 w/ 6.0L Powerstroke
• 2003-2007 Ford F-350 w/ 6.0L Powerstroke
• 2003-2007 Ford F-450 w/ 6.0L Powerstroke
• 1999-2003 Ford Super Duty w/ 7.3L Powerstroke (transmission cooler lines must be changed to 1/2" OD prior to installation)
