MISHIMOTO MMSBH-RX8-04K MAZDA RX8 Oil Line Kit, 2004-2011

Description MISHIMOTO MMSBH-RX8-04K MAZDA RX8 Oil Line Kit, 2004-2011

Extremely durable and flexible, this Mishimoto Braided Hose is an ideal addition to a vehicle. It is suitable for use as a turbocharger oil drain hose or for adding an oil cooling system. These nylon-wrapped stainless-steel braided fluid hoses are available in multiple lengths to suit various applications.

Each line includes pre-installed pneumatically crimped 90° and straight -10AN fittings for leak-free operation. The -10AN lines feature a CPE rubber inner layer for compatibility with most fuels, oils, and engine coolants, while a woven stainless-steel inner jacket increases pressure tolerance and durability. The nylon outer braid prevents abrasion of soft materials such as plastic or aluminum in confined spaces. Anodized black hose ends and the nylon braid provide a subtle, factory-like appearance. The operating temperature range is -40°F to 300°F, with a pressure rating up to 1,000 PSI, making these lines suitable for most fluid or air passage systems.

This oil line kit is designed to work with the stock oil coolers located in the front bumper. Supplied M18 banjo bolts and M18 straight fittings are designed to attach to the stock oil cooler.

Note: Make sure to check oil levels after installation and add oil if needed.

Recommended torque specification: For all straight fittings and banjo bolts, use 15-25 lb-ft. Do not exceed the maximum torque rating of 35 ft-lb.

• Durable CPE rubber inner layer with woven stainless-steel inner jacket
• Nylon outer braid prevents abrasion of soft materials
• Pre-installed pneumatically crimped -10AN fittings for leak-free operation
• Operating temperature range from -40°F to 300°F and pressure rating up to 1,000 PSI

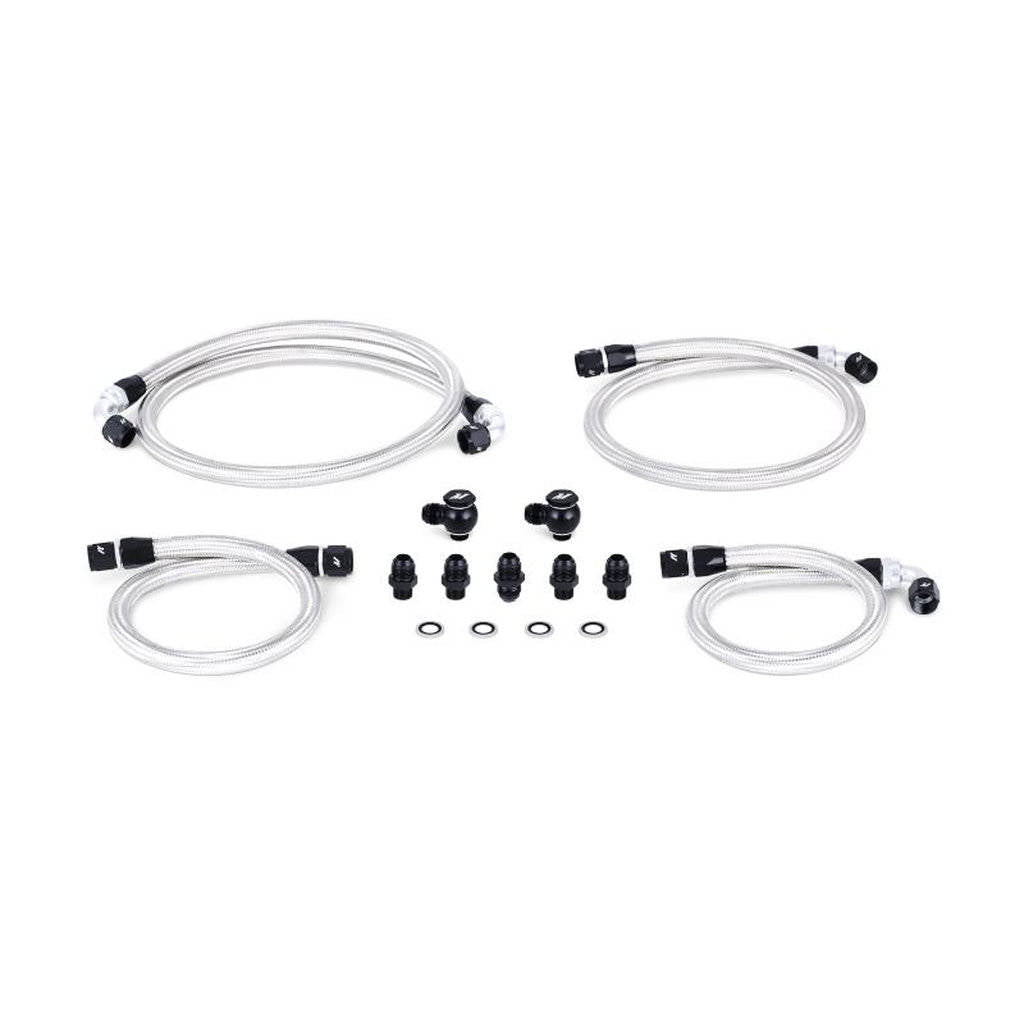

Kit comes with::

• 2ft, 4in Stainless Steel Braided Hose with 90 Degree -10AN Fittings
• 4ft, 8in Stainless Steel Braided Hose with 90 Degree -10AN Fittings

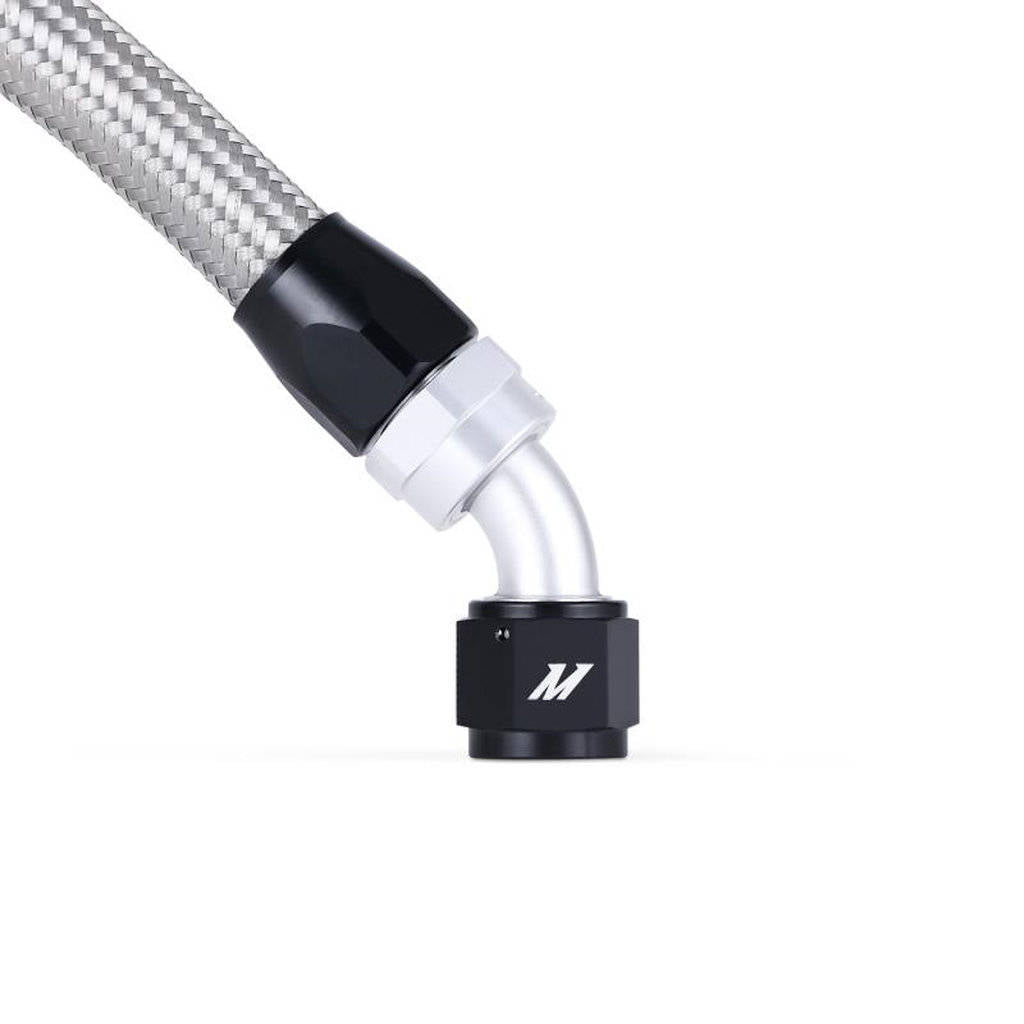

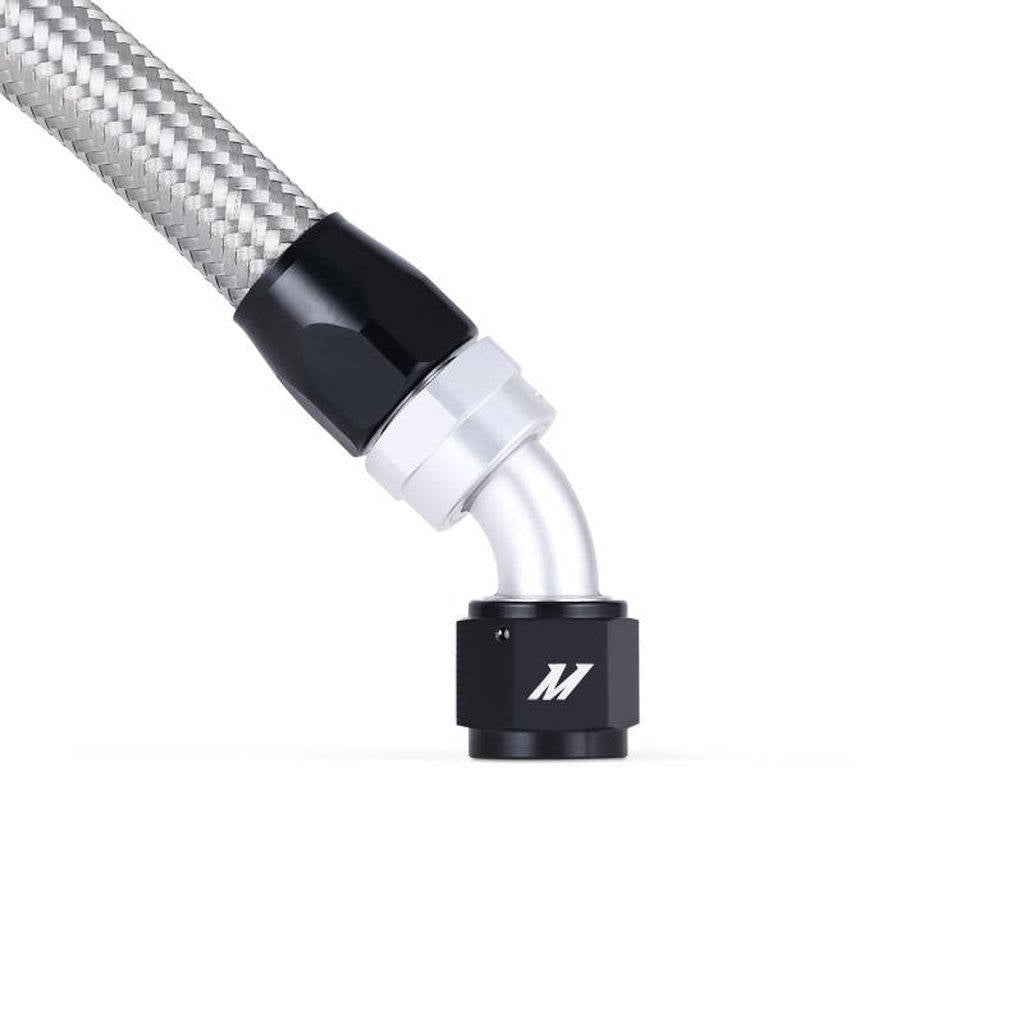

• 3ft, 4in Stainless Steel Braided Hose with 45 Degree and Straight -10AN Fittings
• 2ft, 2in Stainless Steel Braided Hose with 90 Degree and Straight -10AN Fittings

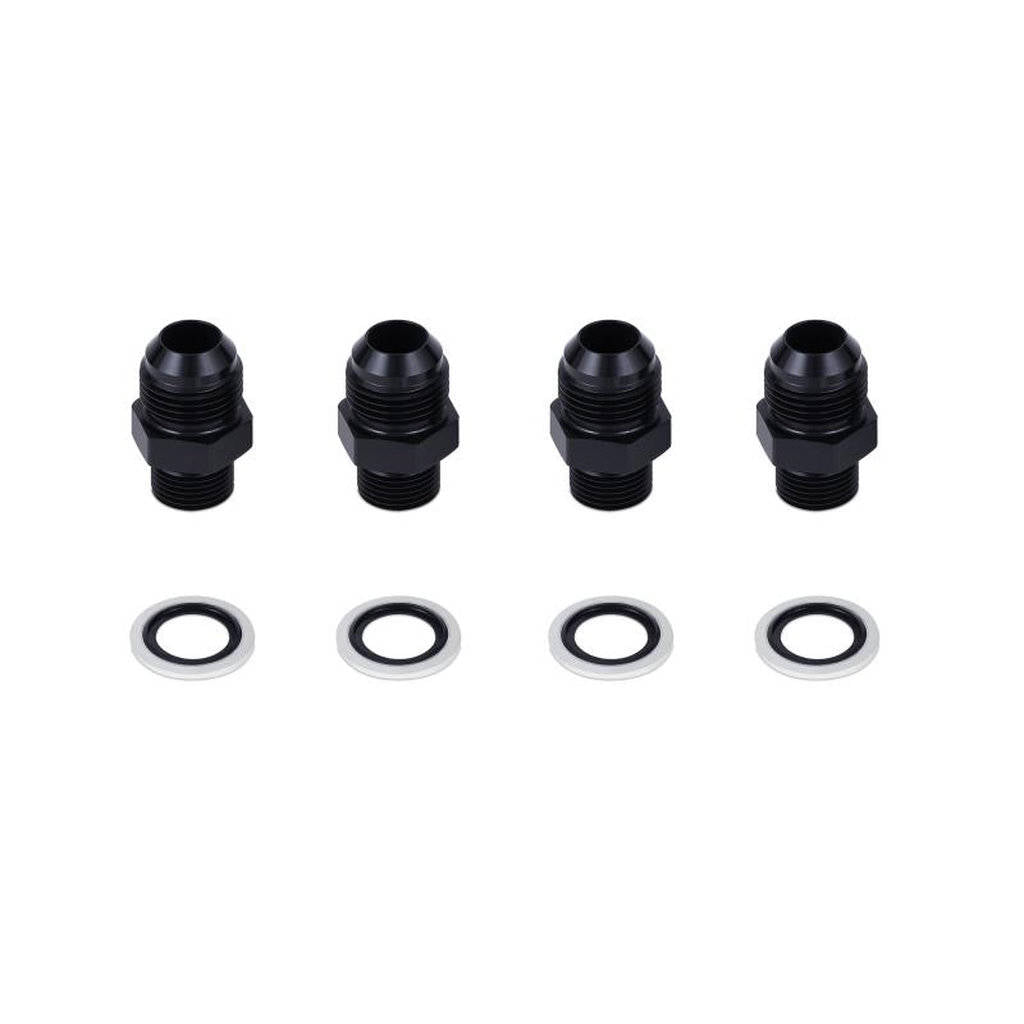

• M18 x -10AN Fittings with Dowty Oil Seals

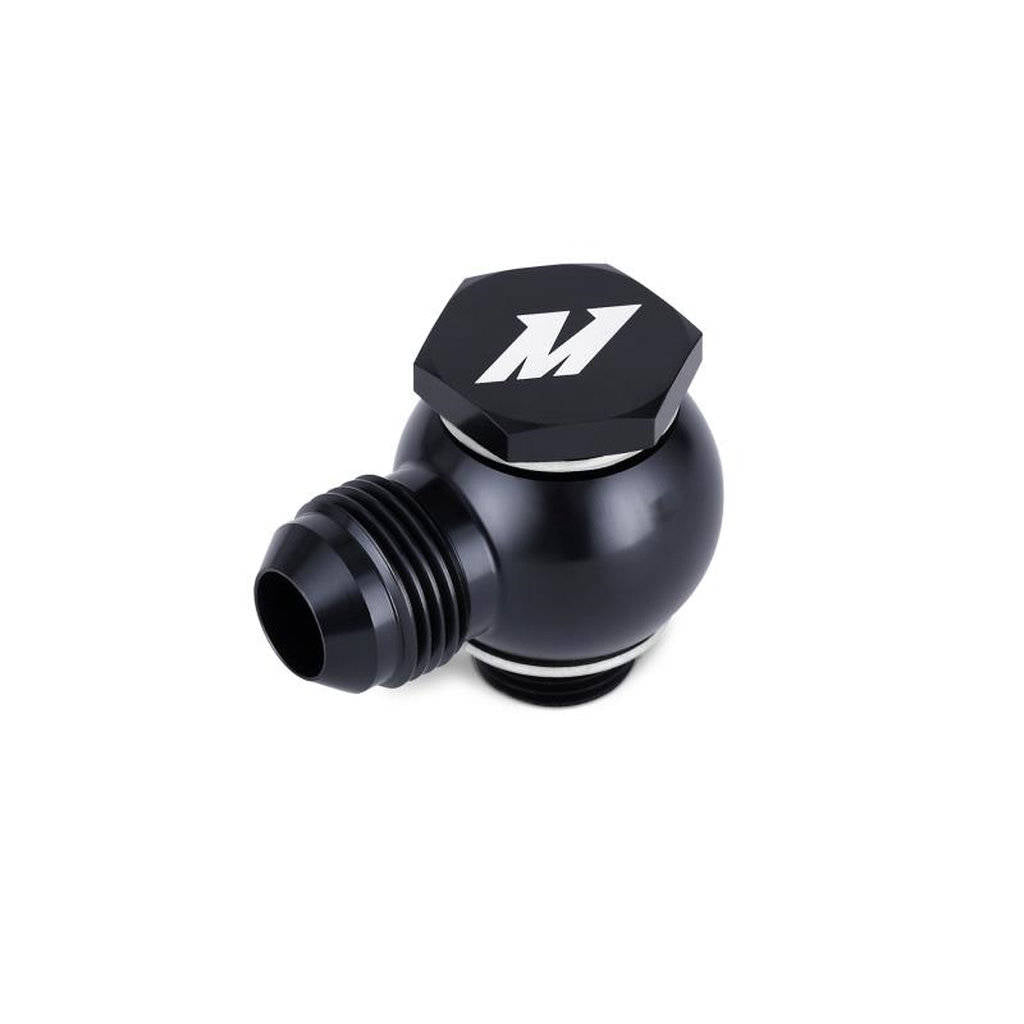

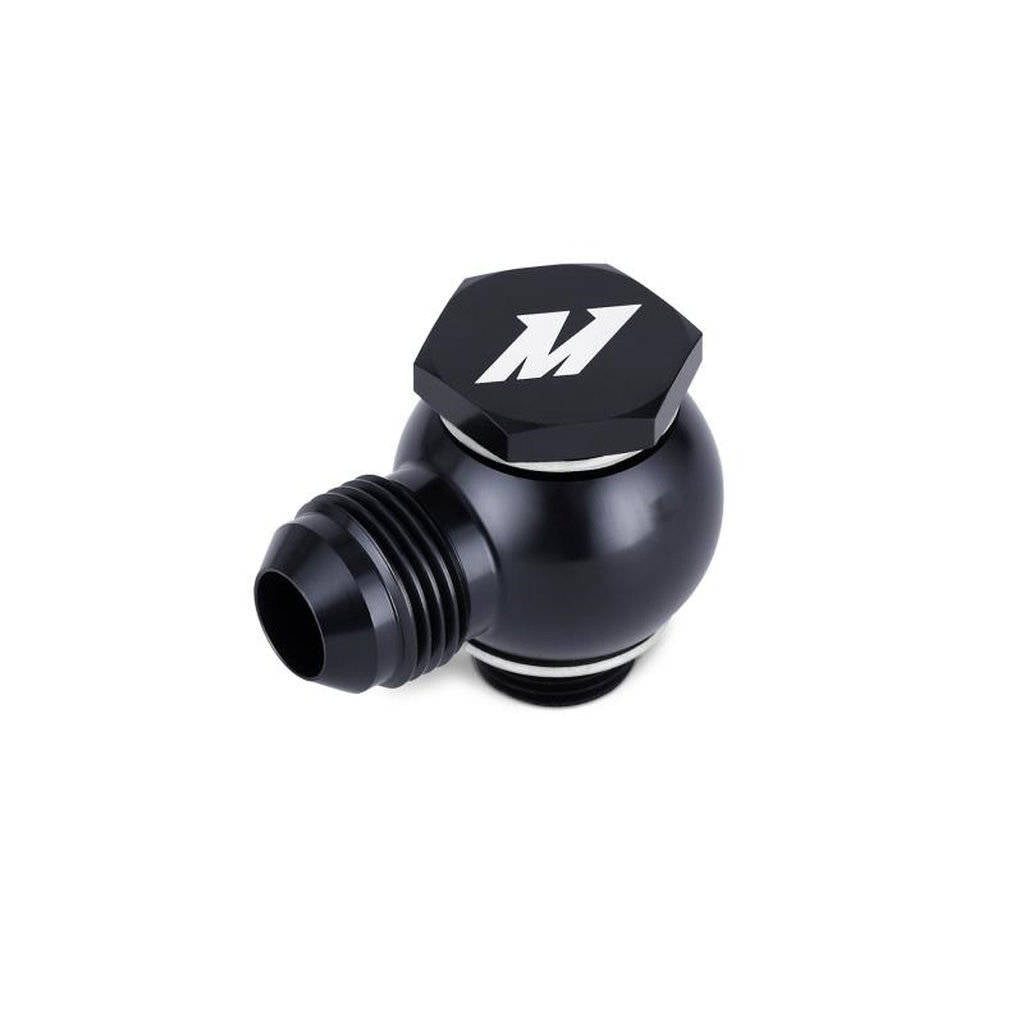

• M18 x -10AN Banjo Bolts with Dowty Oil Seals
• 10AN - 10AN Male Connector
• Mishimoto Lifetime Warranty
