When properly maintained, the Subaru flat-four engine is known for substantial power and impressive reliability. Proper regulation of coolant temperature is essential for extending the life of EJ-powered Subaru vehicles. Highly modified turbocharger setups and aggressive driving can result in high temperatures, increasing wear on internal engine components.

The X-Line Performance Aluminum Radiator is engineered specifically for the 2001-2007 Subaru WRX and STI, featuring a large three-row core and full aluminum construction. This design provides optimal temperatures even in demanding environments. The radiator includes a 100% brazed aluminum core with TIG-welded end tanks for increased durability, longevity, and a substantial increase in coolant capacity.

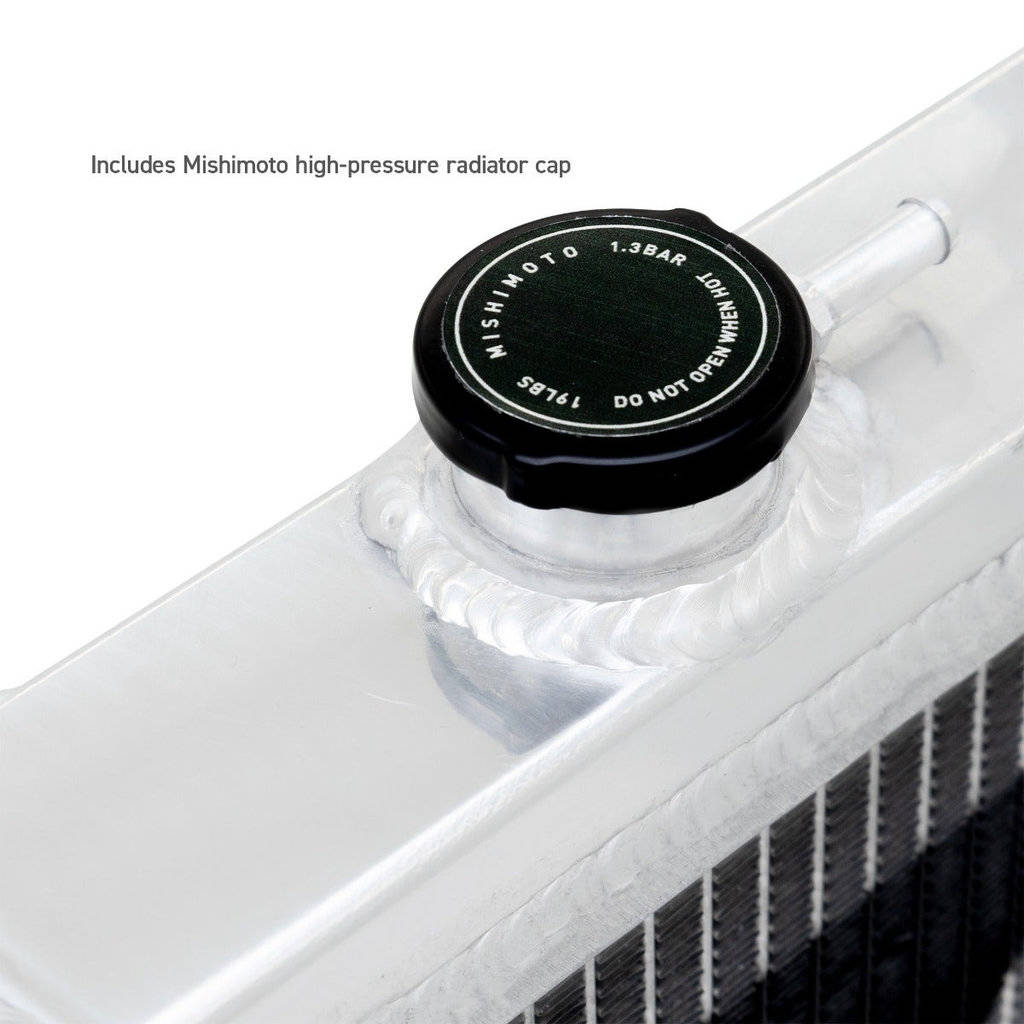

The large three-row core enhances surface contact, resulting in improved efficiency, better heat transfer, and lower engine coolant temperatures. The Mishimoto Subaru WRX and STI radiator includes a high-pressure 1.3 bar radiator cap, effectively raising the boiling point of coolant for a safer and more efficient system. A second radiator cap is included for use on the expansion tank. A Mishimoto magnetic drain plug is also included to remove metal fragments circulating in the coolant system, further protecting the engine.

Whether used as a reliable stock replacement or as a heat exchanger for track use, the Mishimoto Subaru WRX and STI X-Line Performance Aluminum Radiator is designed for performance and durability.

Caution: The provided Mishimoto two-way cap (six-sided design) should replace the stock cap located on the expansion tank. The Mishimoto Performance Aluminum Radiator should utilize the included one-way cap (circular design with non-directional sticker).

Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends checking all connections at regular intervals, especially during the first few miles after installation.

Caution: Due to the additional thickness of the 3-row X-Line radiator, trimming the upper hose may be necessary.

Caution: For 2002-2003 Subaru WRX models built before 7/2002, remove fill neck overflow nipple and replace with 1.5875mm NPT plug provided.

• Large three-row core and full aluminum construction for optimal cooling
• Includes high-pressure 1.3 bar radiator cap and second cap for expansion tank
• Magnetic drain plug removes metal fragments from the coolant system
• Engineered for direct fit on 2001-2007 Subaru WRX and STI

Specifications:

• Overall Length (in): 17.2
• Overall Height (in): 28.4
• Overall Width (in): 2.5
• Core Length (in): 13.54
• Core Height (in): 27.24
• Core Thickness (in): 2
• Rows: 3
• Inlet (in): 1.5
• Outlet (in): 1.5
• Drain Plug Thread Size: M12 x 1.5
• DPI: 2703
• Engine Codes: EJ205, EJ255, EJ257
• Chassis Codes: GD
• This item is for Manual Transmission vehicles.

Kit comes with::

• Mishimoto Radiator
• Mishimoto Two-Way Radiator Cap
• Mishimoto One-Way Radiator Cap
• 1/16-inch NPT Plug
• Magnetic Drain Plug
• Fan Mounting Hardware
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• Saab 9-2X H4 (2.0L) 2005
• Saab 9-2X H4 (2.5L) 2006
• Subaru WRX H4 (2.0) 2002-2005
• Subaru WRX H4 (2.5) 2006-2007
• Subaru WRX STI H4 (2.5) 2004-2007
