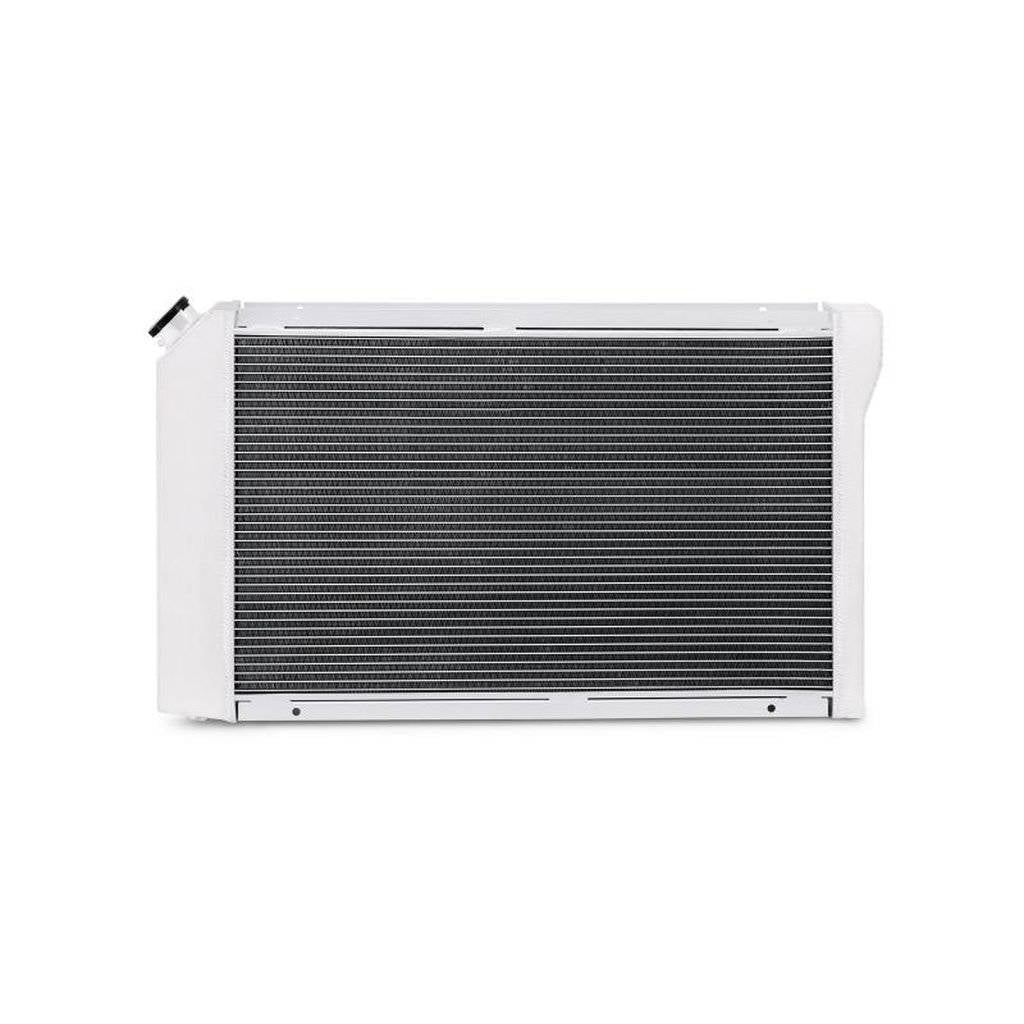

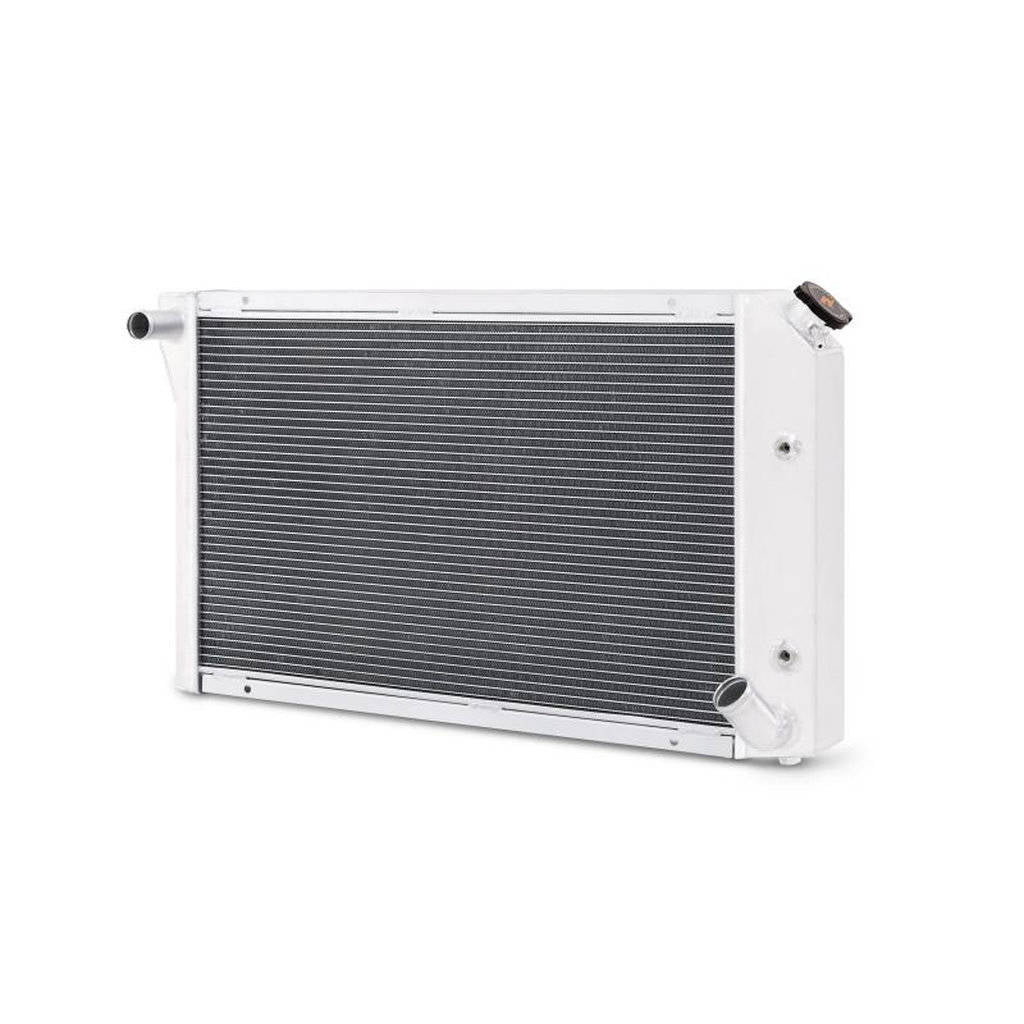

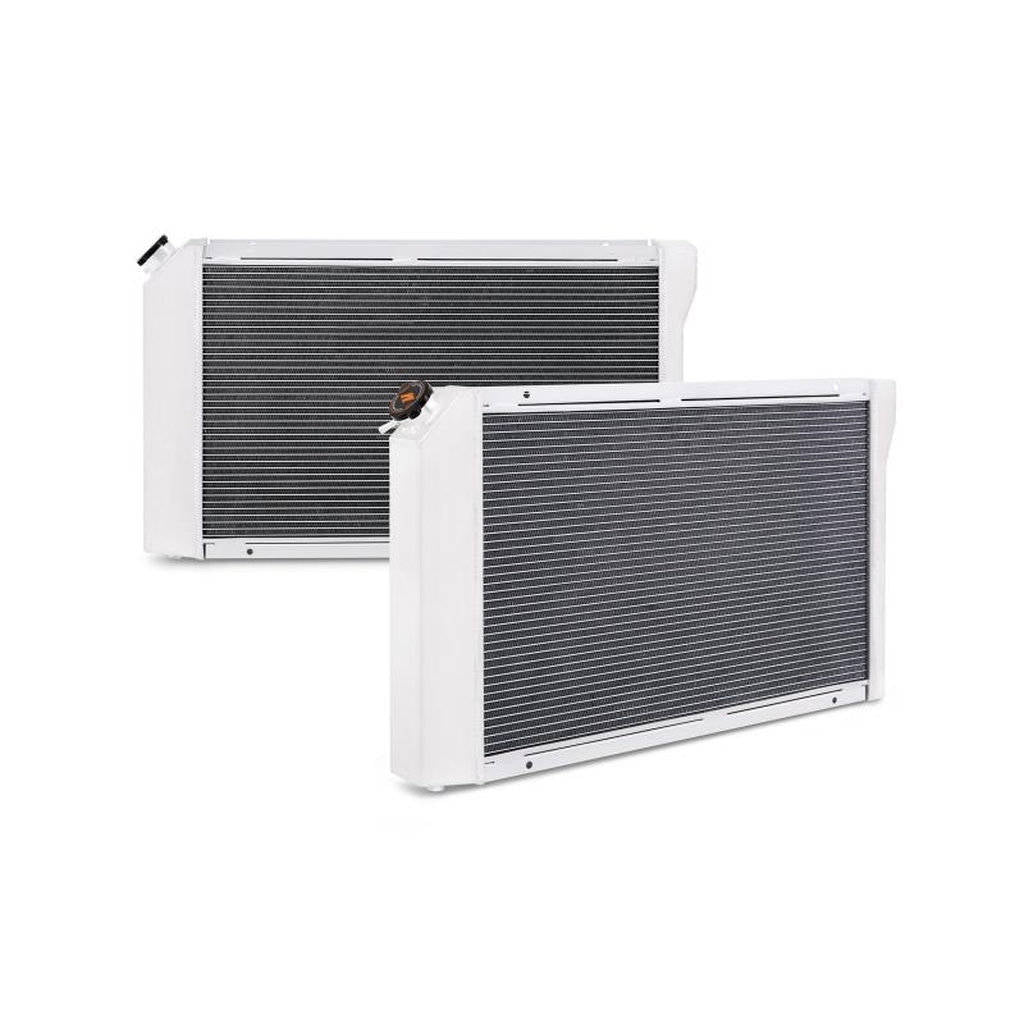

MISHIMOTO MMRAD-VET-77X JEEP Wrangler YJ & TJ with CHEVROLETV8 LS Engine Swap Aluminum Performance Radiator, 1987--2004

Description MISHIMOTO MMRAD-VET-77X JEEP Wrangler YJ & TJ with CHEVROLETV8 LS Engine Swap Aluminum Performance Radiator, 1987--2004

The Mishimoto 1977–1983 Chevrolet Corvette X-Line Performance Aluminum Radiator is designed as an upgrade for the stock Corvette radiator, offering enhanced reliability and improved cooling efficiency. This radiator is suitable for both daily driving and track use, addressing the limitations of the original equipment in handling increased heat from higher horsepower engines.

The radiator features durable aircraft-quality aluminum end tanks, precision TIG-welded to a brazed aluminum core. The inlet and outlet connections are engineered for precise, leak-free performance. A Magnetic Drain Plug is included to help remove metal fragments from the cooling system.

• Aircraft-quality aluminum end tanks with TIG-welded construction
• Brazed aluminum core for efficient cooling
• Magnetic Drain Plug removes metal fragments from the system

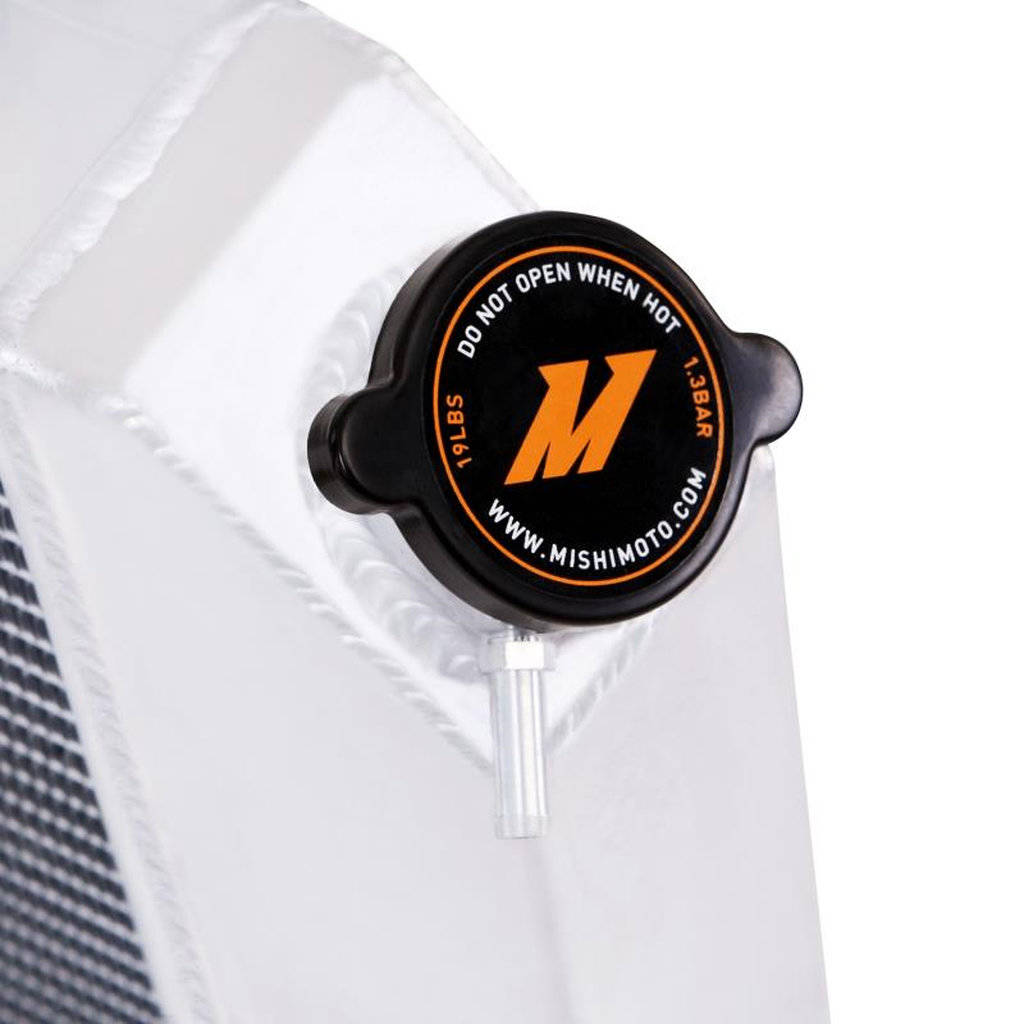

• Includes Mishimoto Radiator Cap

Specifications:

• Overall Length (in): 19.3
• Overall Height (in): 31.9
• Overall Width (in): 6.1
• Core Length (in): 26.3
• Core Height (in): 16.5
• Core Thickness (in): 2.4
• Fluid Capacity (gal): 5.94
• Rows: 3
• Inlet (in): 1.4
• Outlet (in): 1.6
• Drain Plug Thread Size: M12 x 1.5
• DPI: 718
• Coolant Capacity: 5.94
• Transmission Cooler Thread Info: On Radiator: Female 1/4-inch BSPP

Kit comes with::

• Mishimoto Radiator
• Mishimoto Radiator Cap
• Magnetic Drain Plug
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 1977-1983 Chevrolet Corvette (350 V8)
