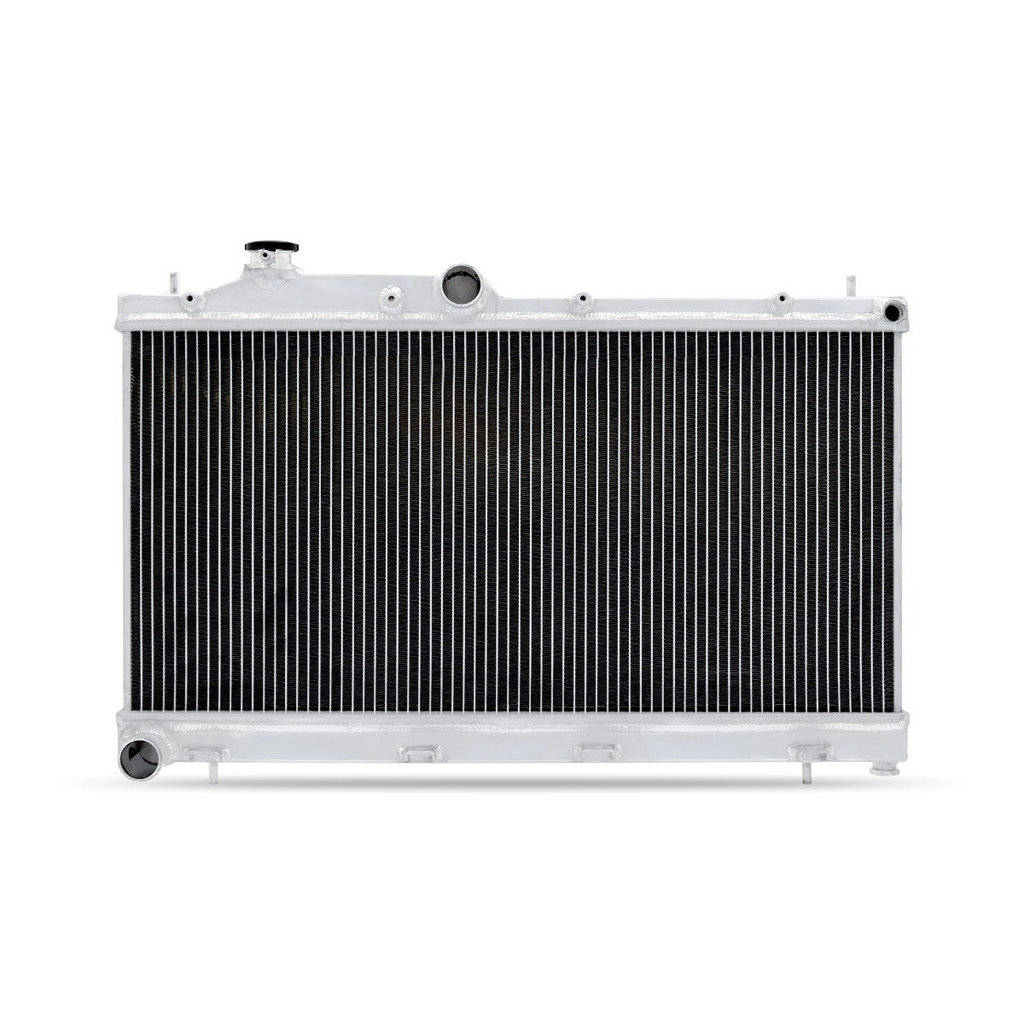

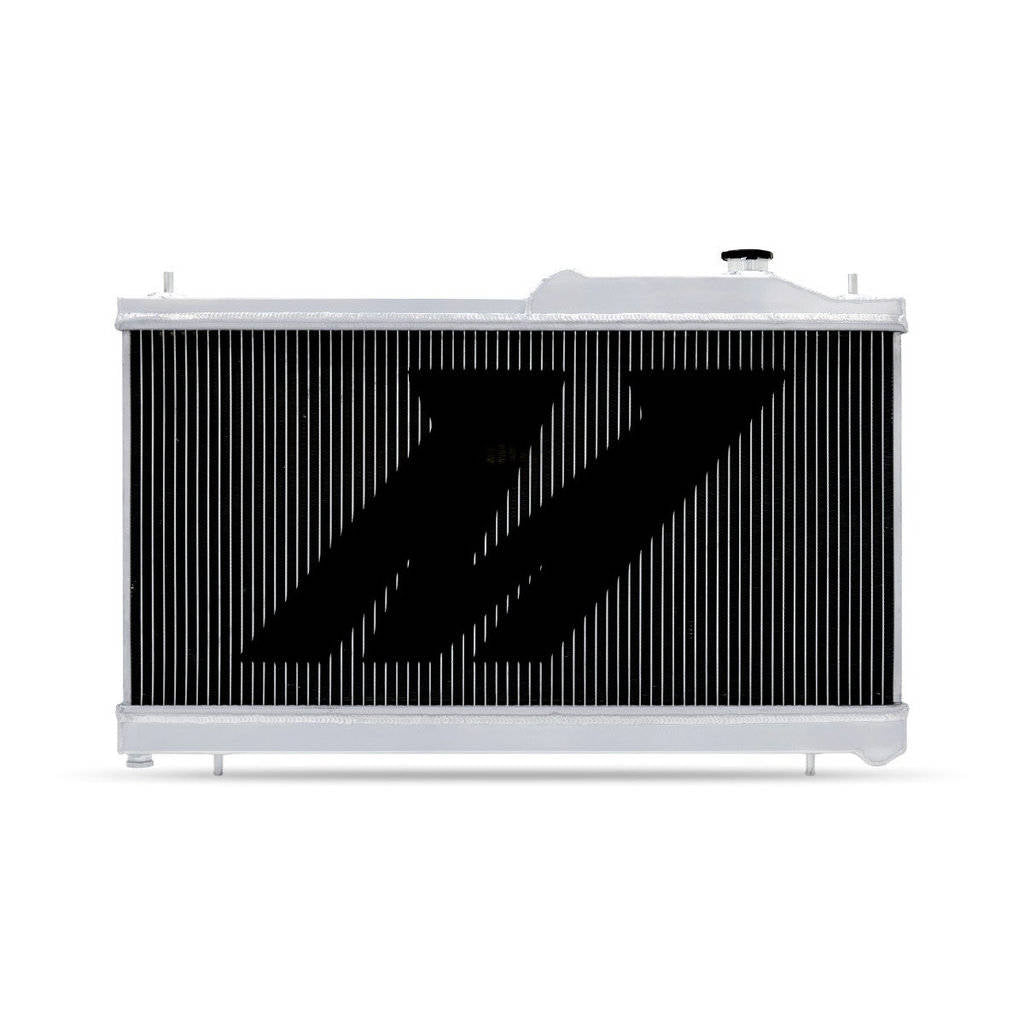

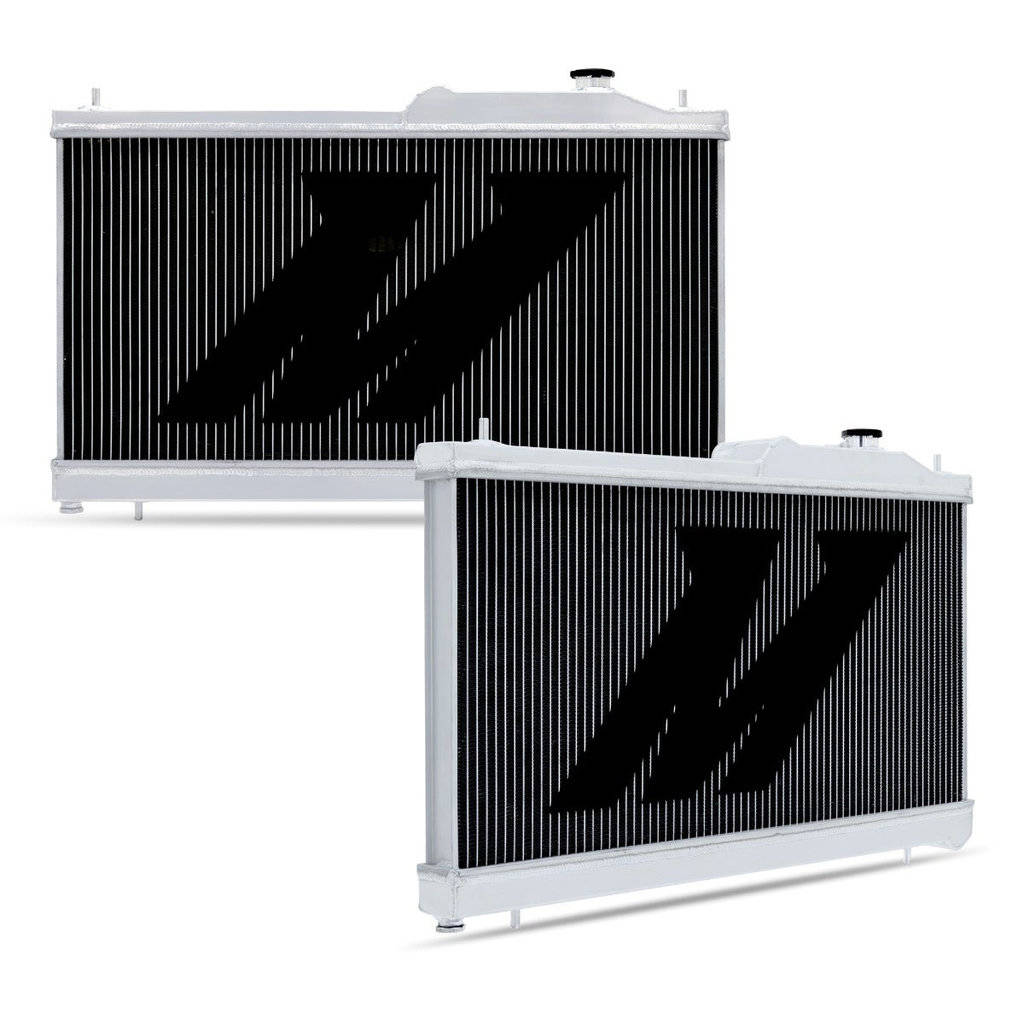

MISHIMOTO MMRAD-STI-08X SUBARU WRX/STI X-Line Performance Aluminum Radiator, 2008-2014

Description MISHIMOTO MMRAD-STI-08X SUBARU WRX/STI X-Line Performance Aluminum Radiator, 2008-2014

Maintaining optimal coolant temperatures is essential for the reliability and performance of Subaru's flat-four engine, whether during daily driving or on the track. The factory radiator's limited capacity can become a bottleneck under demanding conditions, increasing the risk of overheating and engine damage. The Mishimoto X-Line Performance Aluminum Radiator for the 2008–2014 Subaru WRX and 2008–2021 Subaru STI is engineered to provide maximum cooling efficiency and durability in any environment.

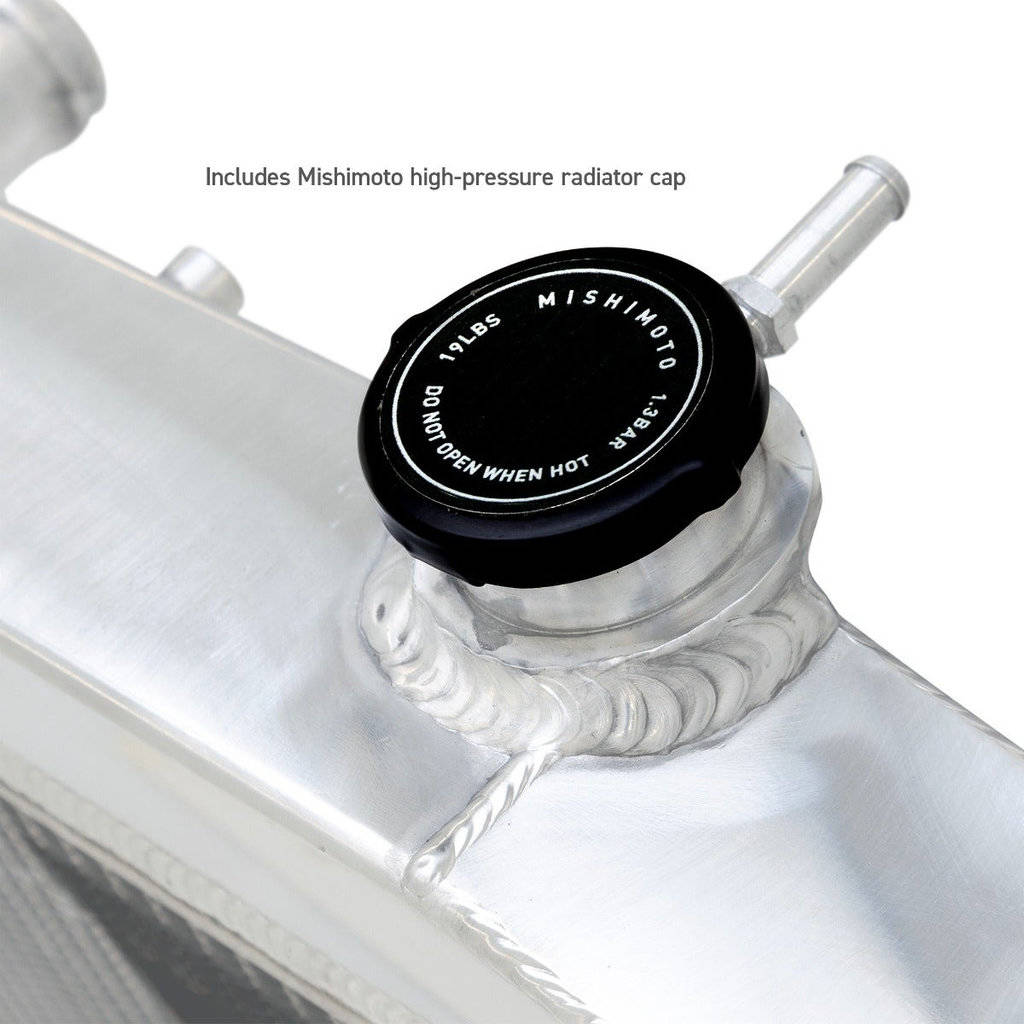

This radiator features a larger triple-row core for significantly improved heat dissipation, helping to keep coolant temperatures stable even under extreme loads. Constructed from 100% brazed aluminum with TIG-welded polished end tanks, it offers superior strength and longevity compared to the stock unit. The lightweight design helps maintain vehicle balance and performance, while the direct OEM fit allows for easy installation without modifications. Each radiator includes a high-pressure 1.3 bar radiator cap to raise the coolant boiling point, and a second cap for the expansion tank.

Caution: The provided Mishimoto two-way cap (six-sided design) should replace the stock cap located on the expansion tank. The Mishimoto Performance Aluminum Radiator should utilize the included one-way cap (circular design with non-directional sticker).

Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends checking all connections at regular intervals, especially during the first few miles after installation.

• Triple-row core for improved heat dissipation
• 100% brazed aluminum construction with TIG-welded polished end tanks
• Direct OEM fit for easy installation
• Includes high-pressure 1.3 bar radiator cap and expansion tank cap

Specifications:

• Overall Length (in): 21.8
• Overall Height (in): 28
• Overall Width (in): 2.5
• Core Length (in): 13.39
• Core Height (in): 27.09
• Core Thickness (in): 2
• Rows: 3
• Inlet (in): 1.54
• Outlet (in): 1.54
• Drain Plug Thread Size: M12 x 1.5
• DPI: 13091/13093
• Engine Codes: EJ255, EJ257
• Chassis Codes: GE, GH

Kit comes with::

• Mishimoto Radiator
• Mishimoto Radiator Cap
• Overflow Nipples - 2
• Magnetic Drain Plug
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2008-2014 Subaru WRX (Manual Transmission)
• 2010-2014 Subaru WRX (Manual Transmission)
• 2008-2019 Subaru STI (Manual Transmission)
• 2009-2013 Subaru Forester XT (Manual Transmission)
• 2005-2009 Subaru Outback XT (Manual Transmission)
• 2005-2009 Subaru Legacy GT (Manual Transmission)

Note: This item is for Manual Transmission vehicles. For automatic applications, purchase the optional Mishimoto Universal Transmission Cooler Kit.

Note: Use small fitting for: 2008-2009 Subaru WRX, 2008-2019 Subaru STI. Use large fitting for: 2010-2014 Subaru WRX, 2005-2009 Subaru Legacy GT, 2005-2009 Subaru Outback XT, 2009-2013 Subaru Forester XT.
