MISHIMOTO MMRAD-RAM-13 Ram 2500/3500 Radiator, 2013-2017 Natural Finish

Description MISHIMOTO MMRAD-RAM-13 Ram 2500/3500 Radiator, 2013-2017 Natural Finish

The 6.7L Cummins-equipped Dodge Ram is known for its reliability and power, making it a popular choice for demanding work. However, the stock radiator is a known weak point, with plastic end tanks that are susceptible to cracking and leaks over time.

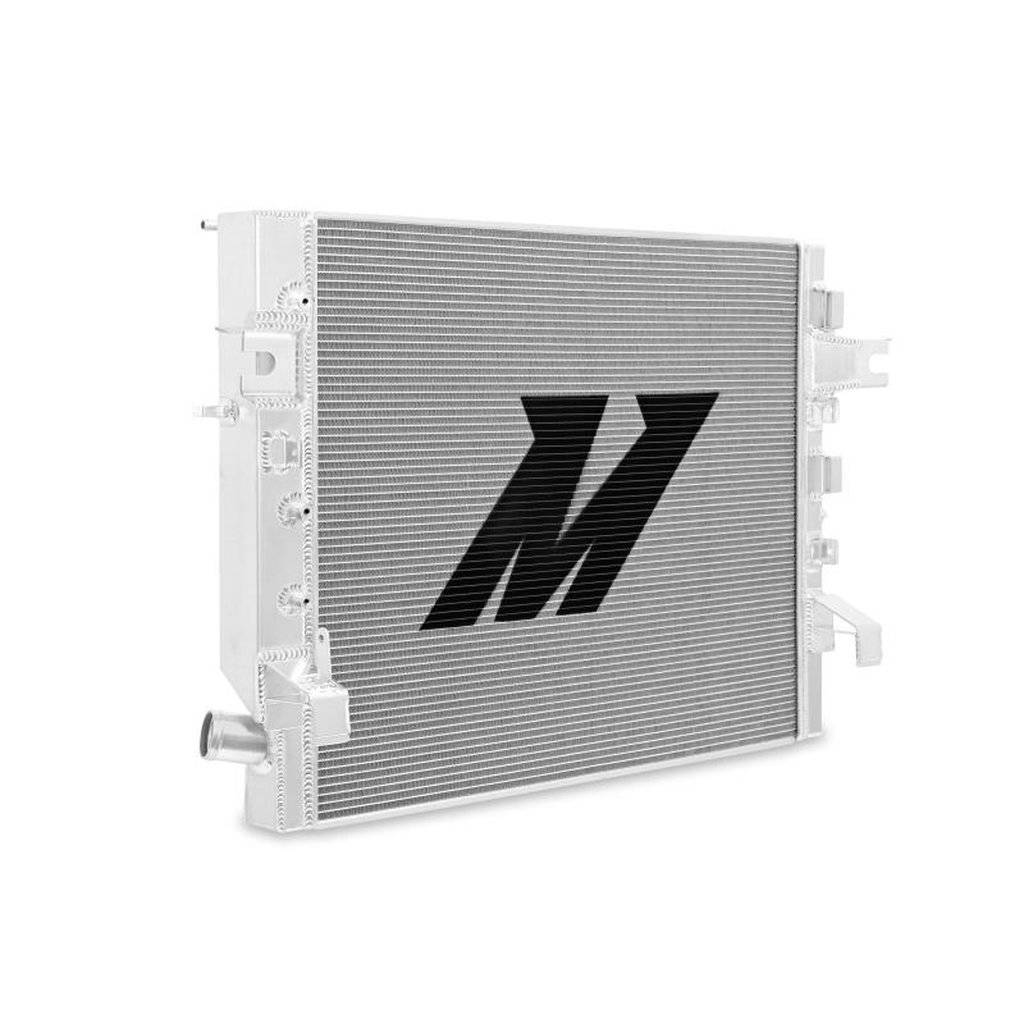

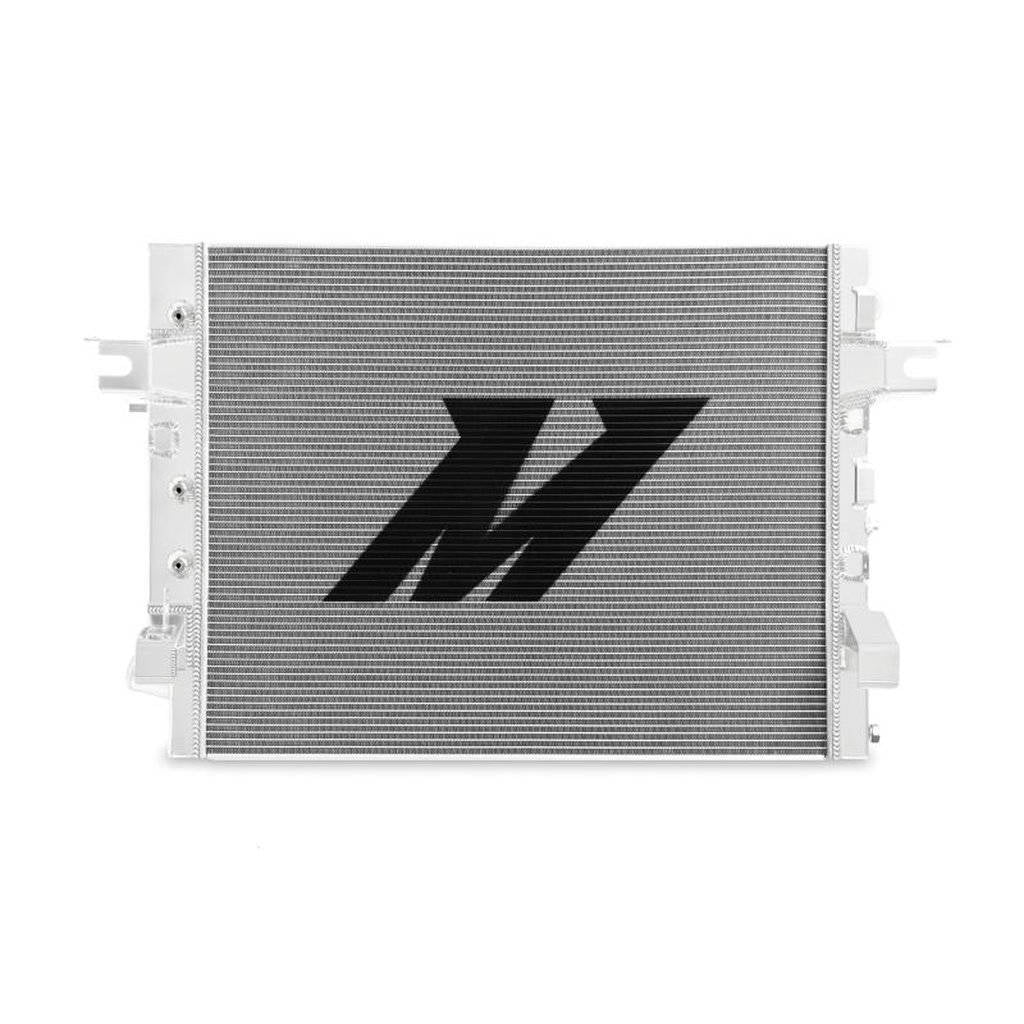

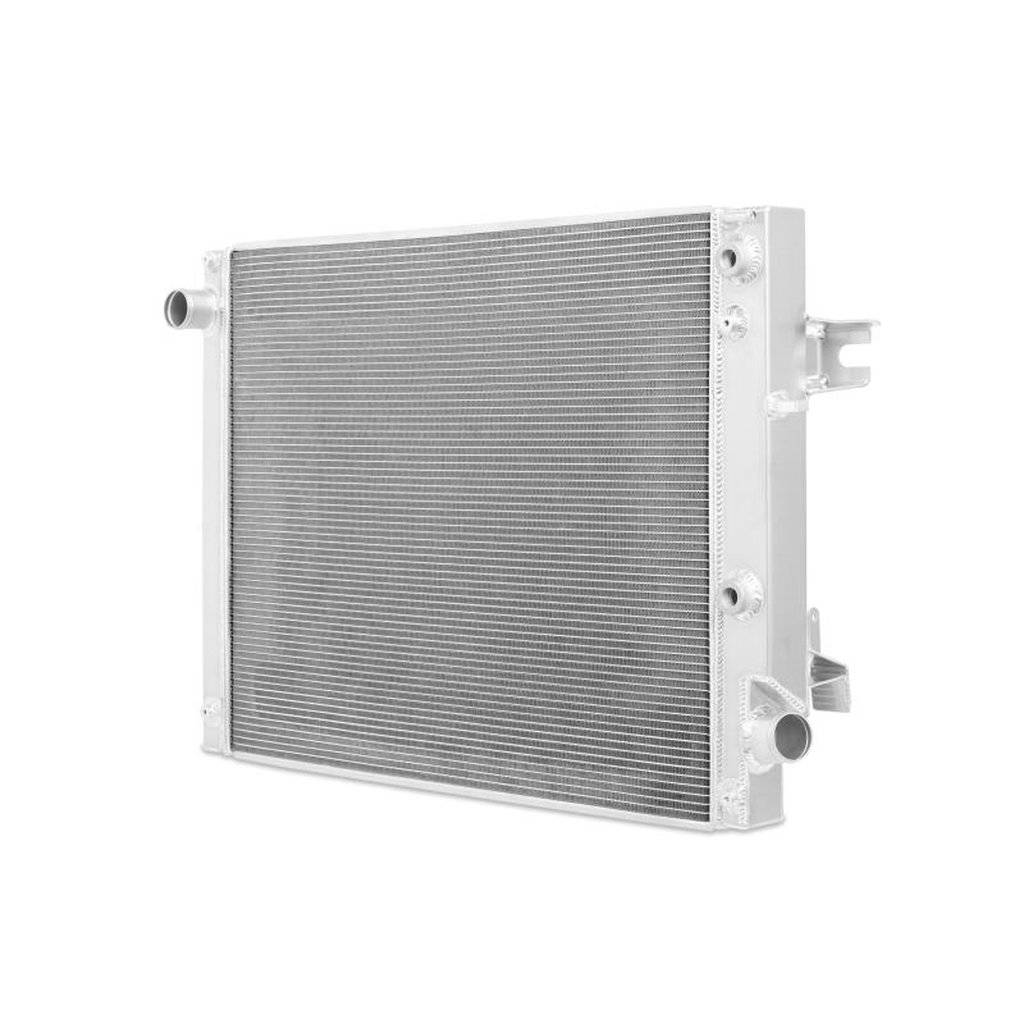

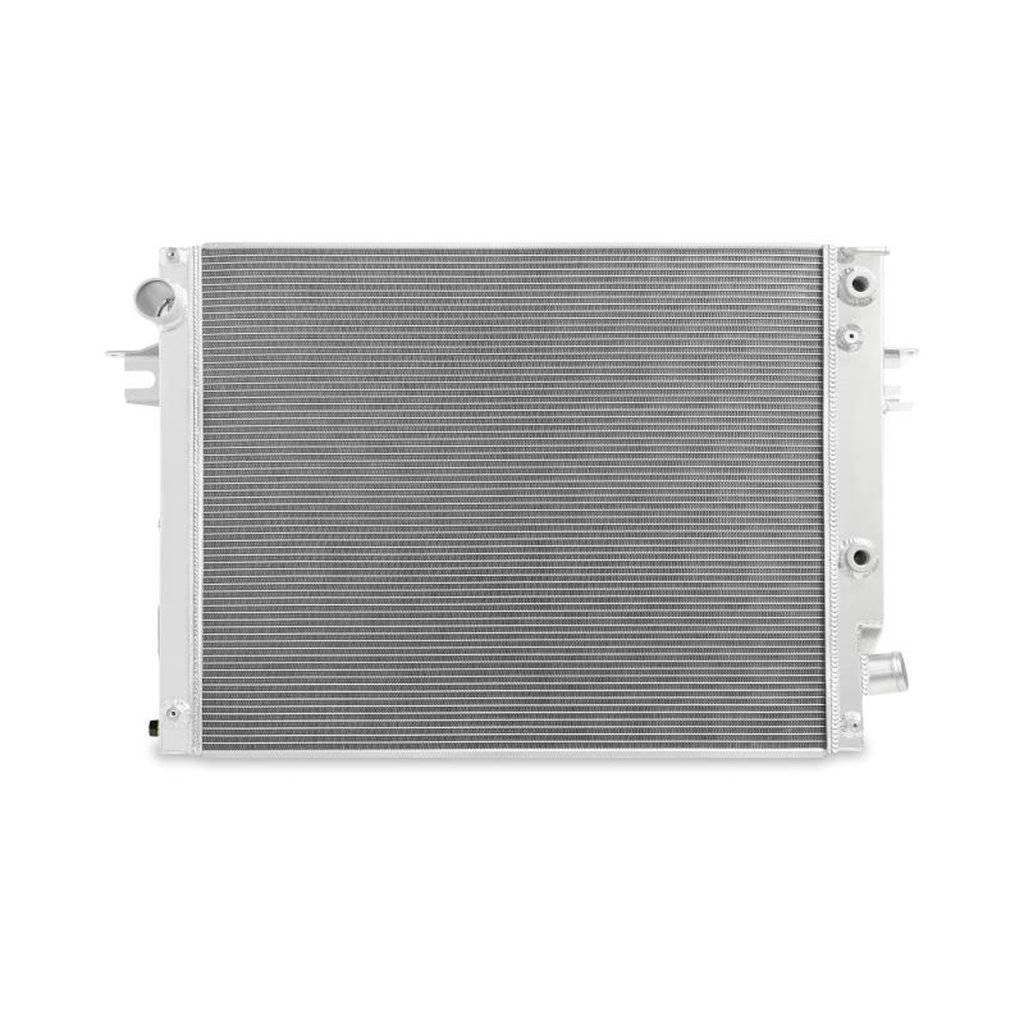

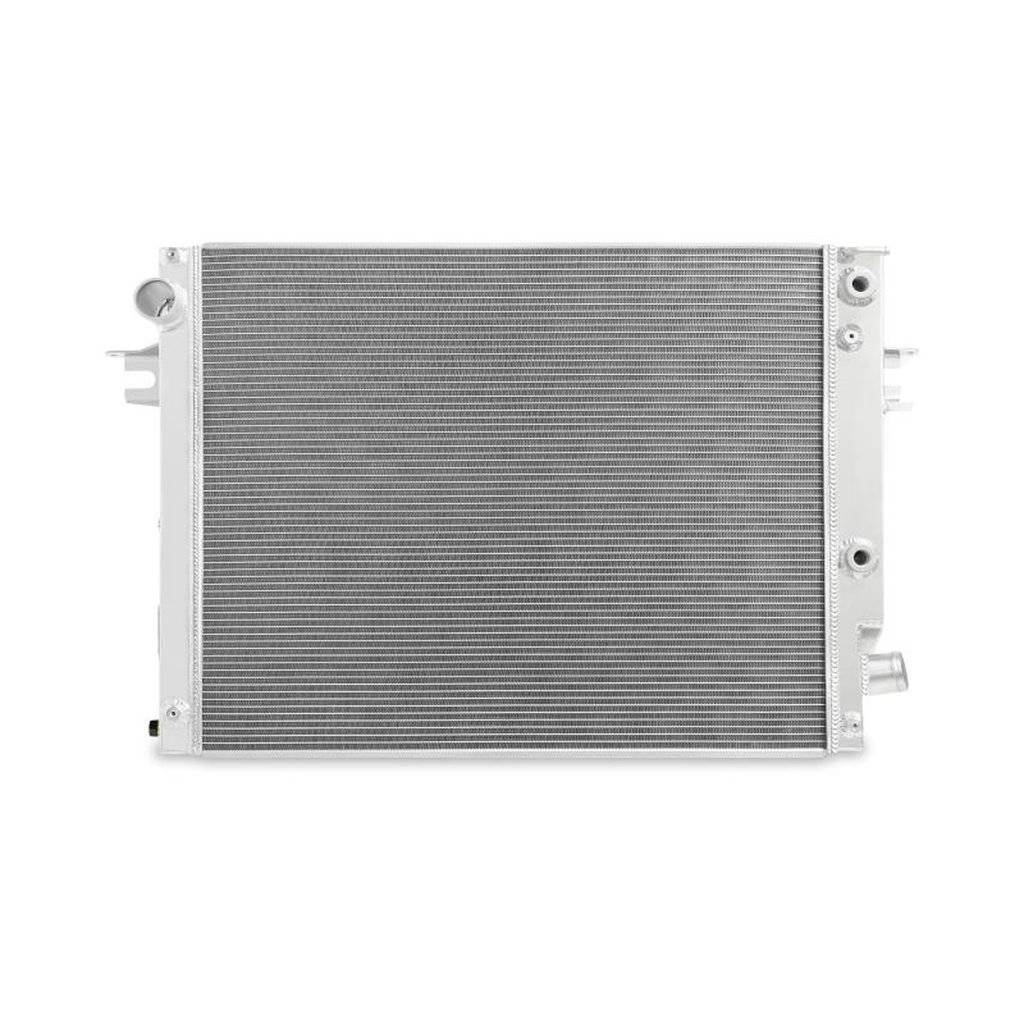

Increased stress and heat from power-adding modifications can worsen these issues. The Mishimoto 2013-2018 Ram 2500 / 3500 radiator offers a solution with its fully aluminum, TIG-welded construction, providing enhanced durability. With a 63% increase in coolant capacity and a 41% larger surface area, this radiator is designed to handle increased power and heat.

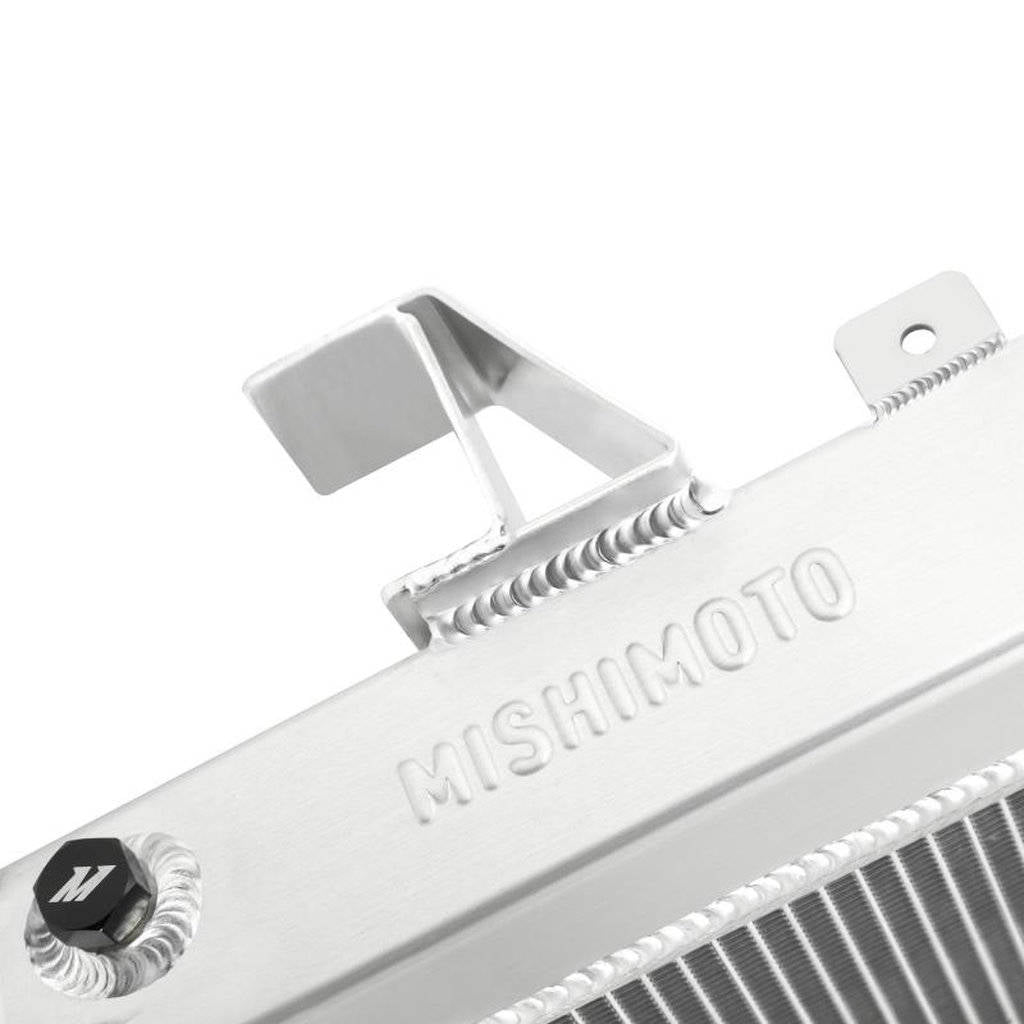

• Fully aluminum, TIG-welded construction for improved strength

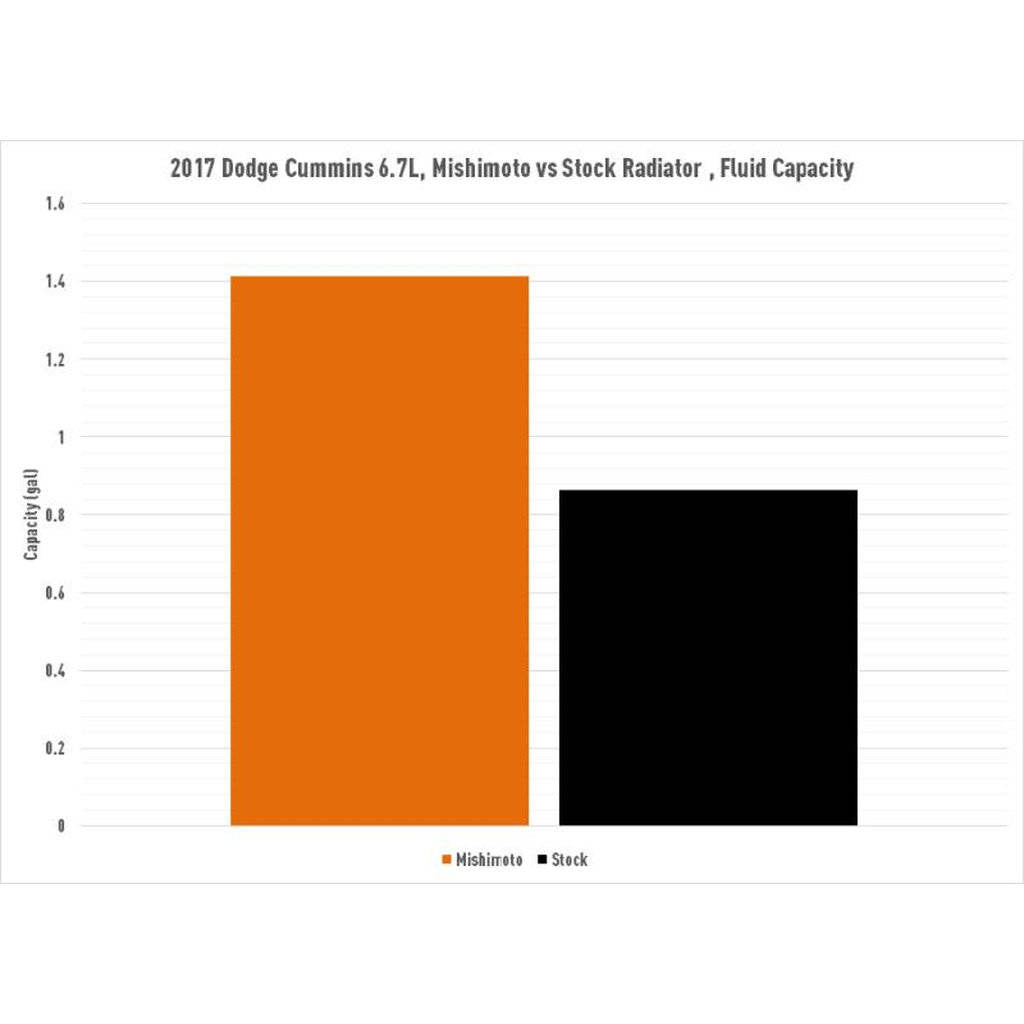

• 63% increase in coolant capacity over stock

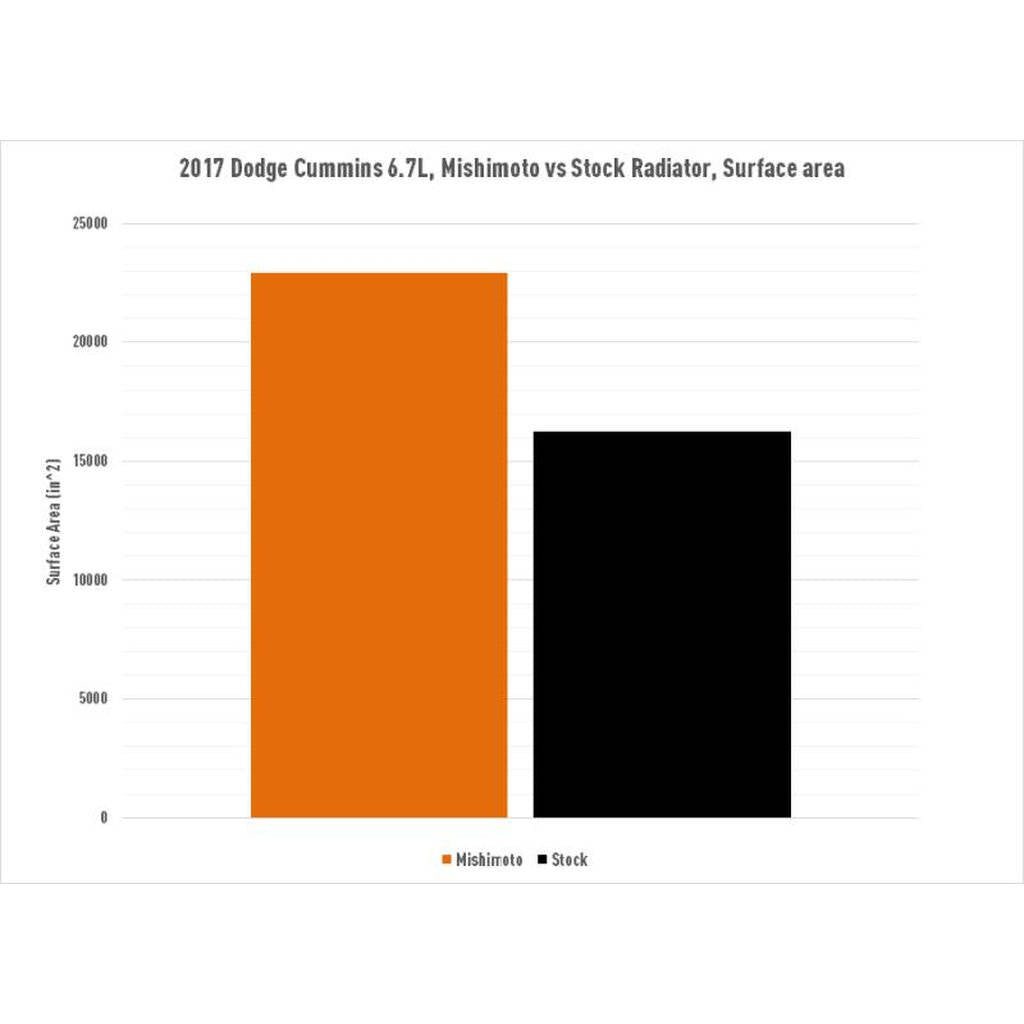

• 41% larger surface area for enhanced cooling
• Designed as a direct upgrade for 2013-2018 Cummins-powered Ram trucks

Specifications:

• Overall Length (in): 33.5
• Overall Height (in): 22
• Overall Width (in): 2.75
• Core Length (in): 26.75
• Core Height (in): 22
• Core Thickness (in): 1.88
• Fluid Capacity (gal): 7.94
• Rows: 3
• Inlet (in): 1.61
• Outlet (in): 1.61
• Drain Plug Thread Size: M12 x 1.5
• Coolant Capacity: 7.94

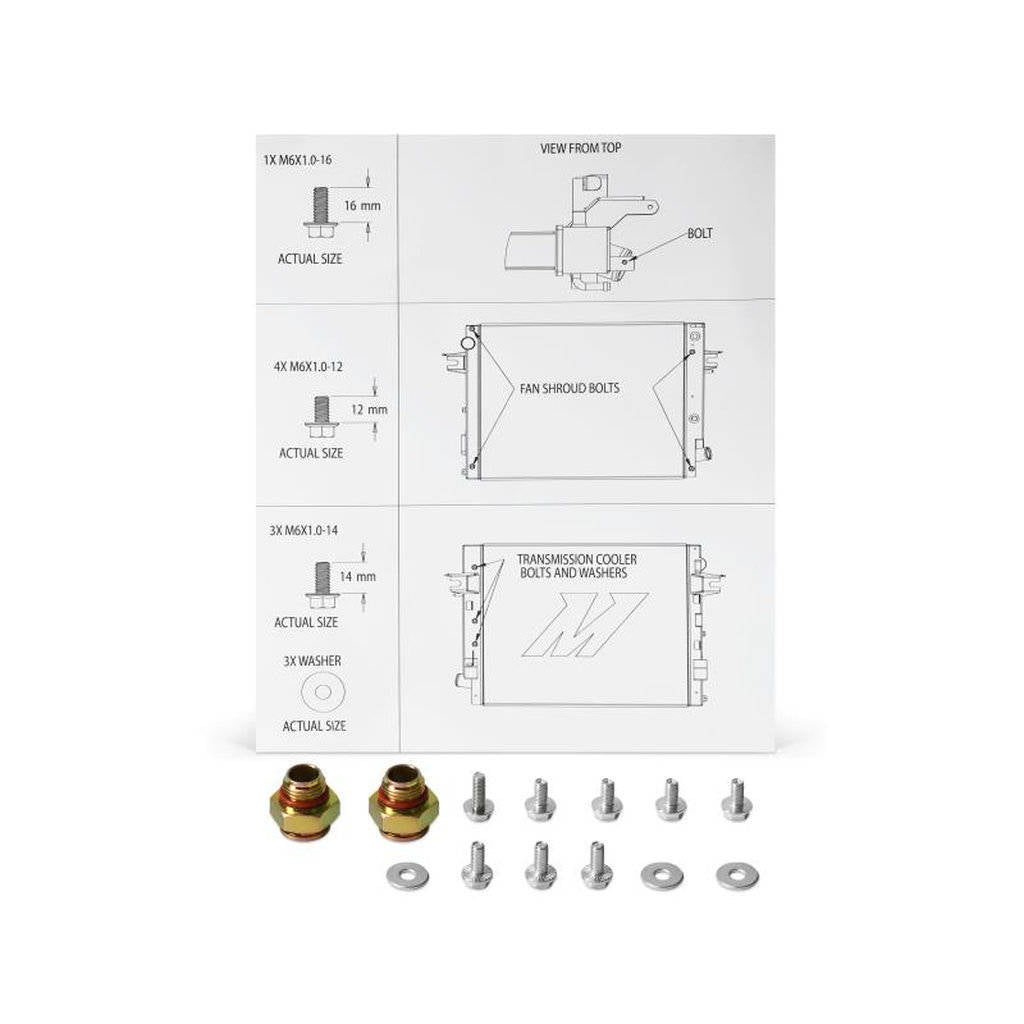

Kit comes with::

• Mishimoto Radiator
• Magnetic Drain Plug
• (2) Transmission Cooler Fittings
• M6 x 1.0 - 16mm Bolt
• (3) M6 x 1.0 - 14mm Bolts
• (4) M6 x 1.0 - 12mm Bolts
• (3) M6 Flat Washers
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2013-2018 Ram 2500 6.7L L6
• 2013-2018 Ram 3500 6.7L L6
• 2013-2018 Ram 4500 6.7L L6
• 2013-2018 Ram 5500 6.7L L6
