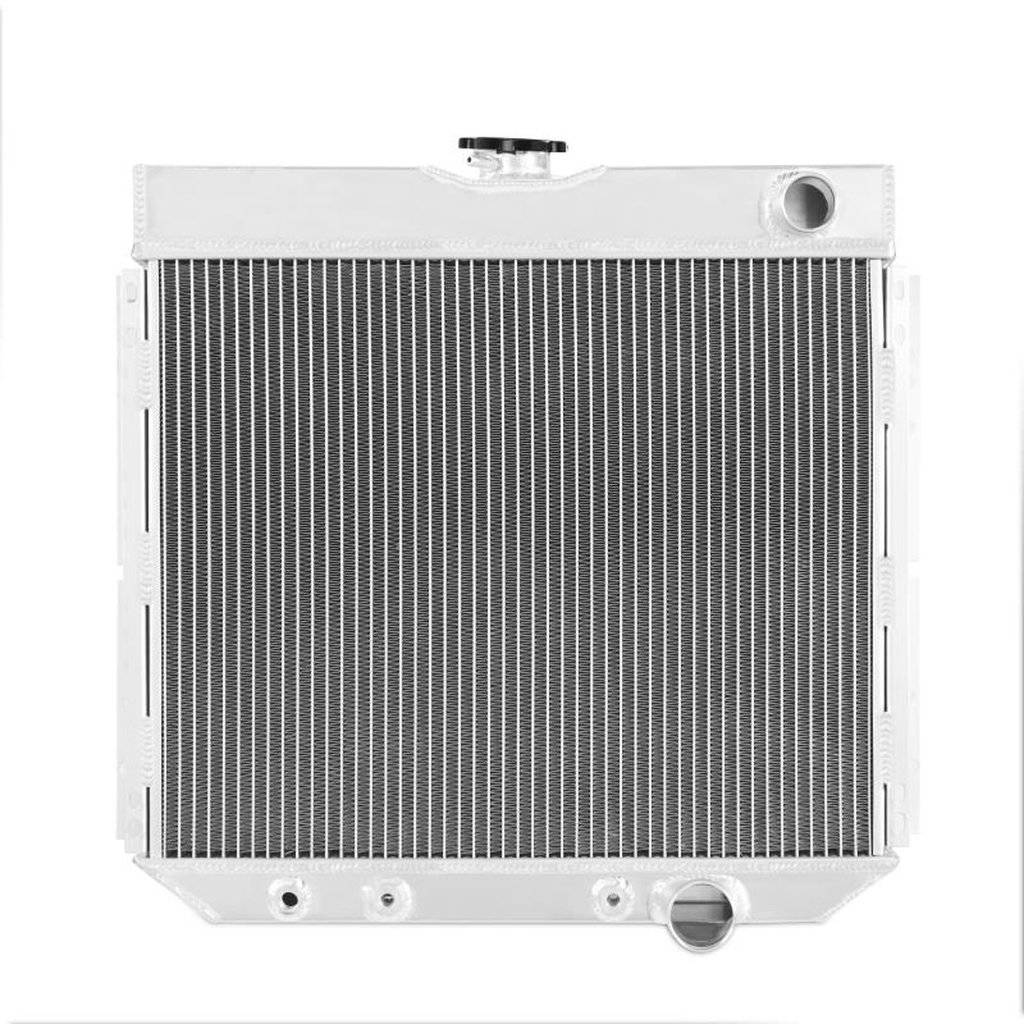

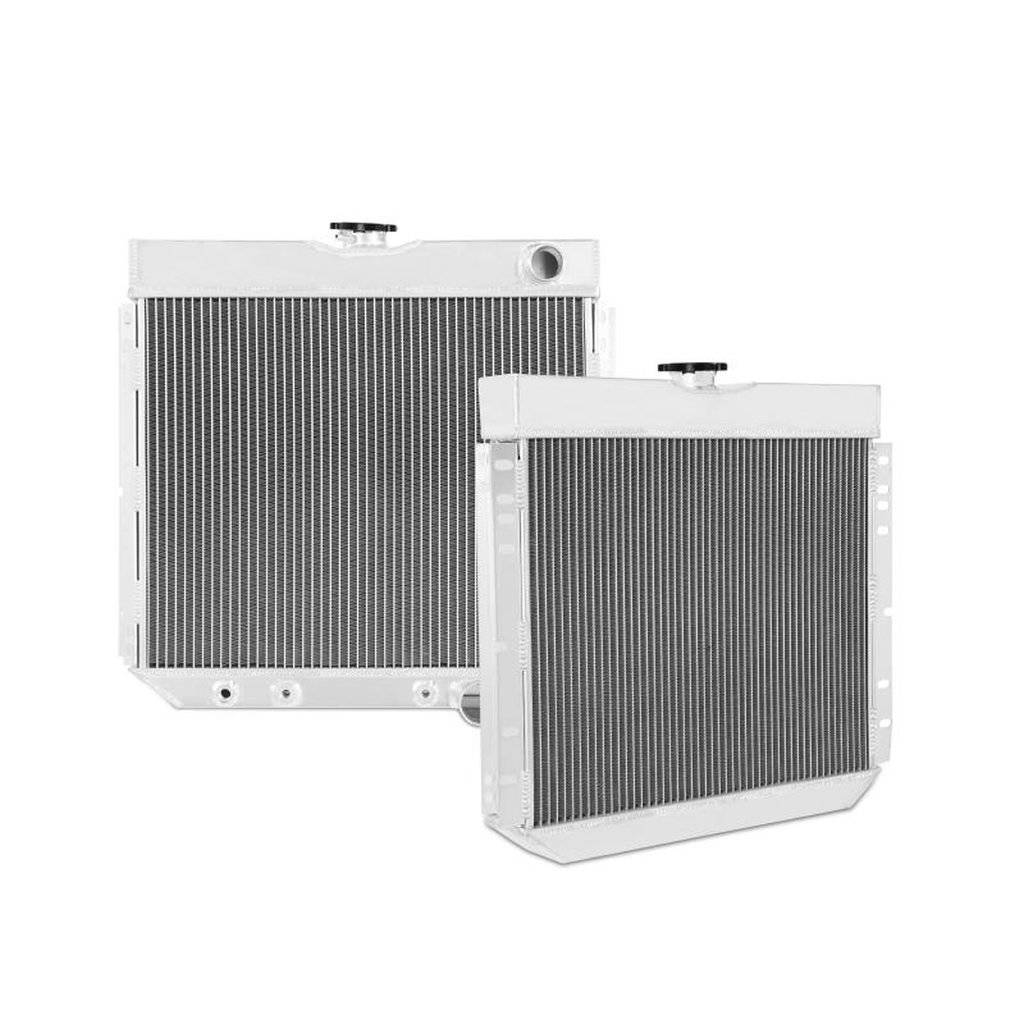

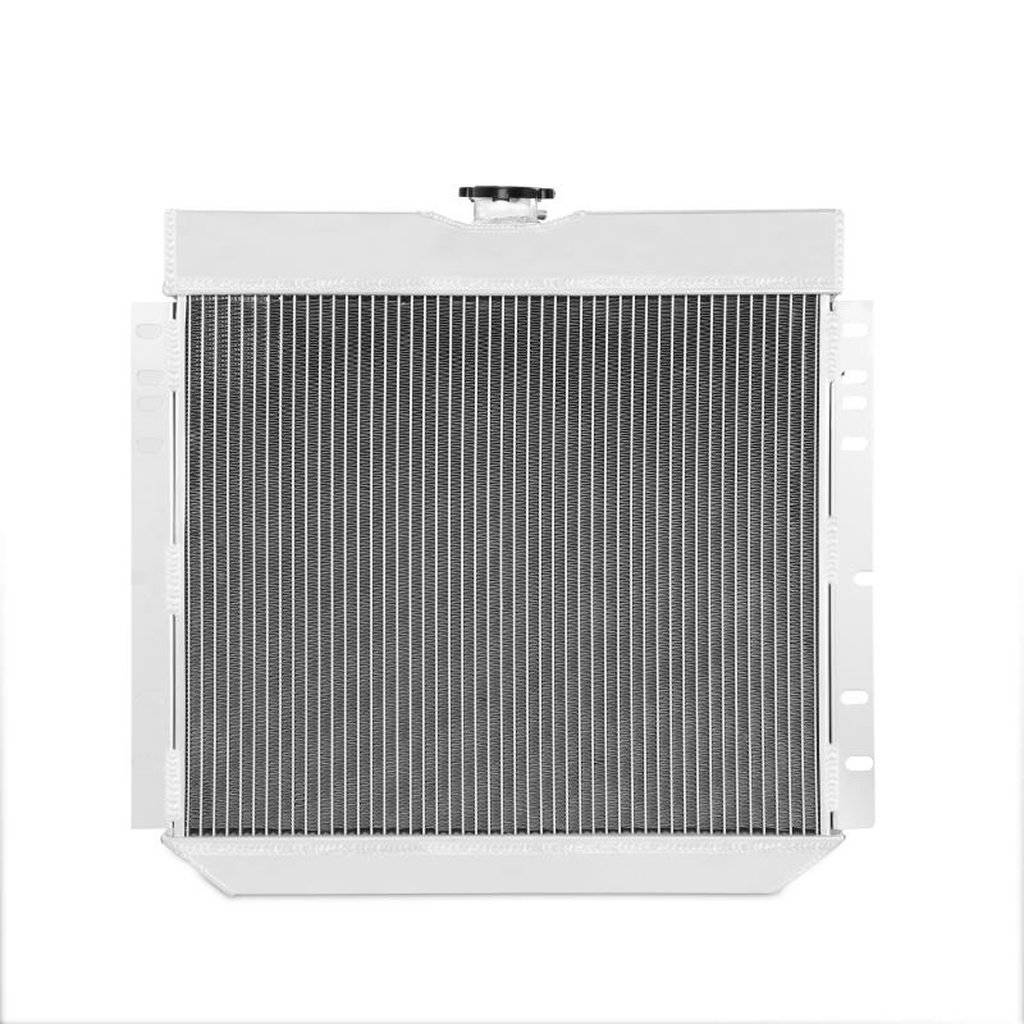

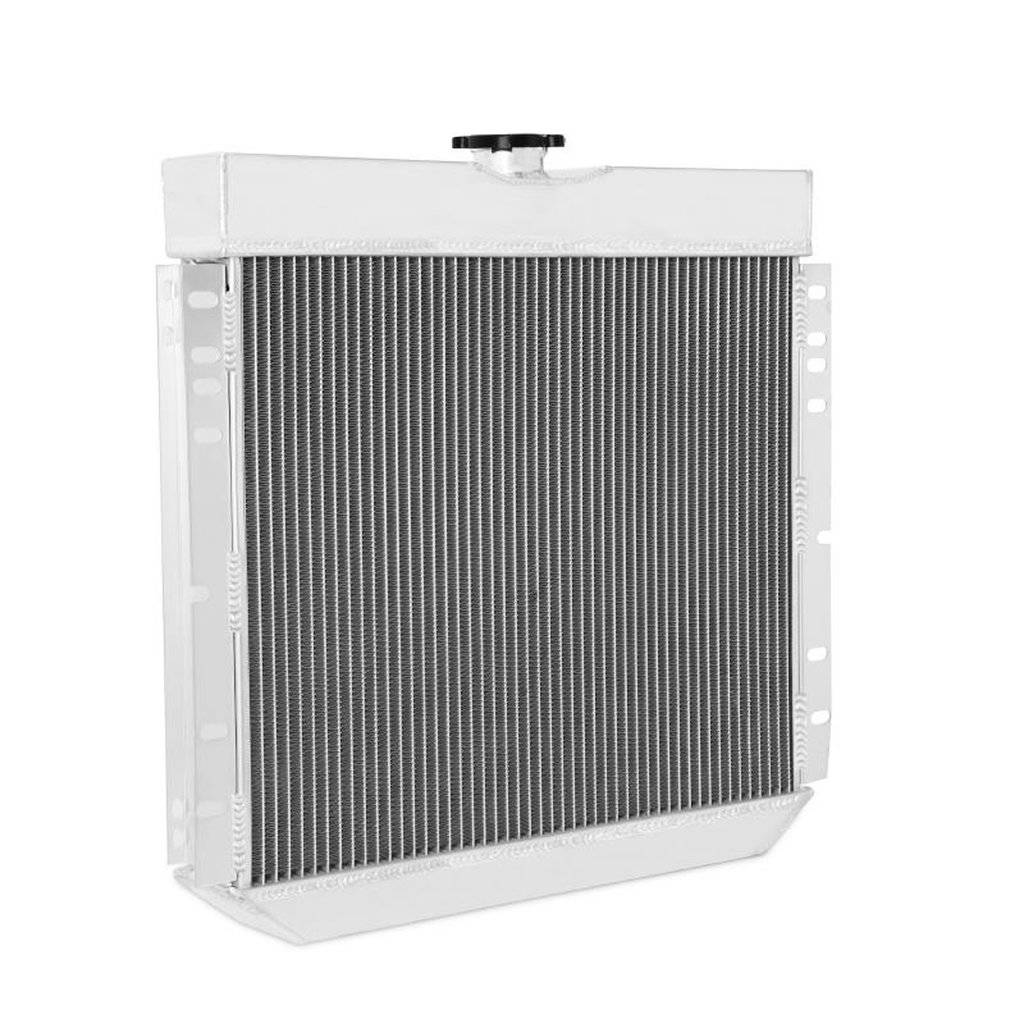

MISHIMOTO MMRAD-MUS-67X FORD Mustang 3-Row Performance Aluminum Radiator, 1969--1970

Description MISHIMOTO MMRAD-MUS-67X FORD Mustang 3-Row Performance Aluminum Radiator, 1969--1970

An ideal upgrade for the brittle stock radiator, the Mishimoto 1967–1969 Ford Mustang X-Line Performance Aluminum Radiator provides enhanced reliability and improved cooling efficiency. This radiator is suitable for daily driving or for those seeking extra cooling power on the track. Installing an upgraded radiator is important for engines producing increased horsepower, as the stock classic Mustang radiator may not handle the additional heat.

This classic Mustang radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise, leak-free connections. Each radiator includes a magnetic oil drain plug to help remove metal fragments circulating in the cooling system.

Recommendation: The standard length water pump may cause fitment issues when installing this radiator with the MMFS-MUS-67 fan shroud combination. Mishimoto recommends installing a short neck water pump and pulley to avoid any clearance issues.

• Aircraft-quality aluminum end tanks with TIG-welded construction
• Efficient brazed aluminum core for improved cooling
• Magnetic drain plug removes metal fragments from the cooling system
• Precise leak-free inlet and outlet connections

Specifications:

• Overall Length (in): 21
• Overall Height (in): 22.5
• Overall Width (in): 5.4
• Core Length (in): 16.06
• Core Height (in): 19.6
• Core Thickness (in): 2.45
• Fluid Capacity (gal): 4.24
• Rows: 3
• Inlet (in): 1.5
• Outlet (in): 1.75
• Drain Plug Thread Size: 1/4-18 NPT
• DPI: 340
• Engine Codes: 289ci (4.7L) V8, 302ci (4.9L) V8, 351ci (5.8L) V8
• Coolant Capacity: 4.24
• Transmission cooler port thread pitch: 1/8-inch-27 NPT

Kit comes with::

• Mishimoto Radiator

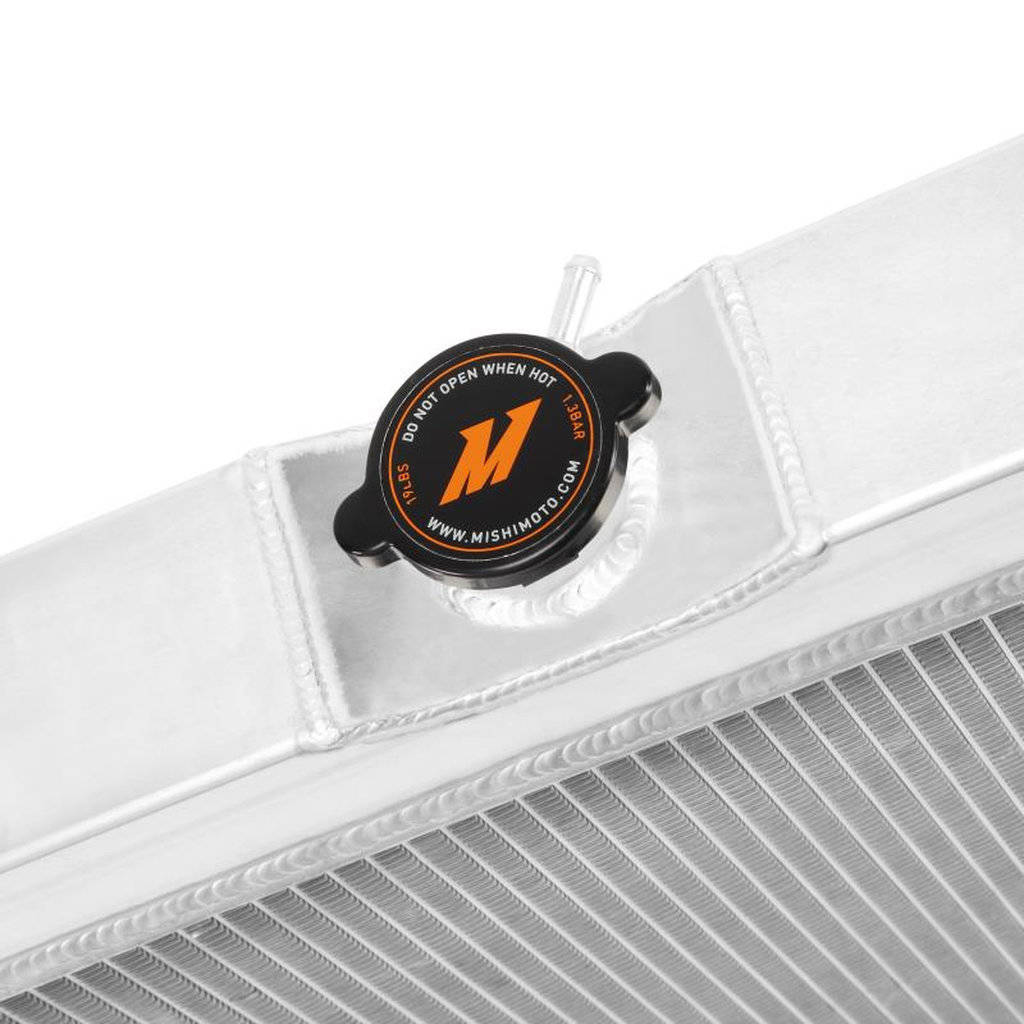

• Mishimoto Radiator Cap
• Magnetic Drain Plug

Vehicle Compatibility:

• 1967-1969 Ford Mustang 289ci (4.7L) V8, 302ci (4.9L) V8, 351ci (5.8L) V8
• 1967-1969 Ford Mustang Shelby GT350 302ci (4.9L) V8, 351ci (5.8L) V8
• 1969 Ford Mustang Boss 302 302ci (4.9L) V8
• 1967-1969 Mercury Cougar 289ci (4.7L) V8, 302ci (5.0L) V8, 351ci (5.8L) V8
