MISHIMOTO MMRAD-GTO-04 PONTIAC GTO Performance Aluminum Radiator, 2004

Description MISHIMOTO MMRAD-GTO-04 PONTIAC GTO Performance Aluminum Radiator, 2004

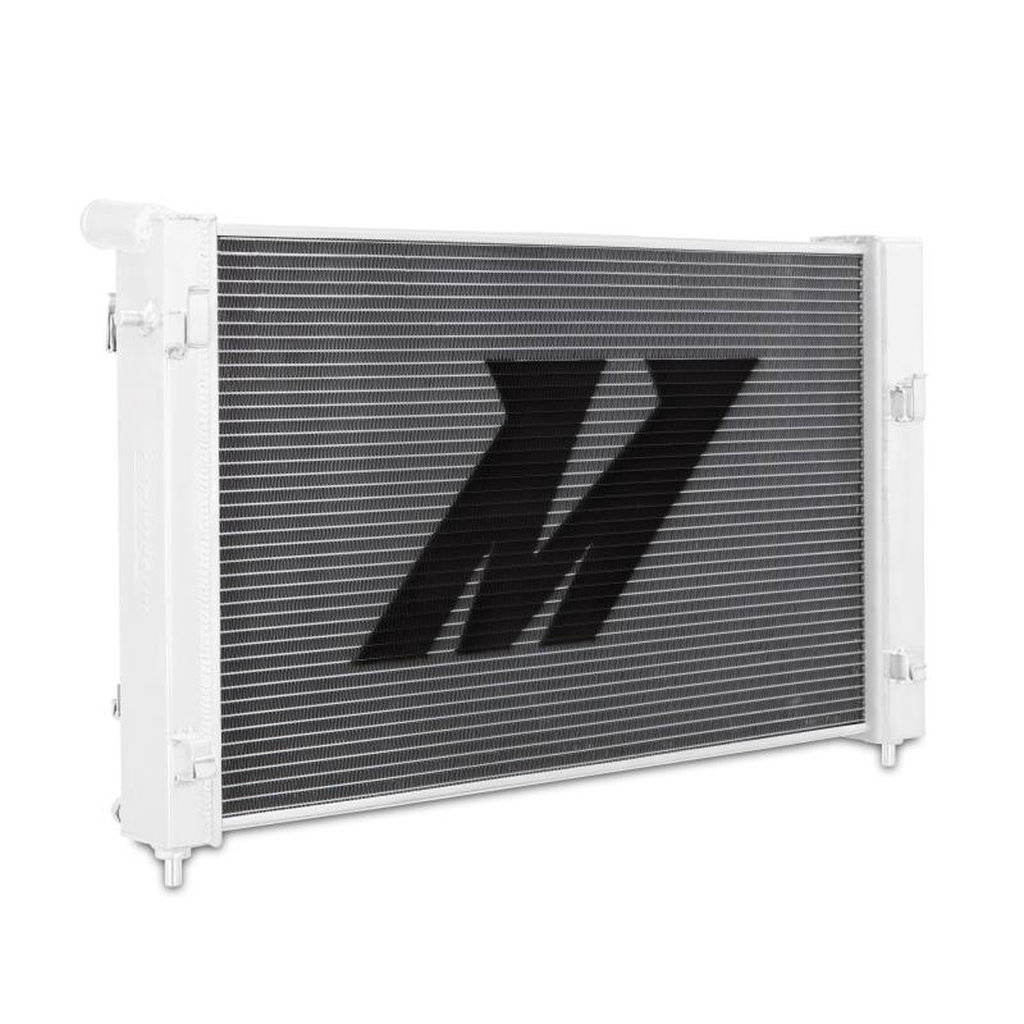

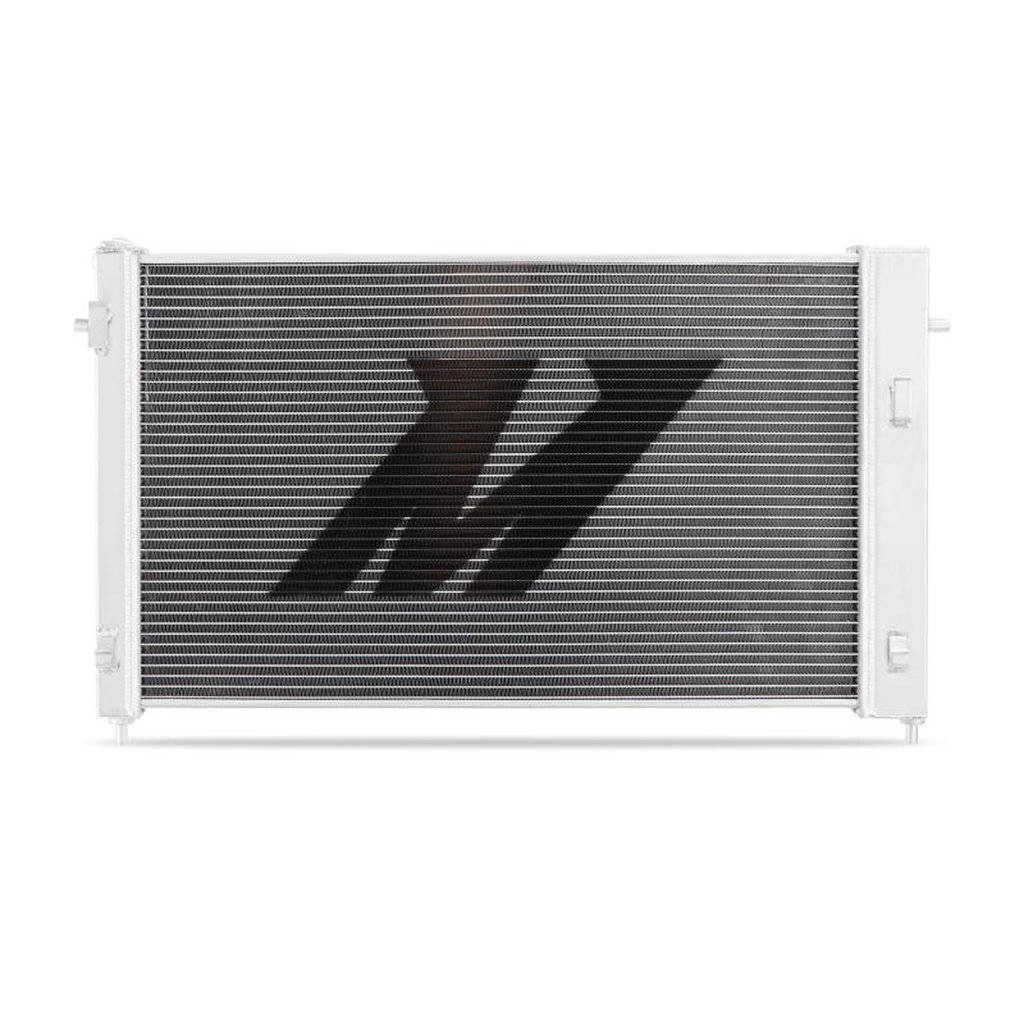

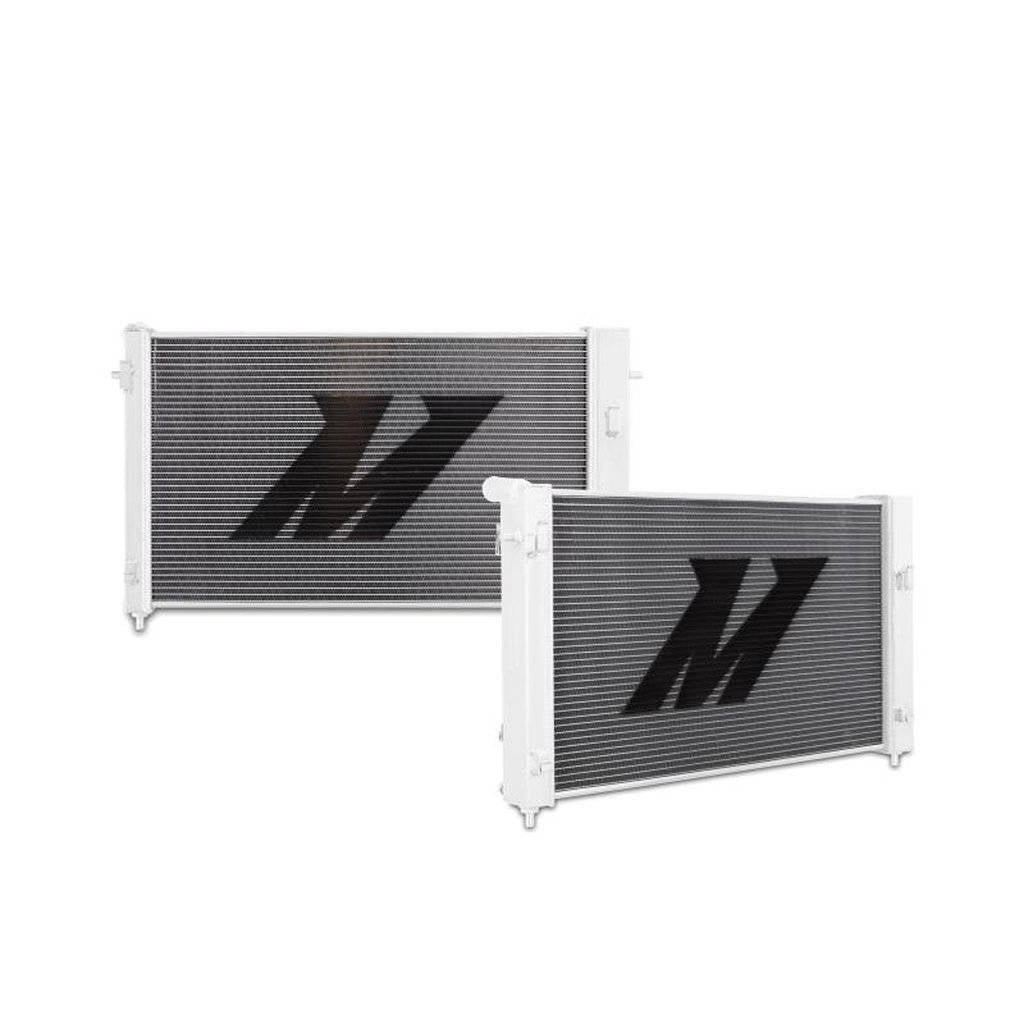

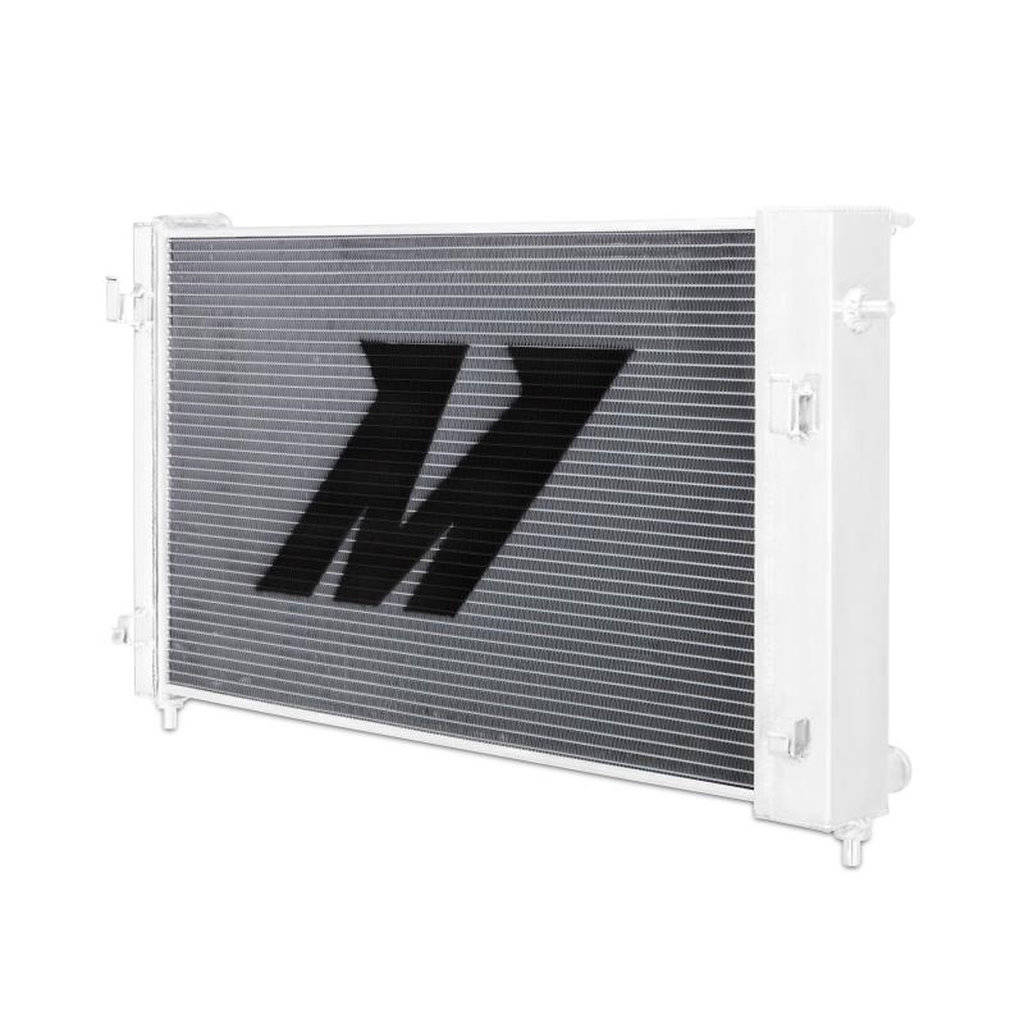

The Mishimoto Pontiac GTO Performance Aluminum Radiator is designed for the 2004 Pontiac GTO, focusing on efficient cooling and reliability. This radiator features an all-aluminum construction with TIG-welded end tanks and a fully brazed 2-row core for optimal heat dissipation.

The robust core increases capacity by 0.64 L and reduces coolant temperatures by over 15 degrees Fahrenheit, making it suitable for both street and track use. An in-tank transmission fluid cooler is included, compatible with stock transmission cooler lines for a true bolt-in installation. The radiator also comes with a Mishimoto Magnetic Oil Drain Plug M12 x 1.5 to help remove metal fragments from the coolant system.

Note: This item is for manual and automatic transmission vehicles.

Note: Due to the added thickness of the Mishimoto radiator, the clip securing the radiator cover to the electric fan shroud will need to be trimmed for proper fitment. The remaining clips securing the radiator cover to the core support will sufficiently secure it in position.

• All-aluminum construction with TIG-welded end tanks and fully brazed 2-row core
• Increases coolant capacity by 0.64 L and reduces temperatures by 15+ °F
• Includes in-tank transmission fluid cooler compatible with stock lines
• Comes with Mishimoto Magnetic Oil Drain Plug M12 x 1.5

Specifications:

• Overall Length (in): 18.65
• Overall Height (in): 32.6
• Overall Width (in): 5.55
• Core Length (in): 26.55
• Core Height (in): 17
• Core Thickness (in): 1.96
• Fluid Capacity (gal): 3.58
• Rows: 2
• Inlet (in): 1.375
• Outlet (in): 1.375
• Drain Plug Thread Size: M12
• DPI: 2754
• Engine Codes: LS-1 (5.7L)
• Coolant Capacity: 3.58

Kit comes with::

• Mishimoto Radiator
• Magnetic Drain Plug
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2004 Pontiac GTO
• 2004 Vauxhall Monaro (5.7L Engine Only)
• 2001-2004 Holden Monaro (5.7L Engine Only)
