MISHIMOTO MMRAD-FXT-04 Radiator SUBARU FORESTER XT 2003-2007 (Manual Transmission)

Description MISHIMOTO MMRAD-FXT-04 Radiator SUBARU FORESTER XT 2003-2007 (Manual Transmission)

Keeping the turbocharged Forester XT cool is essential for maintaining performance and reliability, whether in heavy traffic or on winding roads. The factory radiator may struggle to manage the heat produced by the 2.5L turbo engine, especially under heavy loads or in warm conditions.

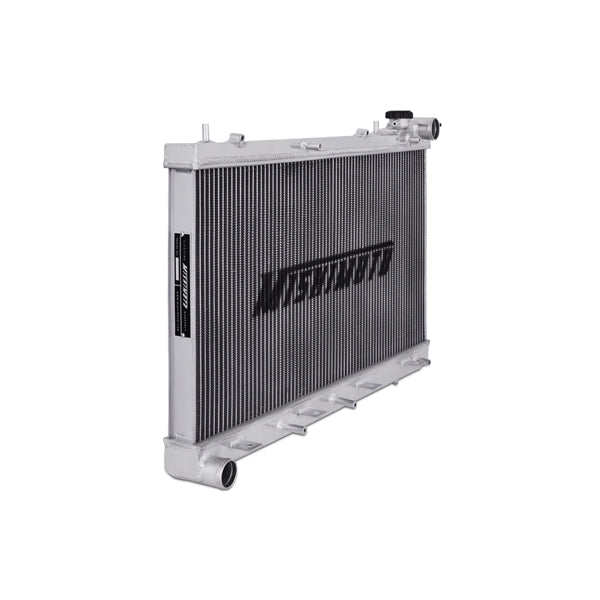

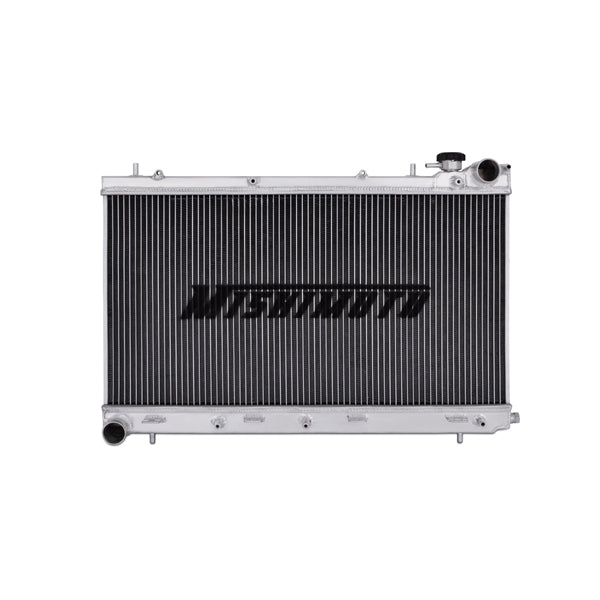

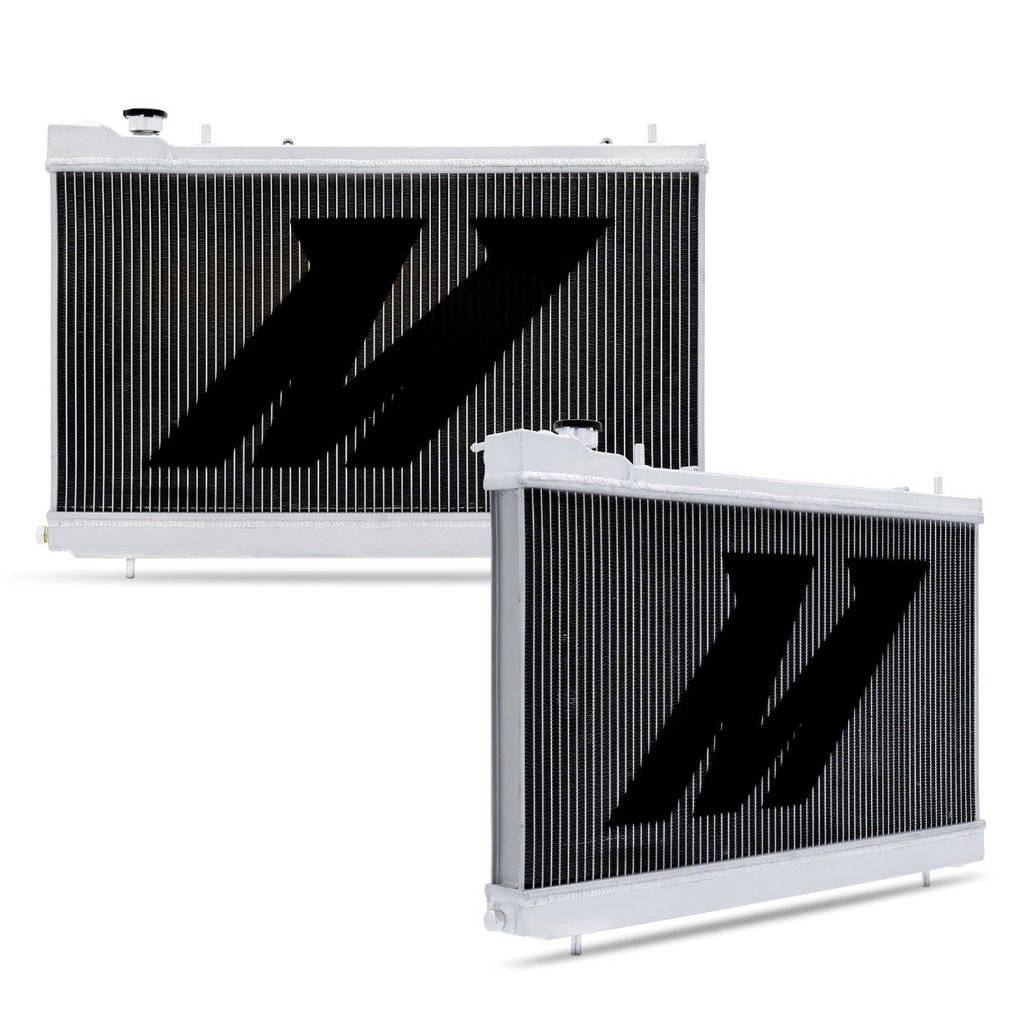

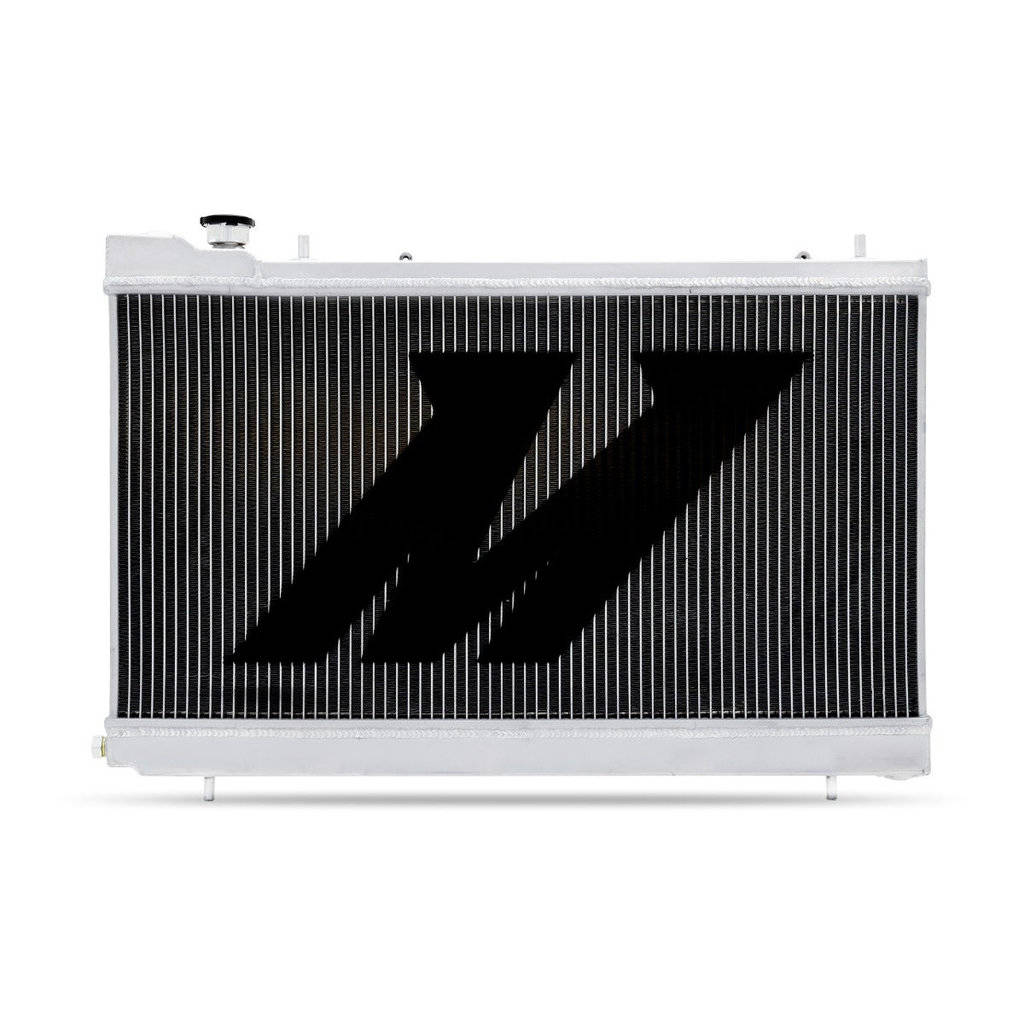

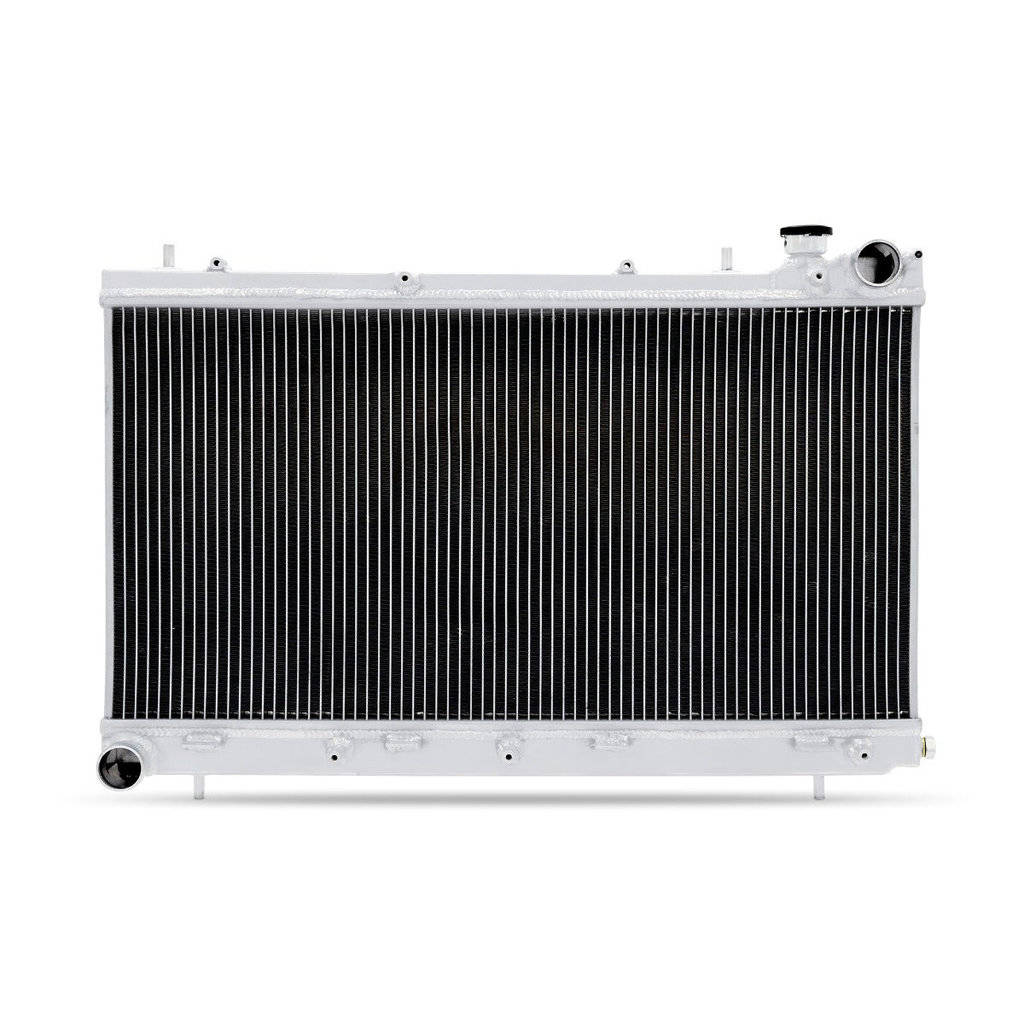

The Mishimoto Performance Aluminum Radiator for the Subaru Forester XT is designed to improve cooling efficiency and durability, helping the engine run optimally in any driving situation. With a lightweight, dual-row core and 100% brazed aluminum construction, this radiator provides superior heat dissipation and increased pressure tolerance compared to the stock unit.

TIG-welded polished end tanks add strength and a refined appearance, while the direct OEM fit design allows for quick installation without cutting or modifications. This combination of performance, durability, and easy fitment makes the Mishimoto Subaru Forester XT Performance Aluminum Radiator a suitable upgrade for keeping turbocharged engines cool and protected.

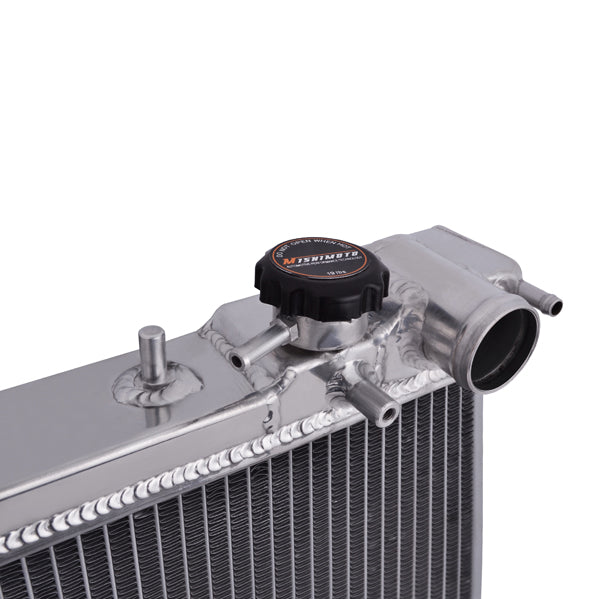

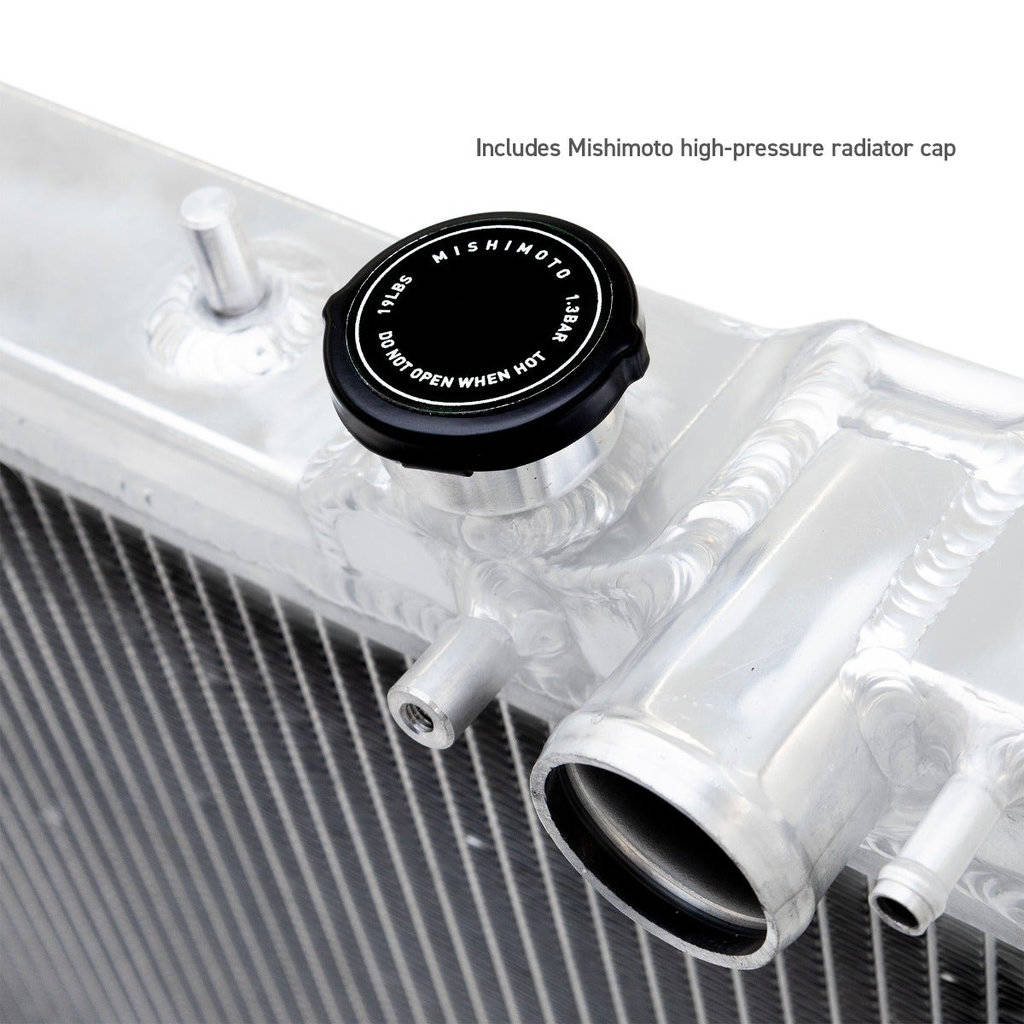

Caution: The provided Mishimoto two-way cap (six-sided design) should replace the stock cap located on the expansion tank. The Mishimoto Performance Aluminum Radiator should utilize the included one-way cap (circular design with non-directional sticker). It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to ensure they are fully tightened before operating the vehicle. Mishimoto recommends checking all connections at regular intervals, especially during the first few miles after installation.

• Lightweight, dual-row core for improved cooling efficiency
• 100% brazed aluminum construction for durability
• TIG-welded polished end tanks for added strength and appearance
• Direct OEM fit design for straightforward installation

Specifications:

• Overall Length (in): 17.4
• Overall Height (in): 27.7
• Overall Width (in): 2.2
• Core Length (in): 14.1
• Core Height (in): 27
• Core Thickness (in): 1.65
• Fluid Capacity (gal): 2.21
• Rows: 2
• Inlet (in): 1.57
• Outlet (in): 1.57
• Drain Plug Thread Size: M12 x 1.5
• DPI: 2812
• Engine Codes: EJ255
• Chassis Codes: SG5
• Coolant Capacity: 2.21

Kit comes with::

• Mishimoto Radiator

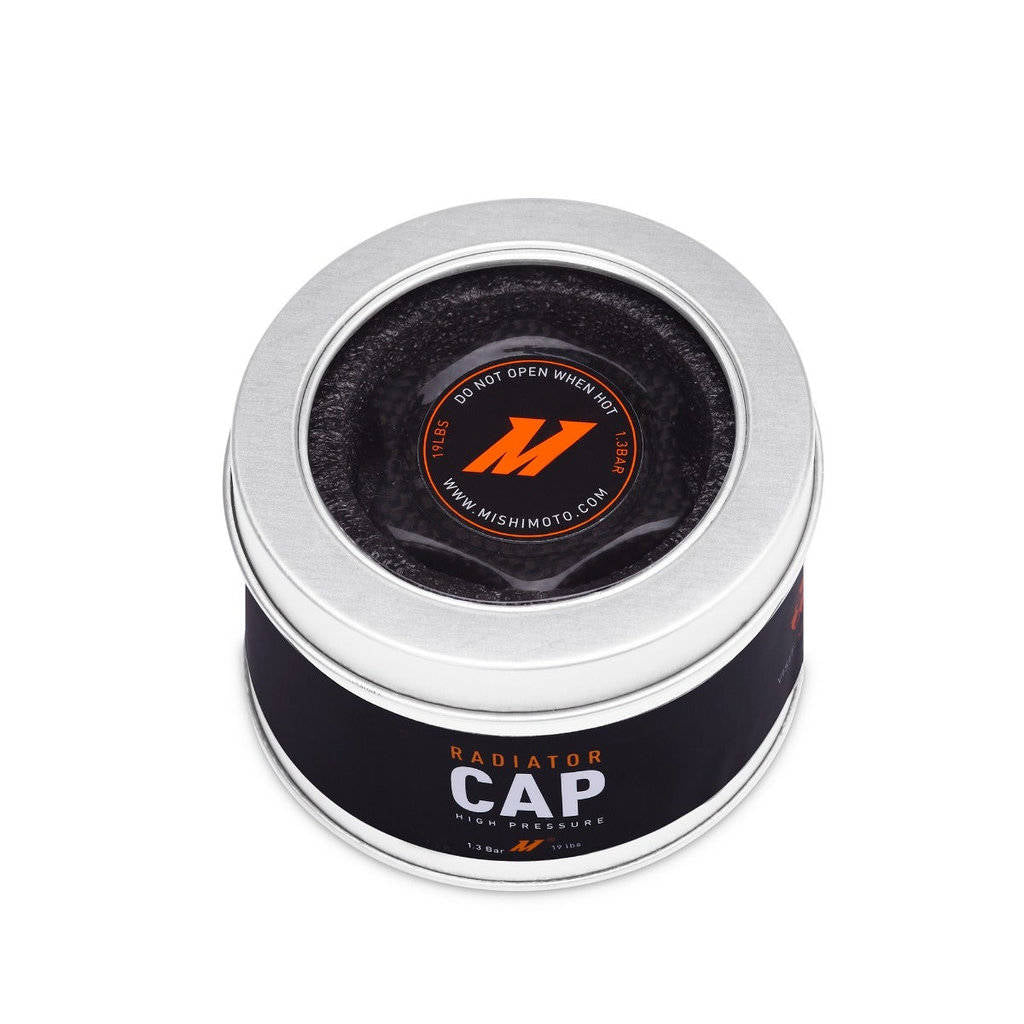

• Mishimoto Radiator Cap
• Magnetic Drain Plug
• 1/16-inch NPT Overflow Plug
• Mishimoto Lifetime Warranty
