MISHIMOTO MMRAD-FIR-67X FORD Mustang 3-Row Performance Aluminum Radiator, 1967 - 1969

Description MISHIMOTO MMRAD-FIR-67X FORD Mustang 3-Row Performance Aluminum Radiator, 1967 - 1969

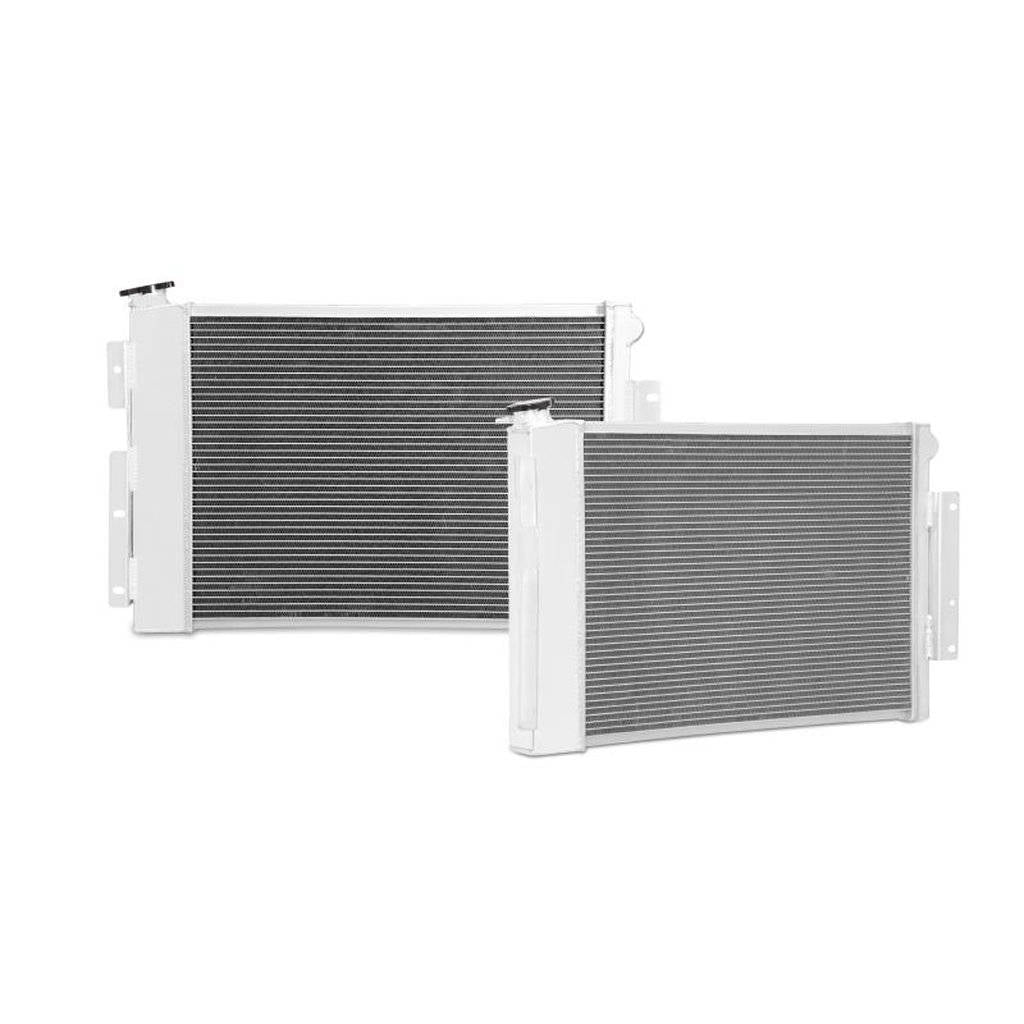

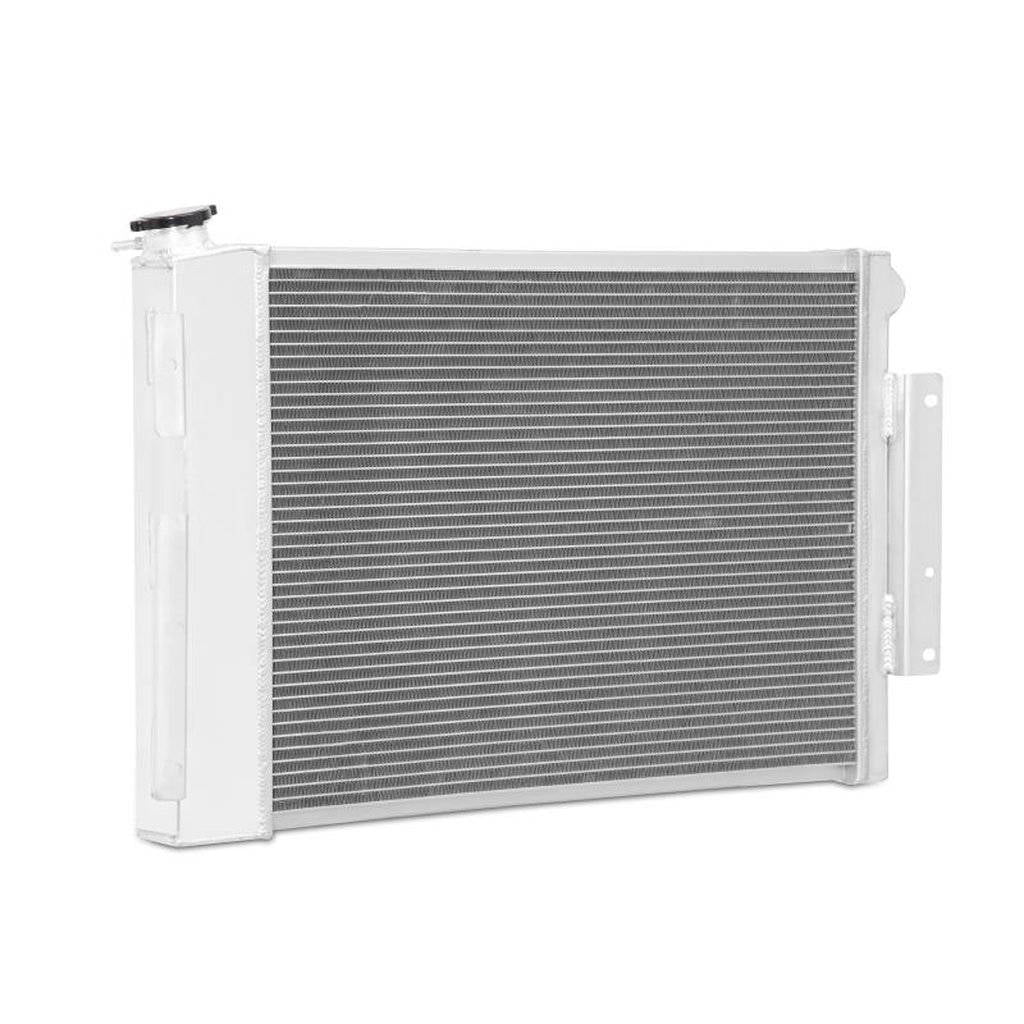

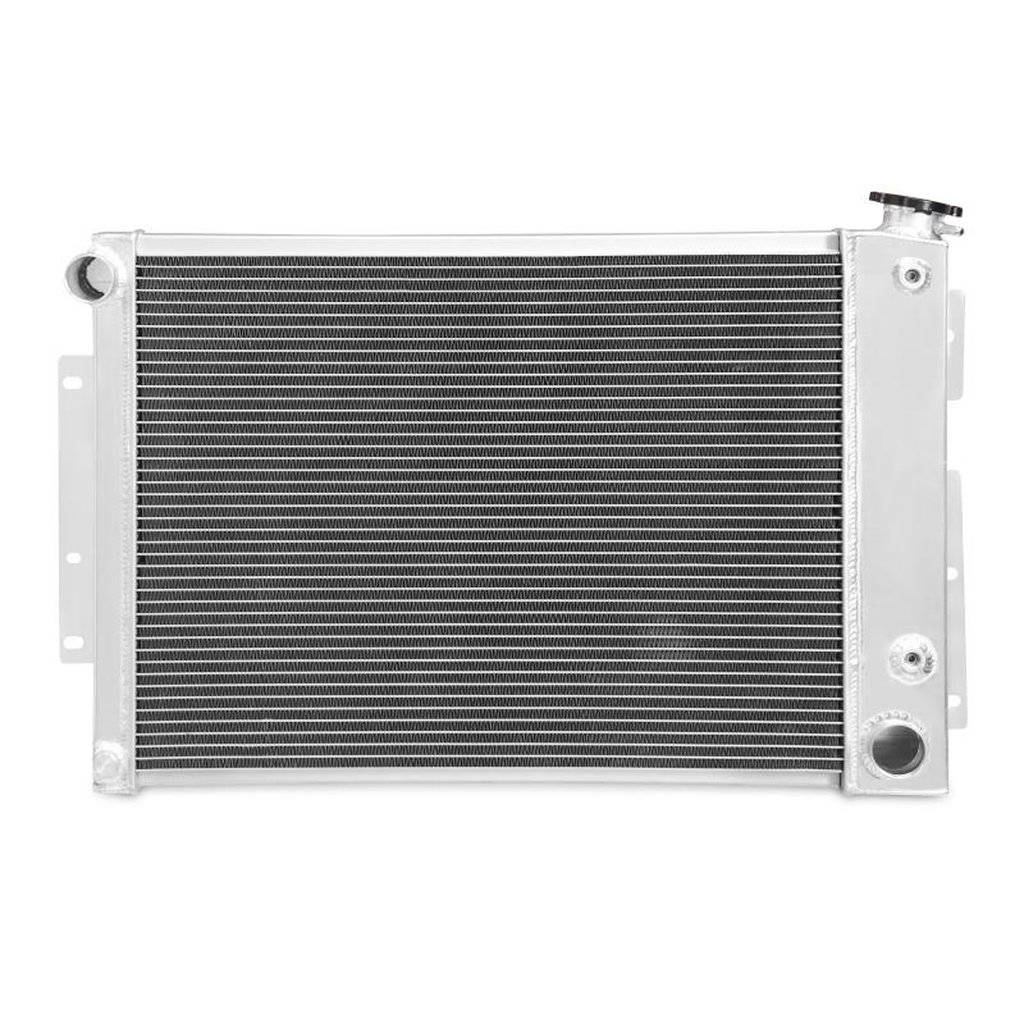

An ideal upgrade for the brittle stock radiator, the Mishimoto 1967-1969 Chevrolet Camaro X-Line Performance Aluminum Radiator provides enhanced reliability and improved cooling efficiency. This radiator is suitable for daily driving or track use, offering extra cooling power with its 3-row design.

The radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets ensure precise, leak-free connections. Each radiator includes a magnetic oil drain plug to remove metal fragments from the cooling system. The Mishimoto Lifetime Warranty is included, ensuring product quality and craftsmanship.

• Aircraft-quality aluminum end tanks with TIG-welded brazed aluminum core
• Magnetic oil drain plug removes metal fragments from the cooling system

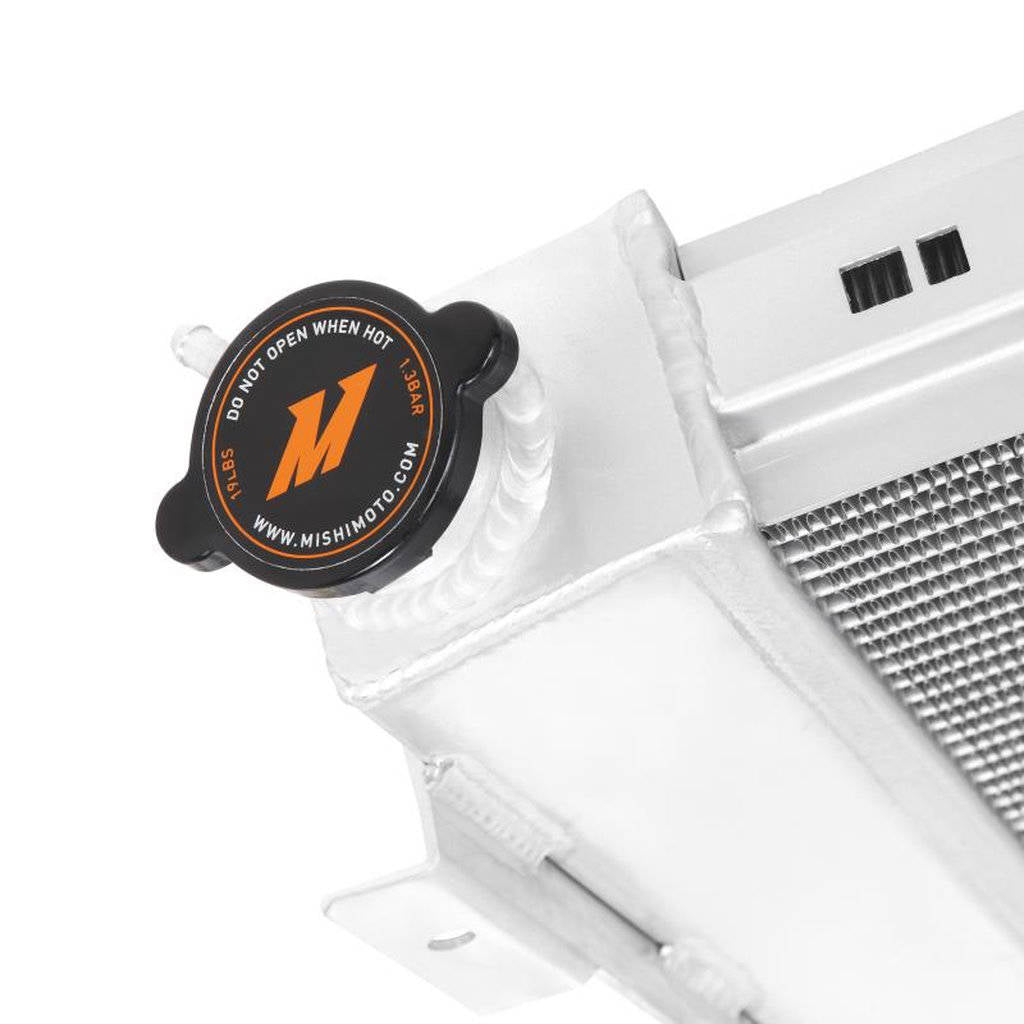

• Includes Mishimoto radiator cap and Lifetime Warranty
• Designed for enhanced reliability and cooling efficiency

Specifications:

• Overall Length (in): 19.3
• Overall Height (in): 30.2
• Overall Width (in): 5
• Core Length (in): 22.8
• Core Height (in): 16.9
• Core Thickness (in): 2.5
• Fluid Capacity (gal): 6.51
• Rows: 3
• Inlet (in): 1.5
• Outlet (in): 1.75
• Drain Plug Thread Size: 1/4-18 NPT
• DPI: 370
• Engine Codes: 326ci (5.3L) V8, 350ci (5.7L) V8, 400ci (6.6L) V8
• Coolant Capacity: 6.51
• Transmission Cooler Thread Info: On Radiator: Female 1/4-inch BSPP

Kit comes with::

• Mishimoto Radiator
• Mishimoto Radiator Cap
• Magnetic Drain Plug
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 1967-1969 Pontiac Firebird 326ci (5.3L) V8
• 1967-1969 Pontiac Firebird 350ci (5.7L) V8
• 1967-1969 Pontiac Firebird 400ci (6.6L) V8
