MISHIMOTO MMRAD-F1G-70X CHEVROLET/GM 3100 Series Truck 3-Row Performance Aluminum Radiator, 1955 - 1959

Description MISHIMOTO MMRAD-F1G-70X CHEVROLET/GM 3100 Series Truck 3-Row Performance Aluminum Radiator, 1955 - 1959

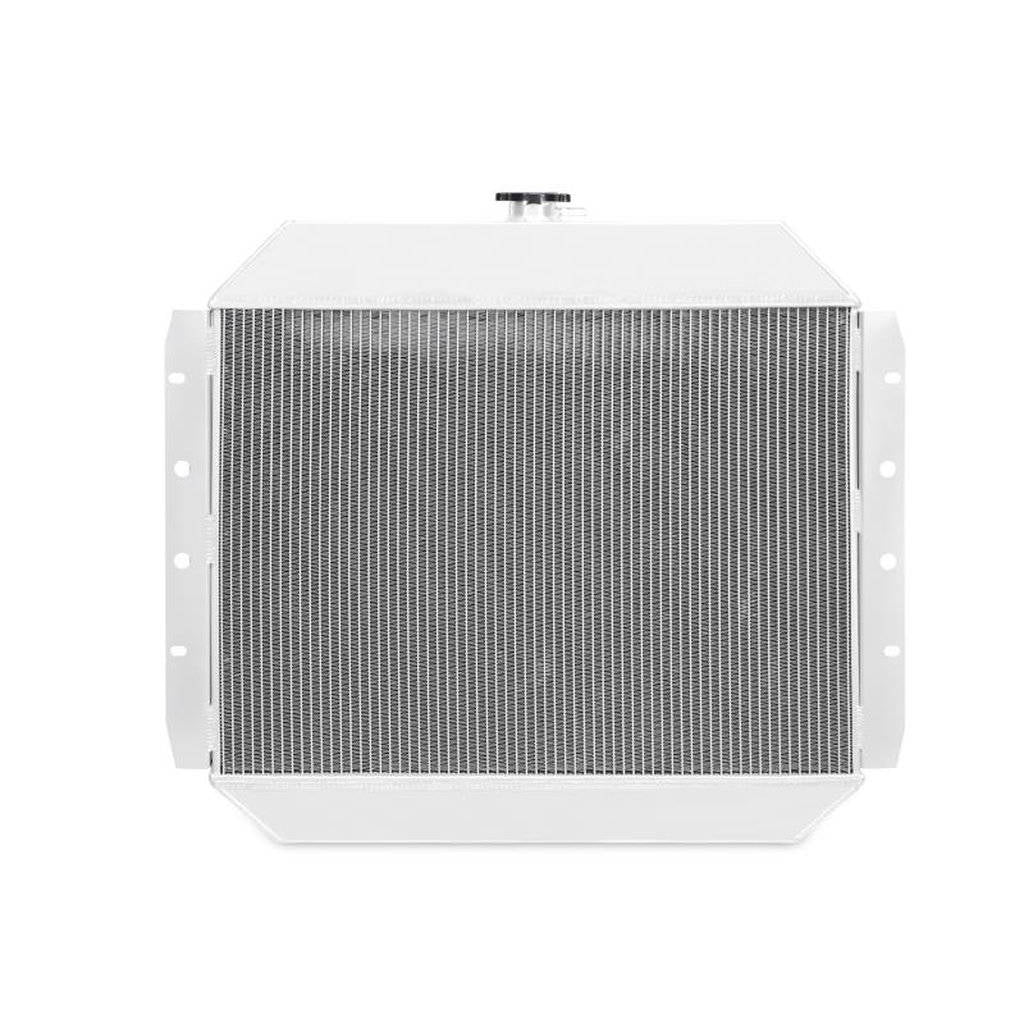

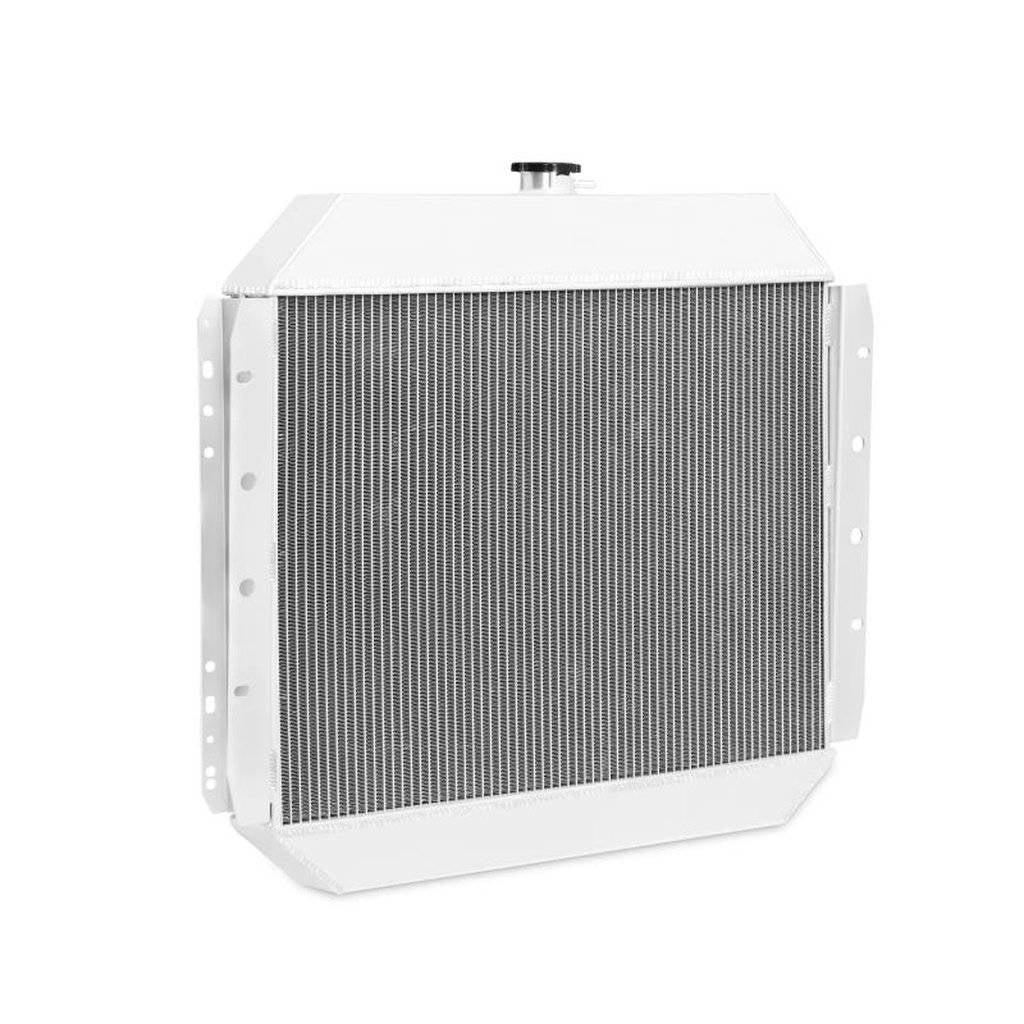

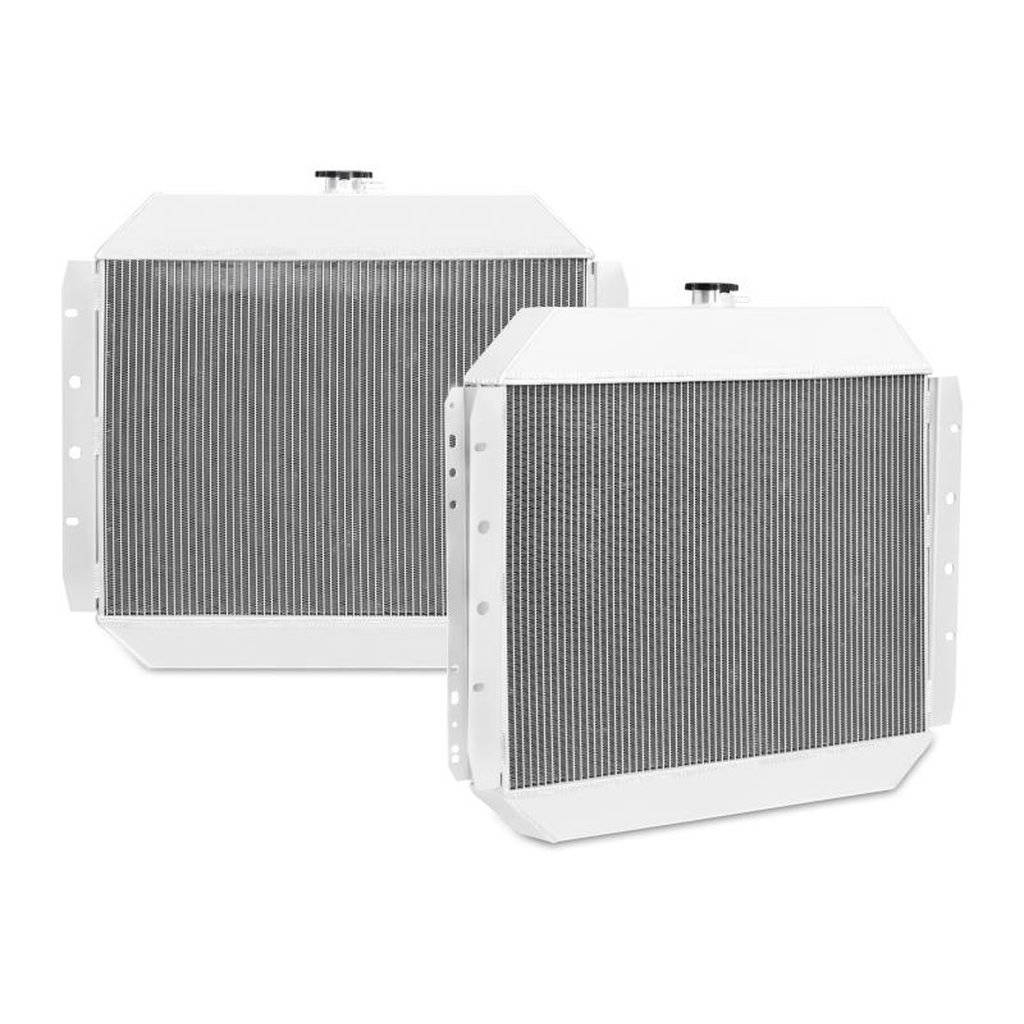

The 1970–1979 Ford F-Series X-Line Performance Aluminum Radiator offers enhanced reliability and improved cooling efficiency for the Ford F-100. It is an ideal upgrade for replacing the brittle stock radiator. Many overlook the importance of upgrading the radiator, especially when increasing engine horsepower.

This radiator is constructed with durable aircraft-quality aluminum end tanks, precision TIG-welded to a brazed aluminum core. The inlet and outlet are designed for precise, leak-free connections. The radiator also includes an M12 x 1.5 Magnetic Drain Plug to help remove metal fragments from the cooling system.

• Manufactured from aircraft-quality aluminum with TIG-welded end tanks
• Efficient brazed aluminum core for improved cooling
• Includes M12 x 1.5 Magnetic Drain Plug
• Designed for precise, leak-free connections

Specifications:

• Overall Length (in): 24
• Overall Height (in): 29.5
• Overall Width (in): 5.4
• Core Length (in): 25.9
• Core Height (in): 18.9
• Core Thickness (in): 2.5
• Fluid Capacity (gal): 5.07
• Rows: 3
• Inlet (in): 1.75
• Outlet (in): 2
• Drain Plug Thread Size: M12 x 1.5
• DPI: 433
• Engine Codes: 300ci (5.0L) V8, 351ci (5.8L) V8, 352ci (5.8L) V8, 360ci (5.9L) V8, 390ci (6.4L) V8, 400ci (6.6L) V8
• Coolant Capacity: 5.07
• Transmission Cooler Thread Info: On Radiator: Female 1/4-inch-18NPT

Kit comes with::

• Mishimoto Radiator

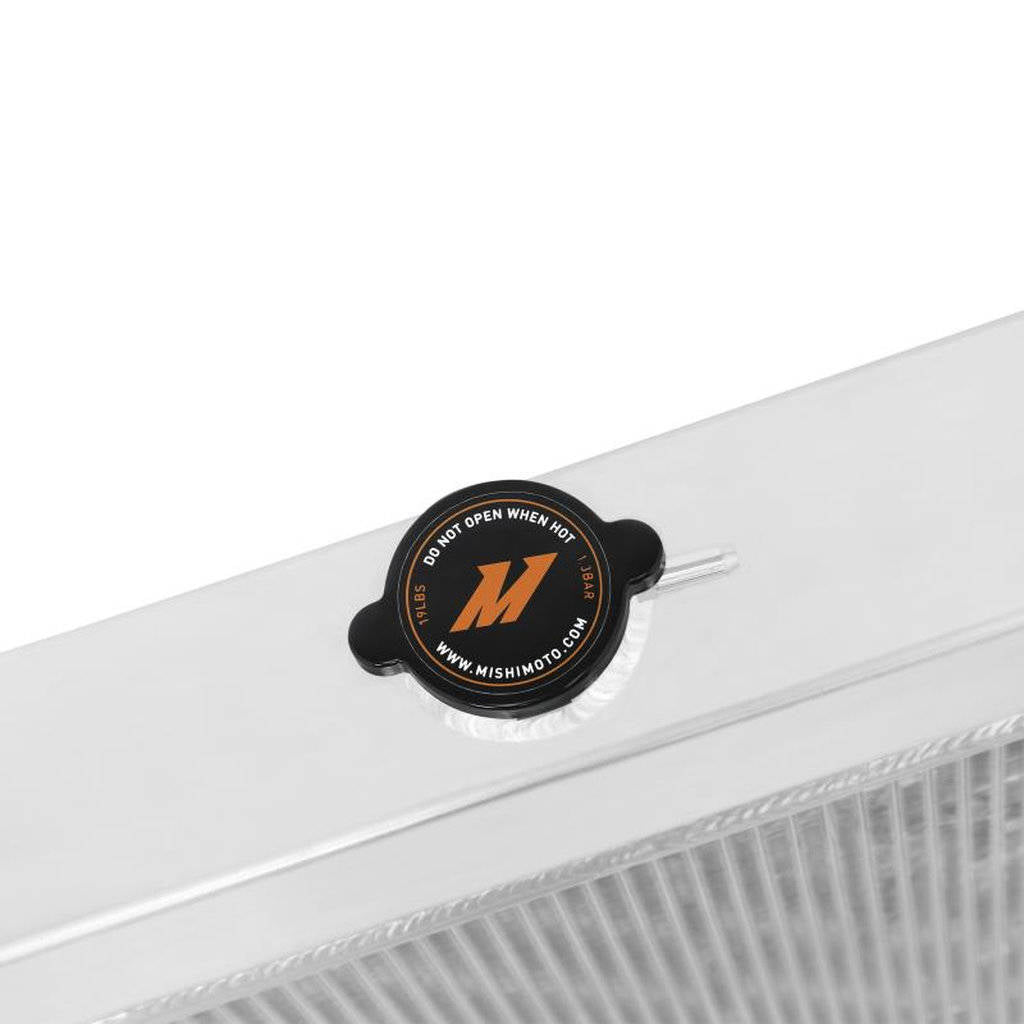

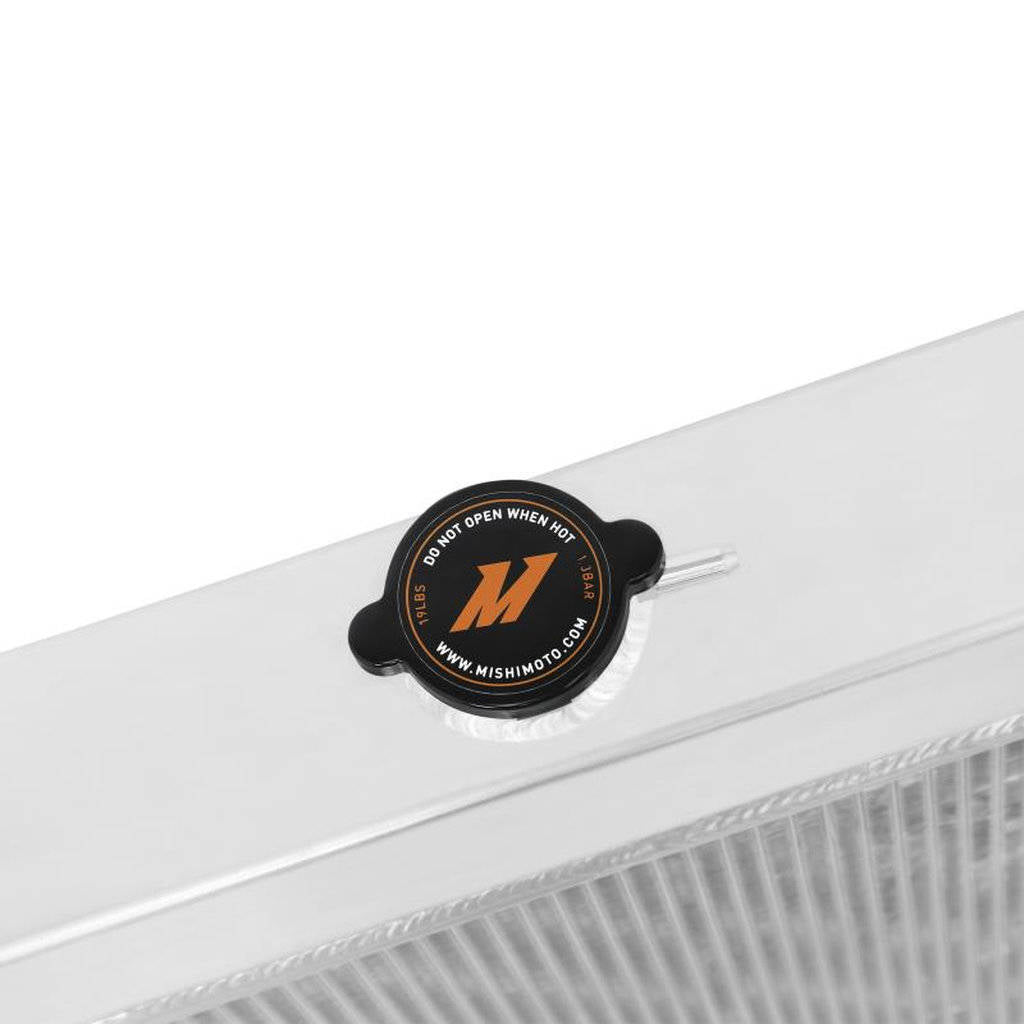

• Mishimoto Radiator Cap
• Magnetic Drain Plug

Vehicle Compatibility:

• 1970-1979 Ford F-100 300ci (5.0L) V8, 352ci (5.8L) V8, 360ci (5.9L) V8, 390ci (6.4L) V8, 400ci (6.6L) V8
• 1978-1979 Ford Bronco 351ci (5.8L) V8, 400ci (6.6L) V8
