MISHIMOTO MMRAD-E90-07A BMW 335I/135I (Automatic) Performance Aluminum Radiator, 2006-2013

Description MISHIMOTO MMRAD-E90-07A BMW 335I/135I (Automatic) Performance Aluminum Radiator, 2006-2013

Keep the turbocharged straight-six engine cool with the Mishimoto 2006-2013 BMW 335i/135i Performance Aluminum Radiator. The N54 and N55 engines powering the 335i, 135i, and other BMW models deliver efficient power, but heat remains a challenge. This radiator is designed to maintain optimal temperatures during spirited driving or track use.

The Mishimoto 335i/135i radiator features all-aluminum construction with TIG-welded end tanks, a 100% brazed aluminum core, and CNC-machined quick-disconnect inlet and outlet connections. Constructed from high-quality aircraft aluminum with a brushed finish, it offers a balance of performance and style. Precision engineering ensures a flawless drop-in fit and a 35% increase in coolant capacity.

This radiator also includes a Mishimoto Magnetic Oil Drain Plug with Dowty seal to remove circulating metal fragments from the cooling system, providing additional engine protection.

Recommendation: Mishimoto recommends checking the coolant hose quick-disconnect O-rings for wear and replacing as necessary to prevent future leaks.

• All-aluminum construction with TIG-welded end tanks and brazed core

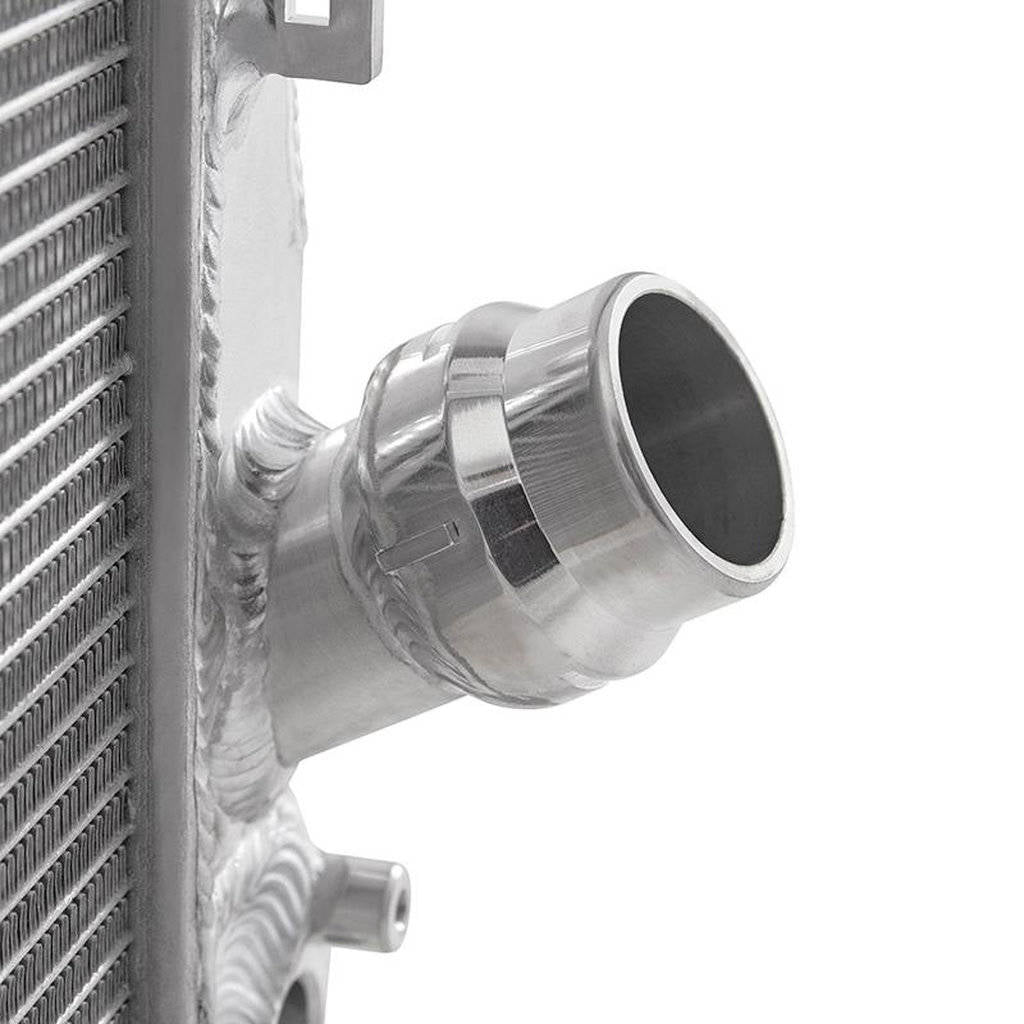

• CNC-machined quick-disconnect inlet and outlet connections
• 35% increase in coolant capacity over stock
• Includes Mishimoto Magnetic Oil Drain Plug with Dowty seal

Specifications:

• Overall Length (in): 14.9
• Overall Height (in): 28.3
• Overall Width (in): 4.1
• Core Length (in): 23.62
• Core Height (in): 13.78
• Core Thickness (in): 1.57
• Fluid Capacity (gal): 2.45
• Rows: 2
• Engine Codes: N54, N55
• Chassis Codes: E82, E84, E88, E89, E90, E92, E93
• Coolant Capacity: 2.45

Kit comes with::

• Mishimoto Radiator
• Magnetic Drain Plug with Dowty Oil Seal

Vehicle Compatibility:

• 2008-2012 BMW E82 135i Coupe
• 2010-2012 BMW E82 M Coupe
• 2009-2012 BMW E84 X1 28i/28ix/35ix
• 2007-2012 BMW E88 135i
• 2011-2012 BMW E89 Z4 28i
• 2009-2012 BMW E89 Z4 35i
• 2006-2011 BMW E90 335i/335xi
• 2007-2013 BMW E92 335i/335xi/335is
• 2007-2013 BMW E93 335i/335xi/335is
