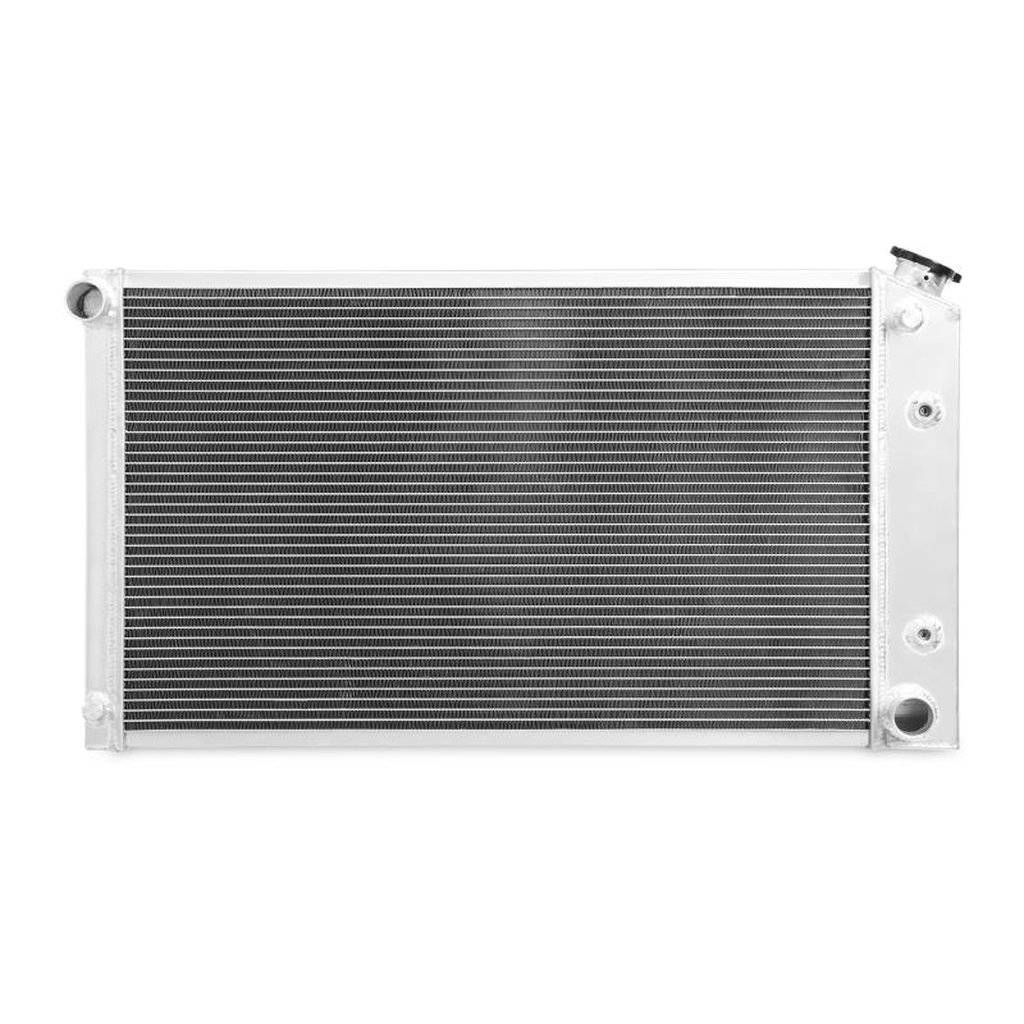

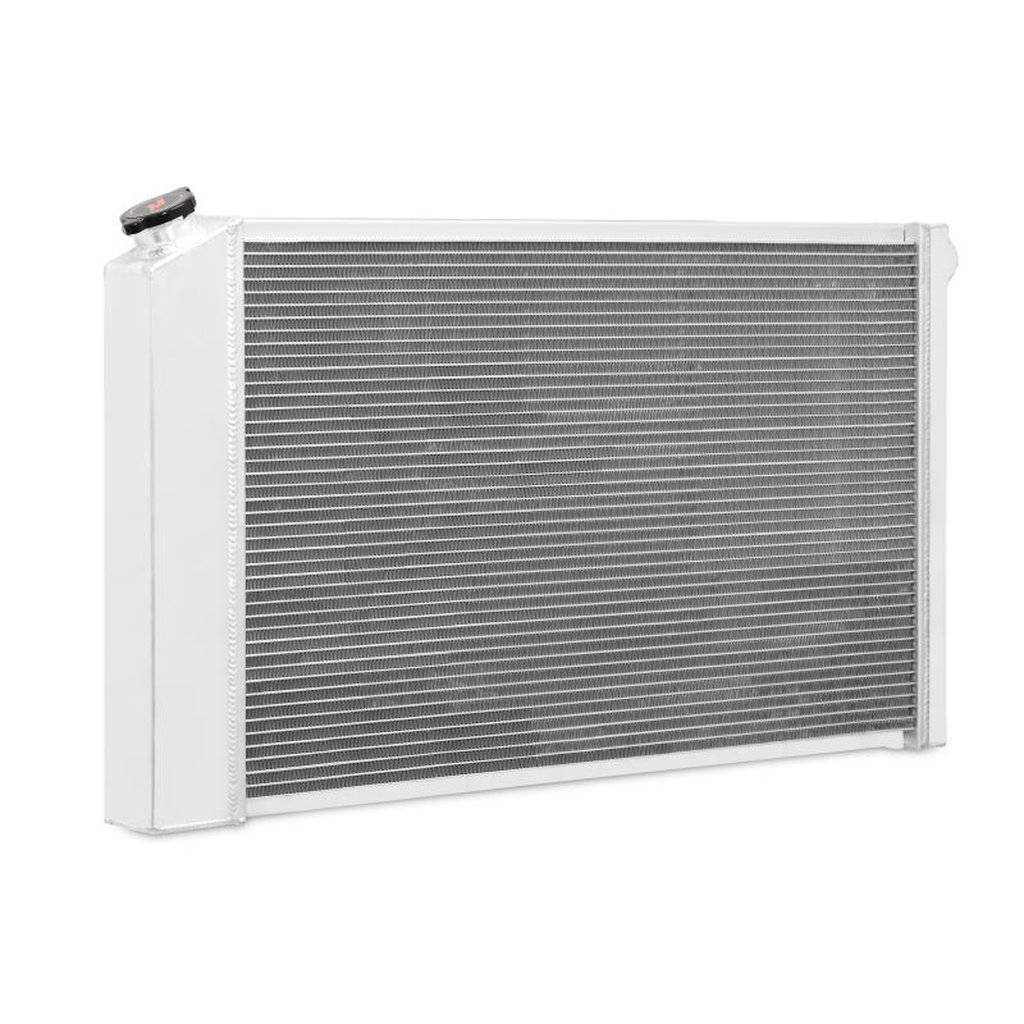

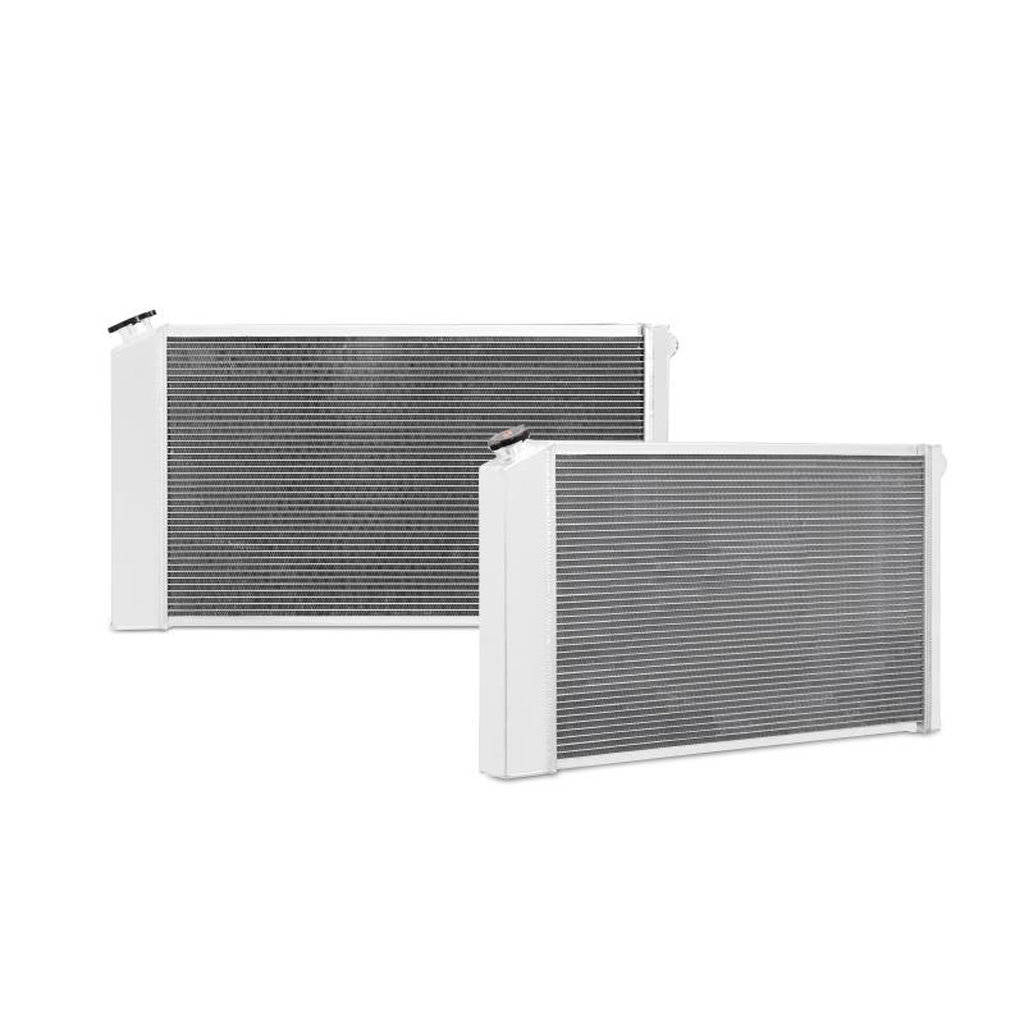

MISHIMOTO MMRAD-CHE-68X CHEVROLET/GM C/K Truck 3-Row Performance Aluminum Radiator, 1967 - 1972

Description MISHIMOTO MMRAD-CHE-68X CHEVROLET/GM C/K Truck 3-Row Performance Aluminum Radiator, 1967 - 1972

An ideal upgrade for the brittle stock radiator, the Mishimoto 1973–1986 Chevrolet/GM C/K Truck X-Line Performance Aluminum Radiator provides enhanced reliability and improved cooling efficiency. Whether used for daily driving or track applications, installing an upgraded radiator is important for engine performance.

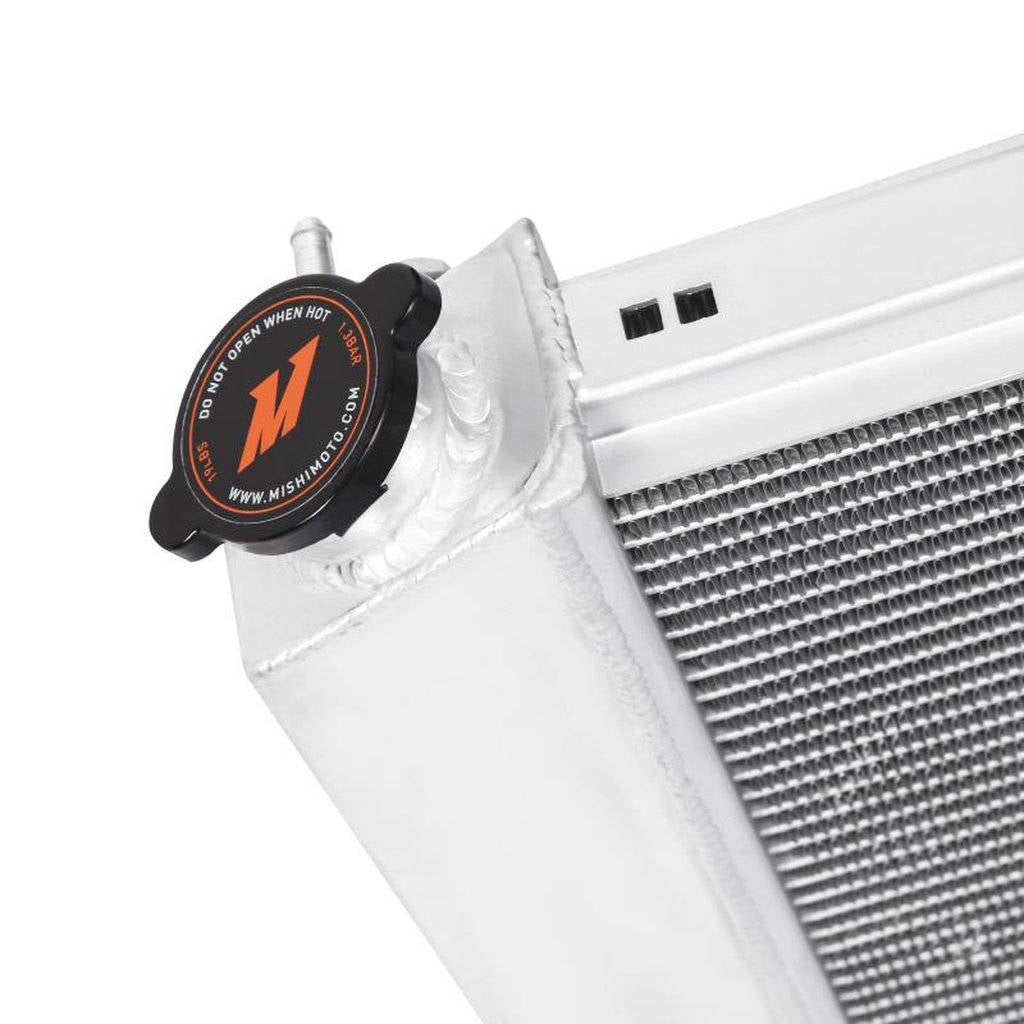

This Chevrolet and GM C/K truck radiator is manufactured with durable aircraft-quality aluminum end tanks, precision TIG-welded to a brazed aluminum core. The inlet and outlets offer precise, leak-free connections. A magnetic oil drain plug is included to remove metal fragments from the cooling system. The radiator is covered by the Mishimoto Lifetime Warranty.

• Aircraft-quality aluminum end tanks with TIG-welded construction
• Efficient brazed aluminum core for improved cooling
• Magnetic oil drain plug removes metal fragments
• Includes Mishimoto Lifetime Warranty

Specifications:

• Overall Length (in): 18.9
• Overall Height (in): 33.7
• Overall Width (in): 4.6
• Core Length (in): 28.2
• Core Height (in): 16.9
• Core Thickness (in): 2.2
• Fluid Capacity (gal): 4.42
• Rows: 3
• Inlet (in): 1.5
• Outlet (in): 1.6
• Drain Plug Thread Size: M12 x 1.5
• DPI: 161
• Engine Codes: 250ci (4.1L) L6, 292ci (4.8L) L6, 305ci (5.0L) V8, 307ci (5.0L) V8, 327ci (5.4L) V8, 350ci (5.7L) V8, 400ci (6.6L) V8, 454ci (7.4L) V8
• Coolant Capacity: 4.42
• Transmission Cooler Fittings: 1/4-inch BSPP

Vehicle Compatibility:

• 1968-1973 Chevy Chevelle 307ci (5.0L) V8, 350ci (5.7L) V8
• 1970-1977 Chevy Monte Carlo 305ci (5.0L) V8, 350ci (5.7L) V8, 400ci (6.6L) V8
• 1968-1977 Chevy El Camino 250ci (4.1L) L6, 307ci (5.0L) V8, 327ci (5.3L) V8, 350ci (5.7L) V8, 400ci (6.6L) V8, 454ci (7.4L) V8
• 1973-1986 Chevy, GMC C, K Series 250ci (4.1L) L6, 292ci (4.8L) L6, 305ci (5.0L) V8, 350ci (5.7L) V8
