MISHIMOTO MMRAD-CHE-65X CHEVROLETChevelle 3-Row Performance Aluminum Radiator, 1968 - 1972

AED 2,843.43

Tax included. Shipping calculated at checkout

MISHIMOTOP/N: MMRAD-CHE-65X
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

MISHIMOTO MMRAD-CHE-65X CHEVROLETChevelle 3-Row Performance Aluminum Radiator, 1968 - 1972

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description MISHIMOTO MMRAD-CHE-65X CHEVROLETChevelle 3-Row Performance Aluminum Radiator, 1968 - 1972

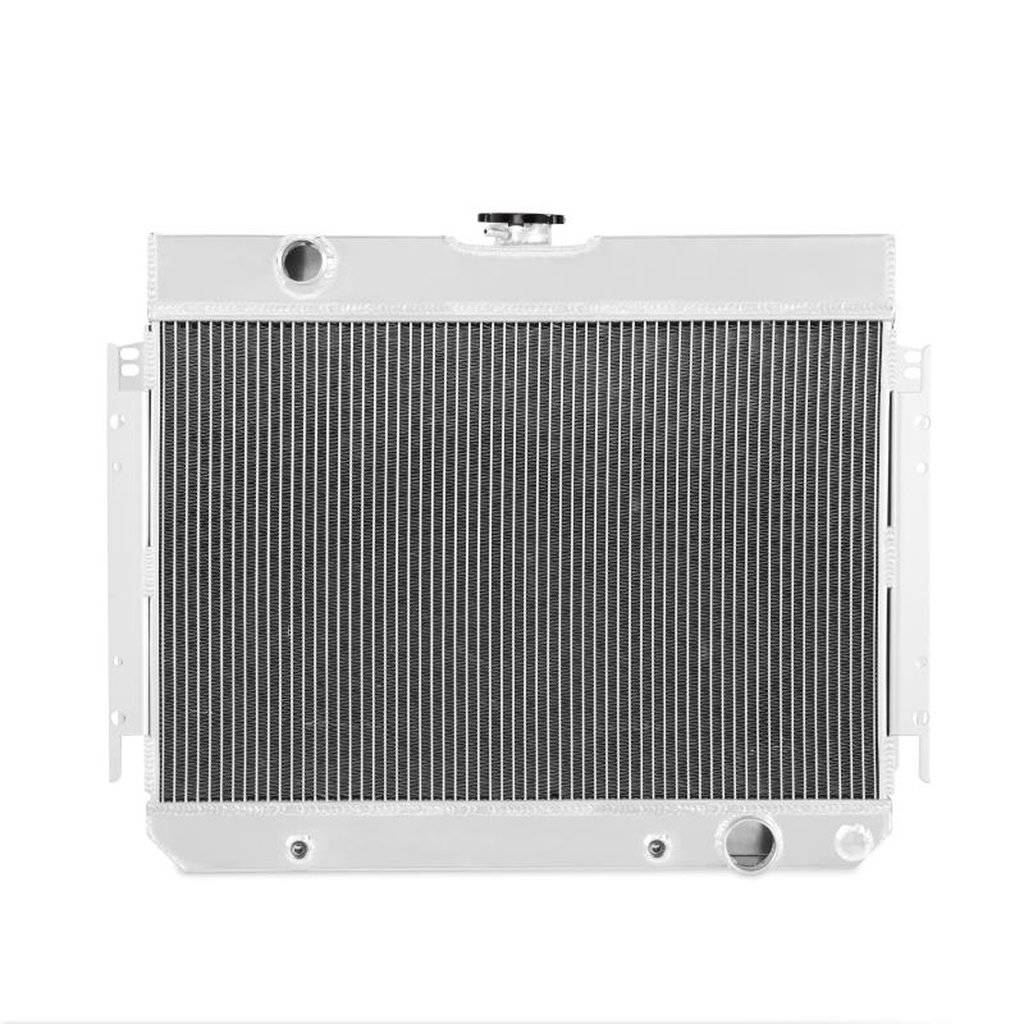

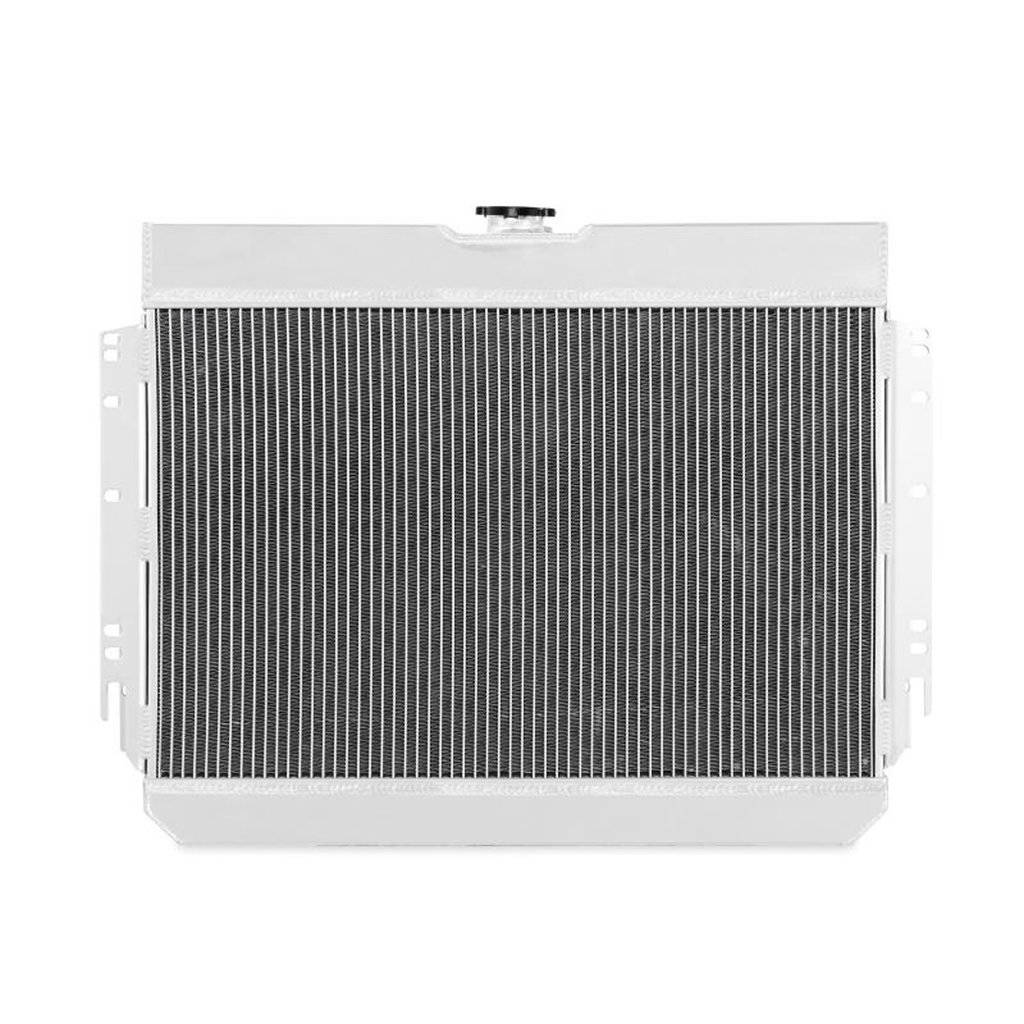

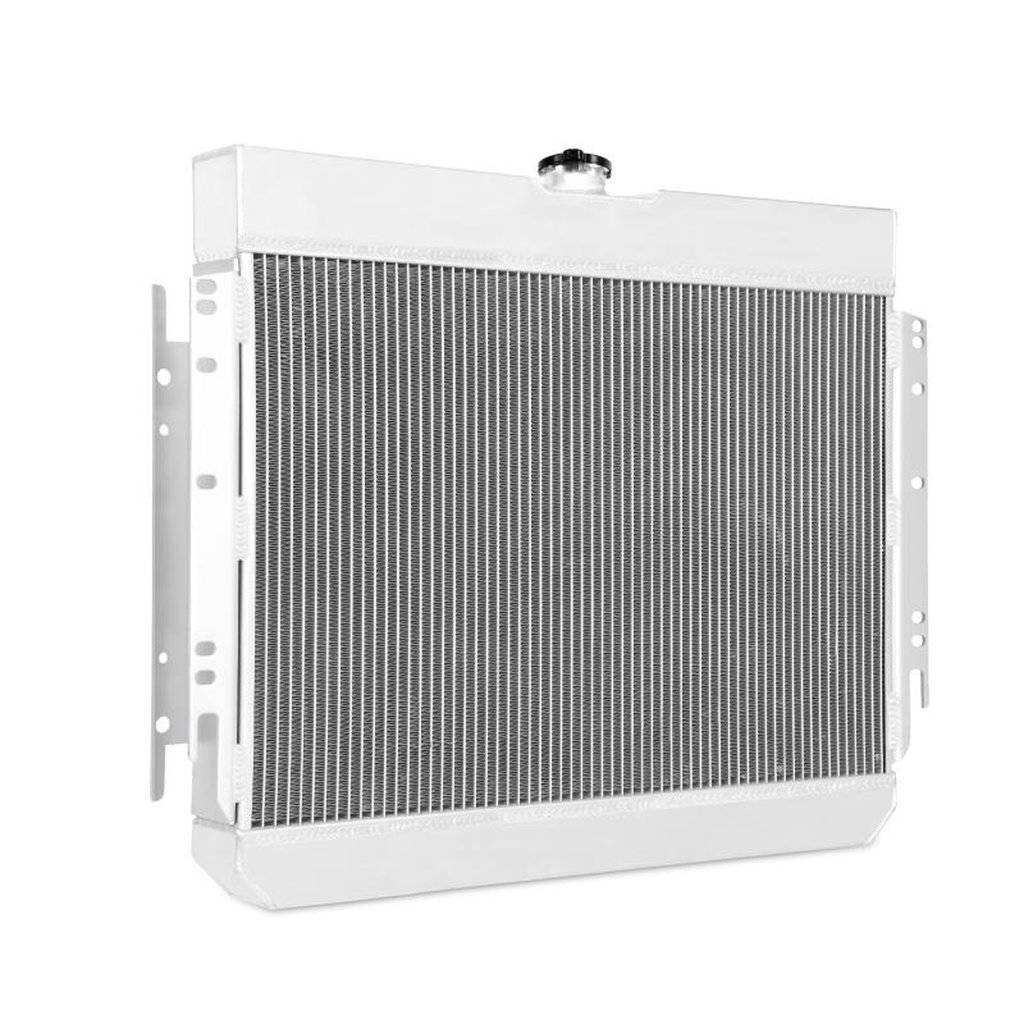

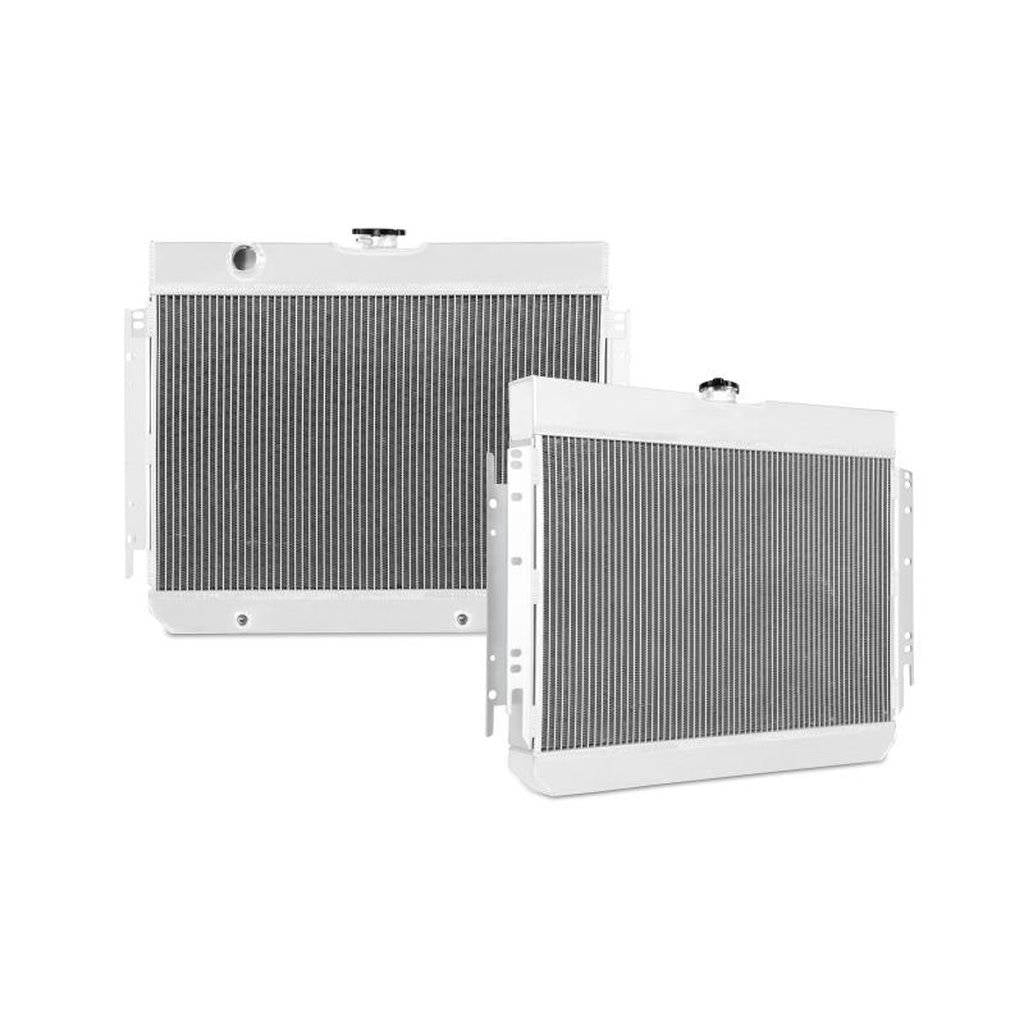

An ideal upgrade for the brittle stock radiator, the Mishimoto 1966–1968 Chevrolet Impala X-Line Performance Aluminum Radiator provides enhanced reliability and improved cooling efficiency. This radiator is suitable for both daily driving and track use, making it an important consideration for classic vehicles with increased horsepower.

The Impala radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets are designed for precise, leak-free connections. Each radiator includes a magnetic oil drain plug to help remove metal fragments from the cooling system.

  • Aircraft-quality aluminum end tanks with TIG-welded construction
  • Brazed aluminum core for efficient cooling
  • Magnetic oil drain plug removes metal fragments
  • Inlet and outlets designed for leak-free connections

Specifications:

  • Overall Length (in): 27.7
  • Overall Height (in): 21.7
  • Overall Width (in): 4.5
  • Core Length (in): 16
  • Core Height (in): 24.7
  • Core Thickness (in): 2.5
  • Fluid Capacity (gal): 4.81
  • Rows: 3
  • Inlet (in): 1.5
  • Outlet (in): 1.5
  • Drain Plug Thread Size: 1/4-18 NPT
  • DPI: 289
  • Engine Codes: 230ci (3.8L) L6, 250ci (4.1L) I6, 283ci (4.6L) V8, 307ci (5.0L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8
  • Coolant Capacity: 4.81
  • Transmission Cooler Thread Info: On Radiator: Female 1/4" BSPP, Sealing Face: 70°

Vehicle Compatibility:

  • 1965-1967 Chevrolet Chevelle 250ci (4.1L) L6, 283ci (4.6L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8
  • 1966-1968 Chevrolet Impala 250ci (4.1L) I6, 283ci (4.6L) V8, 307ci (5.0L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8
  • 1966-1968 Chevrolet Caprice 250ci (4.1L) I6, 283ci (4.6L) V8, 307ci (5.0L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8
  • 1966-1968 Chevrolet Bel Air 250ci (4.1L) I6, 283ci (4.6L) V8, 307ci (5.0L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8
  • 1966-1968 Chevrolet Biscayne 250ci (4.1L) I6, 283ci (4.6L) V8, 307ci (5.0L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8
  • 1966-1967 Chevrolet El Camino 230ci (3.8L) L6, 250ci (4.1L) I6, 283ci (4.6L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8
  • 1966 Chevrolet Malibu 283ci (4.6L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8
