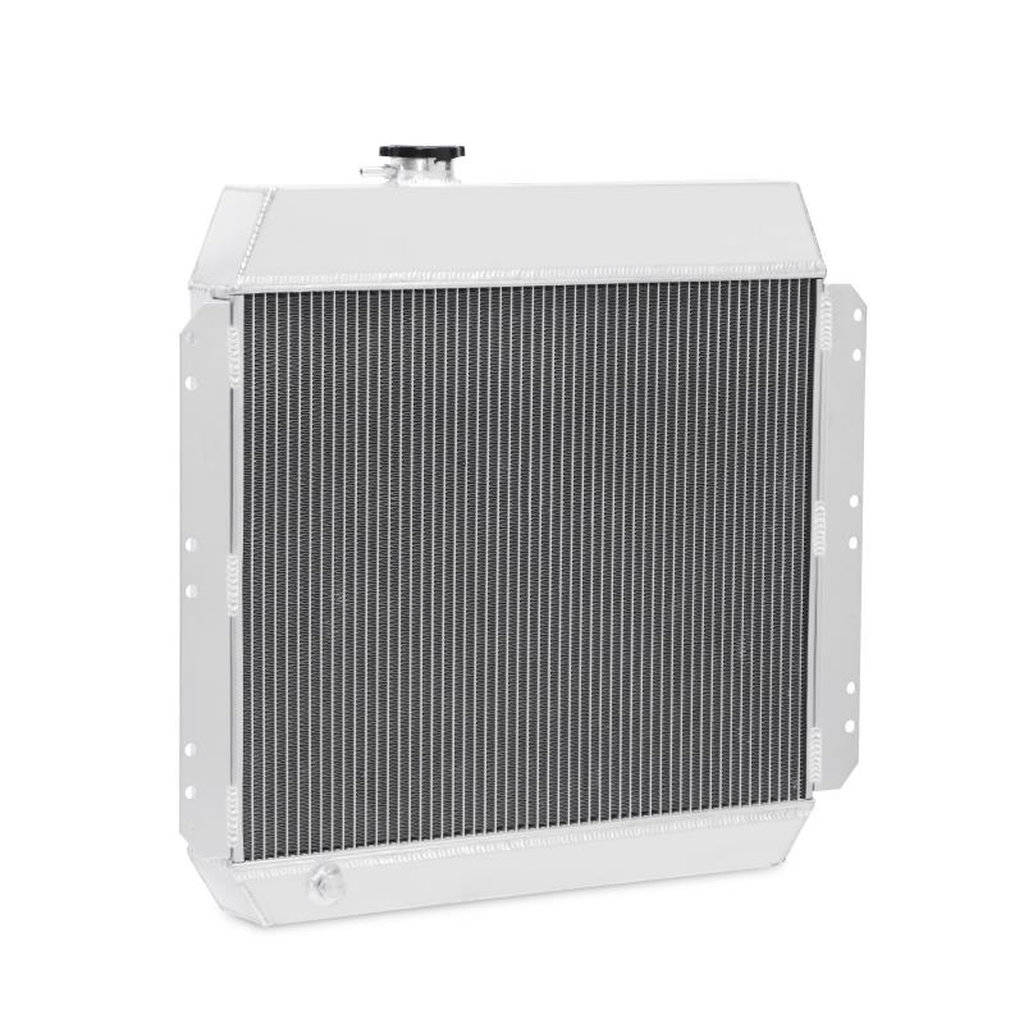

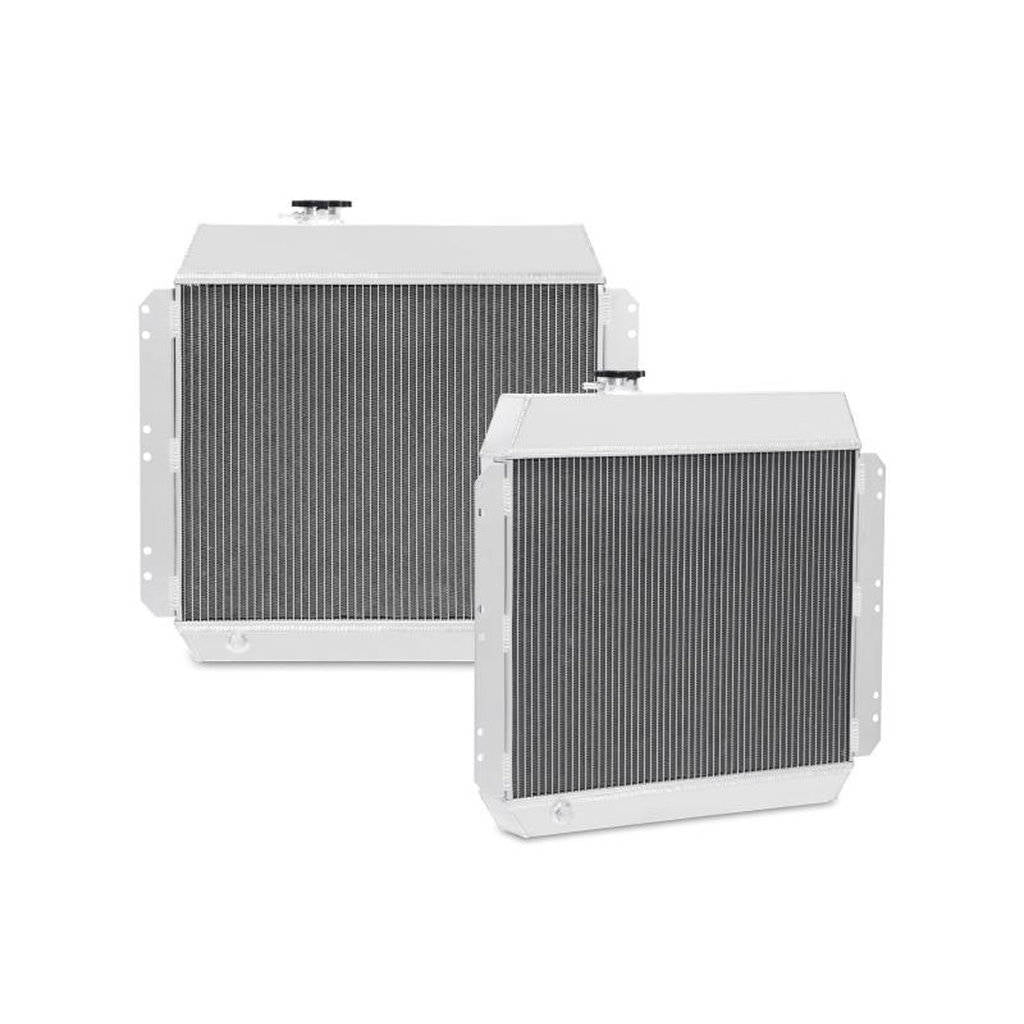

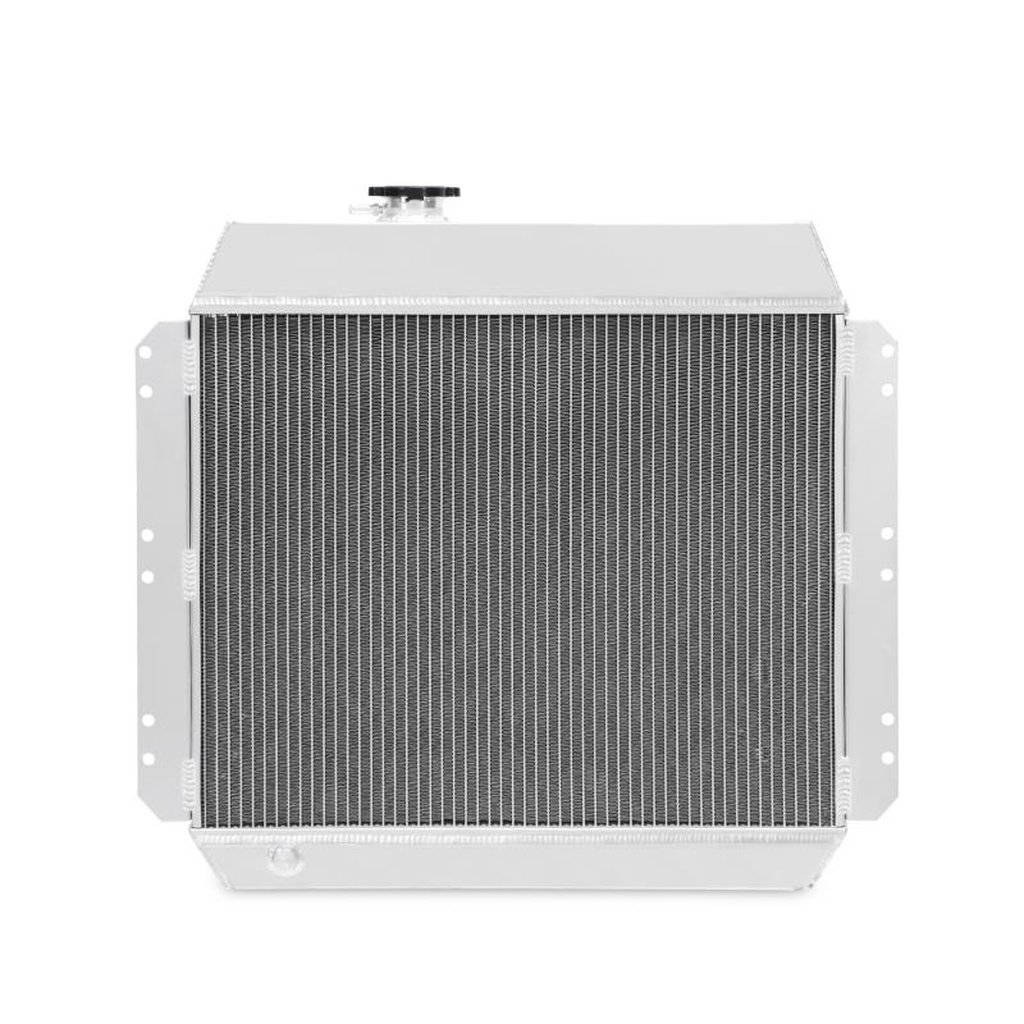

MISHIMOTO MMRAD-BEL-50X CHEVROLETBel-Air 3-Row Performance Aluminum Radiator, 1955 - 1957

Description MISHIMOTO MMRAD-BEL-50X CHEVROLETBel-Air 3-Row Performance Aluminum Radiator, 1955 - 1957

The Mishimoto 1950–1954 Chevrolet Bel Air Inline 6 X-Line Performance Aluminum Radiator offers enhanced reliability and improved cooling efficiency for classic Chevy Bel Air models. It serves as an ideal upgrade over the brittle stock radiator, providing better performance for both daily driving and track use.

This radiator is constructed with durable aircraft-quality aluminum end tanks, precision TIG-welded to a brazed aluminum core. The inlet and outlet are designed for precise, leak-free connections. A Magnetic Oil Drain Plug is included to help remove metal fragments from the cooling system.

• Aircraft-quality aluminum end tanks with TIG-welded brazed aluminum core
• Magnetic Oil Drain Plug removes metal fragments from the cooling system
• Designed for precise, leak-free connections
• Includes Mishimoto Lifetime Warranty

Specifications:

• Overall Length (in): 23.4
• Overall Height (in): 25.2
• Overall Width (in): 5
• Core Length (in): 21.6
• Core Height (in): 17.1
• Core Thickness (in): 2.5
• Fluid Capacity (gal): 5.13
• Rows: 3
• Inlet (in): 1.5
• Outlet (in): 1.75
• Drain Plug Thread Size: M12 x 1.5
• DPI: 4954
• Engine Codes: 216ci (3.5L) I6, 236ci (3.9L) I6
• Coolant Capacity: 5.13
• Transmission Cooler Thread Info: Female 1/4-inch BSPP (on radiator)

Kit comes with::

• Mishimoto Radiator

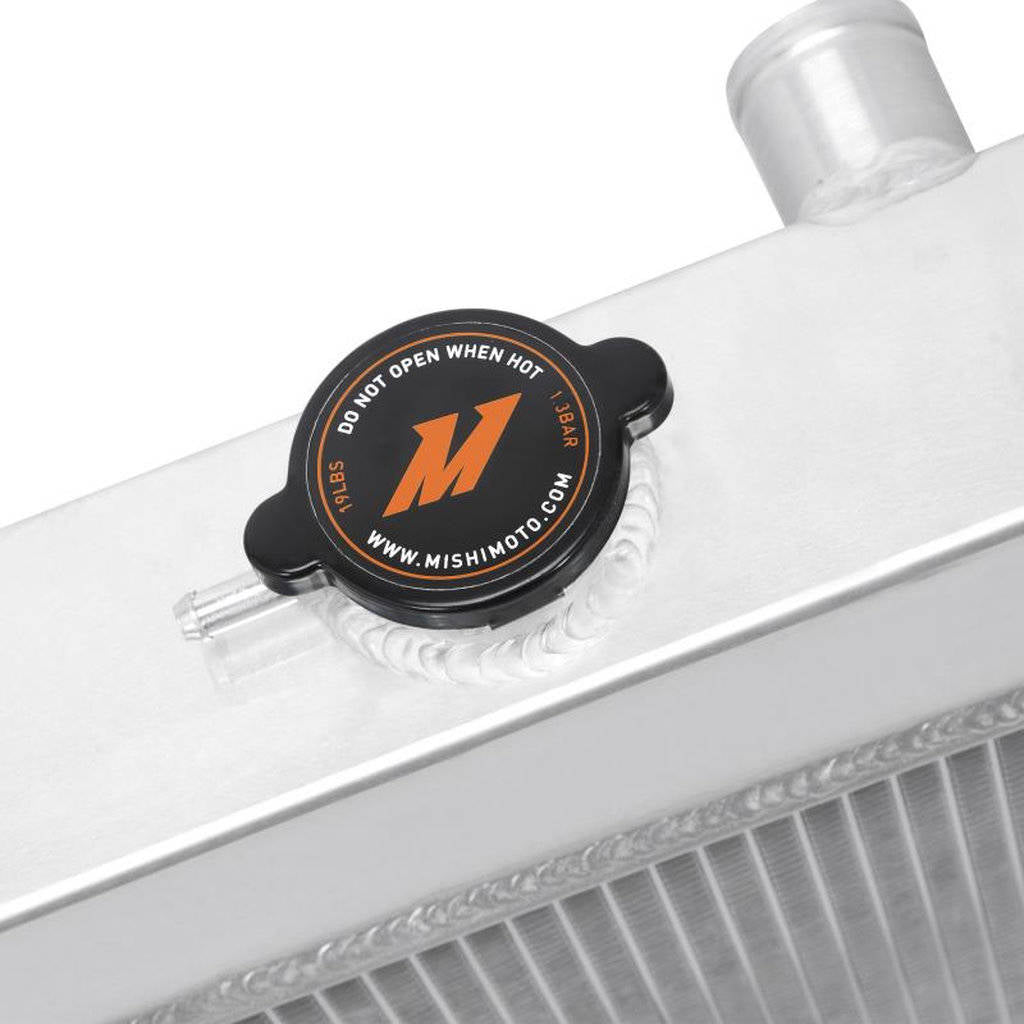

• Mishimoto Radiator Cap
• Magnetic Drain Plug
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 1950-1954 Chevrolet Bel Air Inline 6
• 1953-1954 Chevrolet Corvette Inline 6
• 1953-1954 Chevrolet 150 Inline 6
• 1953-1954 Chevrolet 210 Inline 6
