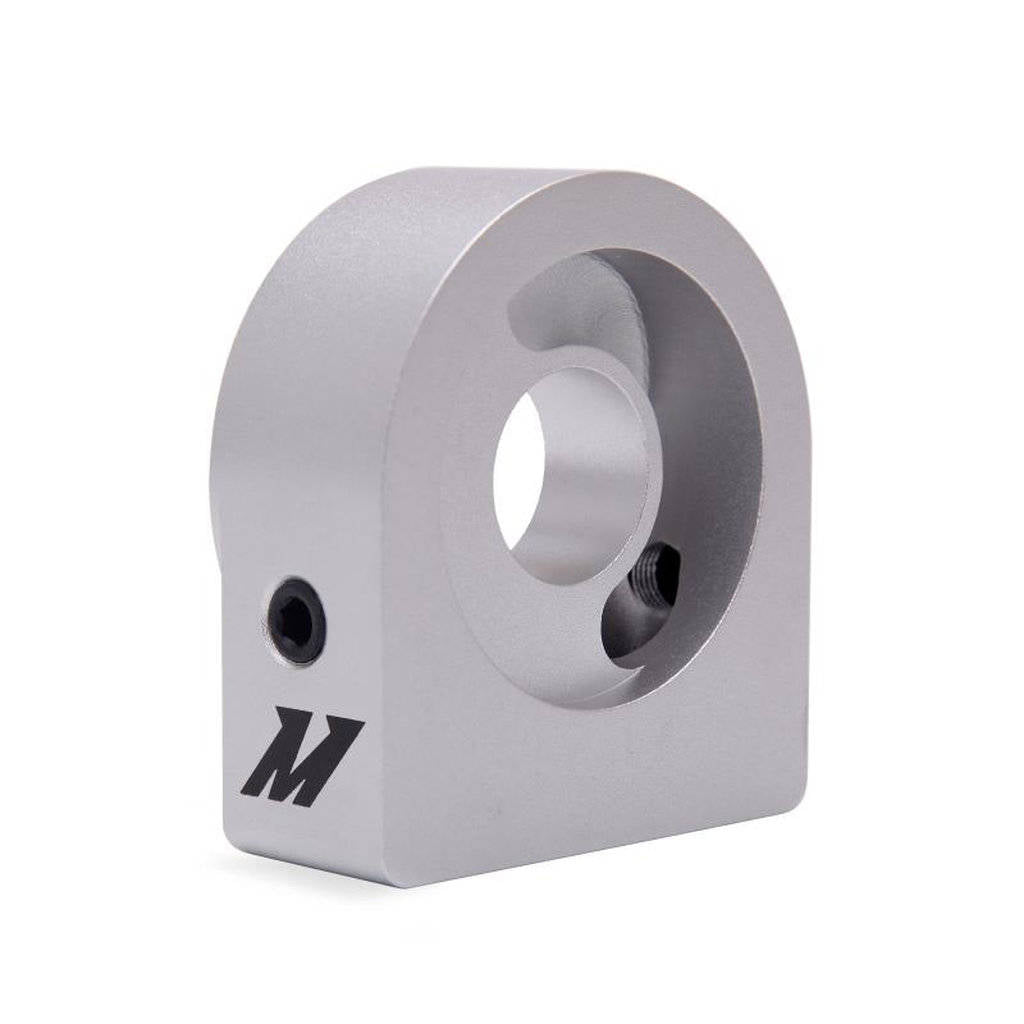

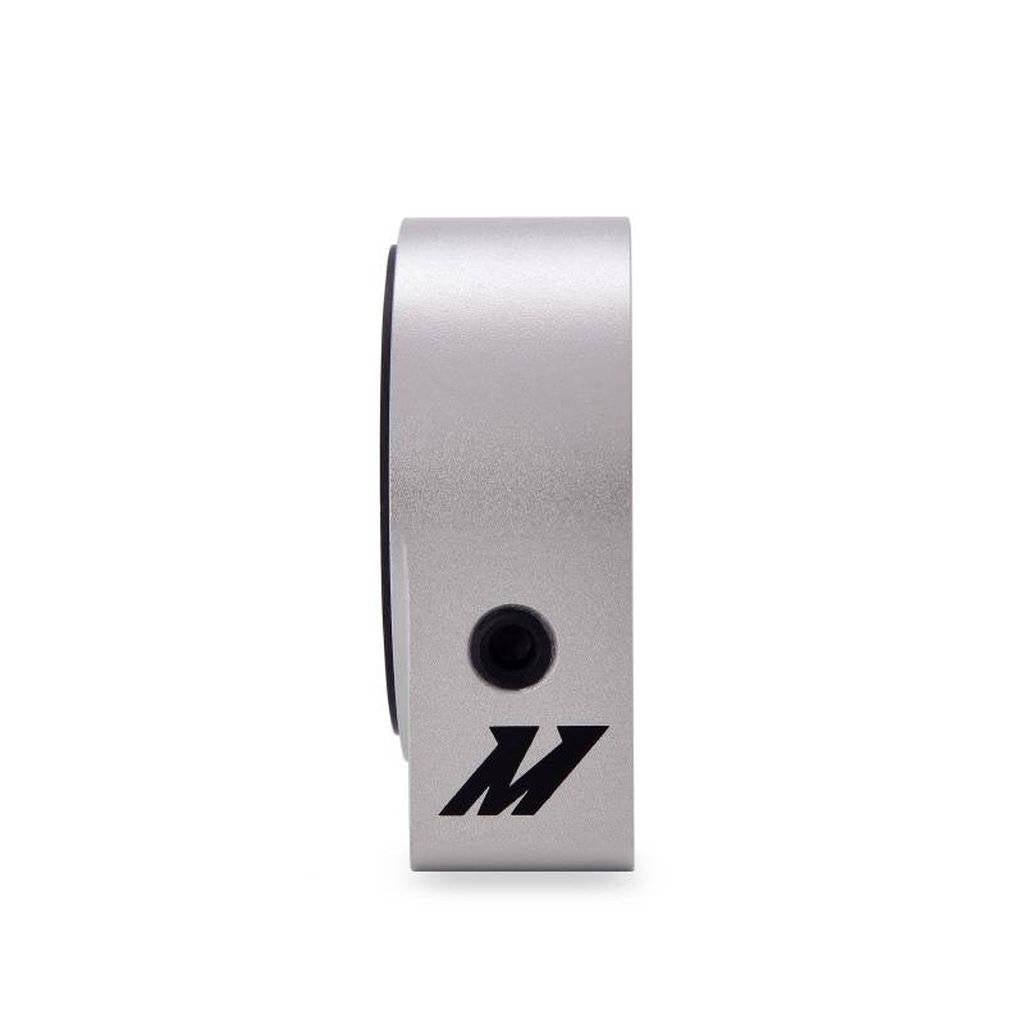

MISHIMOTO MMOP-SPM22 M22 Oil Sandwich Plate

Description MISHIMOTO MMOP-SPM22 M22 Oil Sandwich Plate

This Mishimoto Oil Sandwich Plate is a lightweight, high-flow sandwich plate constructed from 6061 aluminum. It is used to add an external cooler to the vehicle's oil system.

This oil sandwich plate is designed specifically for M22 stainless steel center bolts and includes two 1/8 in NPT plugged ports for optional sensors or gauges. The product includes the Mishimoto Lifetime Warranty.

Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that all connections be checked at regular intervals, especially during the first few miles after installation. For additional technical information, contact the customer experience team.

Note: This sandwich plate was designed to only be used with an M22 Sandwich Plate Adapter.

• Lightweight, high-flow 6061 aluminum construction
• Designed for M22 stainless steel center bolts

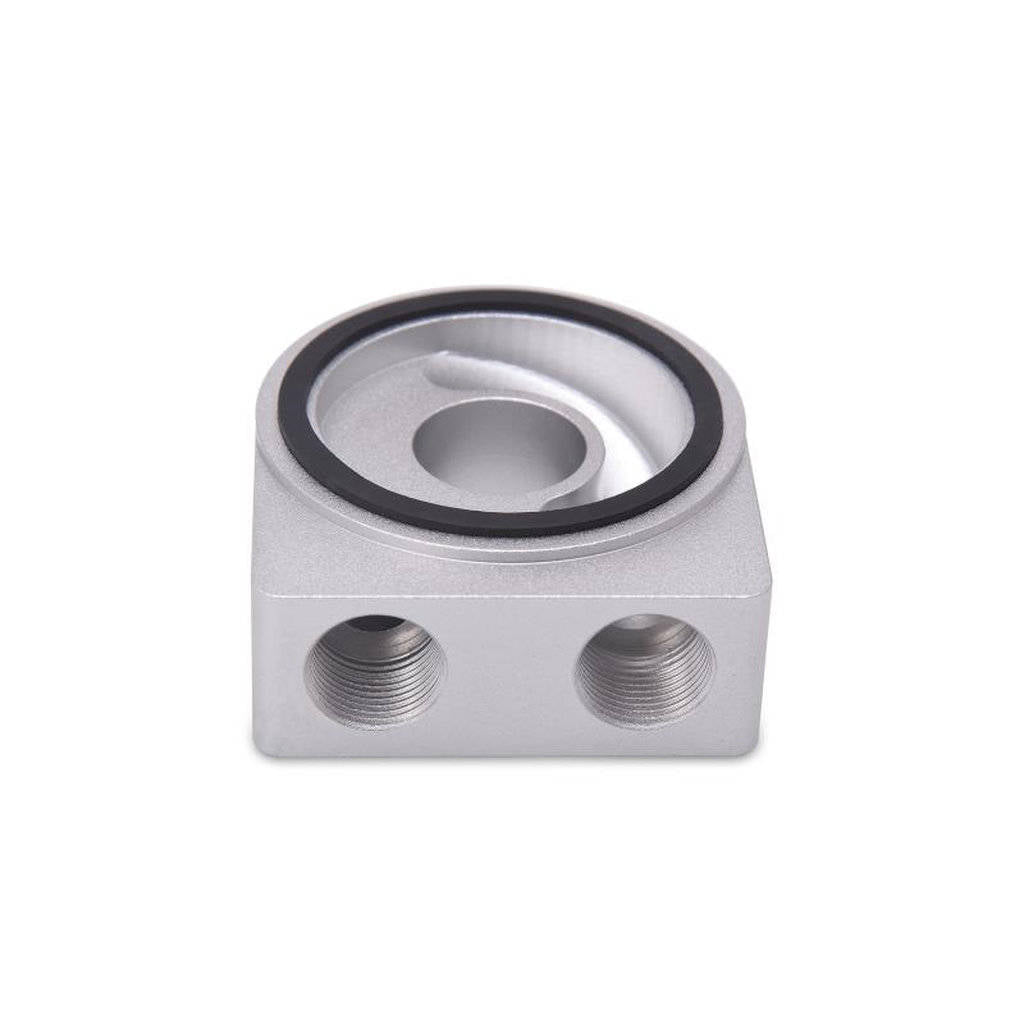

• Two 1/8 in NPT plugged ports for optional sensors or gauges
• Includes Mishimoto Lifetime Warranty

Specifications:

• Overall Height (in): 3.15
• Overall Length (in): 2.83
• Overall Width (in): 1.24

Kit comes with::

• Oil Sandwich Plate
• Rubber O-ring
• Black 1/8-in NPT Plugs
• Mishimoto Lifetime Warranty
