MISHIMOTO MMOCA-GTO LS1/LS2 Front-Sump Oil Cooler Adapter

Description MISHIMOTO MMOCA-GTO LS1/LS2 Front-Sump Oil Cooler Adapter

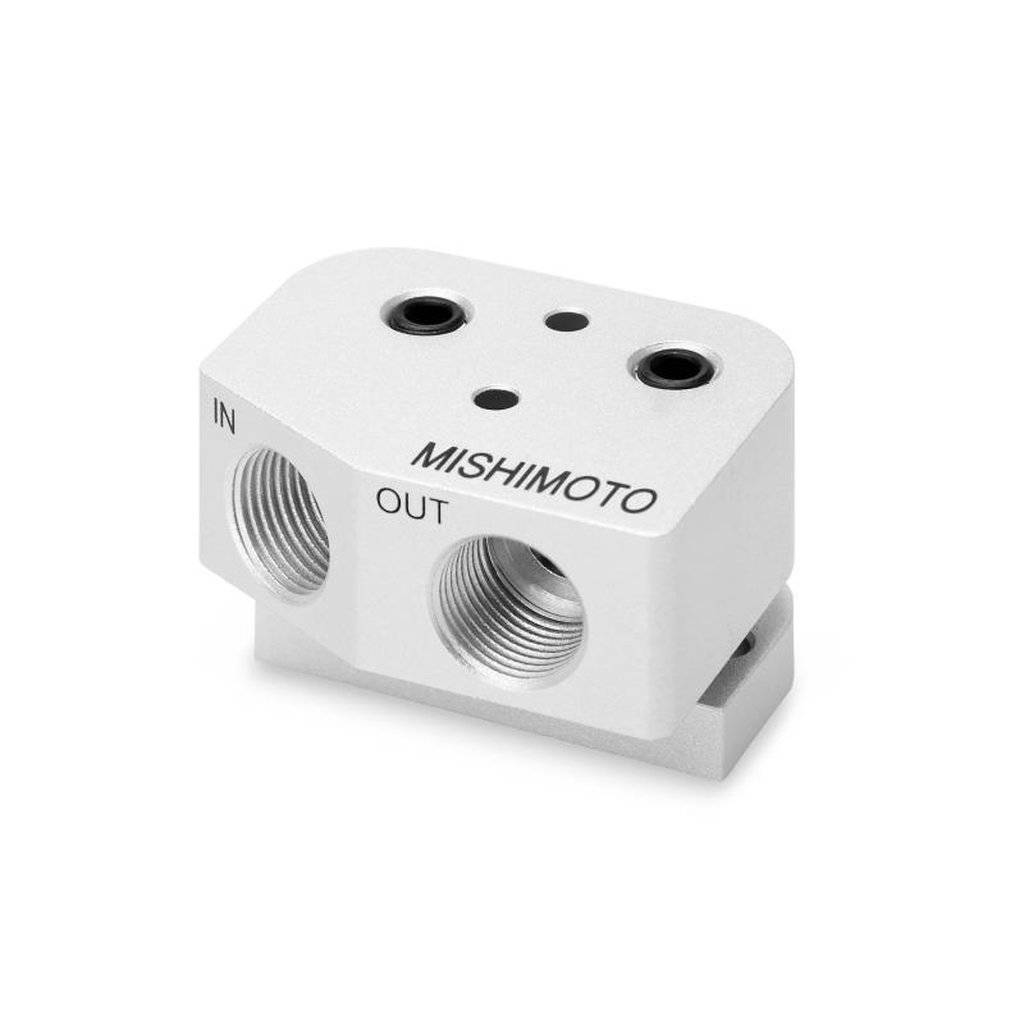

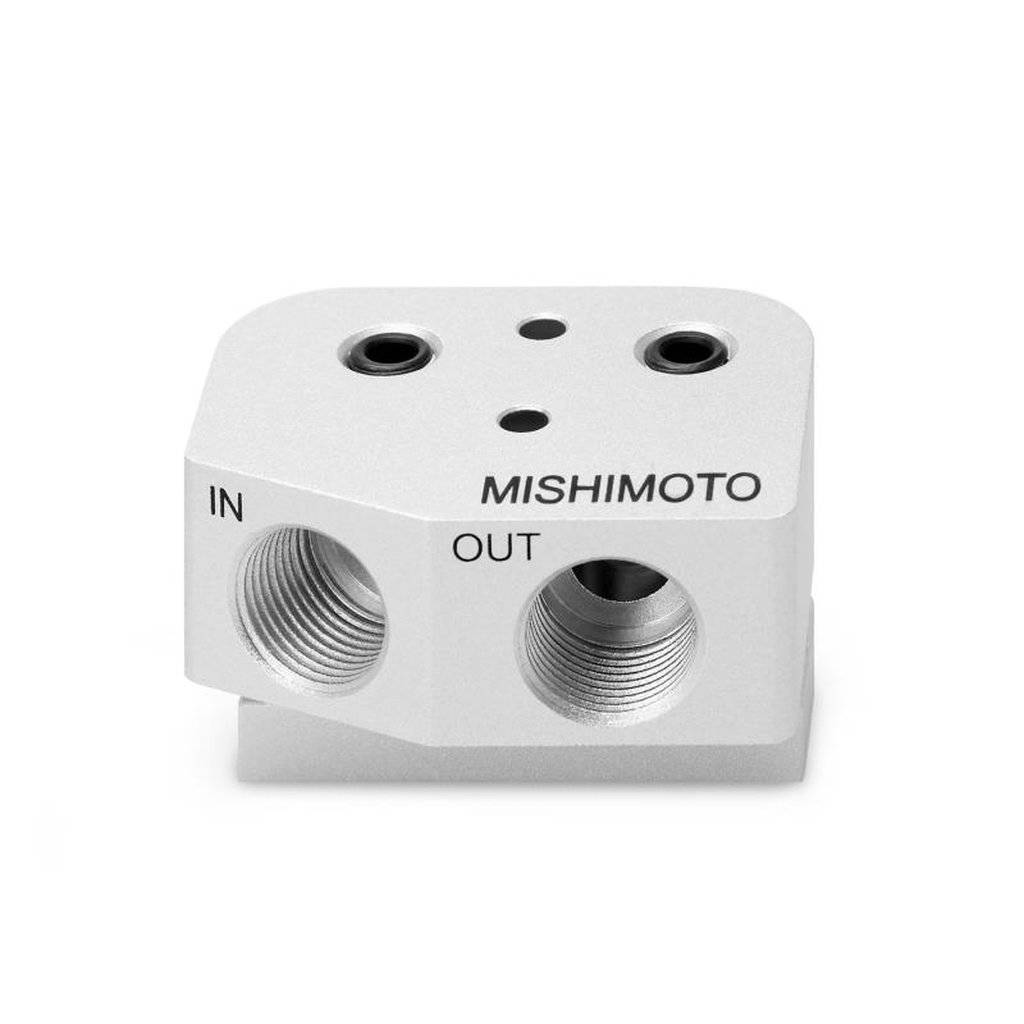

This LS1/LS2 front-sump oil cooler adapter is designed to provide a starting point for custom oil cooler setups. The adapter and fittings are CNC-machined from 6061 aluminum to ensure fitment and durability.

The adapter includes two 1/8 in NPT ports for additional sensors or oil feeds, accommodating future upgrades such as turbochargers. This kit is intended to help manage high oil temperatures in LS engines.

Installation Notes: Torque bolts to between 108 in-lbs and 120 in-lbs.

Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that all connections be checked at regular intervals, especially during the first few miles after installation. For additional technical information, contact the customer experience team.

• CNC-machined 6061 aluminum adapter and fittings
• Two 1/8 in NPT ports for sensors or oil feeds
• Designed for custom oil cooler setups
• Helps reduce high oil temperatures in LS engines

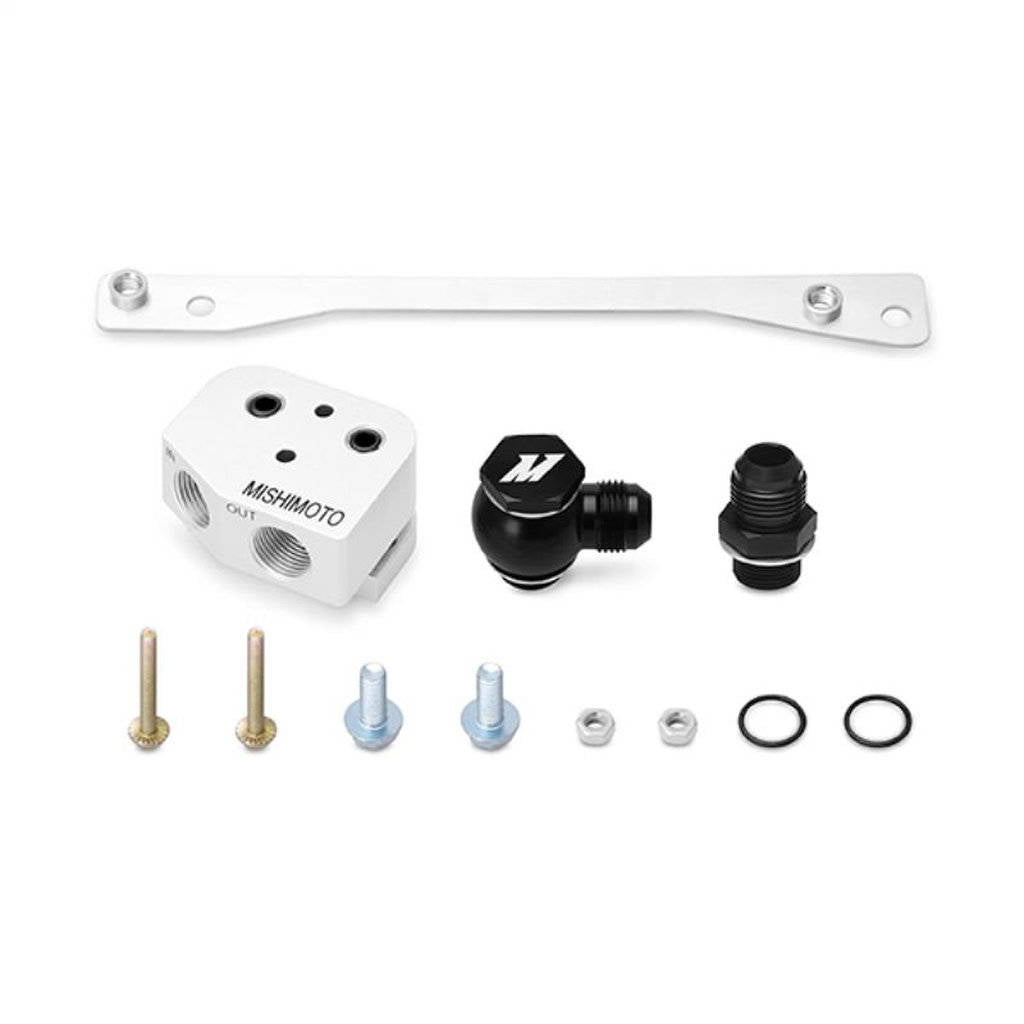

Kit comes with::

• Oil Cooler Adapter Housing & Spacer
• Aluminum Power Steering Relocation Bracket

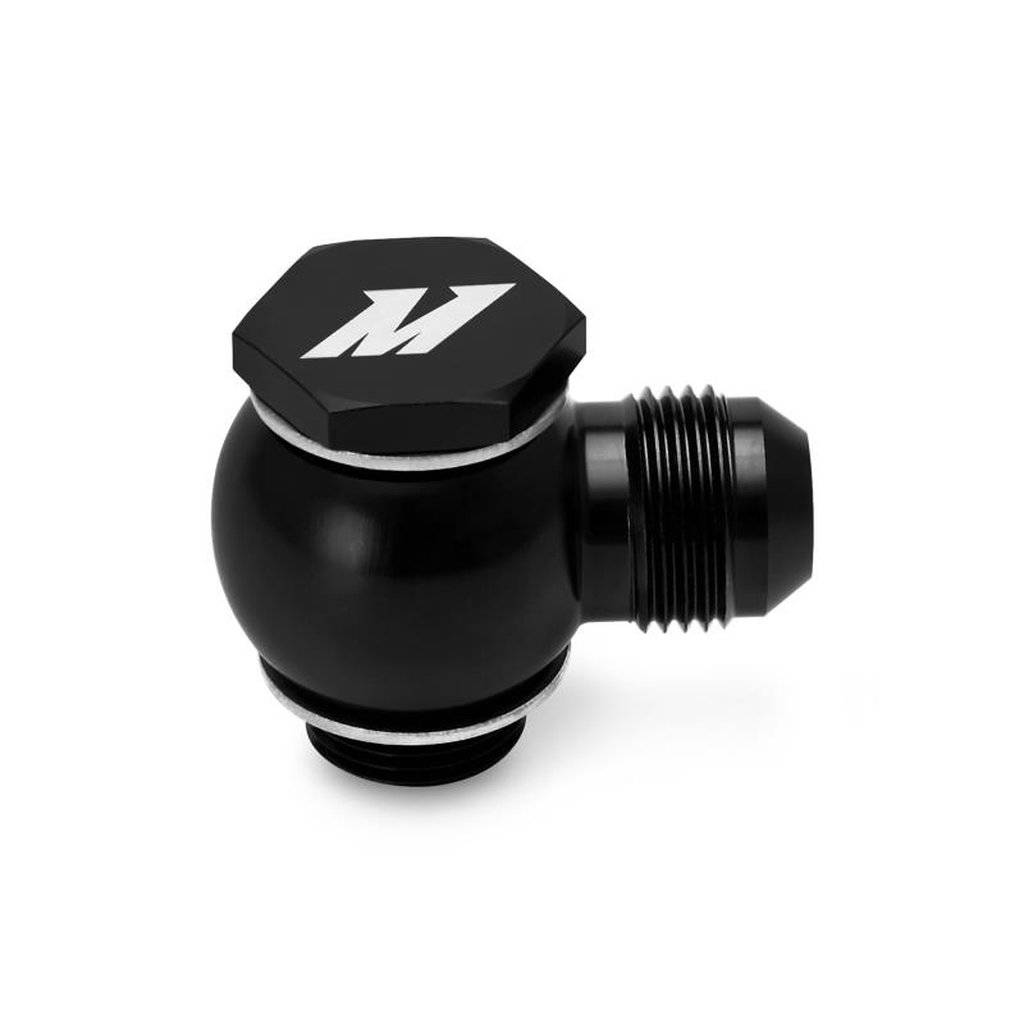

• Banjo Fitting with Bolt M20 x -10AN, Black
• M20 x -10AN Straight Fitting, Black
• O-Rings
• 1/8-in NPT Plugs
• Mounting Hardware Set

Vehicle Compatibility:

• 2001-2005 Holden Monaro (V2 VC8 & VZ)
• 1999-2006 Holden Commodore (VT, VX, VY & VZ)
• 1999-2006 Holden Commodore Ute
• 1999-2006 Holden Statesman (WH, WK, WL)
• 1999-2006 Holden Caprice (WH, WK, WL)
• 2001-2006 Vauxhall Monaro
• Other vehicles equipped with GM front-sump oil pan part number 12599397, 12599398, 12581209, or 12581210
