MISHIMOTO MMOC-UH UNIVERSAL Oil Cooler Kit, 25 Row

Description MISHIMOTO MMOC-UH UNIVERSAL Oil Cooler Kit, 25 Row

Proper oil temperature regulation is essential for extending and preserving the life of both stock and high performance engines. The Mishimoto 25-Row Universal Oil Cooler Kit helps maintain optimal oil temperatures and provides additional protection against oil degradation. This kit is suitable for most vehicles and includes all necessary components for effective oil temperature reduction.

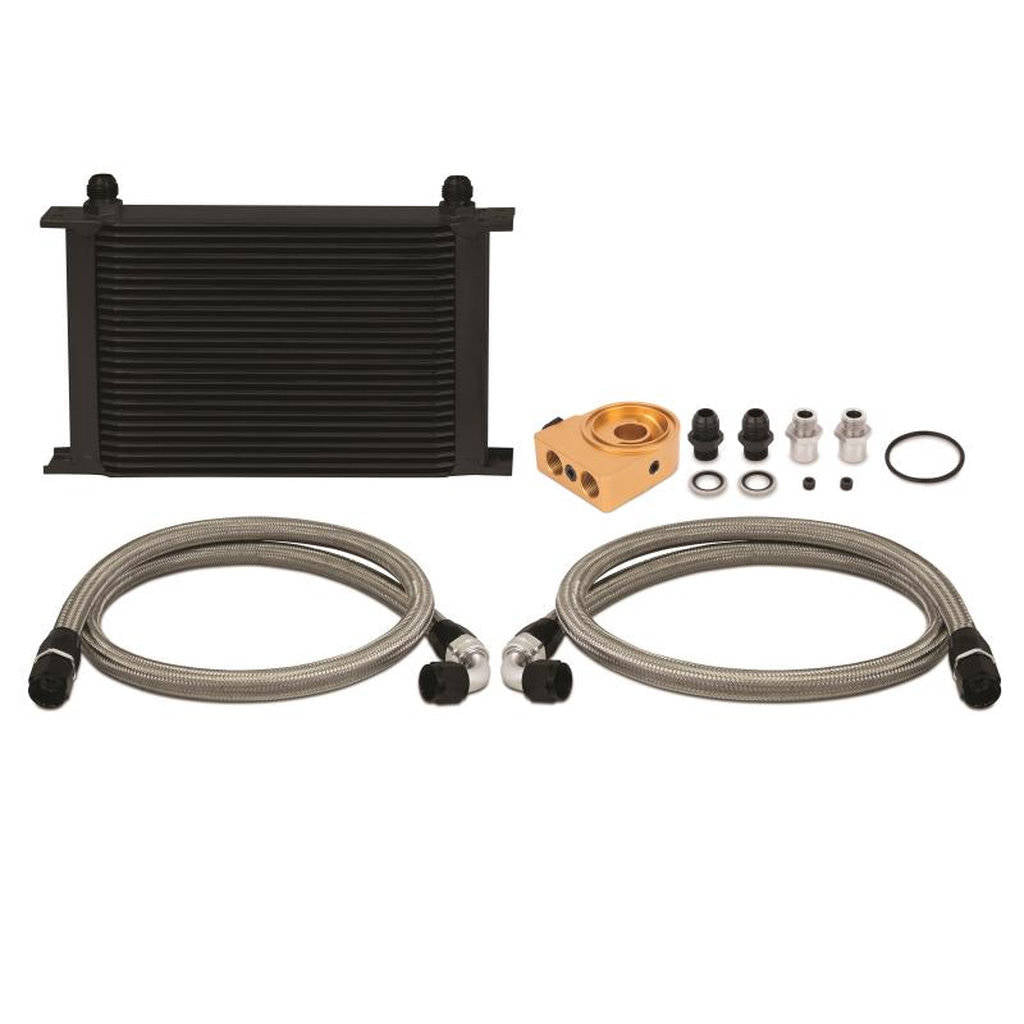

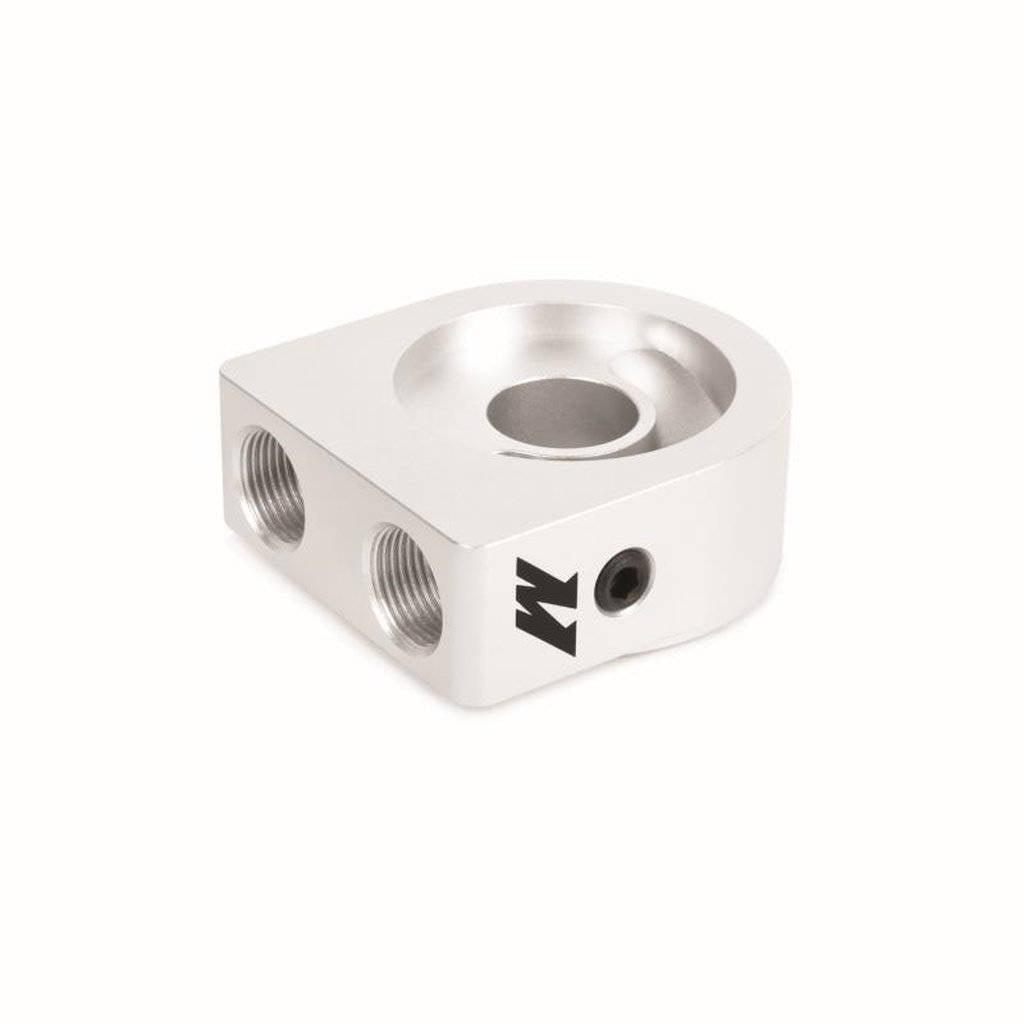

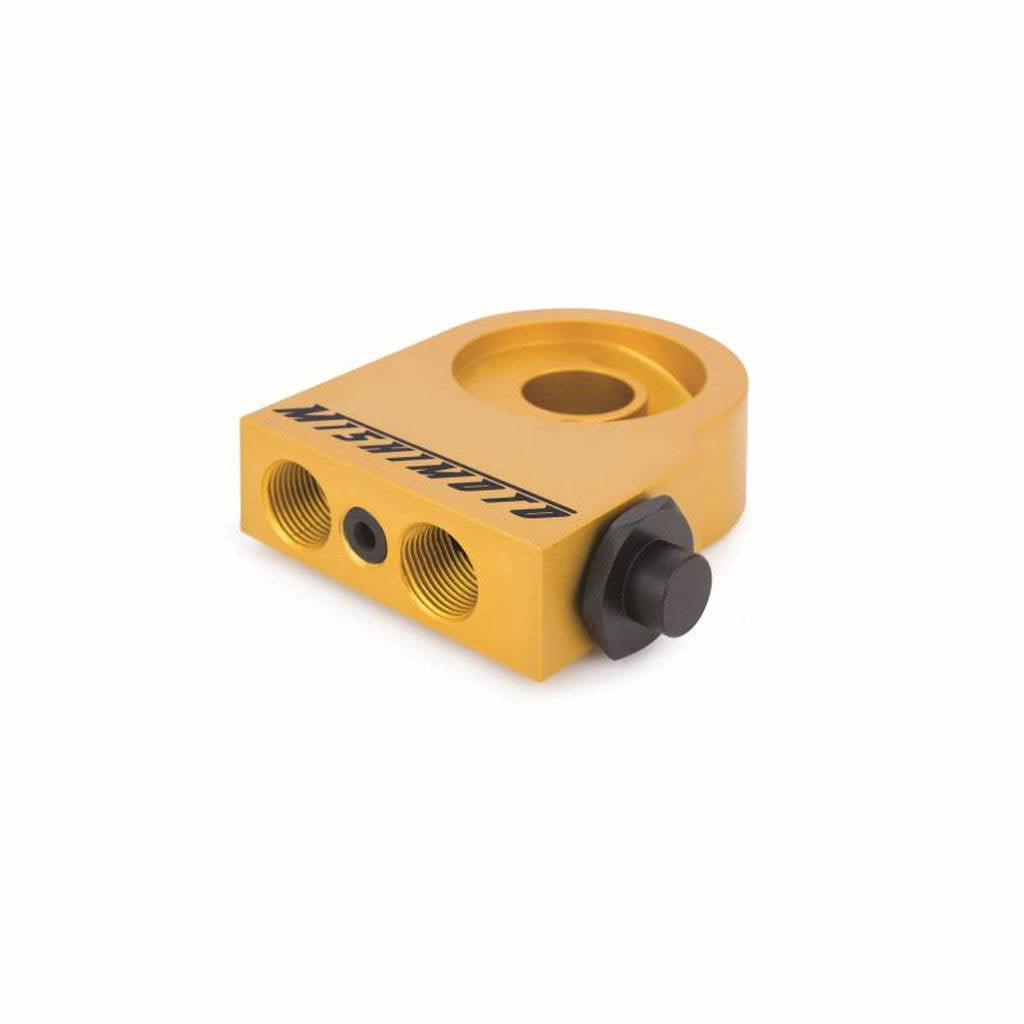

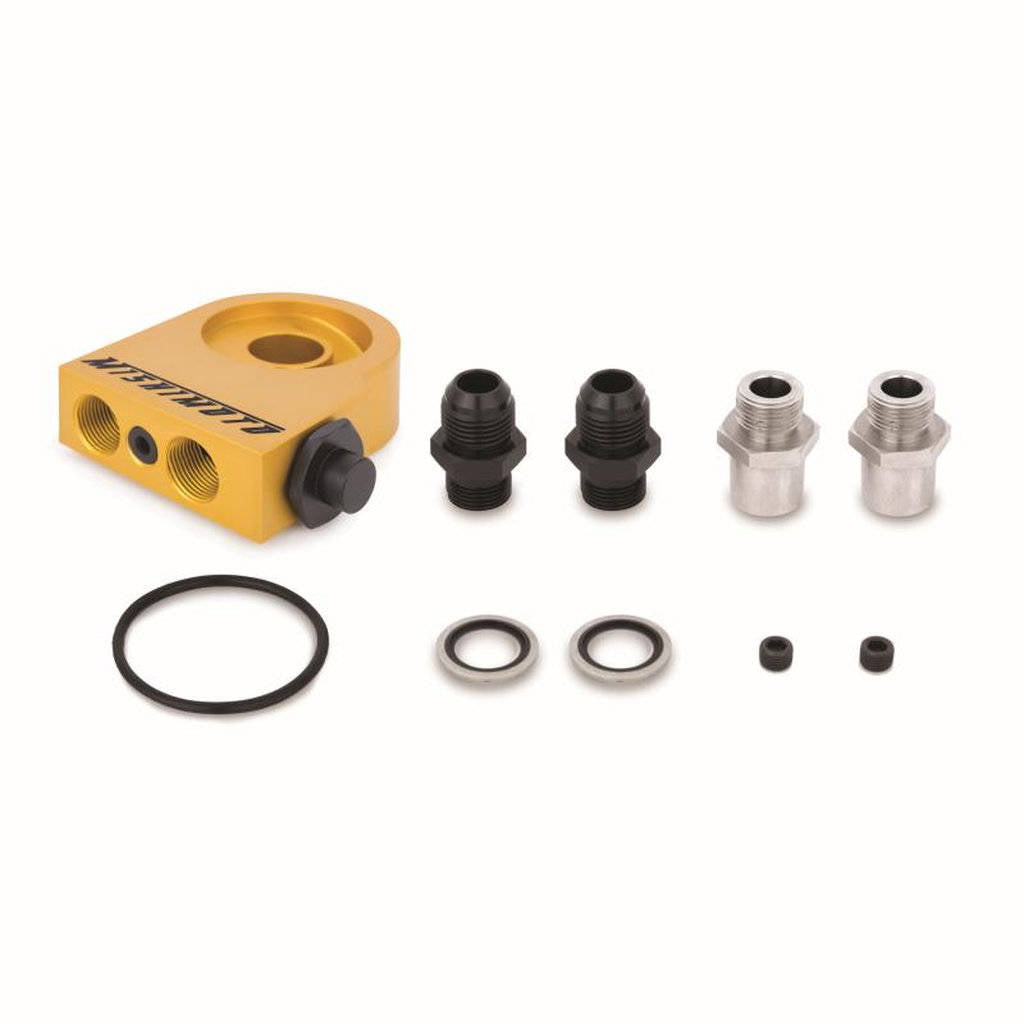

The kit features a billet anodized aluminum sandwich plate, available in standard or thermostatic versions. The optional thermostatic sandwich plate offers enhanced temperature control by restricting oil flow to the cooler until optimal temperatures are reached, making it suitable for cooler climates. The included 25-row stacked-plate cooler is designed to withstand high fluid pressures and reduce oil temperatures with minimal pressure loss.

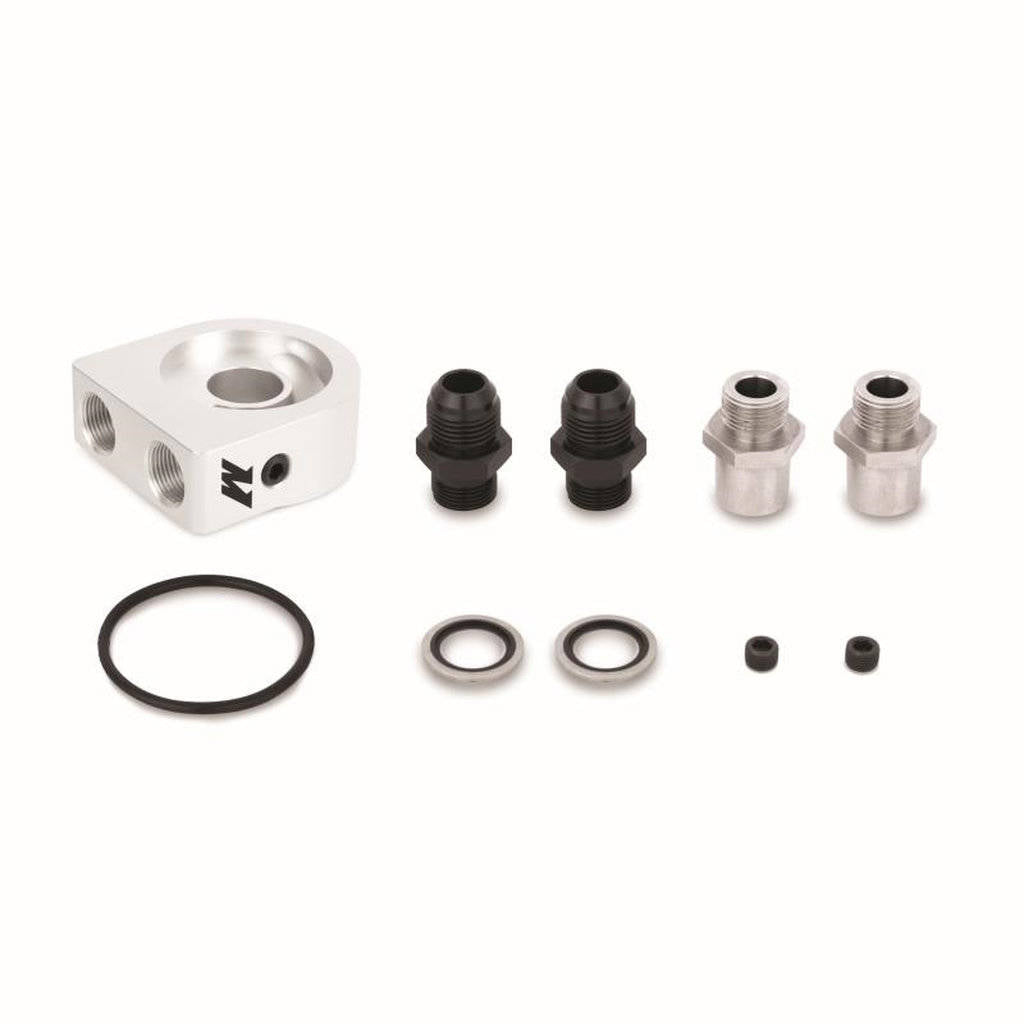

This kit comes with both 3/4" -16 and M20-1.5 sandwich plate adapters for compatibility with most makes and models. Pre-assembled stainless steel braided oil lines with -10AN fittings and dowty seals ensure durable, leak-free connections.

Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ft. Do not exceed the maximum torque rating of 35 ft-lb.

Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends checking all connections at regular intervals, especially during the first few miles after installation.

• 25-row stacked-plate cooler for high fluid pressure resistance
• Billet anodized aluminum sandwich plate in standard or thermostatic form
• Pre-assembled stainless steel braided oil lines with -10AN fittings
• Includes adapters for compatibility with most makes and models

Specifications:

• Rows: 25
• Core Length (in): 11
• Core Height (in): 7.32
• Core Thickness (in): 1.97
• Overall Height (in): 12.95
• Overall Length (in): 8.35
• Overall Width (in): 1.97

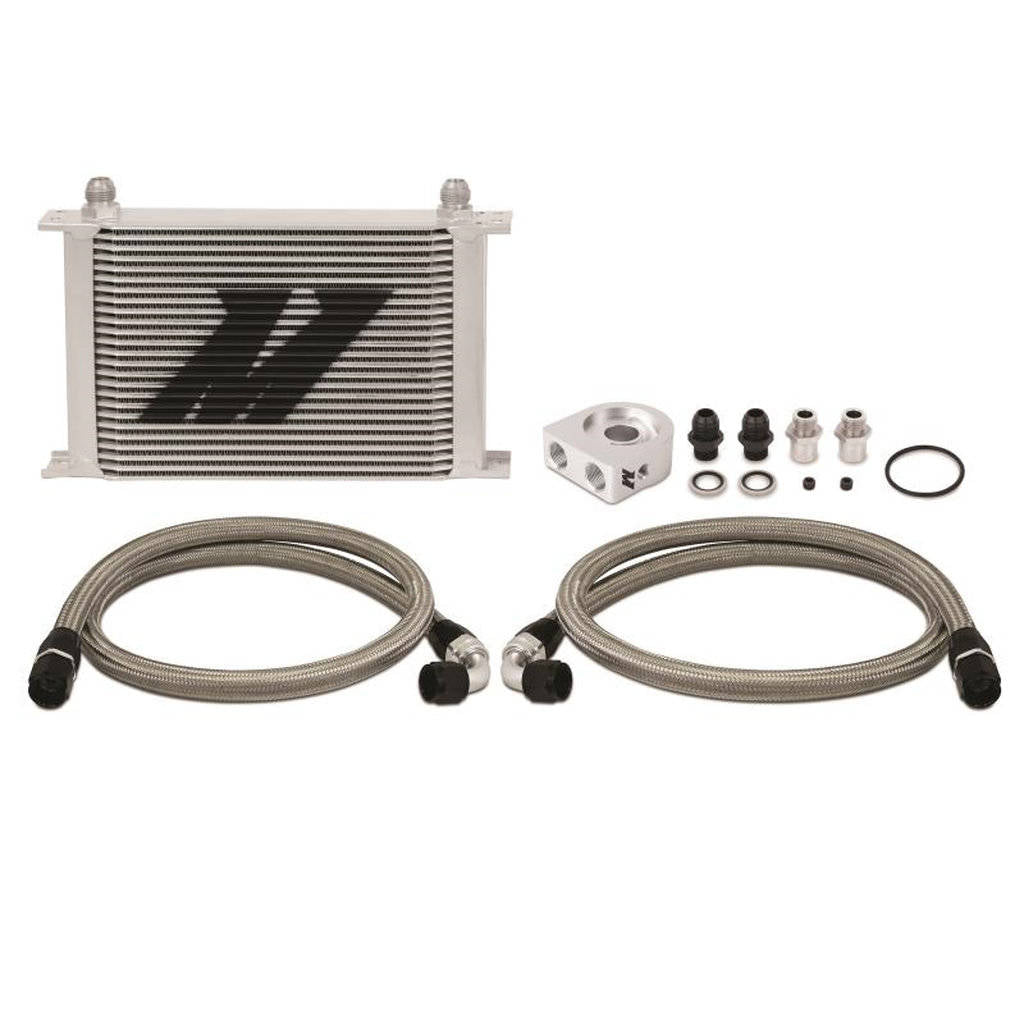

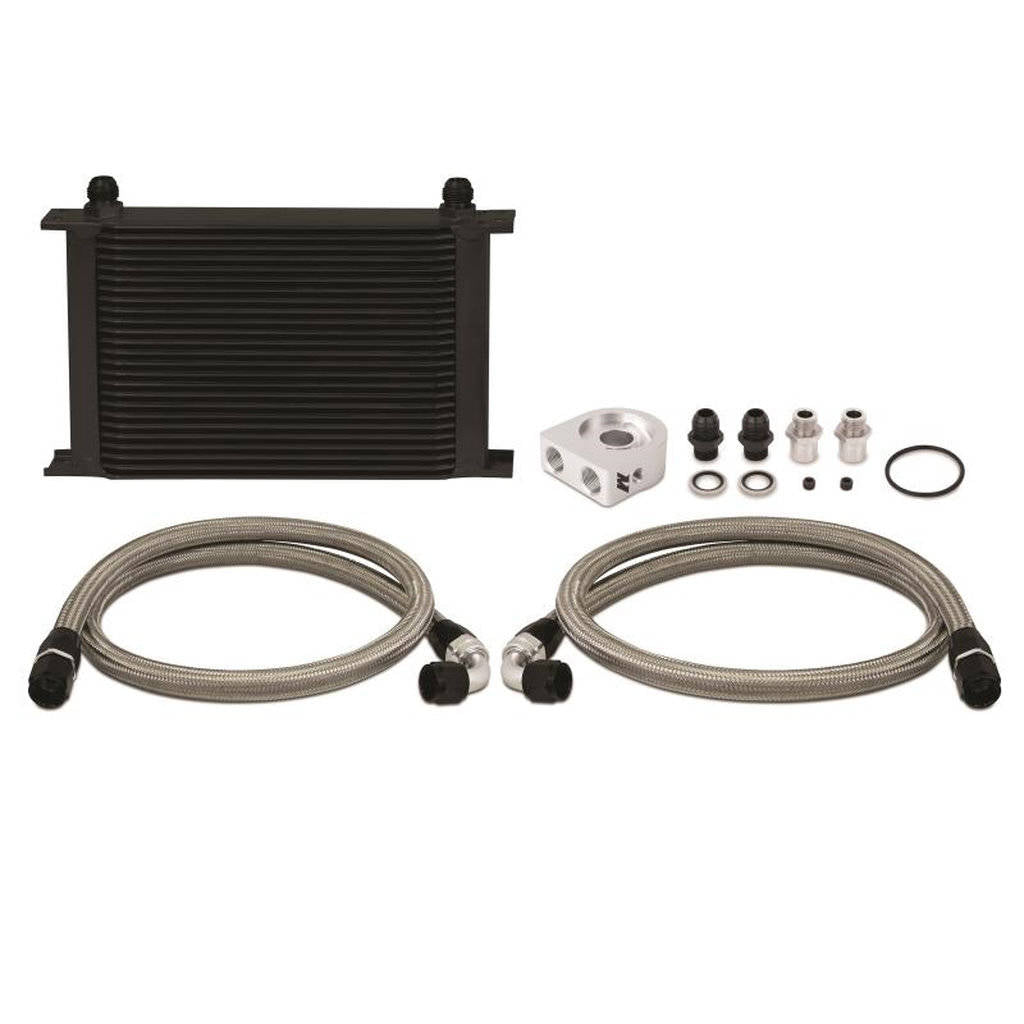

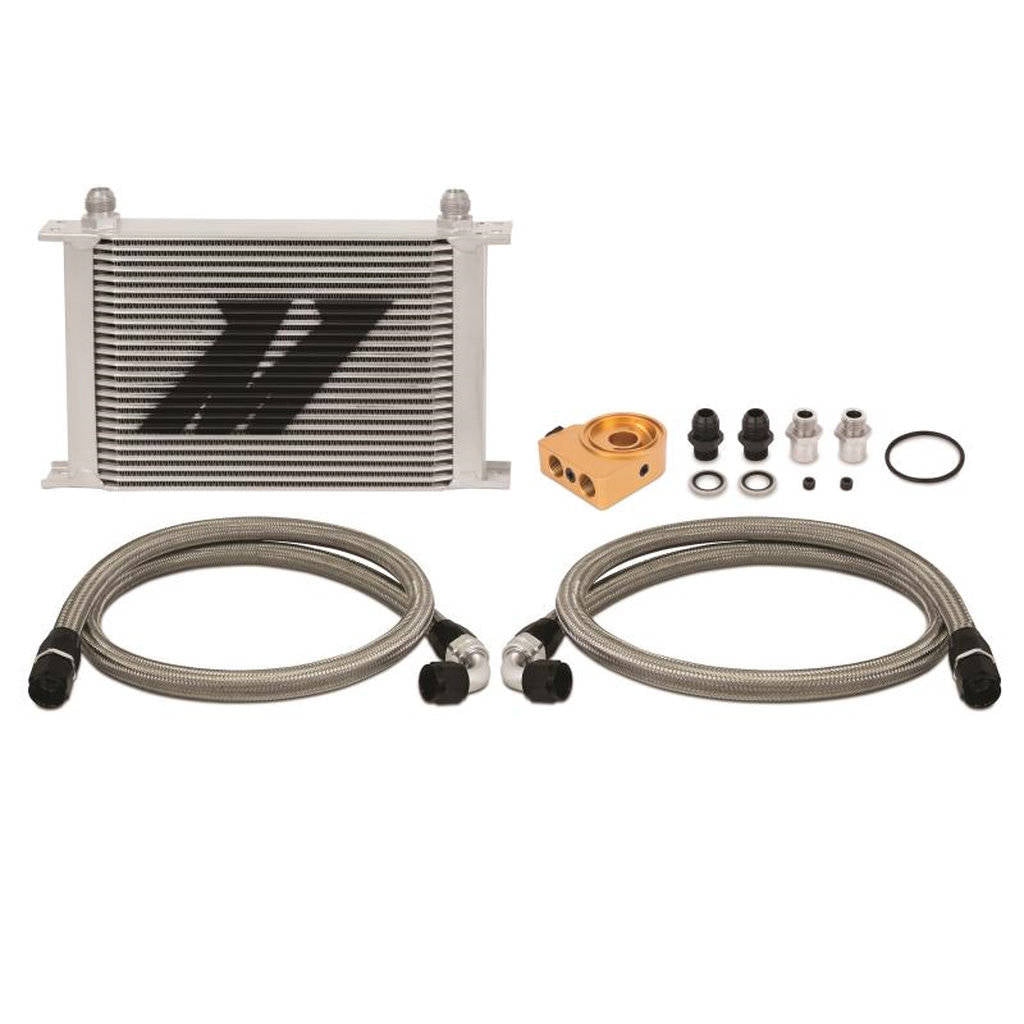

Kit comes with::

• 25-Row Oil Cooler
• 4ft Stainless Steel Braided Hose with -10AN fittings (one straight fitting and one 90 degree swivel fitting)
• 5ft Stainless Steel Braided Hose with -10AN fittings (one straight fitting and one 90 degree swivel fitting)
• M20 Thermostatic Sandwich Plate
• -10AN Fittings
• Dowty Oil Seals
• Large O-Ring
• 1/8-in NPT Allen Key Plugs
• Sandwich plate adapters
• Mishimoto Lifetime Warranty
