MISHIMOTO MMOC-MIA-16T MAZDA Miata Oil Cooler Kit, 2016+, Black, Thermostatic
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
MISHIMOTO MMOC-MIA-16T MAZDA Miata Oil Cooler Kit, 2016+, Black, Thermostatic
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

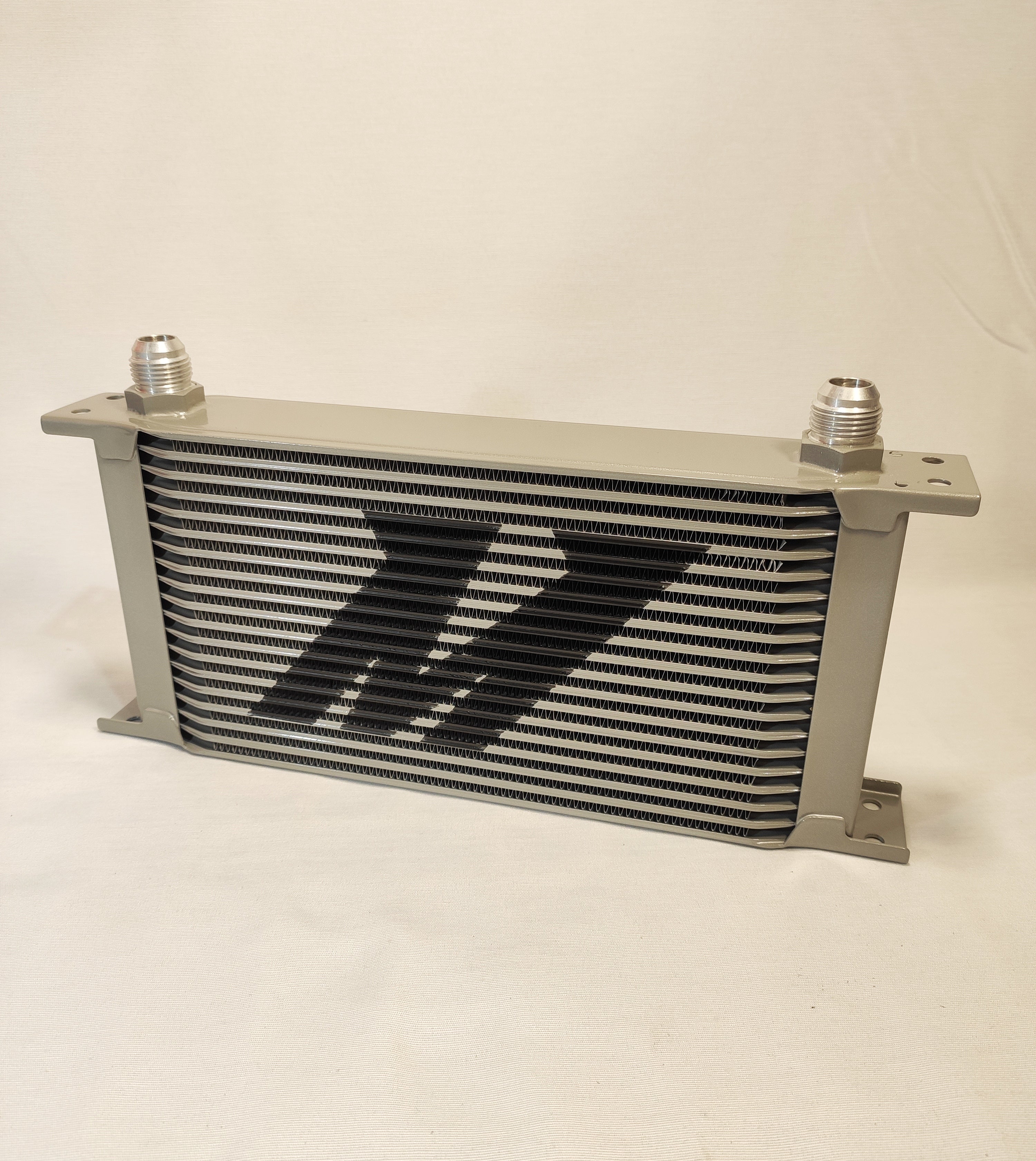

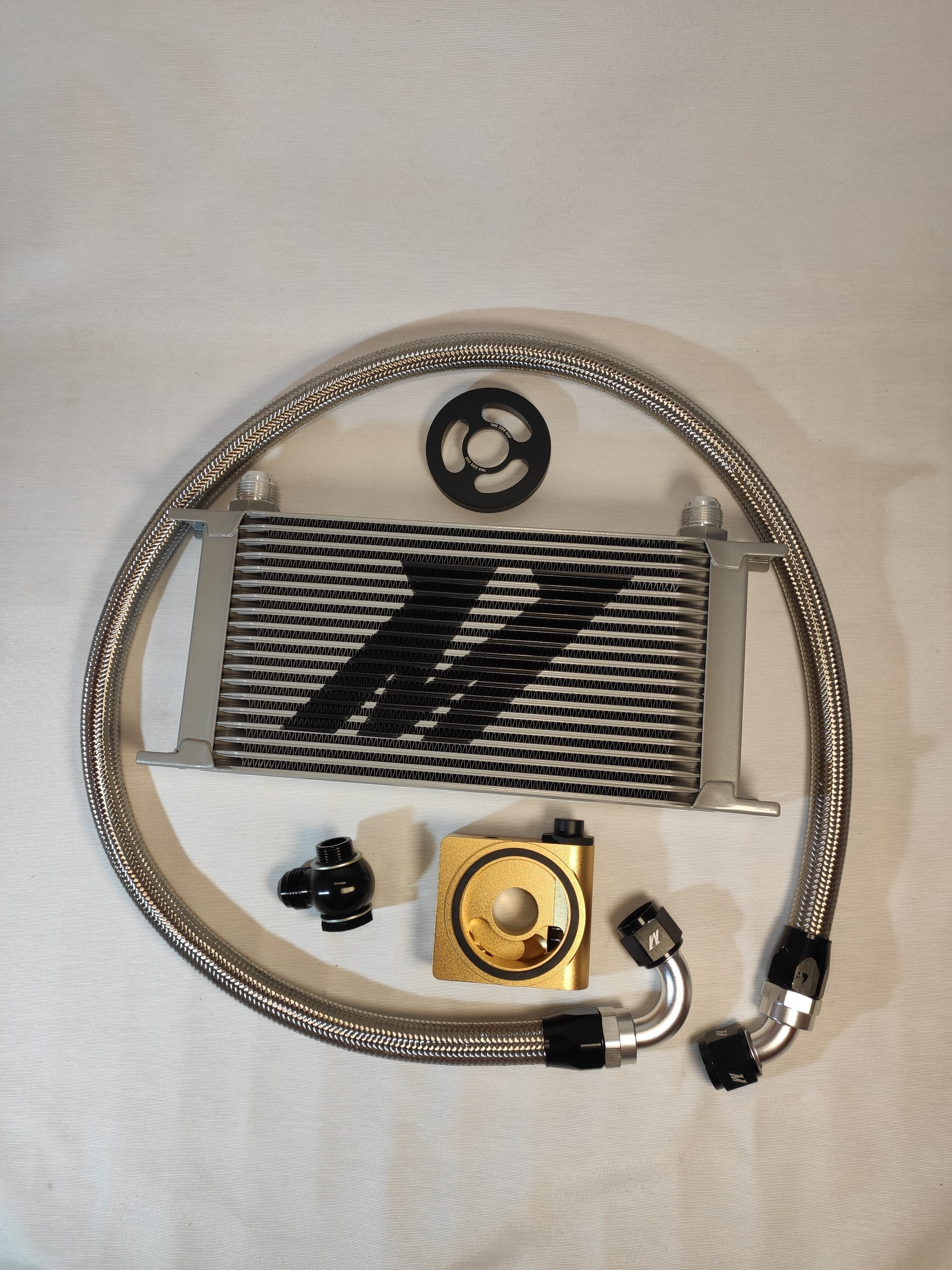

OIL COOLER KIT
SPECIFICATIONS
- MATERIAL - 6061 Aluminum
- CORE HEIGHT - 137.92
- ROWS - 19
- COOLER CONSTRUCTION - Stacked-plate
- CORE THICKNESS - 50.03
- CORE LENGTH - 279.4 mm
- FITTING SIZE - 10AN
- PRESSURE DROP - 20.6 kPa
- INSTALL TORQUE SPECS - Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft/lbs (operating range). Do not exceed the maximum torque rating of 35 ft/lbs.
- INCREASE IN OIL CAPACITY - 0.71L
- CAUTION - It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
- TEMP DIFFERENCE - 29.5°C
- ALSO FITS - 2016+ Mazda Miata
