MISHIMOTO MMOC-GTO-04 LS1/LS2 Front-Sump Race Oil Cooler Kit, Silver

Description MISHIMOTO MMOC-GTO-04 LS1/LS2 Front-Sump Race Oil Cooler Kit, Silver

This LS1/LS2 front-sump oil cooler kit is designed as a DIY solution, allowing for customized fitment on highly modified LS vehicles. The kit requires fabrication of custom brackets to mount the cooler in the desired location. A CNC-machined oil line adapter is included to enable the use of -AN fittings.

The 25-row cooler is capable of significantly reducing oil temperatures, with testing showing a drop of up to 65°F. This kit is recommended for race vehicles, particularly turbocharged or supercharged drag vehicles.

Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to ensure they are fully tightened before operating the vehicle. It is recommended to check all connections at regular intervals, especially during the first few miles after installation.

Installation Notes: Torque adapter bolts to between 108 in-lbs and 120 in-lbs. Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ft. Do not exceed the maximum torque rating of 35 lb-ft.

Note: This kit requires fabrication of mounting brackets and may require modifying the braided oil lines to fit. It is designed for race applications only. For street applications, use the Thermostatic Kit.

• DIY kit for custom fitment on modified LS vehicles
• Includes CNC-machined oil line adapter for -AN fittings
• 25-row cooler provides substantial oil temperature reduction
• Recommended for race vehicles only

Specifications:

• Rows: 25
• Core Length (in): 11
• Core Height (in): 7.32
• Core Thickness (in): 1.97
• Engine Codes: LS-1, LS-2
• Chassis Codes: V-Body

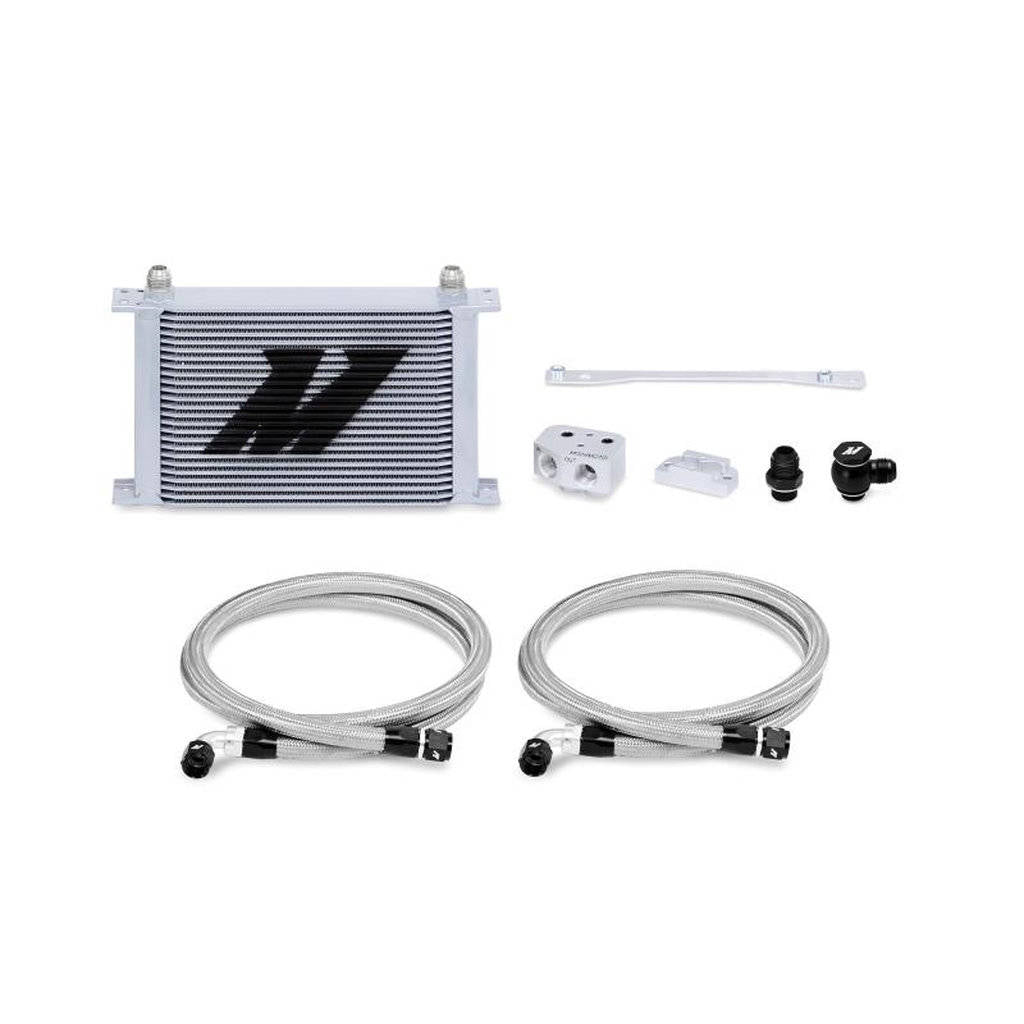

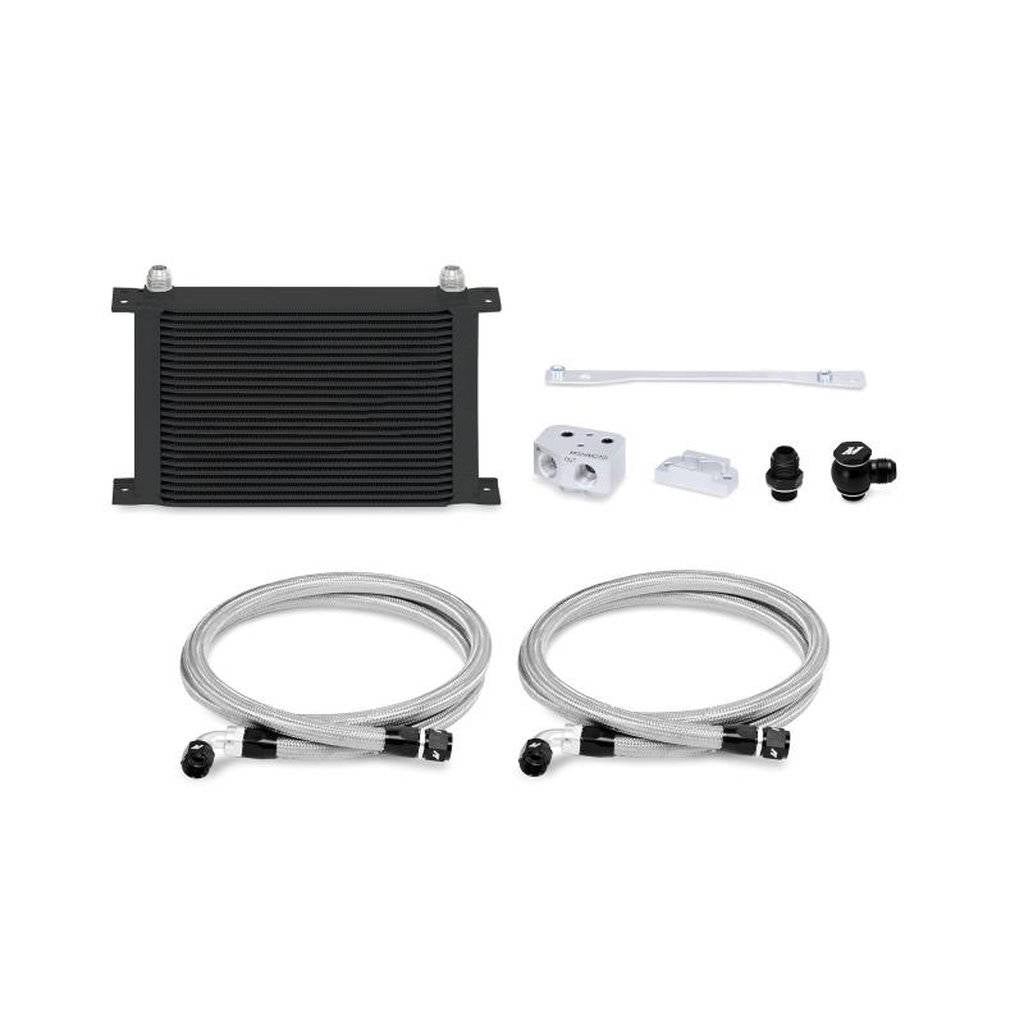

Kit comes with::

• 25-Row Oil Cooler

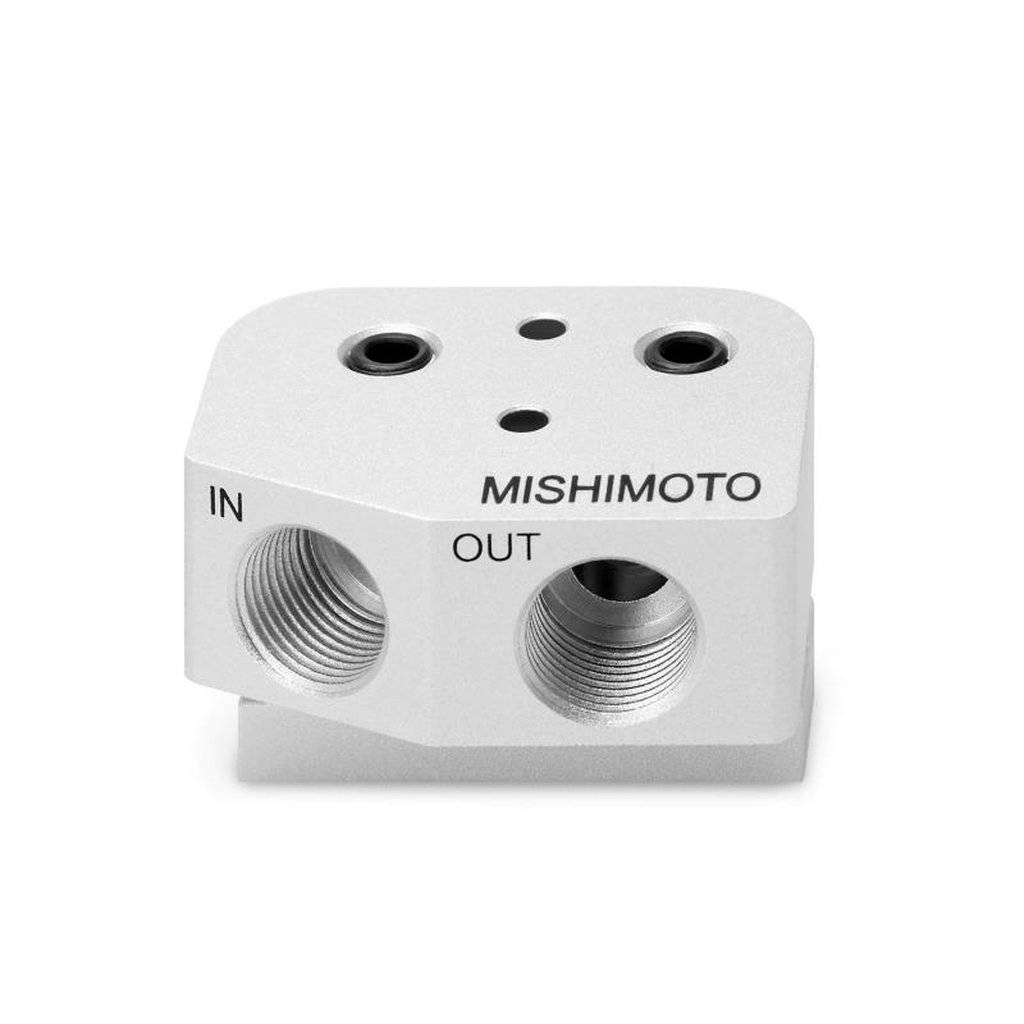

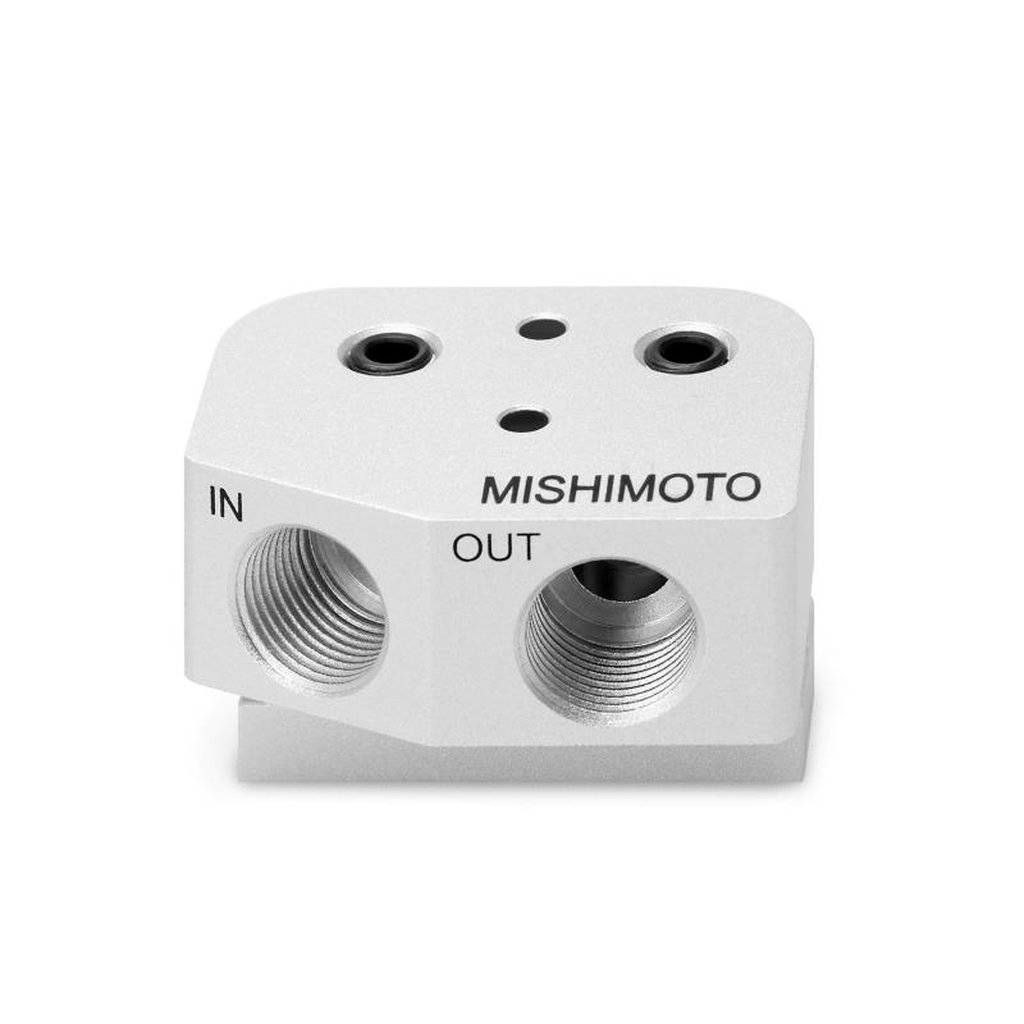

• Mishimoto LS1/LS2 Oil Cooler Adapter
• 6-ft Stainless Steel Braided Hose with 90 & Straight -10AN Fittings
• Banjo Fitting with Bolt M20 x -10AN, Black
• M20 x -10AN Straight Fitting, Black
• Mounting Hardware Set
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2001-2005 Holden Monaro (V2 VC8 & VZ)
• 1999-2006 Holden Commodore (VT, VX, VY & VZ)
• 1999-2006 Holden Commodore Ute
• 1999-2006 Holden Statesman (WH, WK, WL)
• 1999-2006 Holden Caprice (WH, WK, WL)
• 2001-2006 Vauxhall Monaro
