MISHIMOTO MMOC-BRZ-13 Oil cooler SUBARU BRZ/TOYOTA GT86

Description MISHIMOTO MMOC-BRZ-13 Oil cooler SUBARU BRZ/TOYOTA GT86

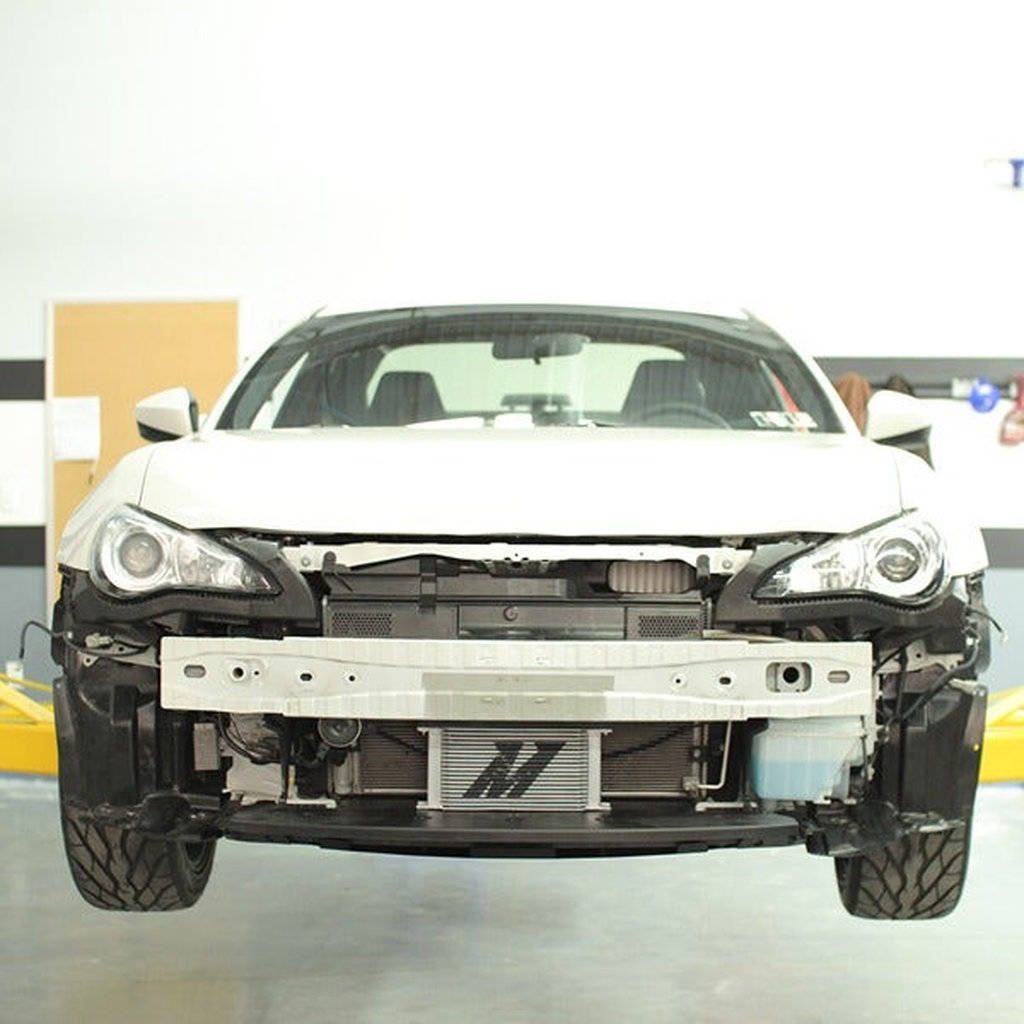

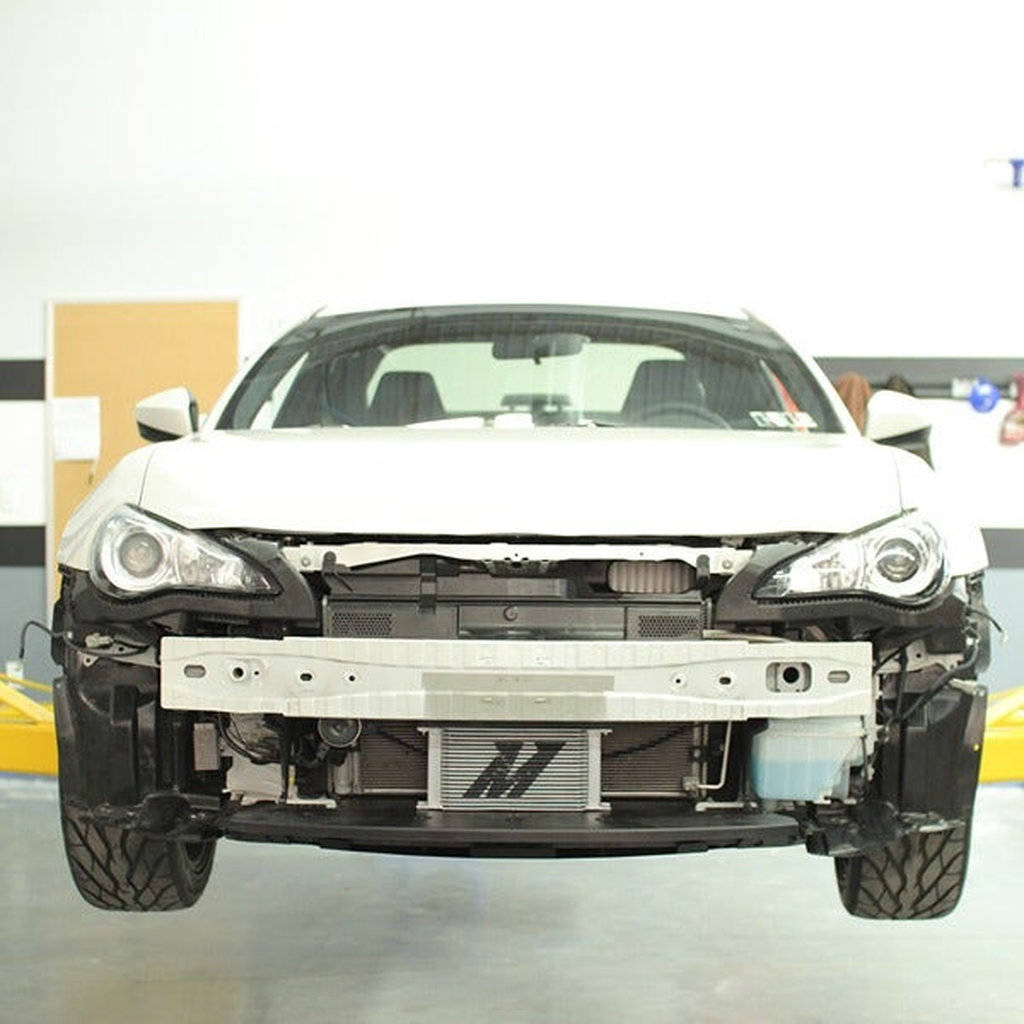

Mishimoto introduces a direct-fit oil cooler kit designed specifically for the Subaru BRZ and Scion FR-S. This kit positions a large oil cooler in the front bumper to provide ample airflow and optimal cooling, suitable for both street and track use. Proper oil temperature regulation helps improve durability and longevity for stock or modified 2.0L engines.

The kit includes all necessary components for a seamless bolt-on installation, such as application-specific mounting brackets, stainless steel braided oil lines, a billet aluminum oil sandwich plate, and CNC-machined aluminum spacers. The oil cooler kit is available with either a standard oil sandwich plate or a rear-mounted thermostat option for additional oil temperature control. It is compatible with Mishimoto’s performance aluminum radiator and silicone radiator hose kit for enhanced cooling performance.

Note: Mishimoto fully inspects and cleans all products prior to packaging. However, it is recommended that customers flush the oil cooler with one quart of clean oil prior to installation to remove any debris accumulated during shipping.

Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ft. Do not exceed the maximum torque rating of 35 ft-lb.

Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that all connections be checked at regular intervals, especially during the first few miles after installation.

• Direct-fit kit for Subaru BRZ and Scion FR-S
• Large oil cooler for optimal airflow and cooling
• Includes all components for bolt-on installation

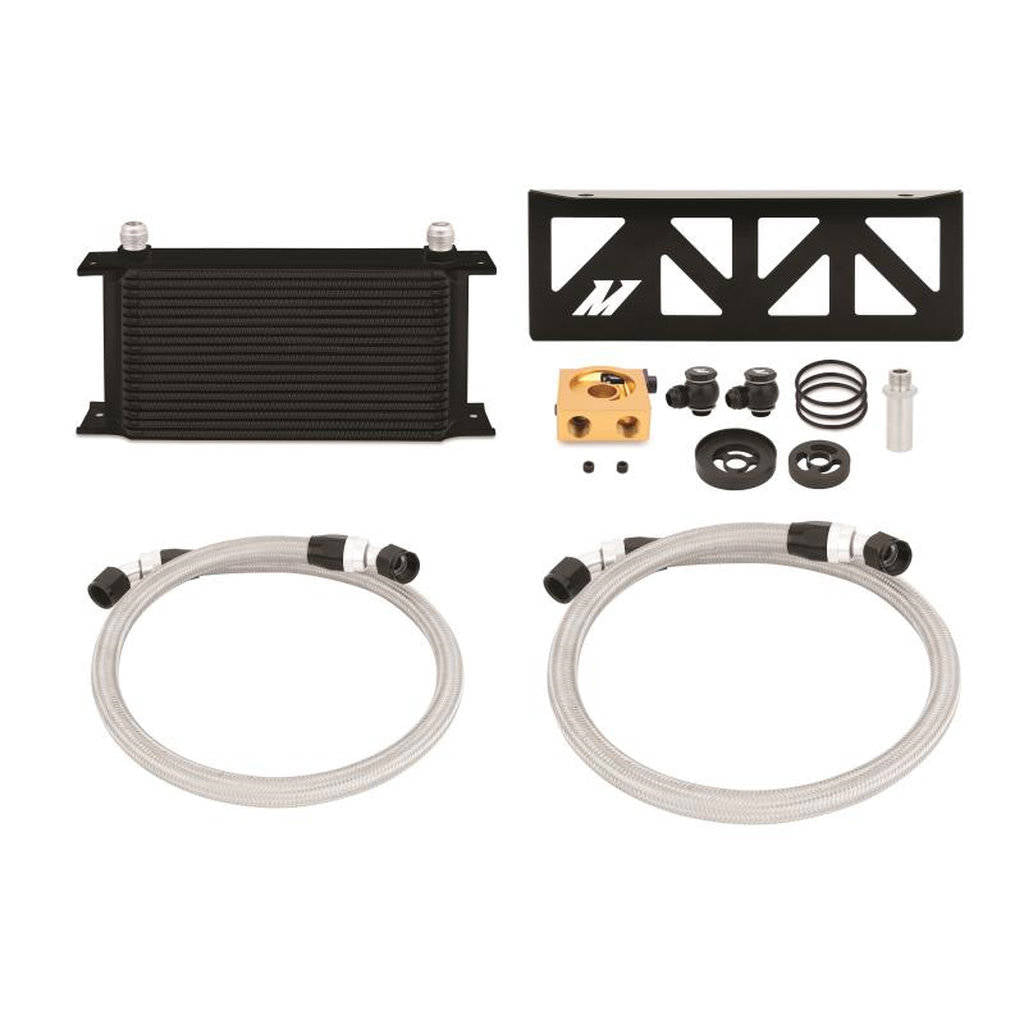

• Available with standard or thermostat-equipped oil sandwich plate

Specifications:

• Rows: 19
• Core Length (in): 11
• Core Height (in): 5.43
• Core Thickness (in): 1.97
• Engine Codes: FA20
• Chassis Codes: ZN6, ZC6

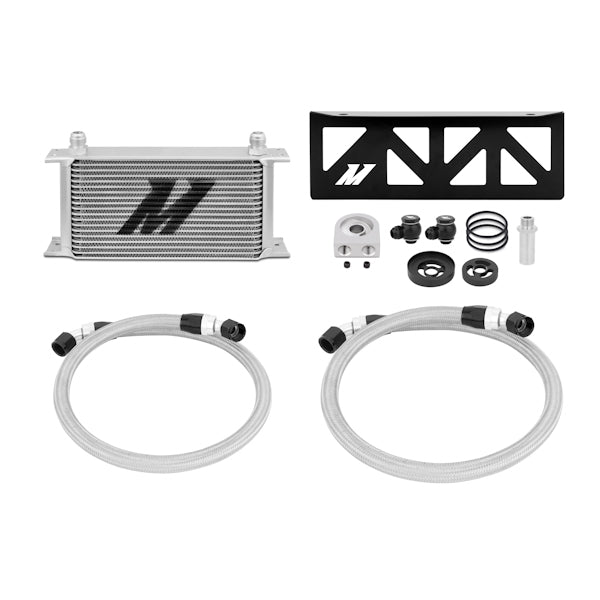

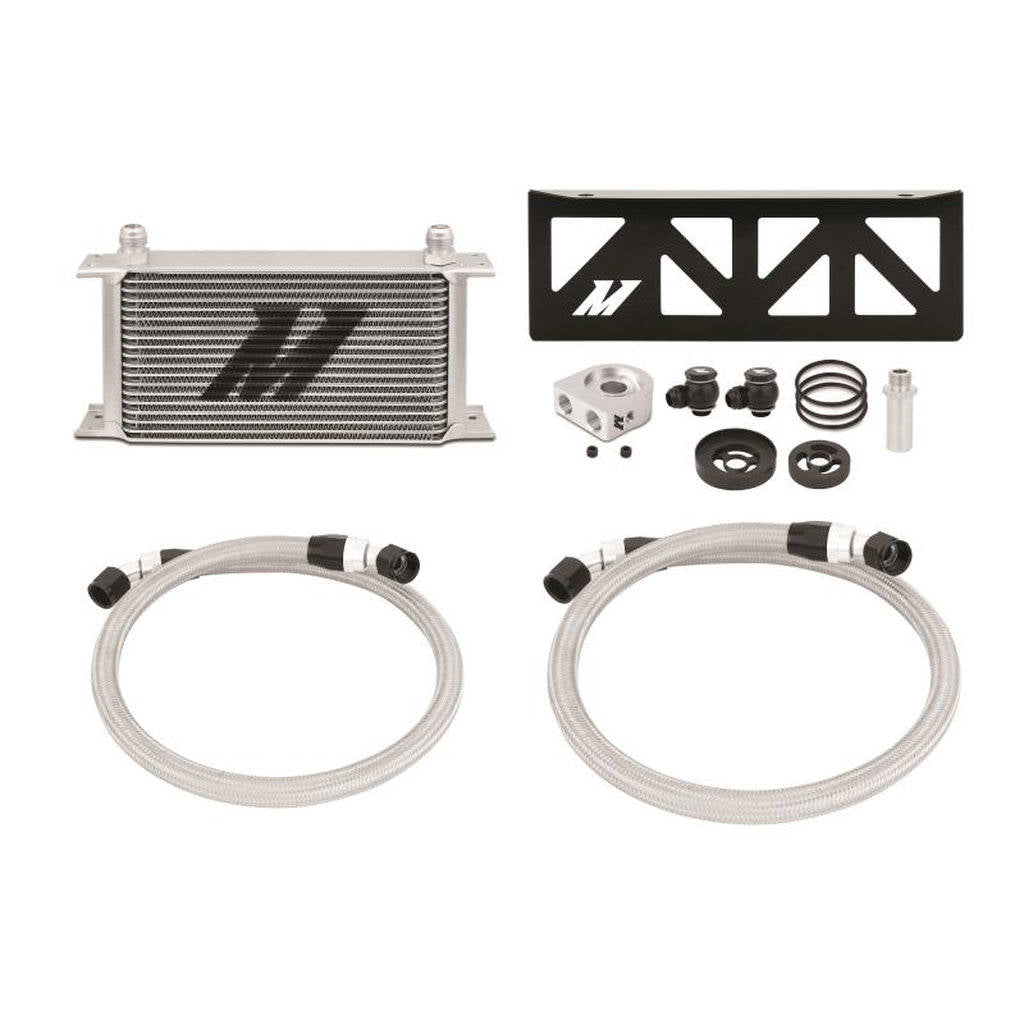

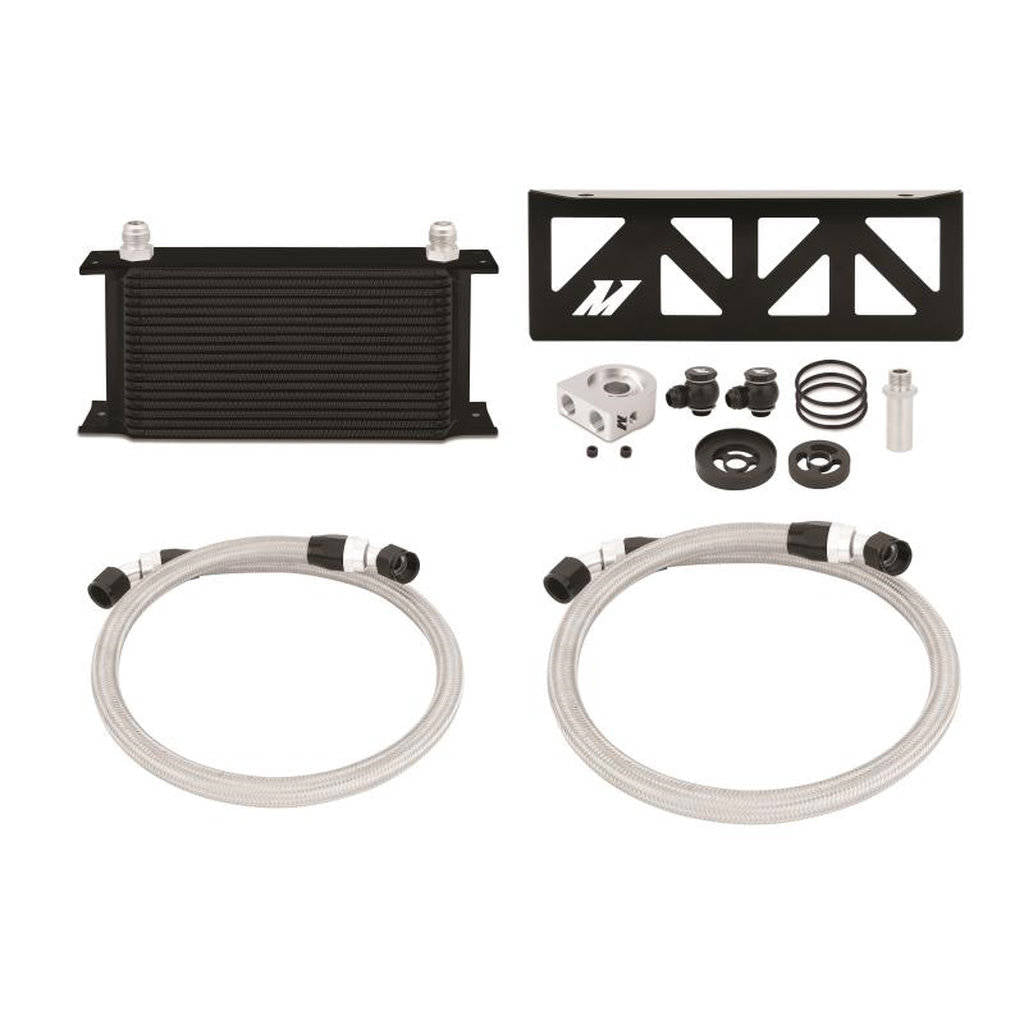

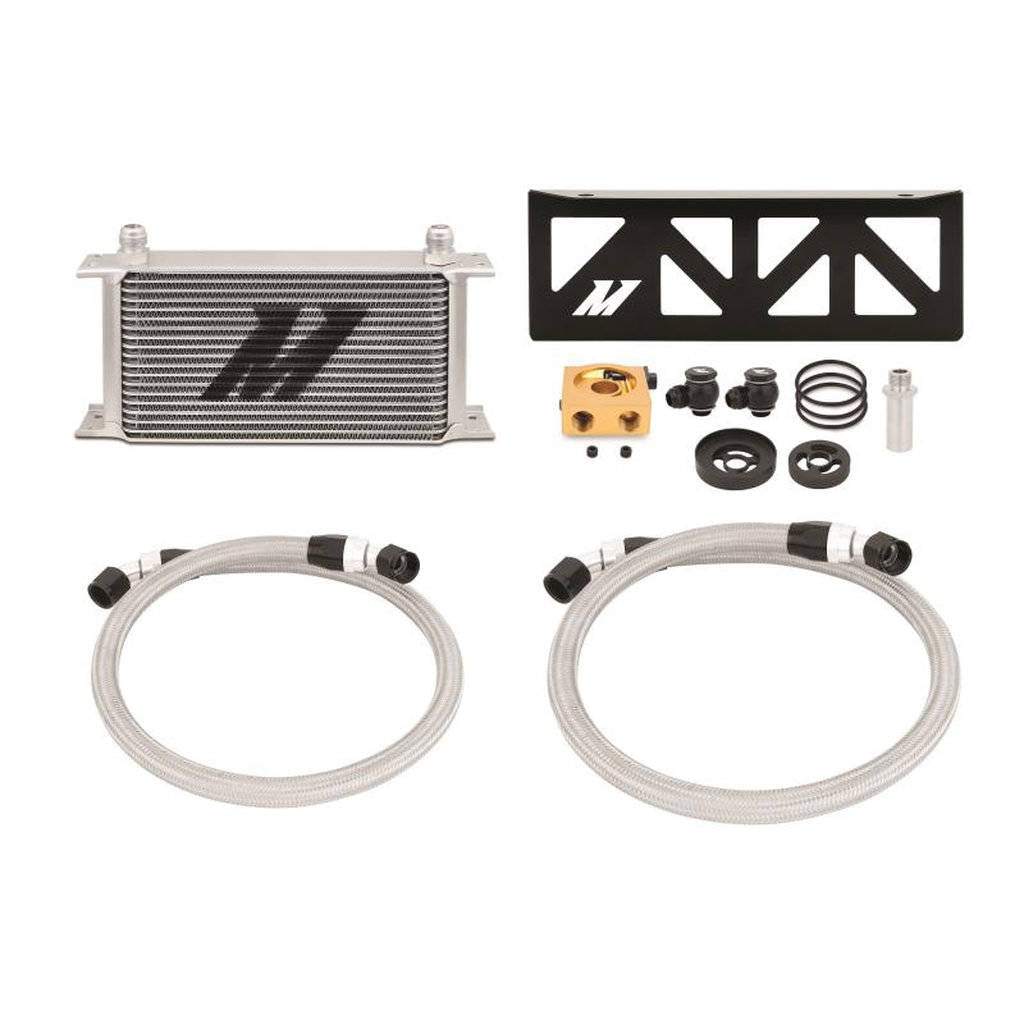

Kit comes with::

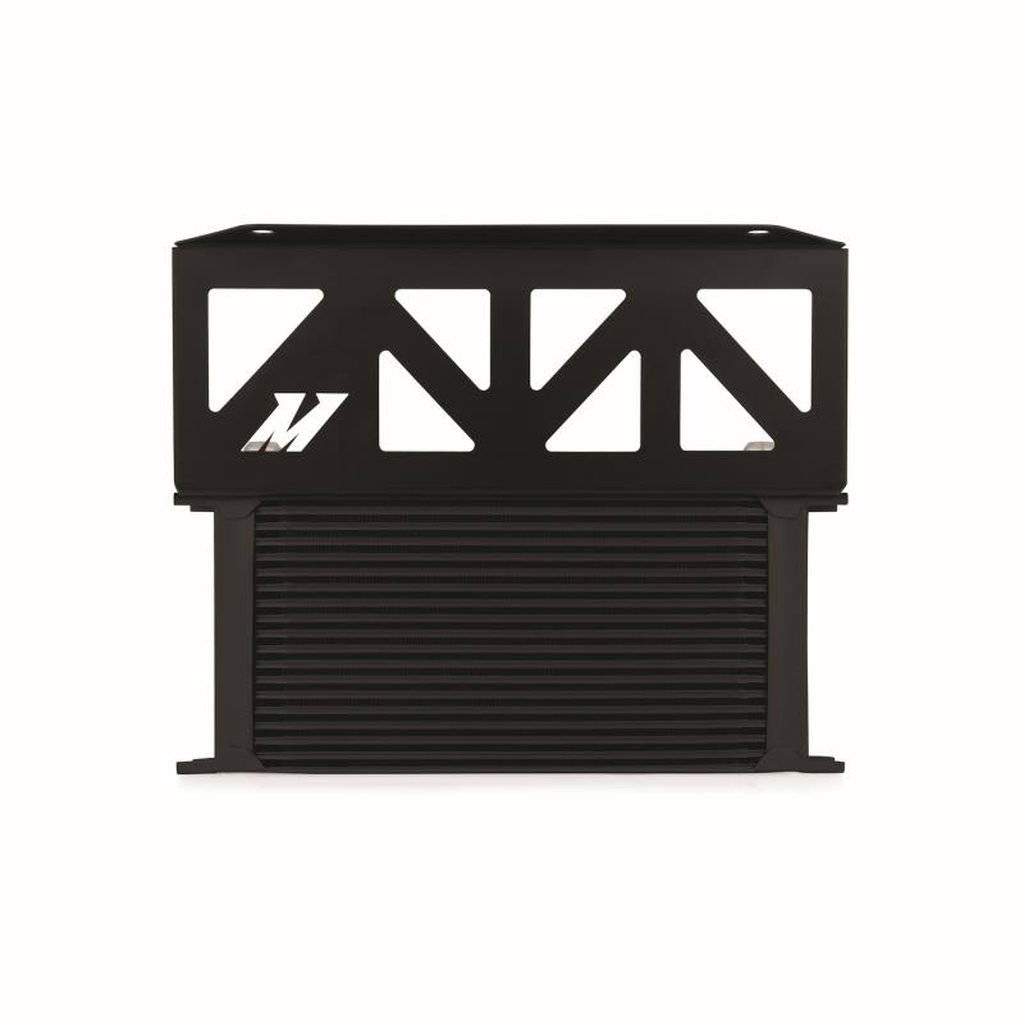

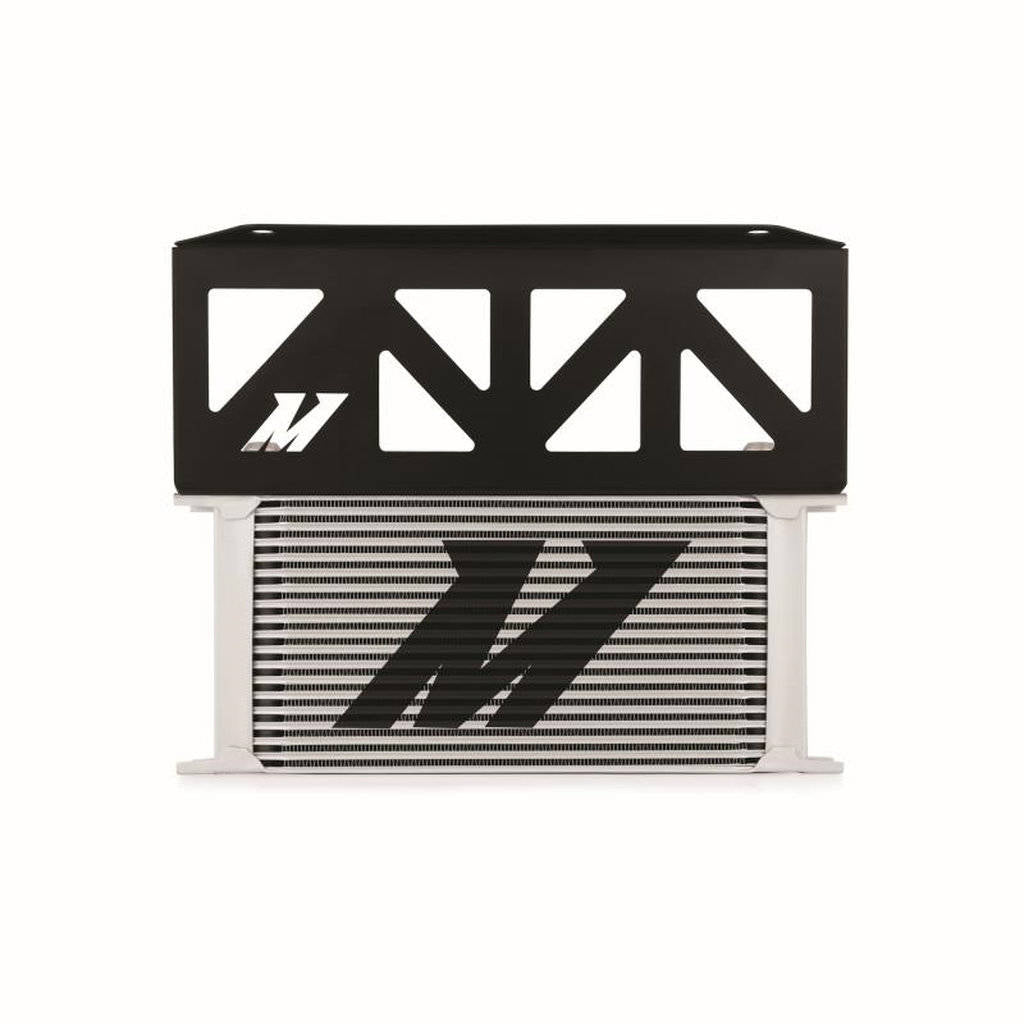

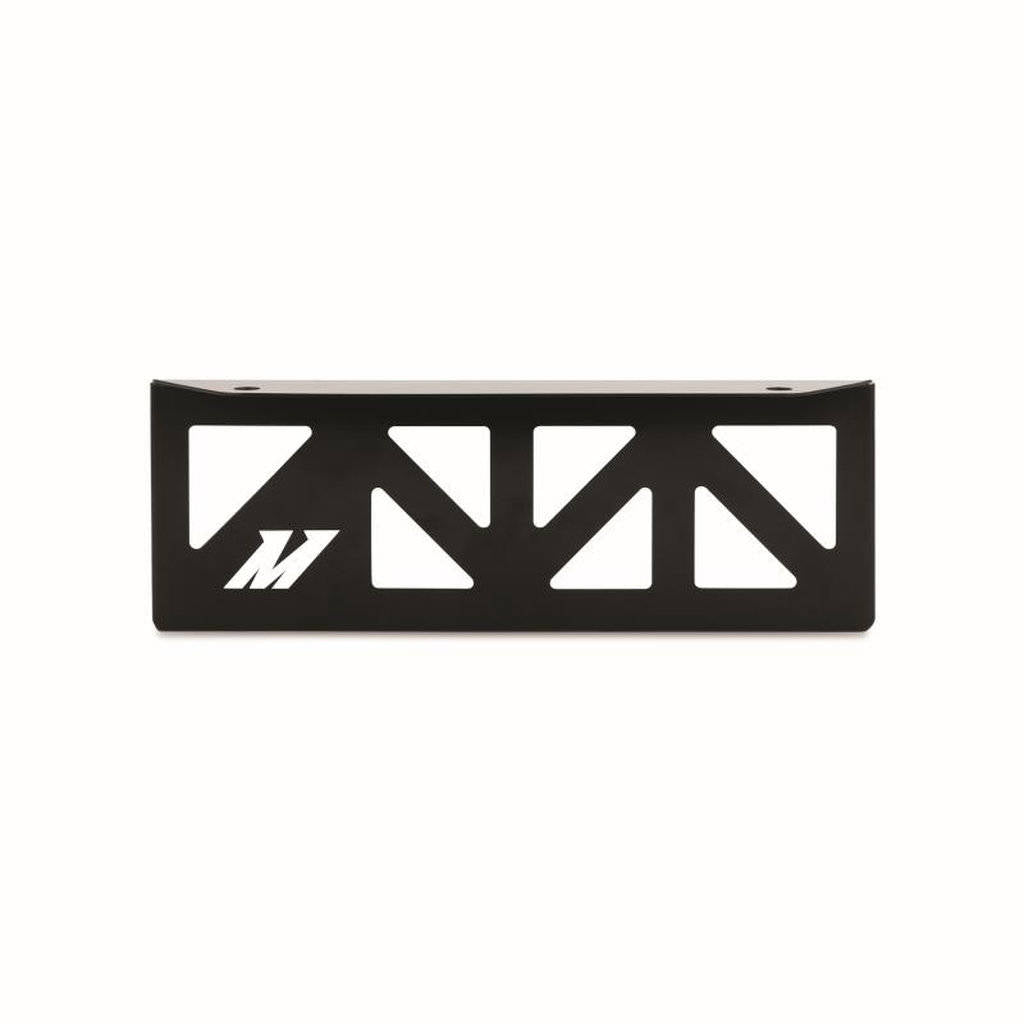

• Application-specific mounting bracket
• 19-row oil cooler

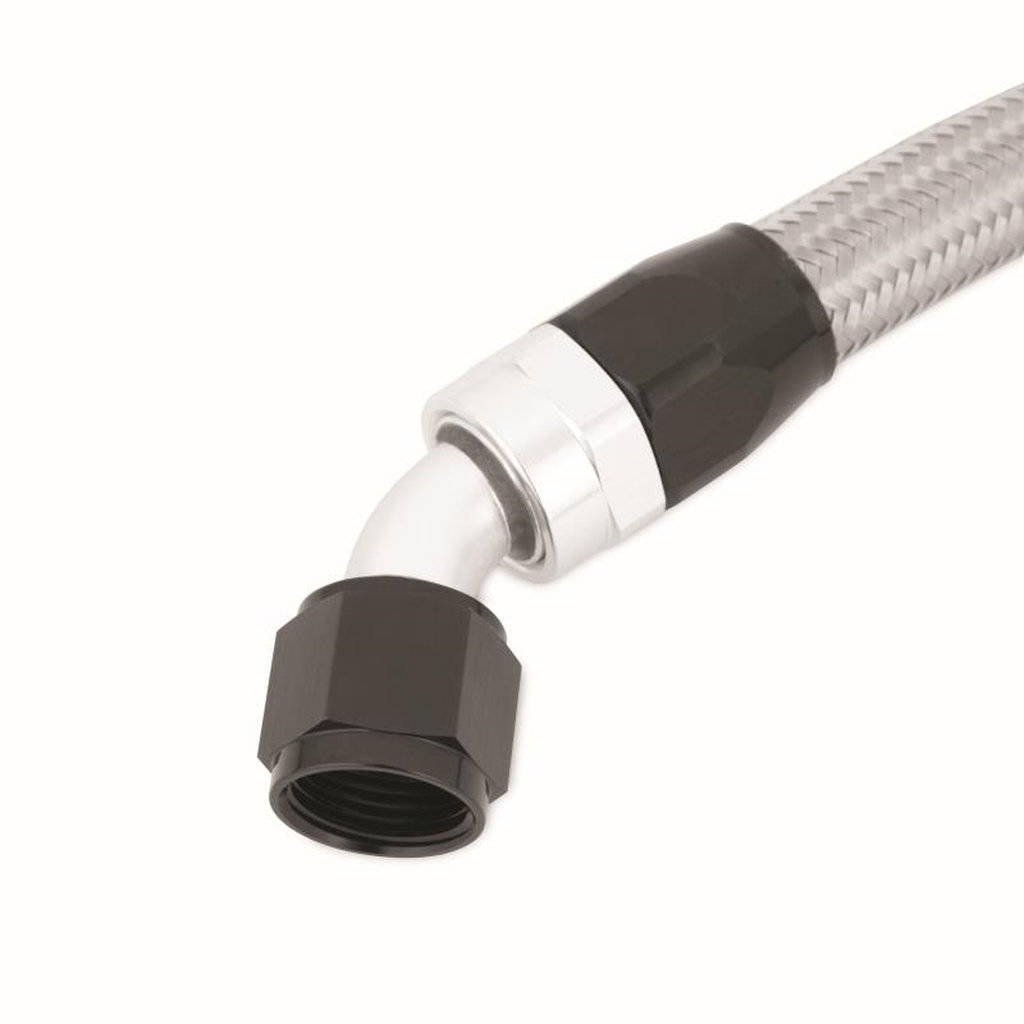

• 3-ft stainless steel braided hose with -10AN fittings
• 4-ft 2-in stainless steel braided hose with -10AN fittings

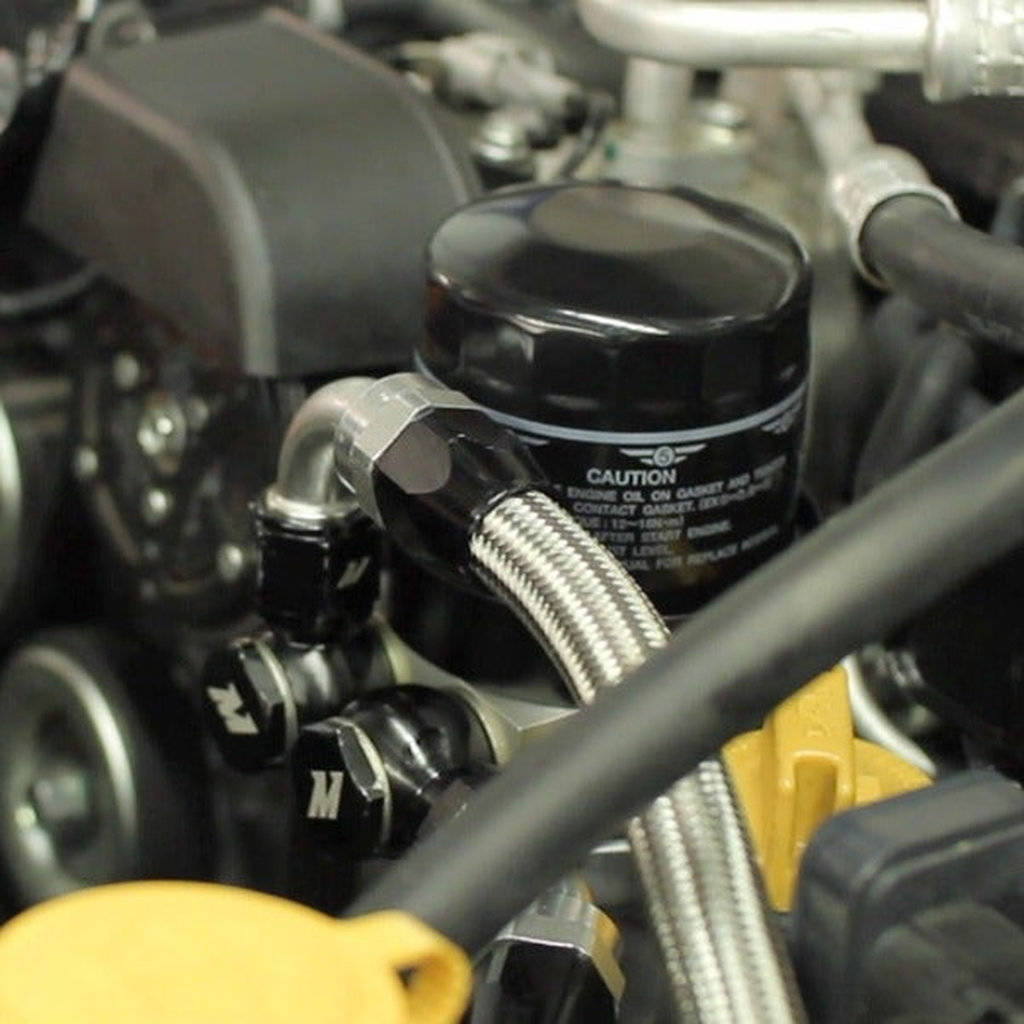

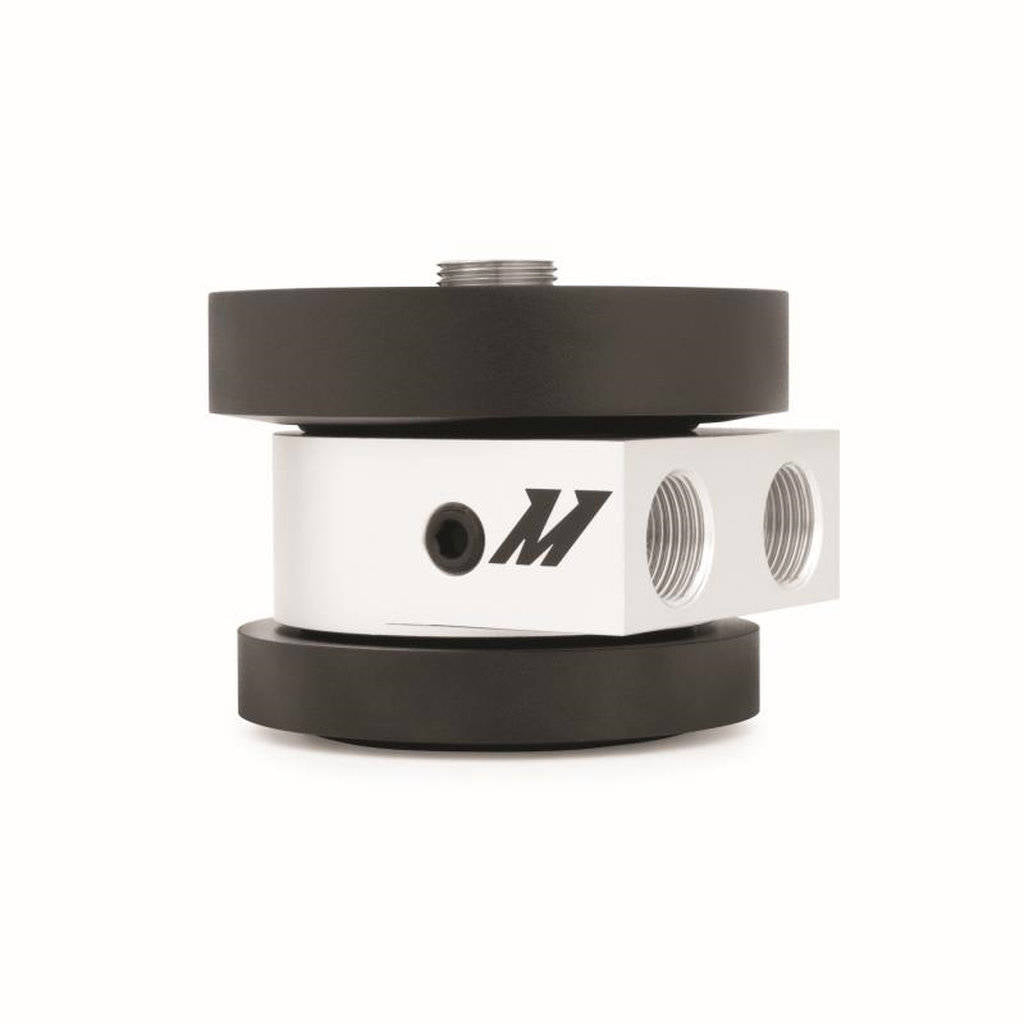

• Oil sandwich plate
• 6061 aluminum CNC sandwich plate spacers, black

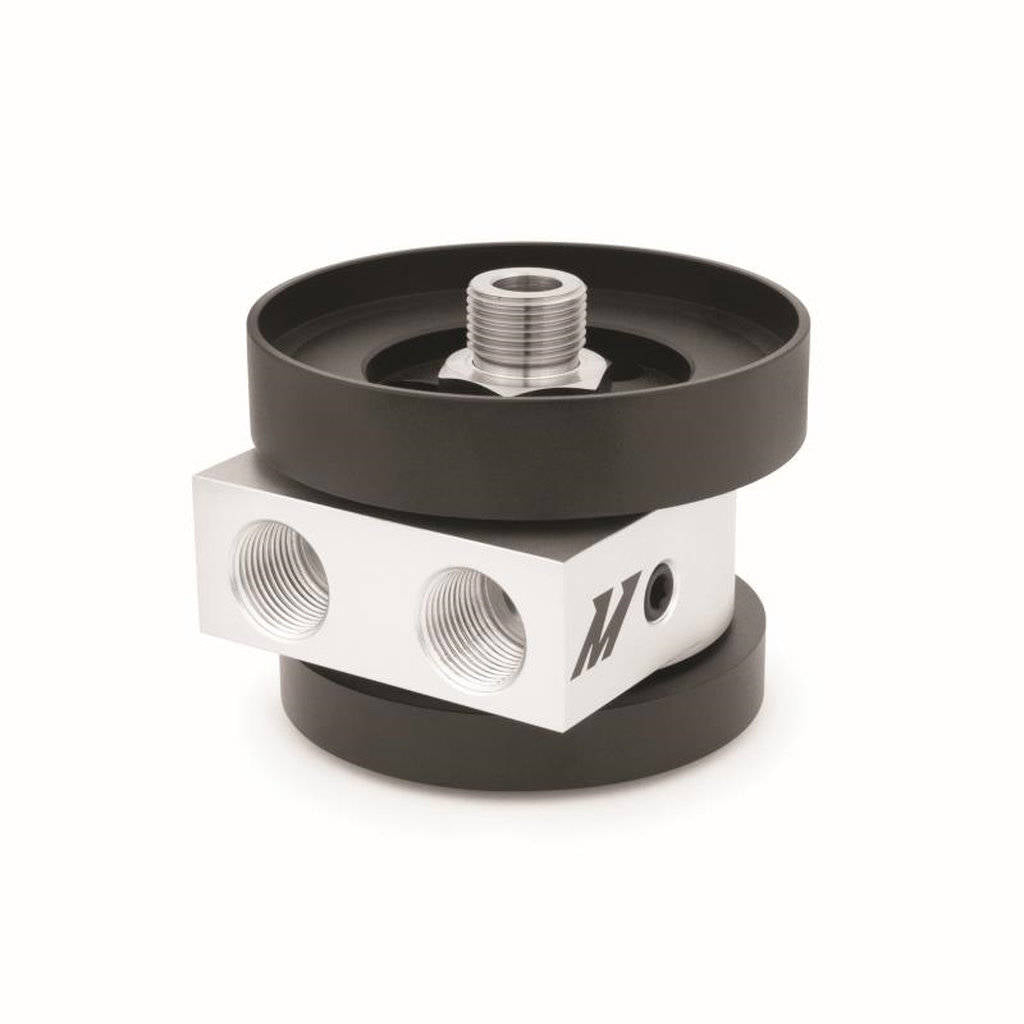

• Stainless steel sandwich plate adapter, M20
• Banjo fitting with bolt M20 x -10AN, black
• 1/8-in NPT plugs
• O-rings
• Mounting hardware set
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2013-2021 Subaru BRZ
• 2013-2021 Scion FR-S
• 2013-2021 Toyota GT86
