MISHIMOTO MMINT-XD-16SL NISSAN Titan XD 5.0L Cummins Intercooler, 2016+ Silver

Description MISHIMOTO MMINT-XD-16SL NISSAN Titan XD 5.0L Cummins Intercooler, 2016+ Silver

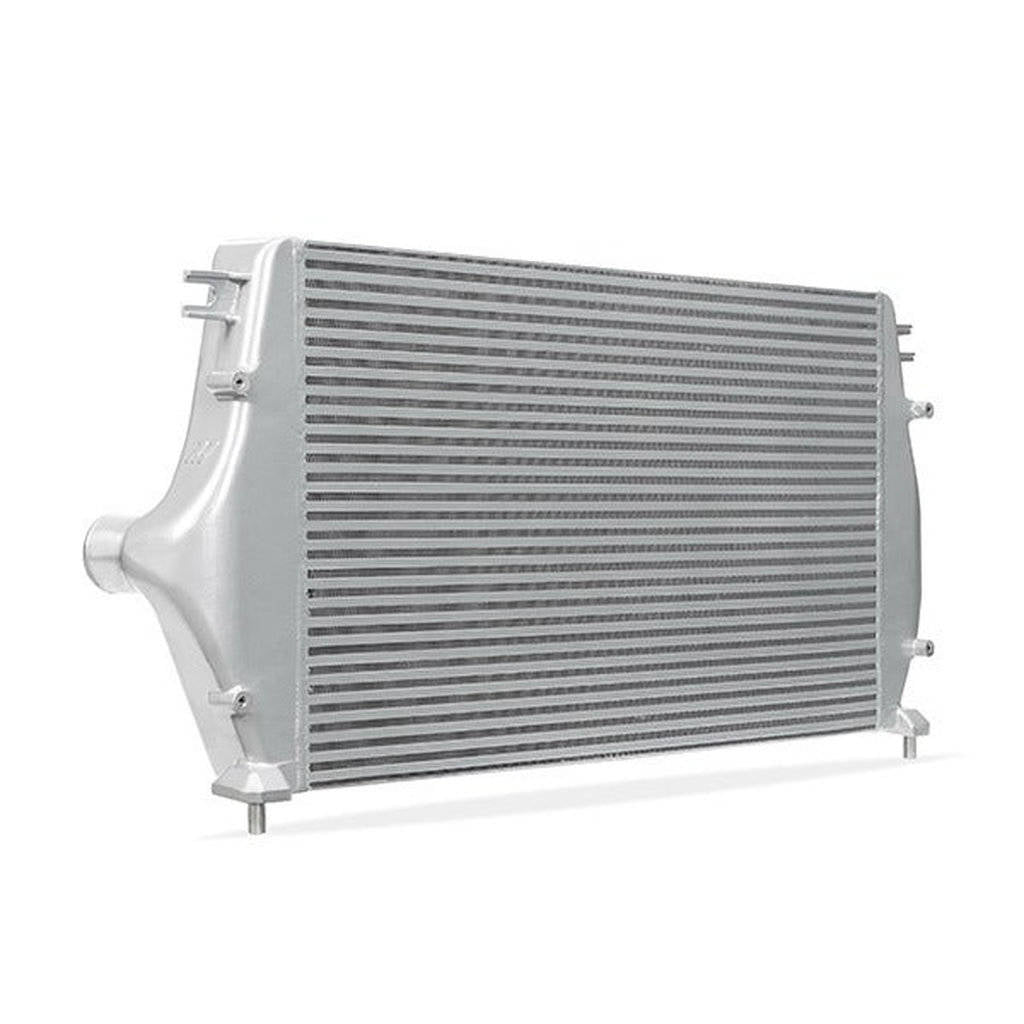

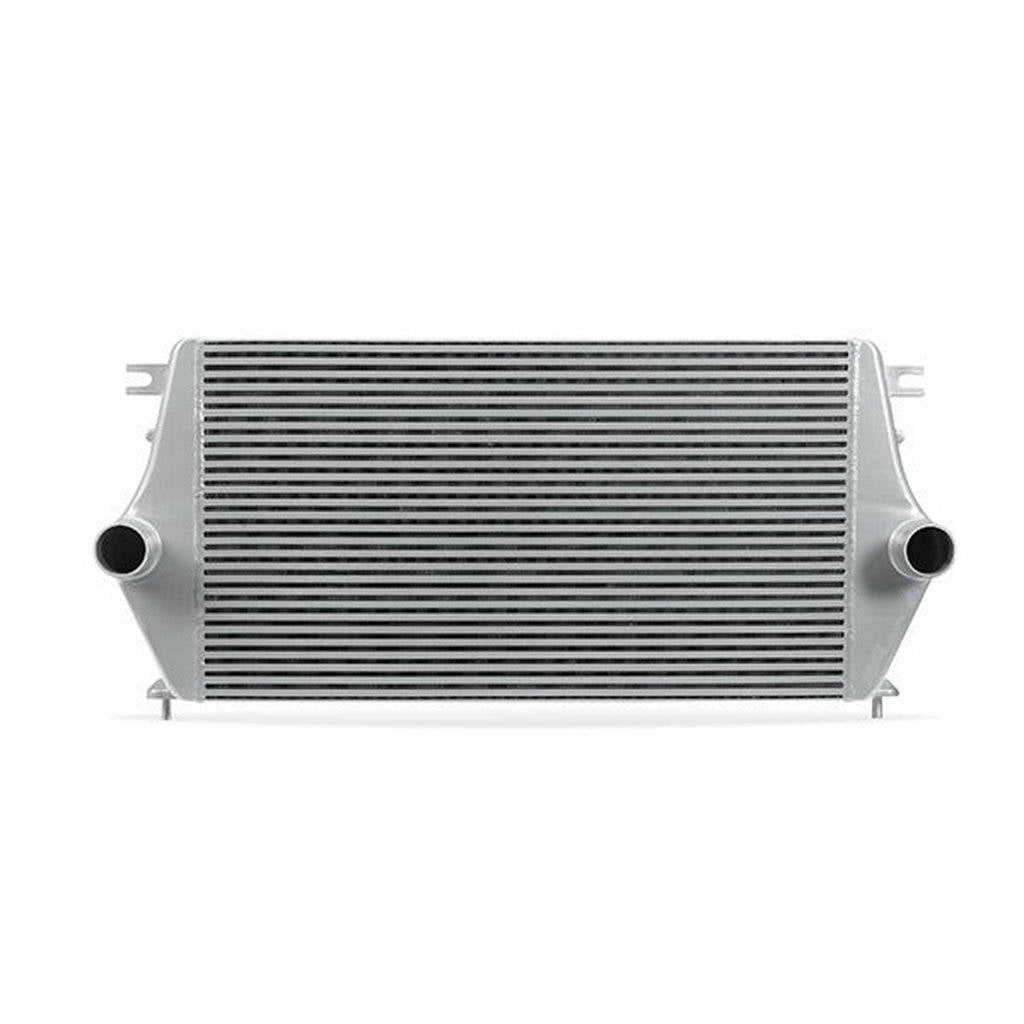

Cummins engines are recognized for smooth power delivery and engine longevity. Mishimoto has developed an intercooler for the 2016-2019 Nissan Titan XD, designed for durability and performance. The Mishimoto intercooler features robust cast aluminum end tanks and a dense bar-and-plate core.

This intercooler offers increased core volume to support higher boost pressures and lower EGTs in both stock and modified trucks. It includes larger-than-factory intercooler outlets for improved airflow. Two silicone boots with DuraCore technology and Constant Tension T-bolt Clamps are included for reliable holding power and increased resistance to heat, pressure, fuel, and oil.

The intercooler is available in Sleek Silver or Stealth Black finishes and is backed by the Mishimoto Lifetime Warranty.

Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).

Note: The two aluminum spacers included with this kit are for those installing the Mishimoto intercooler with the stock radiator.

• Cast aluminum end tanks and dense bar-and-plate core construction
• Increased core volume supports higher boost pressures and lowers EGTs

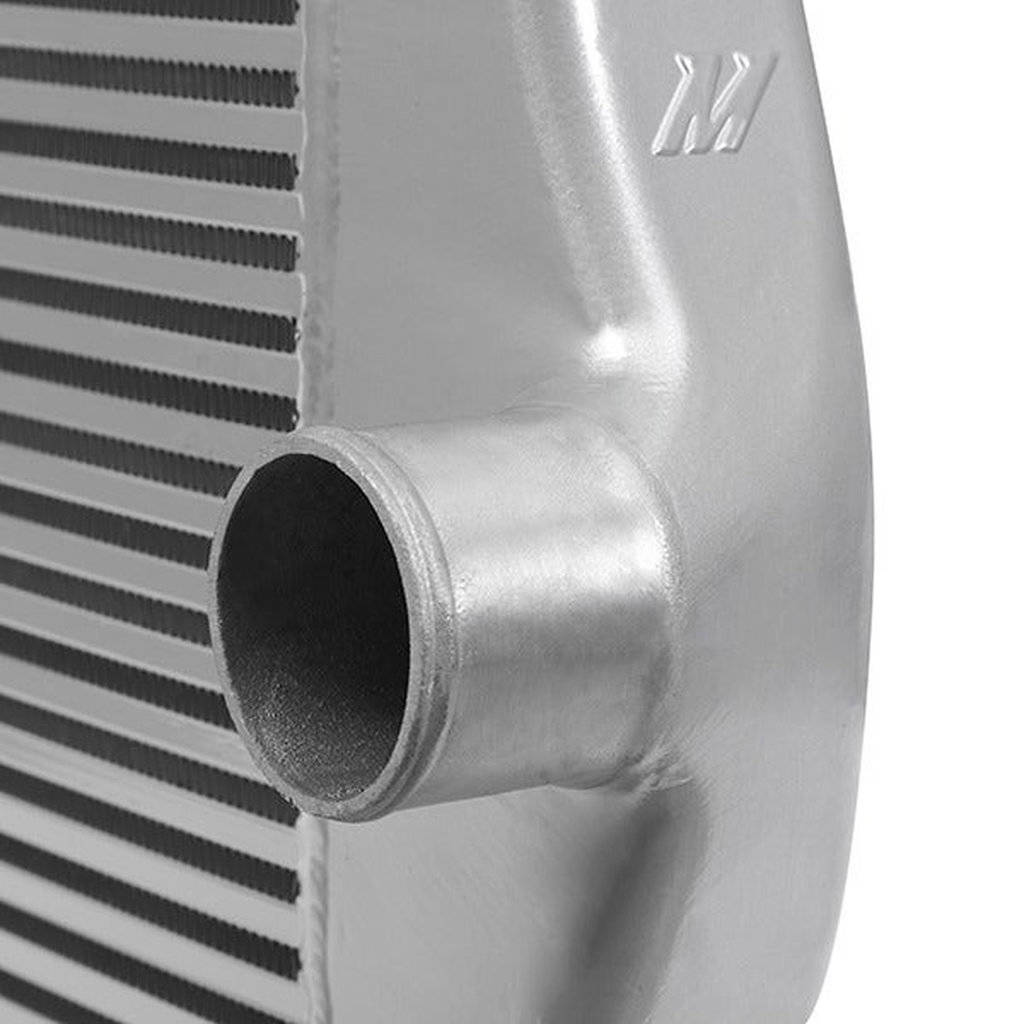

• Larger-than-factory intercooler outlets for increased flow
• Includes silicone boots with DuraCore technology and Constant Tension T-bolt Clamps

Specifications:

• Engine Codes: IS-V
• Overall Length (in): 42
• Overall Height (in): 19
• Core Thickness (in): 3
• Core Length (in): 35
• Core Height (in): 19

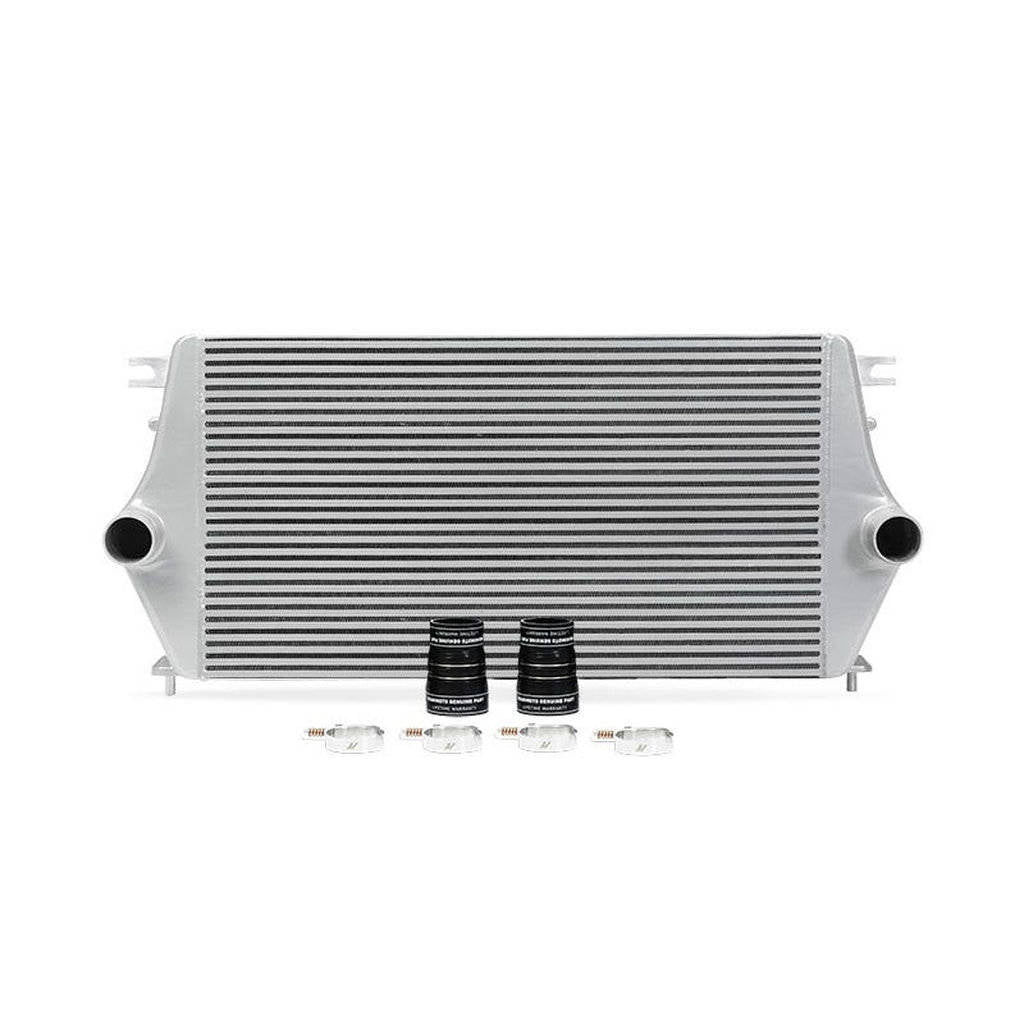

Kit comes with::

• Mishimoto Intercooler
• 2 Aluminum Spacers

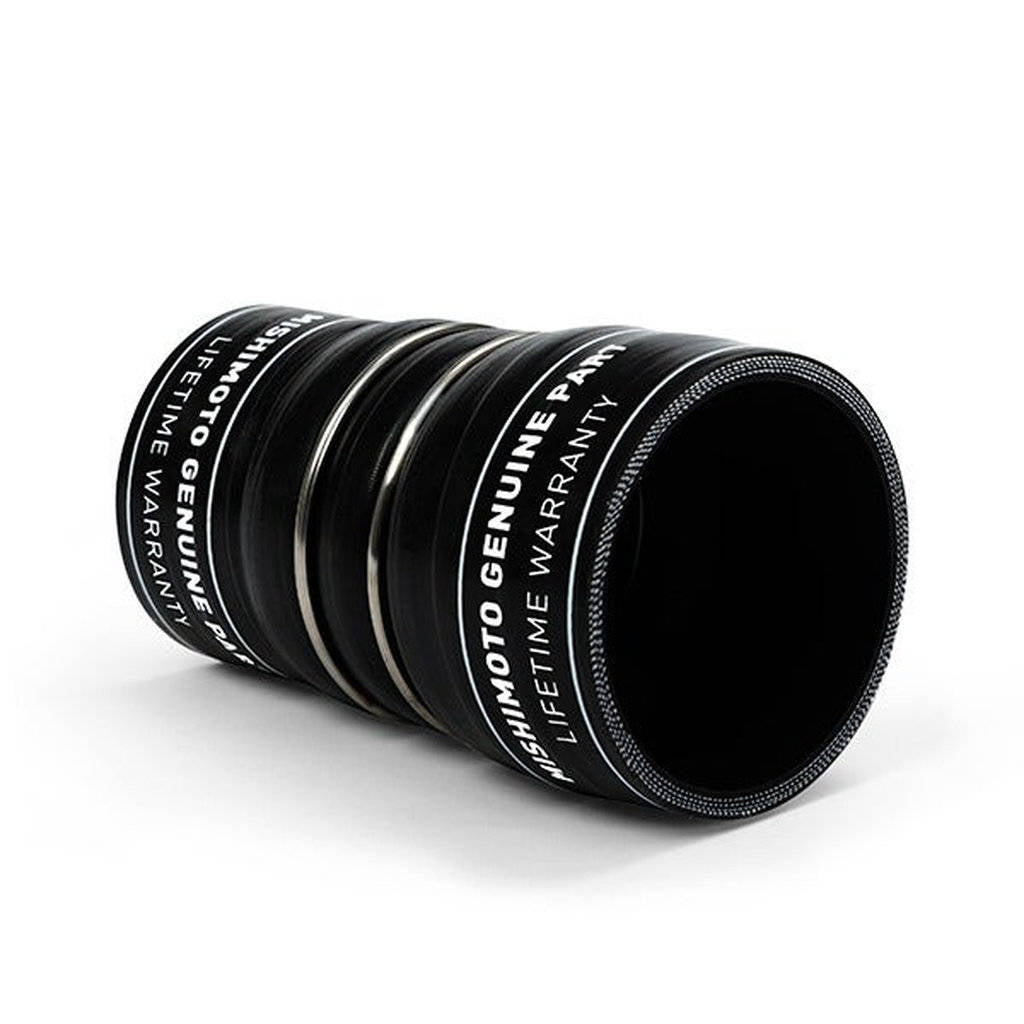

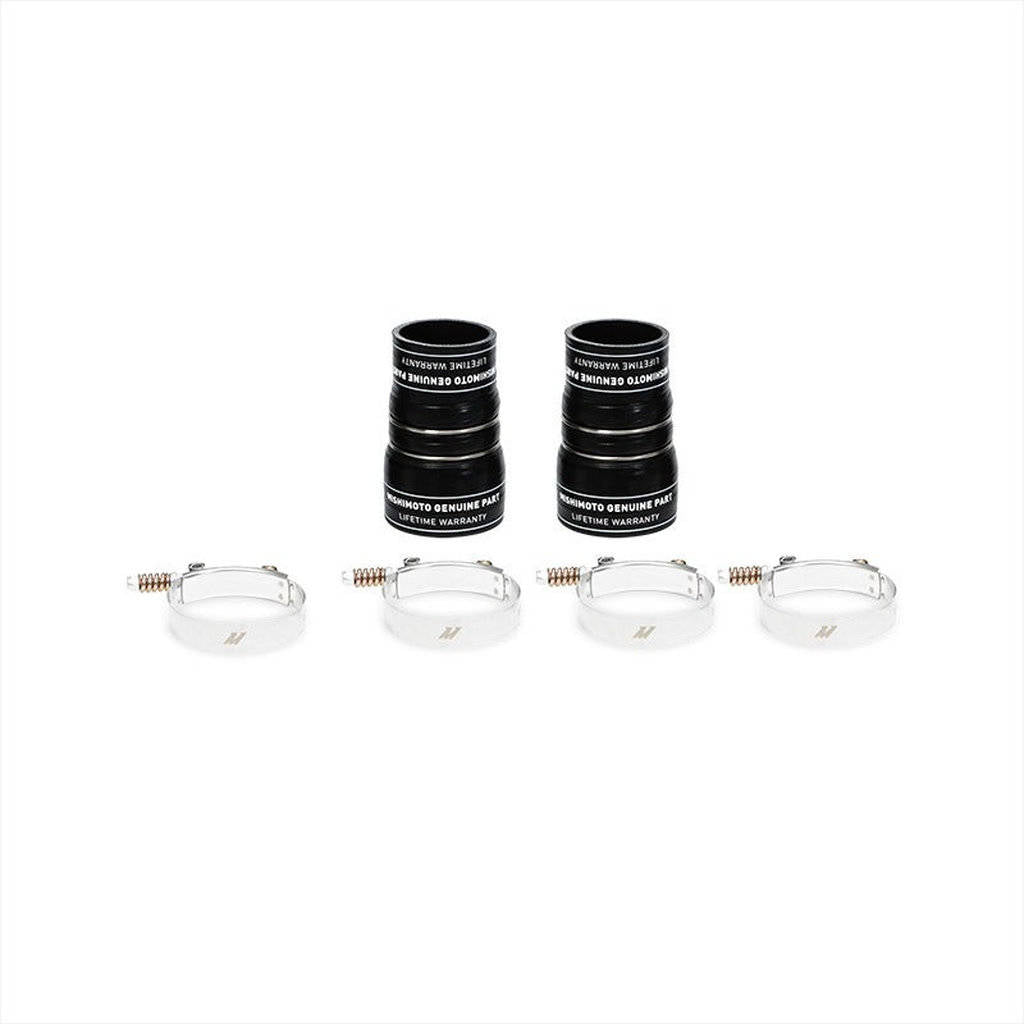

• 2 Silicone Boots with DuraCore Technology
• 4 Constant-Tension T-Bolt Clamps

Vehicle Compatibility:

• 2016-2019 Nissan Titan XD 5.0 Cummins
