MISHIMOTO MMINT-WRX-15BK SUBARU WRX Front-Mount Intercooler Kit, 2015+ Gold Intercooler

Description MISHIMOTO MMINT-WRX-15BK SUBARU WRX Front-Mount Intercooler Kit, 2015+ Gold Intercooler

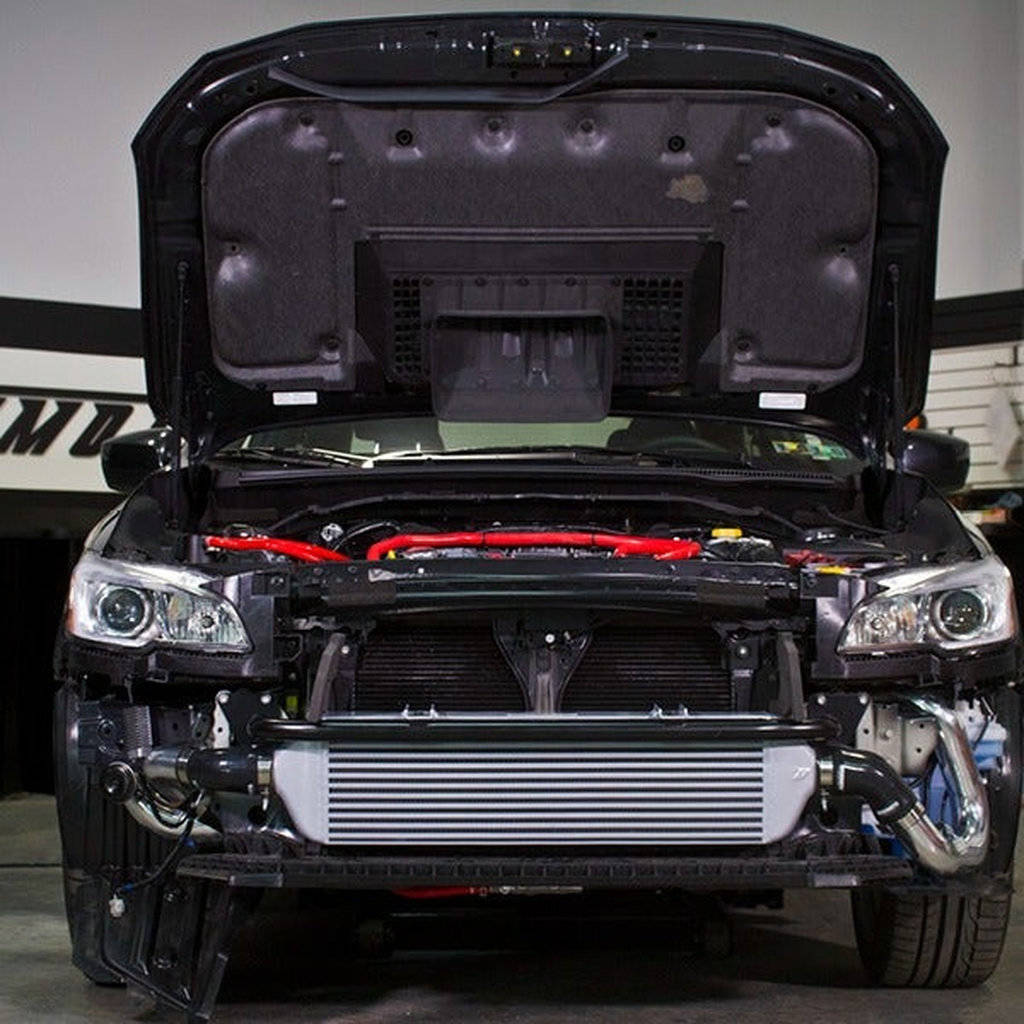

The Mishimoto 2015 WRX Front-Mount Intercooler Kit is designed for applications requiring maximum airflow and cooling. It features a large 28-inch intercooler core, providing significant cooling capability without excessive pressure drops that can affect turbocharger longevity.

This front-mount intercooler uses smooth cast end tanks, CFD tested for optimal airflow, and includes four mandrel-bent aluminum pipes for efficient air delivery. The hot-side pipes are 2.25 inches in diameter for high airflow velocity and quick response, while the cold-side pipes range from 2.5 to 2.75 inches to match the throttle body diameter. The kit includes an application-specific crash bar, all necessary brackets, couplers, and clamps for a straightforward installation, with no cutting or drilling required.

Mishimoto tested this intercooler on a Stage 2 265 whp 2015 WRX, achieving significant drops in air intake temperatures and flow tested to over 600 whp. The kit is available in Sleek Silver or Stealth Black finishes and includes the Mishimoto Lifetime Warranty.

Recommendation: Mishimoto recommends that this intercooler kit not be used with the stock ECU programming. It is highly recommended that the customer be able to retune the vehicle's ECU after installing the intercooler kit.

Note: This kit does not fit with fog light equipped vehicles.

Note: This front-mount intercooler kit will not fit with the Mishimoto 2015+ WRX oil cooler kit.

Note: This kit is not compatible with some air-oil separator kits.

• Large 28-inch intercooler core for maximum cooling with minimal pressure drop
• CFD-tested cast end tanks for optimal airflow
• Mandrel-bent aluminum piping for efficient air delivery
• Includes all necessary hardware for installation with no cutting or drilling required

Specifications:

• Overall Length (in): 37.7
• Overall Height (in): 8.6
• Overall Width (in): 5.4
• Core Thickness (in): 3.5
• Core Length (in): 28
• Core Height (in): 8.05
• Inlet (in): 2.45
• Outlet (in): 2.75
• Engine Codes: FA20DIT
• Chassis Codes: VA
• This kit is rated for approximately 600 whp during normal operating conditions
• Maximum horsepower potential: near 700 whp

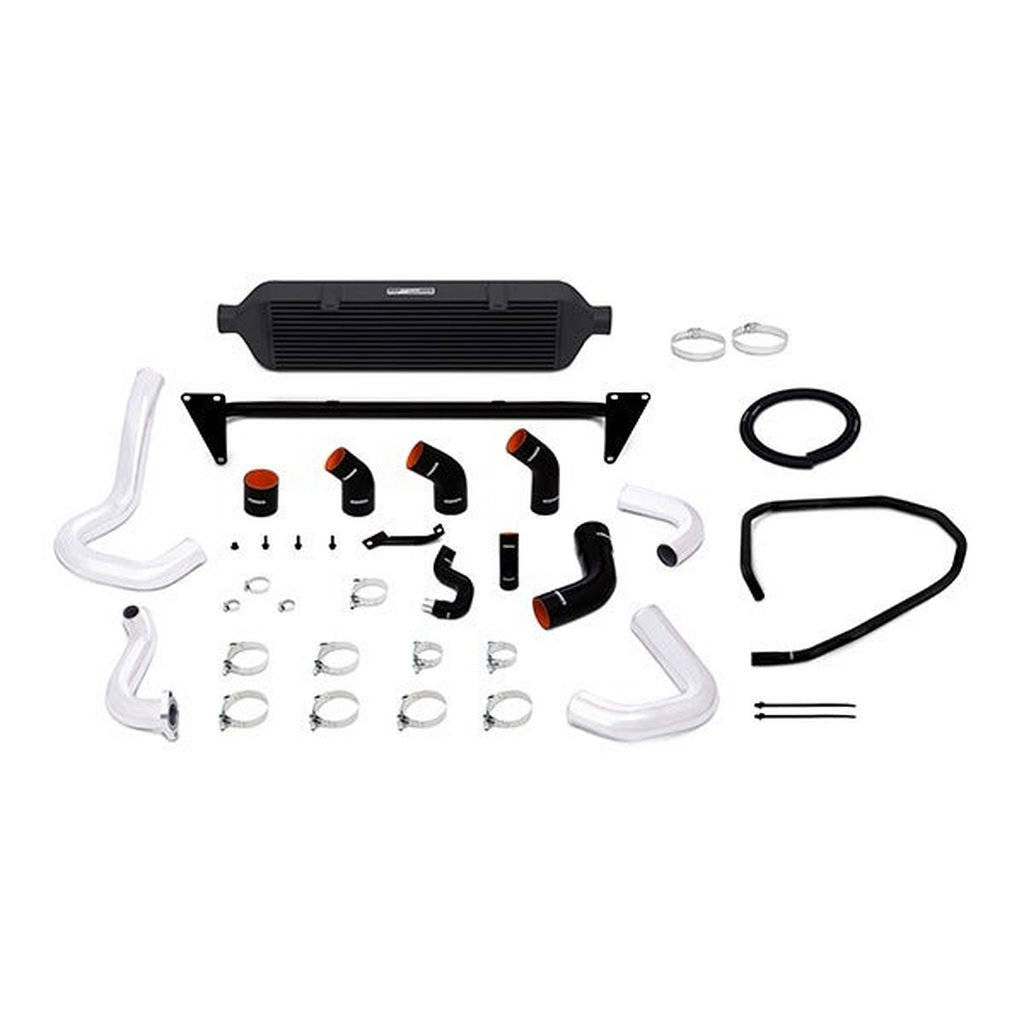

Kit comes with::

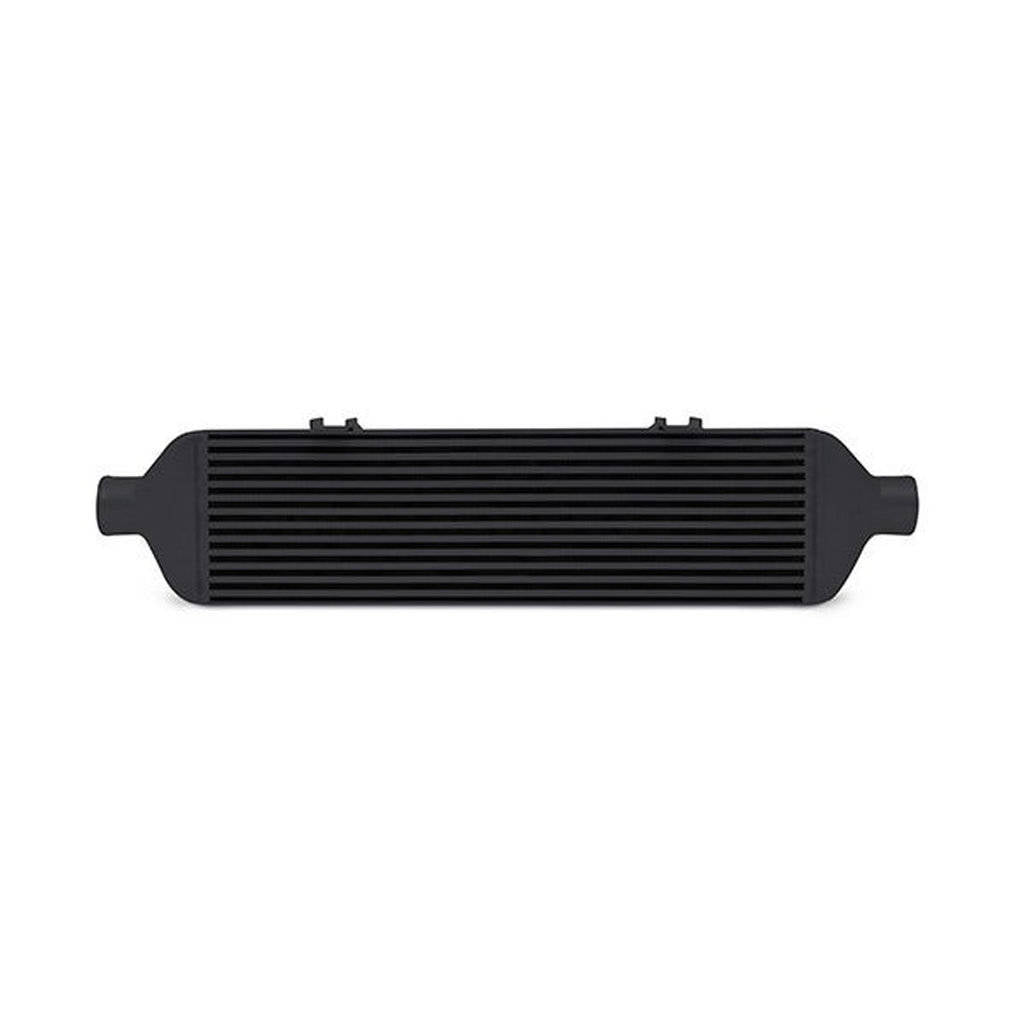

• Bar-and-Plate Intercooler

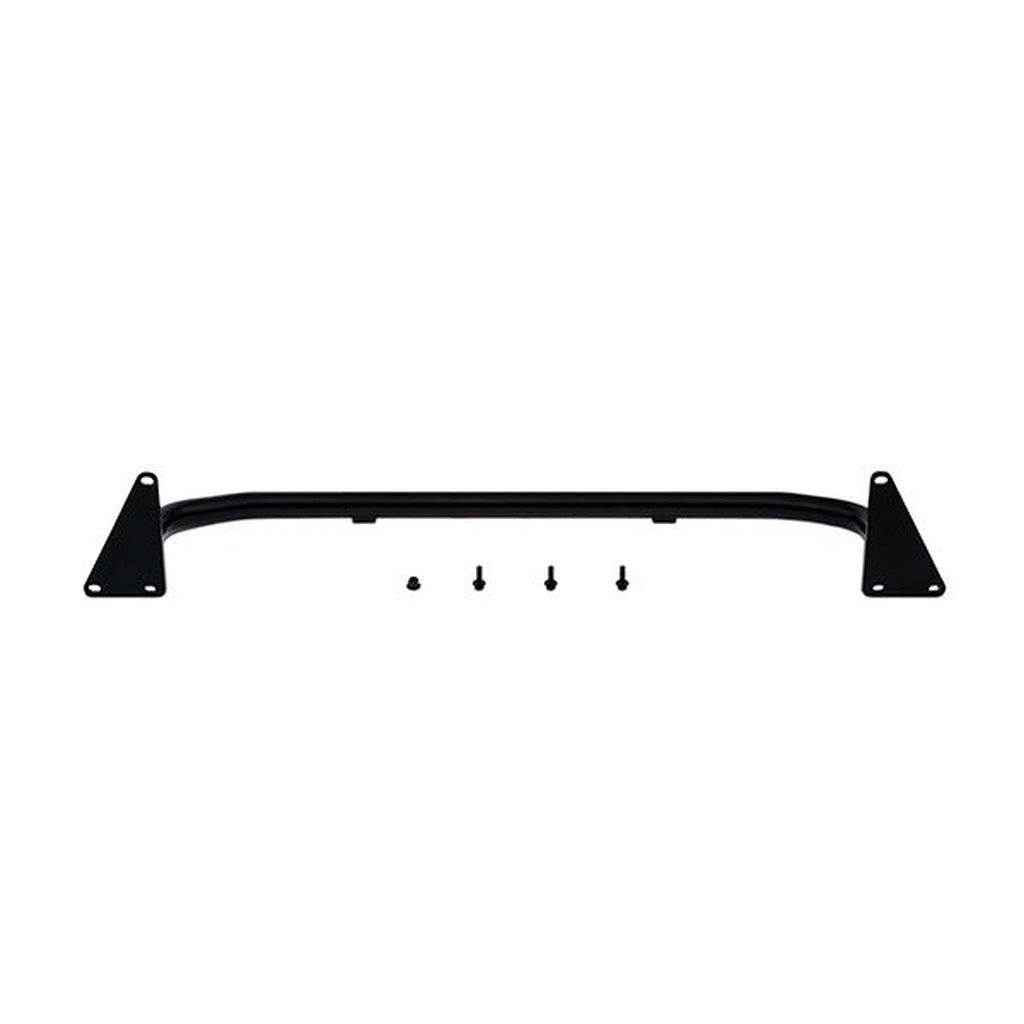

• Steel Crash Bar with Mounting Hardware

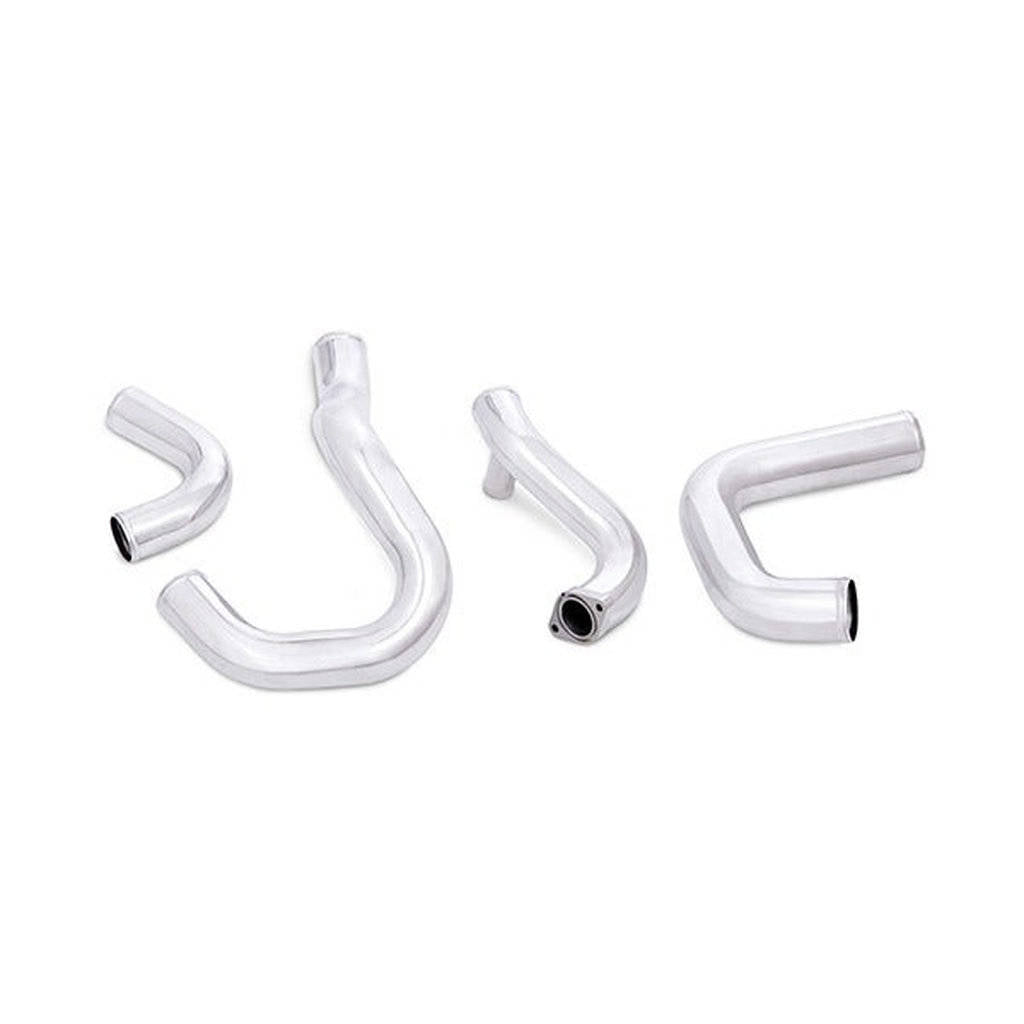

• 2 Hot-Side Intercooler Pipes
• 2 Cold-Side Intercooler Pipes
• Air Intake Bracket
• 2.25-in 45-degree Coupler
• 2.25-in to 2.75-in 45-degree Transition Coupler
• 2.5-in to 2.75-in 55-degree Transition Coupler
• 2.5-in to 2.75-in 65-degree Transition Coupler
• 3.00-in Straight Coupler
• BPV Recirculation Hose
• BPV Vacuum Hose
• 30-45mm Worm Gear Clamp
• 2 1.75-in T-bolt Clamps
• 3 2.5-in T-bolt Clamps
• 2 2.75-in T-bolt Clamps
• 5 3-in T-bolt Clamps

Vehicle Compatibility:

• 2015-2021 Subaru WRX (FA20DIT, VA)
