MISHIMOTO MMINT-RAM-13SL DODGE Ram 6.7L Cummins Intercooler, 2013-2016, Silver

Description MISHIMOTO MMINT-RAM-13SL DODGE Ram 6.7L Cummins Intercooler, 2013-2016, Silver

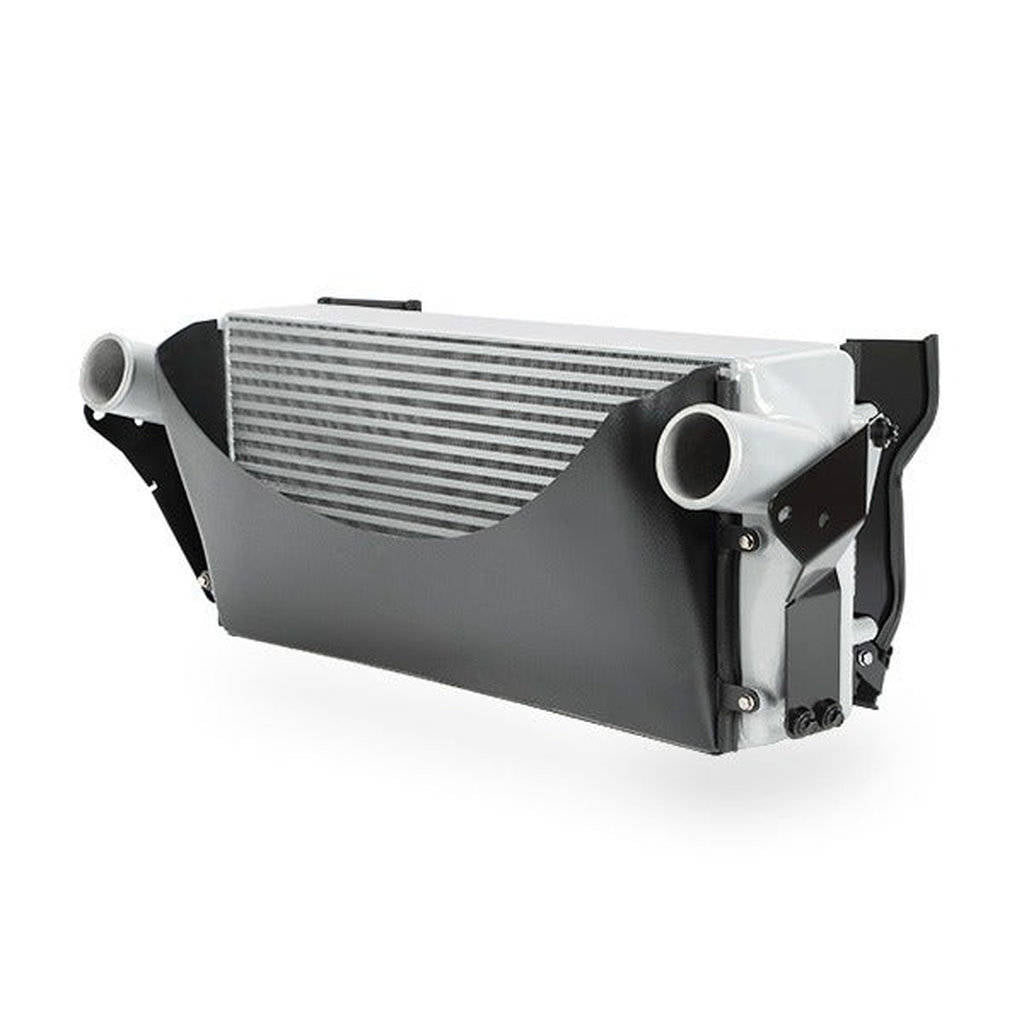

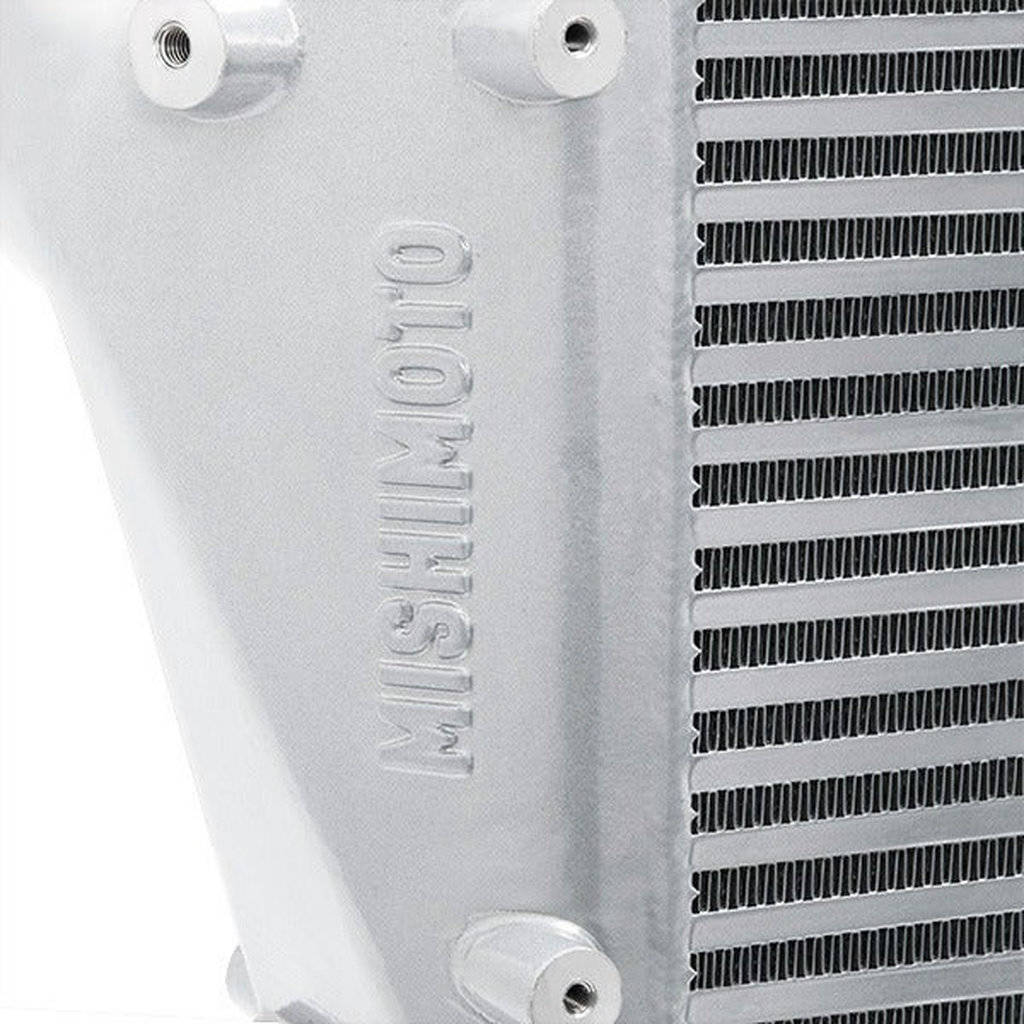

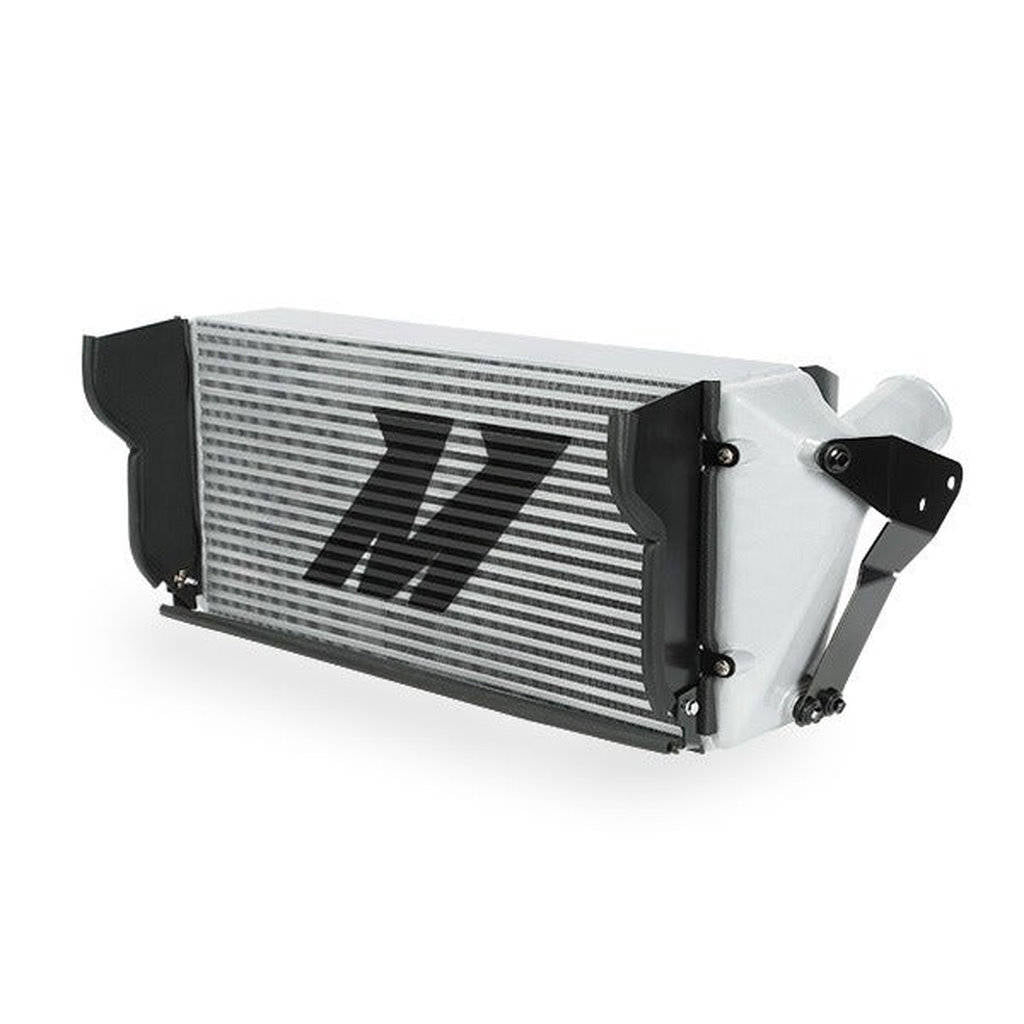

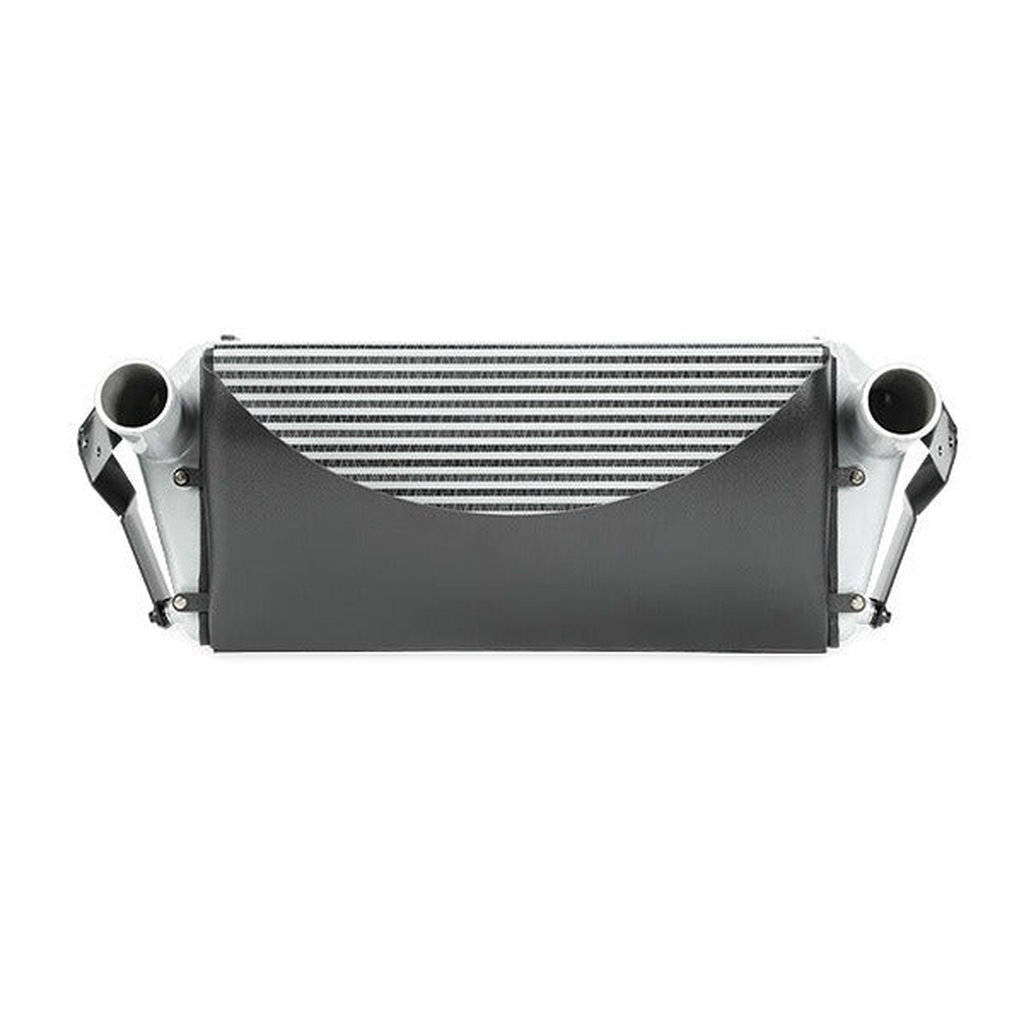

The Dodge Cummins straight-six is recognized for its smooth power delivery and engine longevity. Mishimoto has developed an intercooler for the 2013-2018 Dodge Ram 6.7L Cummins designed for durability. The Mishimoto Cummins intercooler features robust cast aluminum end tanks and a dense bar-and-plate core.

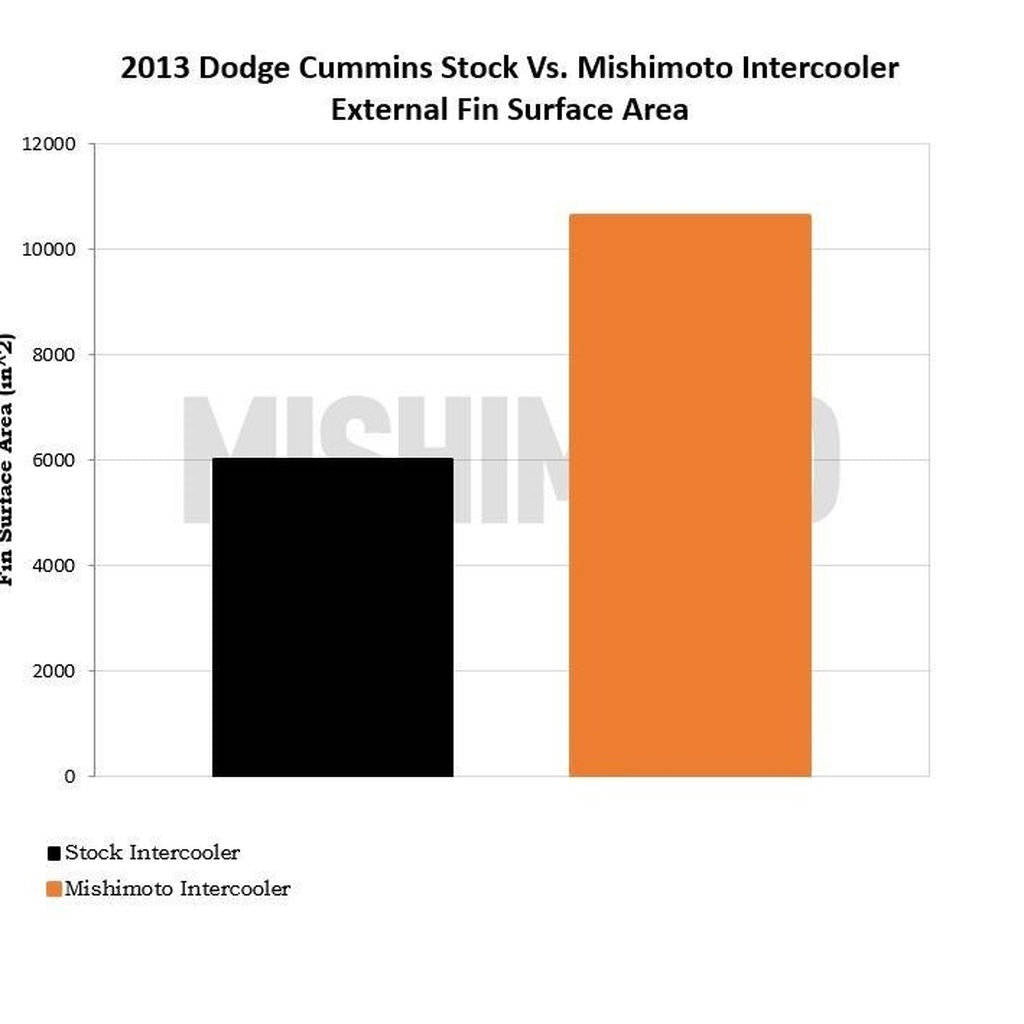

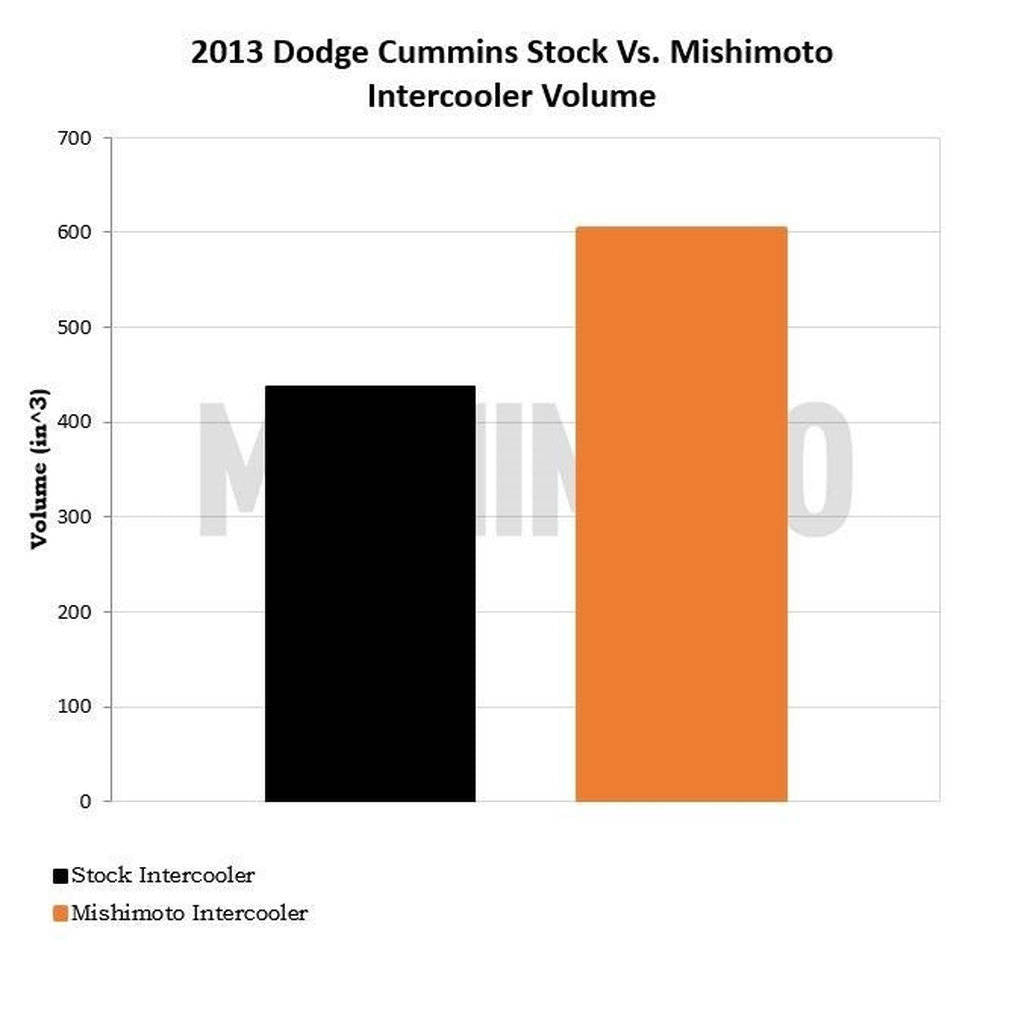

This intercooler offers increased core volume to support substantial boost pressures in both stock and modified trucks. It is equipped with cast aluminum outlets for improved flow. Two silicone boots with DuraCore technology and Constant Tension T-bolt Clamps are included for reliable holding power. DuraCore technology provides enhanced resistance to heat, pressure, fuel, and oil, increasing the lifespan of the boots by preventing leaks and blowouts.

The Mishimoto 2013-2018 Dodge Ram 6.7L Cummins performance intercooler is available in Sleek Silver or Stealth Black and is covered by the Mishimoto Lifetime Warranty.

Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).

Note: Vehicles with snowplow mounts installed may require trimming of the mounts to fit this intercooler.

• Robust cast aluminum end tanks and dense bar-and-plate core
• Increased core volume supports substantial boost pressures
• Includes silicone boots with DuraCore technology and Constant Tension T-bolt Clamps
• Available in Sleek Silver or Stealth Black

Specifications:

• Overall Length (in): 33
• Overall Height (in): 12.5
• Overall Width (in): 10
• Core Length (in): 25.7
• Core Height (in): 12.5
• Inlet (in): 3
• Outlet (in): 3

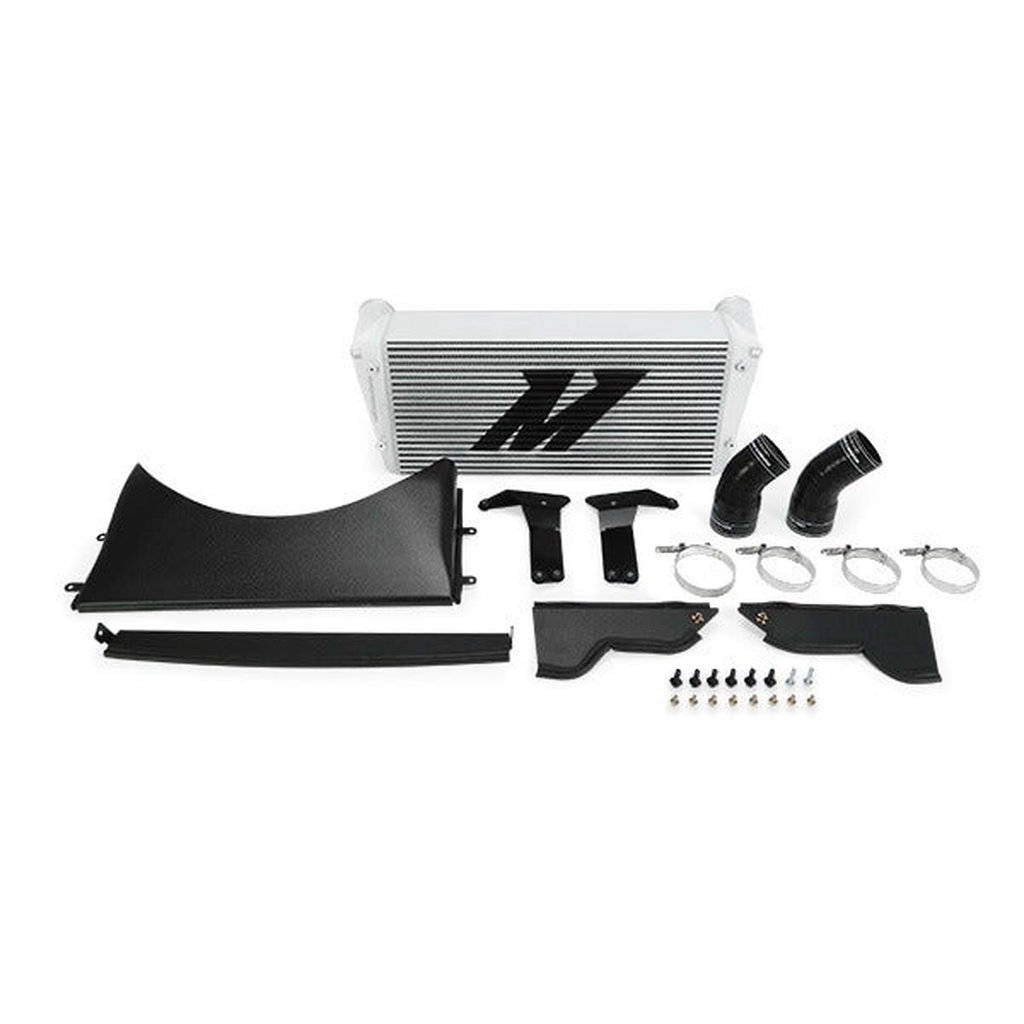

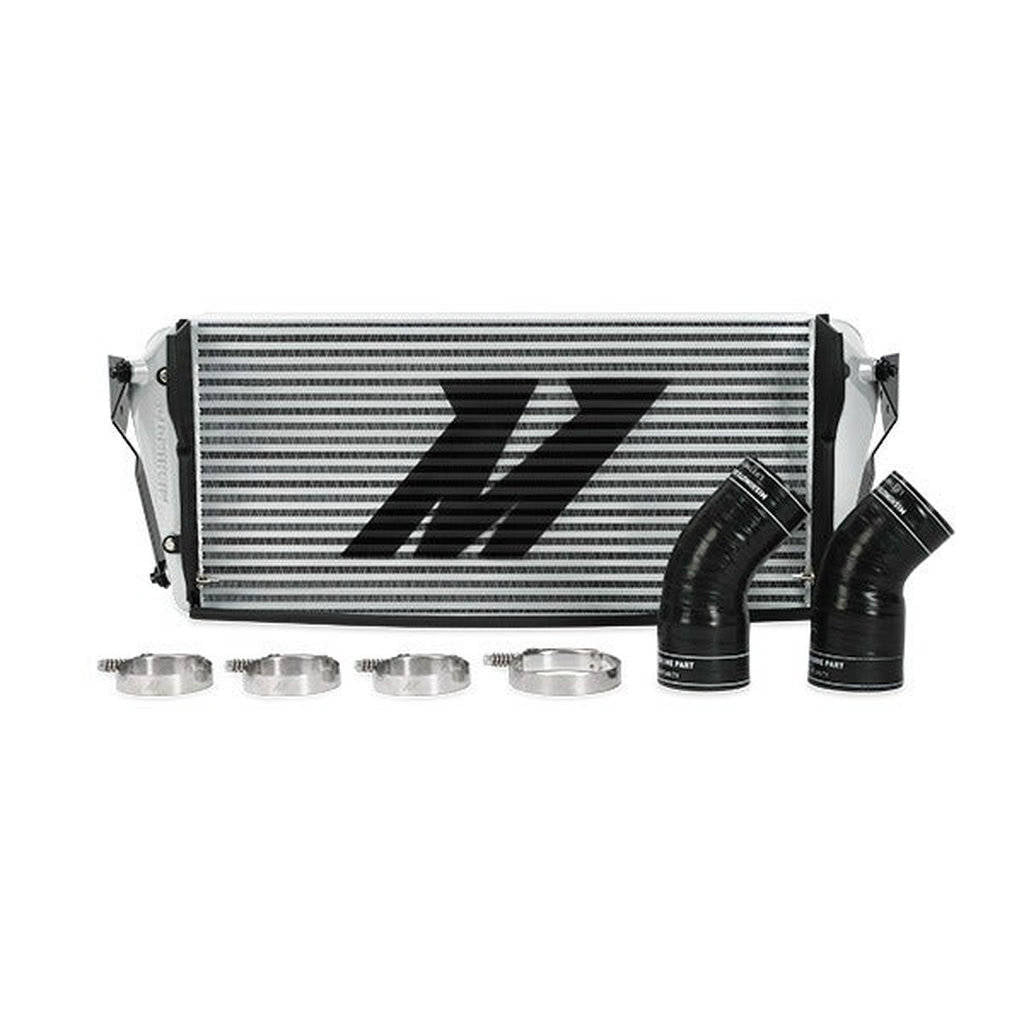

Kit comes with::

• Mishimoto Intercooler
• Front Air Diversion Panels (3)
• Replacement Lower Fan Shroud
• Mounting Brackets with Rubber Isolators (2)
• Silicone Boots with Duracore Technology (2)
• Constant-Tension T-Bolt Clamps (4)

Vehicle Compatibility:

• 2013-2018 Dodge Ram 6.7L Cummins
