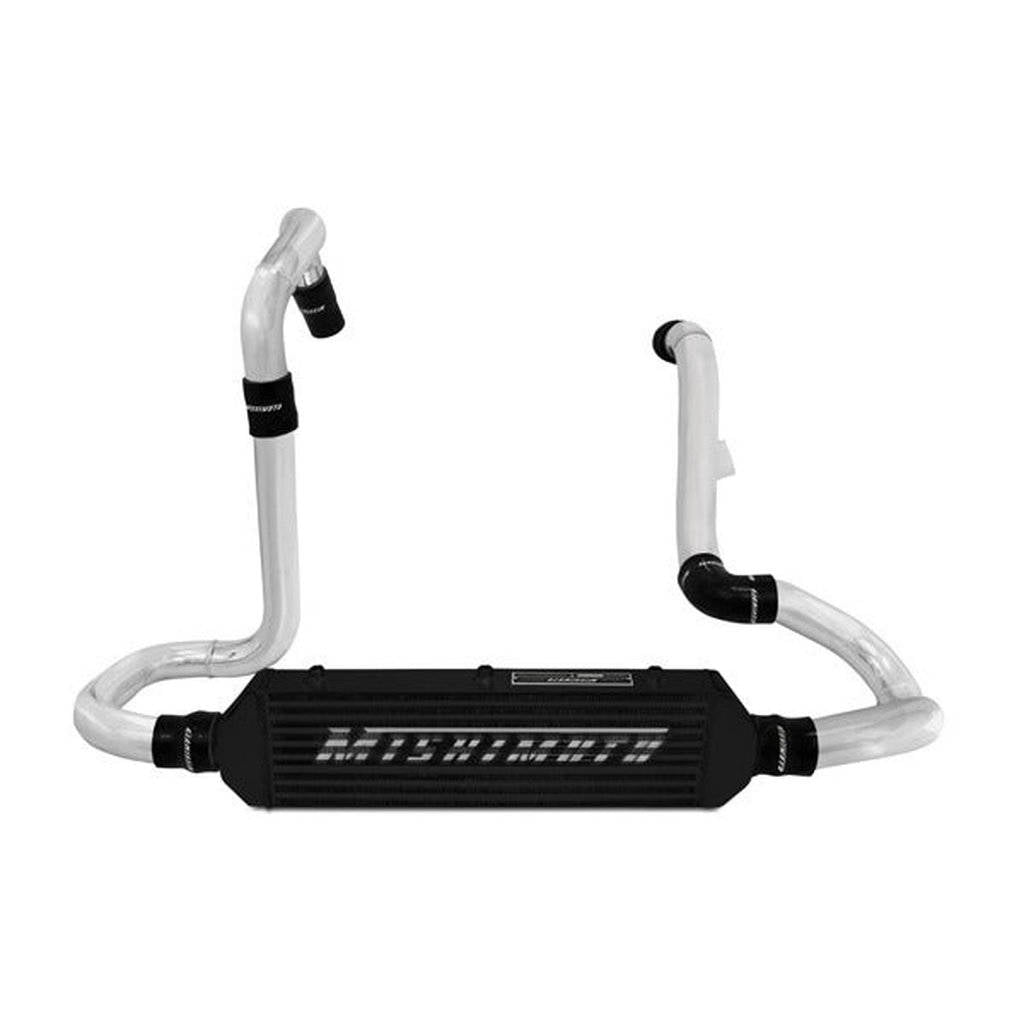

MISHIMOTO MMINT-GEN4-10BK HYUNDAI Genesis Turbo Intercooler & Piping Kit, 2010-2012

Description MISHIMOTO MMINT-GEN4-10BK HYUNDAI Genesis Turbo Intercooler & Piping Kit, 2010-2012

OEM intercooler setups are not designed to handle the higher boost levels that come with modifying a turbocharged vehicle. The Mishimoto intercooler and piping kit is designed as an upgrade for the 2010-2012 Hyundai Genesis Coupe 2.0T.

This intercooler and piping kit reduces intake temperatures and increases overall cooling efficiency, resulting in a safe increase in horsepower. Modifications to the front bumper and removal of the crash bar are not necessary, as the kit retains OEM fitment of these parts.

The kit includes a polished aluminum or black bar-and-plate style Z Line intercooler, a complete set of aluminum charge piping, and all t-bolt clamps and silicone couplers required for direct bolt-on installation. The kit is compatible with both the OEM radiator and the Mishimoto Hyundai Genesis Aluminum Radiator.

Note: Only one side of the intercooler has the Mishimoto logo.

Note: This item is for manual transmission vehicles.

Note: Does not fit with factory air dam.

Note: Does not fit with front factory splash shield.

• Reduces intake temperatures and increases cooling efficiency
• No modifications to front bumper or crash bar required
• Direct bolt-on installation with included hardware
• Compatible with OEM and Mishimoto radiators

Specifications:

• Overall Length (in): 28
• Overall Height (in): 7.5
• Overall Width (in): 2.5
• Core Thickness (in): 3.35
• Core Length (in): 20.5
• Core Height (in): 6.25
• Inlet (in): 2.5
• Outlet (in): 2.5

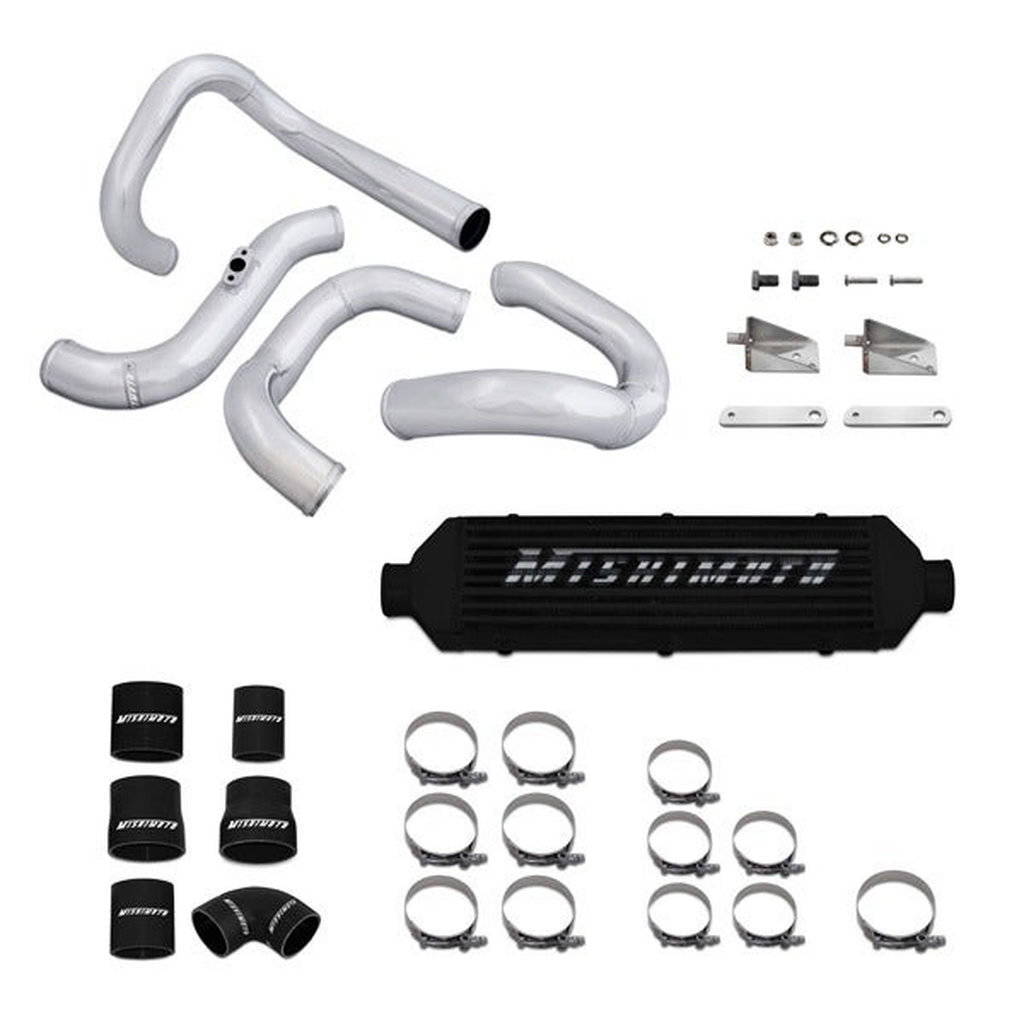

Kit comes with::

• Mishimoto Z Line Intercooler (Black or Silver)
• Complete set of aluminum charge piping
• All t-bolt clamps and silicone couplers

Vehicle Compatibility:

• 2010-2012 Hyundai Genesis Coupe 2.0T Manual Transmission
