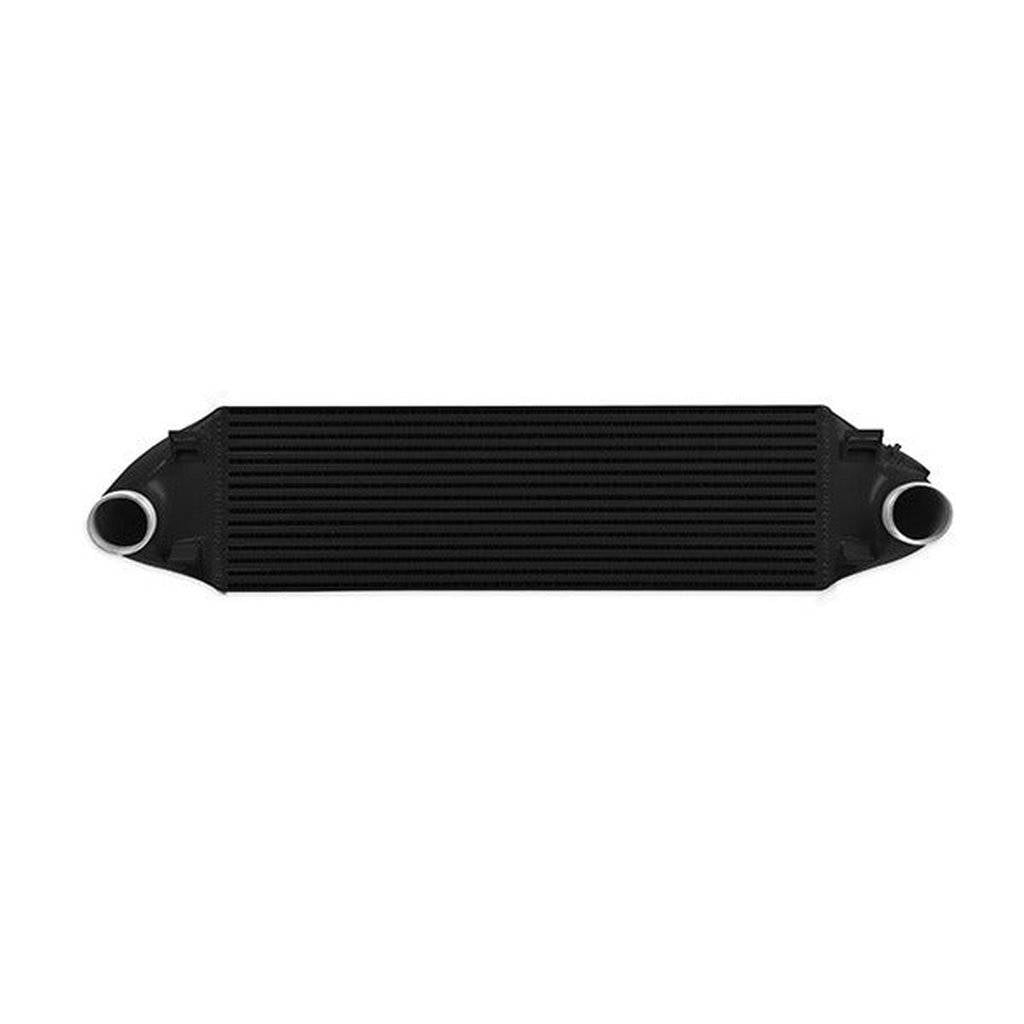

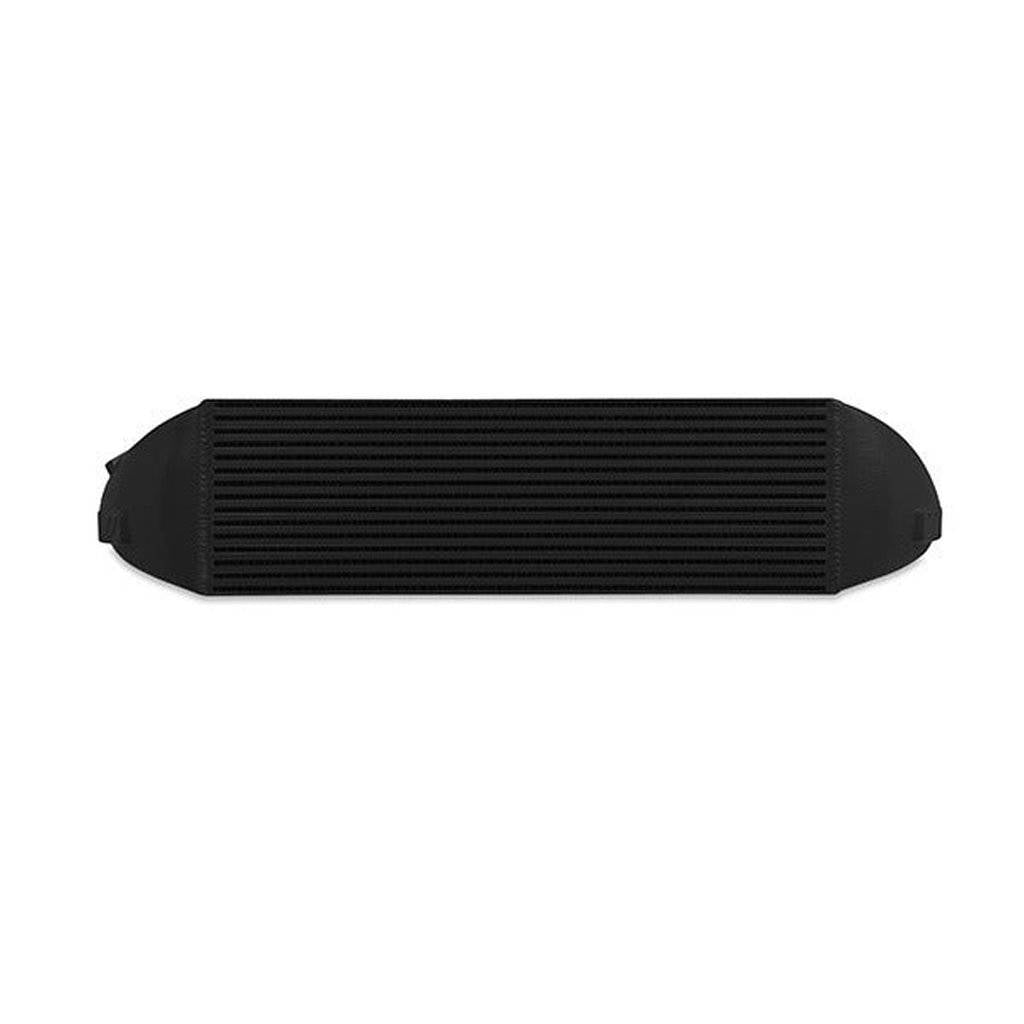

MISHIMOTO MMINT-FOST-13KBBK FORD Focus ST Intercooler Kit, 2013+

Description MISHIMOTO MMINT-FOST-13KBBK FORD Focus ST Intercooler Kit, 2013+

The Mishimoto Performance Intercooler Kit is designed for the 2013-2018 Ford Focus ST to improve cooling efficiency. The factory intercooling system features restrictive piping and a turbo muffler, limiting the Focus ST's performance. This kit replaces the hot-side pipe with mandrel-bent aluminum, removes the muffler, and increases the diameter for a 26% improvement in hot-side airflow.

All rubber components are replaced with wire-reinforced silicone for durability and smoother flow through the cold-side pipe. The bar-and-plate intercooler core further increases airflow and aids in heat dissipation, reducing the risk of heat-soak during demanding driving. The kit provides a 21% increase in flow to and from the intercooler, adds 8 HP and 10 TQ, and supports up to 550 HP.

Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).

• Mandrel-bent aluminum hot-side pipe increases diameter and removes turbo muffler
• Wire-reinforced silicone replaces rubber for durability and smoother flow
• Bar-and-plate intercooler core improves airflow and heat dissipation
• Adds 8 HP and 10 TQ, with a maximum horsepower rating of 550 HP

Specifications:

• Chassis Codes: C346
• Overall Length (in): 35.7
• Overall Height (in): 8.3
• Overall Width (in): 7.25
• Inlet (in): 2.5
• Outlet (in): 2.5

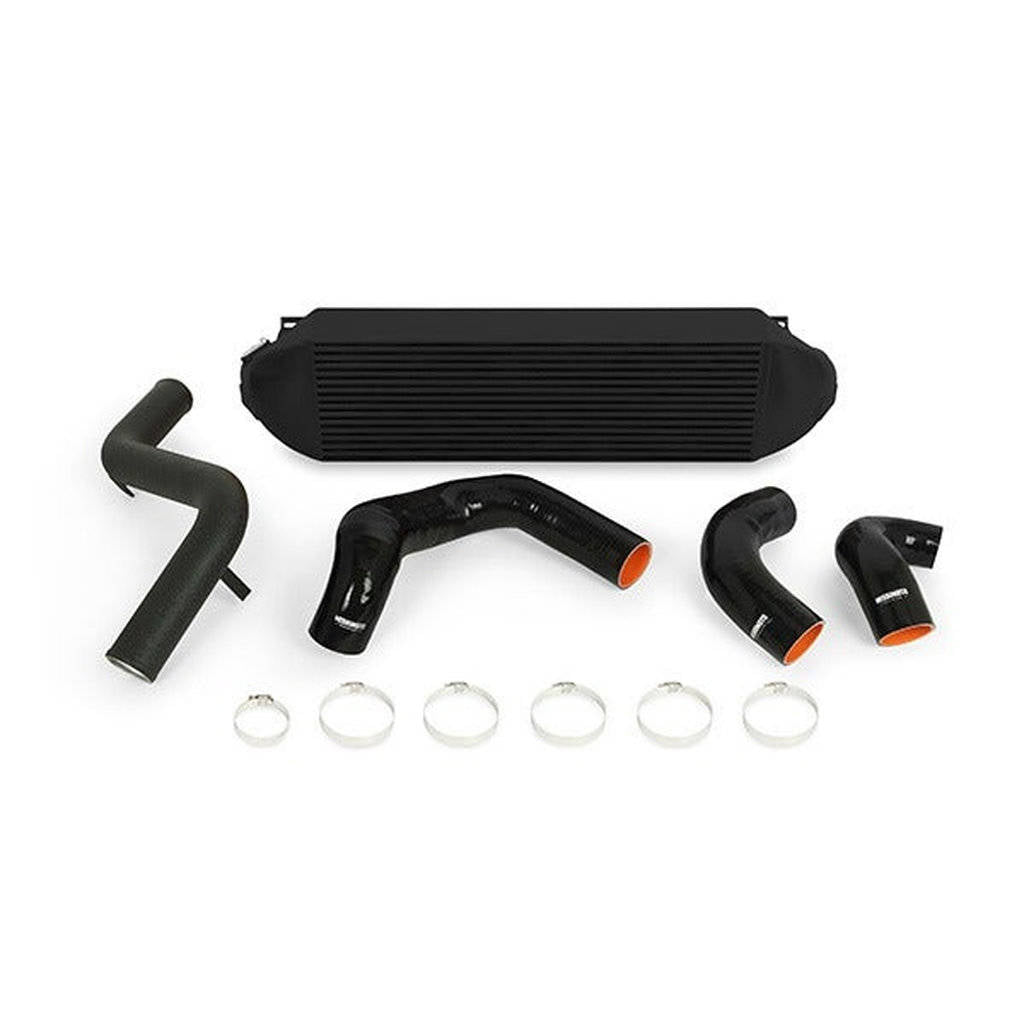

Kit comes with::

• Mishimoto Intercooler
• Aluminum Intercooler Pipe
• Silicone Pipe
• 2 Silicone couplers
• 6 High torque Worm Gear clamps
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2013-2018 Ford Focus ST
