MISHIMOTO MMINT-F35T-17KBSL FORD F-150 3.5L EcoBoost Performance Intercooler Kit, 2017+, Silver Cooler, Black Pipes

Description MISHIMOTO MMINT-F35T-17KBSL FORD F-150 3.5L EcoBoost Performance Intercooler Kit, 2017+, Silver Cooler, Black Pipes

Mishimoto offers a direct-fit 2017+ 3.5L F-150 EcoBoost Intercooler & Pipe kit designed to maximize the performance potential of the F-150 or second-gen Raptor. This kit replaces the factory plastic piping with free-flowing, durable aluminum piping and silicone boots featuring DuraCore technology.

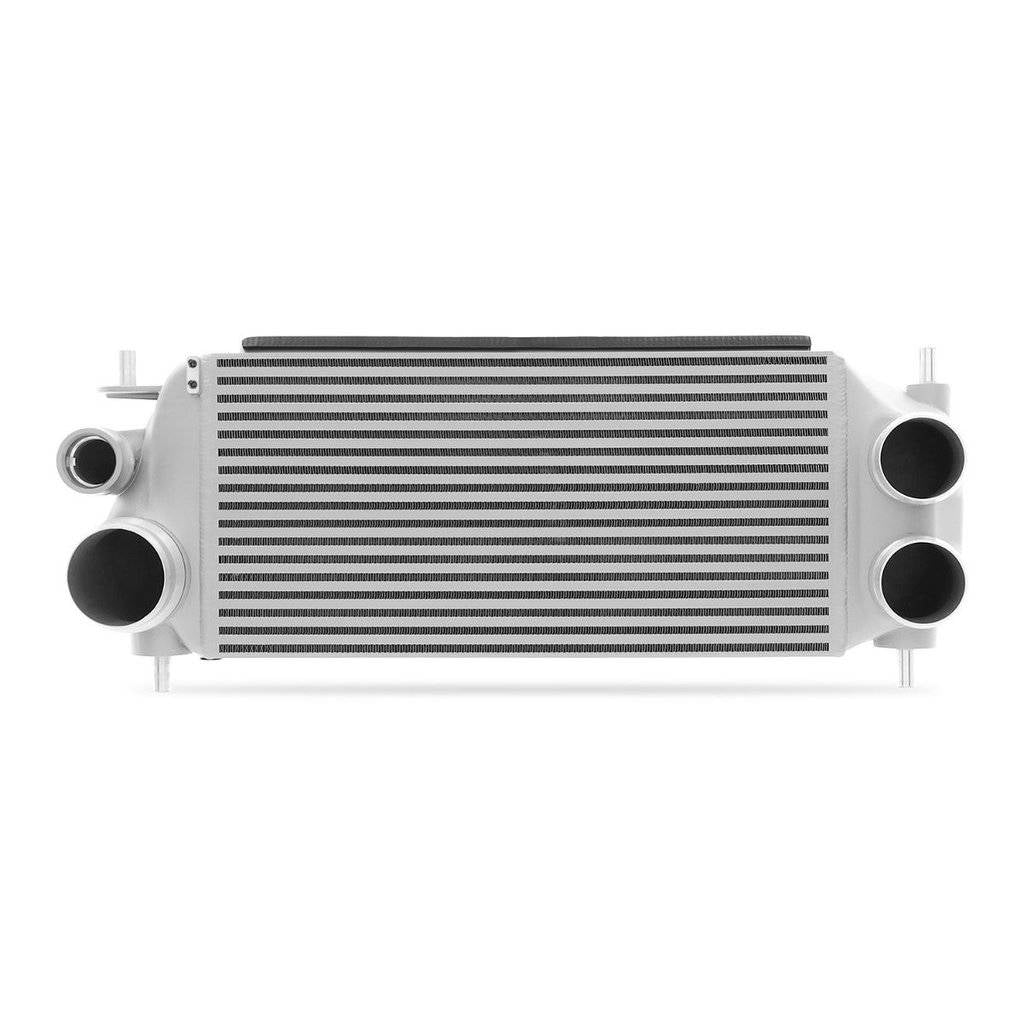

The increased volume of the pipes allows the 2017+ 3.5L EcoBoost engine to take full advantage of its twin turbochargers. DuraCore boots and constant-tension worm gear clamps provide enhanced strength and blowout resistance, ensuring consistent boost delivery. The intercooler features a 77% increase in core volume and a 163% increase in external fin surface area compared to stock, with cast end tanks and bar-and-plate construction for improved durability and performance.

This kit is available with a black or silver intercooler and wrinkle black or polished pipes. It is backed by a Mishimoto Lifetime Warranty.

Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).

• Direct-fit upgrade for 2017+ 3.5L F-150 EcoBoost and second-gen Raptor
• Replaces factory plastic piping with aluminum piping and DuraCore silicone boots
• Intercooler increases core volume by 77% and external fin surface area by 163% over stock
• Available with black or silver intercooler and wrinkle black or polished pipes

Specifications:

• Engine Codes: 3.5L V6 EcoBoost
• Overall Length (in): 29
• Overall Height (in): 9.5
• Overall Width (in): 7
• Core Thickness (in): 4.7
• Core Length (in): 19.6
• Core Height (in): 9.4
• Inlet (in): 2.5
• Outlet (in): 3

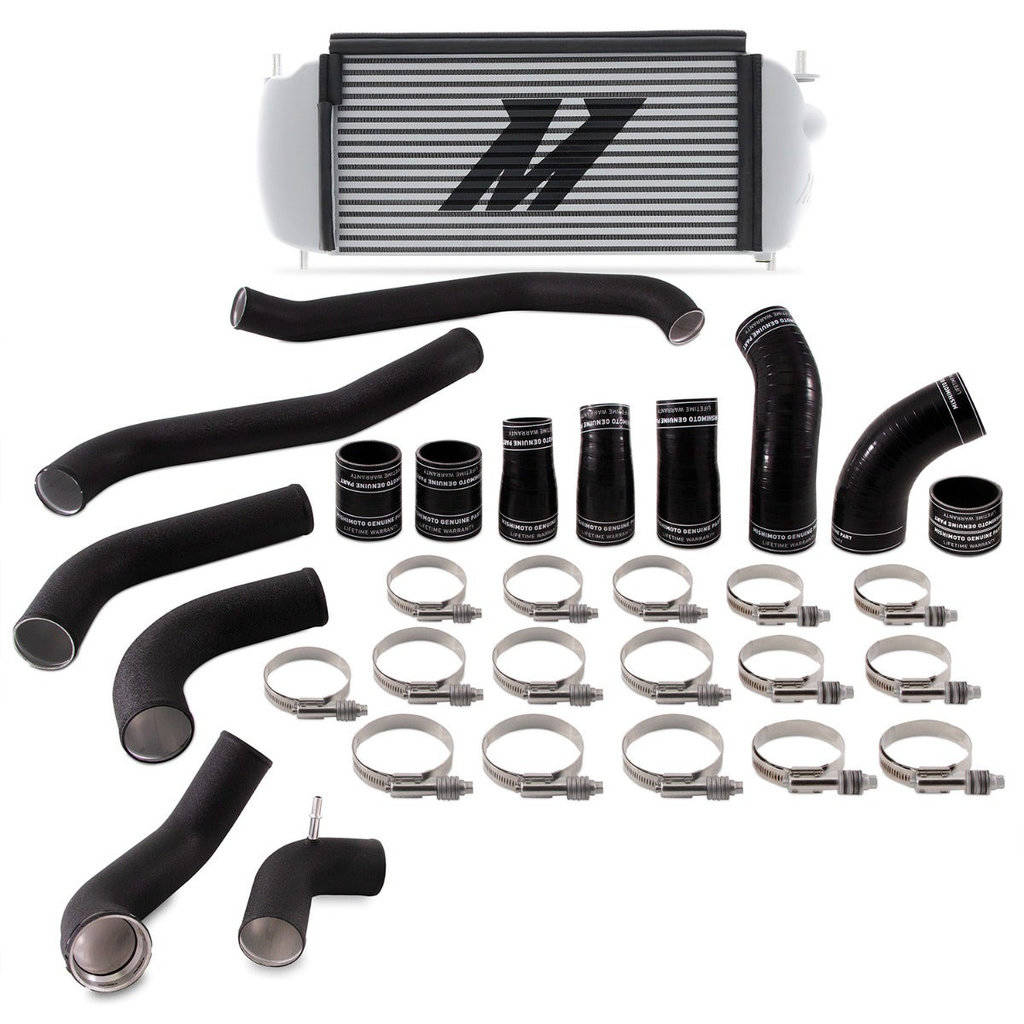

Kit comes with::

• Mishimoto Intercooler with assembled rubber trim
• Bypass valve bracket
• Aluminum cold-side intercooler pipe with CNC quick-disconnect flange
• Aluminum cold-side intercooler pipe with CNC IAT sensor housing

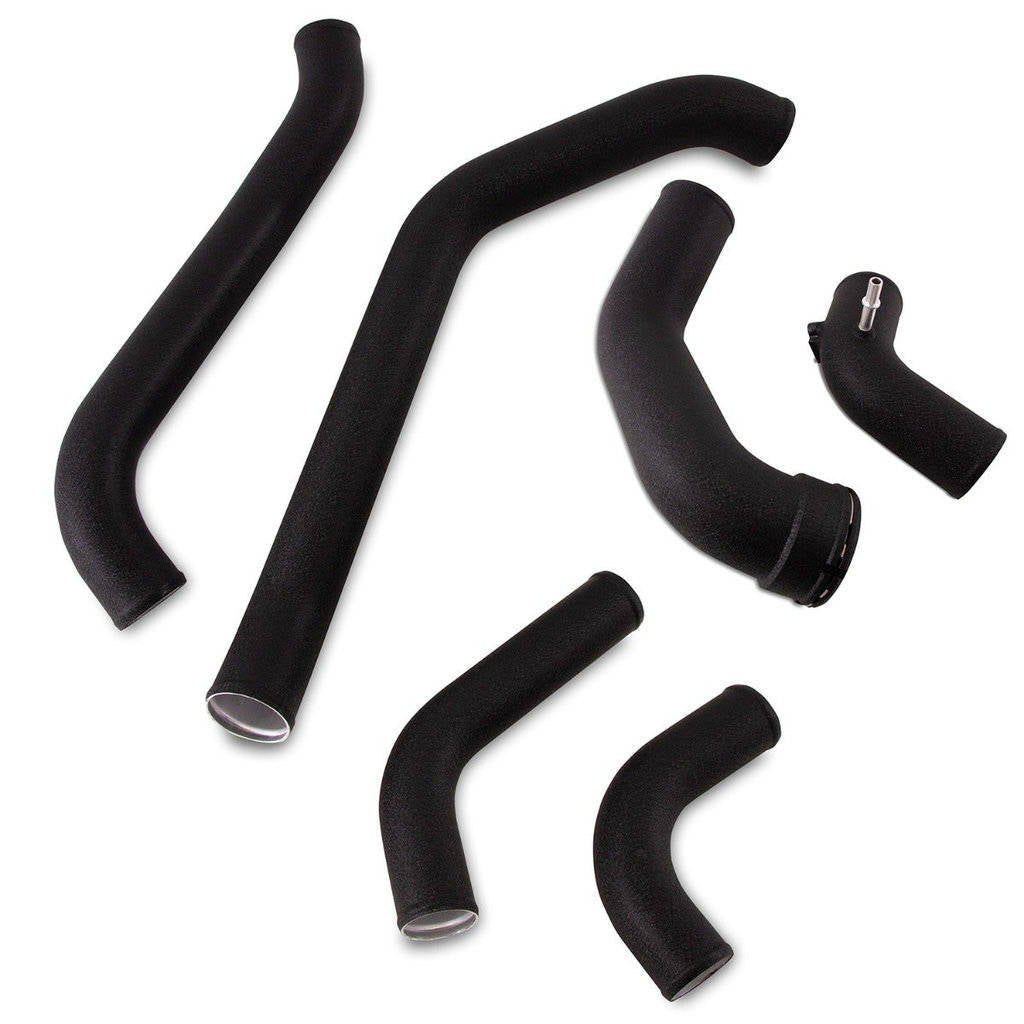

• Four aluminum hot-side intercooler pipes

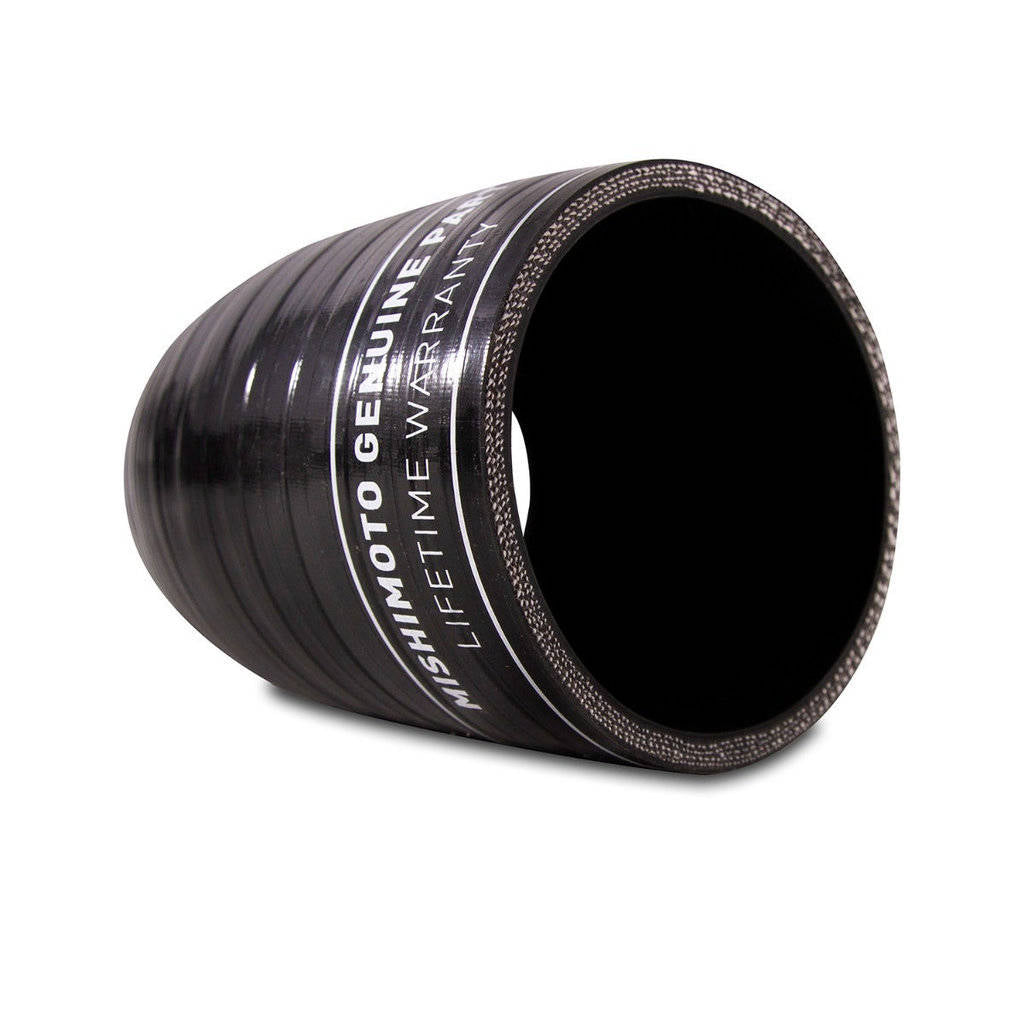

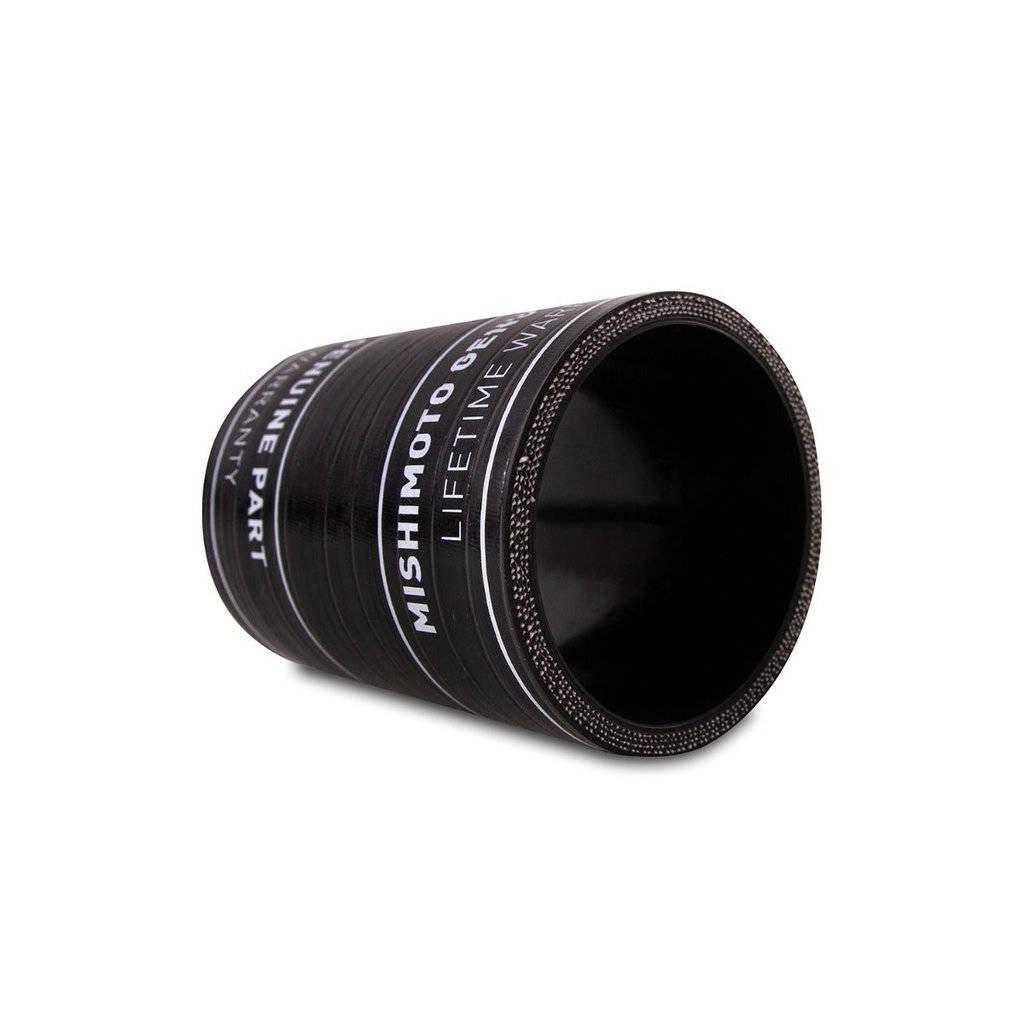

• Eight silicone boots with DuraCore technology
• Sixteen constant-tension worm gear clamps
• Mounting hardware
• Bypass valve hardware
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2017+ Ford F-150 3.5L V6 EcoBoost
• 2017+ Ford Raptor 3.5L V6 EcoBoost
