MISHIMOTO MMINT-F35T-15KPSL FORD F-150 3.5L EcoBoost Performance Intercooler Kit, 2015-2016, Silver Intercooler, Polished Pip

Description MISHIMOTO MMINT-F35T-15KPSL FORD F-150 3.5L EcoBoost Performance Intercooler Kit, 2015-2016, Silver Intercooler, Polished Pip

Mishimoto offers a direct-fit 2015-2016 3.5L F-150 EcoBoost Intercooler & Pipe kit designed to maximize the performance potential of the F-150. This kit replaces the factory plastic piping with free-flowing, durable aluminum piping and silicone boots featuring DuraCore technology.

The pipes provide a 24% larger volume, allowing the 2015-2016 3.5L F-150 EcoBoost to take full advantage of its twin turbochargers. DuraCore boots and constant-tension worm gear clamps deliver superior strength and blowout resistance, ensuring consistent boost delivery. The intercooler increases core volume by 77% and external fin surface area by 163% over stock, with cast end tanks and bar-and-plate construction for enhanced strength and performance.

This kit is available with a black or silver intercooler and wrinkle black or polished pipes. It is backed by a Lifetime Warranty.

Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).

• Direct-fit kit for 2015-2016 3.5L F-150 EcoBoost
• Replaces plastic piping with aluminum piping and DuraCore silicone boots
• Intercooler increases core volume by 77% and fin surface area by 163% over stock
• Available with black or silver intercooler and wrinkle black or polished pipes

Specifications:

• Overall Length (in): 29
• Overall Height (in): 9.5
• Overall Width (in): 7
• Core Thickness (in): 4.7
• Core Length (in): 19.6
• Core Height (in): 9.4
• Inlet (in): 2.5
• Outlet (in): 3

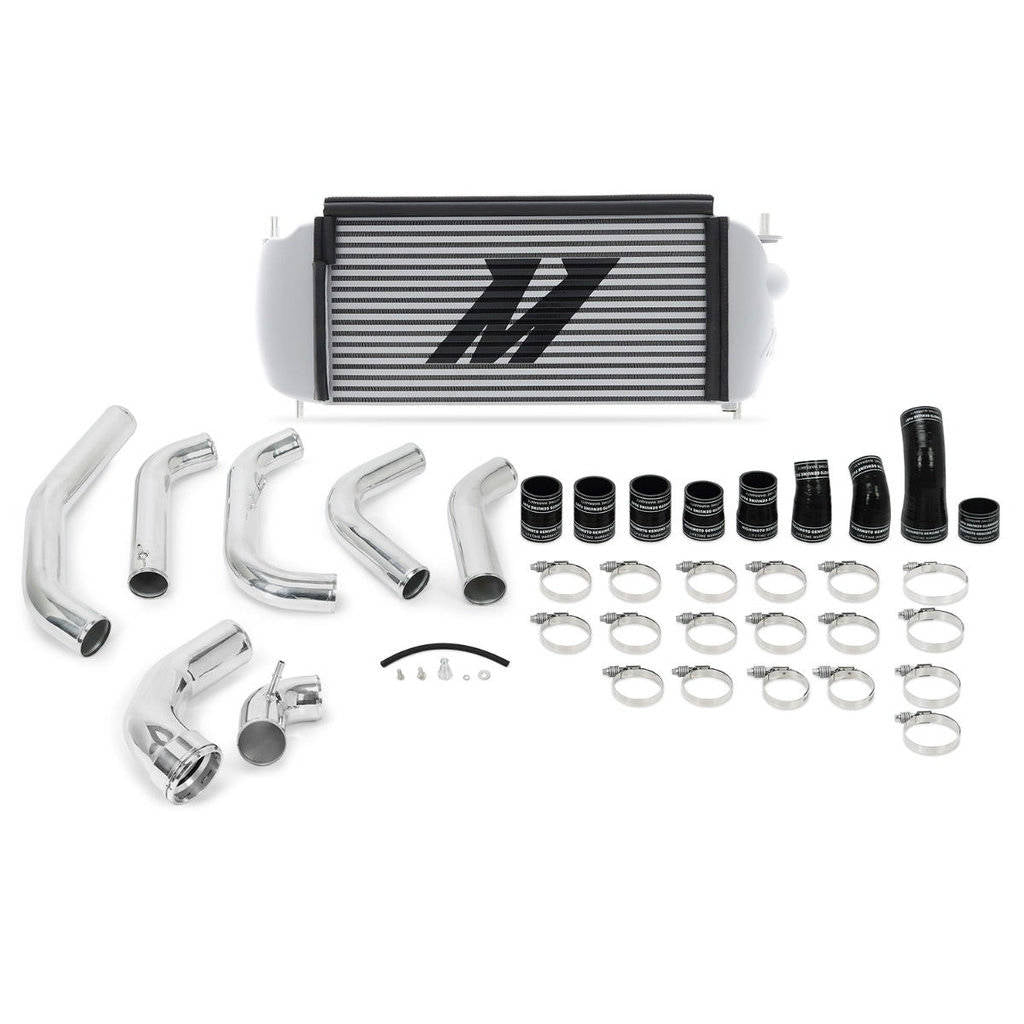

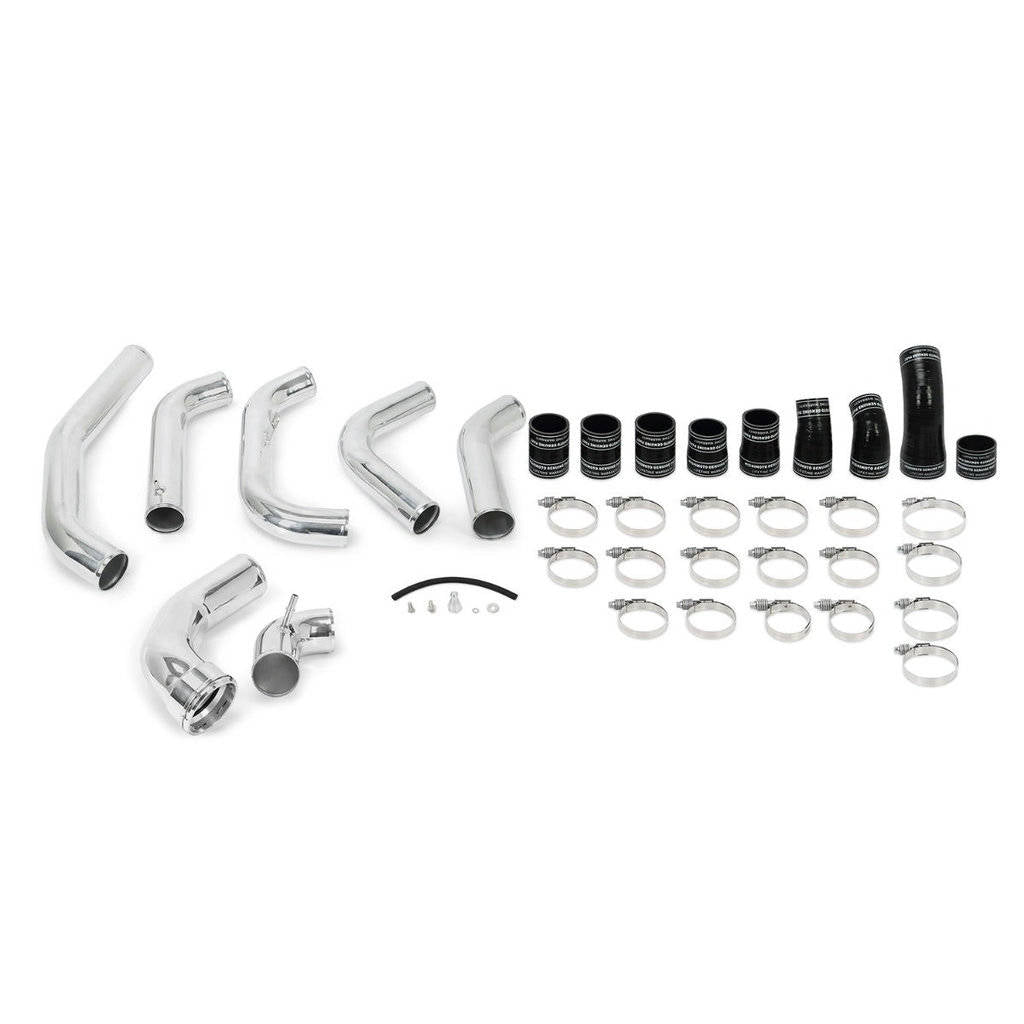

Kit comes with::

• Mishimoto Intercooler with assembled rubber trim
• Bypass valve bracket
• Aluminum cold-side intercooler pipe with CNC quick-disconnect flange
• Aluminum cold-side intercooler pipe with CNC IAT sensor housing
• Five aluminum hot-side intercooler pipes
• Nine silicone boots with DuraCore technology
• Eighteen constant-tension worm gear clamps
• Mounting hardware
• Bypass valve hardware
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2015-2016 Ford F-150 3.5L V6 EcoBoost (Engine Code: 3.5L V6 EcoBoost, Chassis Code: P552)
