MISHIMOTO MMINT-F2D-17SL FORD 6.7L Powerstroke Air-to-Water Intercooler, 2017+, Micro-Wrinkle Silver

Description MISHIMOTO MMINT-F2D-17SL FORD 6.7L Powerstroke Air-to-Water Intercooler, 2017+, Micro-Wrinkle Silver

The 2017+ Ford Super Duty equipped with the 6.7L Powerstroke is recognized for its capability and reliability. Mishimoto developed an upgraded 6.7L Powerstroke air-to-water intercooler to address reports of internal leaks in the stock intercooler.

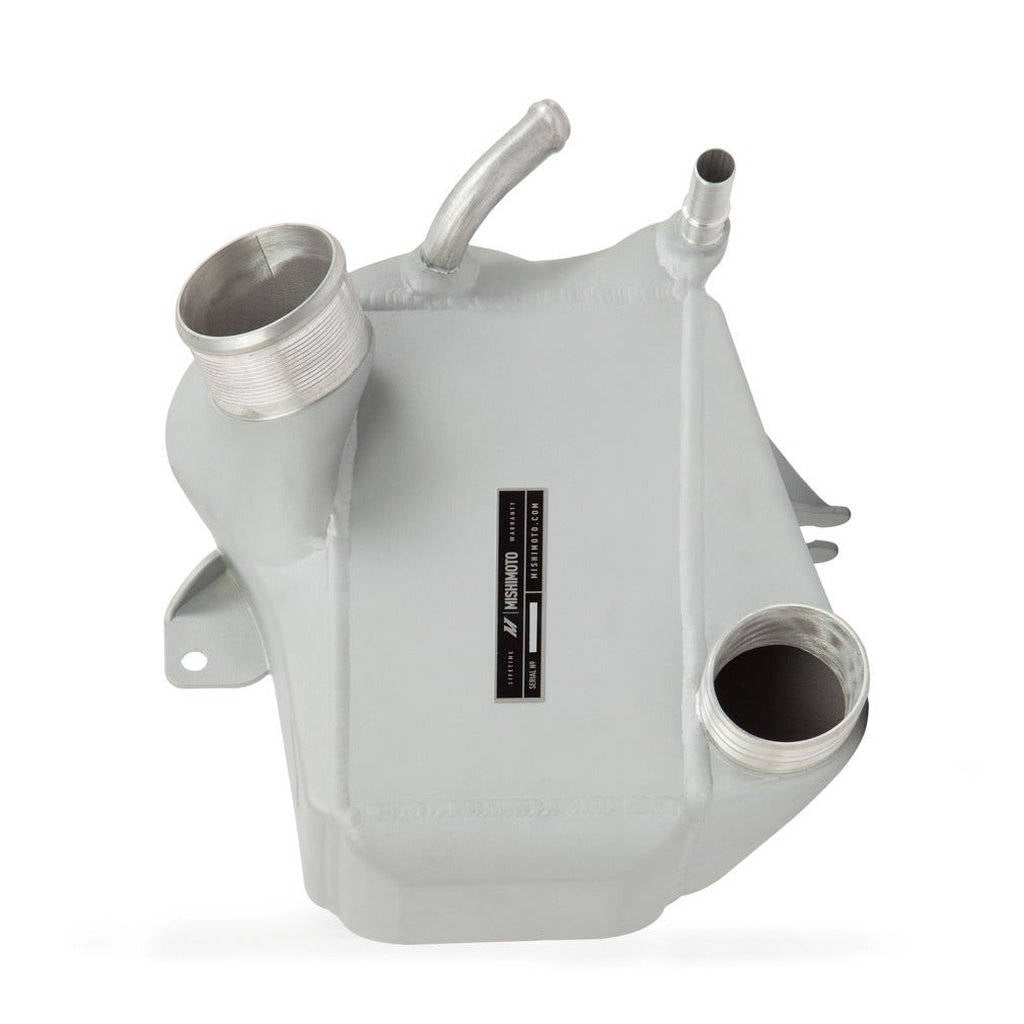

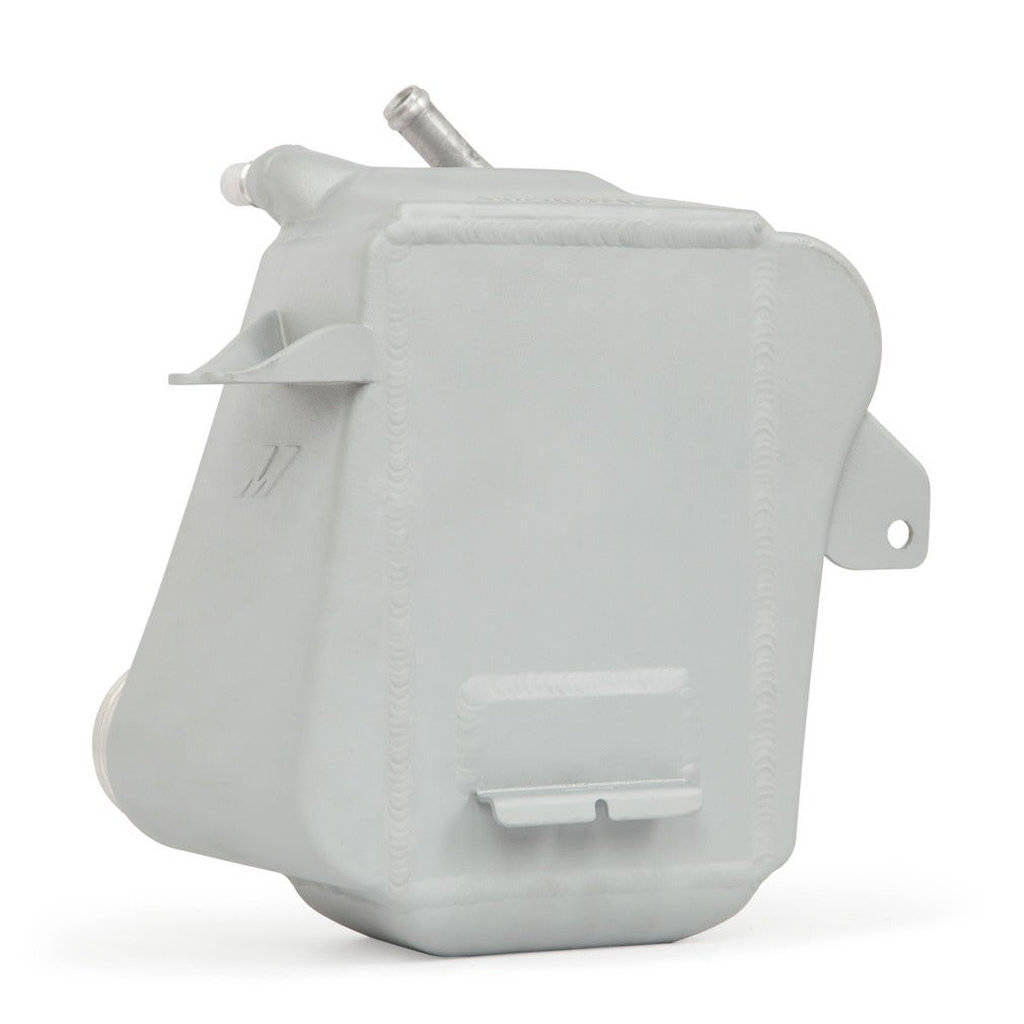

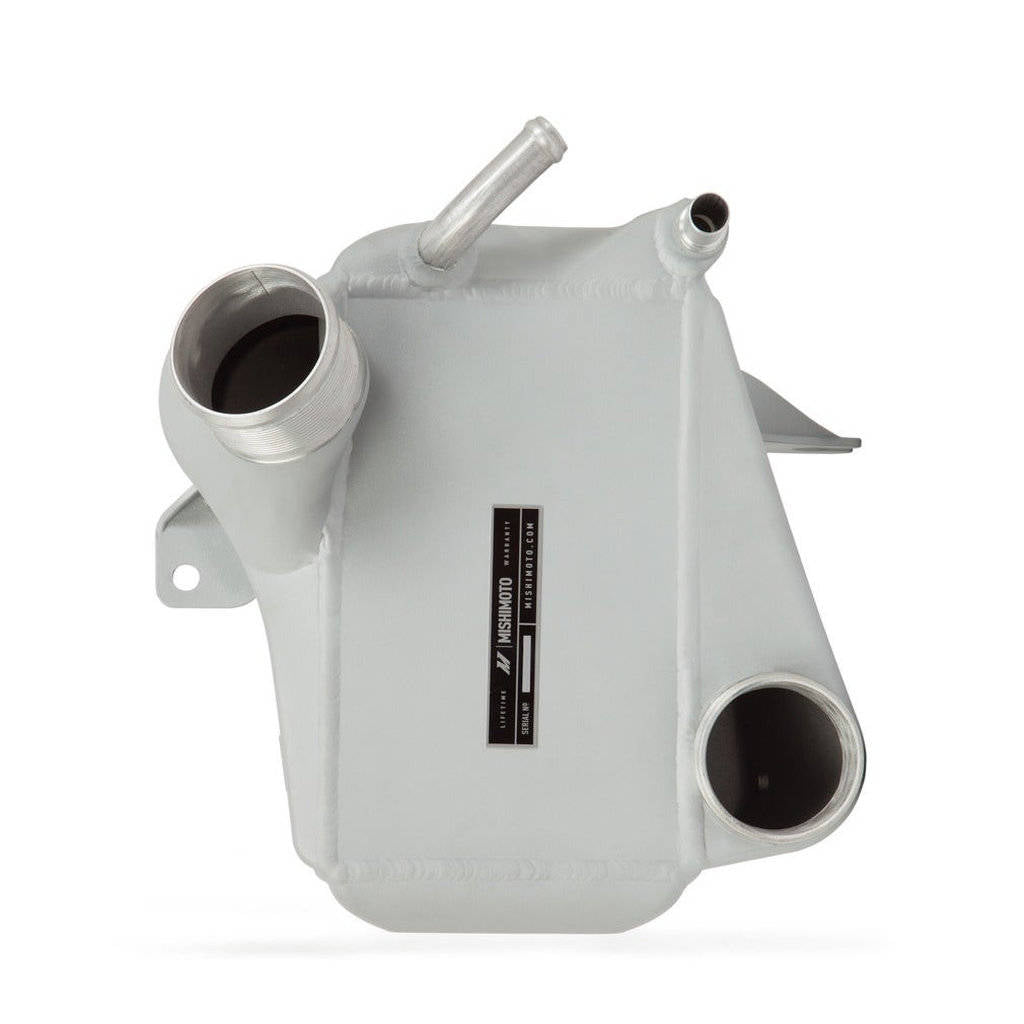

The Mishimoto intercooler replaces the stamped and stacked plate stock design with cast aluminum end tanks that are precision TIG-welded to a robust bar-and-plate core. The cast end tanks reduce potential failure points compared to cut and welded tanks. Durability is further enhanced by a mandrel-bent cold-side pipe and silicone couplers with Duracore Technology.

Flow bench testing showed that the Mishimoto intercooler flows 22% better than the stock cooler. Dyno testing demonstrated a gain of 40 lb-ft more torque on a stock 6.7L Powerstroke. The cooler is available in powder-coated silver, micro-wrinkle black, or micro-wrinkle blue finishes.

Installation Notes: 11 lb-ft (15NM) recommended for all constant-tension worm gear clamps. These clamps have an operating range of 11-14 lb-ft (15-20NM). Do not exceed the maximum torque rating of 14 lb-ft (20NM).

• Cast aluminum end tanks with TIG-welded bar-and-plate core

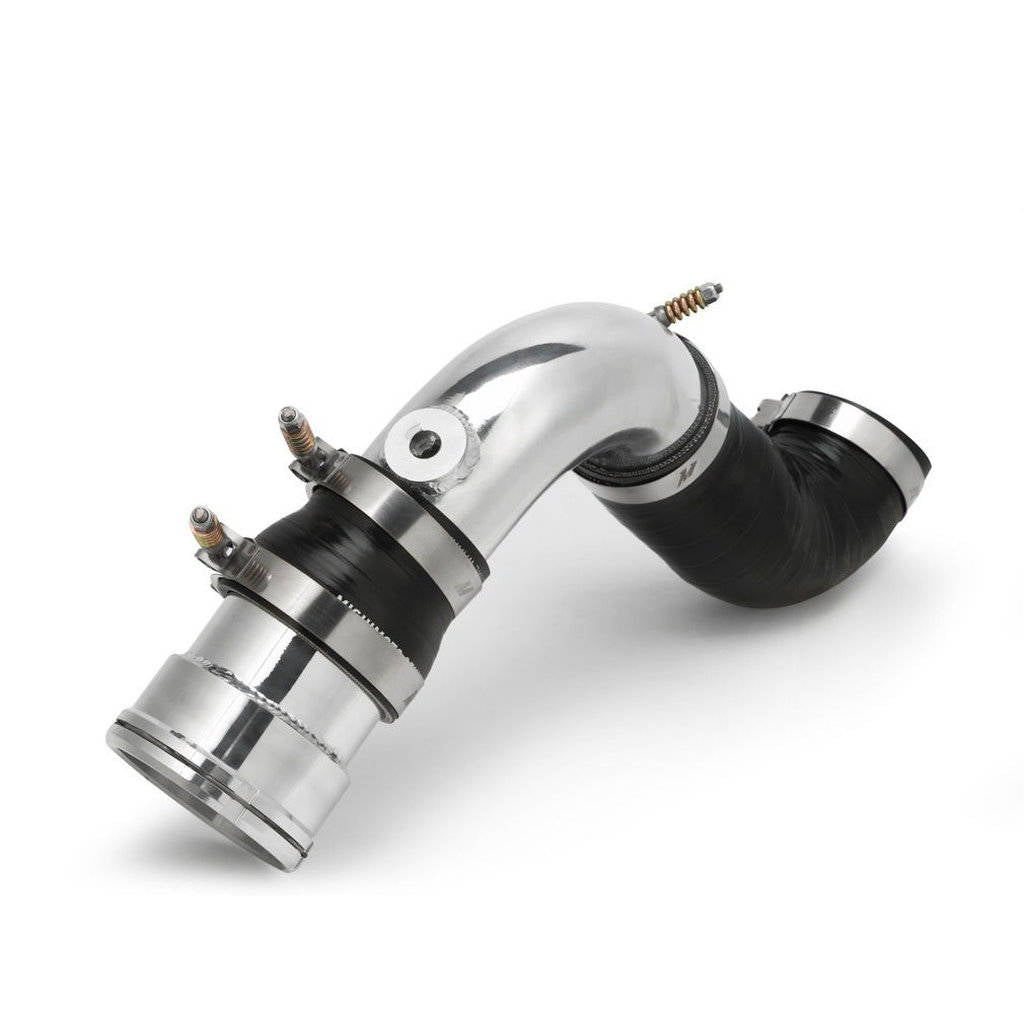

• Mandrel-bent cold-side pipe and silicone couplers with Duracore Technology
• Flows 22% better than stock intercooler
• Available in silver, black, or blue finishes

Specifications:

• Core Thickness (in): 4.48
• Core Length (in): 10.59
• Core Height (in): 6.69

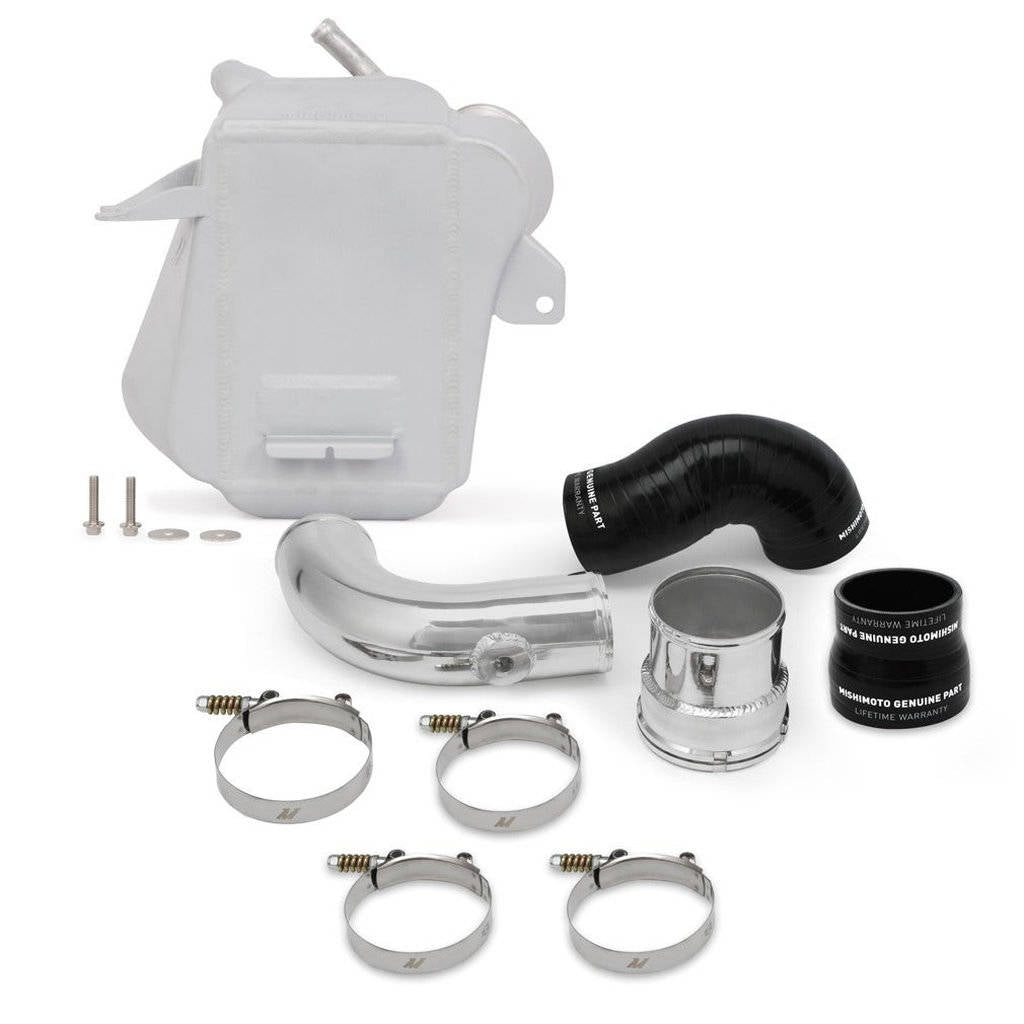

Kit comes with::

• Mishimoto Air-to-Water Intercooler
• Mandrel-Bent Cold-Side Pipe

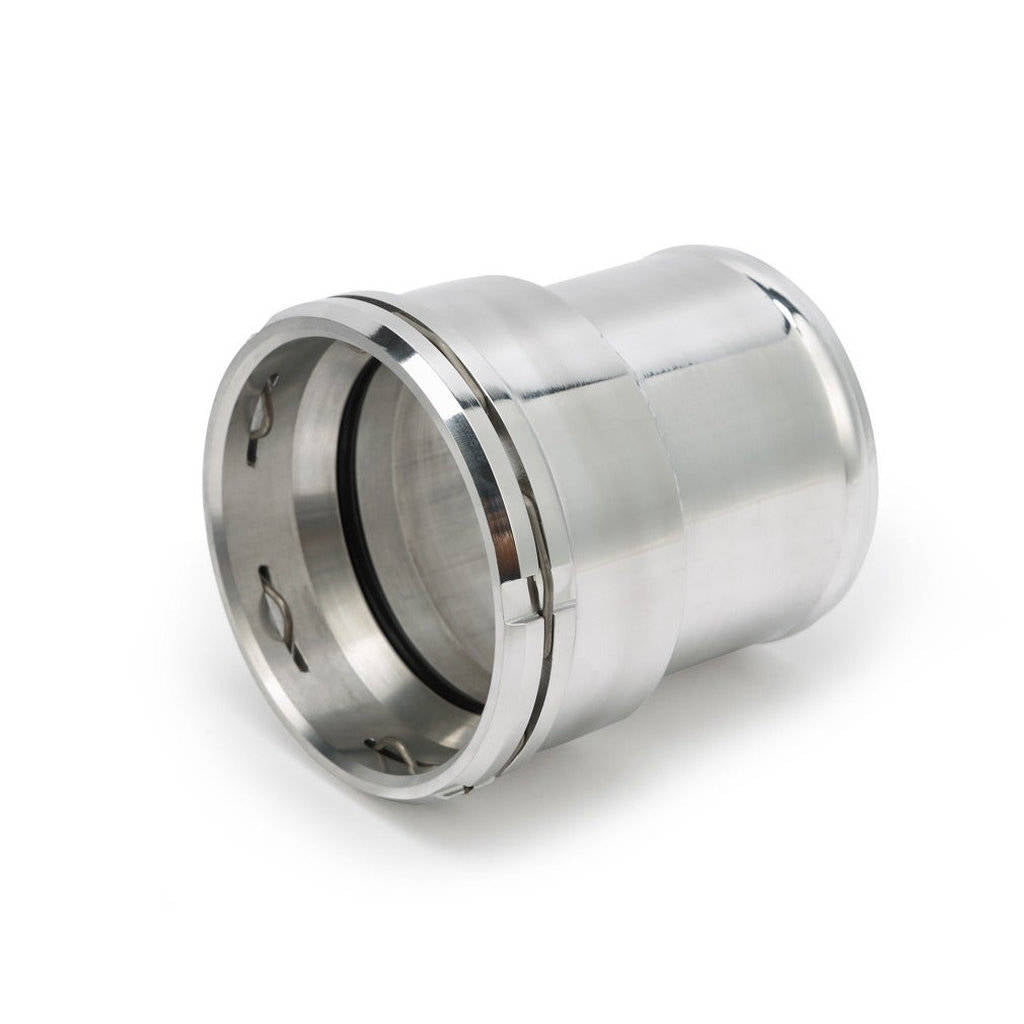

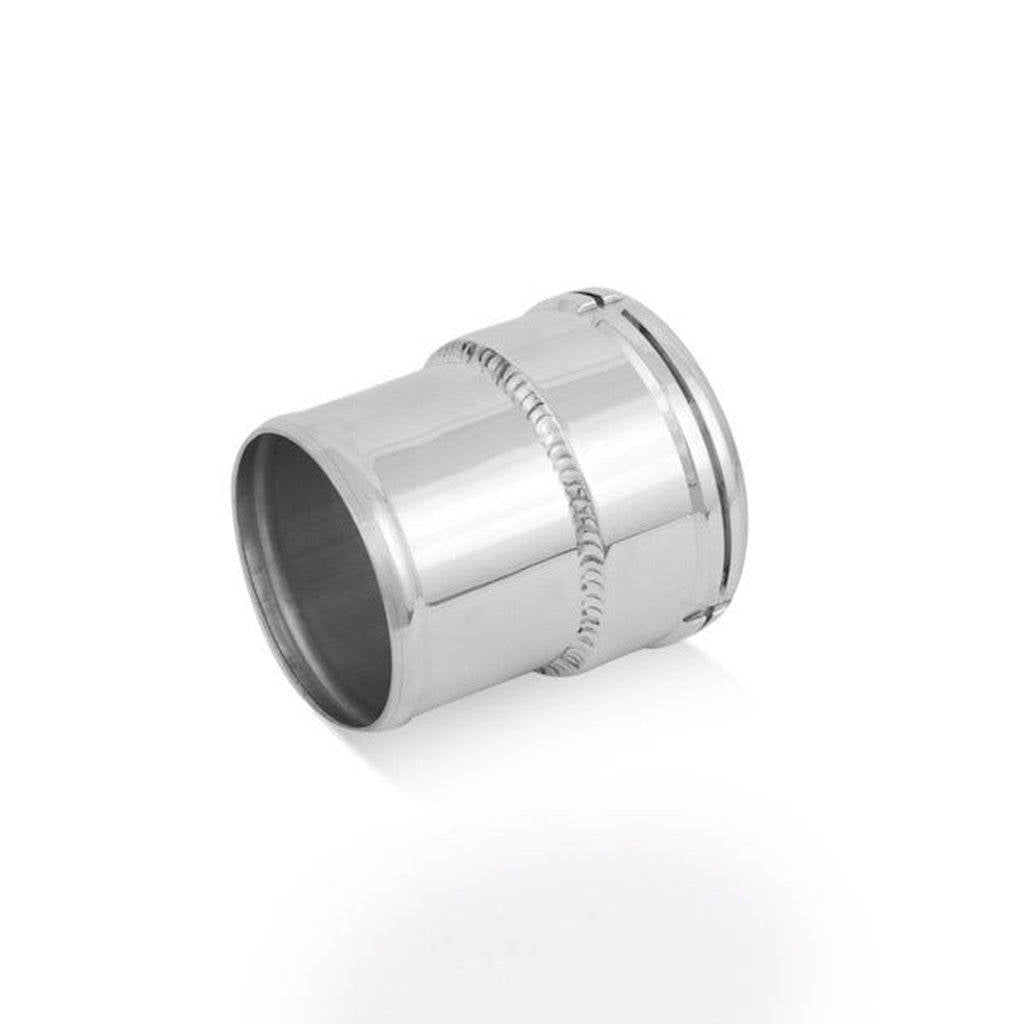

• CNC-Machined Aluminum Quick-Disconnect Coupler
• 2 Silicone Boots with Duracore Technology
• 4 Constant-Tension Worm Gear Clamps
• Mounting Hardware

Vehicle Compatibility:

• 2017-2018 Ford Super Duty 6.7L Powerstroke
