MISHIMOTO MMINT-F150-11KBSL FORD F-150 EcoBoost Intercooler Kit, 2011-2014 Silver Intercooler w/Black Pipes

Description MISHIMOTO MMINT-F150-11KBSL FORD F-150 EcoBoost Intercooler Kit, 2011-2014 Silver Intercooler w/Black Pipes

Cool down charge air temperatures with the Mishimoto direct-fit performance intercooler and pipe kit for the 2011-2014 Ford F-150 EcoBoost. The factory intercooler is small and sits in the lower part of a spacious, unconventionally shaped cavity behind the front bumper, leaving much unused space that could be optimized for cooling.

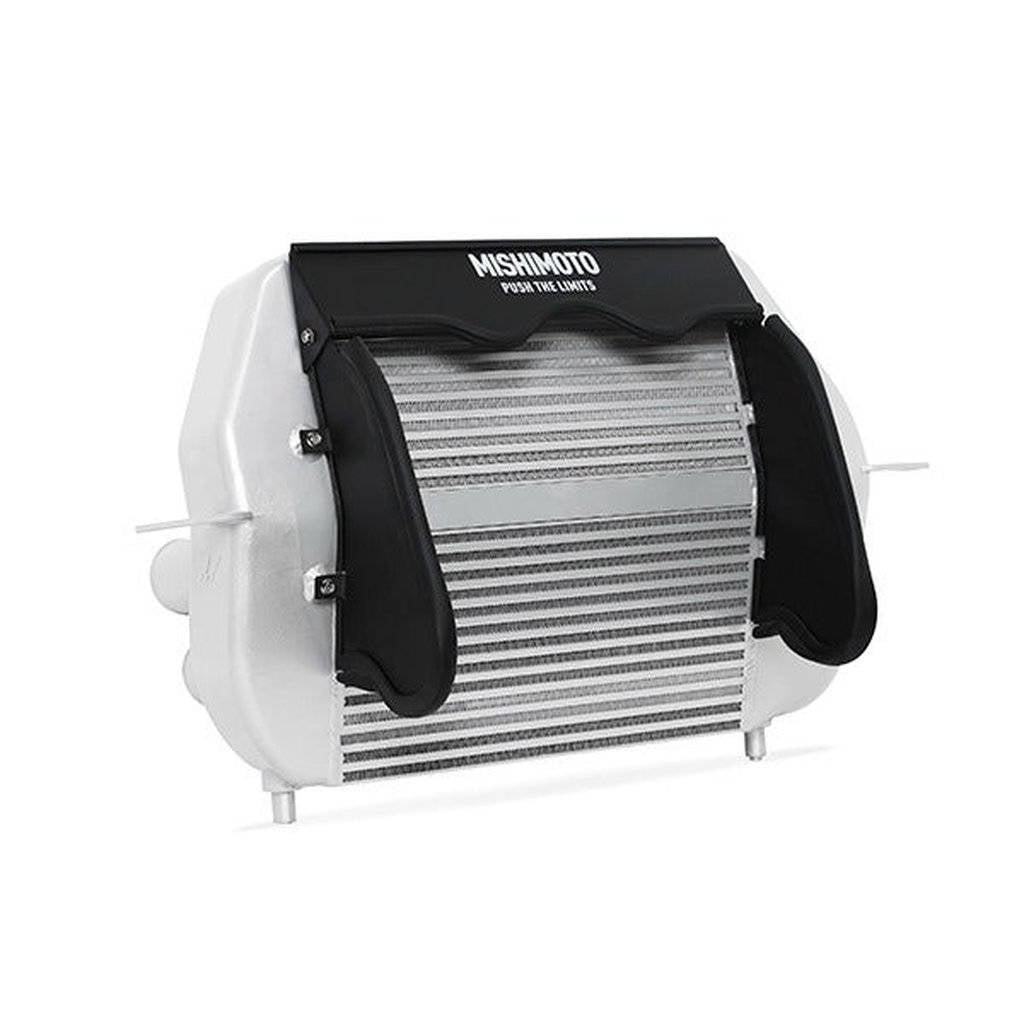

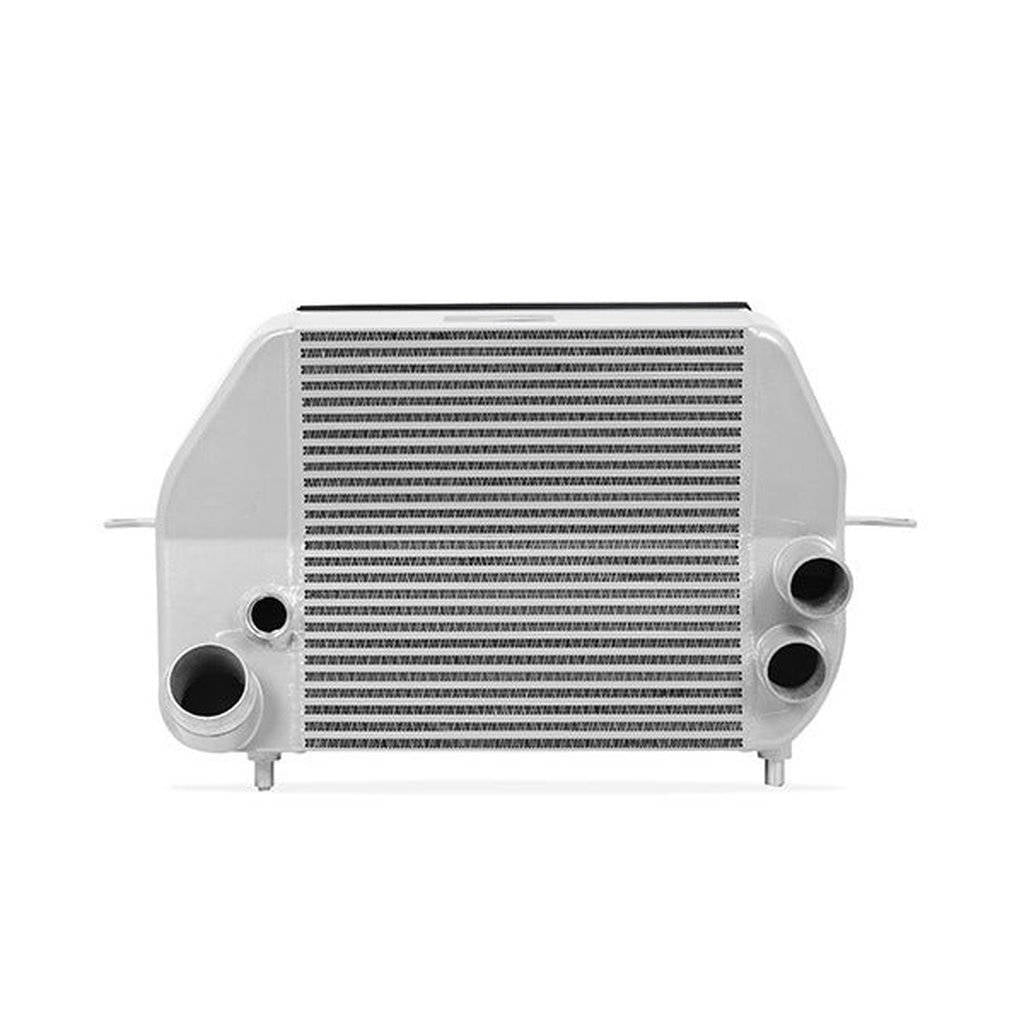

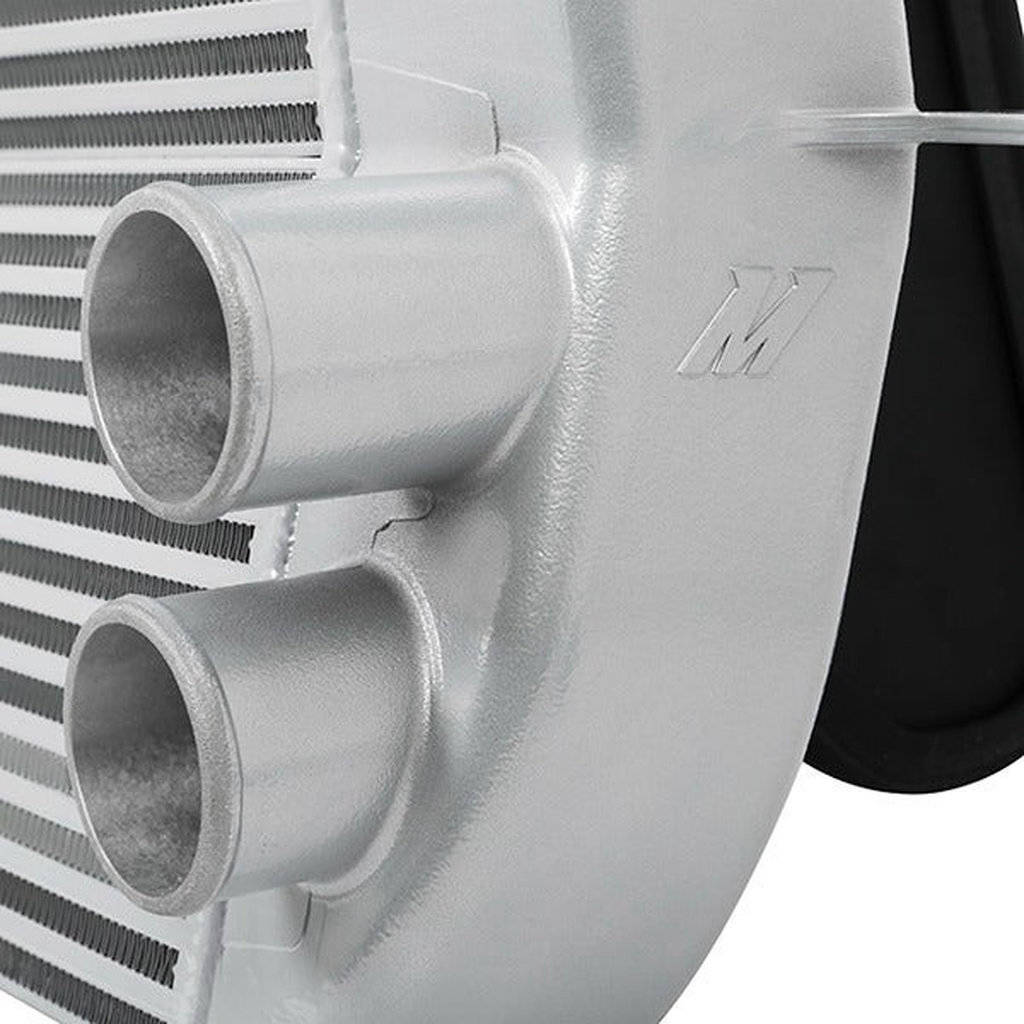

The Mishimoto intercooler features a unique angled design to maximize use of available space for improved performance. It offers an 88% increase in core size, 66% increase in internal core volume, and 40% increase in external fin surface area. Intake temperatures are lowered by 50°F (28°C) compared to the factory part.

This kit also includes Mishimoto 2011-2014 F-150 EcoBoost intercooler pipes, providing an upgrade in reliability and performance. Silicone couplers with DuraCore technology improve durability and airflow, offering superior resistance to heat, pressure, fuel, and oil. The pipes have been dyno proven to add up to 15 horsepower and 21 ft/lbs of torque.

Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).

• Direct-fit performance intercooler and pipe kit for 2011-2014 Ford F-150 EcoBoost
• Intercooler features 88% larger core, 66% more internal volume, and 40% more external fin surface area
• Silicone couplers with DuraCore technology for improved durability and airflow
• Pipes provide up to 15 more horsepower and 21 ft/lbs more torque

Specifications:

• Engine Codes: 3.5L V6 EcoBoost
• Chassis Codes: P415
• Overall Length (in): 27.6
• Overall Height (in): 19
• Overall Width (in): 6.75
• Inlet (in): 2.5
• Outlet (in): 3

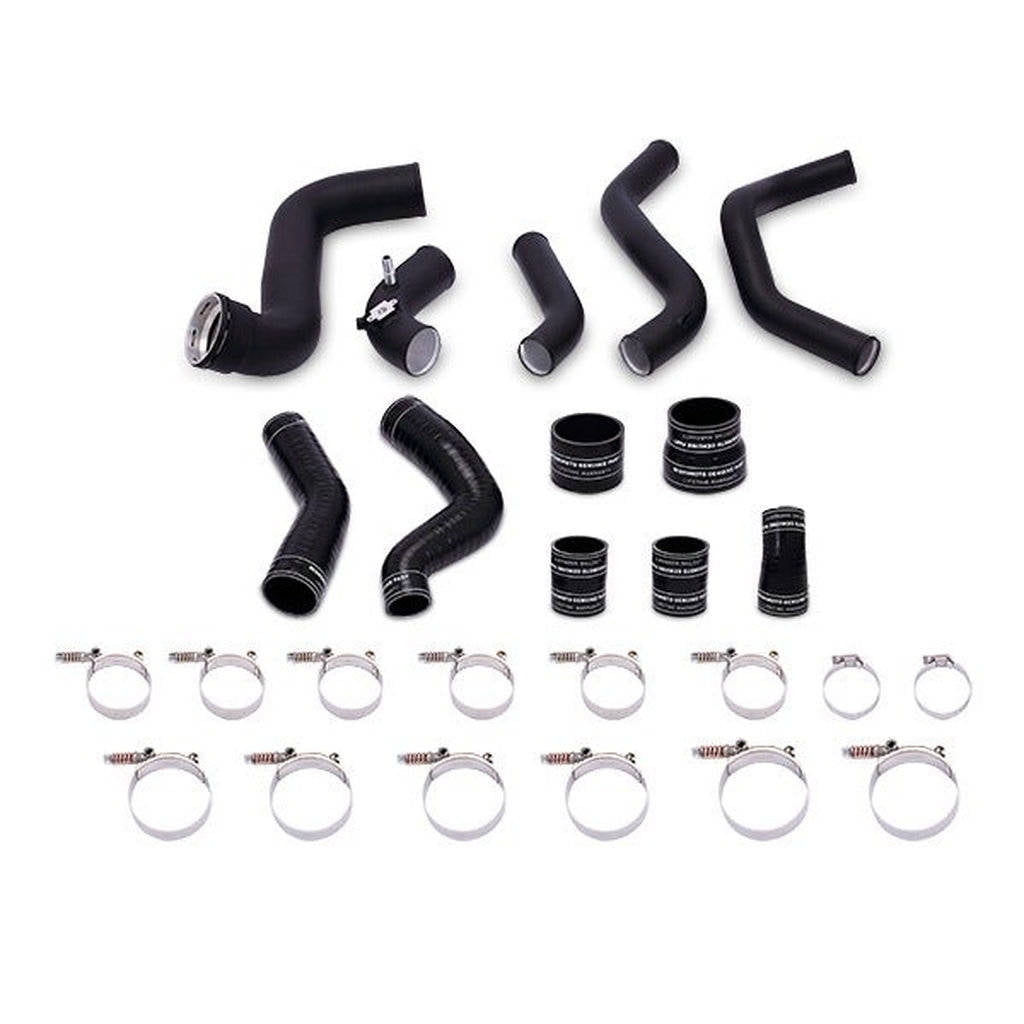

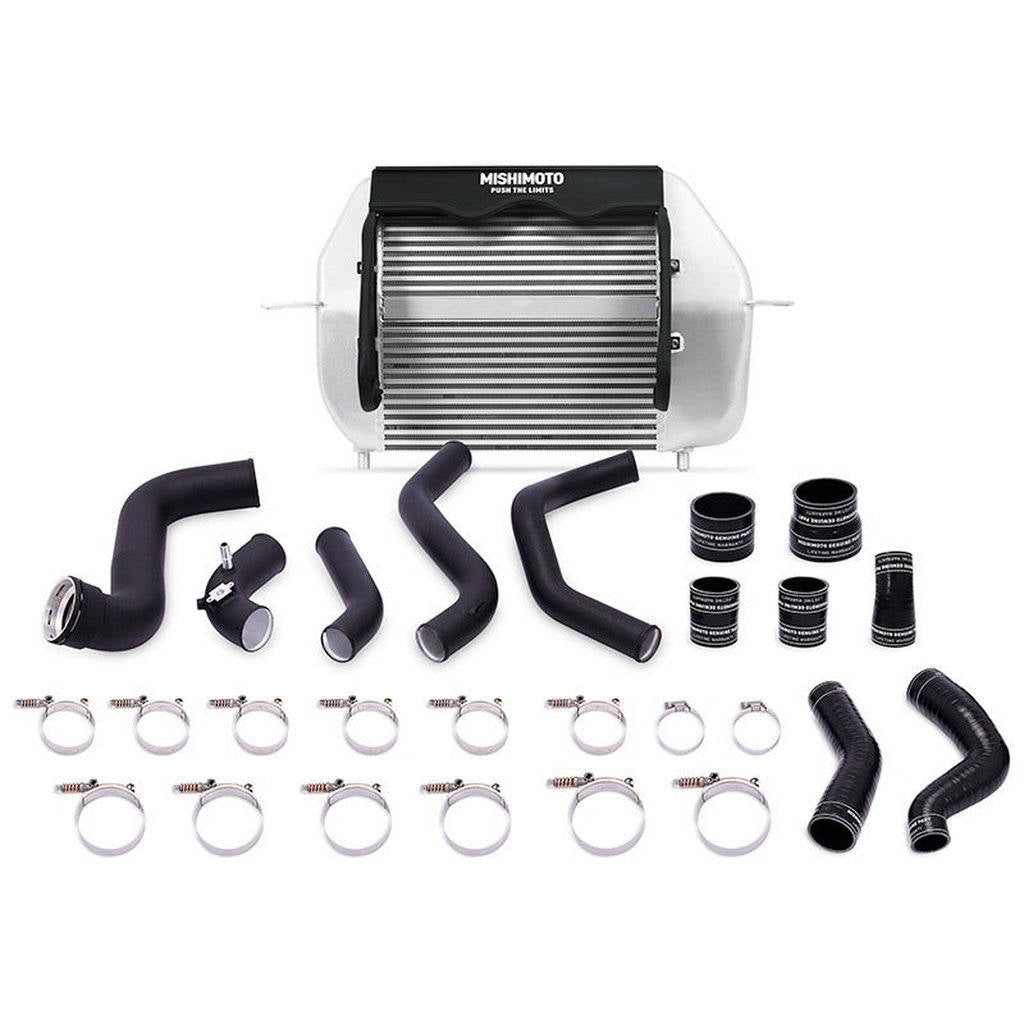

Kit comes with::

• Aluminum Intercooler Pipe with CNC Quick-Disconnect Flange
• Aluminum Intercooler Pipe with CNC IAT Sensor Housing
• Three Aluminum Intercooler Pipes
• Seven Silicone Boots with DuraCore Technology
• Two High-Torque Worm Gear Clamps
• Twelve Constant-Tension T-Bolt Clamps
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2011-2014 Ford F-150 EcoBoost 3.5L V6 (Chassis Code: P415)
