MISHIMOTO MMINT-E90-07B Intercooler for BMW 1 Series 135/135is/M 2008-2013/3 Series 335i/xi/is 2007-2013/Z4 35i/35is 2009-2013/X1 xDrive35i 2013

Description MISHIMOTO MMINT-E90-07B Intercooler for BMW 1 Series 135/135is/M 2008-2013/3 Series 335i/xi/is 2007-2013/Z4 35i/35is 2009-2013/X1 xDrive35i 2013

The MISHIMOTO MMINT-E90-07B Intercooler is a high-performance upgrade designed for BMW models equipped with N54 and N55 engines. Engineered as a direct-fit solution, it improves charge air cooling efficiency and reduces heat soak compared to the factory intercooler.

Featuring a bar-and-plate core with a 22% increase in volume, this intercooler significantly lowers intake air temperatures and supports increased power output. Constructed بالكامل from aluminum with cast end tanks and CNC-machined quick-disconnect fittings, it integrates seamlessly with OEM piping while maintaining factory boost pressure.

• Direct-fit intercooler for BMW N54/N55 engines
• 22% larger core for improved cooling efficiency
• Reduces intake air temperature by up to 35°F (19.45°C)
• Supports power increase of 20+ hp
• Bar-and-plate aluminum construction

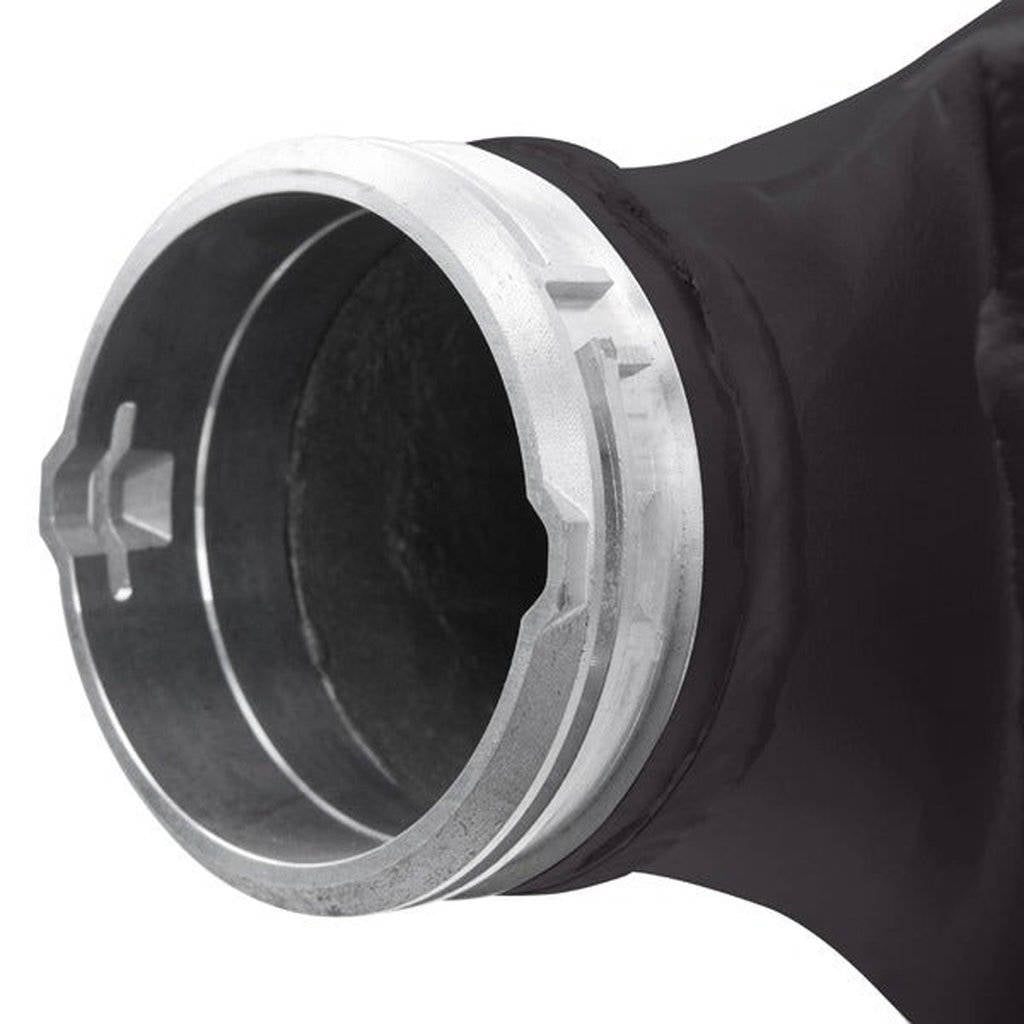

• Cast end tanks with CNC-machined quick-connect fittings
• Maintains factory boost pressure across the core
• Installation without vehicle modification

Specifications:

• Engine Codes: N54, N55
• Chassis Codes: E90, E92, E93, E82
• Core Type: Bar-and-plate
• Material: Aluminum (TIG-welded, cast end tanks)
• Core Thickness: 5.12 in
• Core Length: 20.47 in
• Core Height: 5.12 in
• Overall Dimensions: 27.8 x 6.8 x 8.7 in
• Inlet/Outlet Diameter: 3 in
