MISHIMOTO MMINT-CAM4-16KP 16+ CHEVROLETCamaro 2.0T Intercooler Kit, Polished

Description MISHIMOTO MMINT-CAM4-16KP 16+ CHEVROLETCamaro 2.0T Intercooler Kit, Polished

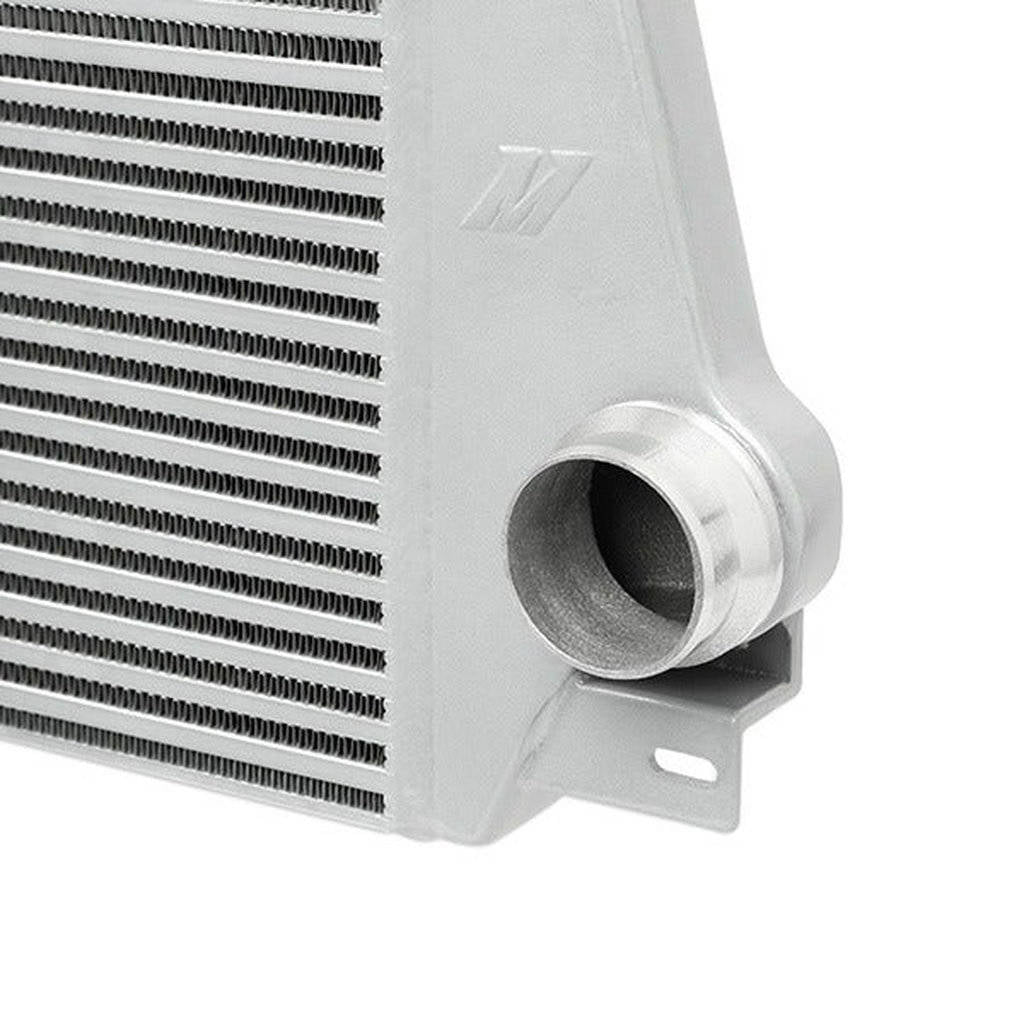

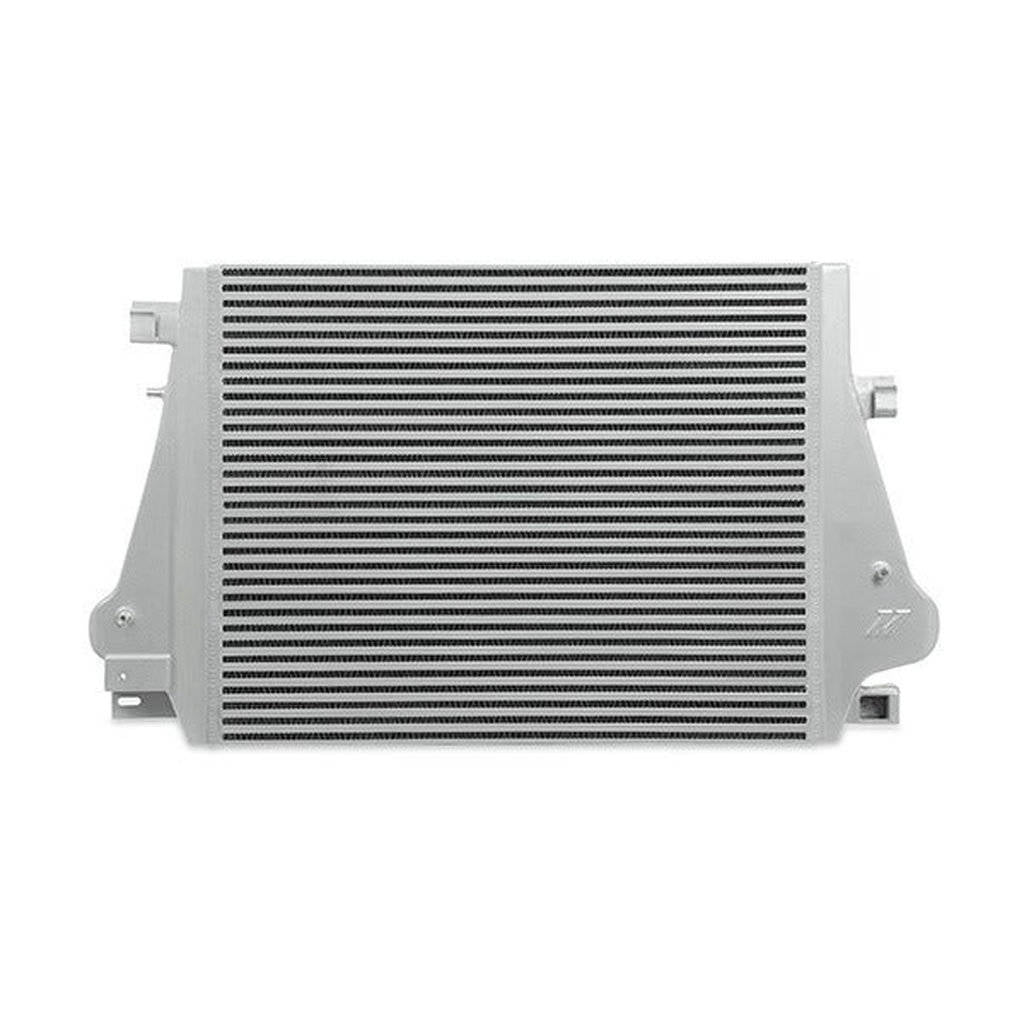

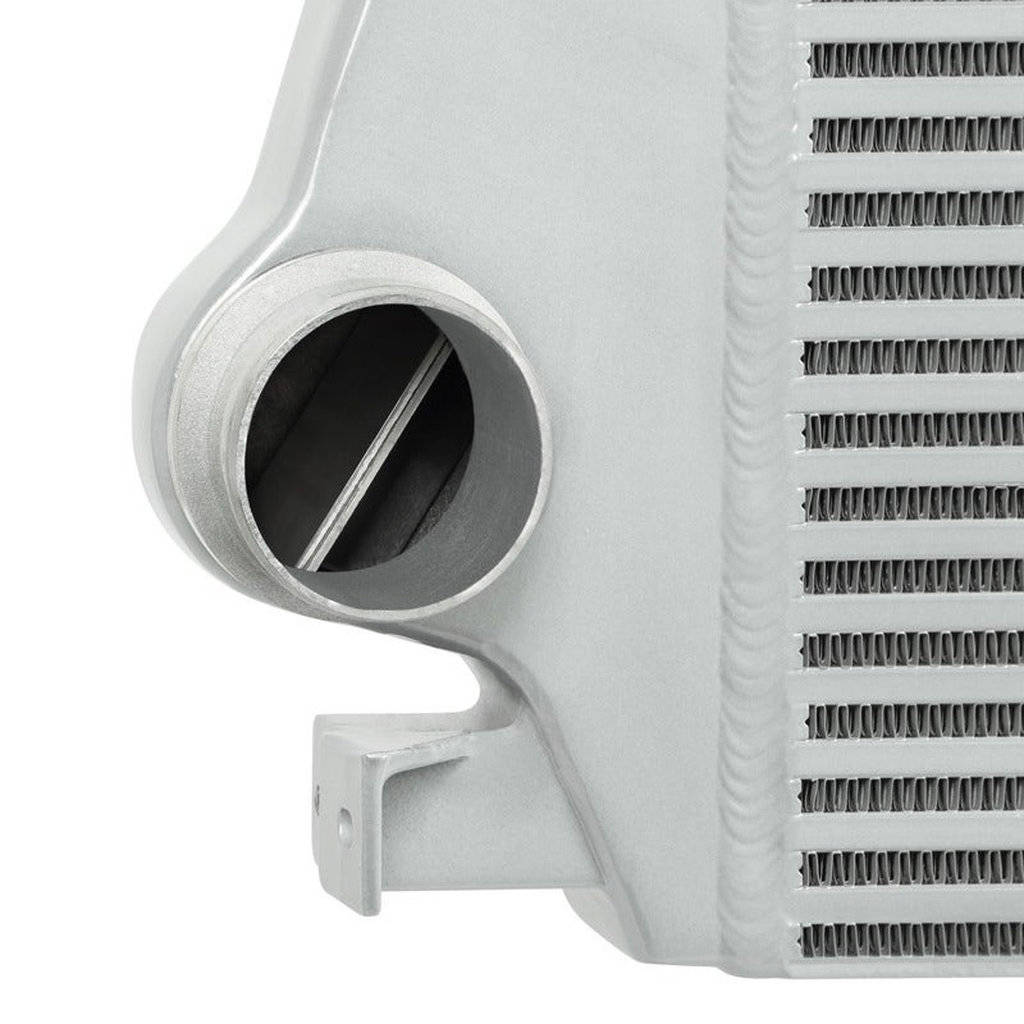

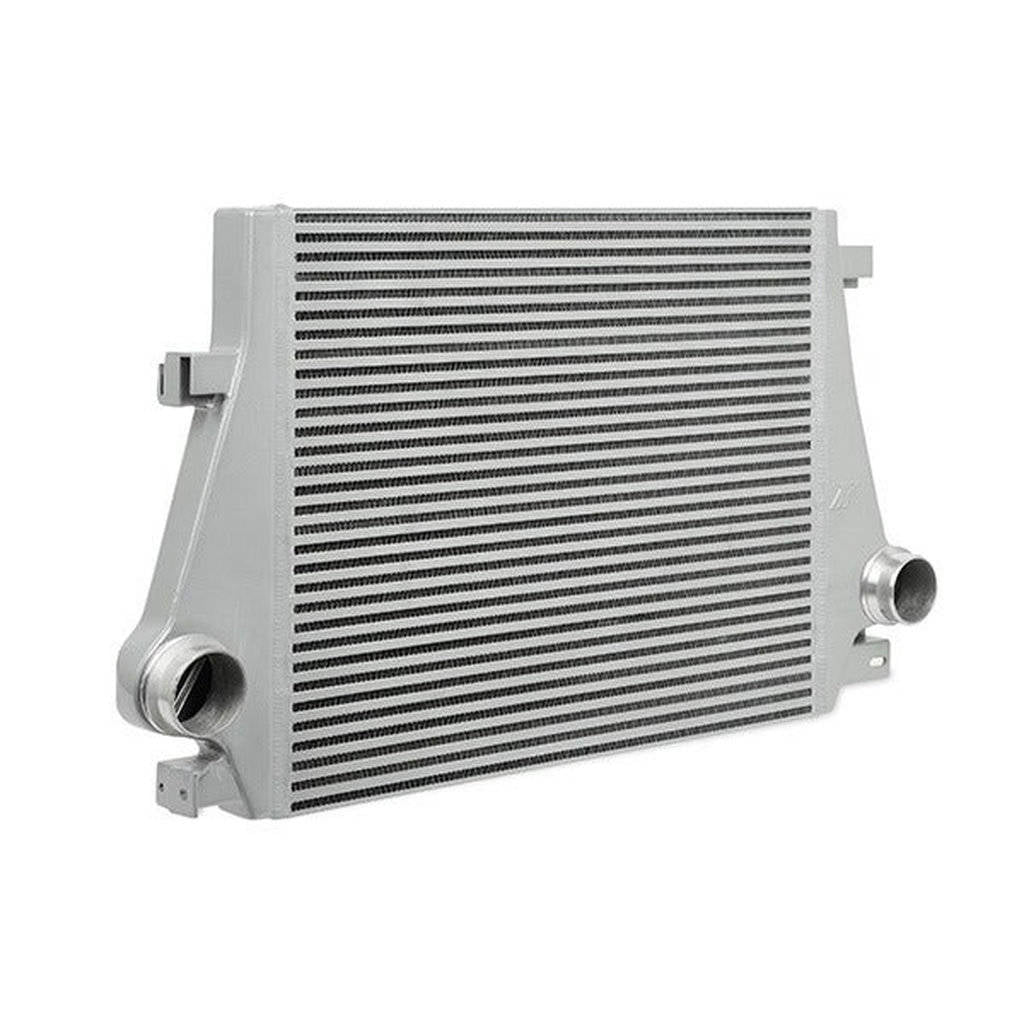

The Mishimoto Performance Intercooler Kit provides a complete upgrade for the intercooling system in the 2016+ Chevrolet Camaro 2.0T and 2013-2019 Cadillac ATS. The bar-and-plate constructed core delivers improved heat rejection and increased airflow compared to the stock unit.

This design increases internal core volume by 45% and external fin surface area by 239%, ensuring optimal cooling for the charged air. The included mandrel-bent intercooler piping ranges from 2.25 to 2.75 inches in diameter, resulting in a 30% increase in volume and 10% better airflow. The piping kit enables gains of up to 11 horsepower and 9 ft-lbs of torque for LTG-powered Camaro or ATS models.

A pre-welded NPT port on the cold side piping allows for easy installation of stock equipment and simplifies the addition of an aftermarket boost gauge or meth-injection. The kit is available with polished or wrinkle black piping.

Note: There is an O-ring inside the stock intercooler pipe on the end that connects to the intercooler. This O-ring must be removed and installed into the Mishimoto intercooler pipe. Take note when removing it from the stock pipe, as the O-ring must be installed in the correct direction. Please reference the installation video for additional information.

• Bar-and-plate core increases heat rejection and airflow
• Internal core volume increased by 45%, external fin surface area by 239%
• Mandrel-bent piping provides 30% more volume and 10% better airflow
• Pre-welded NPT port for easy installation of stock or aftermarket equipment

Specifications:

• Engine Codes: LTG
• Chassis Codes: Alpha
• Core Thickness (in): 2
• Inlet (in): 2.4
• Outlet (in): 2.4

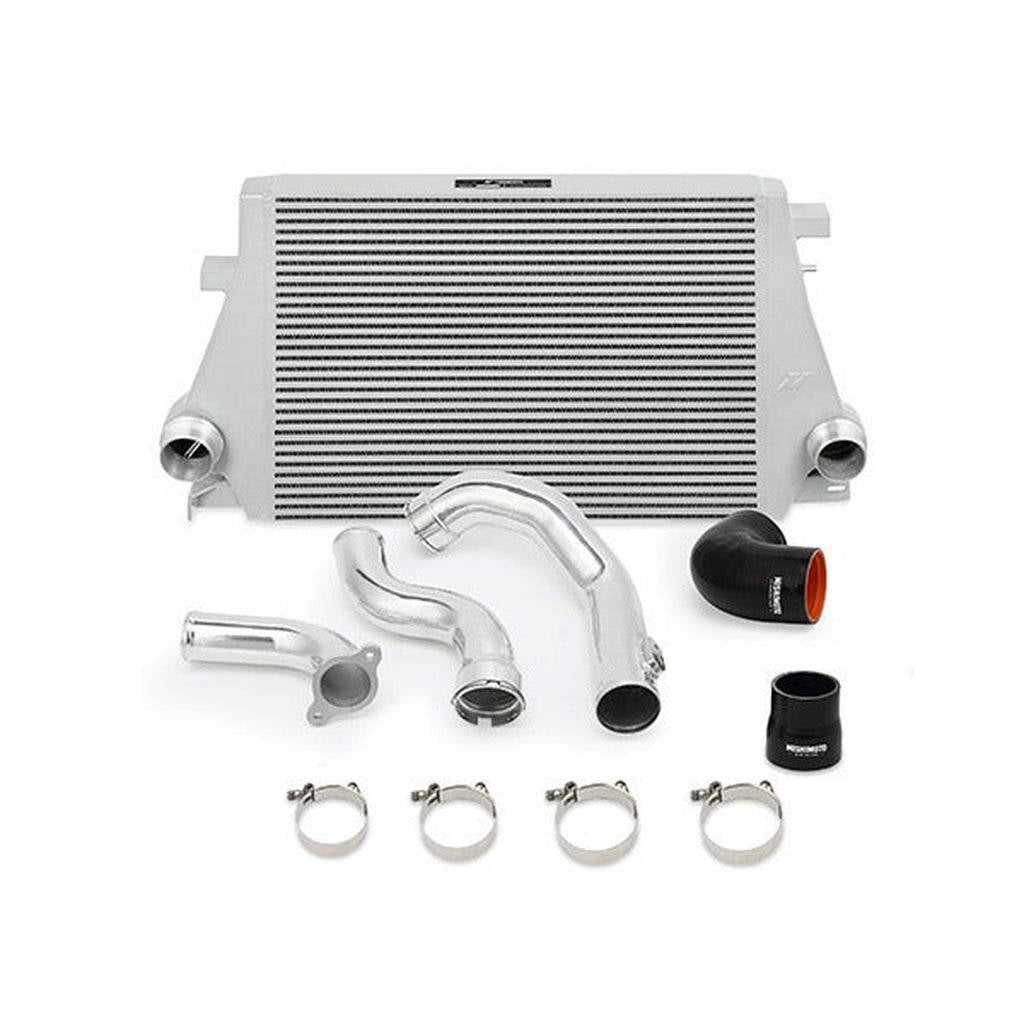

Kit comes with::

• Aluminum Intercooler (1)

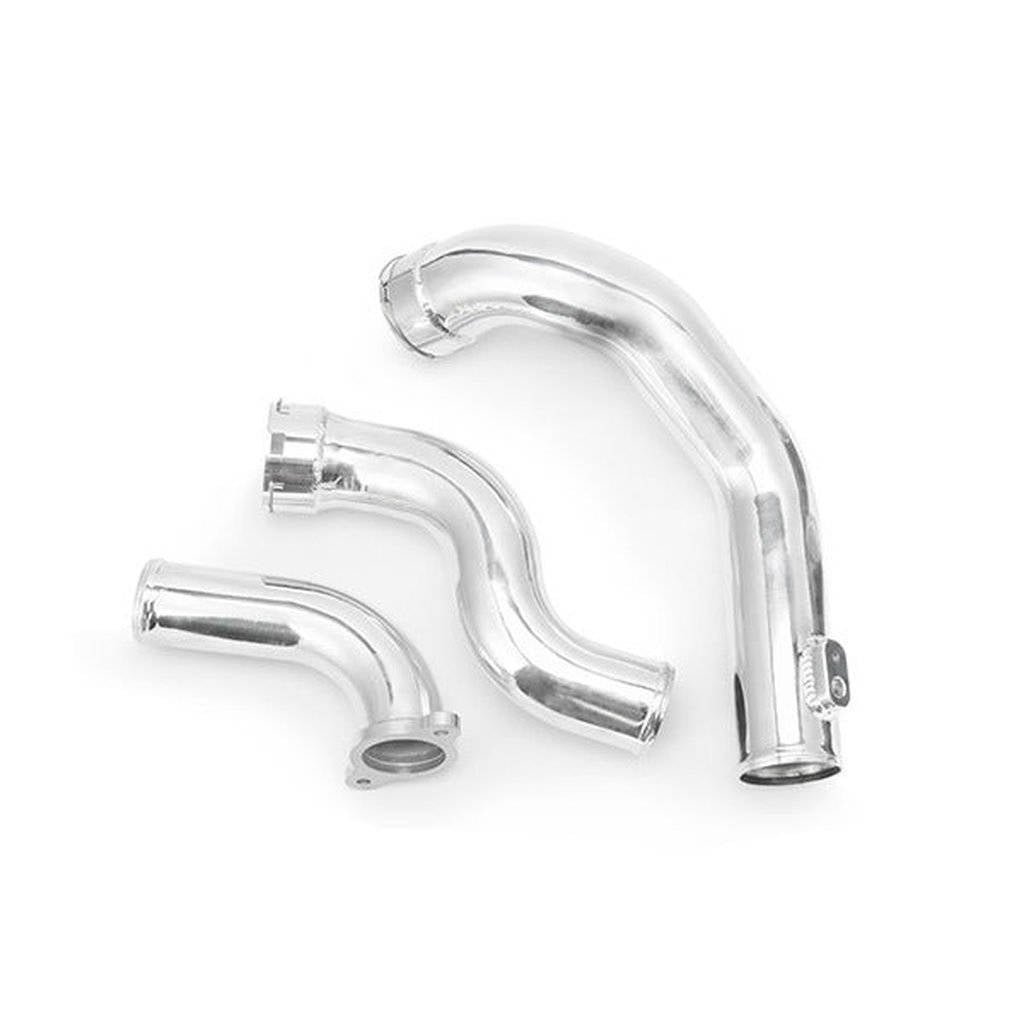

• Aluminum Pipes with CNC-machined quick-disconnects (2)
• Aluminum Pipe with CNC-machined 2-bolt flange (1)
• Quick-Disconnect Spring Clips (2)

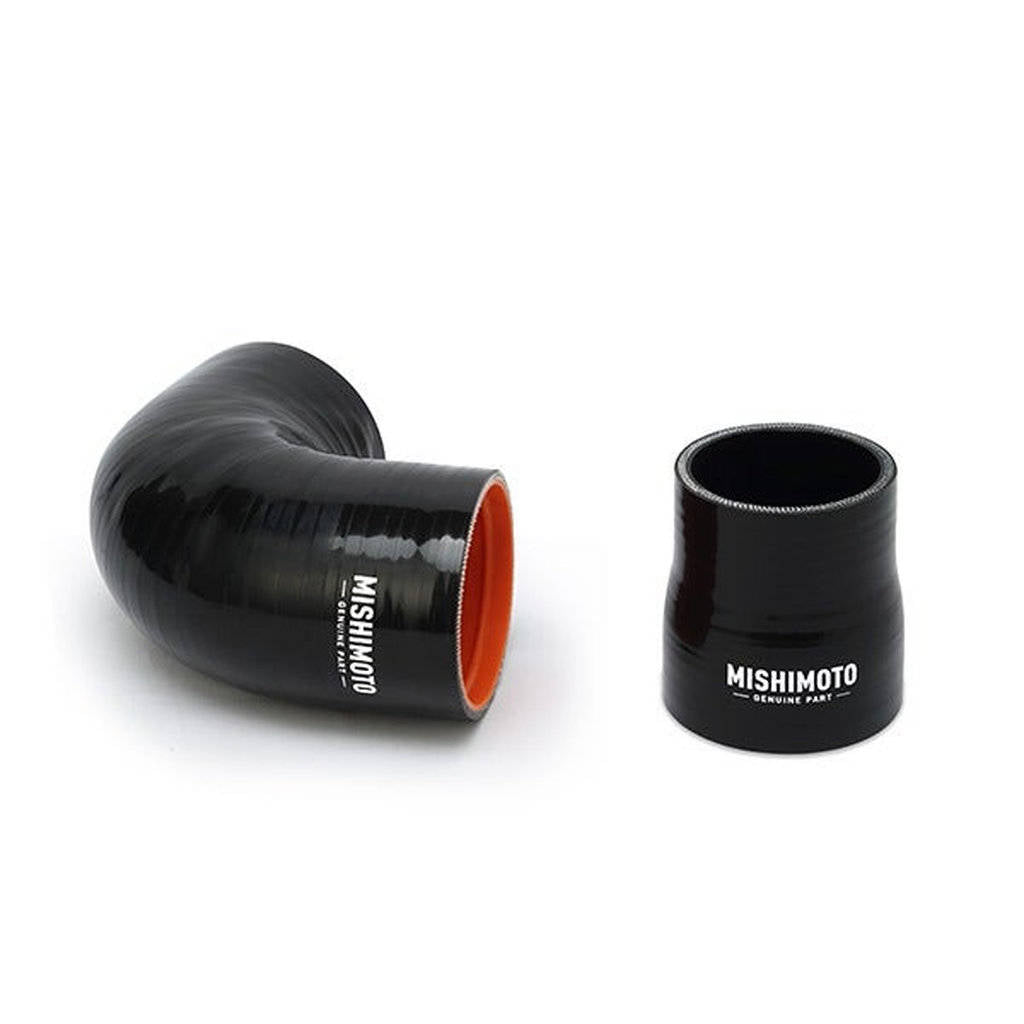

• 2.75-in 90-degree Silicone Coupler (1)
• 2.25-in to 2.5-in Silicone Transition Coupler (1)
• 2.5-in T-bolt Clamp (1)
• 2.75-in T-bolt Clamp (1)
• 3-in T-bolt Clamps (2)
• Tree Clips (3)

Vehicle Compatibility:

• 2016+ Chevrolet Camaro 2.0T
• 2013-2019 Cadillac ATS 2.0T
