MISHIMOTO MMICP-F2D-17KBK FORD 6.7L Powerstroke Intercooler Pipe and Boot Kit, 2017+

Description MISHIMOTO MMICP-F2D-17KBK FORD 6.7L Powerstroke Intercooler Pipe and Boot Kit, 2017+

Mishimoto offers an intercooler pipe and boot kit for the 2017+ 6.7L Powerstroke, designed for customers seeking to upgrade both cold-side and hot-side intercooler pipes simultaneously. The kit features mandrel bent aluminum pipes with a polished finish, eliminating restrictive bends found in the factory pipes to improve airflow, power, and EGTs.

CNC-machined quick-disconnect flanges and IAT sensor housing are included for straightforward installation in under two hours. The direct-fit kit retains all factory emissions components and does not require a tuner. Mishimoto Silicone Boots with DuraCore technology provide enhanced resistance to heat, pressure, fuel, and oil, increasing boot longevity and preventing leaks and blowouts. Constant-Tension T-bolt Clamps are also included for consistent holding power.

This kit is compatible with the Mishimoto 6.7L Powerstroke Performance Primary Radiator. It is made in the USA and comes with the Mishimoto Lifetime Warranty.

Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).

Note: Mishimoto has improved this product by including an O-ring and spring clip for both the cold and hot-side pipes. If these components are missing from the kit, use the stock O-ring and spring clip or contact Mishimoto.

Note: Executive Order D-759-4 currently covers model years 2017-2018.

• Mandrel bent aluminum pipes with polished finish eliminate restrictive bends
• CNC-machined quick-disconnect flanges and IAT sensor housing for easy installation
• Direct fit retains all factory emissions components and does not require a tuner
• Includes Mishimoto Silicone Boots with DuraCore technology and Constant-Tension T-bolt Clamps

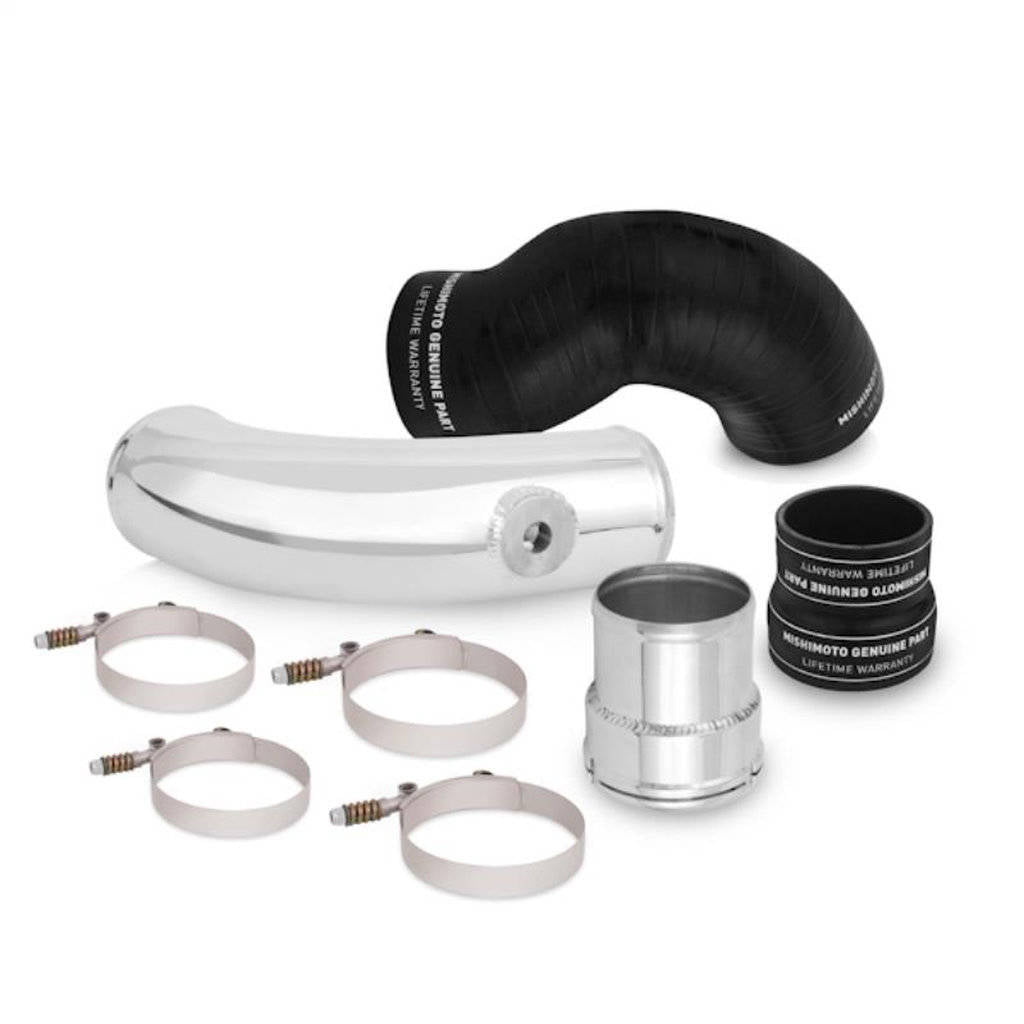

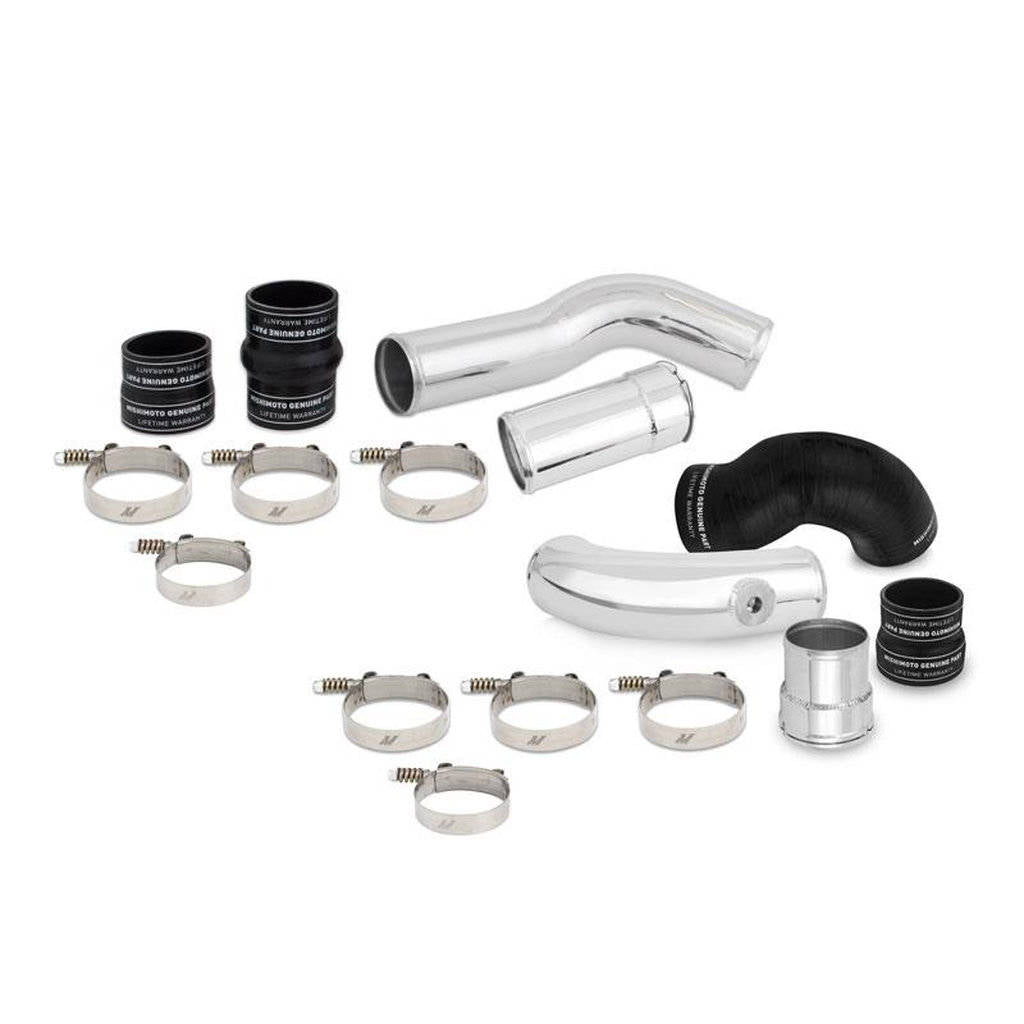

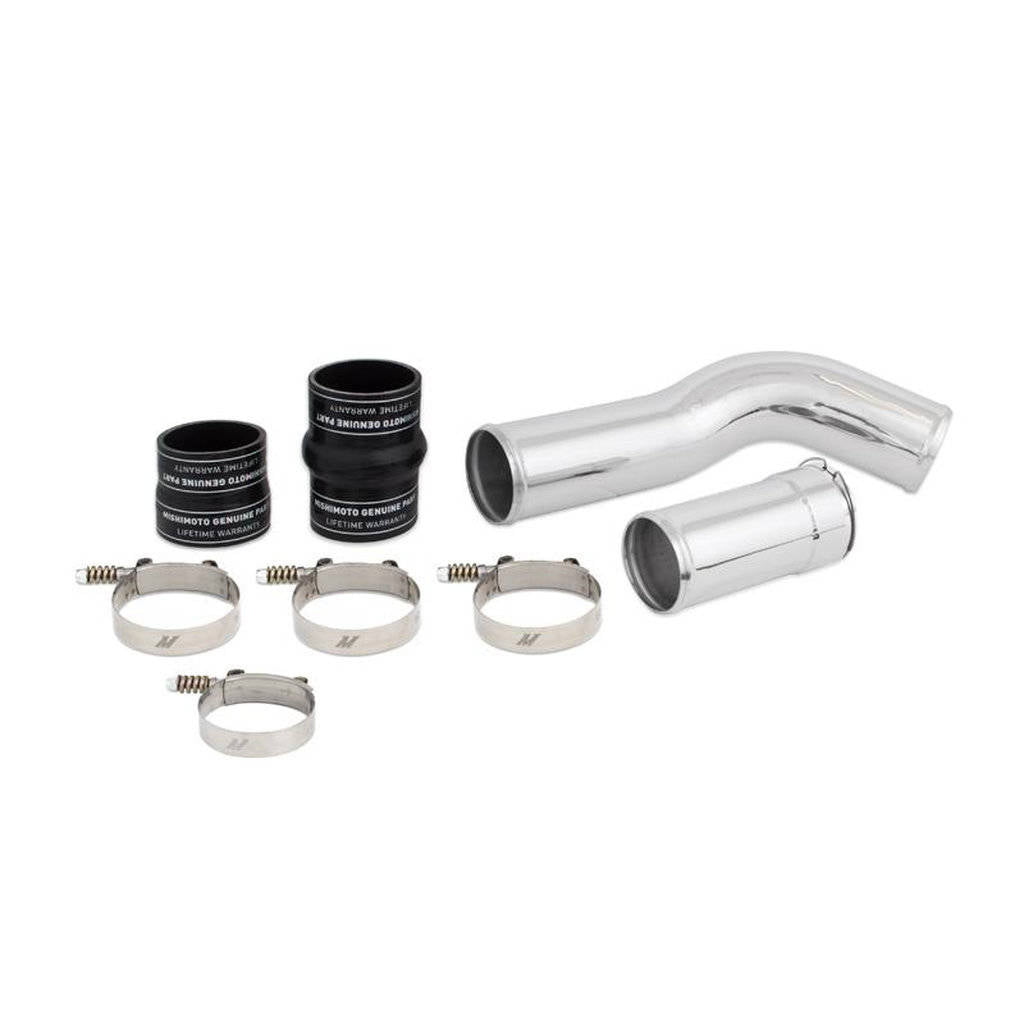

Kit comes with::

• Aluminum Intercooler Pipe with CNC Quick-Disconnect Flange
• Aluminum Intercooler Pipe with CNC Quick-Disconnect Flange, O-Ring, and Spring Clip
• Aluminum Intercooler Pipe with CNC IAT Sensor Housing
• Aluminum Intercooler Pipe
• 4 Silicone Boots with DuraCore Technology
• 8 Constant-Tension T-Bolt Clamps
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2017+ Ford F-250 w/ 6.7L Powerstroke
• 2017+ Ford F-350 w/ 6.7L Powerstroke
• 2017+ Ford F-450 w/ 6.7L Powerstroke
• 2017+ Ford F-550 w/ 6.7L Powerstroke
