MISHIMOTO MMFS-XJ-89 JEEP Cherokee XJ 4.0L Performance Aluminum Fan Shroud, w/o Fan Controller, 1989-2001

Description MISHIMOTO MMFS-XJ-89 JEEP Cherokee XJ 4.0L Performance Aluminum Fan Shroud, w/o Fan Controller, 1989-2001

Crawling up steep rock faces, muddy hills, or narrow trails can put significant stress on the 1989-2001 Jeep Cherokee XJ 4.0L cooling system. The stock fan system on these models is an older design powered by the engine, adding weight and drag while reducing horsepower and torque. Airflow from the stock fan is dependent on engine speed, so at low RPM, airflow through the radiator is limited.

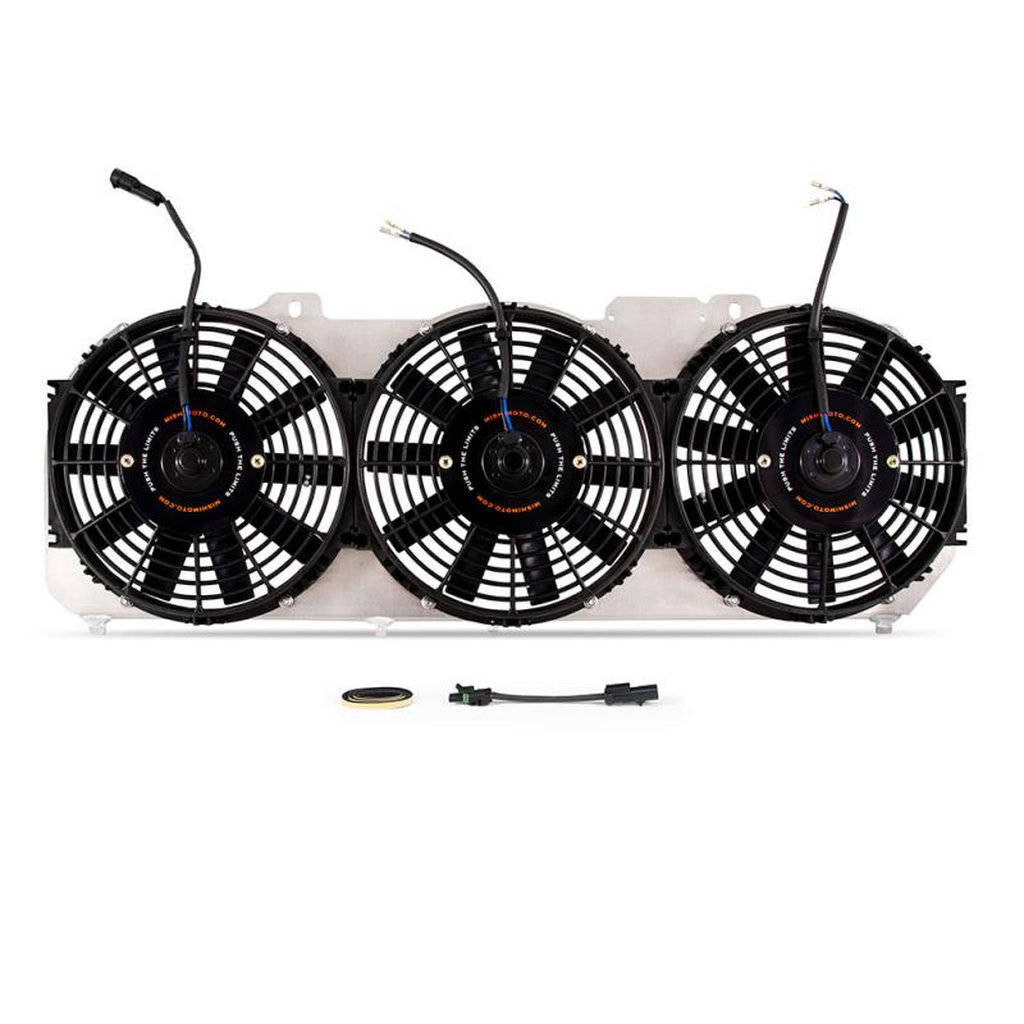

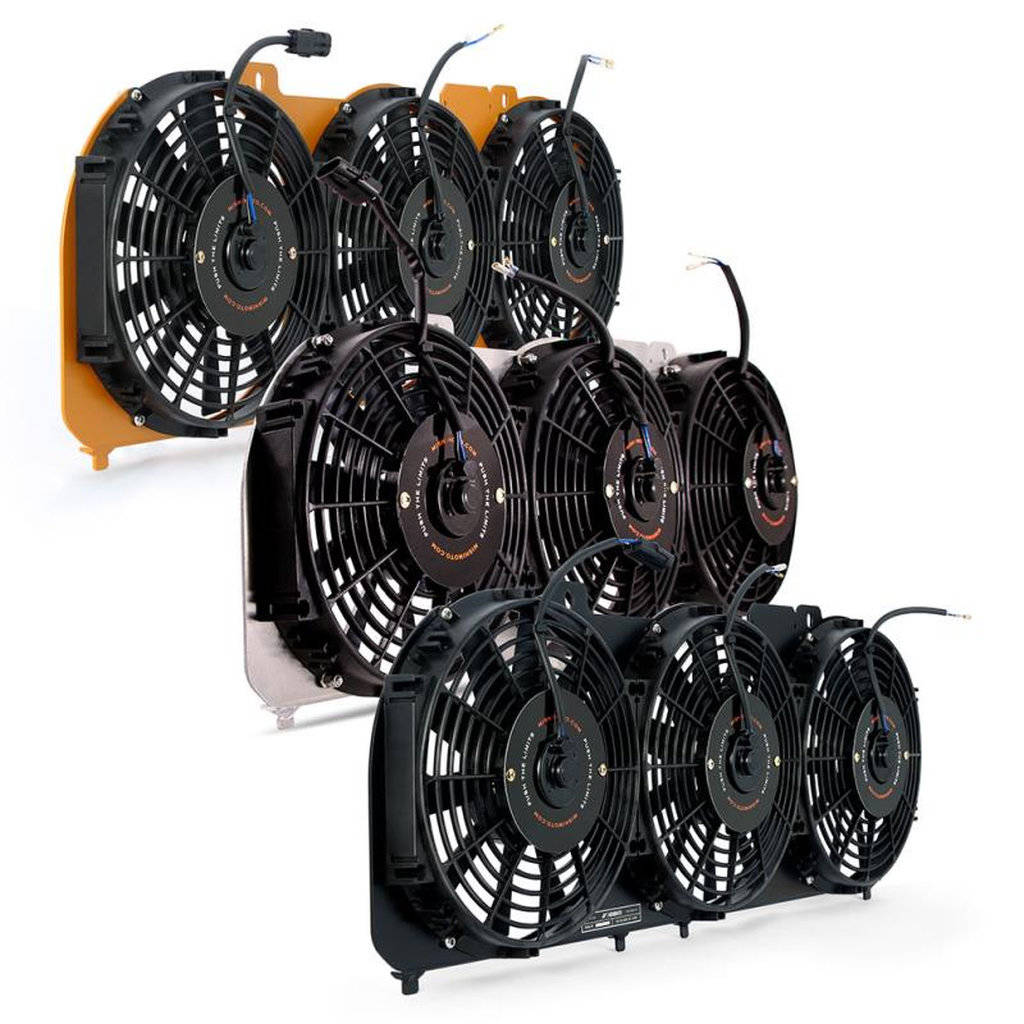

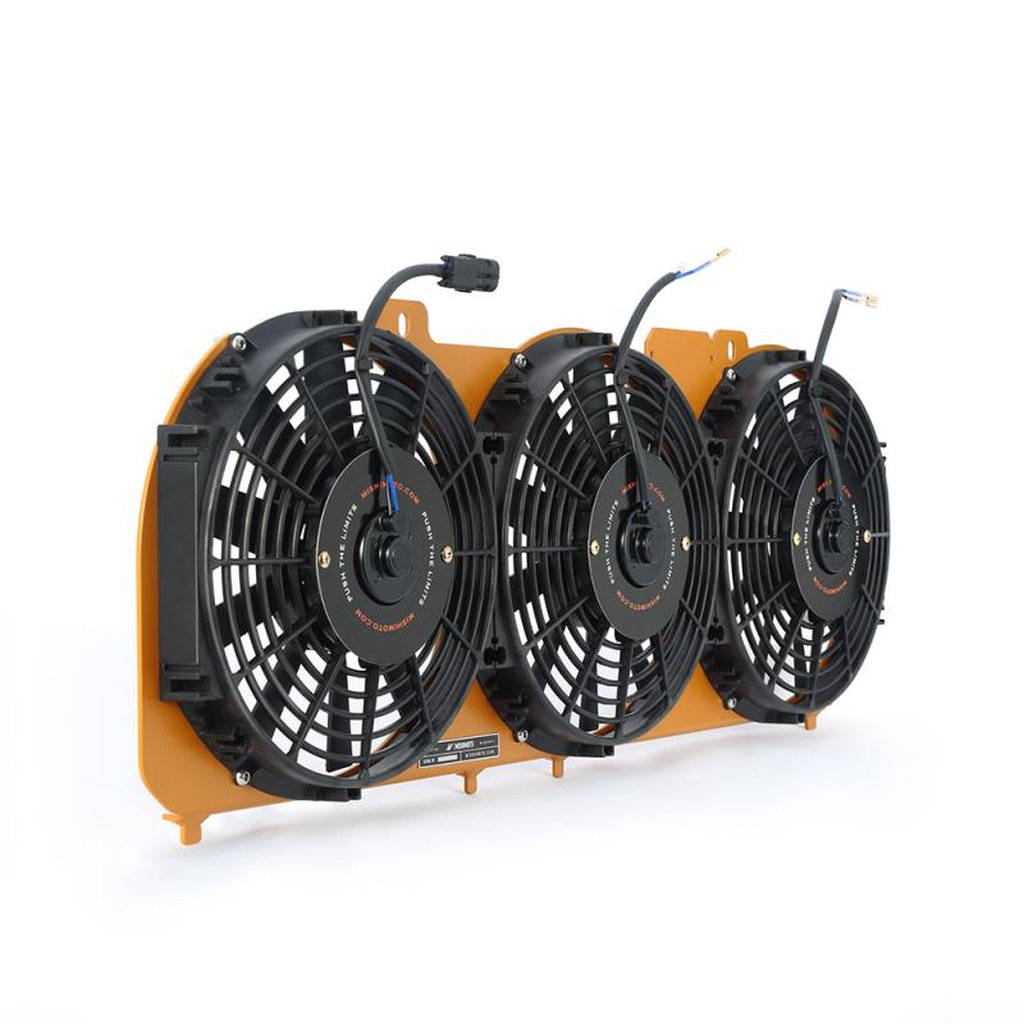

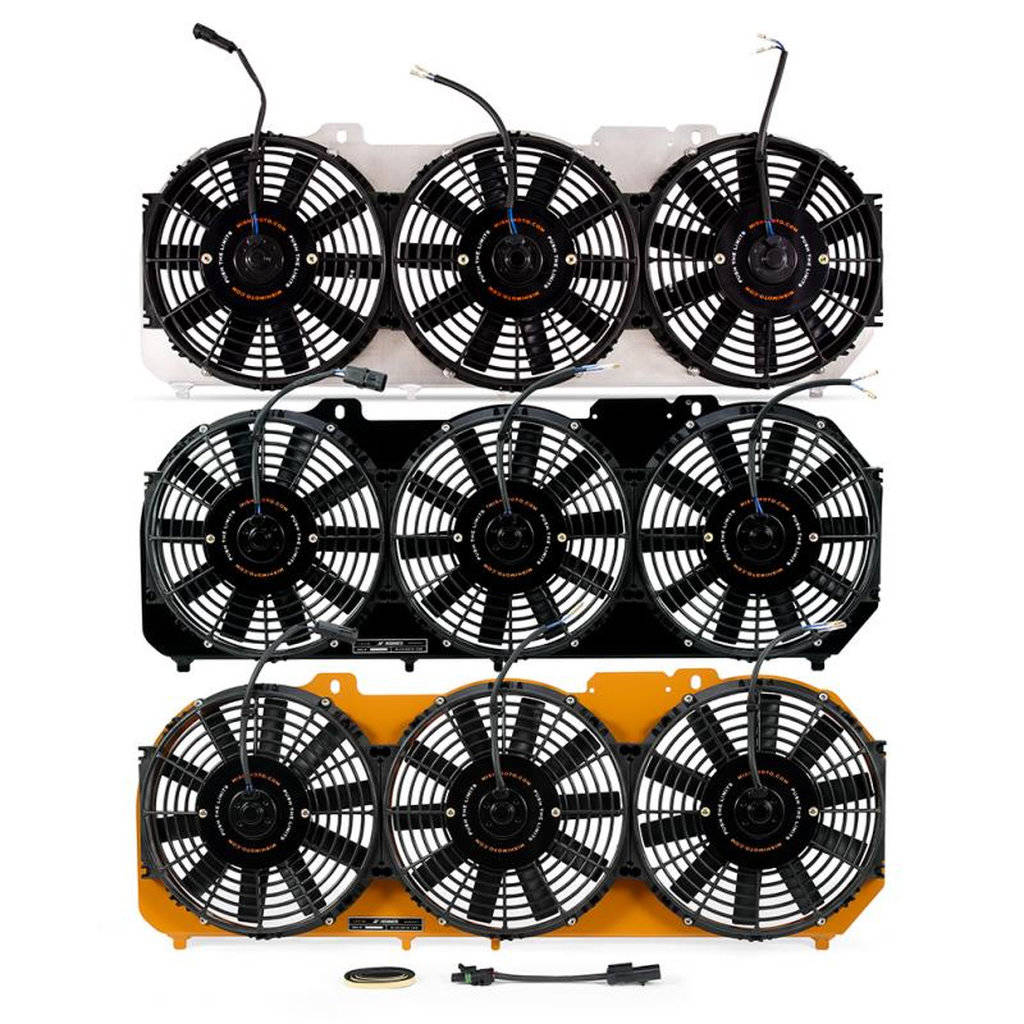

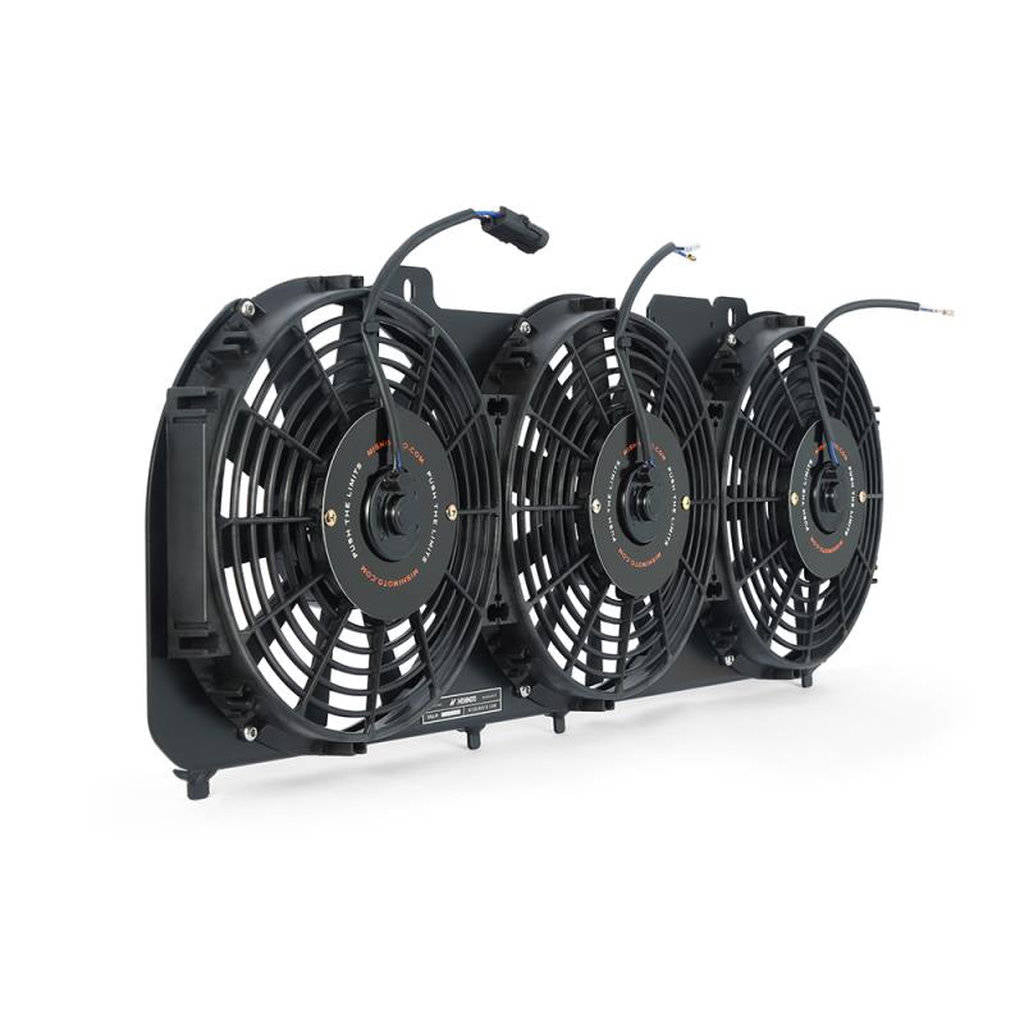

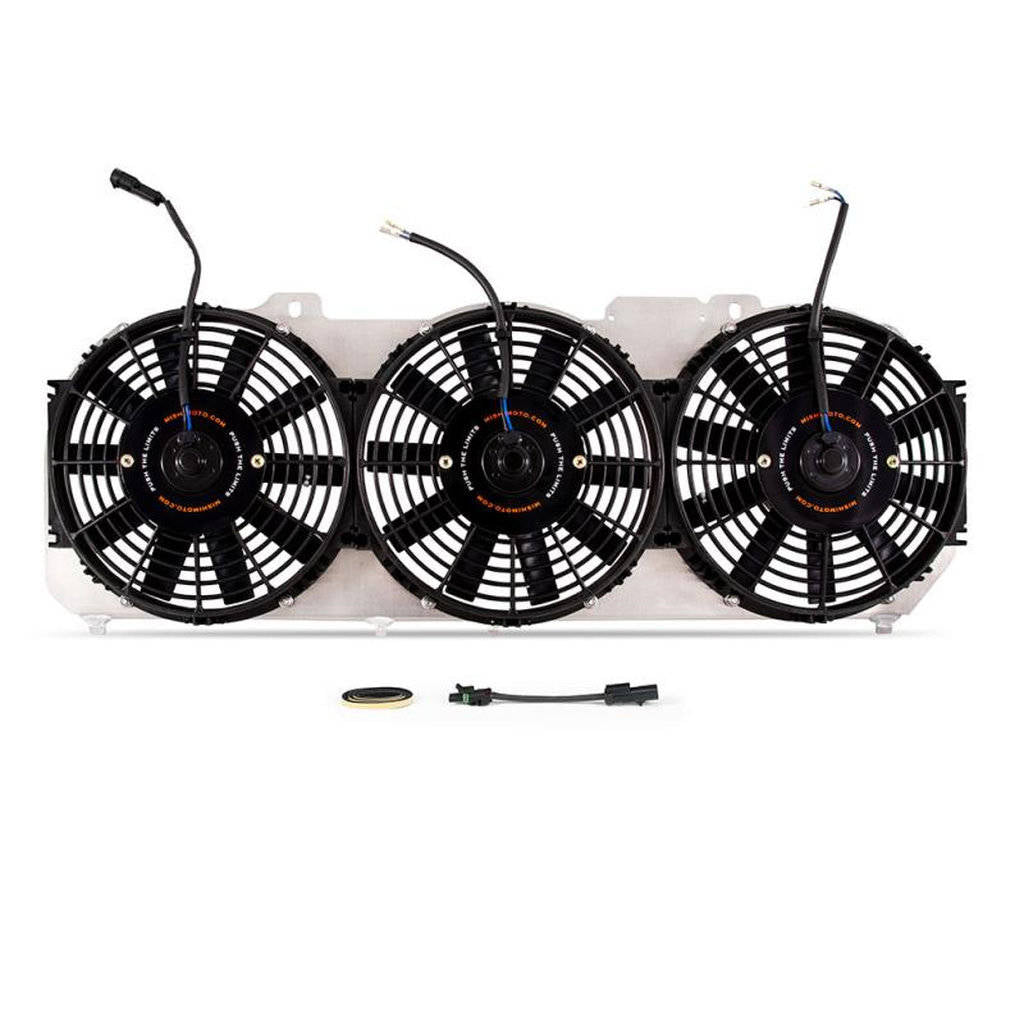

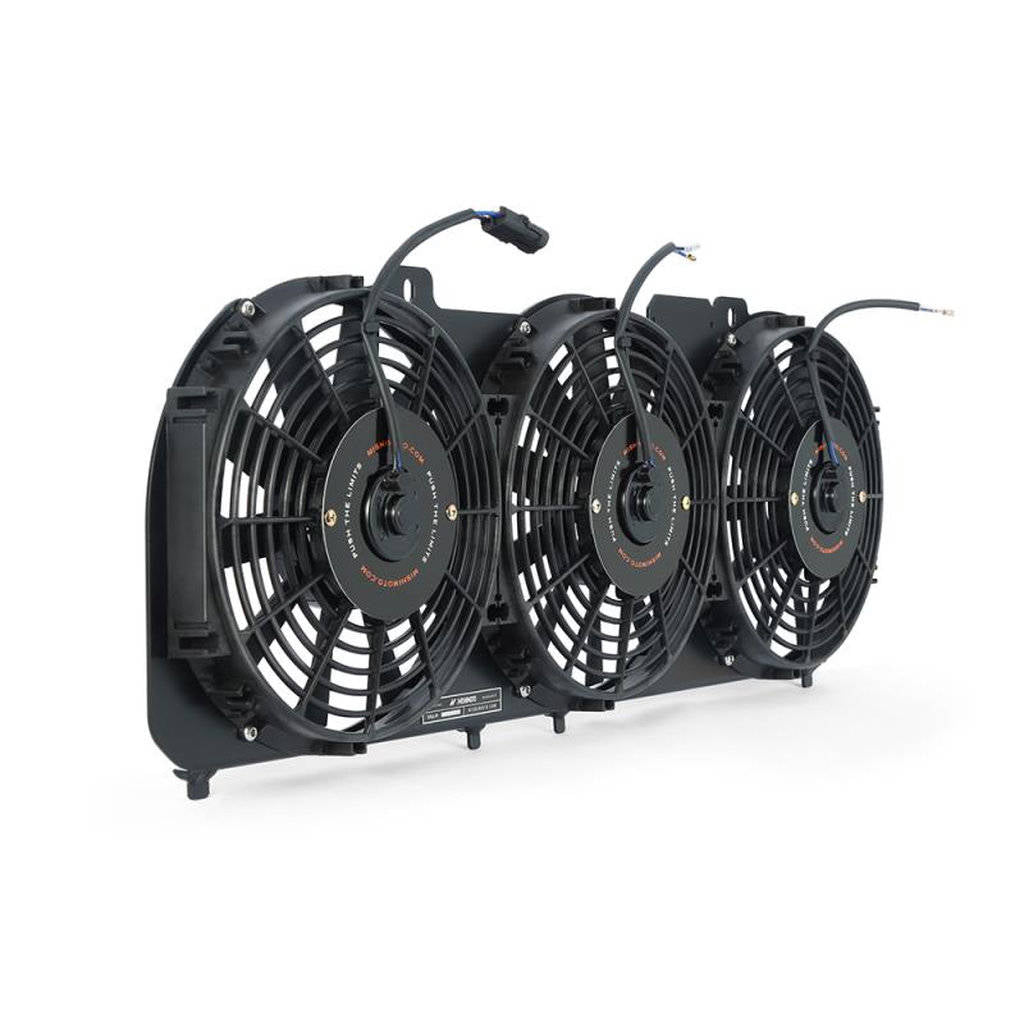

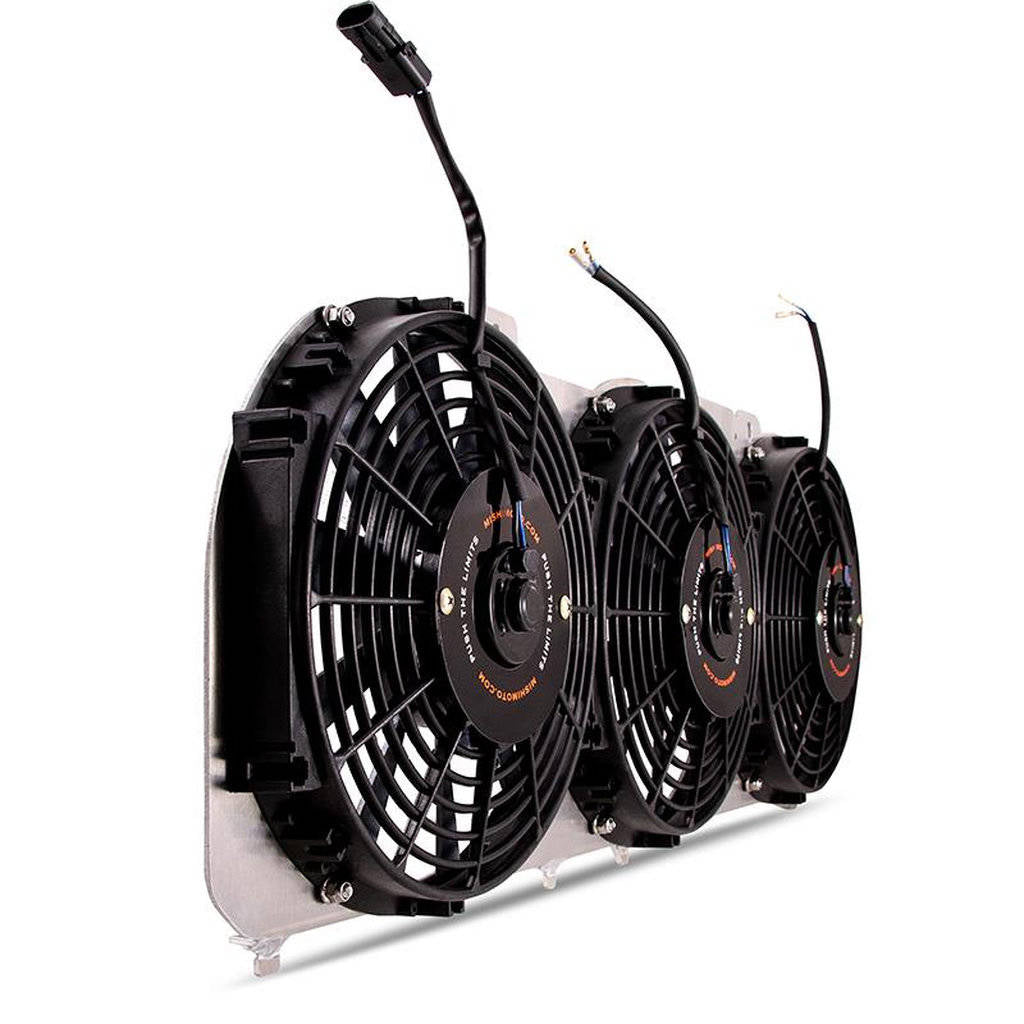

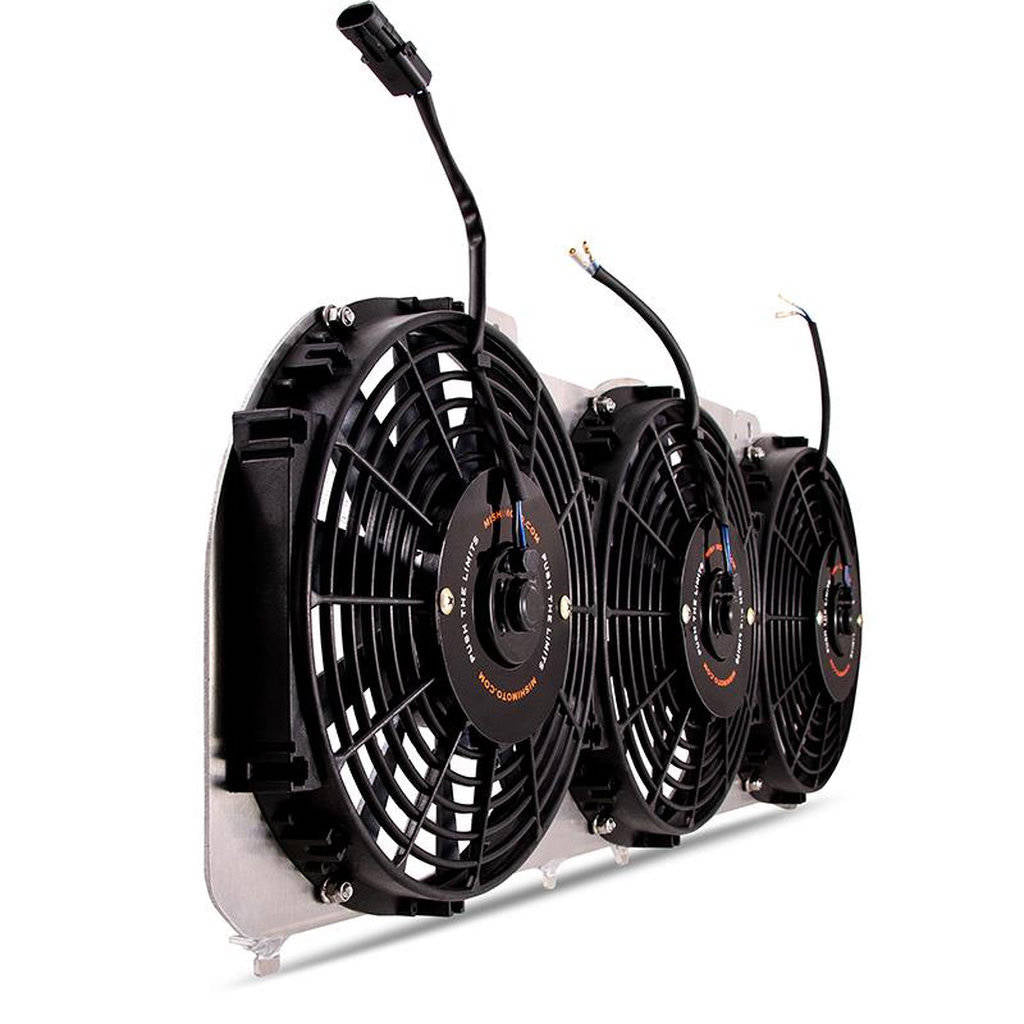

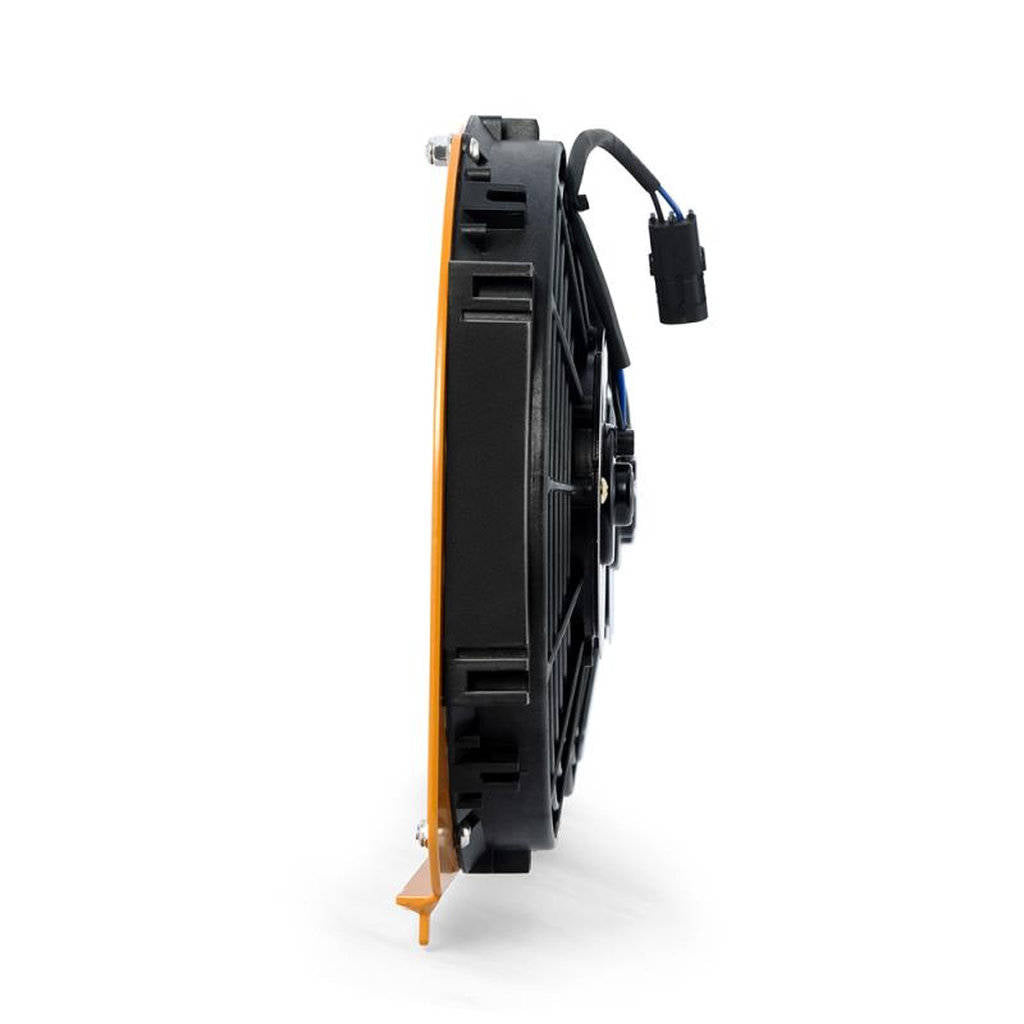

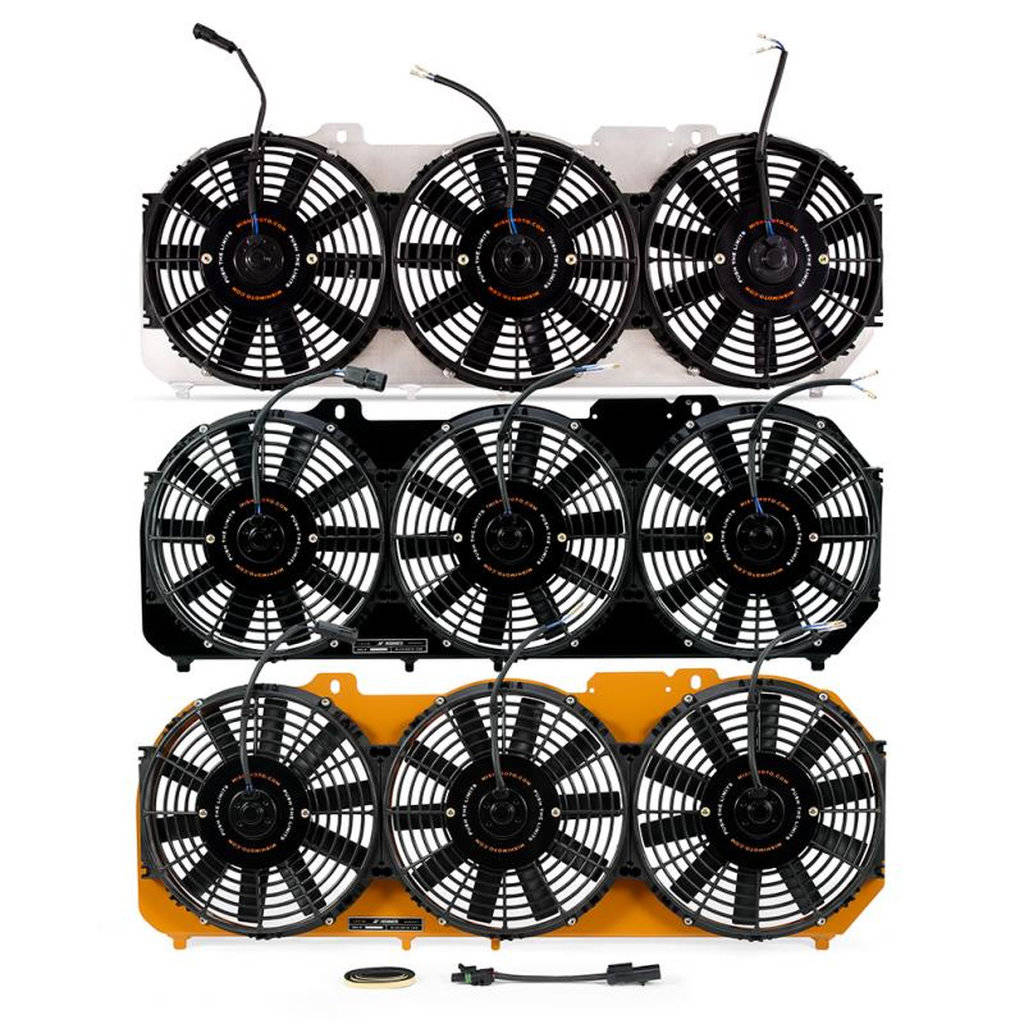

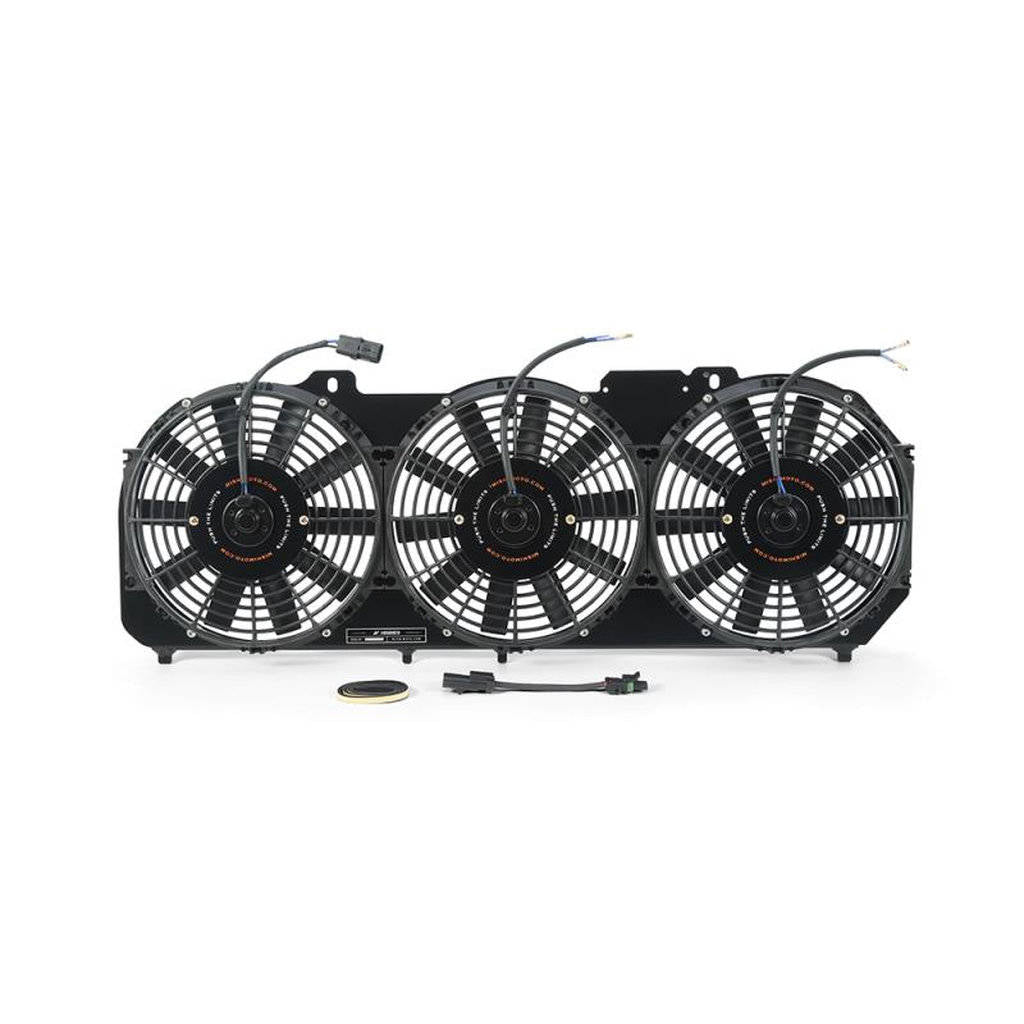

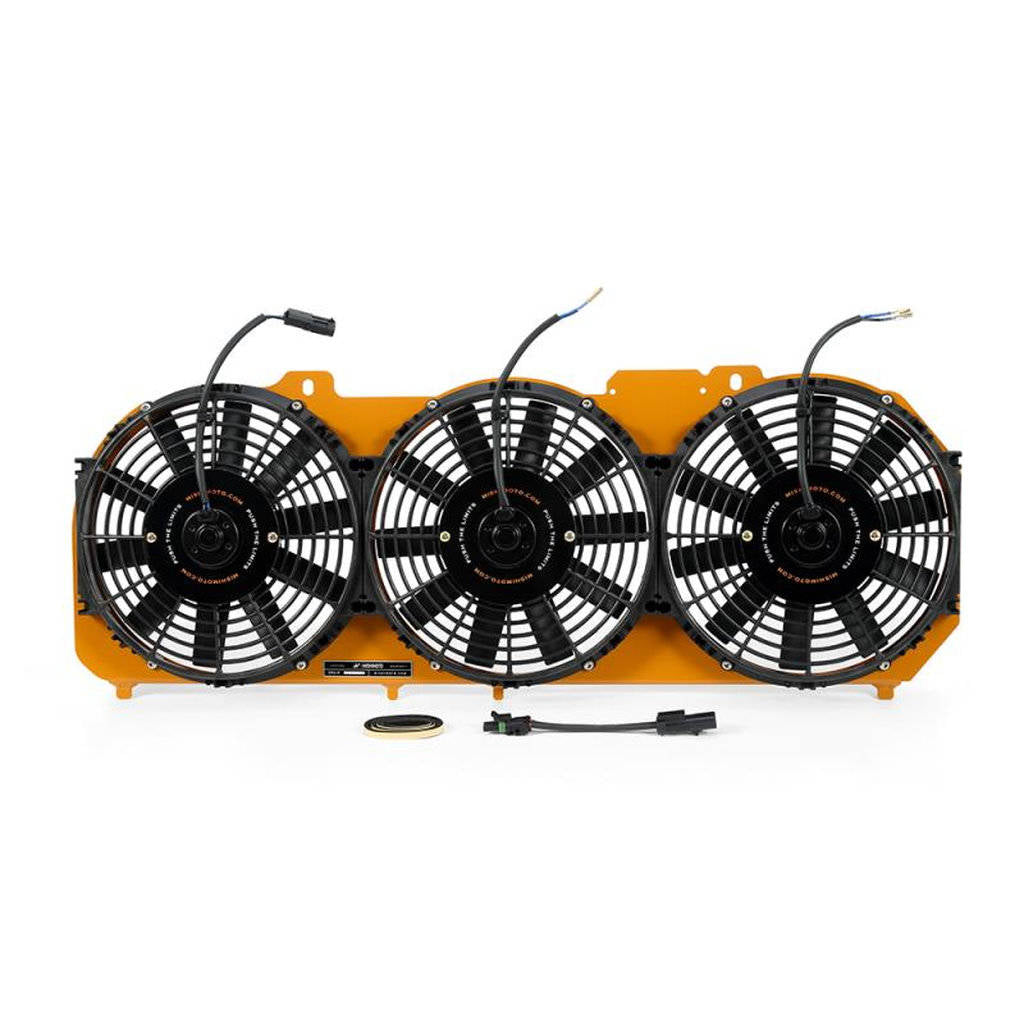

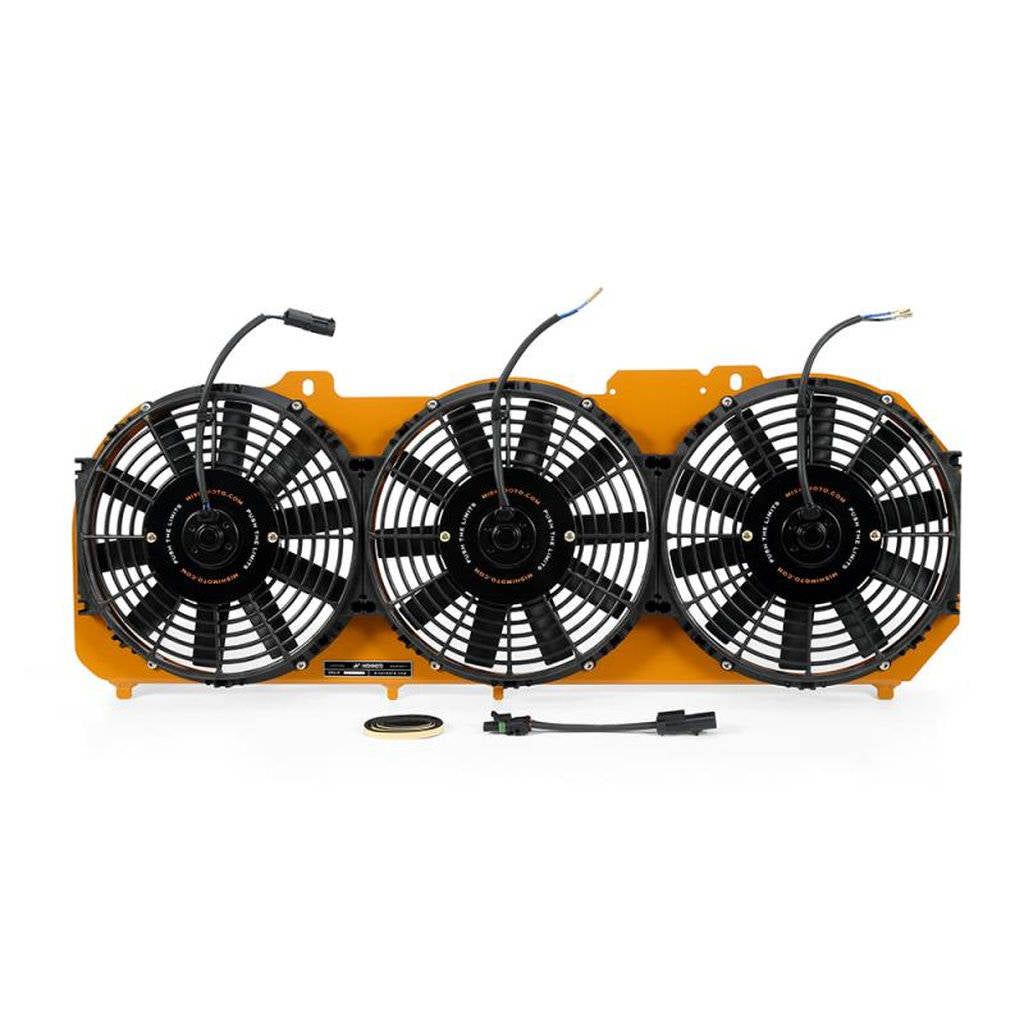

The Mishimoto 1989-2001 Jeep Cherokee XJ 4.0L Performance Aluminum Fan Shroud features three Mishimoto high-flow 10-inch electric slim fans, each moving a constant 950 CFM regardless of engine speed. One fan replaces the stock A/C fan, while the other two cool the radiator. The included A/C fan jumper harness ensures proper A/C function for 1997-2001 models. The lightweight aluminum shroud covers more of the radiator than the stock shroud, improving airflow across the entire radiator.

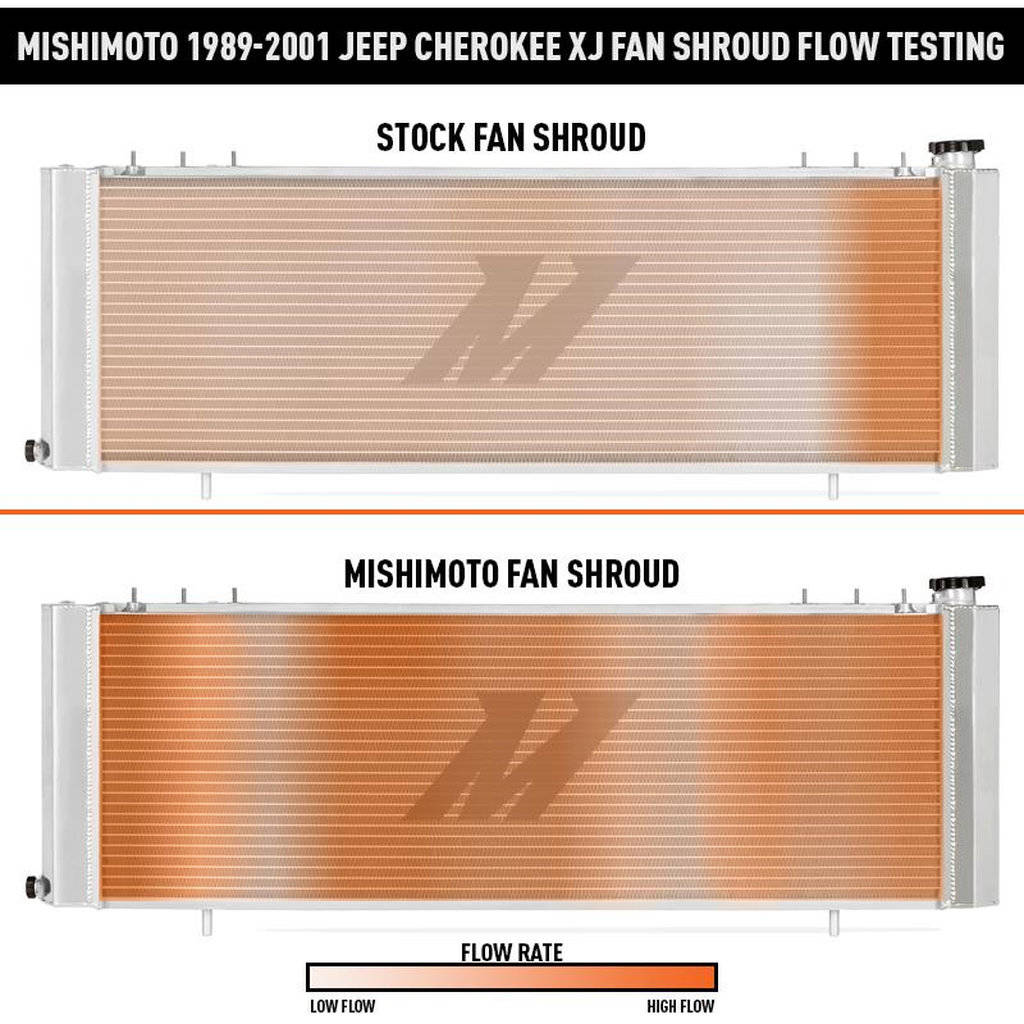

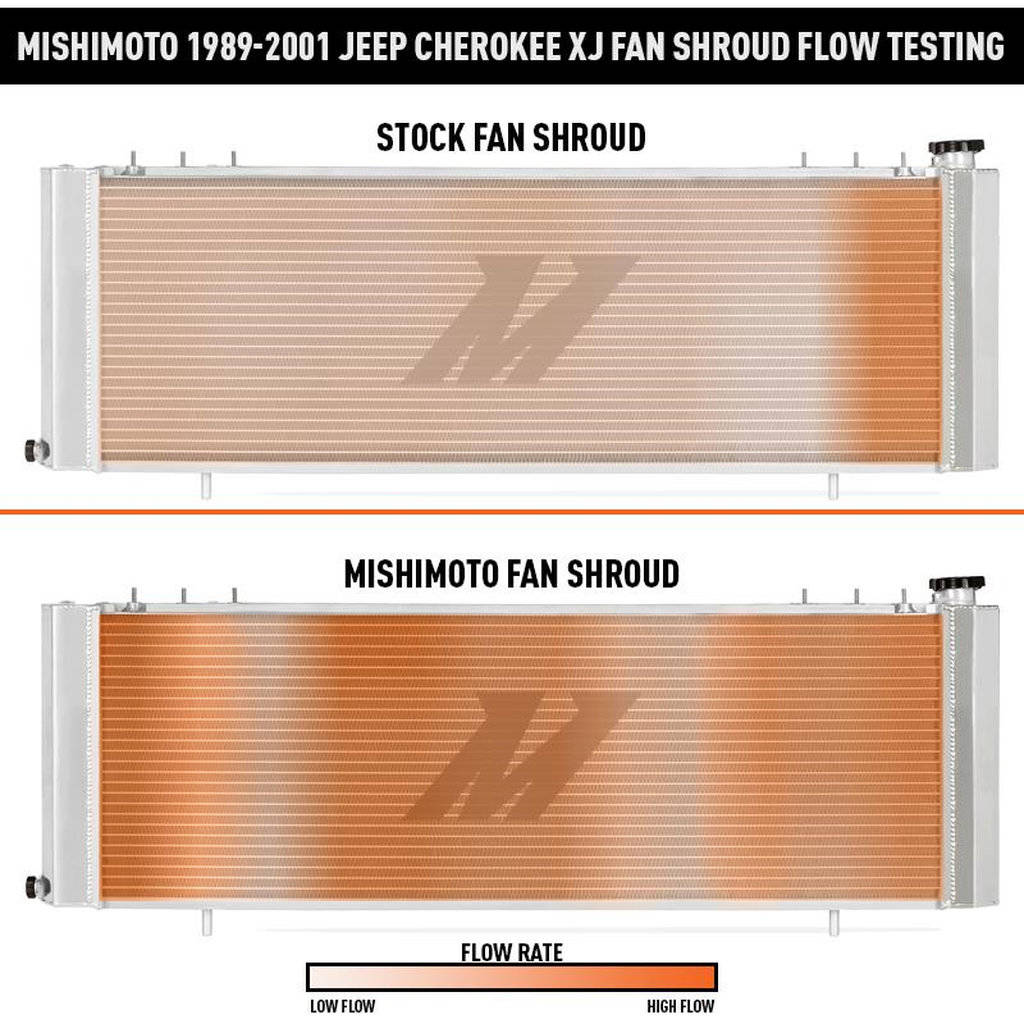

Testing showed that the Mishimoto XJ Fan Shroud moved air 41.9% better than the stock shroud at idle and 22% better at 2,500 RPM. The electric fan shroud eliminates the heavy mechanical fan, reducing engine drag and freeing up horsepower and torque. Fans can be activated manually with a switch (sold separately) or with the available adjustable fan controller, which can be set to activate the fans at any temperature from 150°F to 240°F. The kit includes all necessary installation components, including a wiring harness and temperature sensors.

Installation Notes: May not fit vehicles equipped with HD cooling package or auxiliary transmission coolers when used in conjunction with Mishimoto aluminum radiator.

• Three high-flow 10-inch electric slim fans provide consistent airflow
• Lightweight aluminum shroud covers more radiator surface than stock
• Includes A/C fan jumper harness for 1997-2001 models
• Improved airflow and reduced engine drag compared to stock system

Specifications:

• CFM: 950
• Diameter (in): 10
• RPM: 2300
• Amp Draw (Start): 13.08
• Blade Style: Straight
• Reversible?: No

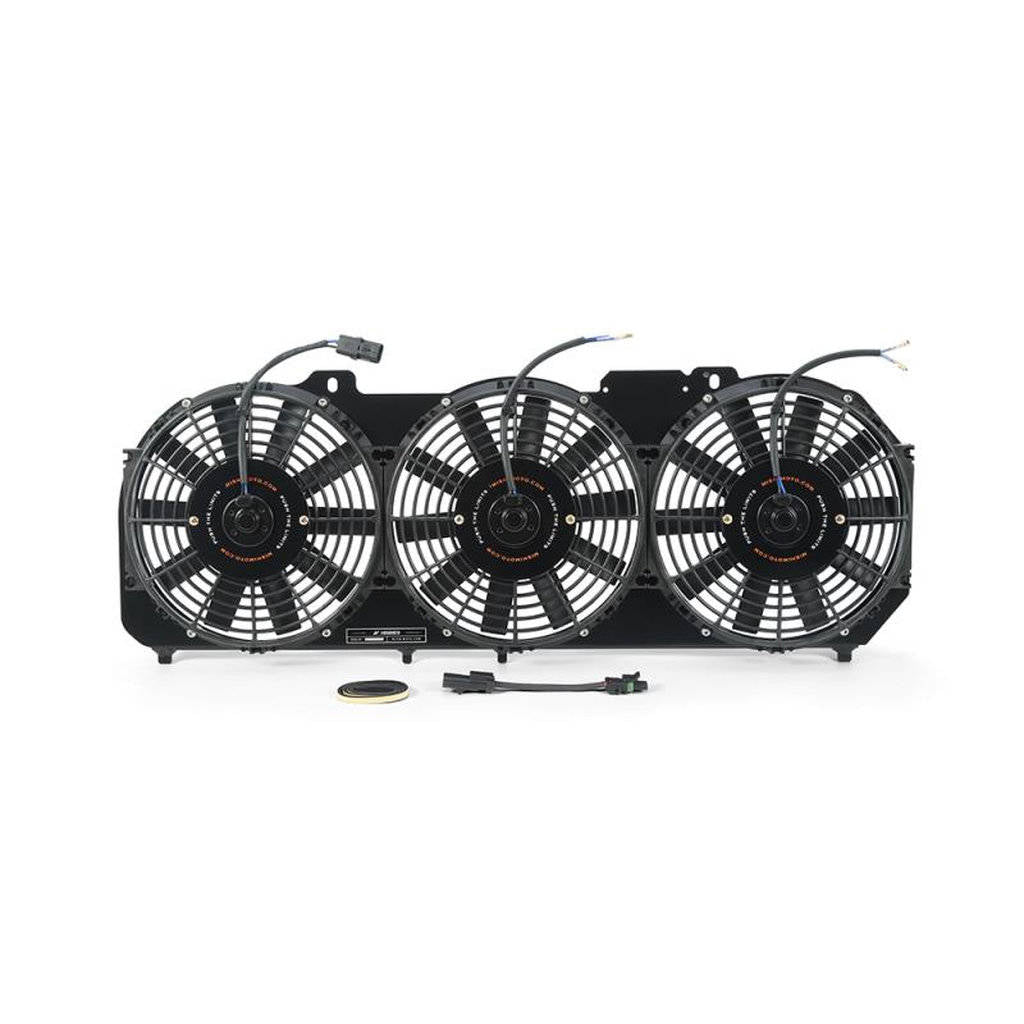

Kit comes with::

• Mishimoto Fan Shroud
• Three Mishimoto High-Flow 10-in Slim Electric Fans
• Jumper Harness for 1997-2001 Models
• Foam Weather Strip
• Mishimoto Lifetime Warranty

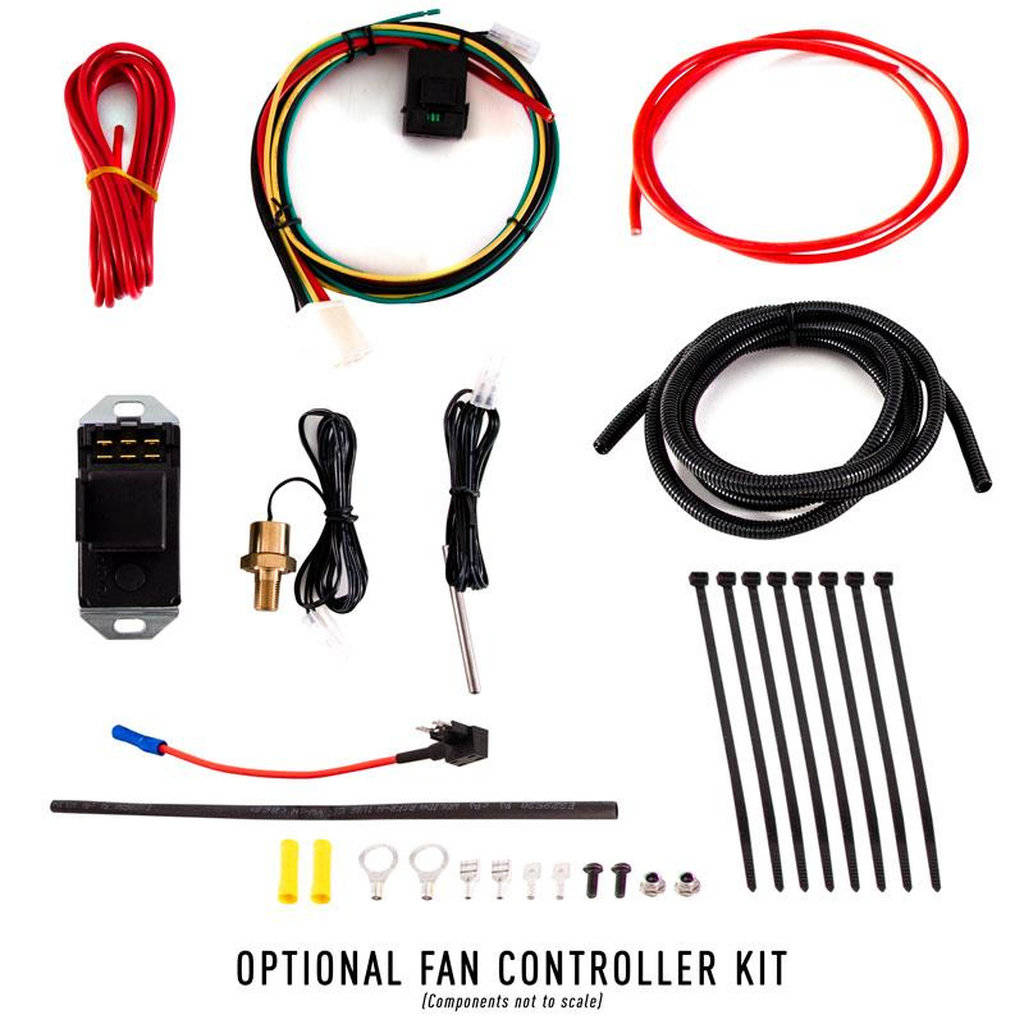

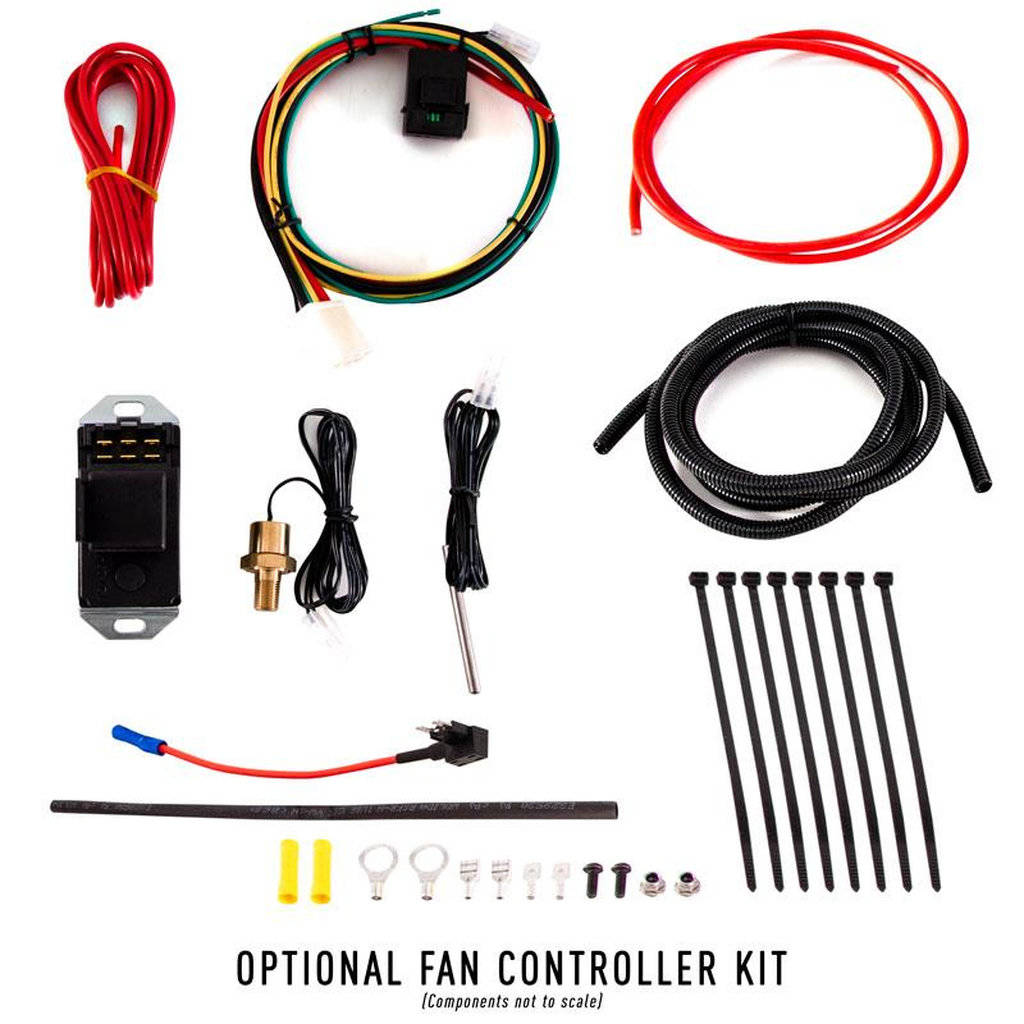

Kit comes with::

• Adjustable Relay (included with Fan Controller Kit, optional)
• Push-In Radiator Temperature Probe (included with Fan Controller Kit, optional)
• 1/8-in NPT Temperature Sensor (included with Fan Controller Kit, optional)
• Wiring Harness (included with Fan Controller Kit, optional)
• 16 Zip Ties (included with Fan Controller Kit, optional)
• 4 Wire Straight Crimp Connectors (included with Fan Controller Kit, optional)
• Wire Butt Crimp Connector (included with Fan Controller Kit, optional)
• Wire Quick-Splice Connector (included with Fan Controller Kit, optional)
• 4 Wire Ring Terminals (included with Fan Controller Kit, optional)
• 2 Wire Spade Connectors (included with Fan Controller Kit, optional)
• In-line Mini Fuse Holder (included with Fan Controller Kit, optional)
• 40-in 10 AWG Wire (included with Fan Controller Kit, optional)
• 7-ft 12 AWG Wire (included with Fan Controller Kit, optional)
• 12-in Heat Shrink (included with Fan Controller Kit, optional)
• Mounting Hardware (included with Fan Controller Kit, optional)
• Mishimoto Lifetime Warranty (included with Fan Controller Kit, optional)

Vehicle Compatibility:

• 1989-2001 Jeep Cherokee XJ 4.0L
