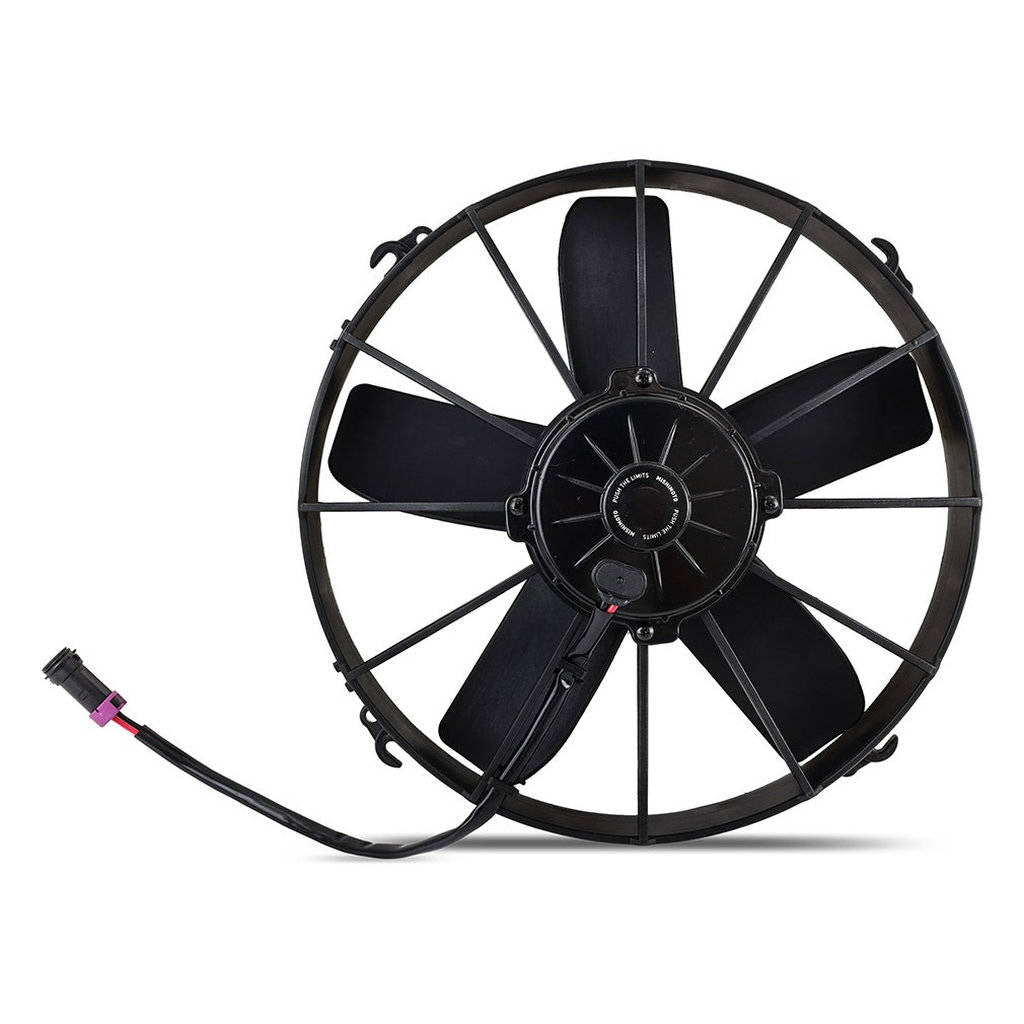

MISHIMOTO MMFAN-12HD Race Line, High-Flow Fan, 12"

Description MISHIMOTO MMFAN-12HD Race Line, High-Flow Fan, 12"

Provide maximum airflow to the radiator with the 12in Race Line fan. The Race Line fan is designed for heavy-duty applications where a Slim Line fan is insufficient. Despite its robust construction, the fan remains thin enough to fit between the engine and radiator in most applications and delivers 1850 CFM of airflow to cool even the largest and most powerful engines.

For universal installation, the Mishimoto Electric Fan Mounting Kit is recommended.

Installation Notes: For universal installation, use the Mishimoto Electric Fan Mounting Kit.

Note: Reversing polarity can enable pusher functionality, but the original design optimization for puller configuration may limit performance. Long-term effects of this configuration are uncertain.

• Delivers 1850 CFM of airflow

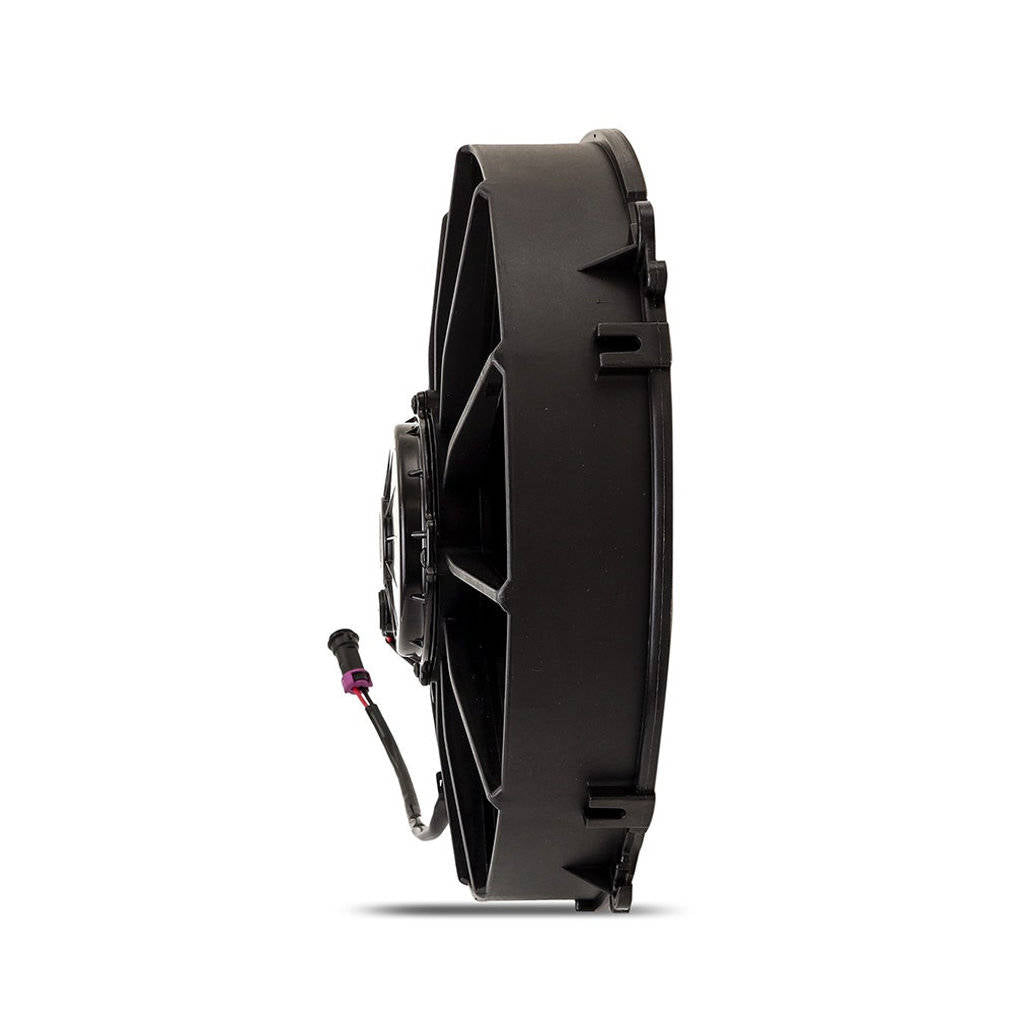

• Fits between engine and radiator in most applications
• Designed for heavy-duty use
• Includes Mishimoto Lifetime Warranty

Specifications:

• CFM: 1850
• Depth (in): 3.9
• Diameter (in): 12
• RPM: 2800
• Amp Draw (Running): 12.8
• Blade Style: Straight
• Airflow Direction: Pull
• Reversible?: Yes
• Wiring Connection: Female Snap-Plug Terminal

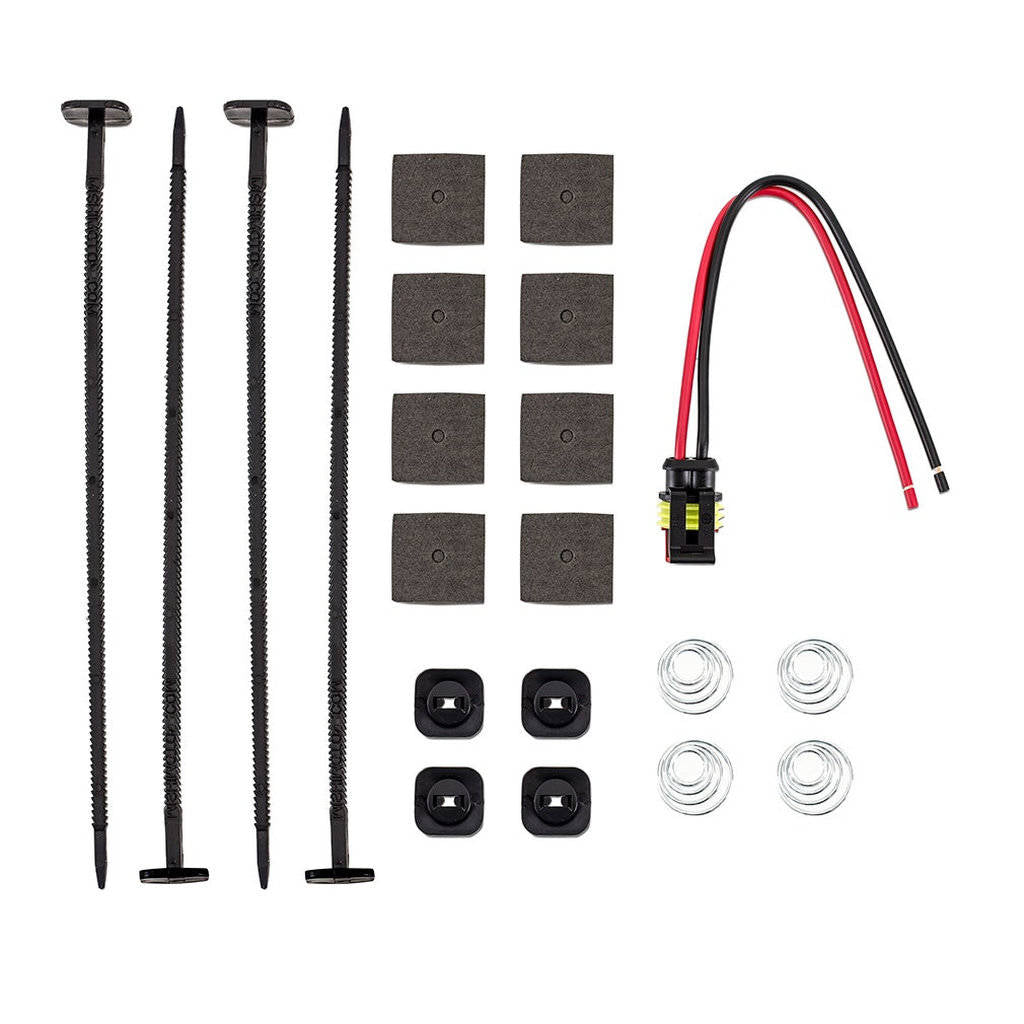

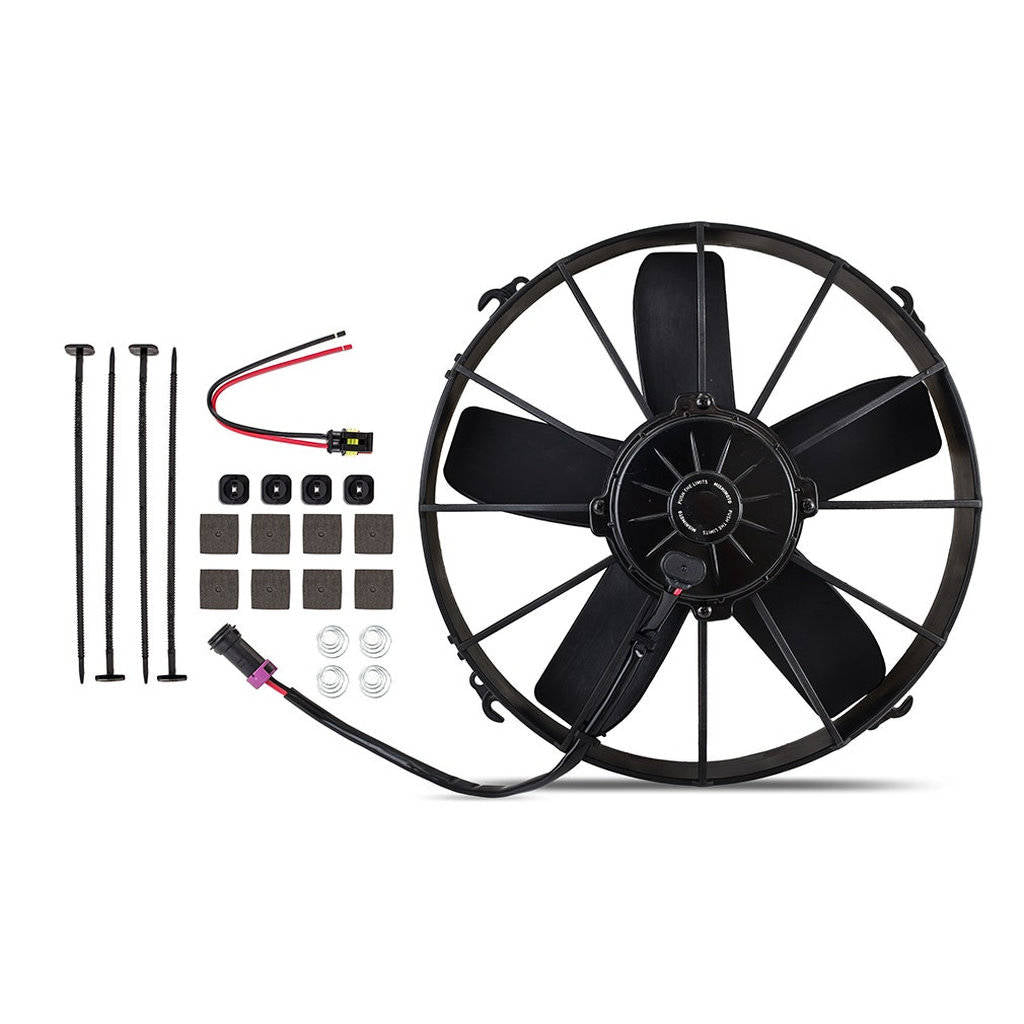

Kit comes with::

• (1) Mishimoto Fan
• Mounting Kit
• (4) Heavy-Duty Plastic Fasteners
• (8) Adhesive Foam Protective Pads
• (4) Dampening Springs
• (4) Fastener End Connectors
