MISHIMOTO MMBCC-RS-16PBE2 FORD Focus RS Baffled Oil Catch Can Kit, 2016-2019

Description MISHIMOTO MMBCC-RS-16PBE2 FORD Focus RS Baffled Oil Catch Can Kit, 2016-2019

The Mishimoto Focus RS Baffled Oil Catch Can is designed to reduce carbon buildup, which is a common issue with direct fuel injection engines. Mishimoto engineers determined that installing the catch can in the vacuum-assisted PCV system results in the highest oil accumulation during both normal and aggressive driving. In contrast, placing a catch can on the crankcase vent system yields minimal accumulation on stock or lightly modified vehicles.

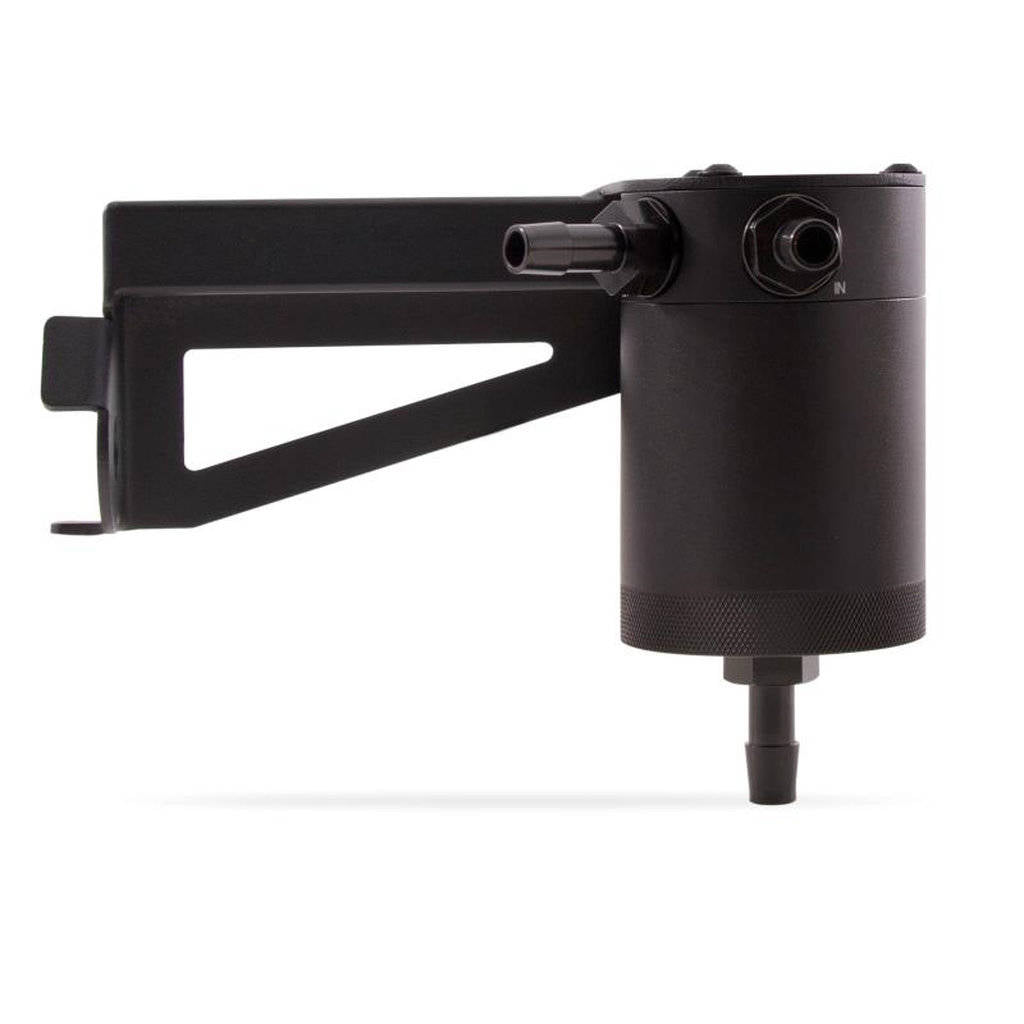

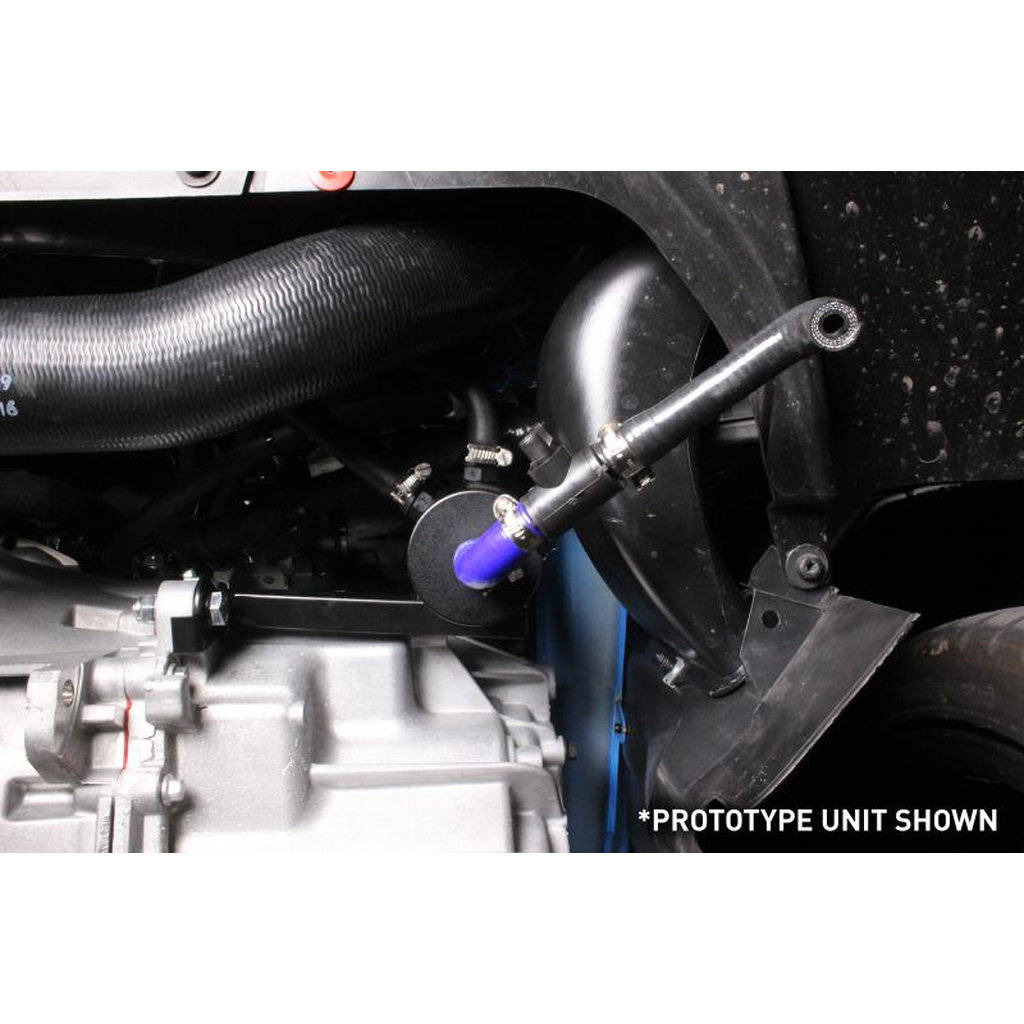

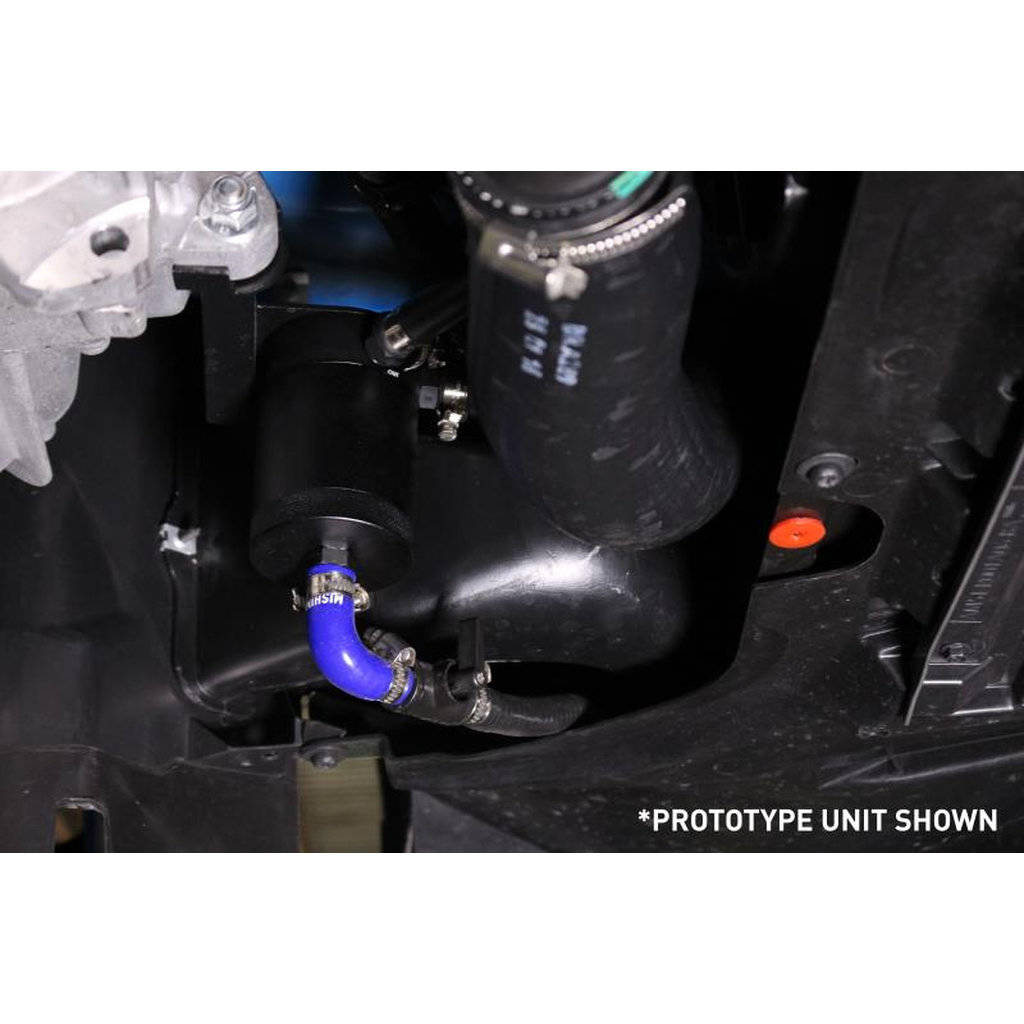

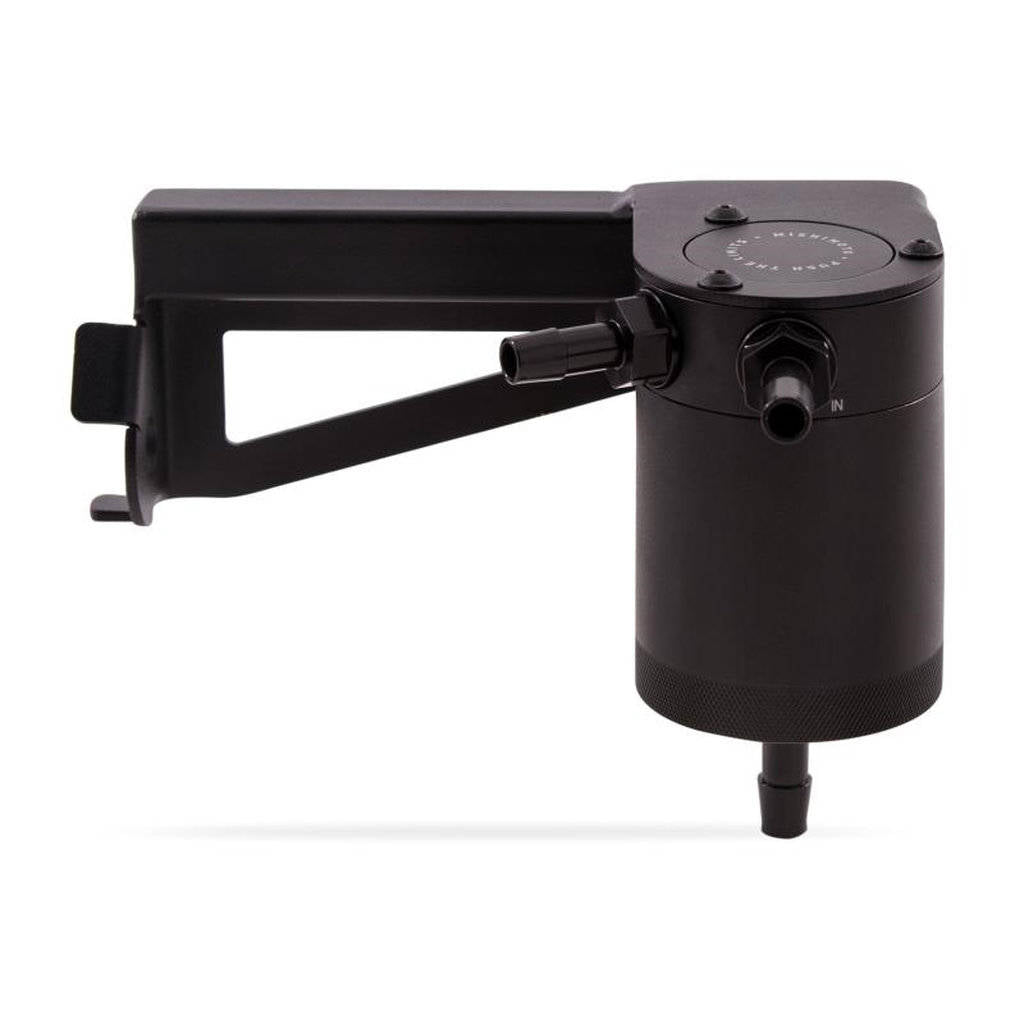

For most Ford Focus RS vehicles, a single catch can connected to the PCV system is the most effective solution. The kit features the Mishimoto 2-Port Compact Baffled Oil Catch Can with a bronze filter and internal baffle to improve oil separation from crankcase vapors. It includes two direct-fit hoses, a direct-fit mounting bracket for easy installation, and two CNC-machined aluminum 3/8-inch barb fittings. The mounting bracket positions the can in a serviceable location next to the engine's oil drain plug.

Mishimoto catch cans differ from most air-oil-separator systems as they are not heated, allowing all blow-by to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Unlike AOS systems that drain blow-by back into the oil pan, Mishimoto catch cans trap blow-by and keep it out of the engine permanently.

Installation Notes: 22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).

Recommendation: After installation, Mishimoto recommends checking the contents of the baffled catch cans every 500 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.

• Reduces carbon buildup in direct injection engines
• Designed for optimal oil accumulation in the PCV system

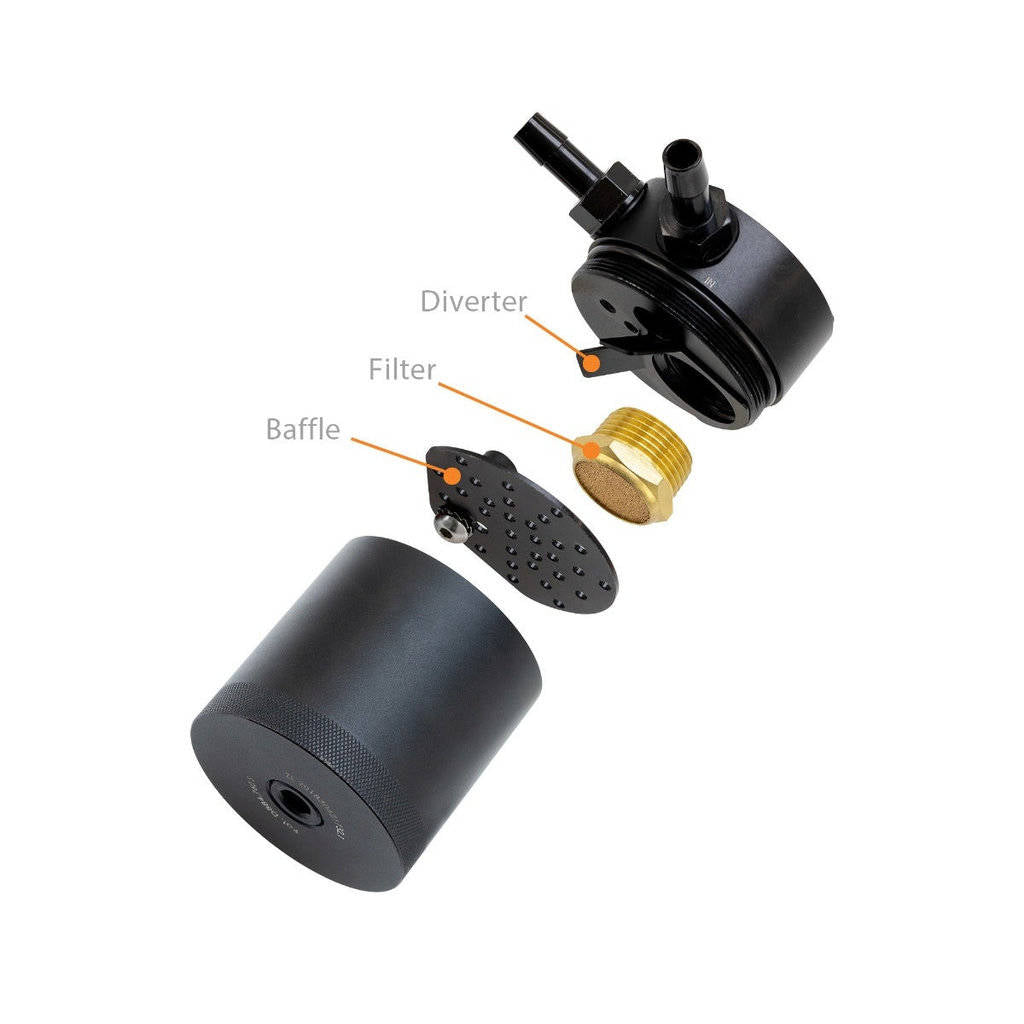

• Includes compact baffled oil catch can with bronze filter and internal baffle
• Mounts in a serviceable location next to the oil drain plug

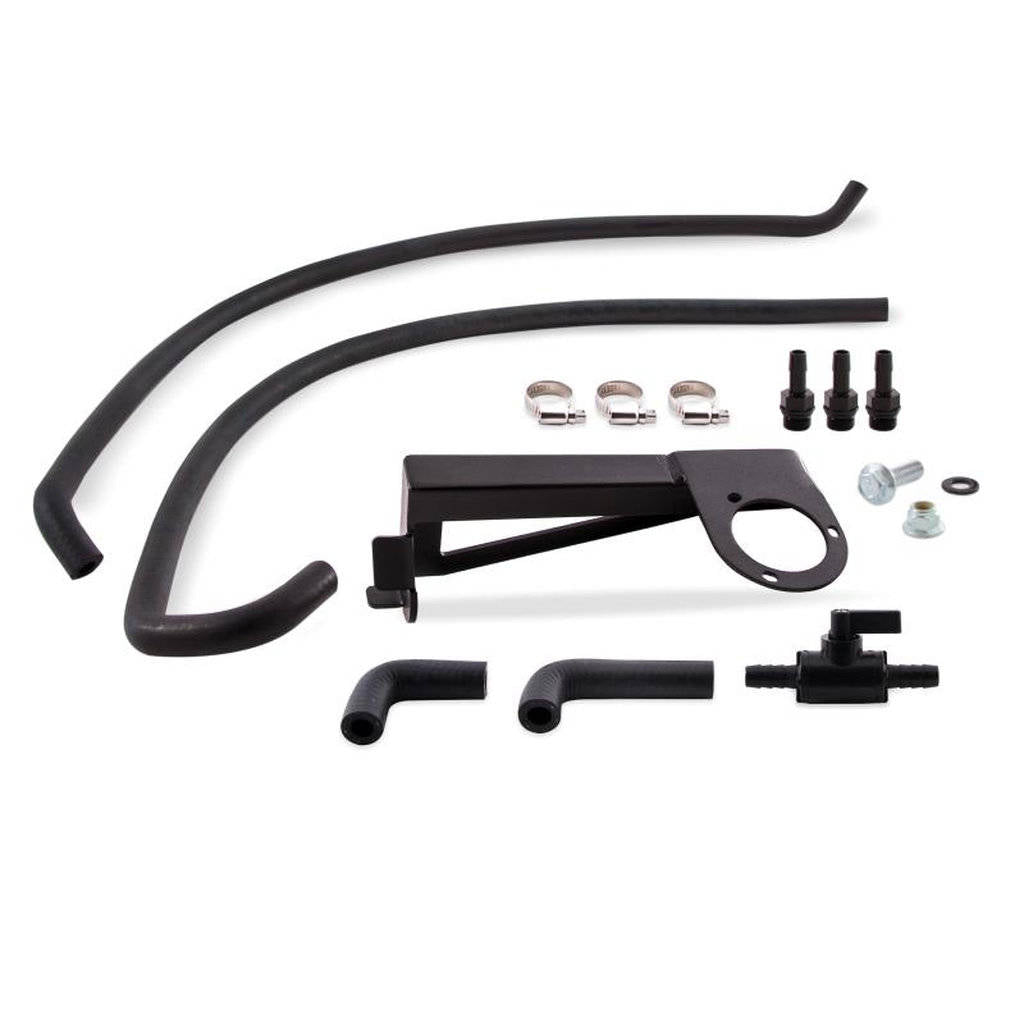

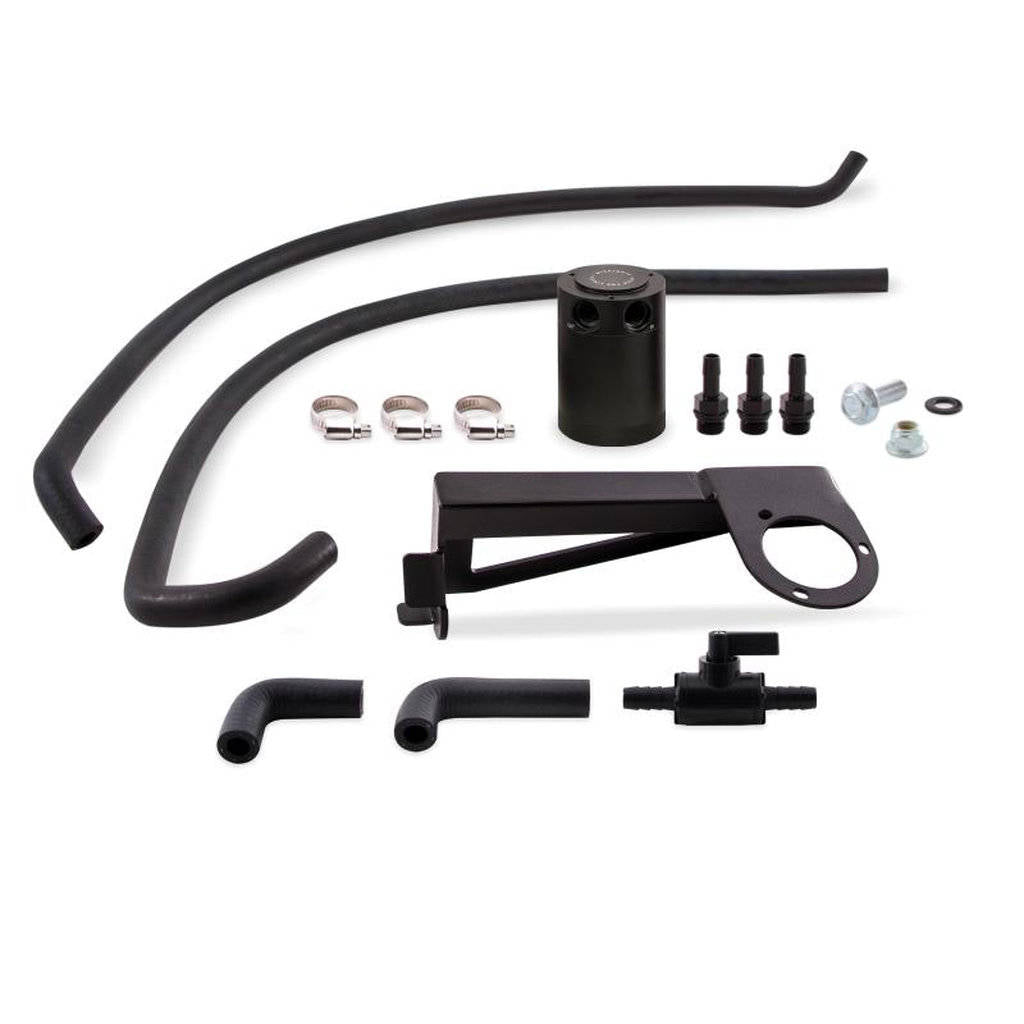

Kit comes with::

• Compact Baffled Oil Catch Can
• Application-Specific Mounting Bracket
• Two Direct-Fit Hoses with Pre-Installed Factory Quick-Disconnect Fittings
• Two 3/8-in Aluminum Barbed Fittings
• Seven Worm Gear Clamps
• Drain Kit
• Mounting Hardware
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2016-2018 Ford Focus RS (Engine Code: 2.3L EcoBoost; Chassis Code: MK.III)
