MISHIMOTO MMBCC-N55-11CBE2 BMW 335i/335xi/135i Baffled Oil Catch Can, 2011-2013

Description MISHIMOTO MMBCC-N55-11CBE2 BMW 335i/335xi/135i Baffled Oil Catch Can, 2011-2013

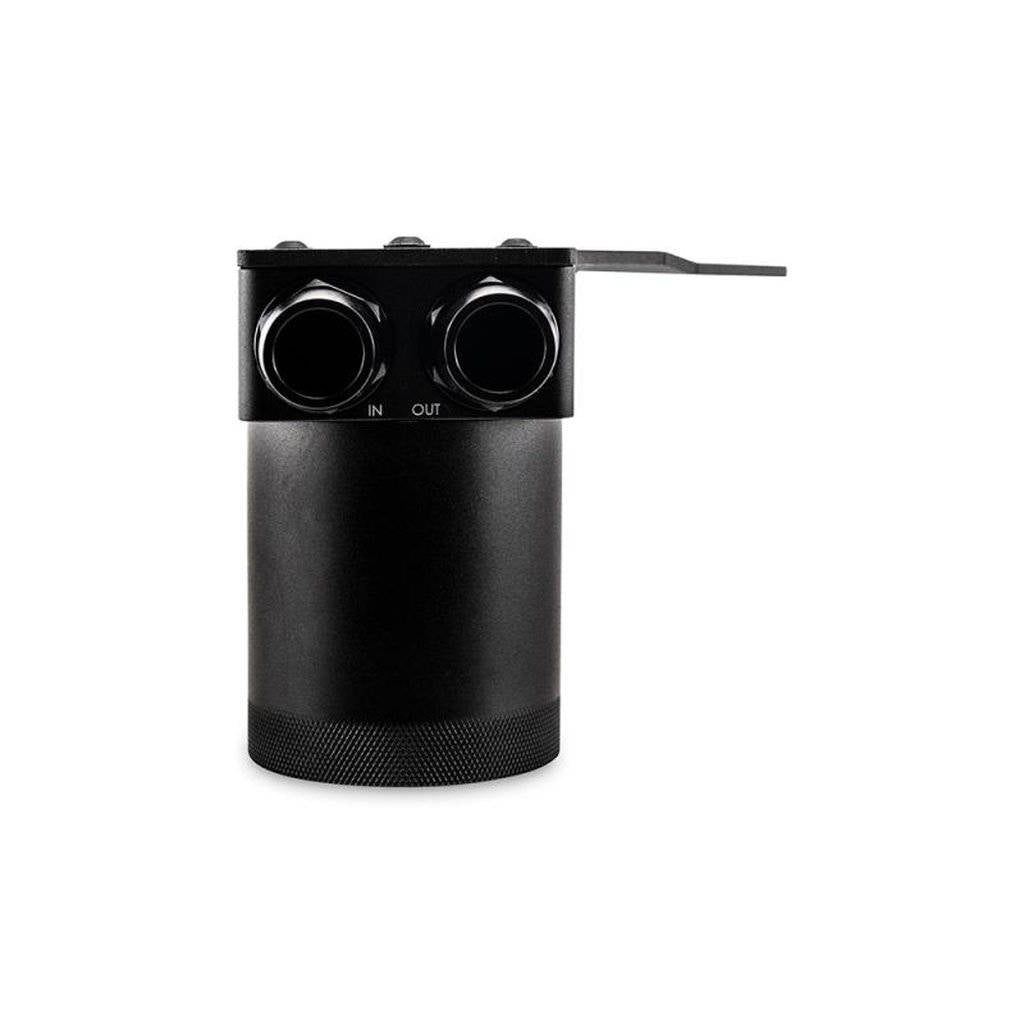

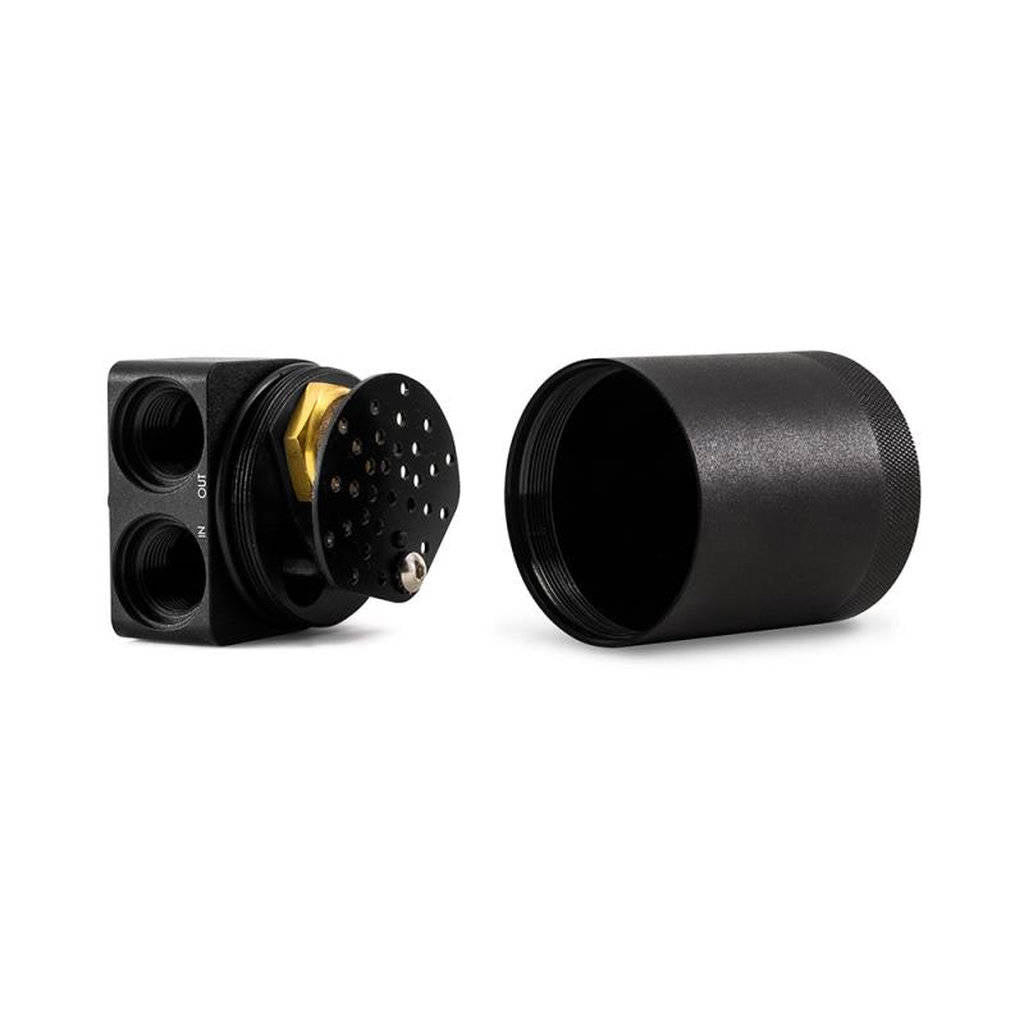

The Mishimoto BMW N55 Baffled Oil Catch Can is engineered to reduce carbon build-up, a common issue with direct fuel injection N55 engines. This catch can kit utilizes proven engineering from the Mishimoto 2-Port Compact Baffled Oil Catch Can, featuring a bronze filter and internal baffle to effectively separate oil from crankcase vapors.

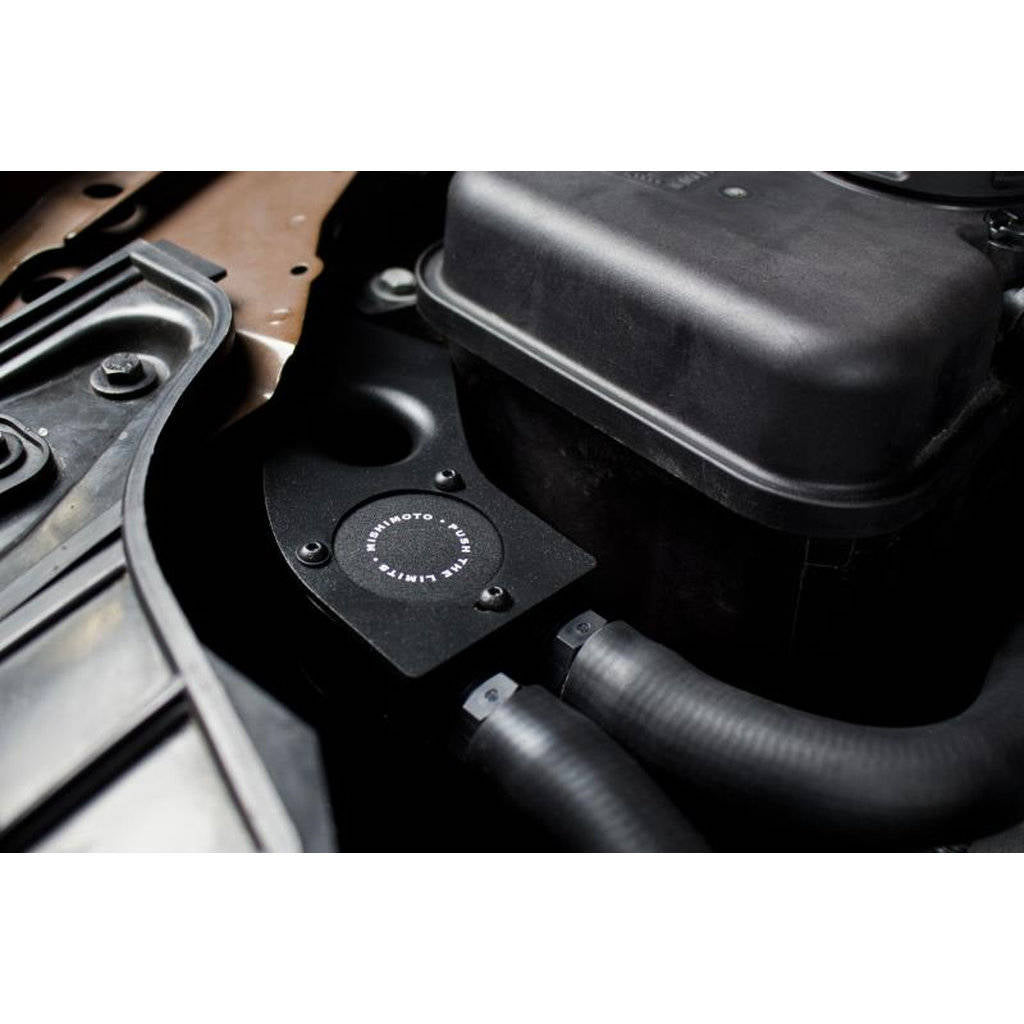

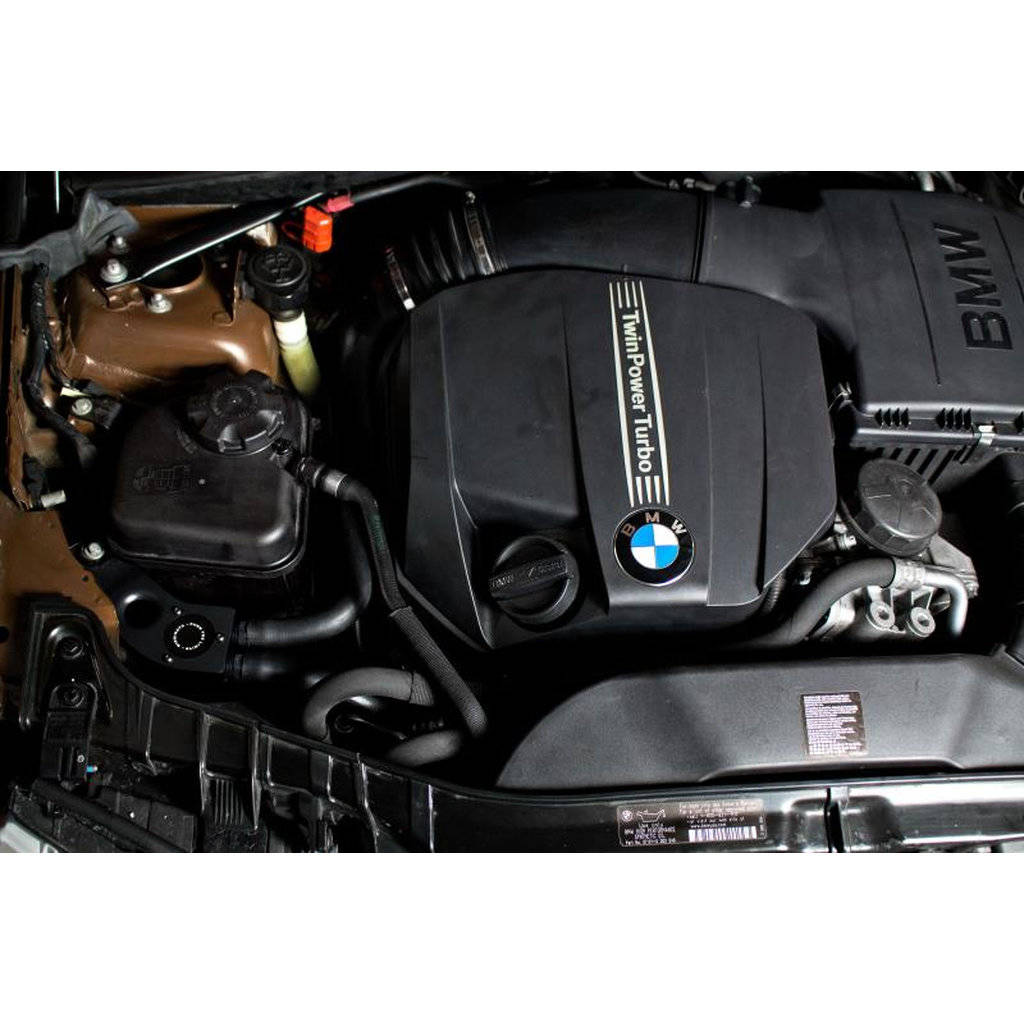

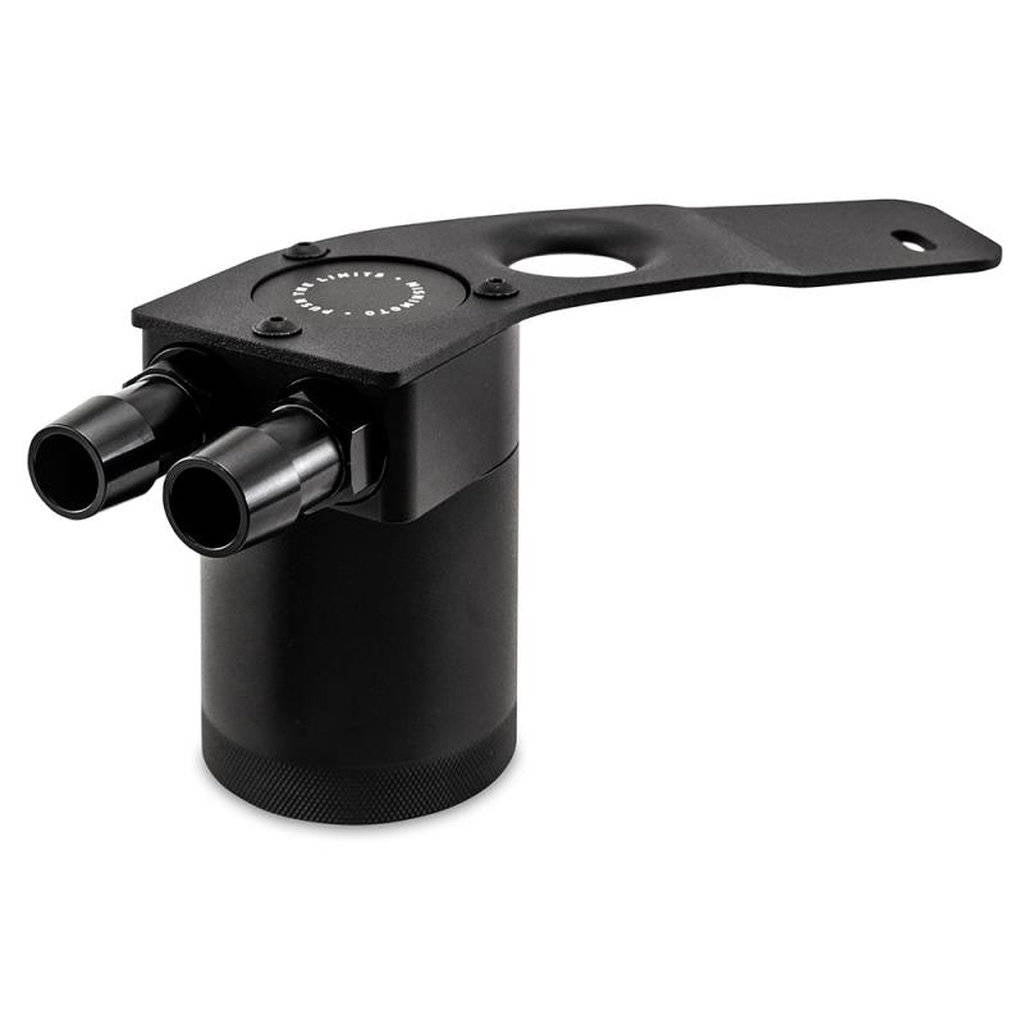

A CNC-machined lid with large inlet and outlet ports matches the inner dimension of the CCV hose. The baffled oil catch can helps protect the intercooler, intake system, and VANOS system from oil blow-by, while maintaining proper octane levels to reduce potential detonation. The kit includes two direct-fit hoses and a direct-fit mounting bracket for easy installation and serviceability. Two CNC-machined aluminum 3/4-inch barb fittings connect the hoses to the can.

Mishimoto catch cans are not heated, allowing all blow-by, including low-octane oil vapors and contaminated fuel vapors, to condense in the can. Unlike most air-oil-separator systems that drain blow-by back into the oil pan, Mishimoto catch cans trap blow-by and keep it out of the engine permanently.

Installation Notes: 22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).

Recommendation: After installation, Mishimoto recommends checking the contents of the baffled catch cans every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.

• Reduces carbon build-up in N55 direct injection engines
• Features a bronze filter and internal baffle for oil separation
• Includes direct-fit hoses and mounting bracket for easy installation
• Traps blow-by and prevents it from returning to the engine

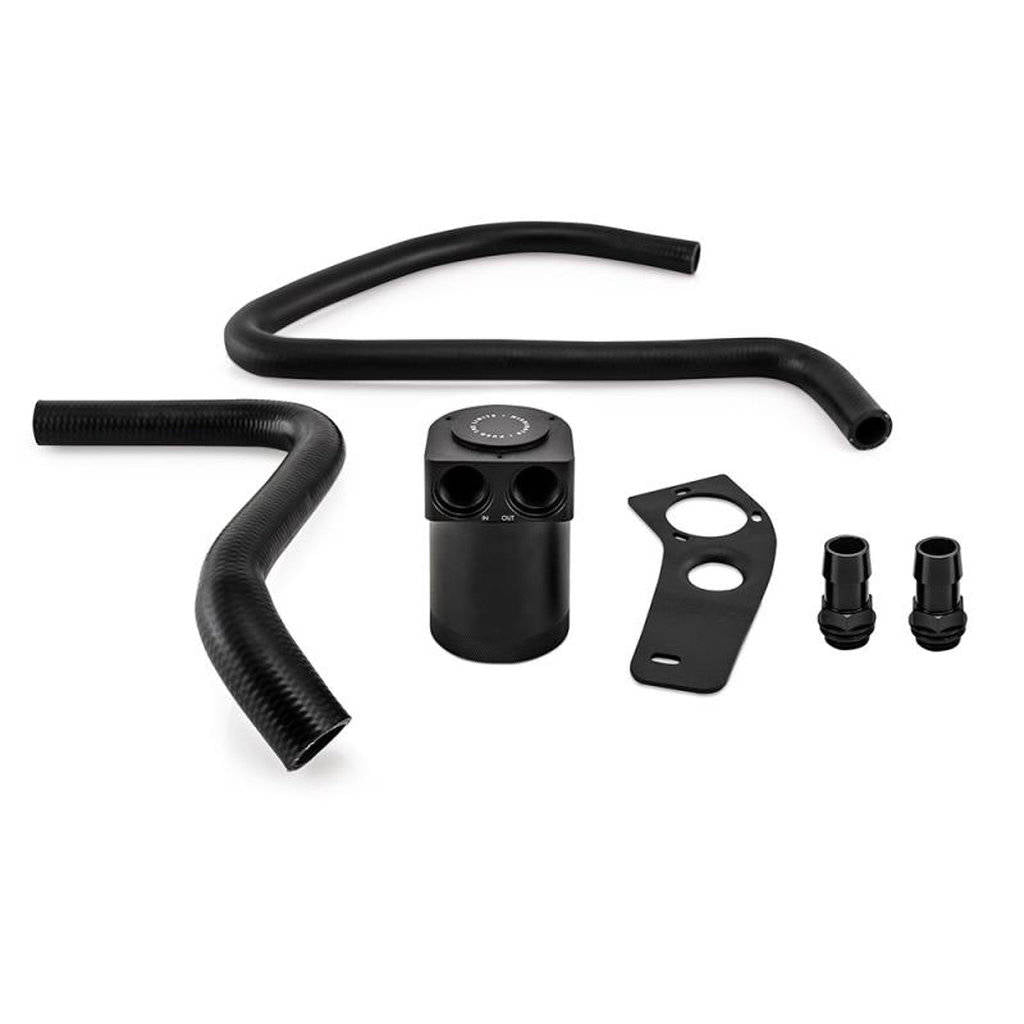

Kit comes with::

• Compact Baffled Oil Catch Can
• Application-Specific Mounting Bracket
• 2 Direct-Fit Hoses
• 2 3/4-in Aluminum Barbed Fittings
• Mounting Hardware
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2011-2013 BMW 135i Coupe (N55, E82)
• 2011-2013 BMW 135i Convertible (N55, E88)
• 2011 BMW 335i/xi Sedan (N55, E90)
• 2011-2013 BMW 335i/xi Coupe (N55, E92)
• 2011-2013 BMW 335i/xi Convertible (N55, E93)
