MISHIMOTO MMBCC-F35T-17SBE FORD F-150 3.5L EcoBoost Baffled Oil Catch Can Kit, 2017+

Description MISHIMOTO MMBCC-F35T-17SBE FORD F-150 3.5L EcoBoost Baffled Oil Catch Can Kit, 2017+

Turbocharging and direct injection are increasingly used to build powerful and efficient trucks. However, if not properly maintained, these technologies can lead to issues for the 2017-2020 Ford F-150 3.5L EcoBoost. Direct injection makes the 3.5L EcoBoost one of the most efficient engines ever fitted to the F-150, but without fuel washing over the intake valves, blow-by can accumulate as carbon deposits.

Over time, these carbon deposits may restrict engine performance. The Mishimoto 2017-2020 Ford F-150 3.5L EcoBoost Catch Can Kit protects the intake tract and valves from blow-by and carbon buildup. The dual-can setup routes blow-by away from the intake and valves in all driving conditions. The 12 fl. oz. baffled catch can allows for longer service intervals, and the powder-coated, 3mm-thick steel bracket provides durability. Pre-installed quick-disconnect fittings simplify installation.

Installation Notes: 22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).

Note: May require modification to fit with 2021 models due to differences in firewall construction.

Recommendation: After installation, Mishimoto recommends checking the contents of the baffled catch cans every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.

• Protects intake tract and valves from blow-by and carbon accumulation

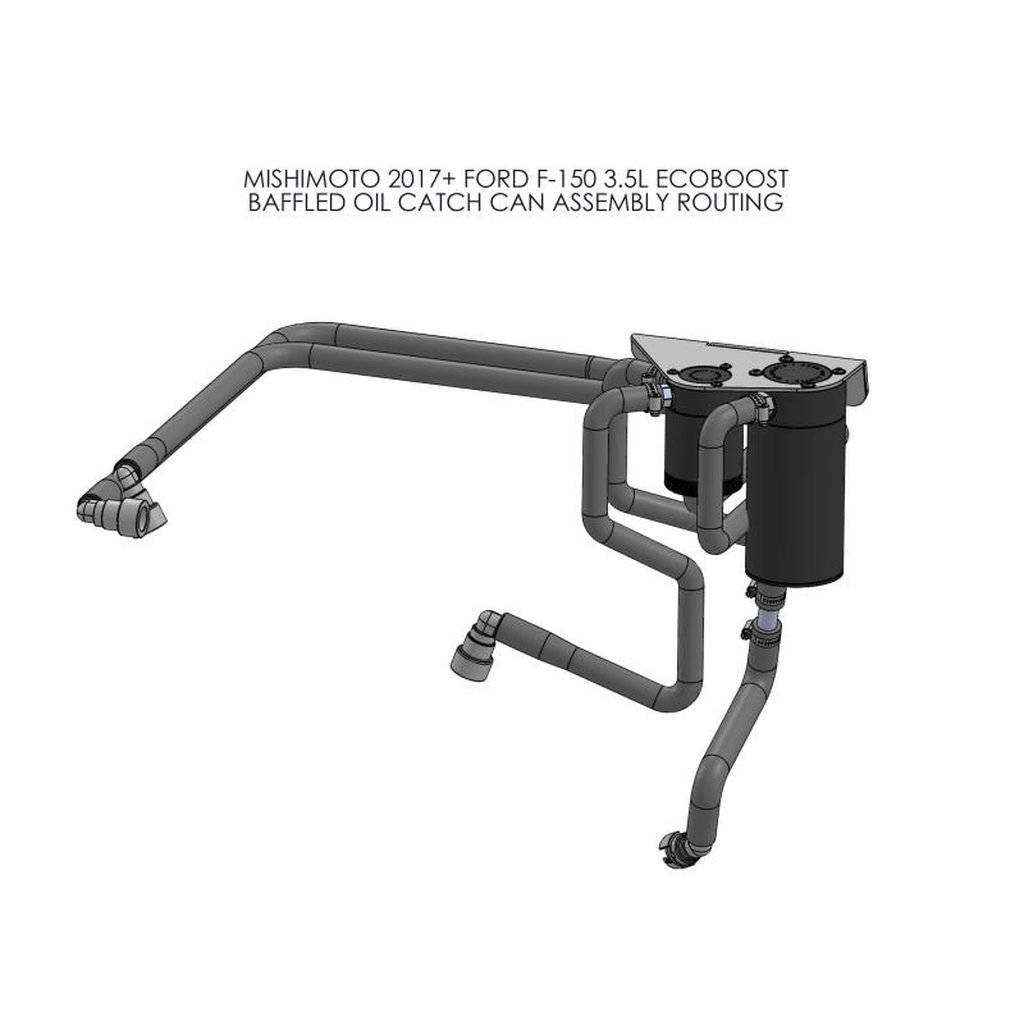

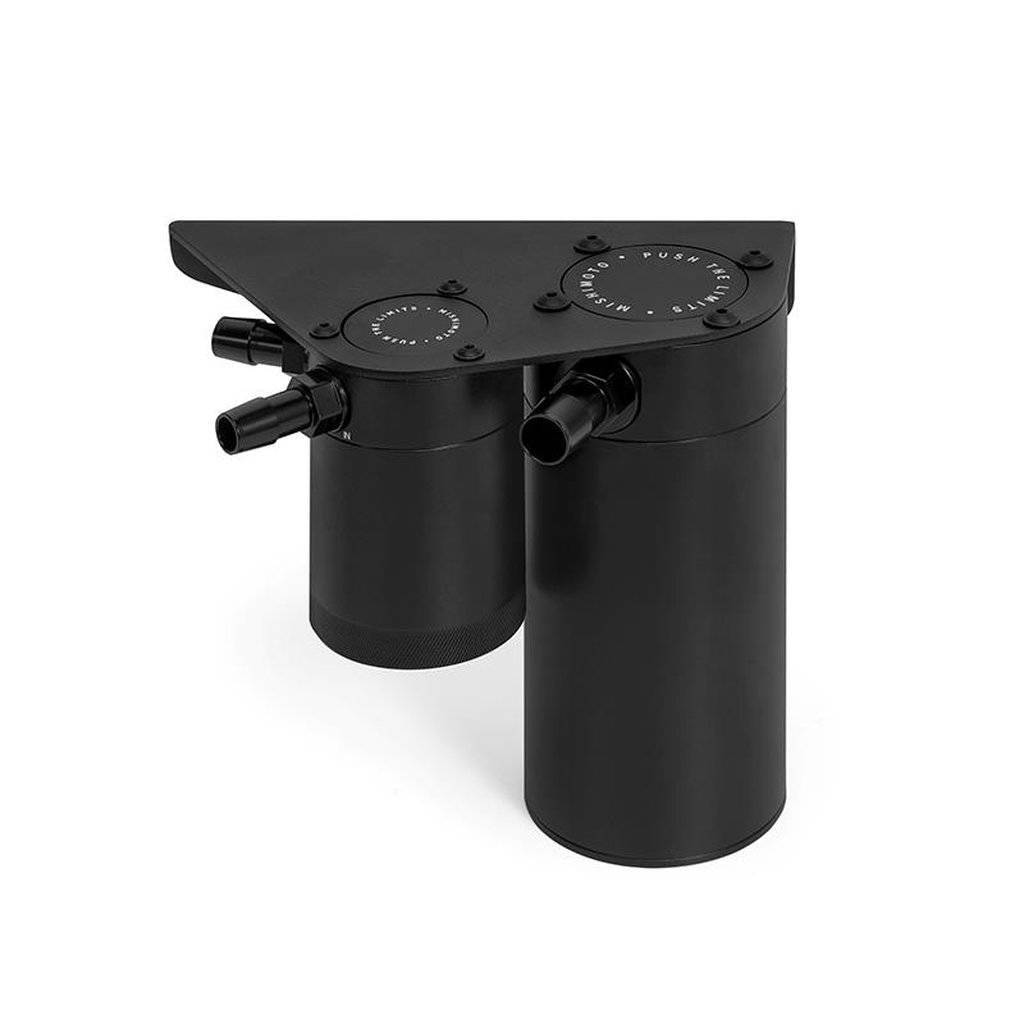

• Dual-can setup routes blow-by away from intake and valves in all driving conditions
• 12 fl. oz. baffled catch can allows for extended service intervals

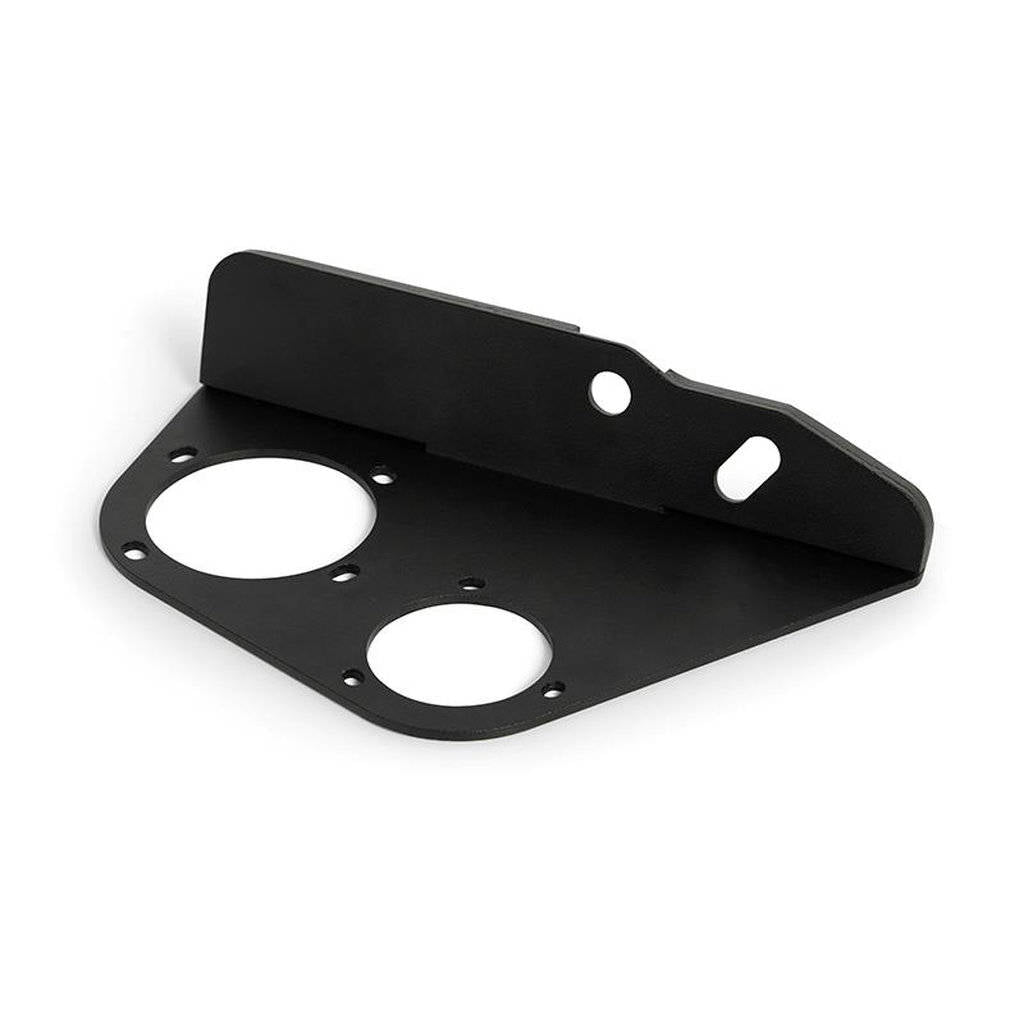

• Powder-coated, 3mm-thick steel bracket for strength and durability

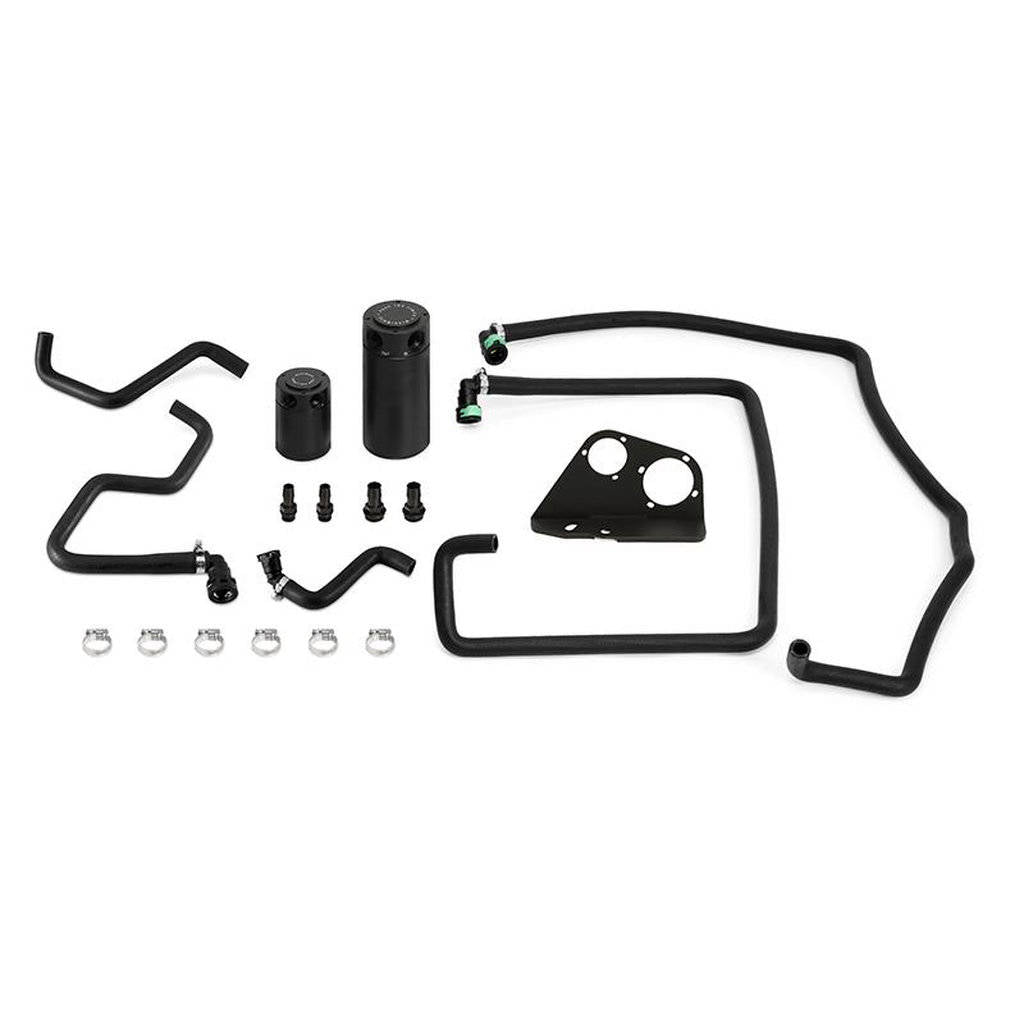

Kit comes with::

• (1) Application-Specific Mounting Bracket
• (1) 12 fl oz Black, Anodized 6061 Aluminum Catch Can
• (1) 3 fl oz Black, Anodized 6061 Aluminum Catch Can
• (5) Direct-Fit Hoses
• (4) Pre-Installed Quick-Disconnect Fittings
• (4) CNC-Machined Aluminum Barbed Fittings
• (2) Bronze Filters
• (2) Air Diverters

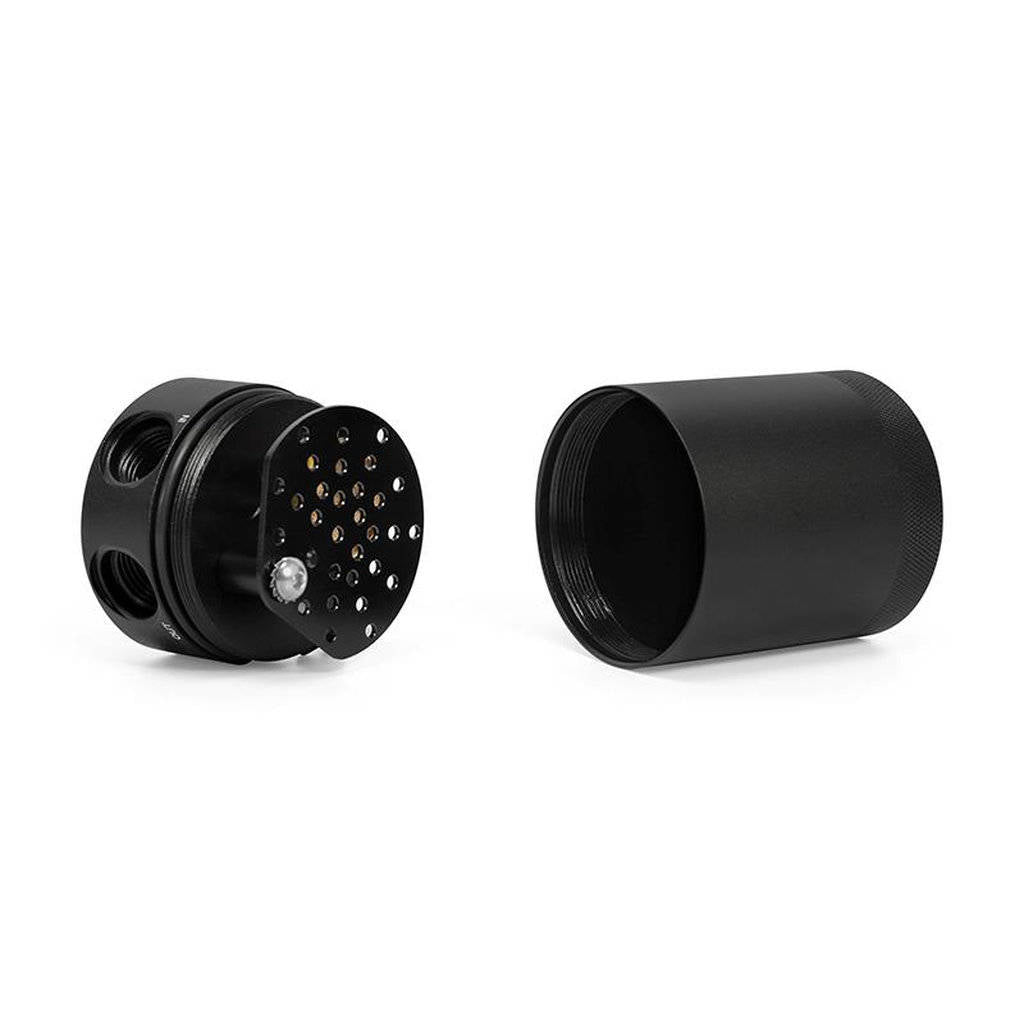

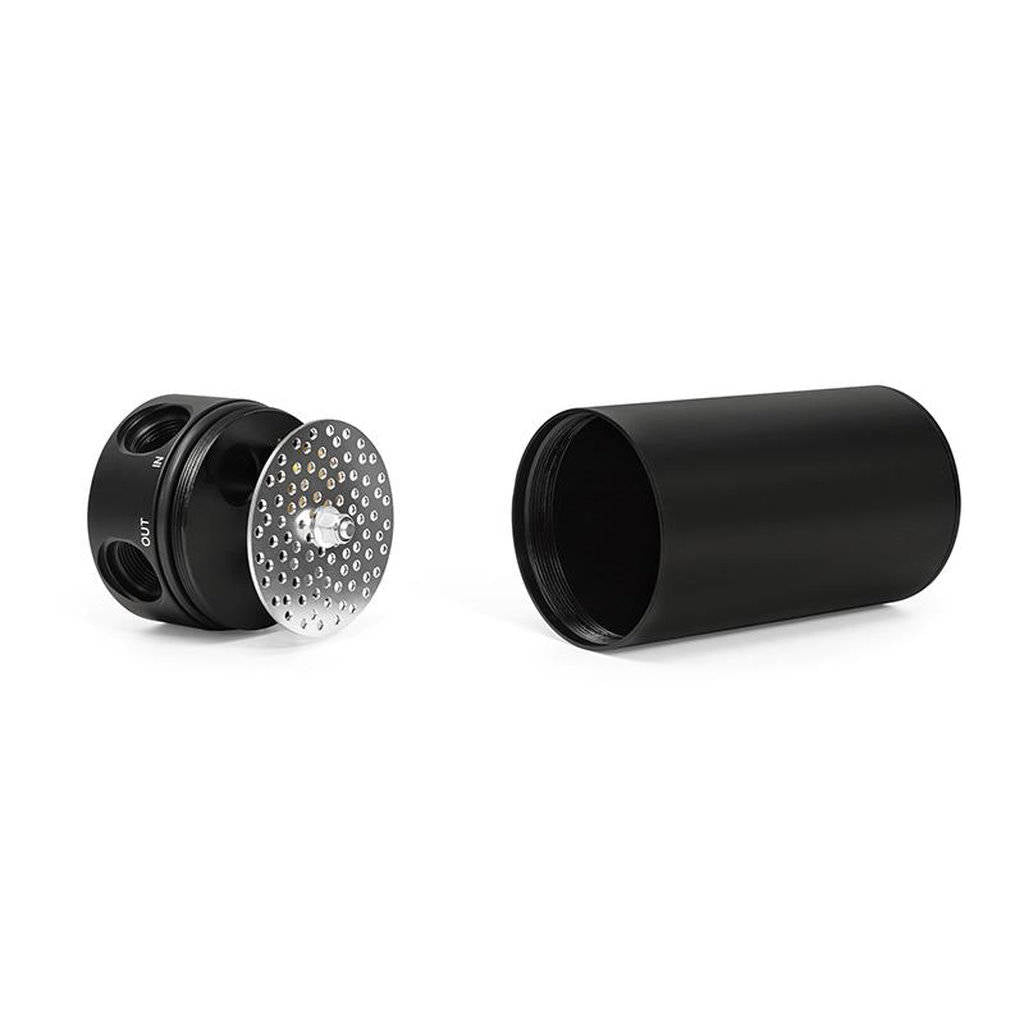

• (2) Internal Baffle Rods
• (2) 3/8-in NPT Plugs
• (2) Large O-Rings
• (6) Worm Gear Clamps
• Mounting Hardware
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2017-2020 Ford F-150 3.5L EcoBoost
• 2017-2020 Ford Raptor 3.5L EcoBoost
• 2018-2019 Ford Expedition 3.5L EcoBoost
• 2018-2019 Lincoln Navigator 3.5L EcoBoost
