MISHIMOTO MMBCC-F35T-11SBE FORD F-150 3.5L EcoBoost Baffled Oil Catch Can Kit, 2011-2014

Description MISHIMOTO MMBCC-F35T-11SBE FORD F-150 3.5L EcoBoost Baffled Oil Catch Can Kit, 2011-2014

Turbocharging and direct injection are increasingly used for building powerful and efficient trucks. However, without proper maintenance, these technologies can lead to issues for the 2011-2014 Ford F-150 3.5L EcoBoost.

Direct injection makes the 3.5L EcoBoost one of the most efficient engines fitted to the F-150, but it allows blow-by to accumulate as carbon deposits on the intake valves. Over time, these deposits can reduce engine performance. The Mishimoto 2011-2014 Ford F-150 3.5L EcoBoost Catch Can Kit helps protect the intake tract and valves from blow-by and carbon buildup.

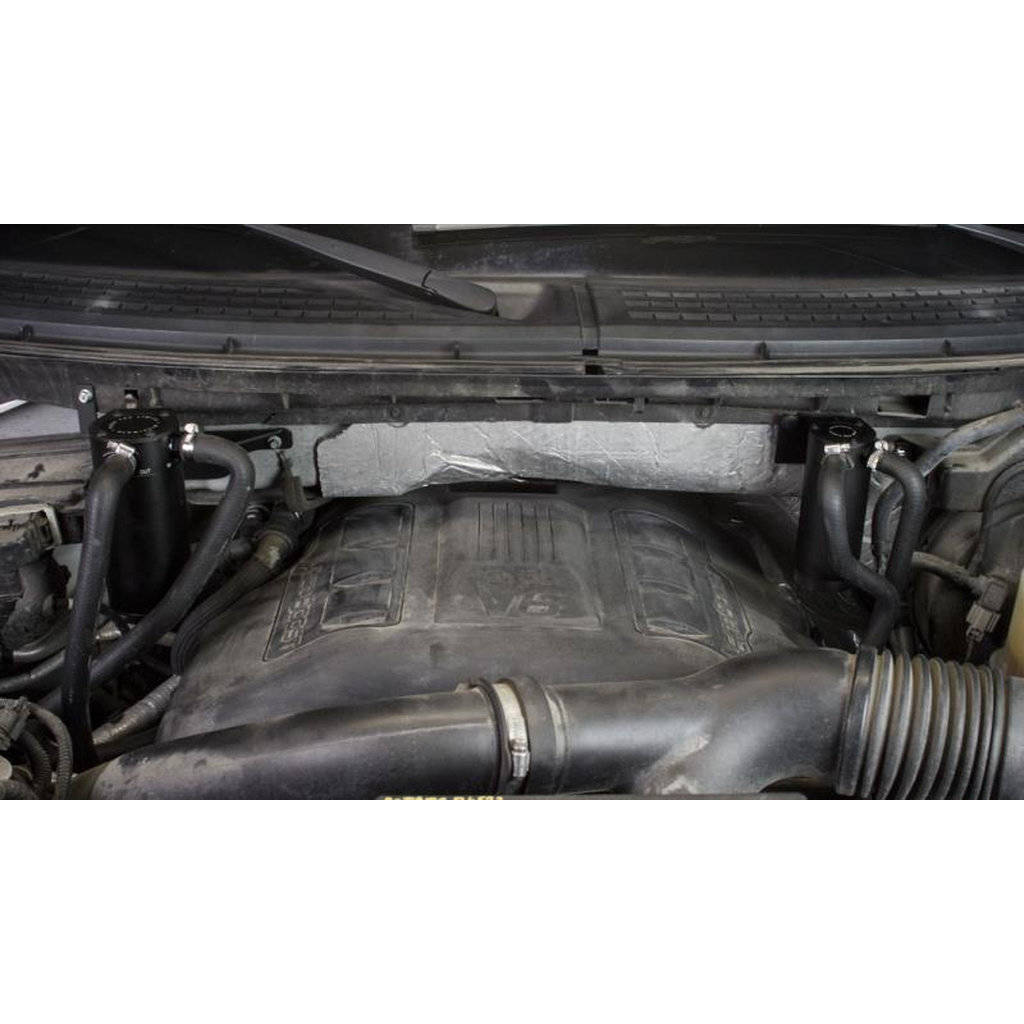

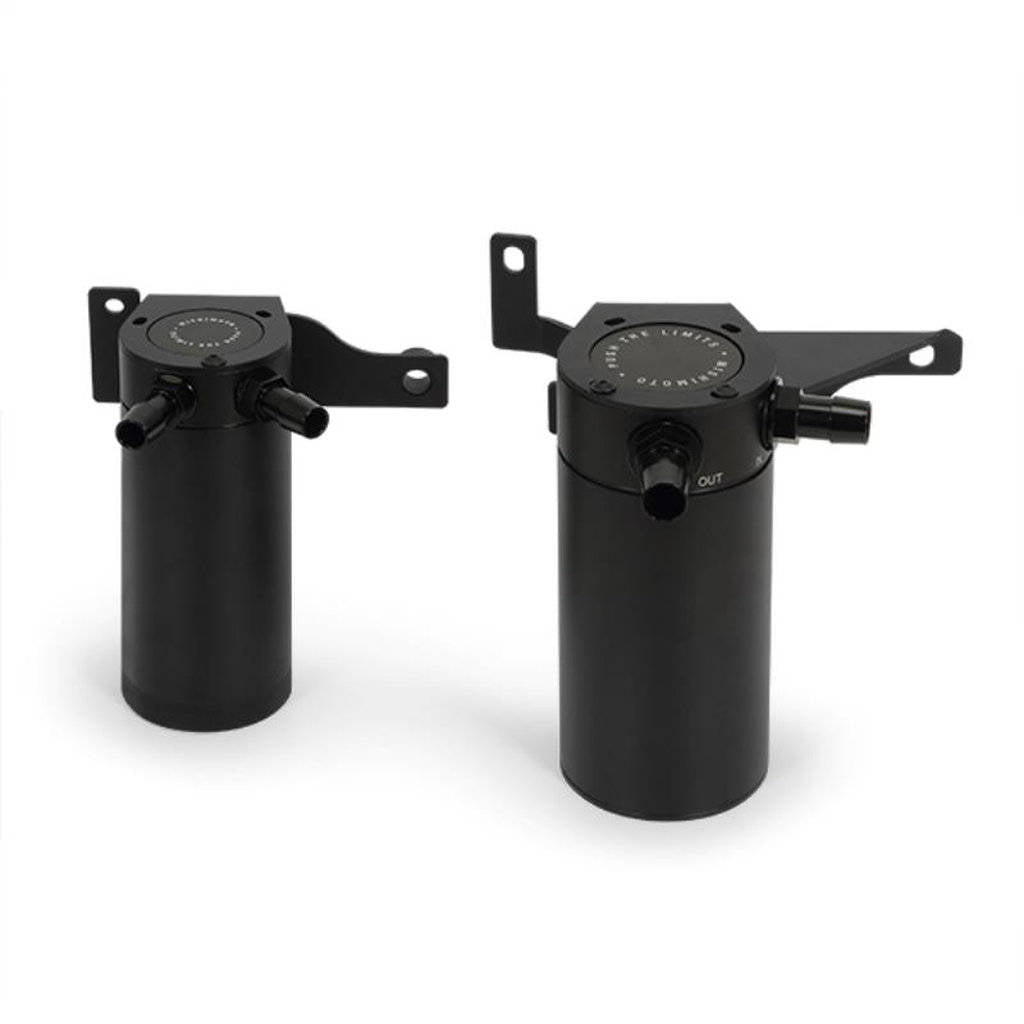

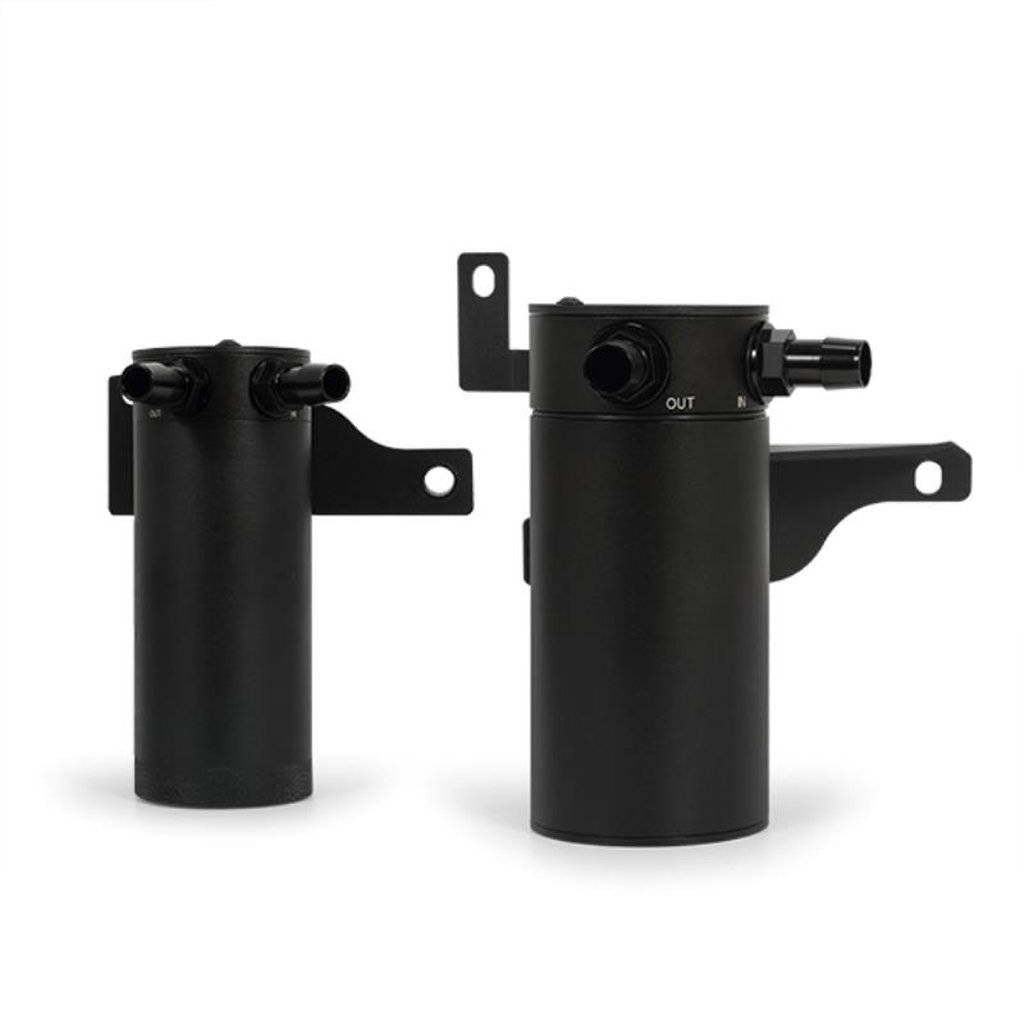

The dual-can setup routes blow-by away from the intake and valves in all driving conditions. The 7.5 fl. oz. and 12 fl. oz. baffled catch cans provide extended service intervals. The powder coated steel bracket is designed for durability, and quick-disconnect fittings simplify installation.

Installation Notes: 22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).

Recommendation: After installation, Mishimoto recommends checking the contents of the baffled catch cans every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.

• Protects intake tract and valves from blow-by and carbon accumulation
• Dual-can setup routes blow-by in all driving conditions
• Baffled catch cans provide extended service intervals
• Powder coated steel bracket and quick-disconnect fittings for easy installation

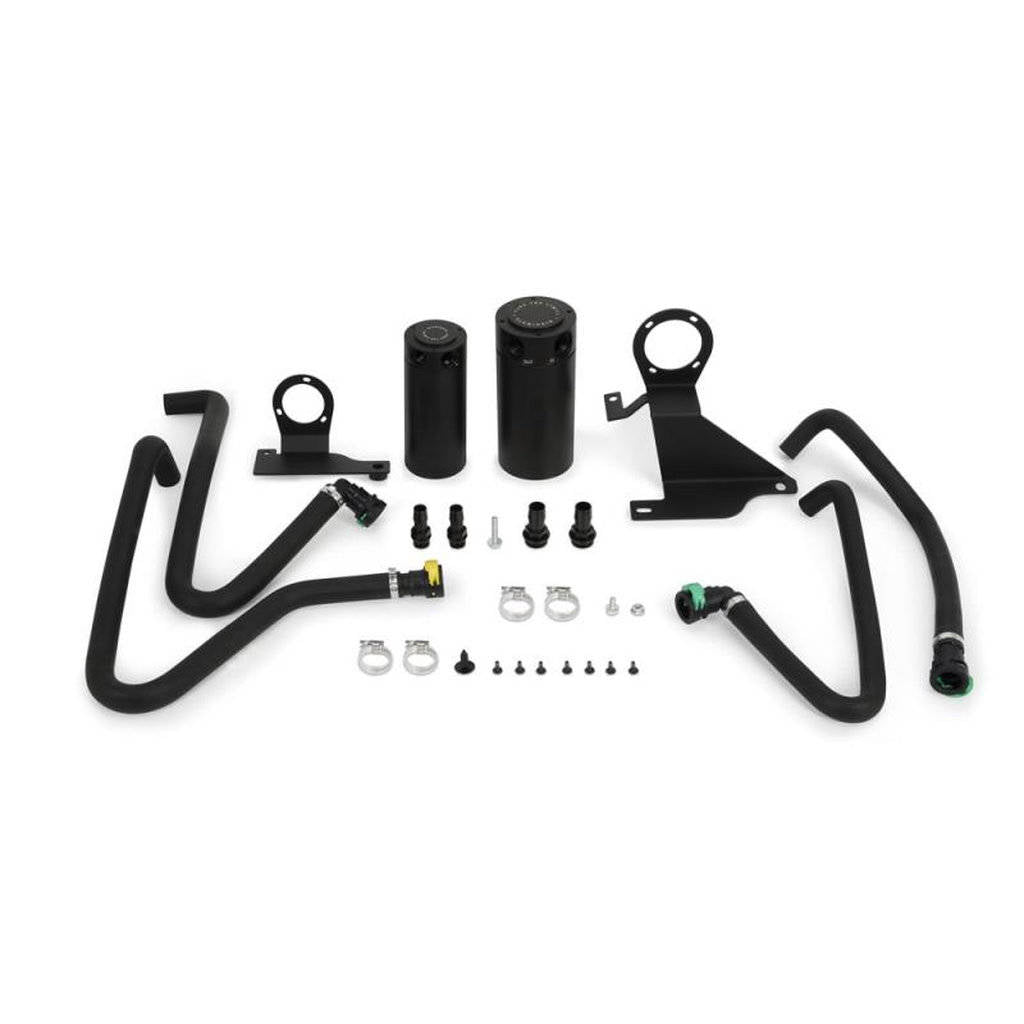

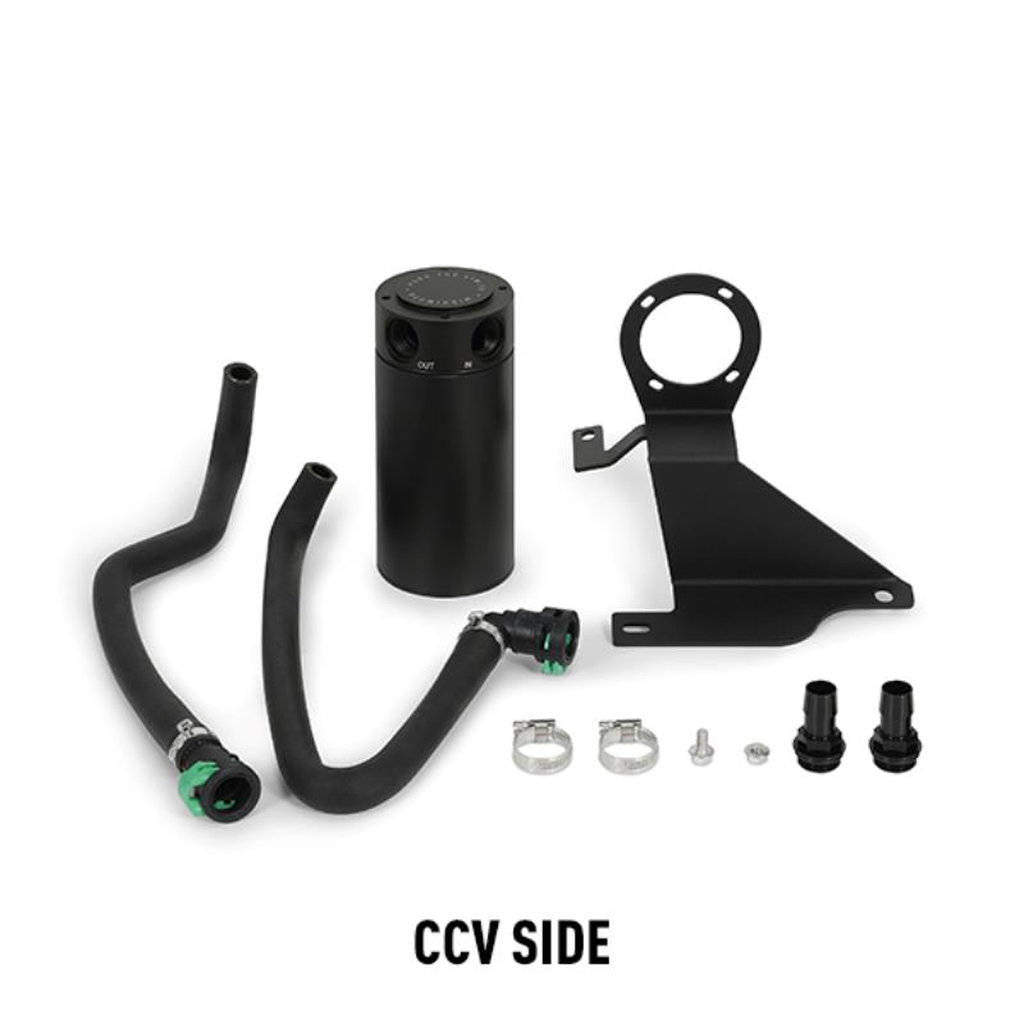

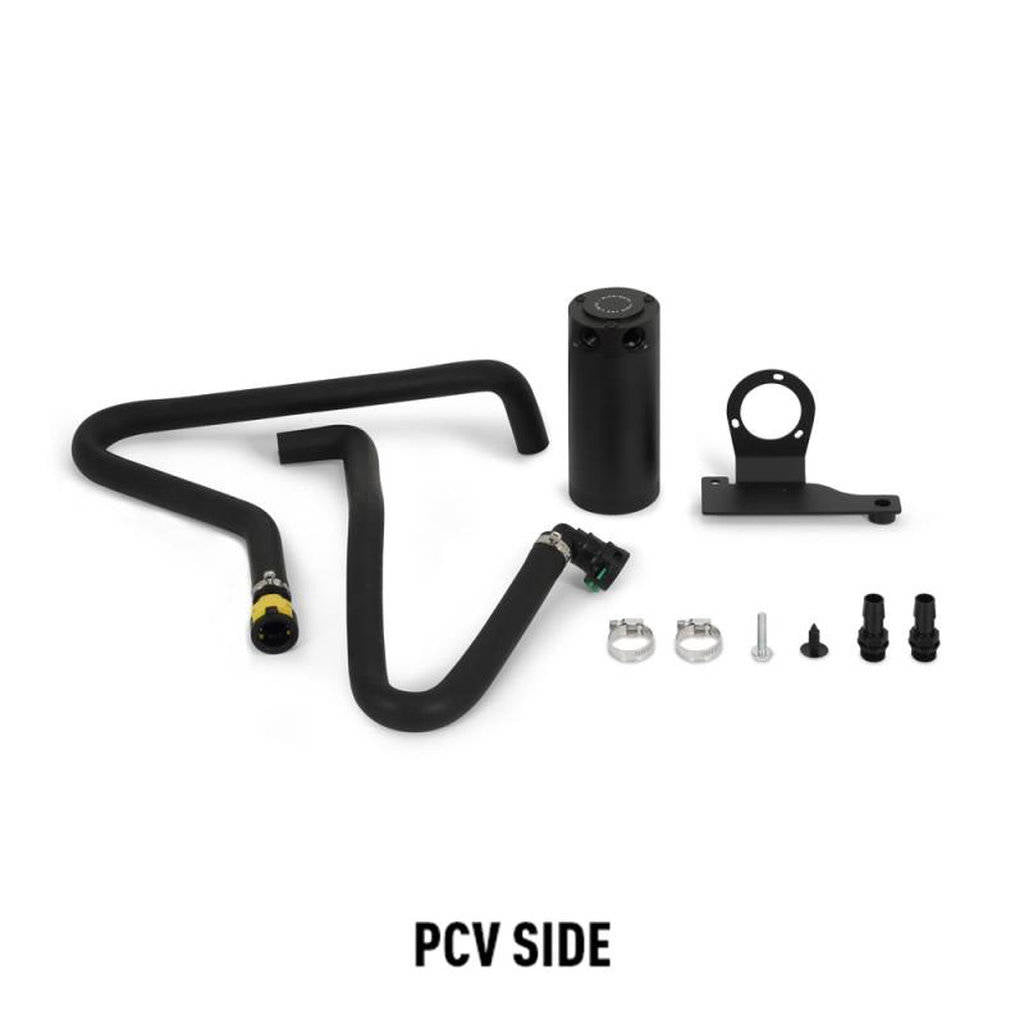

Kit comes with::

• (2) Application-Specific Mounting Brackets

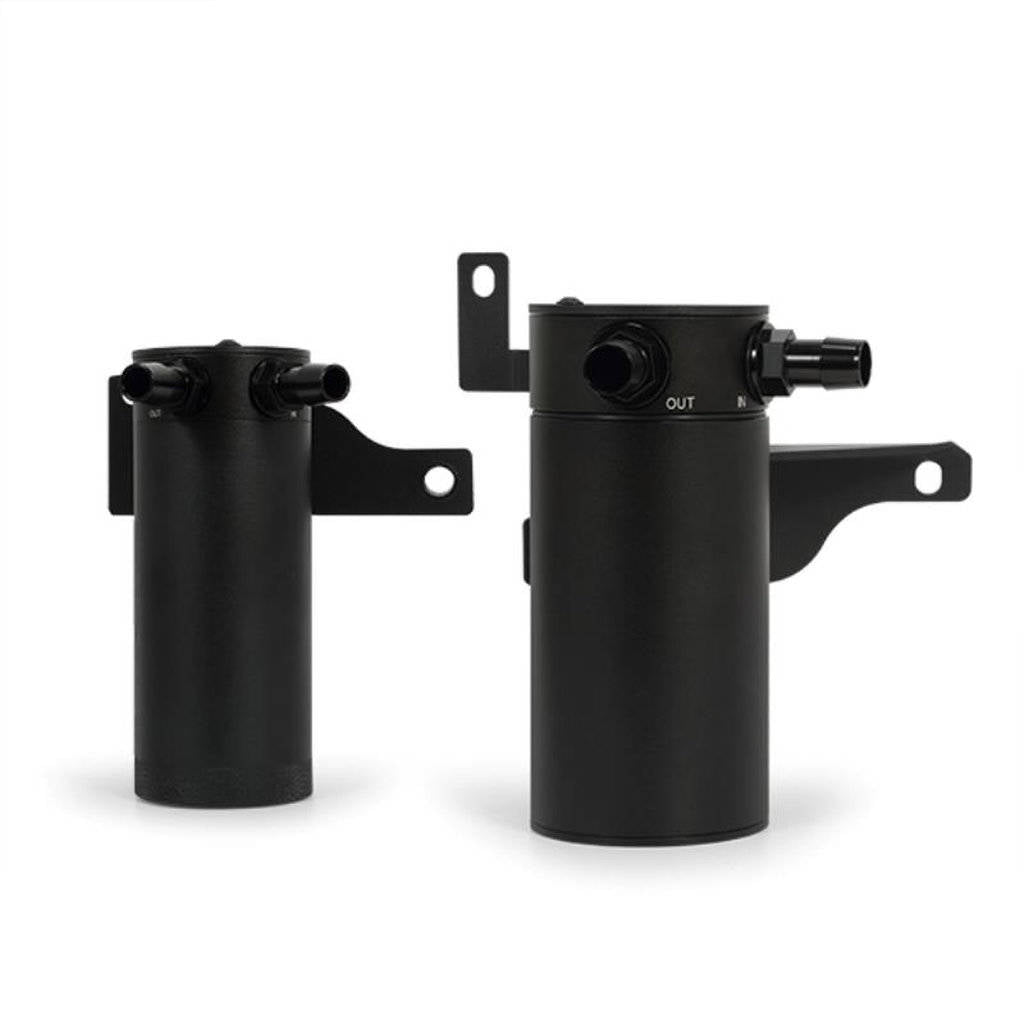

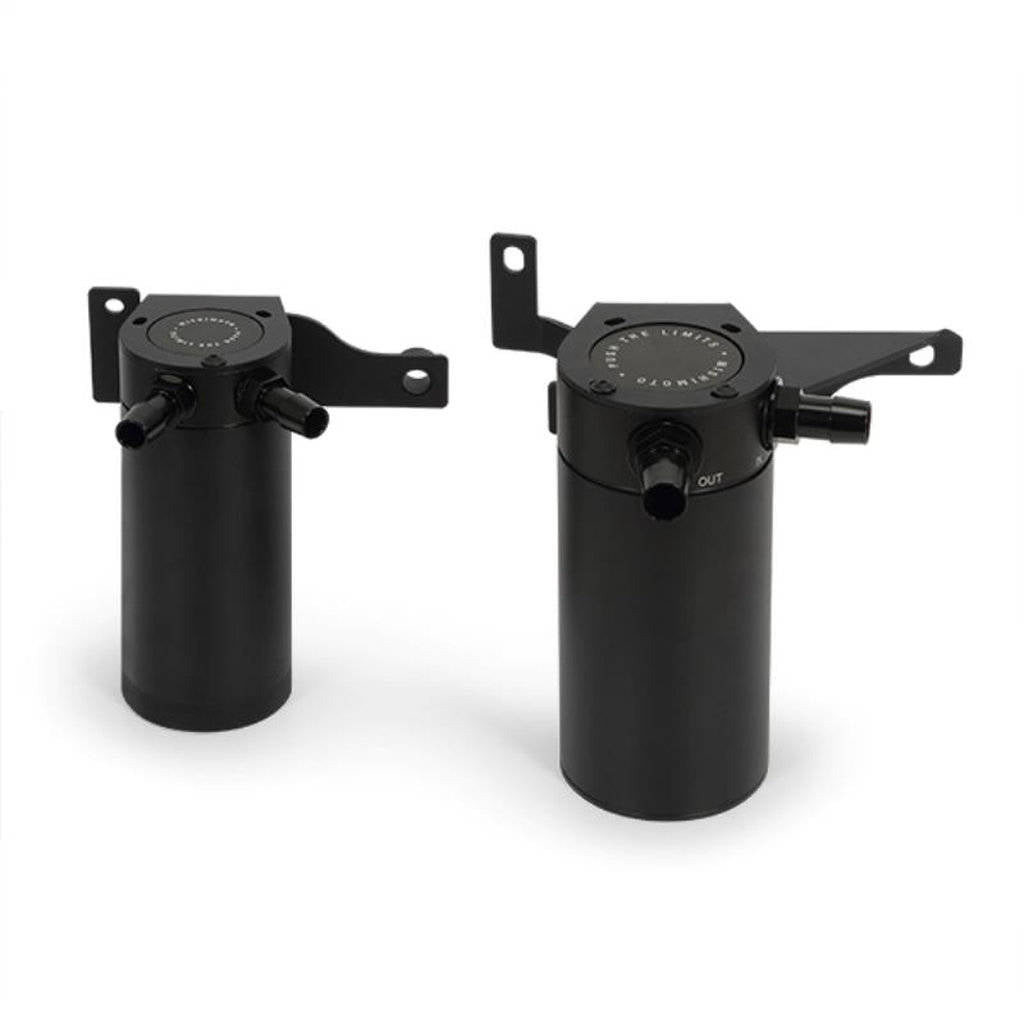

• (1) 12 Fl Oz Black, Anodized 6061 Aluminum Catch Can
• (1) 7.5 Fl Oz Black, Anodized 6061 Aluminum Catch Can

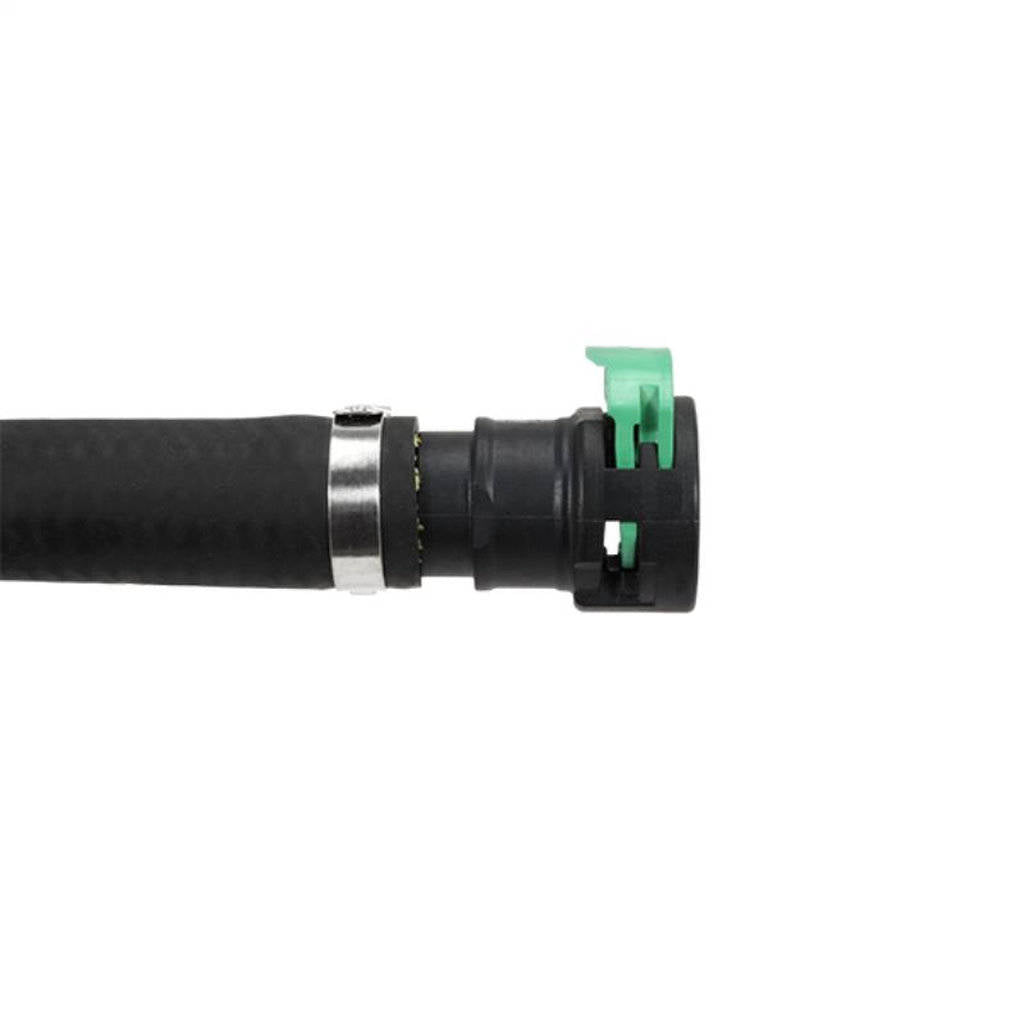

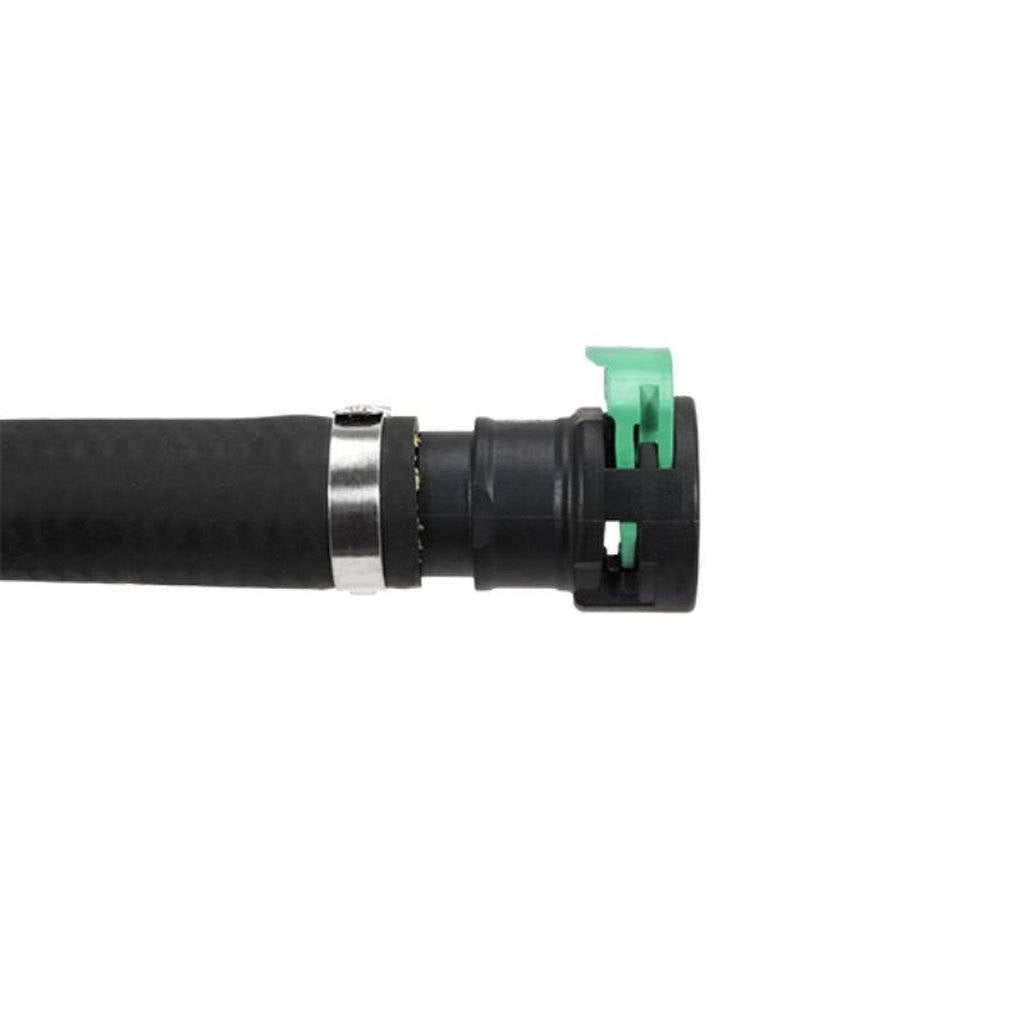

• (4) Direct-Fit Hoses with Pre-Installed Quick-Disconnect Fittings
• (4) CNC-Machined Aluminum Barbed Fittings

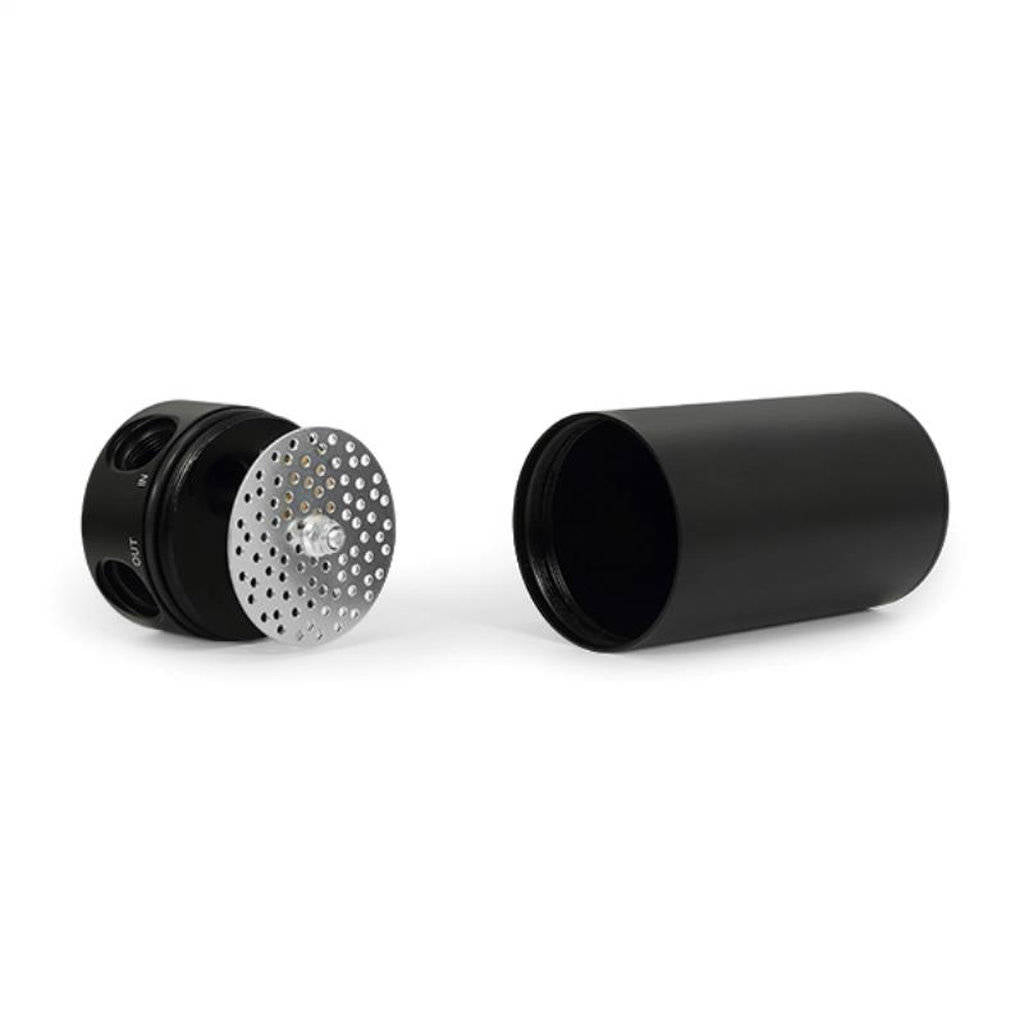

• (2) Bronze Filter
• (2) Air Diverter
• (2) Internal Baffle Rod
• (2) 3/8-in NPT Plug
• (2) Large O-Ring
• (4) Worm Gear Clamps
• Mounting Hardware
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2011-2014 Ford F-150 3.5L EcoBoost
