MISHIMOTO MMBCC-F2D-17BE FORD 6.7L Powerstroke Baffled Oil Catch Can Kit, 2017+

Description MISHIMOTO MMBCC-F2D-17BE FORD 6.7L Powerstroke Baffled Oil Catch Can Kit, 2017+

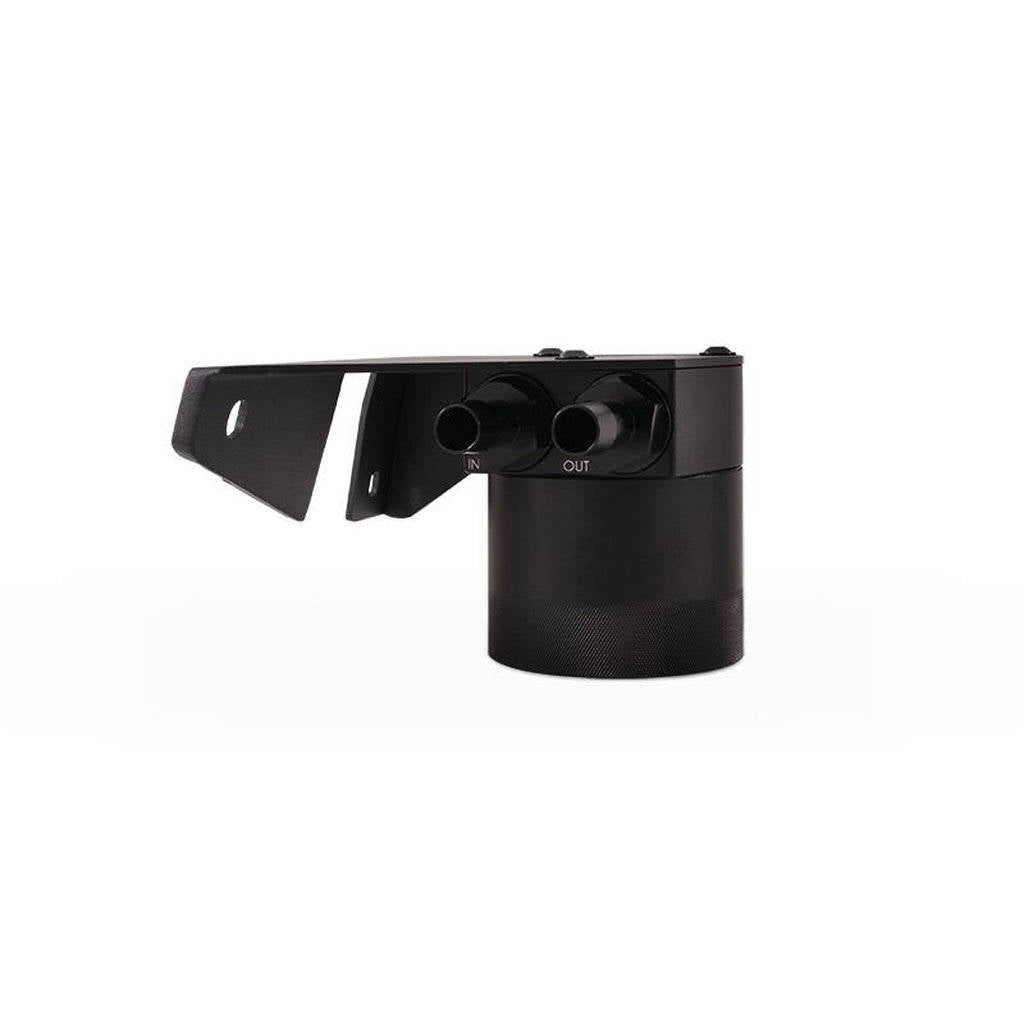

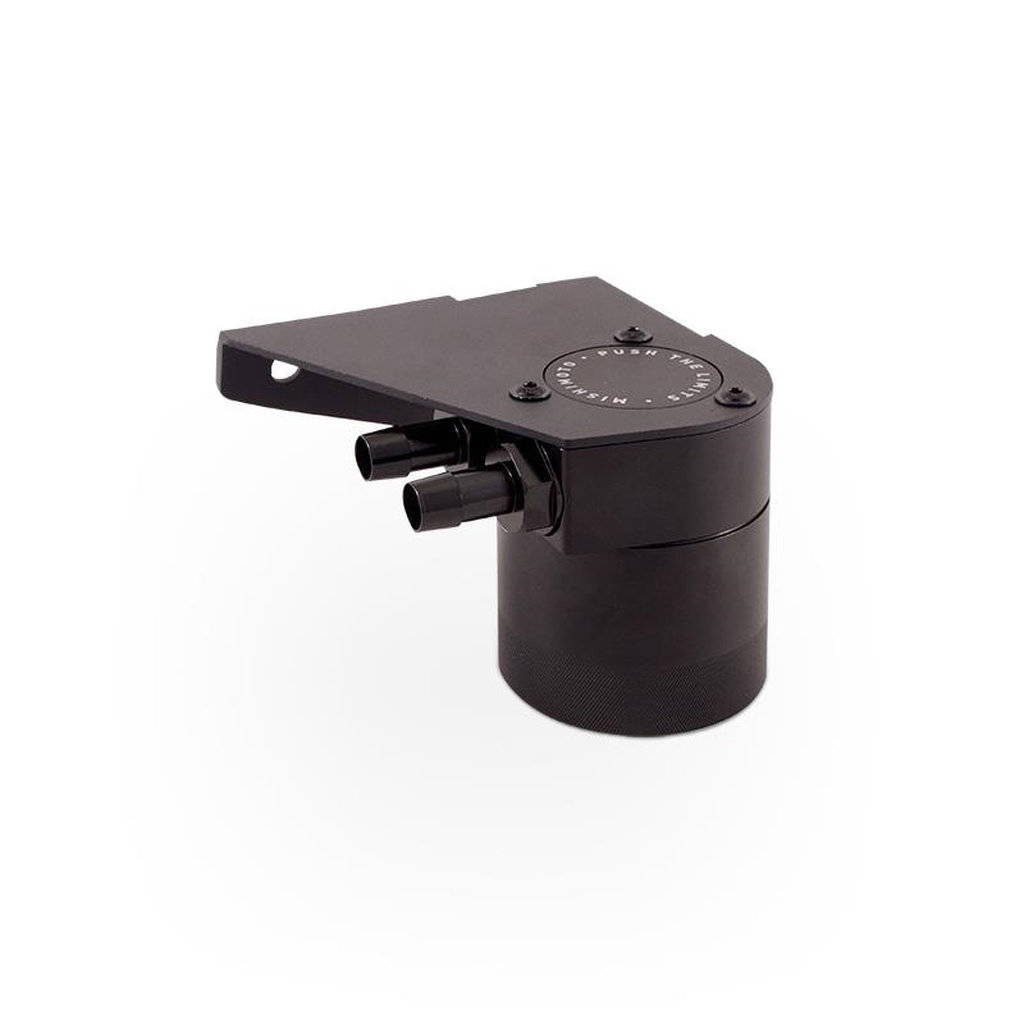

High-output engines require high-flow crankcase ventilation. This high-flow catch can features a high-capacity bottom with a 5.3 fl. oz. capacity. The CNC-machined lid includes large M27 x 2.0 inlets and outlets to allow the crankcase to breathe efficiently.

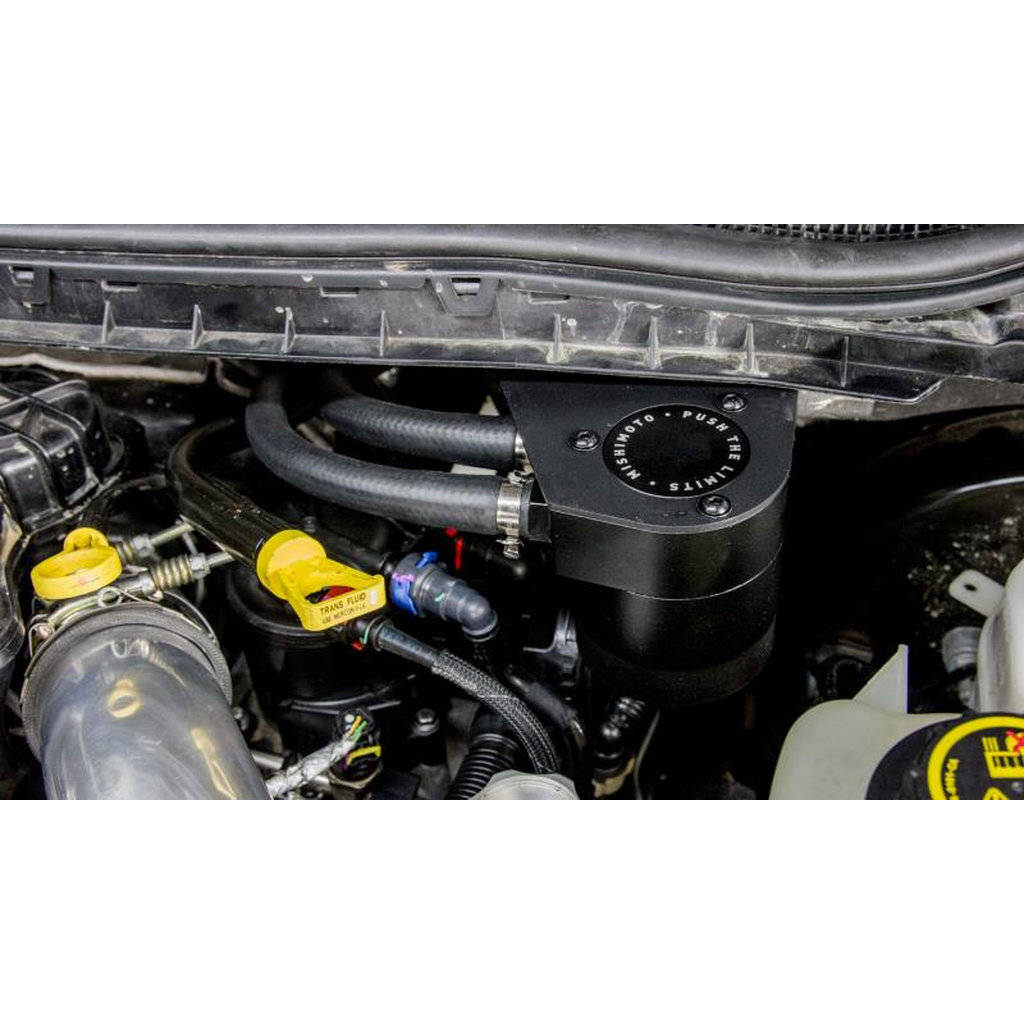

Inside the can, a CNC-machined baffle with an integrated filter permits crankcase gases to flow through while filtering out potentially harmful fuel, oil, and water vapors. The catch can and filter are fully serviceable for easy draining and cleaning. A custom-engineered, 3mm-thick steel bracket is included for direct fitment on 2017-2022 Ford 6.7L Powerstroke models, mounting the can in an accessible location for quick servicing.

The bracket is gusseted and powder-coated black for strength and resistance to the elements. The kit also includes direct-fit hoses and adapters to connect the catch can to the stock CCV breather box and carry blow-by away from the engine.

Installation Notes: 22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).

Note: This catch can kit is designed to work with the stock CCV filter box installed. This kit will not fit with other CCV delete or reroute kits. If the OEM CCV filter box is needed, the part number is: GC4Z-6A785-D.

Recommendation: After installation, check the contents of the baffled catch can every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. Ensure the contents do not rise above the internal baffle.

• High-capacity 5.3 fl. oz. catch can with CNC-machined baffle and integrated filter
• Large M27 x 2.0 inlets and outlets for improved crankcase ventilation
• Custom-engineered, powder-coated steel bracket for direct fitment and durability
• Includes direct-fit hoses and adapters for connection to stock CCV breather box

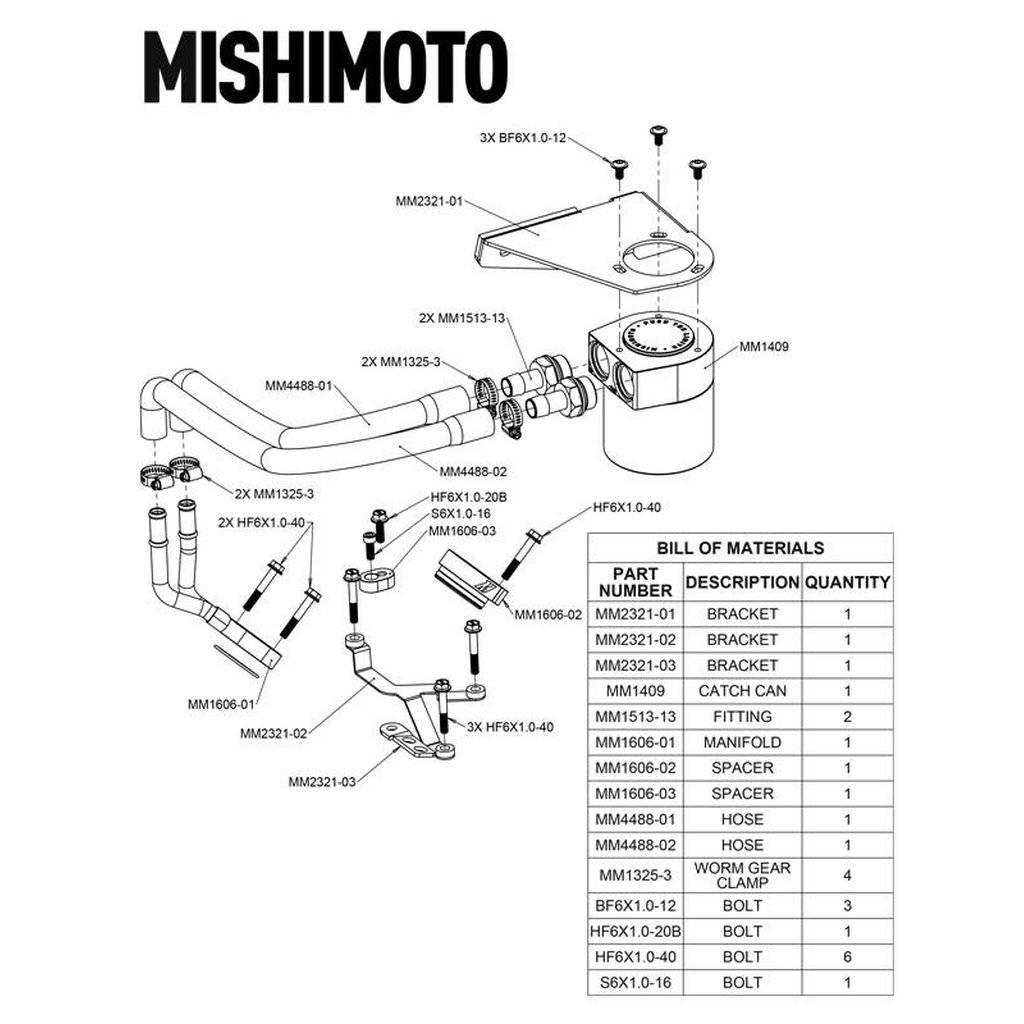

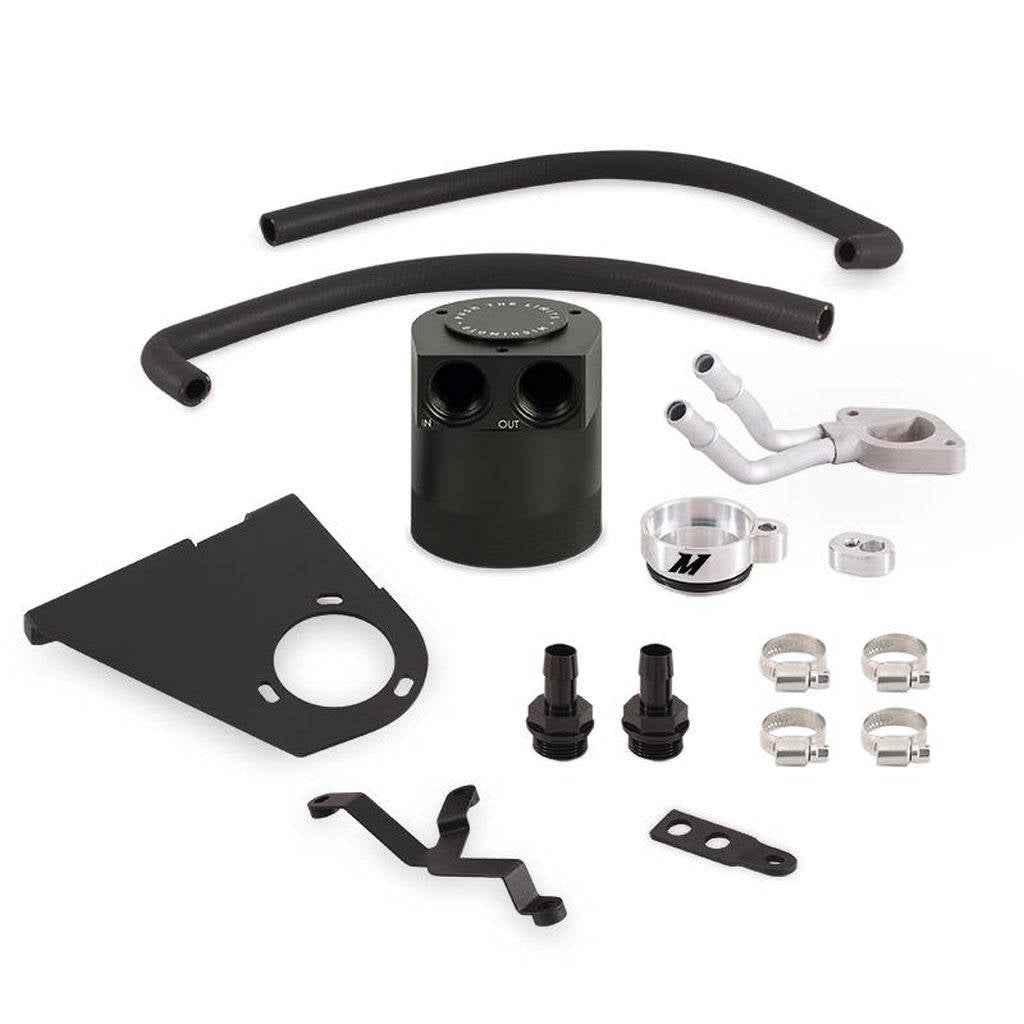

Kit comes with::

• Application-Specific Mounting Bracket
• Fuel Filter Bracket Spacer
• Fuel Line Bracket
• Black, Anodized High-Flow Catch Can
• Direct-Fit Catch Can Hoses (2)

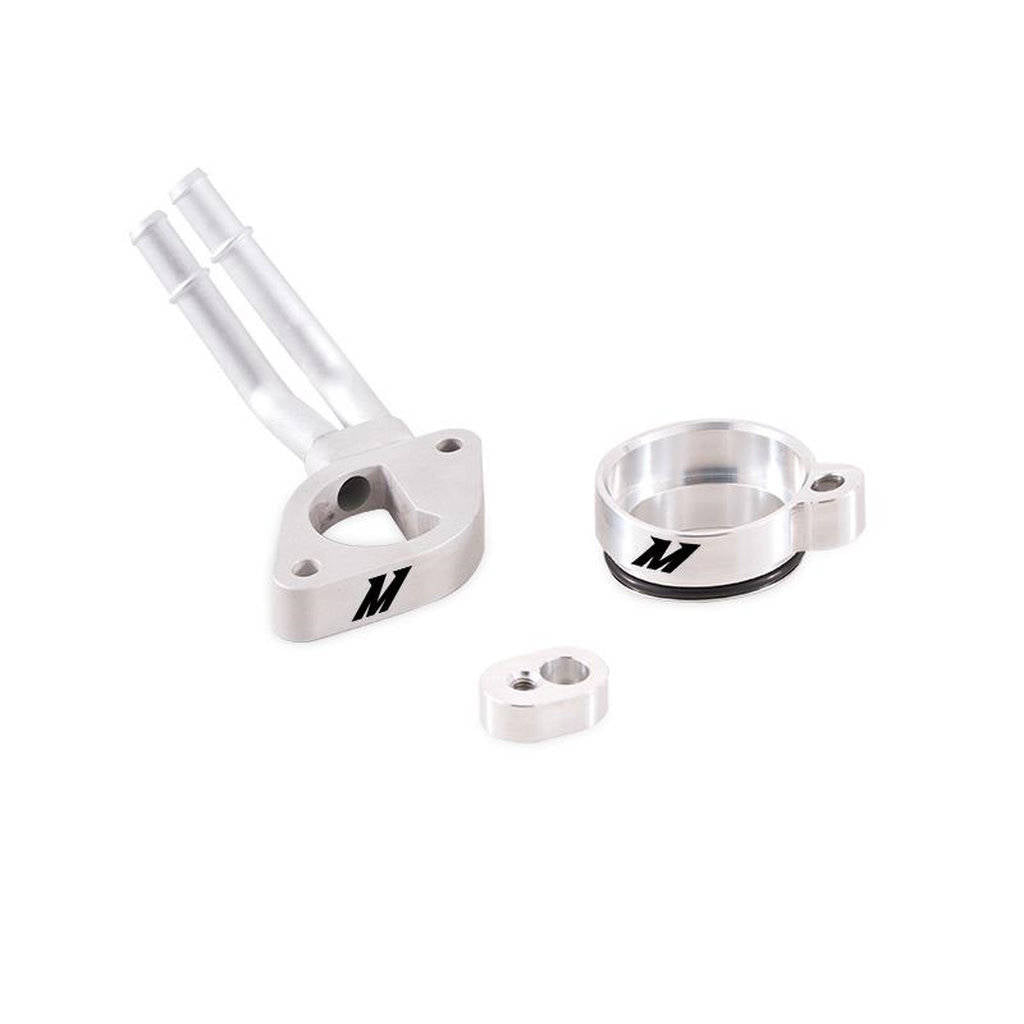

• CNC-Machined CCV Adapters (3)
• CNC-machined Aluminum Barbed Fittings (2)
• High-Quality Worm Gear Clamps (4)
• Baffle with Polyurethane Filter
• 3/8-in NPT Plug
• Large O-Ring
• Mounting Hardware
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2017-2022 Ford F-250 6.7 V8
• 2017-2022 Ford F-350 6.7 V8
• 2017-2022 Ford F-450 6.7 V8
• 2017-2022 Ford F-550 6.7 V8
