MISHIMOTO MMBCC-DRAIN-01 Baffled Oil Catch Can Petcock Drain Kit

Description MISHIMOTO MMBCC-DRAIN-01 Baffled Oil Catch Can Petcock Drain Kit

The Mishimoto Baffled Oil Catch Can Petcock Drain Kit provides a convenient solution for draining accumulated blow-by without removing the bottom half of the catch can. The CNC-machined 6061 aluminum barbed outlet is designed with multiple through holes, allowing retention of the internal baffle, which is essential for proper catch can function.

The kit includes 6 feet of black rubber hose, making it easy to position the black nylon ball valve wherever needed. The 3/8-inch to 3/8-inch hose barb black nylon ball valve and three worm-gear clamps simplify installation and draining. The kit is covered by the Mishimoto Lifetime Warranty.

Installation Notes: 22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).

Note: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends checking all connections at regular intervals, especially during the first few miles after installation.

• Allows draining of Mishimoto Baffled Oil Catch Can without removal
• CNC-machined 6061 aluminum barbed outlet with multiple through holes
• Includes black nylon ball valve for easy draining
• Covered by Mishimoto Lifetime Warranty

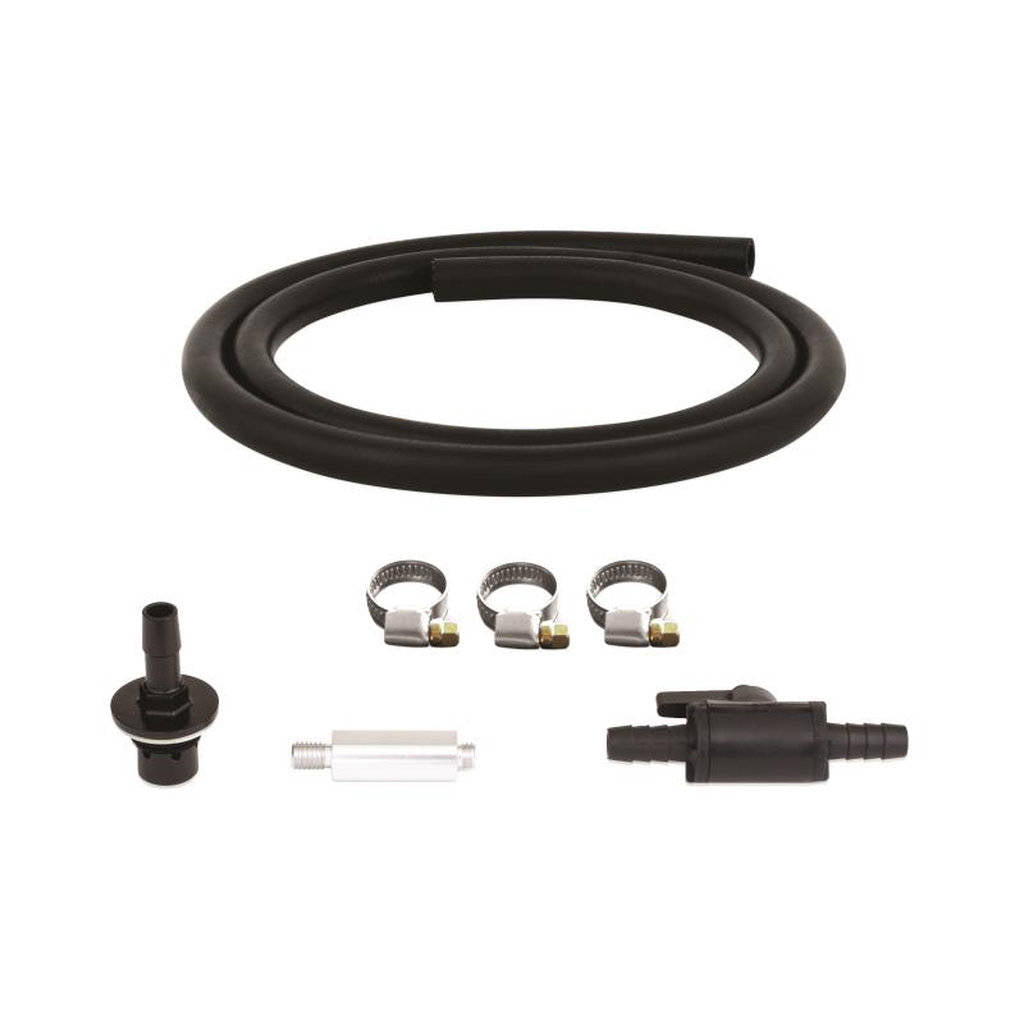

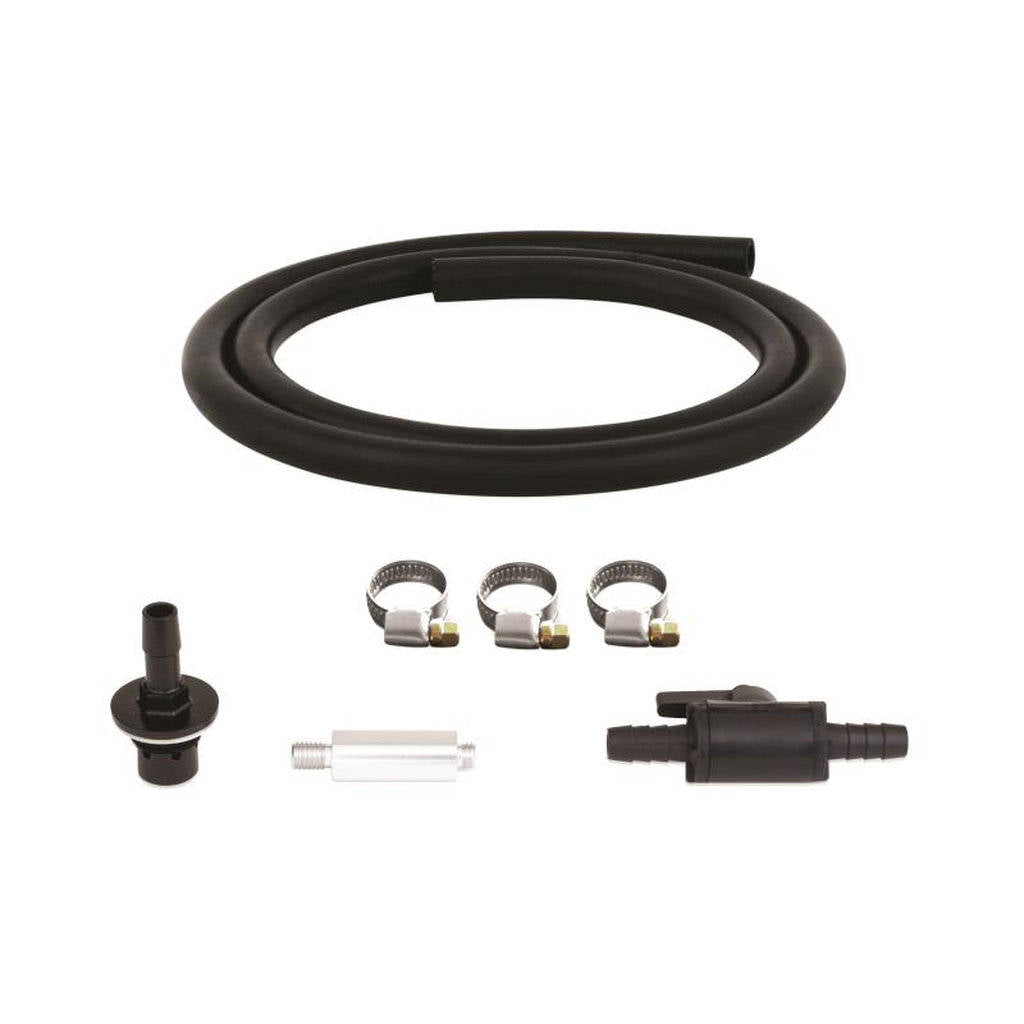

Kit comes with::

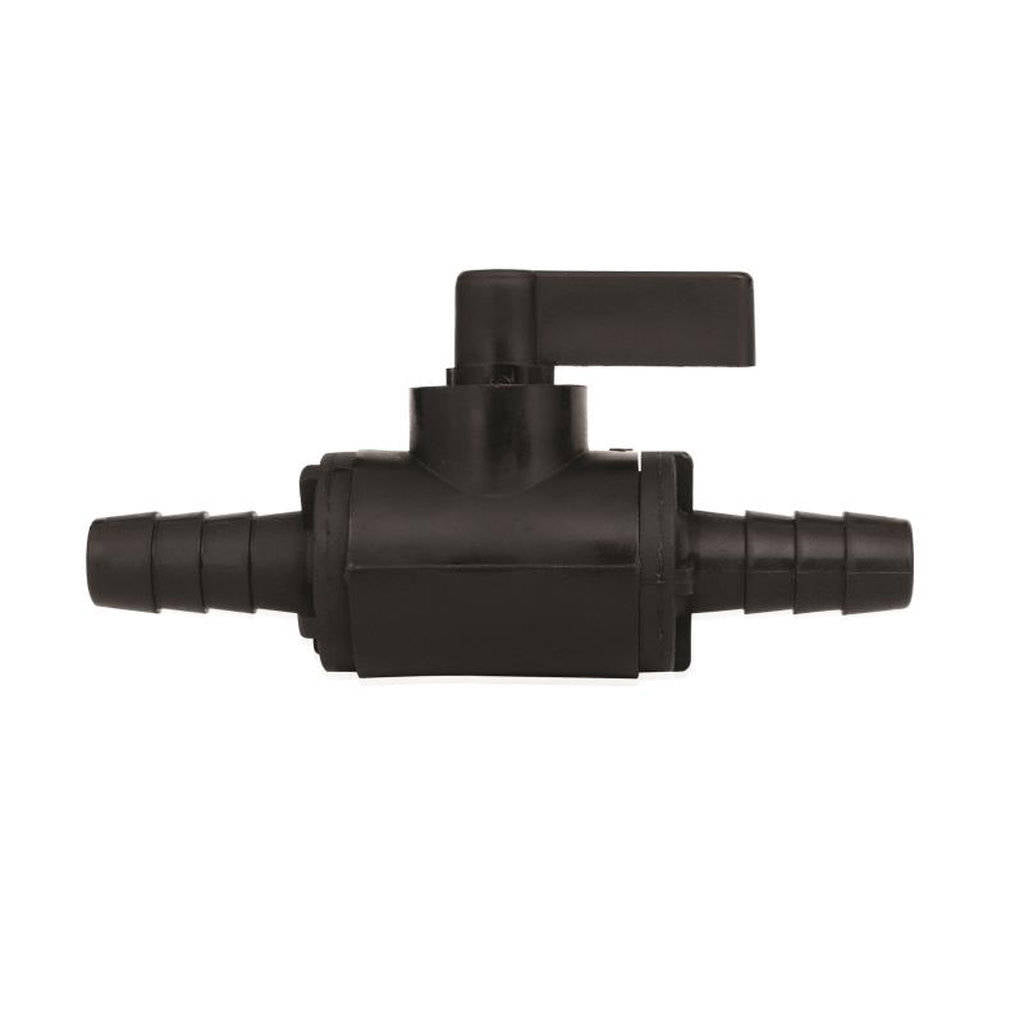

• (1) 3/8-in Hose Barb x 3/8-in Hose Barb Black Nylon Ball Valve
• (1) 6-ft Rubber Hose, 3/8-in I.D.

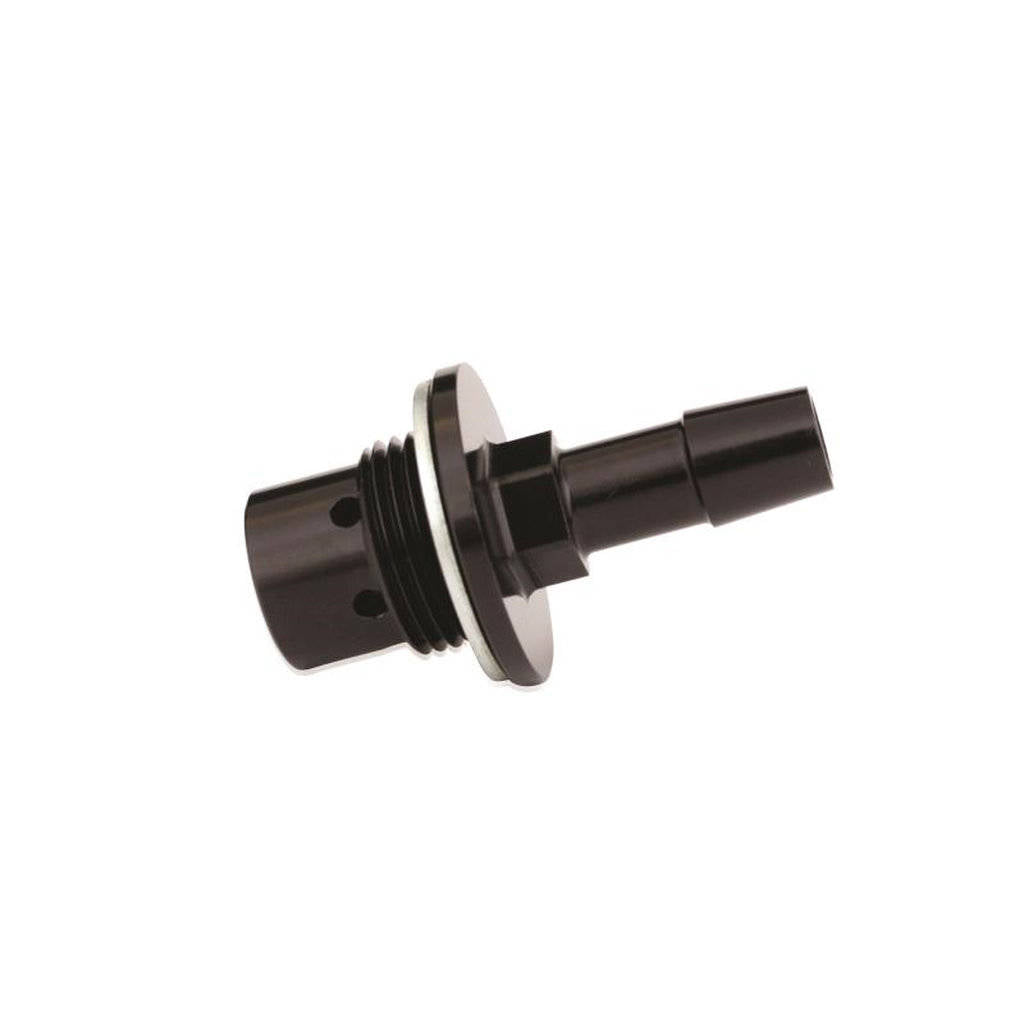

• (1) 6061 Aluminum Drain Plug with 3/8-in Hose Barb
• (1) 6061 Aluminum Baffle Rod
• (3) 12-20mm Worm-gear Clamps
