MISHIMOTO MMBCC-CSS-10PBE CHEVROLETCamaro SS Baffled Oil Catch Can Kit 2010-2015

Description MISHIMOTO MMBCC-CSS-10PBE CHEVROLETCamaro SS Baffled Oil Catch Can Kit 2010-2015

The LS3 engines in the 5th Gen Camaro SS produce over 400 horsepower from eight cylinders. However, these cylinders also generate blow-by, where oil, fuel, and combustion by-products pass the piston rings with each stroke. If left unchecked, this blow-by can enter the intake and reduce engine power and efficiency.

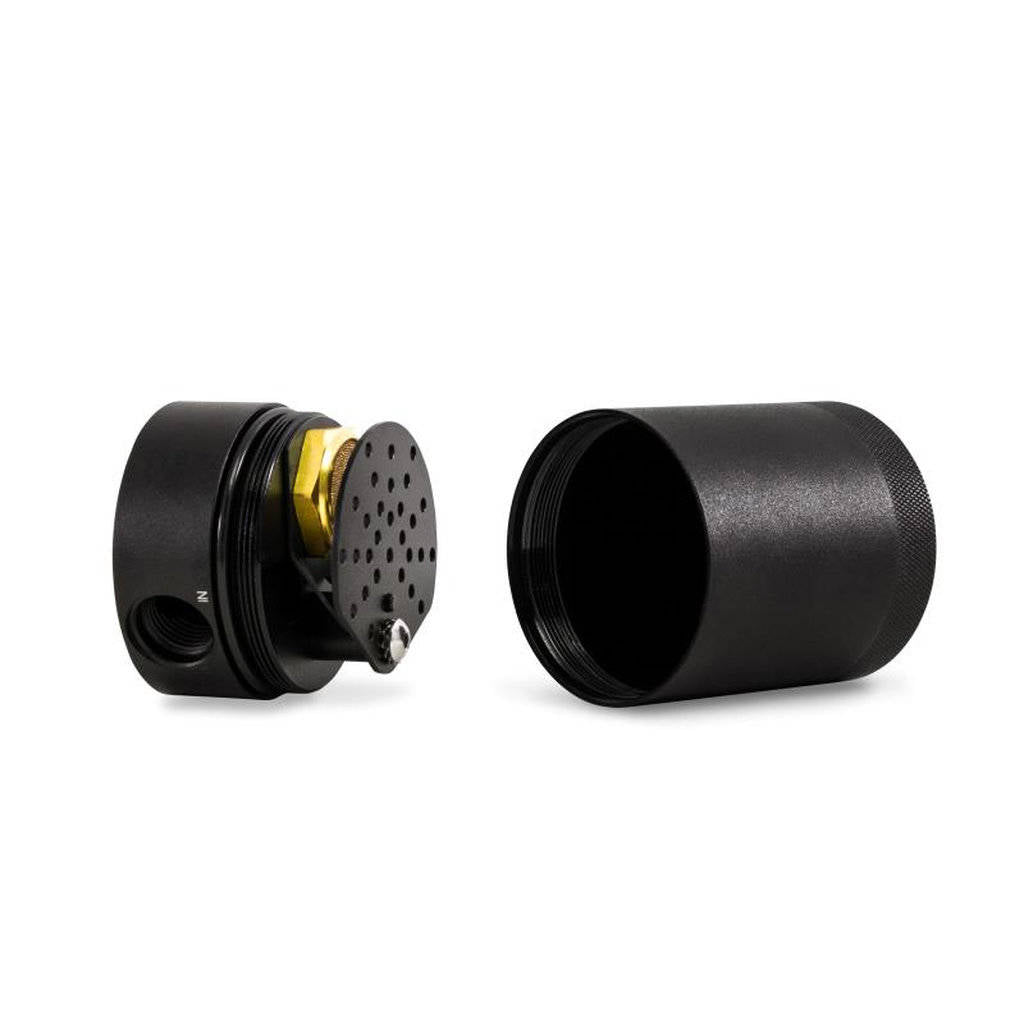

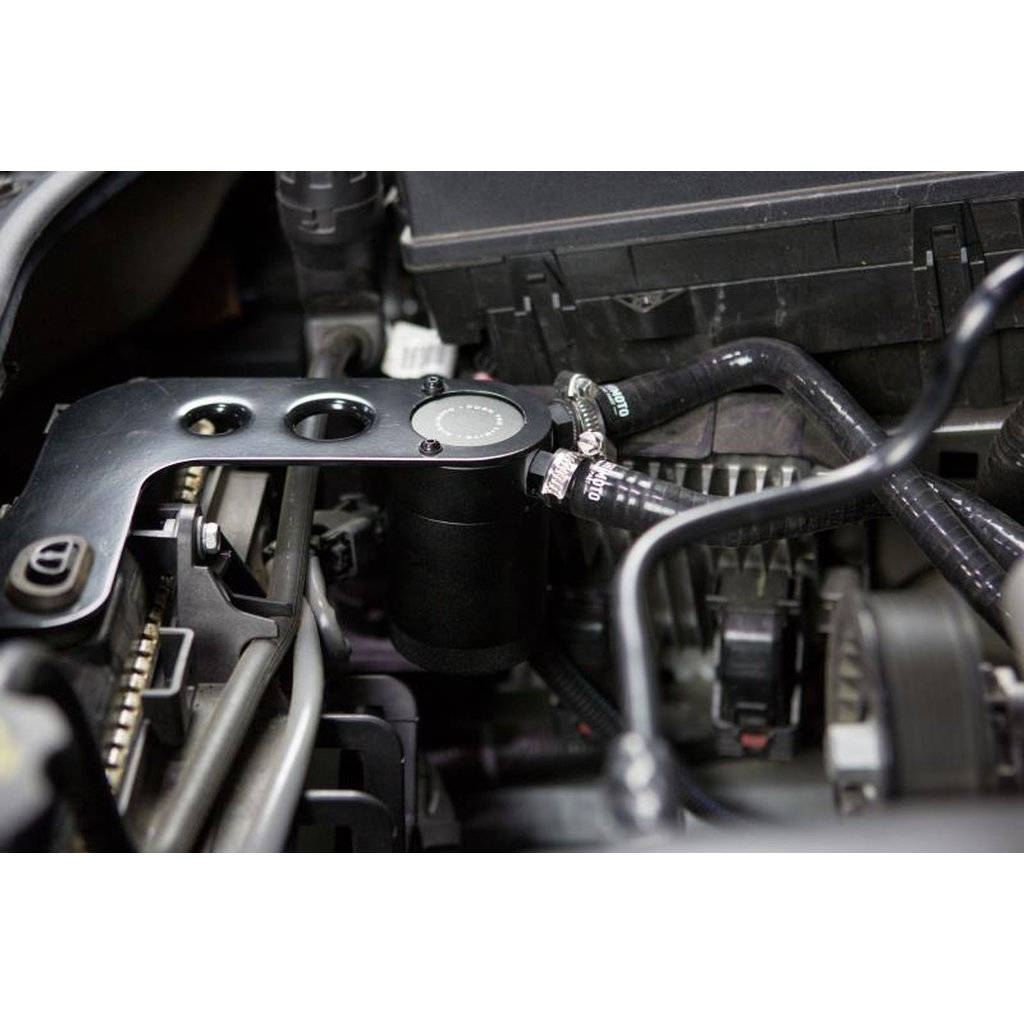

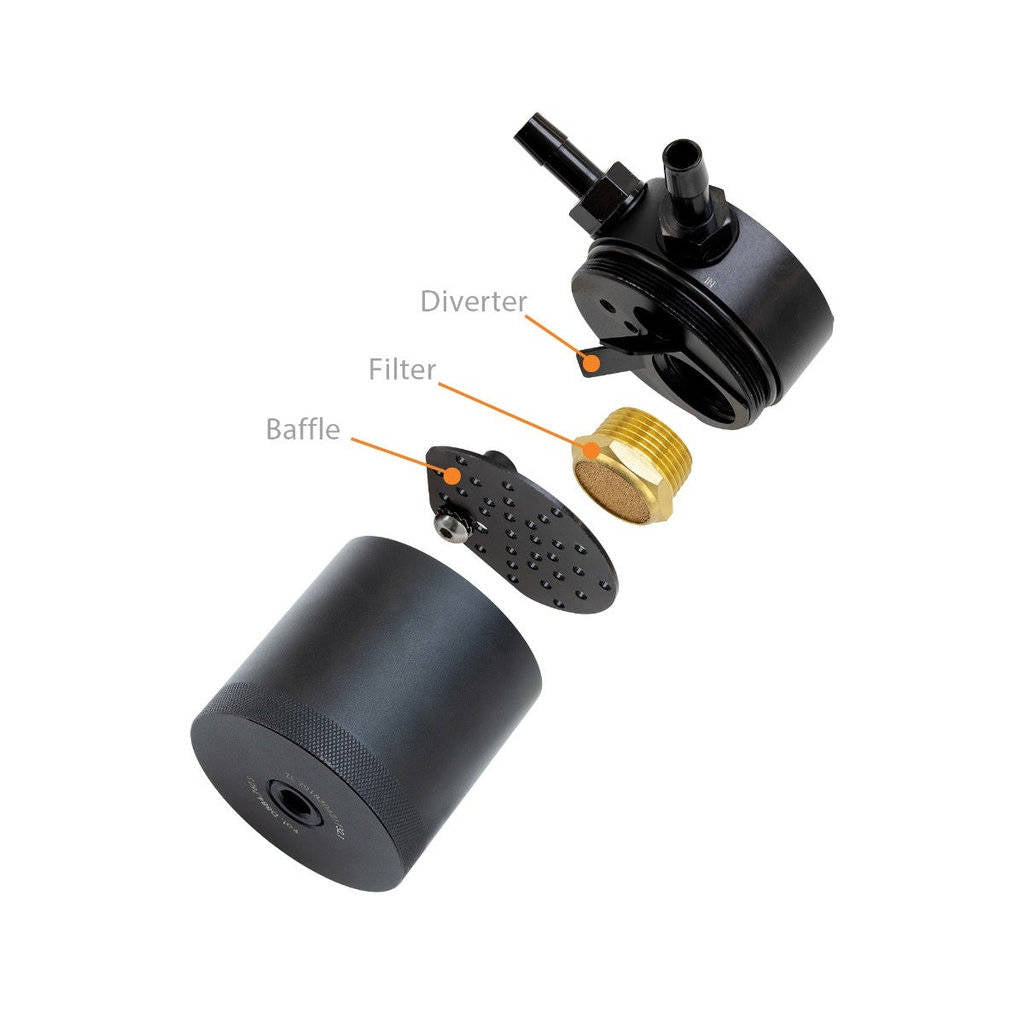

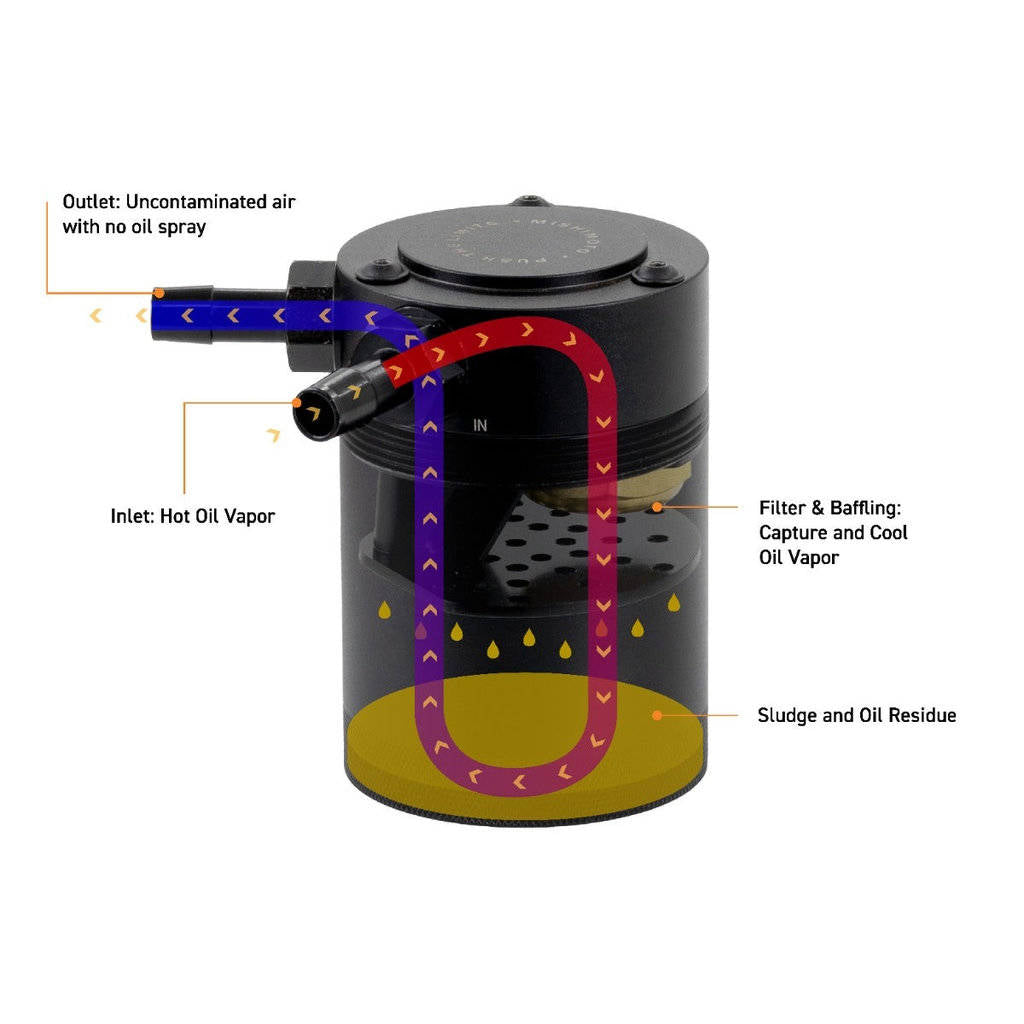

The Mishimoto 2010-15 Camaro SS direct-fit catch can kit is designed to address this issue. The catch can features air diverters and an internal baffle to slow incoming air and condense oil and fuel vapors. A 50-micron bronze filter at the outlet further prevents blow-by from escaping. The catch can mounts using a custom bracket that requires no drilling or cutting, and direct-fit lines with quick-disconnect fittings connect to the factory Chevrolet PCV system for easy installation.

Mishimoto catch cans differ from most air-oil-separator (AOS) systems. They are not heated, allowing all blow-by, including low-octane oil vapors and contaminated fuel vapors, to condense in the can. Unlike most AOS systems that drain blow-by back into the oil pan, Mishimoto catch cans trap blow-by and keep it out of the engine permanently.

Installation Notes: 22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).

Recommendation: After installation, Mishimoto recommends checking the contents of the baffled catch cans every 500 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.

Note: For 2010 and 2011 models, GM part # 22762586 is required for the correct bushing needed for installation.

• Direct-fit catch can kit for 2010-2015 Camaro SS LS3 engines
• Features internal baffle, air diverters, and 50-micron bronze filter

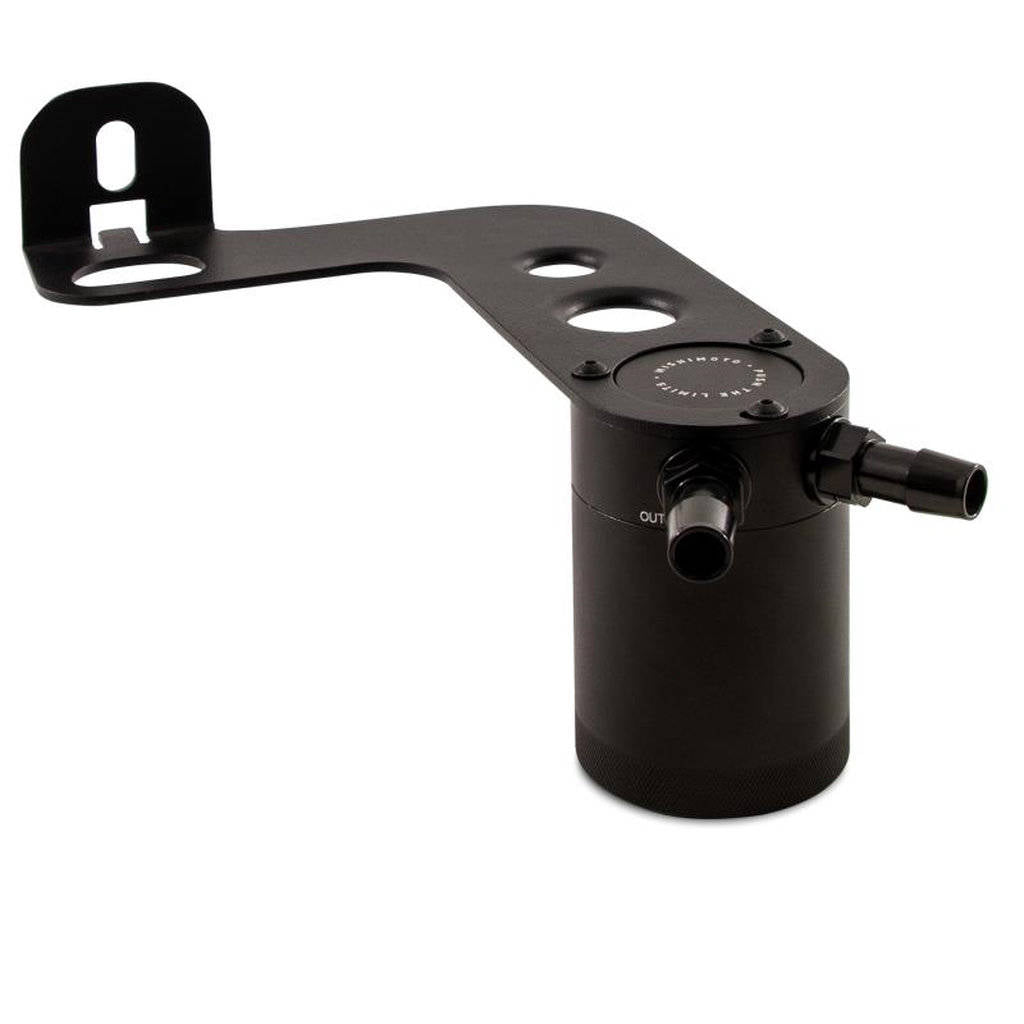

• Custom bracket allows installation with no drilling or cutting
• Direct-fit lines with quick-disconnect fittings for seamless install

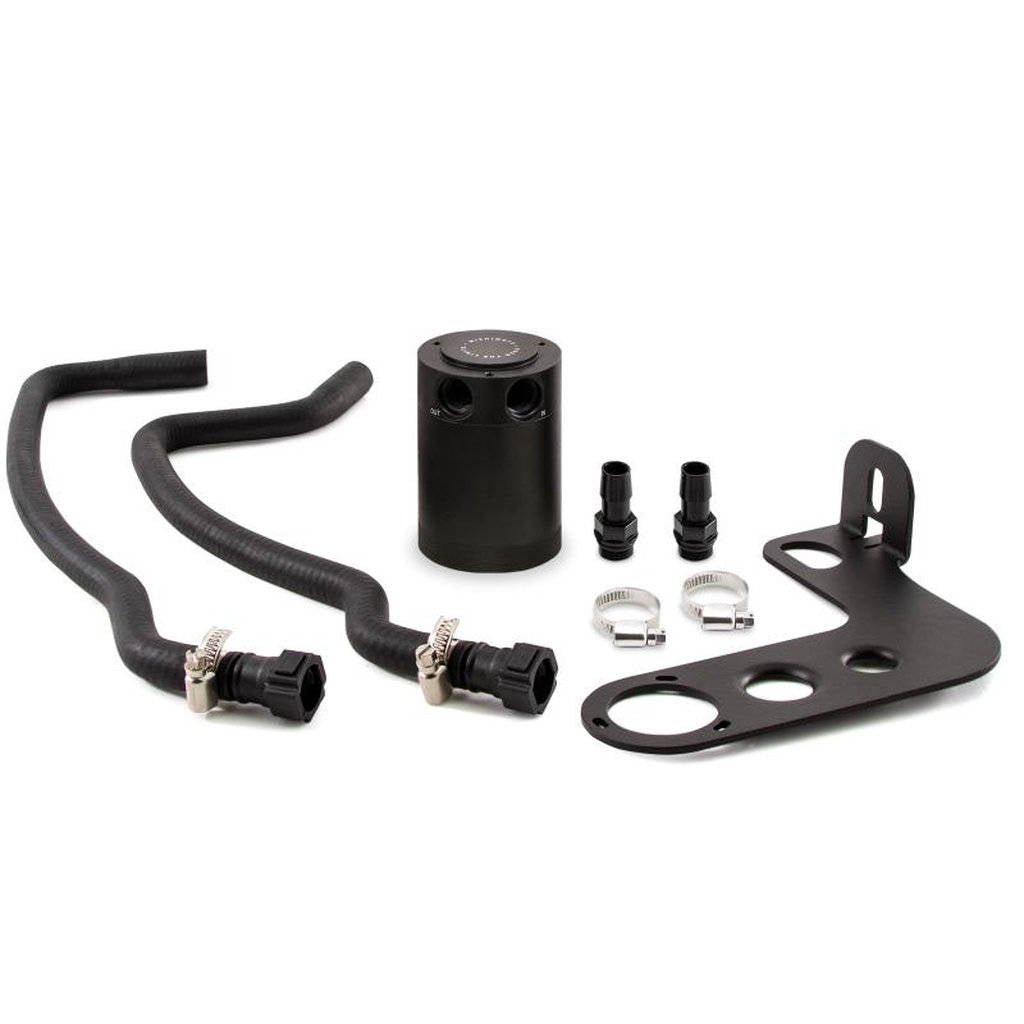

Kit comes with::

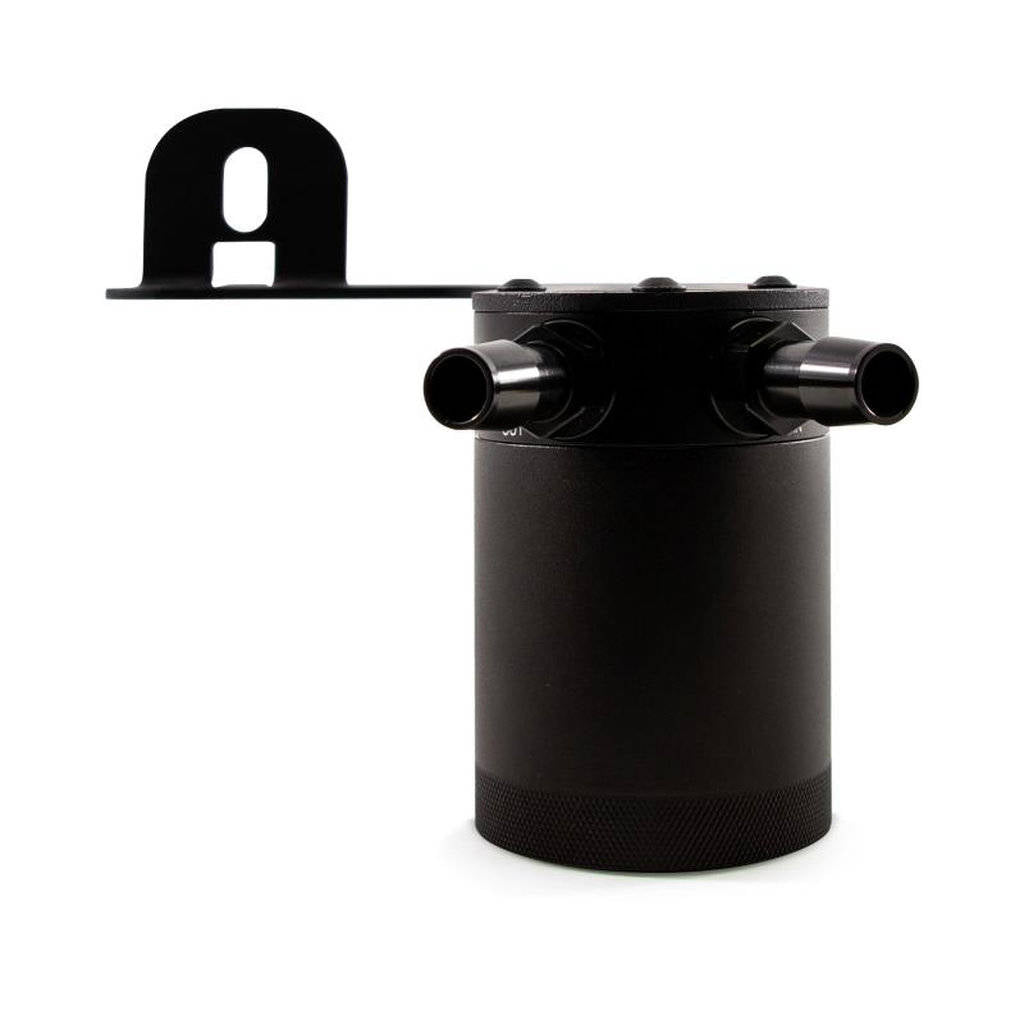

• Compact Baffled Oil Catch Can
• Application-Specific Mounting Bracket
• 2 Direct-Fit Hoses with Pre-Installed Factory Quick-Disconnect Fittings
• 2 1/2-in Aluminum Barbed Fittings
• 2 Worm Gear Clamps
• Mounting Hardware
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2010-2015 Chevrolet Camaro SS, manual transmission (Engine Code: LS3; Chassis Code: Zeta)
